INFINITI M35 2006 Factory Owner's Manual
Manufacturer: INFINITI, Model Year: 2006, Model line: M35, Model: INFINITI M35 2006Pages: 5621, PDF Size: 65.56 MB
Page 21 of 5621
ACS-12
[ICC]
ACTION TEST
Revision: 2006 January2006 M35/M45
Check For Increase Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed increases by 1 MPH (1.6 km/h for CANADA models) as RESUME/ACCELERATE
switch is pushed up.
NOTE:
If the RESUME/ACCELERATE switch is kept pushing up during cruise control driving, the vehicle speed
increases until the switch is released.
The maximum set speed is 90 MPH (144 km/h for CANADA models).
Check For Decrease Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed decreases by 1 MPH (1.6 km/h for CANADA models) as SET/COAST switch is
pushed down.
NOTE:
Conventional (fixed speed) cruise control mode is automatically cancelled when the driving speed lowers
to 20 MPH (32 km/h for CANADA models).
The lowest set speed is 25 MPH (40 km/h for CANADA models).
Check For Cancellation Of Conventional (Fixed Speed) Cruise Control Mode (Normal Driving
Condition) In The Following Cases:
Refer to ACS-10, "Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Con-
dition) In The Following Cases:" .
Check For Restoring Speed That Is Set By Conventional (Fixed Speed) Cruise Control Mode
Before ICC Cancellation
Refer to ACS-10, "Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode
Before Cancellation" .
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per-
formed correctly.
2. “CRUISE” lamp illuminates and dot matrix LCD goes off when
MAIN switch is pressed “ON” for more than 1.5 seconds, and
then ready for operation. The illumination goes off when MAIN
switch is turned to OFF.
3. “CRUISE” illumination go off when the ignition switch is turned to
OFF while MAIN switch is ON.
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if switches come up as hand is released from the switches.
PKIB5342J
Page 22 of 5621
LASER BEAM AIMING ADJUSTMENT
ACS-13
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
LASER BEAM AIMING ADJUSTMENTPFP:00026
OutlineNKS004CM
Adjust the laser beam aiming every time the ICC sensor integrated unit is removed or installed.
CAUTION:
Adjust laser beam aiming at a horizontal place as far as 12 m (39 ft) forward the vehicle can be
seen.
Adjust laser beam aiming 5 seconds after starting engine.
Never view ICC sensor integrated unit body window directly during laser beam aiming adjustment.
Follow the CONSULT-II when adjusting the laser beam aiming (laser beam aiming adjustment can-
not be operated without CONSULT-II).
Never ride on vehicle during laser beam aiming adjustment.
Idle and turn headlamps OFF during laser beam aiming adjustment.
PreparationNKS004CN
Adjust the tire pressure to the specified value.
See that there is no load in the vehicle.
Coolant, engine oil filled up to correct level and full fuel tank.
Shift the gear into “P” position and release the parking brake.
Clean the ICC sensor integrated unit with a soft cloth.
Remove the front bumper grille. Refer to EI-13, "Removal and
Installation of Front Bumper Grille" .
Outline of Adjustment ProcedureNKS004CO
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSULT-II. (Turn manually the screw for up-down position
adjustment. ICC sensor integrated unit automatically adjust the right-left position.)
Setting the ICC Target BoardNKS004CP
Accurate ICC target board setting is required for the laser beam aiming adjustment.
CAUTION:
ICC system does not function normally if laser beam aiming is not accurate.
ADJUSTING HEIGHT OF THE TARGET
1. Attach a triangle scale at 28 mm (1.10 in) below the center.
PKIB8350E
PKIB8351E
Page 23 of 5621
ACS-14
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 January2006 M35/M45
2. Adjust the height of the target board with aligning the upside tip
of the triangle scale with the center of laser beam axis.
NOTE:
The center of laser beam axis is located at 92 mm (3.62 in) from
the right edge and 22 mm (0.87 in) from the top of the ICC sen-
sor integrated unit from a front view of vehicle.
ADJUSTING THE RIGHT-LEFT POSITION OF THE TARGET
1. Attach a scale [at least 350 mm (14 in) or longer] or stick as
shown in the figure.
2. Suspend a thread with weight on the tip of the thread to 266 mm
(10.47 in) right side of the target board from the center of the
target board on top.
SETTING THE TARGET
1. Suspend a thread with weight on tip to splice the center of the front and rear bumpers. Then, mark the
center point on the ground as each weight points.
2. Link the front and rear bumpers center points marked on the ground, and mark a point 3.9 m (12.8 ft)
ahead of the front bumper, on the extended line of the previous link line of the bumper center points.
Then, adjust the position of the target board so that the weight come on the top of the marked point [3.9 m
(12.8 ft) ahead of the front bumper] and face to the vehicle.
PKIB4486J
PKIB8352E
PKIB8353E
PKIB8354E
Page 24 of 5621
LASER BEAM AIMING ADJUSTMENT
ACS-15
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
3. Adjust the position of the target board so that the extended line
that links the center of the rear window glass (the center of the
rear window defogger pattern) and the center of the windshield
(the setting part of the room mirror) align with the weight sus-
pended from the board.
4. Remove the thread suspended to the right side of board and
suspend a thread with weight on tip on the center of the target
board. Then mark the point of weight on the ground.
5. Pivot the edge of the target board 25
to either side.
NOTE:
Approx. 90 mm (3.54 in) shift rates the 25
movement.
NOTE:
The distance between center of laser beam axis and target board is 4 m (13 ft).
6. Do not place anything in the space shown in the figure (view from top).
NOTE:
In case the space shown in the figure is not available, make a space by covering the side of the target
board with a 1400 mm (4.6 ft)-size frosted black board or black cloth.
PKIB8355E
PKIB8356E
PKIB8357E
PKIB8358E
Page 25 of 5621
ACS-16
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 January2006 M35/M45
Aiming AdjustmentNKS004CQ
CAUTION:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown
in the procedure. If the procedure does not complete, the ICC system is inoperable.
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Start engine, wait for at least 10 seconds, and touch “START
(NISSAN BASED VHCL)”.
4. Touch “ICC”.
If “ICC” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “WORK SUPPORT”.
SKIB3794E
BCIA0029E
BCIA0030E
BCIA0031E
Page 26 of 5621
LASER BEAM AIMING ADJUSTMENT
ACS-17
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
6. Touch “LASER BEAM ADJUST”.
7. Touch “START”.
CAUTION:
If the adjustment screen does not appear on the CONSULT-
II screen in 10 seconds. After touching “LASER BEAM
ADJUST” screen, the following causes may be considered:
Target is not set accurately.
There is not enough space beside the target.
The range of laser beam aiming exceeds for improper
installation position.
–Deformation of vehicle body.
–Deformation of unit.
–Deformation of bracket.
The area is not suitable for the adjustment work.
ICC sensor integrated unit is not clean.
8. After the CONSULT-II displays “ADJUST THE VERTICAL OF
LASER BEAM AIMING” turn the up-down direction adjusting
screw until “U/D CORRECT” value is set in the range of
4.
CAUTION:
Turn the screw slowly. The value change on display is
slower than actual movement of the ICC sensor integrated
unit. Wait for 2 seconds every time the screw is turned half
a rotation.
NOTE:
Turning the screw clockwise to laser beam is downward and
counterclockwise to laser beam is upward.
9. When “U/D CORRECT” value indicates
4, confirm that the margin of value remains within 4 at least for
2 seconds with no equipment or hand touching the ICC sensor integrated unit.
SKIA6191E
PKIB8359E
PKIB8360E
PKIB8361E
Page 27 of 5621
ACS-18
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 January2006 M35/M45
When “COMPLETED THE VERTICAL AIMING OF LASER
BEAM” appears on screen, touch “END”.
CAUTION:
Be sure that the margin of “U/D CORRECT” is within
4 with
ICC sensor integrated unit is untouched.
10. Confirm that “ADJUSTING AUTOMATIC HORIZONTAL LASER
BEAM AIMING” is on screen and wait for a while (maximum: 10
seconds).
11. Confirm that “NORMALLY COMPLETED” is displayed on CON-
SULT-II and close the aiming adjustment procedure by touching
“END”.
CAUTION:
Complete all the procedures once “LASER BEAM ADJUST”
mode is entered in CONSULT-II. When the procedure is dis-
continued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by ICC system running test. Refer to ACS-10, "ICC System Running Test" .
PKIB8362E
PKIB8363E
PKIB8364E
Page 28 of 5621
ELECTRICAL UNITS LOCATION
ACS-19
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45

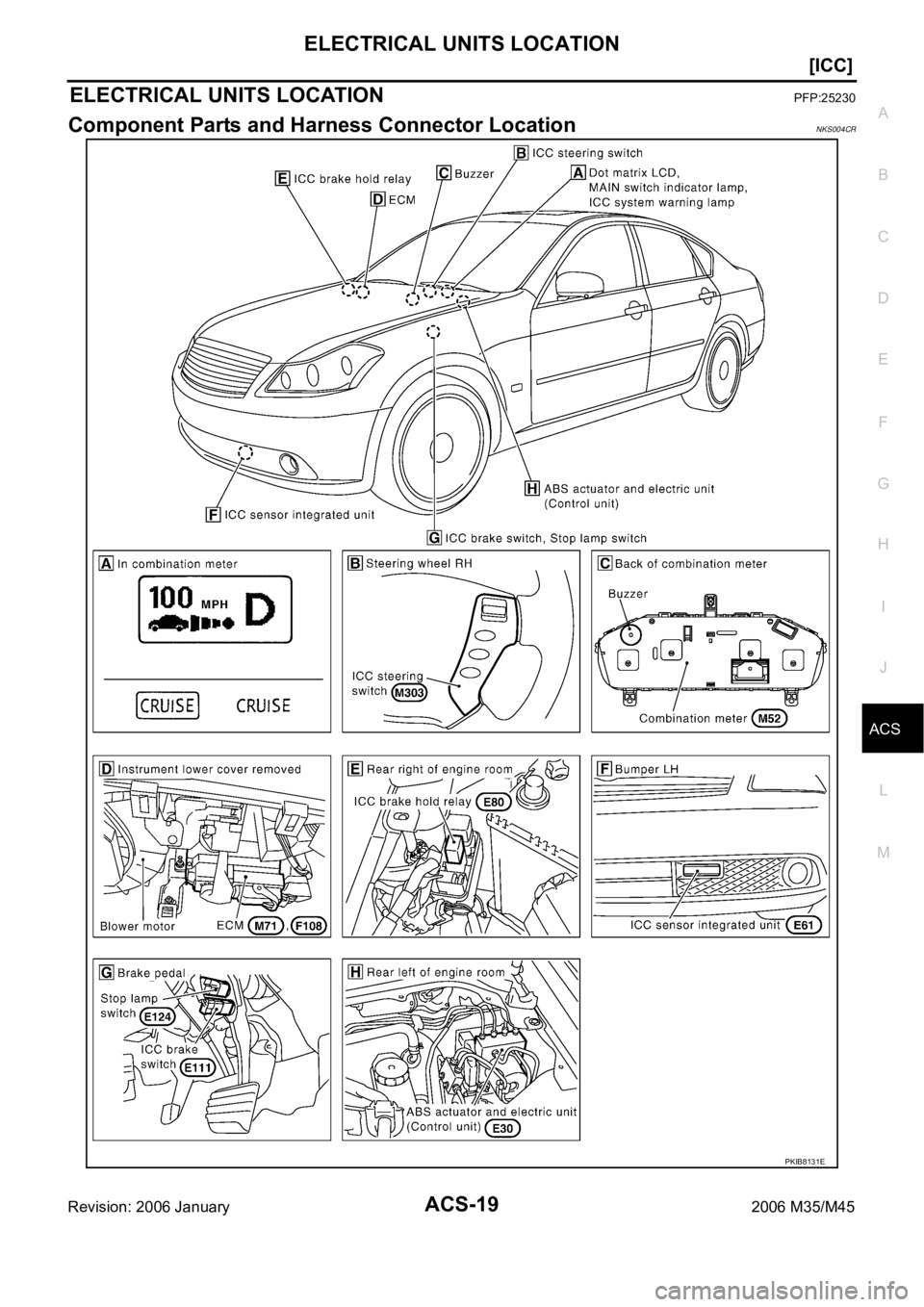

ELECTRICAL UNITS LOCATIONPFP:25230
Component Parts and Harness Connector LocationNKS004CR
PKIB8131E
Page 29 of 5621
ACS-20
[ICC]
WIRING DIAGRAM
Revision: 2006 January2006 M35/M45
WIRING DIAGRAMPFP:00000
SchematicNKS004CS
TKWT3224E
Page 30 of 5621
WIRING DIAGRAM
ACS-21
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
Wiring Diagram — ICC —NKS004CT
TKWT3225E
