13. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carried
out successfully. In this case, find the cause of the incident by referring to the Diagnostic Procedure below.
DIAGNOSTIC PROCEDURE
If idle air volume learning cannot be performed successfully, proceed as follows:
1.Check that throttle valve is fully closed.
2.Check PCV valve operation.
3.Check that downstream of throttle valve is free from air leakage.
4.When the above three items check out OK, engine component parts and their installation condi-
tion are questionable. Check and eliminate the cause of the incident.
It is useful to perform EC-155, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
5.If any of the following conditions occur after the engine has started, eliminate the cause of the
incident and perform Idle Air Volume Learning all over again:
–Engine stalls.
–Erroneous idle.
Fuel Pressure CheckNBS004SX
FUEL PRESSURE RELEASE
With CONSULT-II
1. Turn ignition switch ON.
2. Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT”
mode with CONSULT-II.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel
pressure.
5. Turn ignition switch OFF.
Without CONSULT-II
1. Remove fuel pump fuse (1) located in IPDM E/R (2).
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel
pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
FUEL PRESSURE CHECK
CAUTION:
Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
NOTE:
Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel
pressure cannot be completely released because Y50 models do not have fuel return system.
Use Fuel Pressure Gauge Kit (J-44321) to check fuel pressure.
1. Release fuel pressure to zero. Refer to EC-98, "
FUEL PRESSURE RELEASE" .
ITEM SPECIFICATION
Idle speed 650
50 rpm (in P or N position)
Ignition timing 15
5 BTDC (in P or N position)
SEF214Y
PBIB2697E

BASIC SERVICE PROCEDURE
EC-99
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. Install the inline fuel quick disconnected fitting between fuel
damper and injector tube.
3. Connect the fuel pressure test gauge (quick connector adapter
hose) to the inline fuel quick disconnected fitting.
4. Turn ignition switch ON and check for fuel leakage.
5. Start engine and check for fuel leakage.
6. Read the indication of fuel pressure gauge.
7. If result is unsatisfactory, go to next step.
8. Check the following.
Fuel hoses and fuel tubes for clogging
Fuel filter for clogging
Fuel pump
Fuel pressure regulator for clogging
If OK, replace fuel pressure regulator.
If NG, repair or replace.At idling:
Approximately 350 kPa (3.57 kg/cm
2 , 51 psi)
PBIB1571E

EC-100
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionNBS004SY
INTRODUCTION
The engine has an ECM to control major systems such as fuel con-
trol, ignition control, idle air control system, etc. The ECM accepts
input signals from sensors and instantly drives actuators. It is essen-
tial that both input and output signals are proper and stable. At the
same time, it is important that there are no malfunctions such as vac-
uum leaks, fouled spark plugs, or other malfunctions with the engine.
It is much more difficult to diagnose an incident that occurs intermit-
tently rather than continuously. Most intermittent incidents are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only may not find the cause of the incidents. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the Work Flow on EC-101
.
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such incidents, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A Diagnostic Worksheet like the example
on EC-105
should be used.
Start your diagnosis by looking for conventional malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.
MEF036D
SEF233G
SEF234G

TROUBLE DIAGNOSIS
EC-101
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

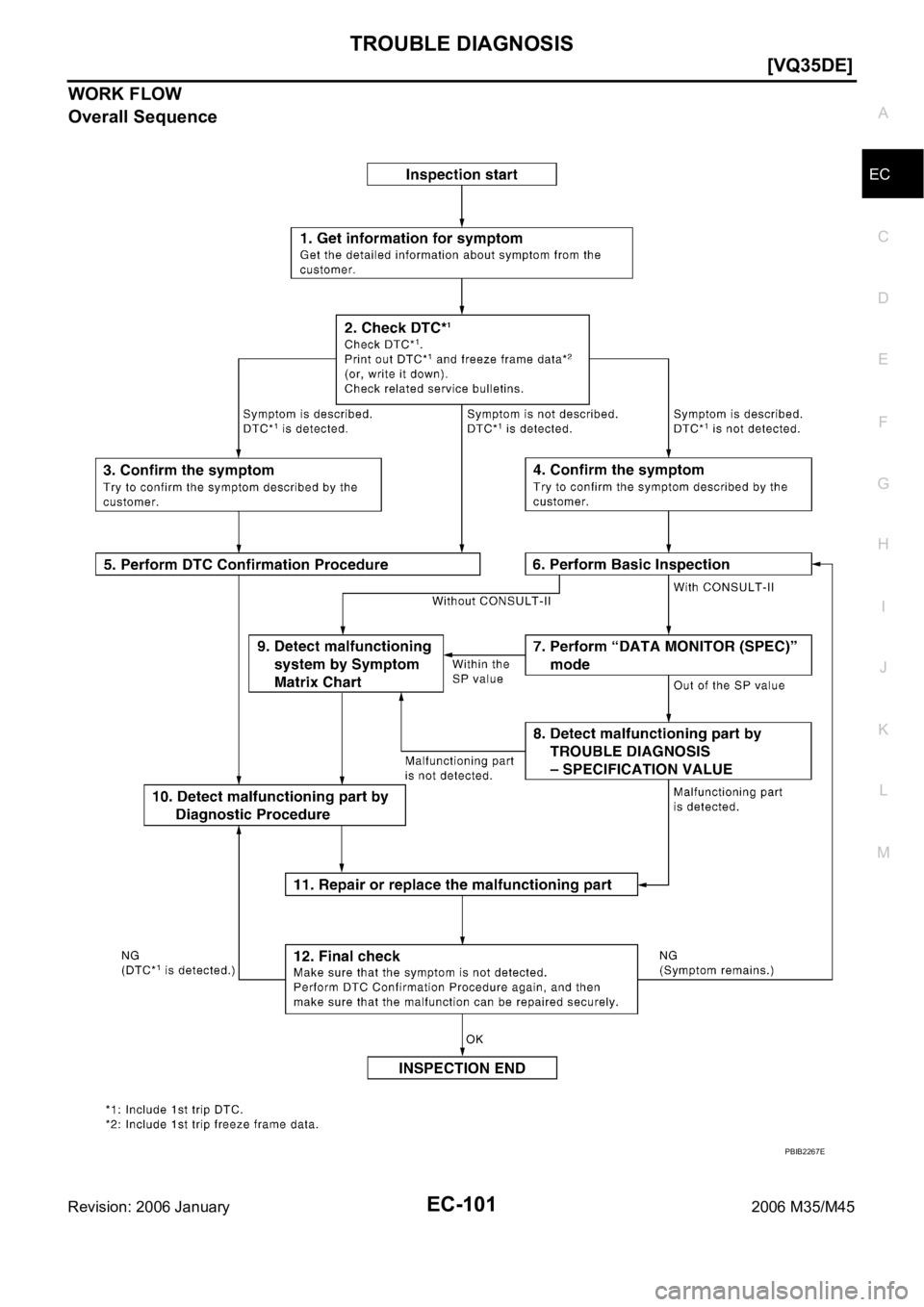

WORK FLOW
Overall Sequence
PBIB2267E

EC-102
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
Detailed Flow
1. GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the EC-104, "
DIAGNOSTIC WORKSHEET" .
>> GO TO 2.
2. CHECK DTC*1
1. Check DTC*1 .
2. Perform the following procedure if DTC*
1 is displayed.
–Record DTC*1 and freeze frame data*2 . (Print them out with CONSULT-II or GST.)
–Erase DTC*1 . (Refer to EC-67, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION"
.)
–Study the relationship between the cause detected by DTC*1 and the symptom described by the cus-
tomer. (Symptom Matrix Chart is useful. Refer to EC-109, "
Symptom Matrix Chart" .)
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC*1 is displayed>>GO TO 3.
Symptom is described, DTC*
1 is not displayed>>GO TO 4.
Symptom is not described, DTC*
1 is displayed>>GO TO 5.
3. CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MIL ON).
DIAGNOSIS WORK SHEET is useful to verify the incident.
Connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis
results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4. CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
DIAGNOSIS WORK SHEET is useful to verify the incident.
Connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis
results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.

TROUBLE DIAGNOSIS
EC-103
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
5. PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the displayed DTC*
1 , and then make sure that DTC*1 is detected
again.
At this time, always connect CONSULT-II to the vehicle, and check diagnostic results in real time on “DATA
MONITOR (AUTO TRIG)”.
If two or more DTCs*
1 are detected, refer to EC-106, "DTC Inspection Priority Chart" and determine trouble
diagnosis order.
NOTE:
Freeze frame data*2 is useful if the DTC*1 is not detected.
Perform Overall Function Check if DTC Confirmation Procedure is not included on Service Manual. This
simplified check procedure is an effective alternative though DTC*
1 cannot be detected during this check.
If the result of Overall Function Check is NG, it is the same as the detection of DTC*
1 by DTC Confirma-
tion Procedure.
Is DTC*
1 detected?
Ye s > > G O T O 1 0 .
No >> Check according to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
6. PERFORM BASIC INSPECTION
Perform EC-77, "
Basic Inspection" .
With CONSULT-II>>GO TO 7.
Without CONSULT-II>>GO TO 9.
7. PERFORM DATA MONITOR (SPEC) MODE
With CONSULT-II
Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL”, and “A/F
ALPHA-B1”, “A/F ALPHA-B2” are within the SP value using CON-
SULT-II “DATA MONITOR (SPEC)” mode. Refer to EC-156, "
Diag-
nostic Procedure" .
Are they within the SP value?
Ye s > > G O T O 9 .
No >> GO TO 8.
8. DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-155, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
Is malfunctioning part detected?
Ye s > > G O T O 11 .
No >> GO TO 9.
9. DETECT MALFUNCTIONING SYSTEM BY SYMPTOM MATRIX CHART
Detect malfunctioning system according to EC-109, "
Symptom Matrix Chart" based on the confirmed symp-
tom in step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 10.
SEF601Z

EC-104
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
10. DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in GI-
28, "How to Perform Efficient Diagnosis for an Electrical Incident" .
Is malfunctioning part detected?
Yes >> GO TO 11.
No >> Monitor input data from related sensors or check voltage of related ECM terminals using CON-
SULT-II. Refer to EC-149, "
CONSULT-II Reference Value in Data Monitor" , EC-124, "ECM Termi-
nals and Reference Value" .
11 . REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it, refer to EC-67, "
HOW TO ERASE EMISSION-RELATED DIAG-
NOSTIC INFORMATION" .
>> GO TO 12.
12. FINAL CHECK
When DTC was detected in step 2, perform DTC Confirmation Procedure or Overall Function Check again,
and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
OK or NG
NG (DTC*1 is detected)>>GO TO 10.
NG (Symptom remains)>>GO TO 6.
OK >> 1. Before returning the vehicle to the customer, make sure to erase unnecessary DTC*
1 in ECM
and TCM (Transmission Control Module). (Refer to EC-67, "
HOW TO ERASE EMISSION-
RELATED DIAGNOSTIC INFORMATION" and AT- 4 1 , "HOW TO ERASE DTC" .)
2. If the completion of SRT is needed, drive vehicle under the specific driving pattern. Refer to EC-
64, "Driving Pattern" .
3.INSPECTION END
*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.
DIAGNOSTIC WORKSHEET
Description
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about a incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the one on the next page in order
to organize all the information for troubleshooting.
Some conditions may cause the MIL to come on steady or blink and
DTC to be detected. Examples:
Vehicle ran out of fuel, which caused the engine to misfire.
Fuel filler cap was left off or incorrectly screwed on, allowing fuel
to evaporate into the atmosphere.
SEF907L

TROUBLE DIAGNOSIS
EC-105
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

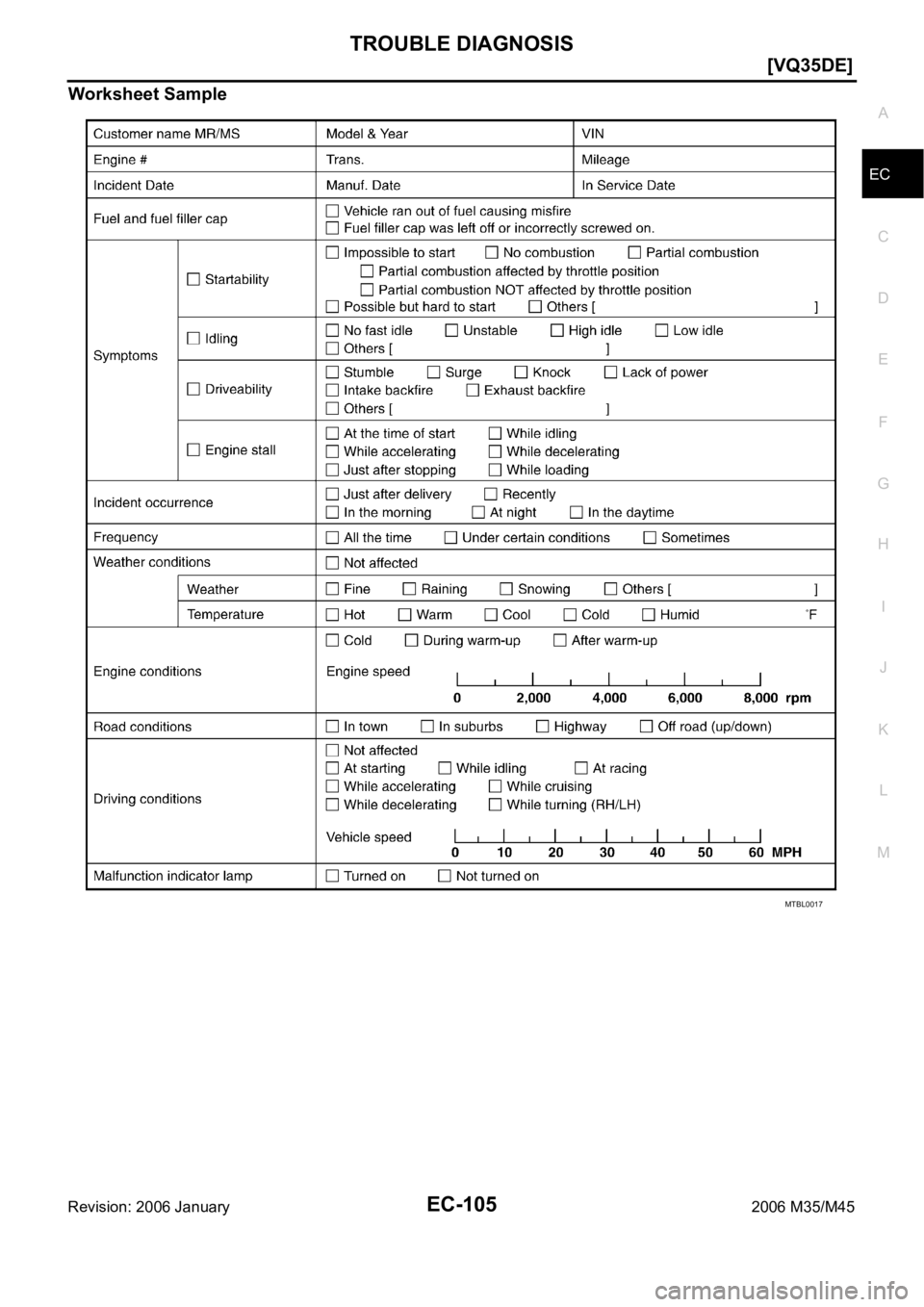

Worksheet Sample
MTBL0017

EC-106
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
DTC Inspection Priority ChartNBS004SZ
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-173, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC U1010 is displayed with other DTC, first perform the trouble diagnosis for DTC U1010. Refer
to EC-176, "
DTC U1010 CAN COMMUNICATION" .
Priority Detected items (DTC)
1
U1000 U1001 CAN communication line
U1010 CAN communication
P0101 P0102 P0103 Mass air flow sensor
P0112 P0113 P0127 Intake air temperature sensor
P0117 P0118 P0125 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0128 Thermostat function
P0181 P0182 P0183 Fuel tank temperature sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 P0345 Camshaft position sensor (PHASE)
P0460 P0461 P0462 P0463 Fuel level sensor
P0500 Vehicle speed sensor
P0643 Sensor power supply
P0605 ECM
P0700 TCM
P0705 P0850 Park/Neutral position (PNP) switch
P1550 P1551 P1552 P1553 P1554 Battery current sensor
P1610 - P1615 NATS
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor

TROUBLE DIAGNOSIS
EC-107
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
*: With ICC models2
P0031 P0032 P0051 P0052 Air fuel ratio (A/F) sensor 1 heater
P0037 P0038 P0057 P0058 Heated oxygen sensor 2 heater
P0075 P0081 Intake valve timing control solenoid valve
P0130 P0131 P0132 P0133 P0150 P0151 P0152 P0153 P2A00 P2A03 Air fuel ratio (A/F) sensor 1
P0137 P0138 P0139 P0157 P0158 P0159 Heated oxygen sensor 2
P0441 EVAP control system purge flow monitoring
P0443 P0444 P0445 EVAP canister purge volume control solenoid valve
P0447 P0448 EVAP canister vent control valve
P0451 P0452 P0453 EVAP control system pressure sensor
P0550 Power steering pressure sensor
P0603 ECM power supply
P0710 P0717 P0720 P0725 P0740 P0744 P0745 P1705 P1715 P1730 P1752 P1754 P1757 P1759 P1762 P1764
P1767 P1769 P1772 P1774 A/T related sensors, solenoid valves and switches
P1217 Engine over temperature (OVERHEAT)
P1220 Fuel pump control module
P1805 Brake switch
P2100 P2103 Throttle control motor relay
P2101 Electric throttle control function
P2118 Throttle control motor
3
P0011 P0021 Intake valve timing control
P0171 P0172 P0174 P0175 Fuel injection system function
P0300 - P0306 Misfire
P0420 P0430 Three way catalyst function
P0442 P0456 EVAP control system (SMALL LEAK, VERY SMALL LEAK)
P0455 EVAP control system (GROSS LEAK)
P0506 P0507 Idle speed control system
P1148 P1168 Closed loop control
P1211 TCS control unit
P1212 TCS communication line
P1564 ICC steering switch / ASCD steering switch
P1568 ICC command value*
P1572 ICC brake switch / ASCD brake switch
P1574 ICC vehicle speed sensor / ASCD vehicle speed sensor
P2119 Electric throttle control actuator Priority Detected items (DTC)
