10. Install servo assembly in transmission case.
11. Using a pair of snap ring pliers, install snap ring to transmission
case.
12. Install D-rings in reverse brake piston.
CAUTION:
Do not reuse D-rings.
Apply ATF to D-rings.
13. Install reverse brake piston in transmission case.
14. Install needle bearing to drum support edge surface.
CAUTION:
Apply petroleum jelly to needle bearing.
SCIA5679E
SCIA2333E
SCIA6330E
SCIA2325E
SCIA2796E

ASSEMBLY
AT-343
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
15. Install seal rings to drum support.
CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
16. Install spring retainer and return spring in transmission case.
17. Set the SST on spring retainer and install snap ring (fixing spring
retainer) in transmission case while compressing return spring.
CAUTION:
Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.
18. Install reverse brake drive plates, driven plates and dish plates
in transmission case.
CAUTION:
Take care with order of plates.
Snap ring (1)
Retaining plate (2)
Drive plate (3)
Driven plate (4)
Dish plate (5)
Drive plate/Driven plate: 6/6
SCIA3333E
SCIA2324E
SCIA5877E
SCIA6949E

AT-344
ASSEMBLY
Revision: 2006 January2006 M35/M45
19. Assemble N-spring.
20. Install reverse brake retaining plate in transmission case.
21. Install snap ring in transmission case.
22. Measure clearance between retaining plate and snap ring. If not
within specified clearance, select proper retaining plate.
23. Install needle bearing to transmission case.
CAUTION:
Take care with the direction of needle bearing. Refer to
AT- 2 9 5 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .
Apply petroleum jelly to needle bearing.
SCIA5249E
SCIA2439E
Specified clearance A
Standard: 0.7 - 1.1mm (0.028 - 0.043 in)
Retaining plate
Refer to AT- 3 6 7 , "
Reverse Brake" .
SCIA3129E
SCIA5031E

ASSEMBLY
AT-345
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
24. Install revolution sensor to transmission case. Tighten revolution
sensor bolt to the specified torque. Refer to AT- 2 7 8 , "
Compo-
nents" .
CAUTION:
Do not subject it to impact by dropping or hitting it.
Do not disassemble.
Do not allow metal filings, etc., to get on the sensor's
front edge magnetic area.
Do not place in an area affected by magnetism.
25. Assemble rear extension assembly (VQ35DE models for 2WD) or output shaft & companion flange com-
plement (VK45DE models for 2WD) or adapter case assembly (AWD models) according to the following
procedures.
a.VQ35DE models
i. As shown in the figure, use the drift to drive rear oil seal into the
rear extension (2WD models) or adapter case (AWD models)
until it is flush.
CAUTION:
Apply ATF to rear oil seal.
Do not reuse rear oil seal.
ii. Install return spring (1) to parking pawl (2).
SCIA2320E
SCIA5477E
SCIA6180J

AT-346
ASSEMBLY
Revision: 2006 January2006 M35/M45
iii. Install parking pawl (with return spring) and pawl shaft to rear
extension (2WD models) or adapter case (AWD models).
iv. Install parking actuator support from rear extension (2WD mod-
els) or adapter case (AWD models).
v. Install needle bearing (1) to rear extension (2WD models) or
adapter case (AWD models).
CAUTION:
Take care with the direction of needle bearing. Refer to
AT- 2 9 5 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .
Apply petroleum jelly to needle bearing.
Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to GI-11, "
Components" .
b.VK45DE models
i. Install return spring (1) to parking pawl (2).
SCIA3424E
SCIA3423E
SCIA6179J
SCIA6180J

ASSEMBLY
AT-347
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
ii. Install parking pawl (with return spring) (1) and pawl shaft (2) to
output shaft & companion flange complement.
iii. Install parking actuator support (1) from output shaft & compan-
ion flange complement.
26. Install rear extension assembly (VQ35DE models for 2WD) or adapter case assembly (AWD models) or
output shaft & companion flange complement (VK45DE models for 2WD) according to the following pro-
cedures.
a.VQ35DE models for 2WD
i. Install seal rings to output shaft.
CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
ii. Install parking gear to output shaft.
SCIA7066E
SCIA7065E
SCIA5209E
SCIA5247E

AT-348
ASSEMBLY
Revision: 2006 January2006 M35/M45
iii. Install output shaft in transmission case.
CAUTION:
Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)
iv. Install bearing race to output shaft.
v. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to rear extension assembly as shown in
the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.
vi. Install rear extension assembly to transmission case.
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.
vii. Tighten rear extension assembly bolts to the specified torque.
Refer to AT-278, "
Components" .
CAUTION:
Do not reuse self-sealing bolts.
SCIA5030E
SCIA5245E
SCIA5212E
SCIA5029E
SCIA6941E

ASSEMBLY
AT-349
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
b.VK45DE models for 2WD
i. Install seal rings to intermediate shaft.
CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
ii. Install intermediate shaft in transmission case.
CAUTION:
Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)
iii. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to output shaft & companion flange com-
plement as shown in the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and output shaft & companion
flange complement mounting surfaces.
iv. Install output shaft & companion flange complement in transmis-
sion case.
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the output
shaft & companion flange complement.
SCIA5714E
SCIA5713E
SCIA5212E
SCIA5712E

AT-350
ASSEMBLY
Revision: 2006 January2006 M35/M45

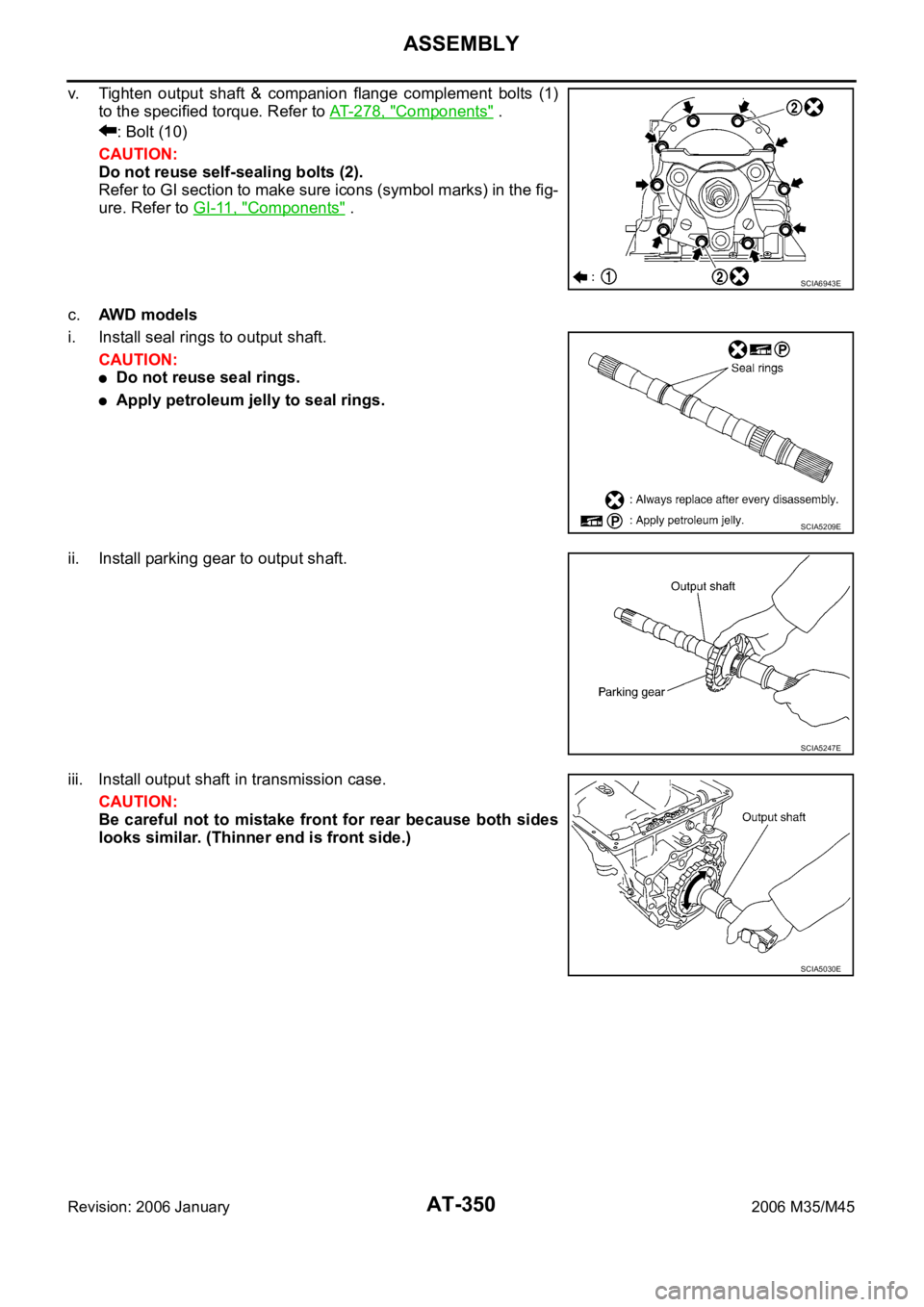

v. Tighten output shaft & companion flange complement bolts (1)
to the specified torque. Refer to AT-278, "
Components" .
: Bolt (10)
CAUTION:
Do not reuse self-sealing bolts (2).
Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to GI-11, "
Components" .
c.AWD m o d e l s
i. Install seal rings to output shaft.
CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
ii. Install parking gear to output shaft.
iii. Install output shaft in transmission case.
CAUTION:
Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)
SCIA6943E
SCIA5209E
SCIA5247E
SCIA5030E

ASSEMBLY
AT-351
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
iv. Install bearing race to output shaft.
v. Install gasket onto transmission case.
CAUTION:
Completely remove all moisture, oil and old gasket, etc.
from the transmission case and adapter case assembly
mounting surfaces.
Do not reuse gasket.
vi. Install adapter case assembly to transmission case.
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the adapter
case assembly.
vii. Tighten adapter case assembly bolts (1) to the specified torque.
[With bracket (2).] Refer to AT-278, "
Components" .
: Bolt (10)
CAUTION:
Do not reuse self-sealing bolts (3).
Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to GI-11, "
Components" .
SCIA5245E
SCIA5231E
SCIA5186E
SCIA6910E
