LAN-662
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Check SheetNKS0046R
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8539E
Page 4332 of 5621
CAN SYSTEM (TYPE 14)

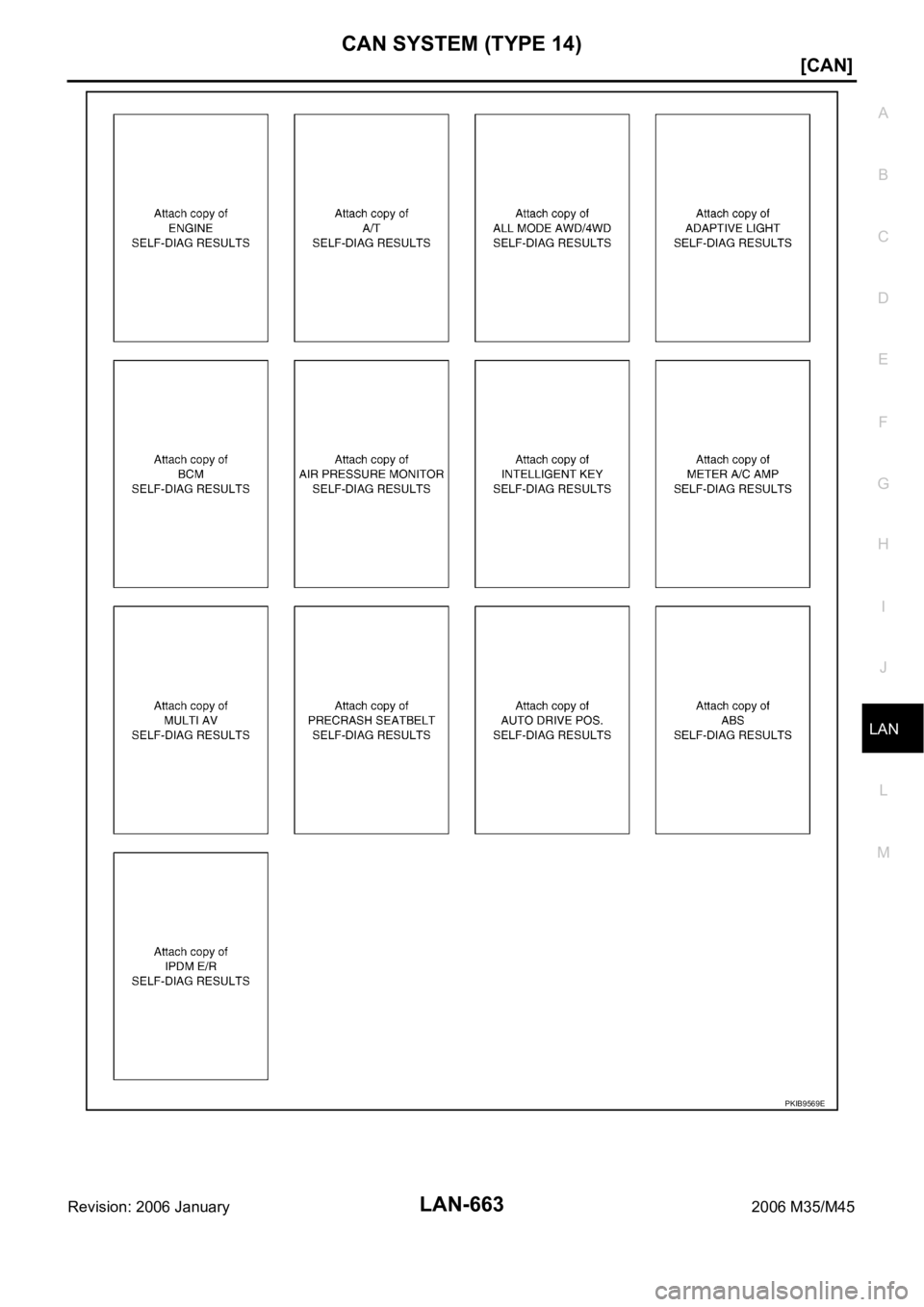

LAN-663
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
PKIB9569E
Page 4333 of 5621

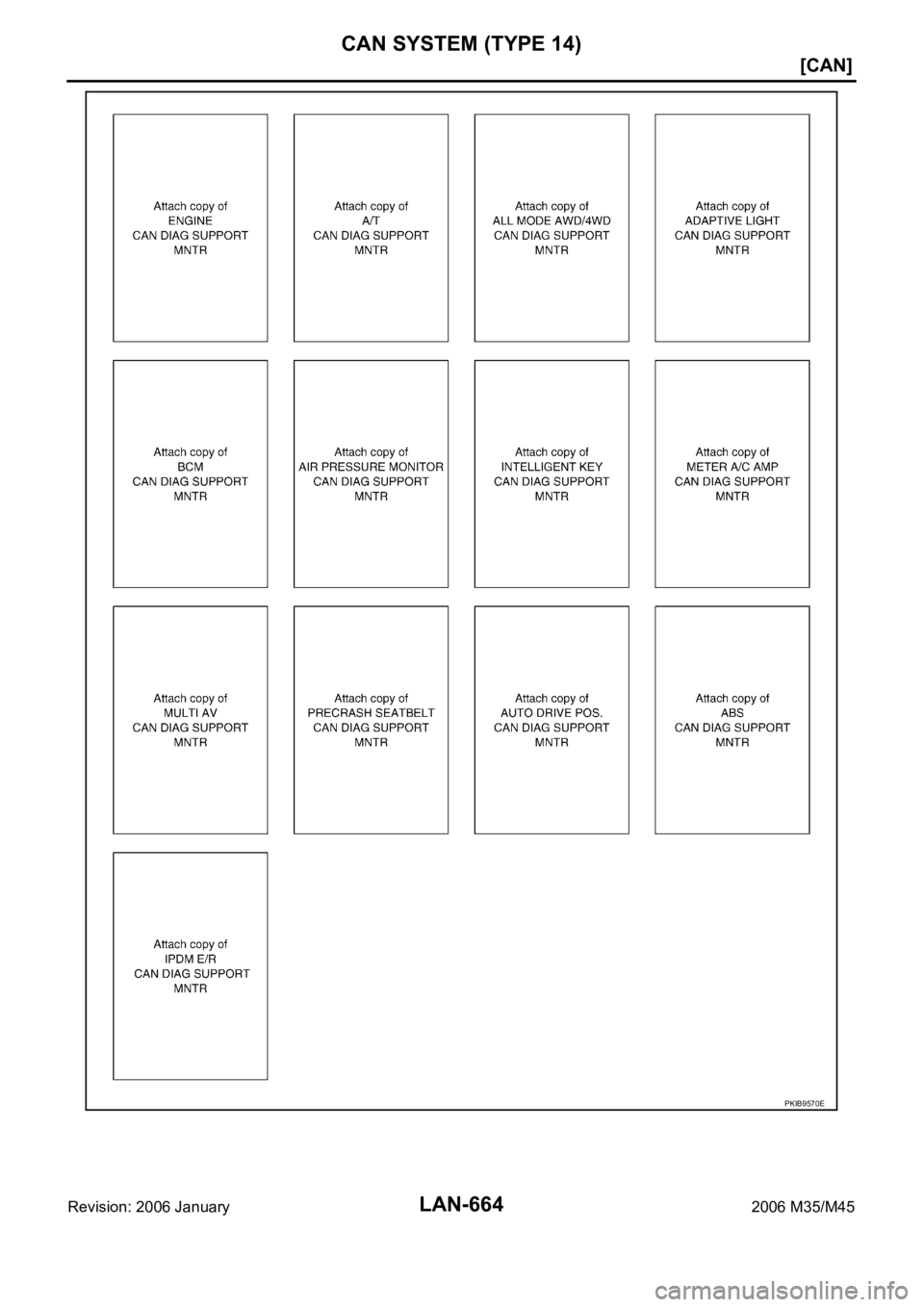

LAN-664
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
PKIB9570E
Page 4334 of 5621
CAN SYSTEM (TYPE 14)
LAN-665
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-685, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8540E
SKIB4458E
Page 4335 of 5621
LAN-666
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and pre-crash seat belt control unit. Refer to LAN-686, "Inspec-
tion Between Data Link Connector and Pre-Crash Seat Belt Control Unit Circuit" .
PKIB8541E
SKIB4459E
Page 4336 of 5621
CAN SYSTEM (TYPE 14)
LAN-667
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 3
Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-687,
"Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control Unit Circuit" .
PKIB8542E
SKIB4460E
Page 4337 of 5621
LAN-668
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 4
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
687, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8543E
SKIB4461E
Page 4338 of 5621
CAN SYSTEM (TYPE 14)
LAN-669
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 5
Check ECM circuit. Refer to LAN-688, "ECM Circuit Inspection" .
PKIB8544E
SKIB4462E
Page 4339 of 5621
LAN-670
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 6
Check TCM circuit. Refer to LAN-689, "TCM Circuit Inspection" .
PKIB8545E
SKIB4463E
Page 4340 of 5621
CAN SYSTEM (TYPE 14)
LAN-671
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 7
Check AWD control unit circuit. Refer to LAN-689, "AWD Control Unit Circuit Inspection" .
PKIB8546E
SKIB4464E
