5A-36 BRAKE CONTROL SYSTEM
How to display and erase DTCs:
Note:
• DTCs can be displayed also by TECH 2 use “Diagnostic Trouble Codes” mode.
1. How to start DTC display: • Confirm that the vehicle has come to a complete stop (with the wheels standing still)
and that the brake pedal is not depressed.
(Unless these two conditions are satisfied, the
DTC display cannot be started.)
• W ith IGN OFF, connect #12 terminal with #4 terminal or # 5 terminal (GND) . Then turn IGN
ON.

The DLC is located behind the driver side kick panel
















This illustration is based on RHD model
350L300005

• Keep #12 terminal connected with #4 terminal or # 5 terminal (GND) during DTC display. (If
#12 terminal is separated from #4 terminal or #
5 terminal (GND) during display, display will
stop.)
2. DTC display: • DTC is displayed by blinking warning lamp.
• Double-digit display.
• First, normal DTC 12 is displayed three times and then any other DTCs are displayed three
times. (If no other DTCs have been stored, the
display of DTC 12 will be repeated.)
3. How to erase code:
• Conduct brake switch ON/OFF operation 6 or more times within 3 seconds of self-diagnosis
startup.
• The code cannot be erased if more than 3 seconds have passed since self-diagnosis
startup, or if self-diagnosis has started with
brake switched on (brake pedal depressed).

B05RW 0005

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5A-38 BRAKE CONTROL SYSTEM

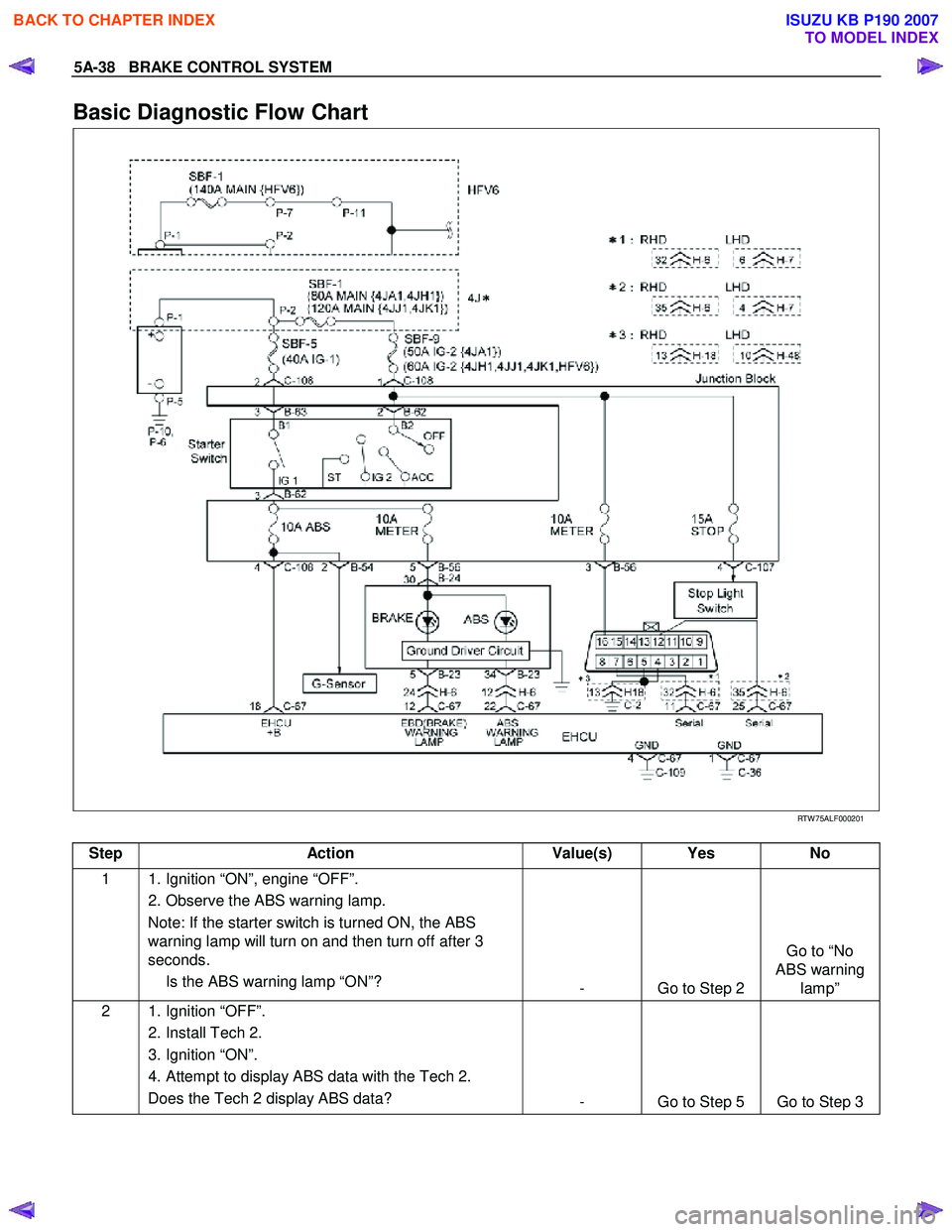

Basic Diagnostic Flow Chart



RTW 75ALF000201
Step Action Value(s) Yes No
1 1. Ignition “ON”, engine “OFF”.
2. Observe the ABS warning lamp. Note: If the starter switch is turned ON, the ABS
warning lamp will turn on and then turn off after 3
seconds.
Is the ABS warning lamp “ON”? - Go to Step 2 Go to “No
ABS warning lamp”
2 1. Ignition “OFF”.
2. Install Tech 2.
3. Ignition “ON”.
4. Attempt to display ABS data with the Tech 2. Does the Tech 2 display ABS data? - Go to Step 5 Go to Step 3

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKE CONTROL SYSTEM 5A-39
Step Action Value(s) Yes No
3 1. Ignition “OFF”, disconnect the EHCU.
2. Check the DLC (Data Link Connector) circuit for an open, short to ground, or short to voltage.
Also, check the DLC ignition feed circuit for an open
or short to ground and the DLC ground circuit for an
open.
3. If a problem is found, repair as necessary. W as a problem found? - Go to Step 2 Go to Step 4
4 1. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open.
2. If a problem is found, repair as necessary. W as a problem found? - Go to Step 2 Go to Step 11
5 Select “Display DTCs” with the Tech 2.
Are any DTCs stored? - Go to Step 6 Go to Step 10
6 Review and record for Tech 2 Failure Records data
and DTCs.
Is the action complete? - Go to Step 7 -
7 The DTC is then stored. Is this DTC C0271 stored?
- Go to
applicable
DTC table
after Go to step 8 Go to Step 8
8 Clear the DTCs by “Clear the Information“ with Tech 2.
Did the DTCs clear? - Go to Step 9 -
9 Select “Display DTCs” with the Tech 2. Are any DTCs stored? - Go to
applicable
DTC table Go to Step 10
10 Review and record for Tech 2 data.
Is the action complete?
- Go to
Symptom
Diagnosis and Go to Basic Inspection
Procedure -
11 Replace the EHCU.
Note: Check the EHCU type for specification, when
the EHCU is replaced.
(Specification; 2W D Model or 4W D Model)
Is the action complete? - Verify repair -



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5A-40 BRAKE CONTROL SYSTEM

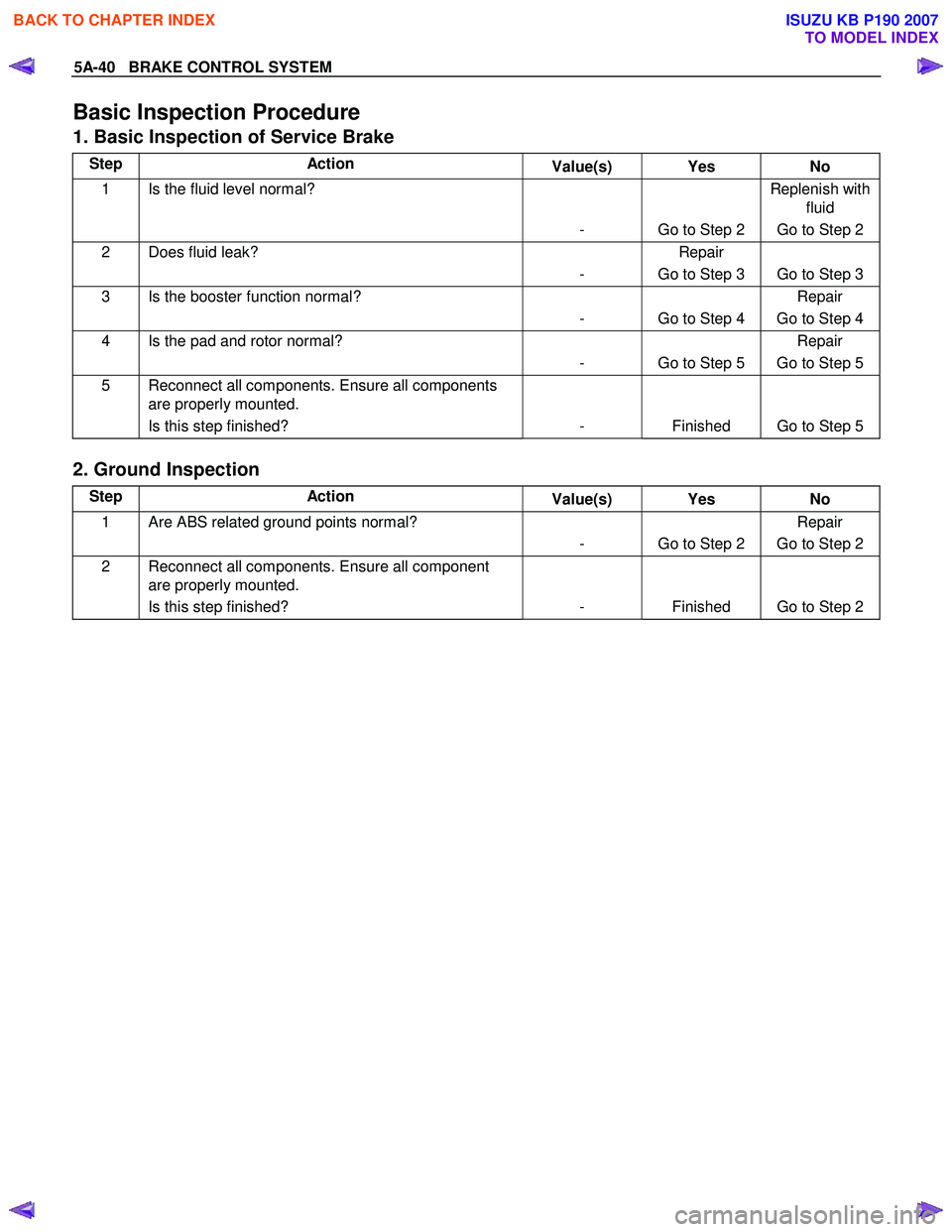

Basic Inspection Procedure
1. Basic Inspection of Service Brake
Step Action
Value(s) Yes No
1 Is the fluid level normal?
- Go to Step 2 Replenish with
fluid
Go to Step 2
2 Does fluid leak? - Repair
Go to Step 3 Go to Step 3
3 Is the booster function normal? - Go to Step 4 Repair
Go to Step 4
4 Is the pad and rotor normal? - Go to Step 5 Repair
Go to Step 5
5 Reconnect all components. Ensure all components are properly mounted.
Is this step finished? - Finished Go to Step 5

2. Ground Inspection
Step Action
Value(s) Yes No
1 Are ABS related ground points normal?
- Go to Step 2 Repair
Go to Step 2
2 Reconnect all components. Ensure all component are properly mounted.
Is this step finished? - Finished Go to Step 2



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5A-42 BRAKE CONTROL SYSTEM
Symptom Diagnosis
The symptoms that cannot be indicated by warning
lamp can be divided into the following six categories:
1. ABS works frequently but vehicle does not decelerate.
2. Uneven braking occurs while ABS works.
3. The wheels are locked.

4. Brake pedal feel is abnormal.
5. Braking sound (from EHCU) is heard while not braking.
6. No ABS warning lamp
These are all attributable to problems which cannot be
detected by EHCU self-diagnosis. Use the customer
complaint and a test to determine which symptom is
present.
ABS Works Frequently But Vehicle Does Not Decelerate

Step Action Value(s) Yes No
1 Is braking force distribution normal between front and
rear of vehicle?
- Go to Step 2 Repair brake
parts.
Go to Step 7
2 Are axle parts installed normally?
- Go to Step 3 Repair axle
parts.
Go to Step 7
3 Is there play in each or any wheel speed sensor?
- Repair wheel
speed sensor.
Go to Step 7 Go to Step 4
4 Is there damage, or powered iron sticking to each or any wheel speed sensor/sensor rotor?
- Replace
wheel speed sensor or
sensor rotor.
Go to Step 7 Go to Step 5
5 Is the speed sensor of each wheel output normal?
- Go to Step 6 Replace
wheel speed sensor or repair
harness.
Go to Step 7
6 Is the 4W D control system function normal?
- 2-4W D Repair
or Go to Step 7 Repair or
replace 2-
4W D control System.
Go to Step 7
7 Reconnect all components, ensure all components are properly mounted.
Is this step finished? - Repeat the
“Basic
diagnostic
flow chart” Go to Step 7



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKE CONTROL SYSTEM 5A-43
Uneven Braking Occurs While ABS Works

Step Action Value(s) Yes No
1 Is there play in each or any sensor?
- Repair.
Go to Step 5 Go to Step 2
2 Damage or powdered iron sticking to each or any
sensor/sensor rotor? - Repair.
Go to Step 5 Go to Step 3
3 Is the output normal for each sensor?
- Go to Step 4 Replace
sensor or repair
harness.
Go to Step 5
4 Is brake pipe connecting order correct? Note: Check the EHCU type for specification, when
the EHCU is replaced.
(Specification; 2W D Model or 4W D Model) - Replace
EHCU.
Go to Step 5 Reconnect
brake pipe correctly.
Go to Step 5
5 Reconnect all components, ensure all components are properly mounted.
Is this step finished? - Repeat the
“Basic
diagnostic
flow chart” Go to Step 5

The Wheels Are Locked

Step Action Value(s) Yes No
1 Is ABS working?
- Go to Step 2 Go to Step 4
2 Is vehicle speed under 5 km/h? - Go to Step 3 Normal.
3 Is the output for each normal?
- Go to Step 4 Replace
sensor or repair
harness.
Go to Step 6
4 Is 2-4W D system function normal?
- Go to Step 5 Replace 2-
4W D control
unit or repair harness.
Go to Step 6
5 Is EHCU grounded properly? Note: Check the EHCU type for specification, when
the EHCU is replaced.
(Specification; 2W D Model or 4W D Model) - Replace
EHCU.
Go to Step 6 Repair.
Go to Step 6
6 Reconnect all components, ensure all components are properly mounted.
Is this step finished? - Repeat the
“Basic
diagnostic
flow chart” Go to Step 6


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5A-44 BRAKE CONTROL SYSTEM
Brake Pedal Feed Is Abnormal

Step Action Value(s) Yes No
1 Is the stop light actuated when the brake pedal is
depressed? - Go to Step 2 Go to Step 3
2 1. Turn the ignition switch off.
2. Disconnect EHCU connector. Is the check voltage for EHCU connector terminals
when brake pedal is depressed than battery voltage? - Go to Step 4 Harness NG
between stop light SW and EHCU.
Go to Step 6
3 Is stop light fuse normal?
- Go to Step 5 Replace stop
light fuse.
Go to Step 6
4 Is the check continuity between EHCU connector to body grounded?
- Go to Step 6 Repair body
grounded harness.
Go to Step 6
5 Is stop light switch operation normal?
- Repair stop
light harness.
Go to Step 6 Replace stop
light switch.
Go to Step 6
6 Reconnect all components, ensure all components are properly mounted.
Is this step finished? - Repeat the
“Basic
diagnostic
flow chart” Go to Step 6


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKE CONTROL SYSTEM 5A-45

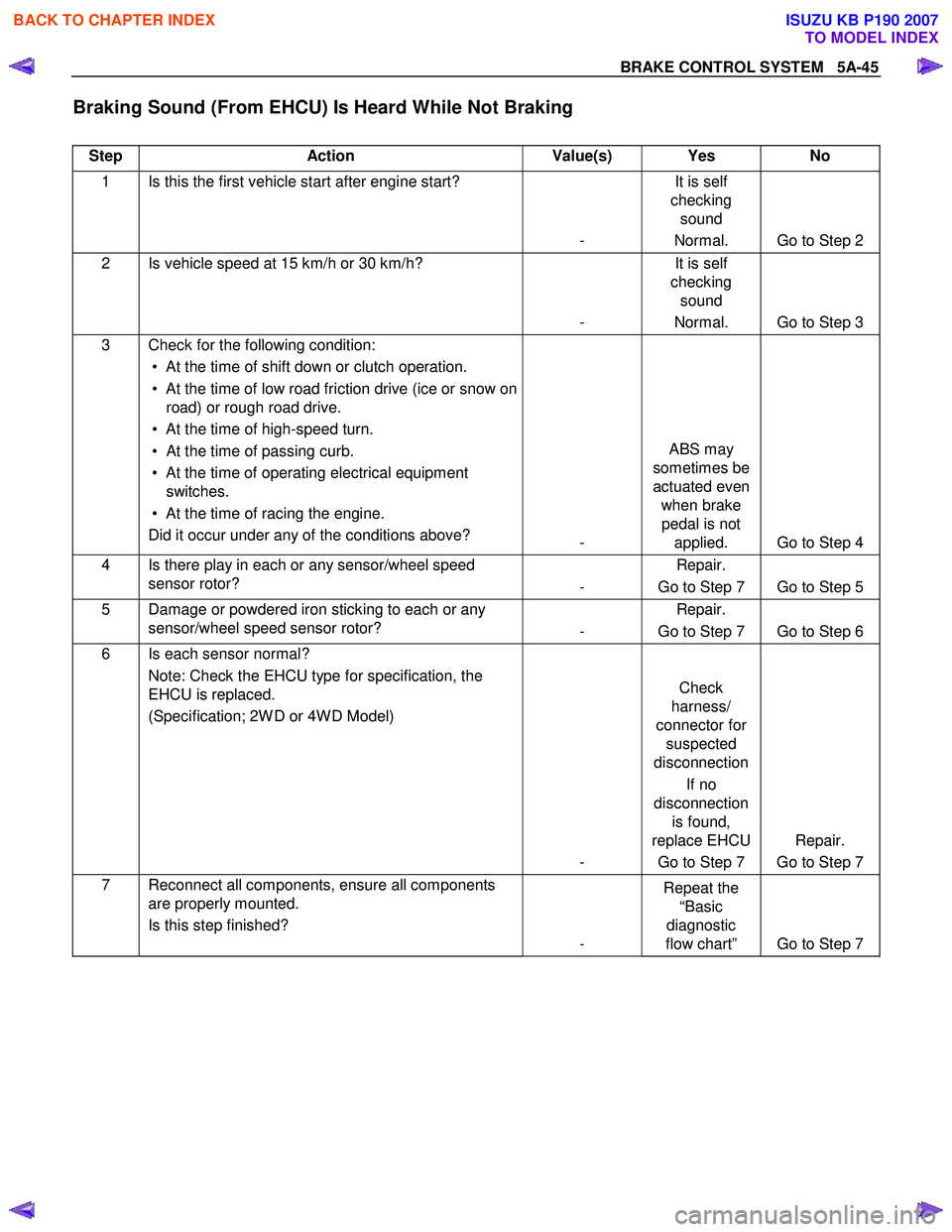

Braking Sound (From EHCU) Is Heard While Not Braking

Step Action Value(s) Yes No
1 Is this the first vehicle start after engine start?
- It is self
checking sound
Normal. Go to Step 2
2 Is vehicle speed at 15 km/h or 30 km/h?
- It is self
checking sound
Normal. Go to Step 3
3 Check for the following condition: • At the time of shift down or clutch operation.
• At the time of low road friction drive (ice or snow on road) or rough road drive.
• At the time of high-speed turn.
• At the time of passing curb.
• At the time of operating electrical equipment switches.
• At the time of racing the engine. Did it occur under any of the conditions above? - ABS may
sometimes be
actuated even when brake pedal is not applied. Go to Step 4
4 Is there play in each or any sensor/wheel speed sensor rotor? - Repair.
Go to Step 7 Go to Step 5
5 Damage or powdered iron sticking to each or any sensor/wheel speed sensor rotor? - Repair.
Go to Step 7 Go to Step 6
6 Is each sensor normal? Note: Check the EHCU type for specification, the
EHCU is replaced.
(Specification; 2W D or 4W D Model)

- Check
harness/
connector for suspected
disconnection
If no
disconnection is found,
replace EHCU
Go to Step 7 Repair.
Go to Step 7
7 Reconnect all components, ensure all components are properly mounted.
Is this step finished? - Repeat the
“Basic
diagnostic
flow chart” Go to Step 7


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

5A-46 BRAKE CONTROL SYSTEM
No ABS Warning Lamp

Step Action Value(s) Yes No
1 Check the meter fuse for the instrument cluster
ignition feed circuit.
Is the fuse OK? - Go to Step 3 Go to Step 2
2 Replace the fuse. Is the action complete? - Verify repair
Go to Step 3 -
3 1. Ignition “OFF”, disconnect the EHCU. 2. Ignition “ON”, engine “OFF”.
3. Observe the ABS warning lamp. Is the ABS warning lamp “ON”? - Go to Step 5 Go to Step 4
4 Repair or replace the meter circuit or meter.
Is the action complete? - Verify repair -
5 1. Check the EHCU circuit for an open, short to
ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open.
2. If a problem is found, repair as necessary. W as a problem found? - Verify repair Go to Step 6
6 1. Ignition “OFF”, reconnect the EHCU.
2. Ignition “ON”,engine “OFF”.
3. Observe the ABS warning lamp. Is the ABS warning lamp “ON”? - Verify repair Go to Step 7
7 Replace EHCU.
Note: Check the EHCU type for specification, the
EHCU is replaced.
(Specification; 2W D or 4W D Model)
Is the action complete? - Verify repair -


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

BRAKE CONTROL SYSTEM 5A-47
ABS Warning Lamp ON Steady

Step Action Value(s) Yes No
1 1. Check the ABS warning lamp lighting circuit for a
short.
2. If a problem found, repair as necessary. W as a problem found? - Go to Step 3 Go to Step 2
2 1. Check the ABS warning lamp lighting circuit at the
meter for a short. Refer to METER, W ARNING
LIGHT AND INDICATOR LIGHT in 8 section.
2. If a problem is found, repair or replace the meter. W as a problem found? - Go to Step 3 Go to Step 4
3 1. Connect all connectors.
2. Ignition “ON”, engine “OFF”.
3. W ait for about 10 seconds.
4. Observe the ABS warning lamp. Is the ABS warning lamp turned “OFF”? - Verify repair Go to Step 4
4 Replace EHCU.
Note: Check the EHCU type for specification, the
EHCU is replaced.
(Specification; 2W D or 4W D Model)
Is the action complete? - Verify repair -


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
