ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–3
 1  General Information
A new cruise control system has been introduced due to changes in the powertrain architecture and components. There
is no longer a cruis

Page 5582 of 6020

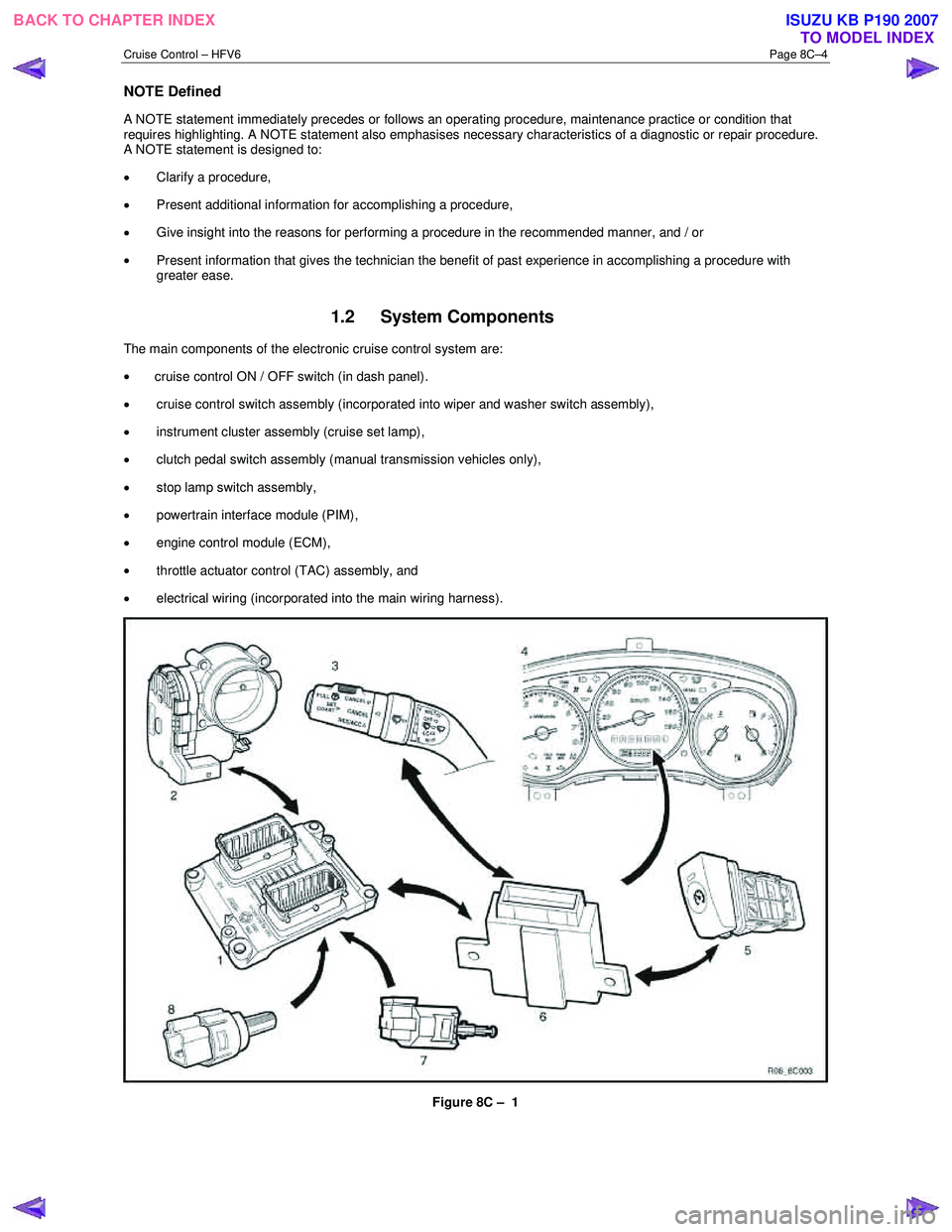

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–4
NOTE Defined
A NOTE statement immediately precedes or follows an operating procedure, maintenance practice or condition that
requires highlighting. A NOTE state

Page 5583 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–5
Legend
1  Engine Control Module
2  Throttle Actuator Control (TAC) Assembly
3  Cruise Control Switch Assembly
4  Instrument Cluster Assembly  5  Cruise Contr

Page 5584 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–6
The stop lamp switch contacts are normally open with the brake pedal at rest and close when the brake pedal is pressed
turning on the vehicles brake lamps. These

Page 5585 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–7
Activated and Deactivated
When the cruise control is enabled, the vehicle speed must be above 40 km/h and the cruise control switch assembly
pressed to SET–CO

Page 5586 of 6020

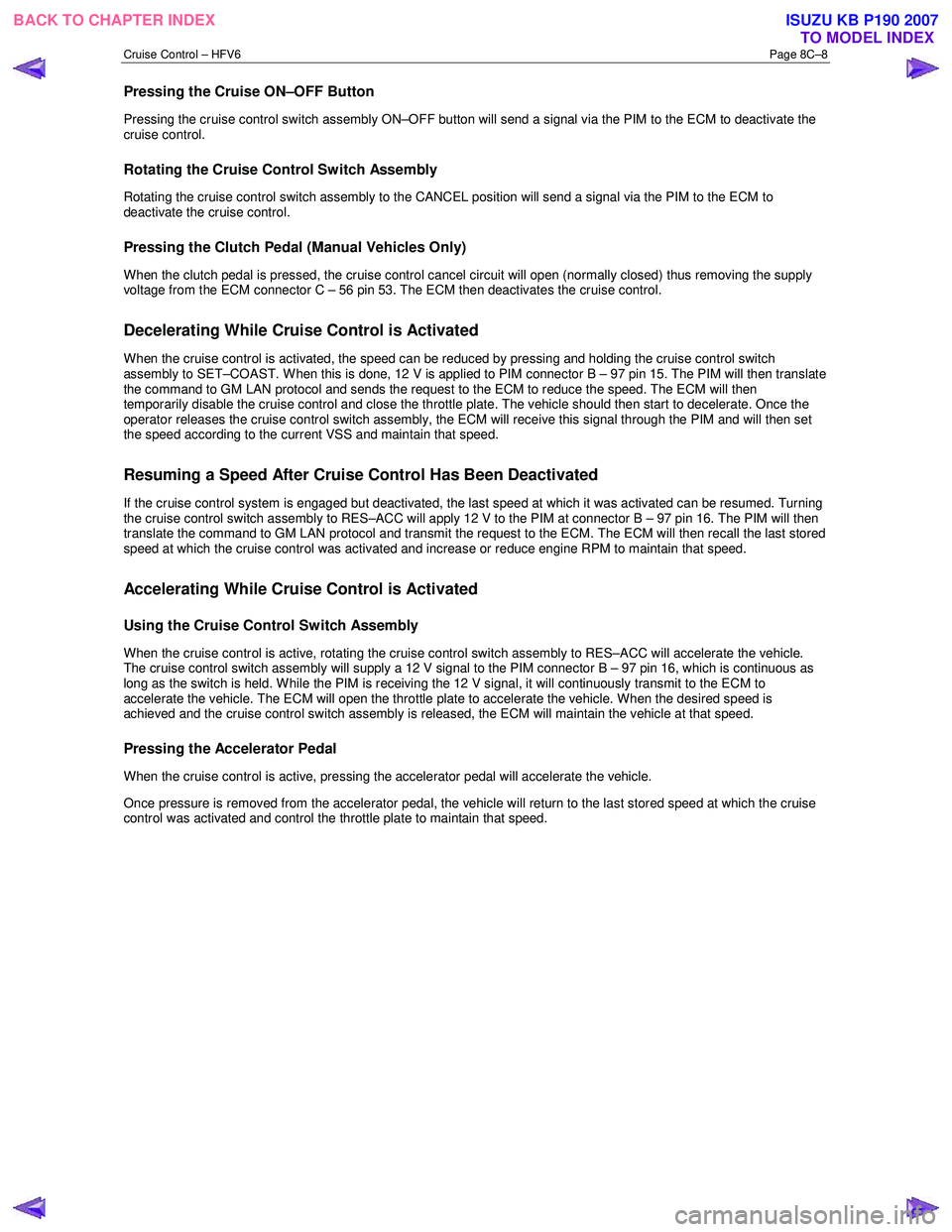

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–8
Pressing the Cruise ON–OFF Button
Pressing the cruise control switch assembly ON–OFF button will send a signal via the PIM to the ECM to deactivate the
crui

Page 5587 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–9
2 Diagnostics
2.1  Diagnostic General Information
Basic Knowledge Required

A lack of basic understanding regarding
electronics, electrical wiring circuits a

Page 5588 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–10
Tech 2 Data List
The Tech 2 displays the status of certain cruise control system input parameters.
To view the data list:
1  Connect Tech 2 to the data link

Page 5589 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–11
Step Action  Yes No
3 On Tech 2 select
Engine / V6 Engine / Diagnostic Trouble codes / Read DTCs’.
Are there any set DTC’s?  Go to the
appropriate DTC

Page 5590 of 6020

ISUZU KB P190 2007  Workshop Repair Manual Cruise Control – HFV6 Page 8C–12
2.3 Wiring Diagrams

Figure 8C –  6
