ISUZU KB P190 2007 Workshop Repair Manual

9-16 ACCESSORIES

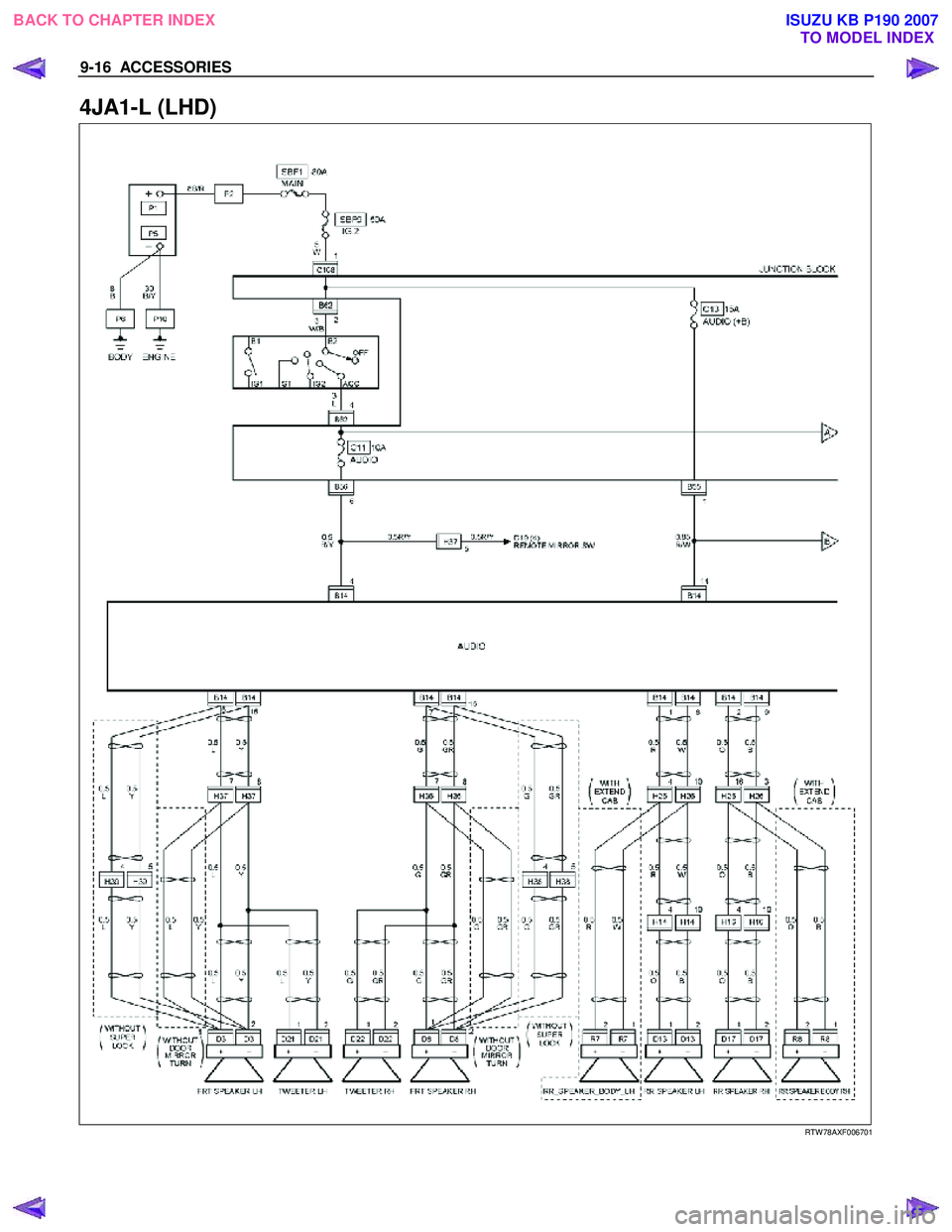

4JA1-L (LHD)


RTW 78AXF006701




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-17

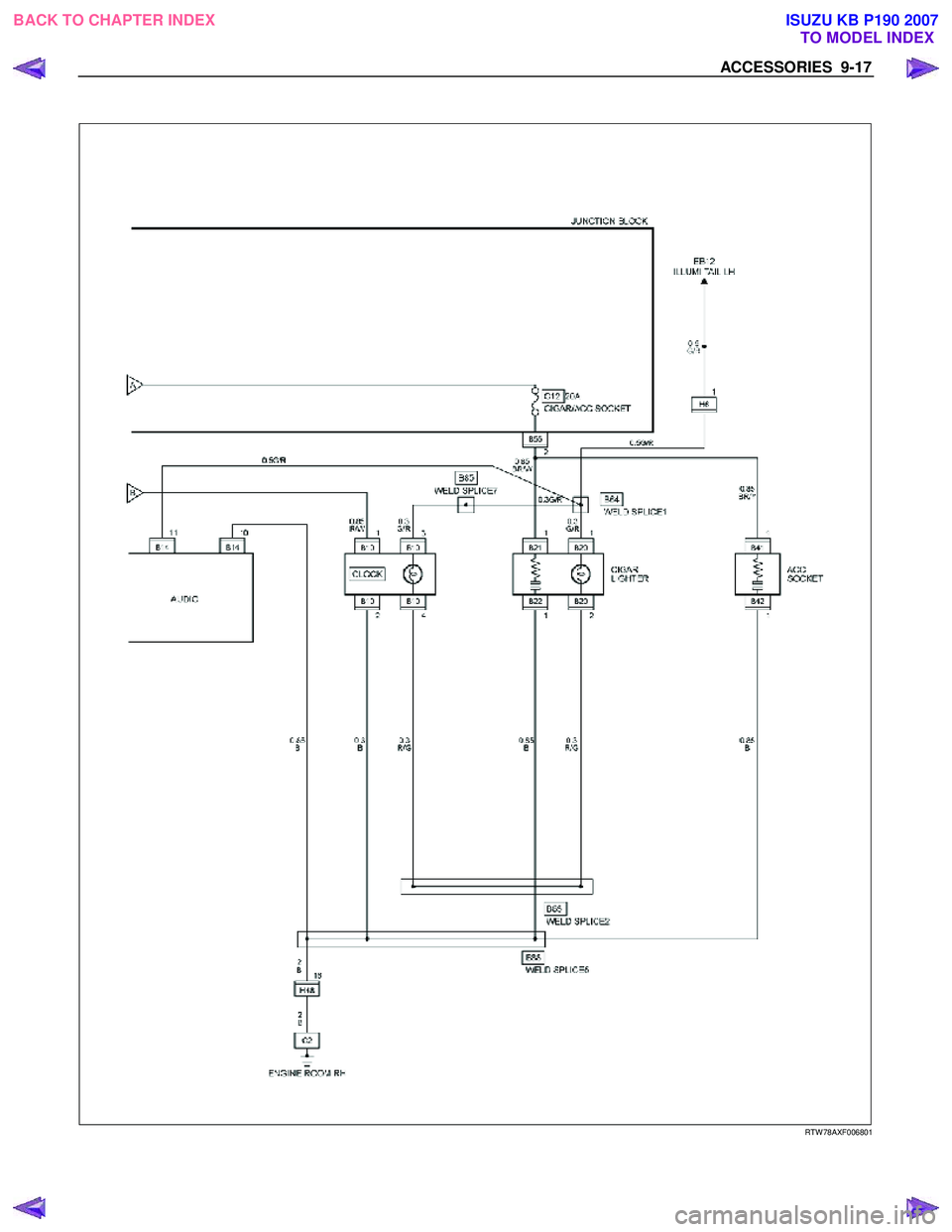

RTW 78AXF006801




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

9-18 ACCESSORIES

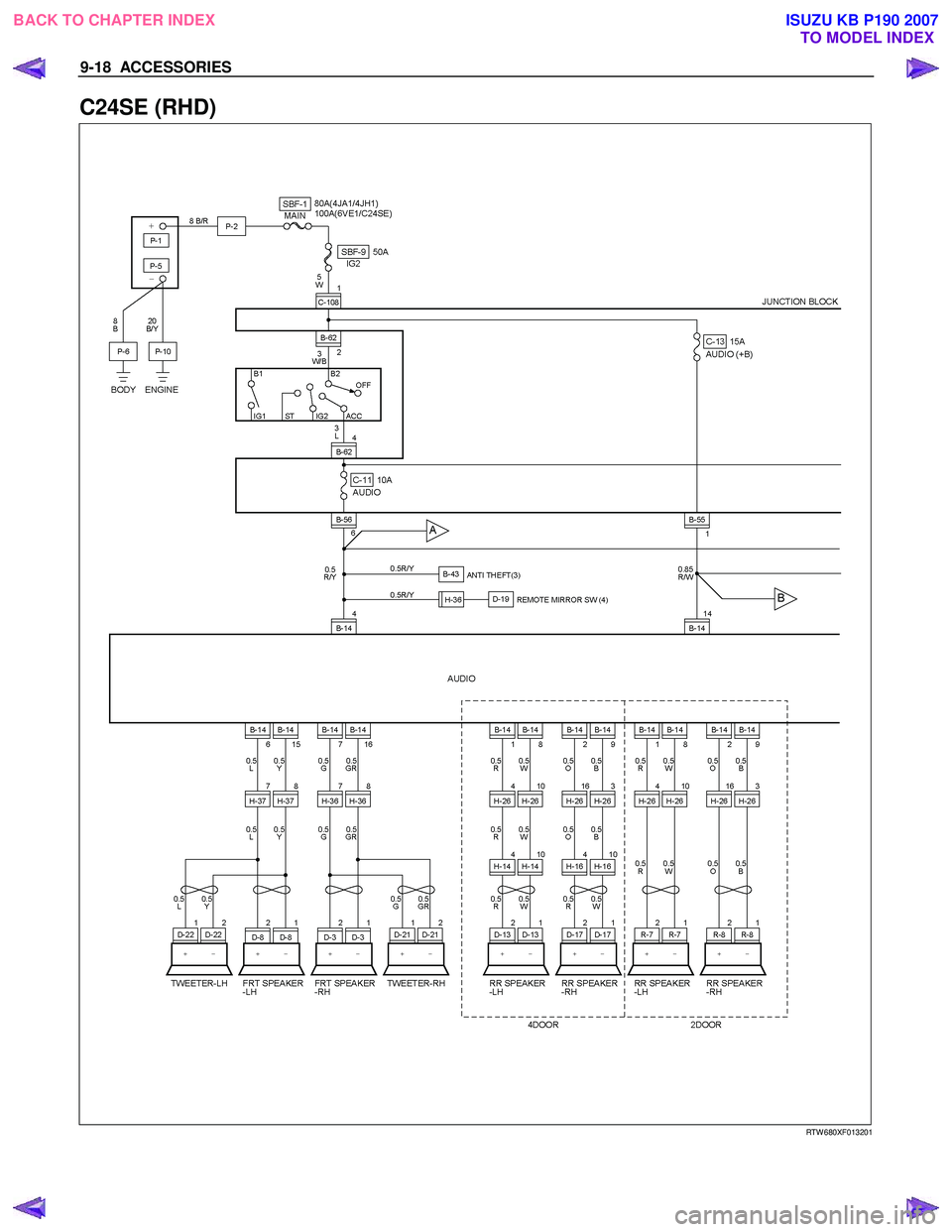

C24SE (RHD)






RTW 680XF013201

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-19

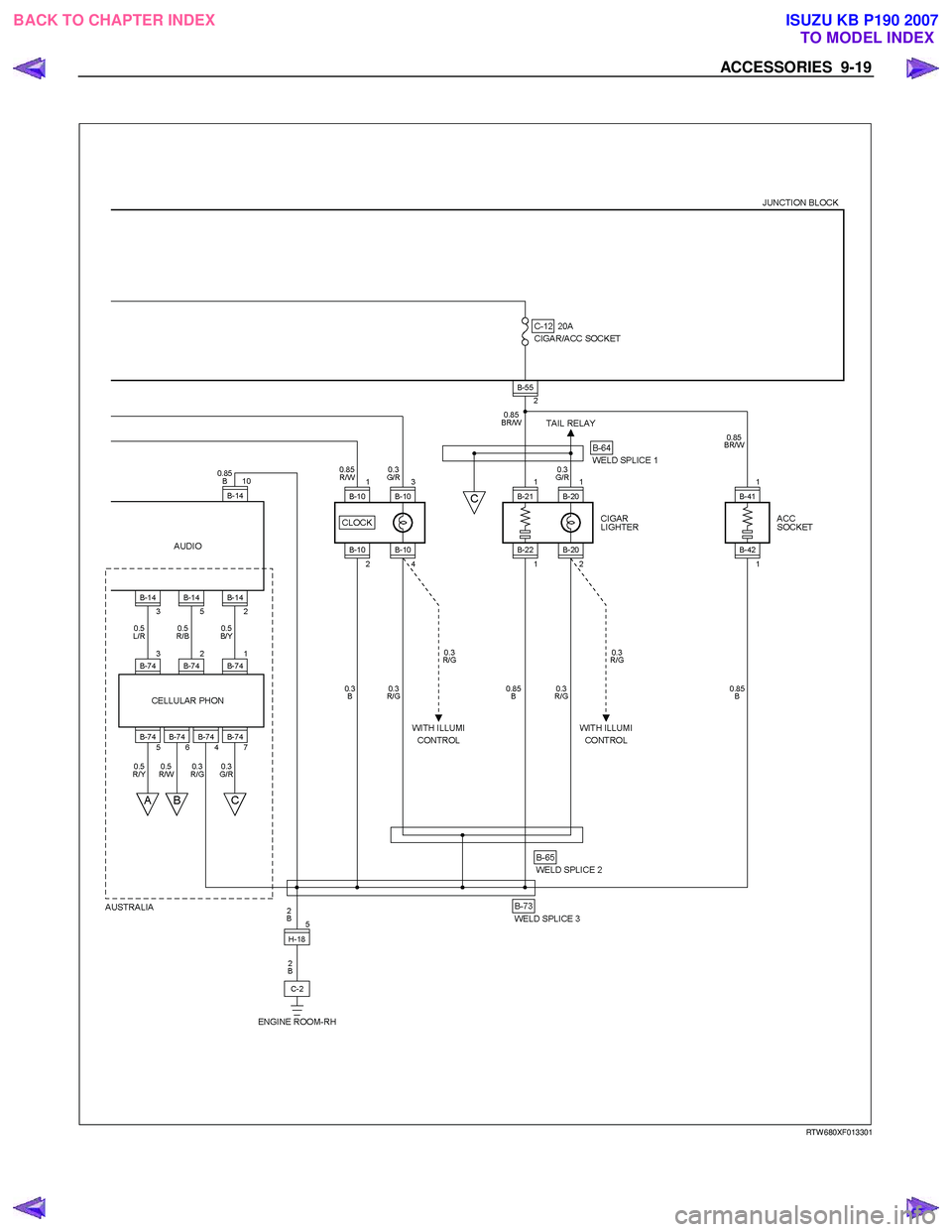

RTW 680XF013301

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

9-20 ACCESSORIES

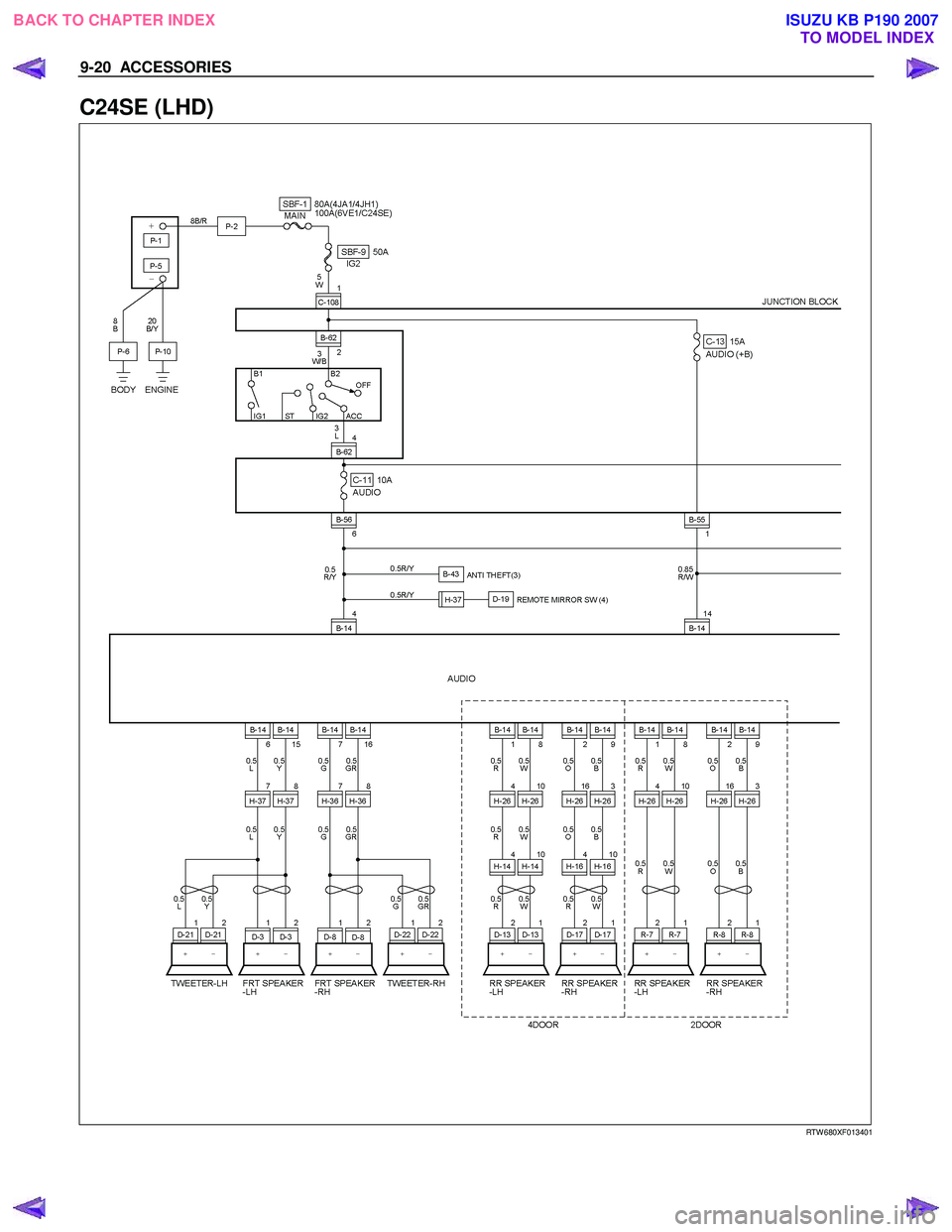

C24SE (LHD)






RTW 680XF013401

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-21

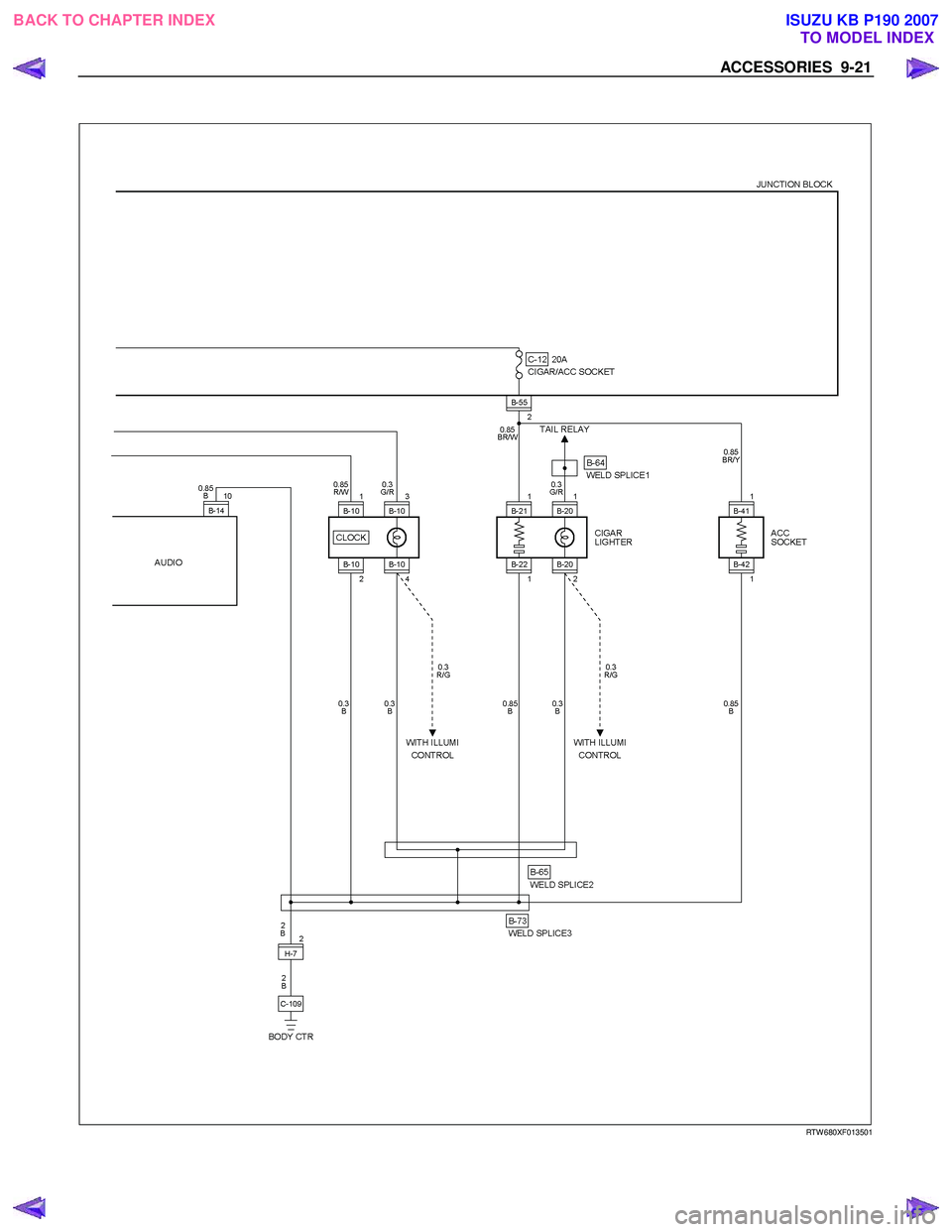

RTW 680XF013501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

9-22 ACCESSORIES

CONNECTOR LIST
No. Connector face No. Connector face
B-10
White
Clock B-64
SilverW eld splice 1 (Illumination)
B-14
Gray
Audio B-65
SilverW eld splice 2 (Ground)
B-20
White
Cigar lighter illumination B-88

SilverW eld splice 5
B-21
White
Cigar lighter C-2
SilverEngine room –RH ground
B-22
Black
Cigar lighter C-108
White
J/B E1
B-41
White
Acc socket D-3
BlackFront speaker -RH
B-42
White
Acc socket D-8
BlackFront speaker -LH
B-55
White
J/B I3 D-13
BlackRear speaker -LH
B-56
White
J/B I4 D-17
BlackRear speaker -RH
B-62
White
Ignition switch (IGSUB: G1) D-21
WhiteTweeter -RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-23


No. Connector face No. Connector face
D-22
White
Tweeter -LH P-1
SilverBattery (+)
H-14
White
Rear body ∼ Rear door -LH P-2
SilverRelay & Fuse box
H-16
White
Rear body ∼ Rear door -RH P-5
SilverBattery (-)
H-18
White
Engine room ∼ INST P-6
SilverBody earth
H-36
White
INST ~ Front door-RH P-10
SilverEngine ground
H-37
White
INST ~ Front door-LH R-7
BlackRear speaker -LH
H-39
White
INST ~ Front door-LH R-8
BlackRear speaker -RH
H-42
White

INST ~ Front door-driver


H-43

INST ~ Body


H-43
White

INST ~ Body




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

9-24 ACCESSORIES

AUDIO
REMOVAL AND INSTALLATION

1
2
4
3
5
6

RTW 790LF000101



Removal
1. Remove the ash try (6).
2. Remove the center cluster cover assembly (4).
3. Disconnect the connector for the clock, the 4 ×4 switch, the
hazard switch.
4. Remove the 4 screws on the Audio.
5. Disconnect the connector for Audio (2).
6. Disconnect the Antenna feeder plug (1).
7. Pull out the audio (2 DIN: 5, 1 DIN: 3).


Installation
To install, follow the removal steps in the reverse order.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-25

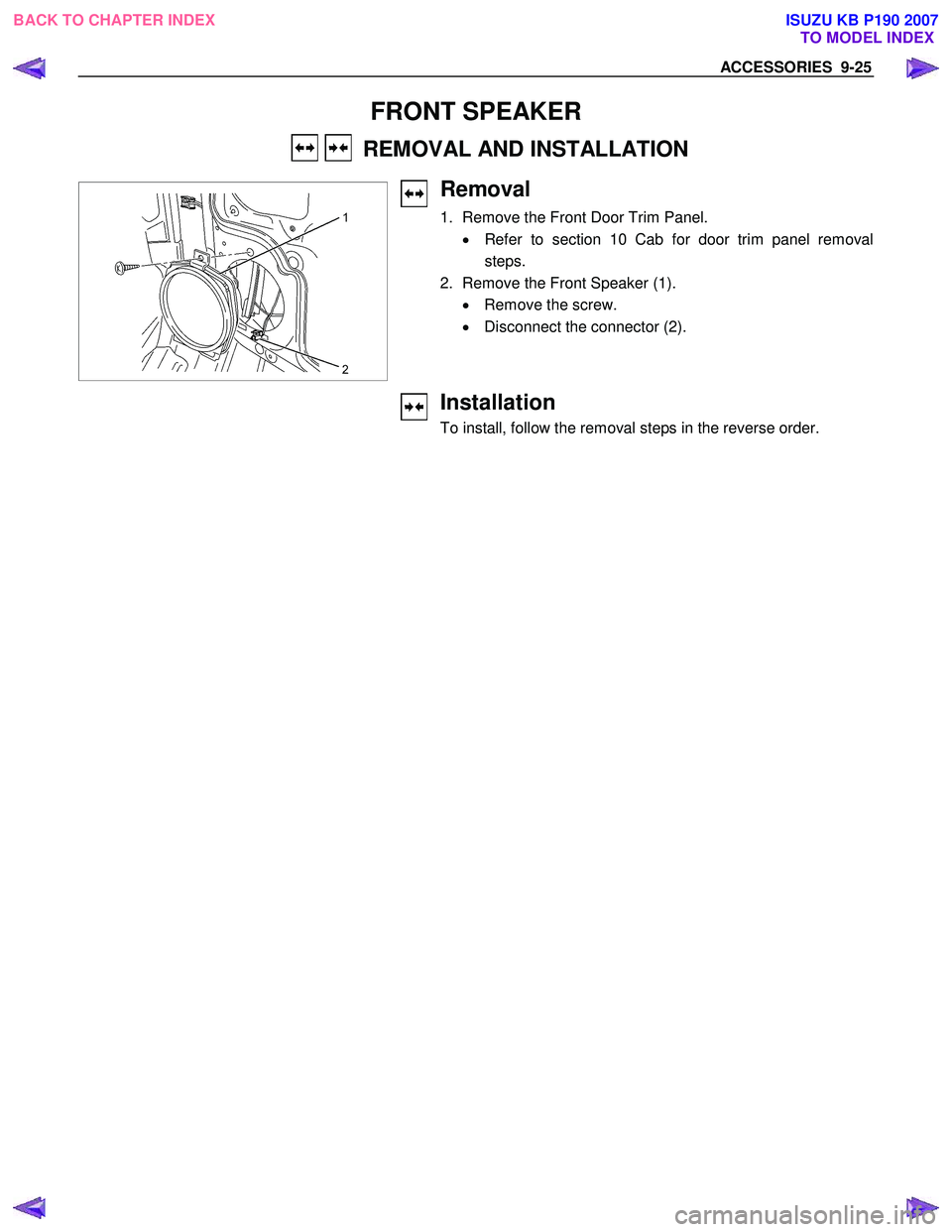

FRONT SPEAKER
REMOVAL AND INSTALLATION




Removal
1. Remove the Front Door Trim Panel.
• Refer to section 10 Cab for door trim panel removal
steps.
2. Remove the Front Speaker (1). • Remove the screw.
• Disconnect the connector (2).


Installation
To install, follow the removal steps in the reverse order.
