ISUZU KB P190 2007 Workshop Repair Manual

6A – 136 ENGINE MECHANICAL





RTW 36ASH000601
Removal
1. Radiator Grille
• Refer to removal procedure in Sheet Metal section.







RTW 36ASH000501
2. Front Bumper Fascia

• Remove the nine clips and four screws.
• Disconnect the fog light harness connectors.
















RTW 46ASH002101
3. Front Bumper Impact Support Assembly
• Remove the nut and two bolts.


4. Inter Cooler
• Remove the nut and two bolts.
• Disconnect the air hose.




Installation
4. Inter Cooler • Tighten the nut and two bolts.


3. Front Bumper Impact Support Assembly
• Tighten the nut and two bolts.



2. Front Bumper Fascia
• Install the nine clips and four screws.
• Connect the fog light harness connectors.


1. Radiator grille
• Refer to installation procedure in Sheet Metal section.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 137
SPECIAL TOOLS
Illustration Tool Number Tool Name
5-8840-0201-0 Filter
W rench
5-8840-0253-0 Filter
W rench
5-8840-2675-0 Compression Gauge

5-8531-7001-0
Adapter; Compression Gauge
5-8840-2723-0
Nozzle Holder Remover
5-8840-0019-0 Sliding Hammer
5-8521-0002-0 Universal Puller
5-8840-2360-0 Oil Seal Remover

9-8523-1423-0 Spring
Compressor
9-8523-1212-0 Valve Guide Replacer

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A – 138 ENGINE MECHANICAL

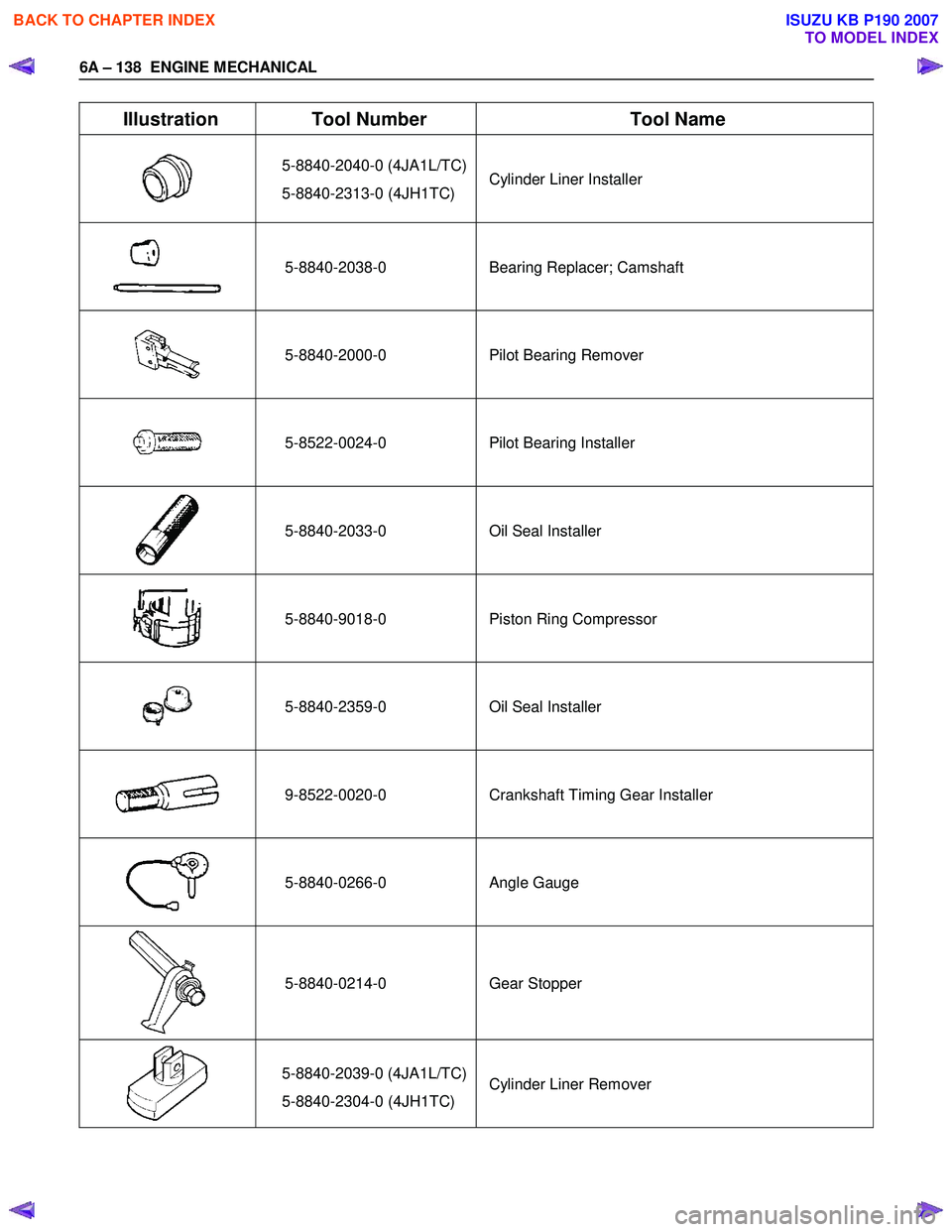

Illustration Tool Number Tool Name
5-8840-2040-0 (4JA1L/TC)
5-8840-2313-0 (4JH1TC) Cylinder Liner Installer
5-8840-2038-0 Bearing Replacer; Camshaft

5-8840-2000-0 Pilot Bearing Remover

5-8522-0024-0
Pilot Bearing Installer
5-8840-2033-0
Oil Seal Installer
5-8840-9018-0 Piston Ring Compressor

5-8840-2359-0
Oil Seal Installer
9-8522-0020-0 Crankshaft Timing Gear Installer
5-8840-0266-0 Angle Gauge
5-8840-0214-0 Gear Stopper

5-8840-2039-0 (4JA1L/TC)
5-8840-2304-0 (4JH1TC) Cylinder Liner Remover

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL 6A – 139

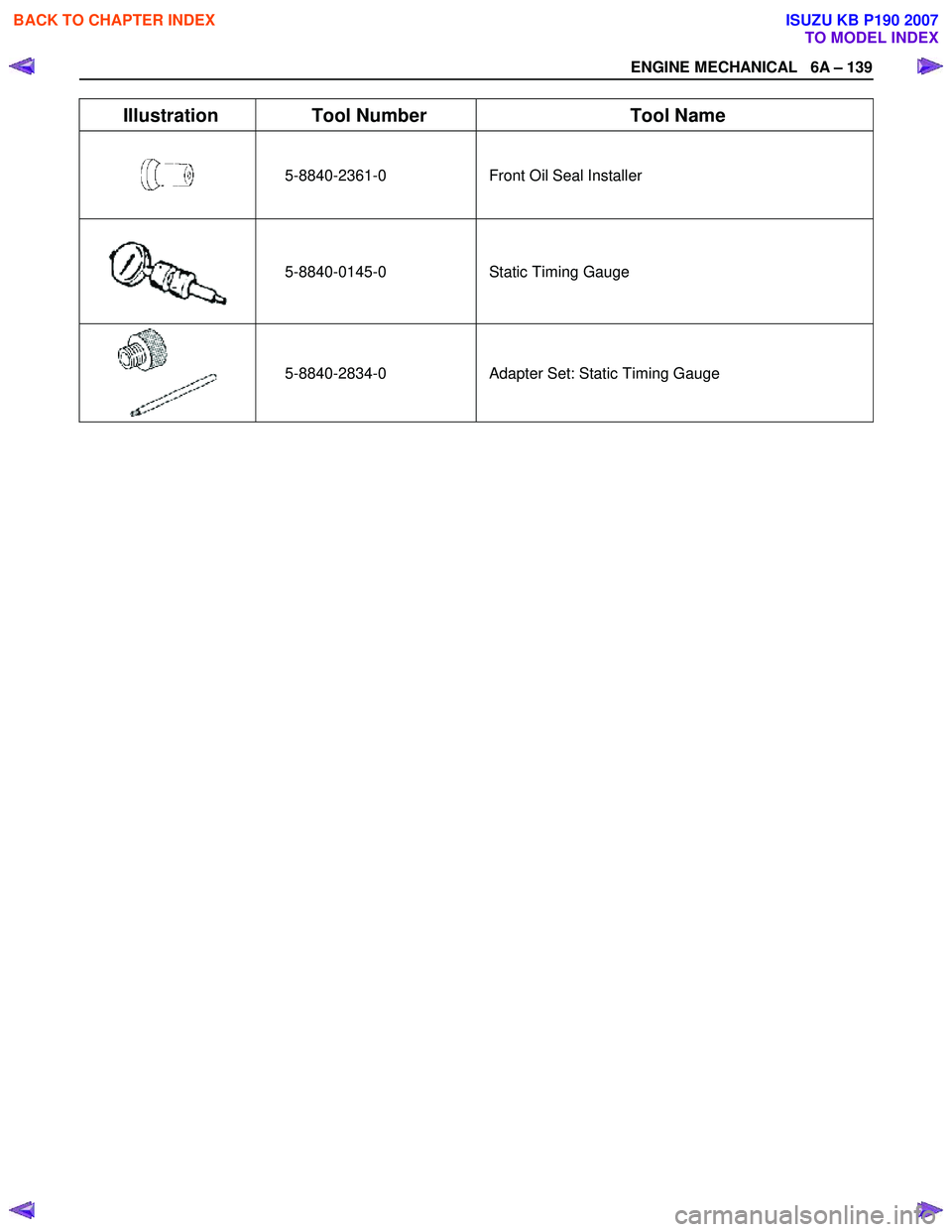

Illustration Tool Number Tool Name
5-8840-2361-0
Front Oil Seal Installer
5-8840-0145-0 Static Timing Gauge

5-8840-2834-0
Adapter Set: Static Timing Gauge


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

SECTION 6B
ENGINE COOLING


TABLE OF CONTENTS
PAGE
Main Data and Specifications ....................................................................................... 6B - 3
General Description .................................................................................................. 6B - 4
Coolant Flow .............................................................................................................. 6B - 4
Water Pump ............................................................................................................... 6B - 5
Thermostat................................................................................................................. 6B - 5
Radiator...................................................................................................................... 6B - 6
Diagnosis ...................................................................................................................... . 6B - 7
Draining and Refilling Cooling System ....................................................................... 6B - 8
Water Pump ................................................................................................................... 6 B - 10
Removal and Installation .......................................................................................... 6B - 10
Removal ..................................................................................................................... 6 B - 10
Inspection and Repair ............................................................................................... 6B - 11
Installation ................................................................................................................. 6B - 11
Thermostat ..................................................................................................................... 6B - 13
Removal and Installation .......................................................................................... 6B - 13
Removal ..................................................................................................................... 6 B - 13
Inspection and Repair ............................................................................................... 6B - 13
Installation ................................................................................................................. 6B - 14
Radiator ....................................................................................................................... ... 6B - 15
Removal and Installation .......................................................................................... 6B - 15
Radiator and Associated Parts ................................................................................ 6B - 15
Removal ..................................................................................................................... 6 B - 16
Inspection and Repair ............................................................................................... 6B - 17
Installation ................................................................................................................. 6B - 18
EN GI NE COOLI NG 6 B – 1

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6B – 2 ENGINE COOLING

PAGE
Engine coolant change ............................................................................................. 6B - 19
Fan Clutch with Cooling Fan ........................................................................................ 6B - 20
Inspection and Repair ............................................................................................... 6B - 20
Special Tools ............................................................................................................. 6B - 20

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE COOLING 6B – 3

MAIN DATA AND SPECIFICATIONS
Description Item M/T A/T
Cooling system
W ater pump type
Pump to crankshaft speed ratio (To 1)
Delivery volume lit (US/UK gal)/min
Pump speed at 3000 rpm
W ater temperature at 30 °C (86 °F)
Pump bearing type

Thermostat type
Valve initial opening temperature °C ( °F)
(Oil cooler thermo valve)
(EGR cooler thermo valve)
Valve full opening temperature °C ( °F)
(Oil cooler thermo valve)
(EGR cooler thermo valve)
Valve lift at fully open position mm (in)
(Oil cooler thermo valve)
(EGR cooler thermo valve) Engine coolant forced circulation
Centrifugal impeller type 1.2
100 (26.3/22.2)

Double row shaft
W ax pellet with jiggle valve 82 (180)
76.5 (170) 40 (104)
95 (203)
90 (194)
55 (131)
9.5 (0.37)
4.5 (0.18)
3.5 (0.14)
Radiator Tube type corrugated
Heat radiation capacity 93.0 kW (79,980 kcal/h)
Heat radiation area 11.63 m2 (1.081ft2)
Radiator front area 0.28m2 (0.026 ft2)
Radiator dry weight 52 N (5.3 kg/11.7 lb) 53 N (5.4 kg/11.9 lb)
Radiator cap valve opening pressure 93.3 ~ 122.7 kPa (13.5 ~ 17.8 psi)
Engine coolant capacity 2.4 lit (5.1 U.S pint) 2.3 lit (4.9 U.S pint)
Engine coolant total capacity 10.1 lit (21.3 U.S pint) 10.0 lit (21.1 U.S pint)




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6B – 4 ENGINE COOLING

GENERAL DESCRIPTION
COOLANT FLOW








RTW 66ALF000101

The engine cooling system consists of the radiator, the water pump, the cooling fan, and the thermostat.
To quickly increase cold engine coolant temperature for smooth engine operation, the coolant is circulated by the
water pump and thermostat through the bypass hose and back to the cylinder body.
The coolant does not circulate through the radiator.
W hen the coolant temperature reaches specified value, the thermostat will begin to open and a gradually increasing
amount of coolant will circulate through the radiator.
The thermostat will be fully open when the coolant temperature reaches specified value. All of the coolant is now
circulating through the radiator for effective engine cooling.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE COOLING 6B – 5

WATER PUMP


RTW 46ASF000101

A centrifugal type water pump forcefully circulates the coolant through the cooling system.
The water pump is not disassembled type.

THERMOSTAT














030RY00005
A wax pellet type thermostat is used.
The jiggle valve accelerates engine warm-up.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6B – 6 ENGINE COOLING



110RS001
RADIATOR
The radiator is a tube type with corrugated fins. In order to
raise the boiling point of the coolant, the radiator is fitted with a
cap in which the valve is operated at 93.3
∼ 122.7 kPa (13.5 ∼
17.8 psi) pressure. (No oil cooler provided for M/T)





F06RW 005
Antifreeze Solution
NOTE: Antifreeze solution + W ater = Total cooling system
capacity.
Total Cooling System Capacity Lit (US / UK gal)
9.4 (2.5/21) 4JA1L/TC
M/T 10.1 (2.7/2.2) 4JH1TC
A/T 10.0 (2.6/2.2) 4JH1TC
See section 0B MAINTENACE AND LUBRICATION .





PTW 46BSH000201
NOTE:
To maintain the corrosion resistance of the aluminum
radiator, water and antifreeze must be combined in a 1:1
solution (50% antifreeze and 50% water)




BACK TO CHAPTER INDEX
