ISUZU TROOPER 1995 Workshop Manual

MANUAL TRANSMISSION 78-41
TORQUE SPECIFICATIONS (cont'd) N·m (lb·ft)
25 (18)
Fig. 78-108

78-42 MANUAL TRANSMISSION
TORQUE SPECIFICATIONS (cont'd) N·m (lb·ft)
20(1~
Fig. 78~109
•

MANUAL TRANSMISSION 78-43
SPECIAL TOOLS
ILLUSTRATION PART
NO.
PART NAME ILLUSTRATION PART
NO.
PART NAME
~
J-37222
Mainshaft collar remover
J-6133-01
l~ D Mainshaft collar installer
~
J-8433
Puller
J-39207
::::: :J Remover: Clutch release
bearing
m
J-37224
Holding fixture ~
J-37221
Flange holder !.
0
J-3289-20
Holding fixture base
J-39209
Punch, end nut
~
J-37219
Wrench I '
J-35283
01 » Counter shaft bearing
installer
J-37225
( « ~ Torx bit wrench
(T-45)
~
J-37223
Mainshaft end bearing
installer
!f;r
J-22912-01
Bearing remover/installer
~
J-29769
Front cover oil seal installer

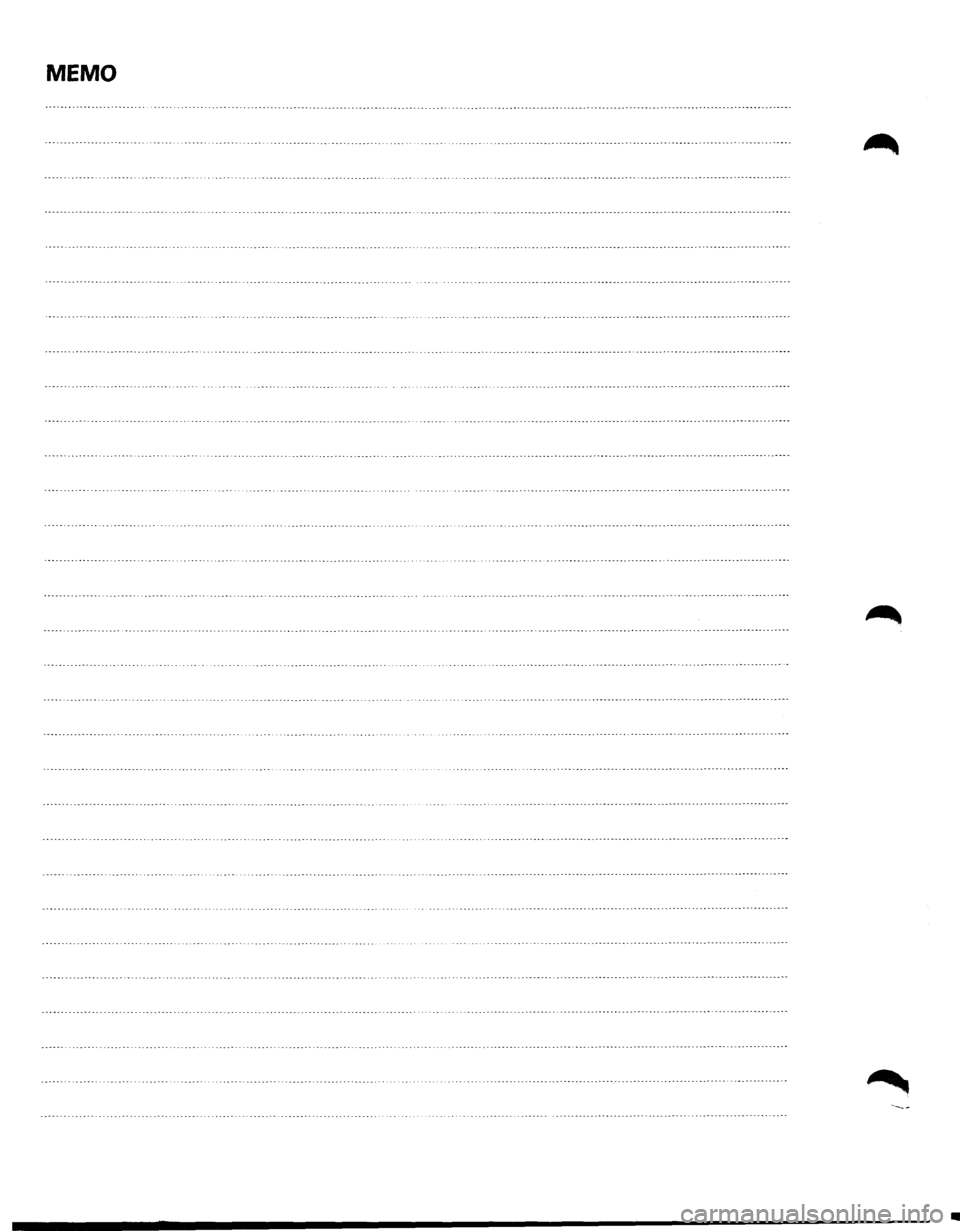

MEMO
•

CLUTCH 7C-1
SECTION 7C
CLUTCH
W CAUTION:
• When fasteners are removed, always reinstall them at the same location from which they were removed. If a
fastener needs to be
replaced, use the correct part number fastener for that application. If the correct part
number fastener is
not available, a fastener of equal size and strength (or stronger) may be used. Fasteners
that are not reused, and those requiring thread locking compound, will be called out. The correct torque
values must be used when installing fasteners that require torque. If the above conditions are not followed,
parts or system damage could result.
CONTENTS
General Description .................. 7C-2
Clutch ............................ 7C-2
Master
Cylinder ................... 7C- 3
Damper
Cylinder ................... 7C- 3
Slave Cylinder ..................... 7C-3
Pressure
Plate Assembly ........... 7C-4
Driven
Plate Assembly ............. 7C-4
Diagnosis
............................ 7C- 5
On-Vehicle Service ................... 7C-6
Clutch Assembly . .
. . . . . . . . . . . . . . . .
7C-6
Clutch Control . .
. . . . . . . . . . . . . . . . . .
7C-13
Master
Cylinder . .
. . . . . . . . . . . . . . . . .
7C-17
Slave Cylinder . .
. . . . . . . . . . . . . . . . . .
7C-18
Damper
Cylinder . .
. . . . . . . . . . . . . . . .
7C-20
Main
Data And Specifications . .
. . . . . .
7C-21
General Specifications
. . . . . . . . . . . . . 7C-21
Torque Specifications ............. 7C-22
Special Tools ........................ 7C-24

7C-2 CLUTCH
GENERAL DESCRIPTION
CLUTCH
Fig. 7C-1
For 6VD1 (3.2L) engine model, the pull-type clutch is
employed. The pull-type clutch is disengaged by
pulling the release lever (release bearing) to disengage
the pressure
plate.
•

CLUTCH 7C-3
MASTER CYLINDER
Fig. 7C-2
DAMPER CYLINDER
Fig. 7C-3
In order to reduce the occurrence of noises at the
clutch hydraulic system, the damper cylinder is used in the
clutch
hydraulic line between the master cylinder
and slave cylinder.
SLAVE CYLINDER
Fig. 7C-4

7C-4 CLUTCH
PRESSURE PLATE ASSEMBL V
Fig. 7C-5
DRIVEN PLATE ASSEMBL V
Fig. 7C-6
•

CLUTCH 7C-5
DIAGNOSIS
Problem Possible cause Correction
Dragging • Fluid leakage.
• Repair
• Air in hydraulic line.
• Bleed
•
Master cylinder and slave cylinder seals • Replace seals.
worn.
• Driven plate warped. • Replace driven plate.
•
Diaphragm spring weakened or tip of • Replace pressure plate.
fingers worn.
• Driven plate sticking on splines. • Lubricate with grease or replace.
• Clutch spline
worn. • Repair
• Release bearing worn or damaged. • Replace release bearing.
Slipping
• Driven plate facing worn or oil soaked. • Replace driven plate and check for
leaks.
•
Diaphragm spring weakened. • Replace pressure plate.
•
Pressure plate or flywheel warped. • Correct or replace.
•
Master cylinder and slave cylinder seals
• Replace seals.
worn.
Chattering
• Engine mounts loose or damaged. • Tighten or replace.
•
Driven plate facing warped. • Replace driven plate.
•
Surface of facing hardened. • Replace driven plate
•
Driven plate facing oil soaked. • Replace driven plate and check for
leaks.
•
Damper springs weakened or broken. • Replace.
•
Pressure plate or flywheel warped. • Correct or replace.
Noisy • Replace bearing binding. • Correct, or replace if damaged, and
lubricate.
• Replace
bearing worn or damaged. • Replace release bearing.
• Release bearing poorly lubricated.
• Lubricate.
• Pilot bearing worn. • Replace pilot bearing.
• Damper springs weakened or broken. • Replace driven plate.
•
Rivets of driven plate exposed. • Replace driven plate.
Pedal
is hard • Hydraulic line blocked.
• Clean out or replace.
to push • Master or slave cylinders binding. • Repair or replace as needed.

7C-6 CLUTCH
ON-VEHICLE SERVICE
CLUTCH ASSEMBL V
6
Removal steps
1••1 REMOVAL
1. Transmission assembly
2. Pressure plate assembly
3. Driven plate assembly 4. Release bearing 5. Shift fork
6. Fulcrum bridge
7. Flywheel assembly and
crankshaft bearing
1. Transmission assembly
3
Fig. 7C-7
Refer to "MANUAL TRANSMISSION" of Section
78
for "REMOVAL AND INSTALLATION" pro­
cedure.
2. Pressure plate assembly
3. Driven plate assembly
li0\1 • Use the pilot aligner to prevent the driven plate
lSi~ assembly from falling free (Fig. 7C-8).
2
Installation steps
To install,
follow the removal steps in the reverse order.
Drivtm plate assembly
Pressure plate assembly'
Pilot aligner
Fig. 7C-8
•
