ECU JAGUAR X308 1998 2.G Workshop Manual

22
.
Remove back plate.
Remove two bolts and two scre ws securi
ng back plate to
hub carrier.
With
draw back plate complete
with parking brake cable.

23
.
Mark wishbone at pivot pin eccentric flange marker to aid
installation.

24
.
Remove nut and washer from pivot pin.
25. Remove hub and carrier from wishbone and axle shaft.
With
draw pivot pin and remove
hub and carrier assembly.

1.
Position hub carrier on block of wood.
2. Position ABS-rotor sensor to hub.
Ali g
n assembly to press-ram, and operate press to install
ABS-sensor rotor to hub.

10 . CAUTI
ON: Do not use excessive force when levering
hub.
Measure hub end-float.
Secure hub carri er in vi
ce.
Inst
al
l special tool JD15 to hub.
1. Install dial gauge JD 13A on hub carrier.
2. Using two levers, measure and record hub end-float.
R e
move special tools from hub carrier.

11
. Using h
ydraulic pr
ess, remove hub and outer bearing
assembly from carrier.
1. Position large section of special tool JD132 on press bed, with recess in tool upper most.
2. Position hub carrier on tool, ensuring parking brake cable housing locates in tool recess.
3. Position small section of special tool JD132 on hub.
Alig
n assembly to press-ram, and operate press to remove

hub from hub carrier.

12 . R
emove ABS rotor and inner bearing from hub carrier.
R
e
move ABS rotor.
R
e
move inner bearing.
13. Remove outer bearing assembly from hub.
Remove bearing shim.

29. Tigh
ten pivot pin nut.
Al
ign mark
er on pivot pin flange with mark made on
wishbone.
Ensuri ng pi
n position is not
disturbed, tighten nut to 88-
118Nm.

30 . Inst
all wheel speed sensor on hub carrier.
Posit
i
on sensor on hub carrier
and install and tighten bolt
to 7-10Nm.
Connect
wheel speed sensor harness to sensor.

31 . Using new ti
e strap, secure wh
eel speed sensor harness to
hub carrier.
32. Install handbrake shoes. Re fer to operation 70.40.05.
33. Install brake disc. Refer to operation 70.10.13.
34. Position special tool 204-195 on hub studs and install
securing nuts.

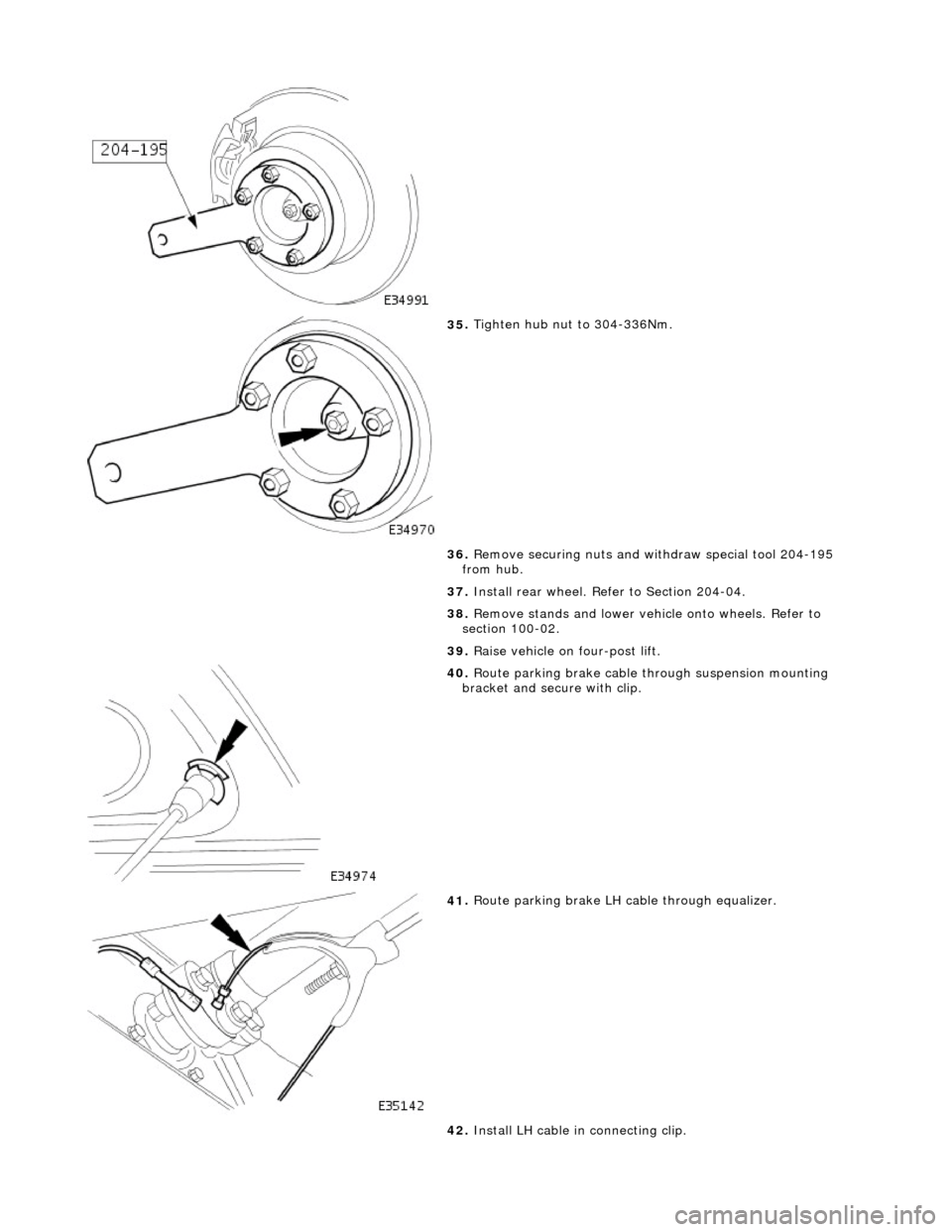

35
.
Tighten hub nut to 304-336Nm.
36. Remove securing nuts and withdraw special tool 204-195
from hub.
37. Install rear wheel. Refer to Section 204-04.
38. Remove stands and lower vehi cle onto wheels. Refer to
section 100-02.
39. Raise vehicle on four-post lift.

40
.
Route parking brake cable through suspension mounting
bracket and secure with clip.

41
.
Route parking brake LH ca ble through equalizer.
42. Install LH cable in connecting clip.

clip
.

5. With draw parkin
g brake cable th
rough equalizer (LH side cable
only).
6. Lower four-post lift.
7. Raise rear of vehicle to workin g height and support on stands.
Refer to section 100-02.
8. Remove rear wheel. Refer to section 204-04.

9. Posit i
on special tool (204-1
95) on hub studs and install
securing nuts.

10 . Slac
ken but do not remove hub to axle shaft securing nut.
11. Remove nuts and withdraw special tool (204-195) from hub.
12. Remove rear brake disc. Refer to 70.10.13.
13. Remove parking brake shoe s. Refer to 70.40.05.
14. Remove wheel speed sensor.

Disc
onnect wheel speed sensor harness connector.
R

emove sensor securing bolt
and withdraw sensor from
hub carrier.

15
.
Sever and discard wheel speed sensor harness tie strap and
position harness for access.

16
.
Remove hub nut and collar.
Re
move nut.
Re

move locating collar.

17
.
Install thread protec tor on axle shaft.
18. Release hub from axle shaft.
Position hu
b puller on hub studs. (204-011)
Inst

all securing nuts.
Progres

sively tighten
puller center bolt to release hub from
axle shaft splines.

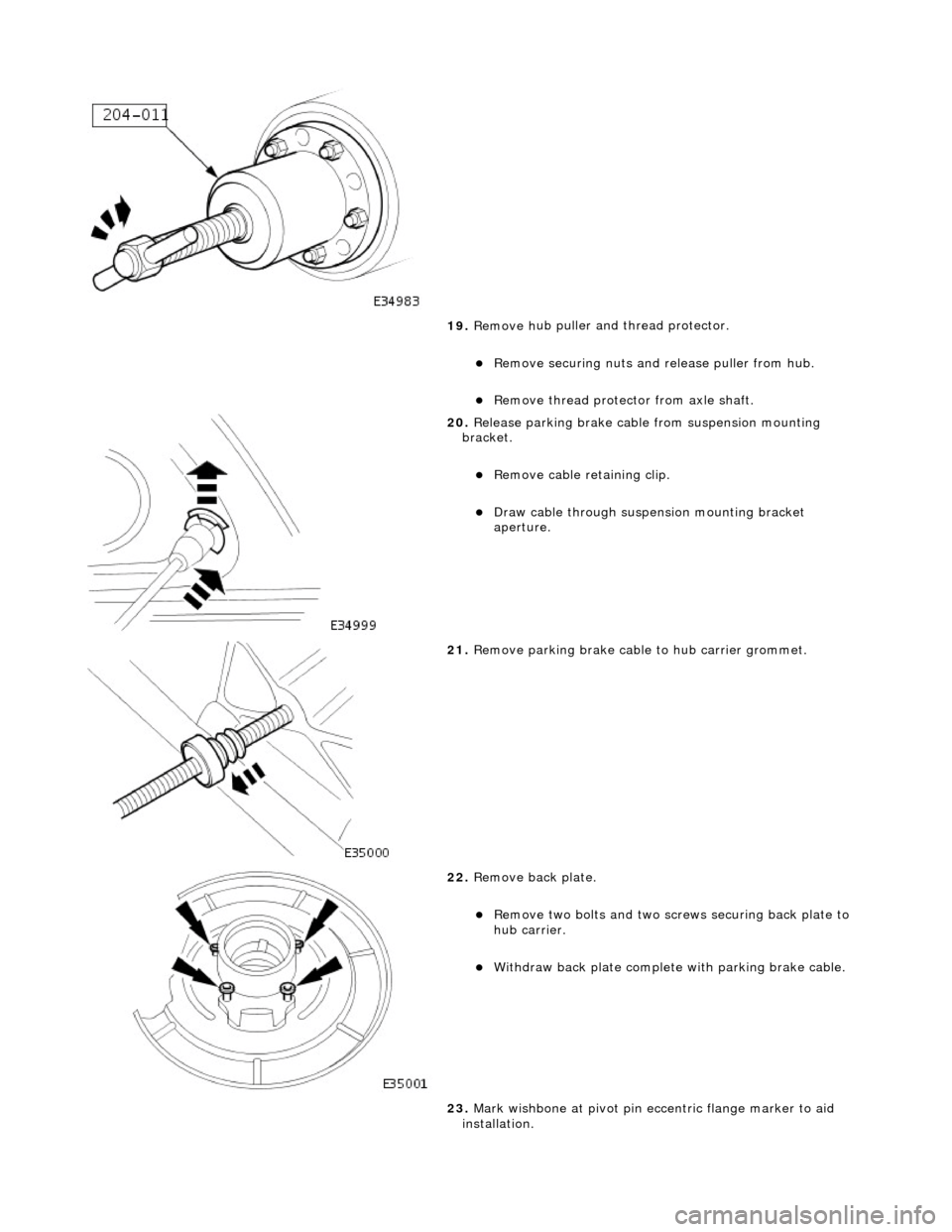

19. Remove h
ub puller an
d thread protector.
Re
move securing nuts and
release puller from hub.
Re
move thread protecto
r from axle shaft.

20 . Relea
se parking brake cable
from suspension mounting
bracket.
Remove cable reta ining clip.

Draw c
a
ble through suspension mounting bracket
aperture.

21 . Remove parking brake cable to hu
b carrier grommet.

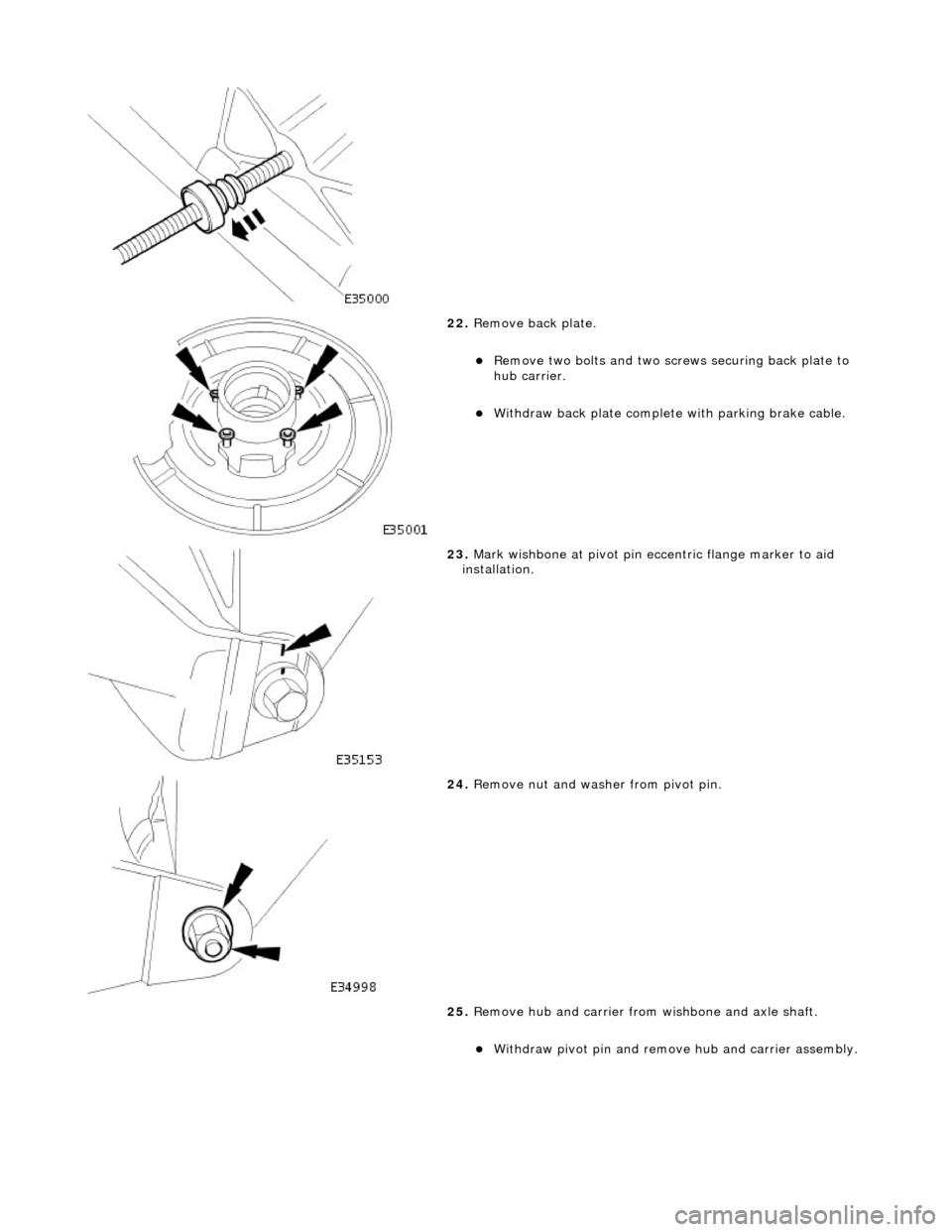

22 . Remove back plate.
Remove two bolts and two scre ws securing back plate
to
hub carrier.
With draw back plate
complete
with parking brake cable.
23. Mark wishbone at pivot pin eccentric flange marker to aid
installation.

14. Inst
all wheel speed sensor on hub carrier.
Posit
i
on sensor on hub carrier
and install and tighten bolt
to 7-10Nm.
Conne ct
wheel speed sensor harness to sensor.

15 . Using new ti
e strap, secure wh
eel speed sensor harness to
hub carrier.
16. Install handbrake shoes. Re fer to operation 70.40.05.
17. Install brake disc. Refer to operation 70.10.13.

18 . Posit
ion special tool (204-195)
on hub studs and install nuts.
19. Tighten hub nut to 304-336Nm.

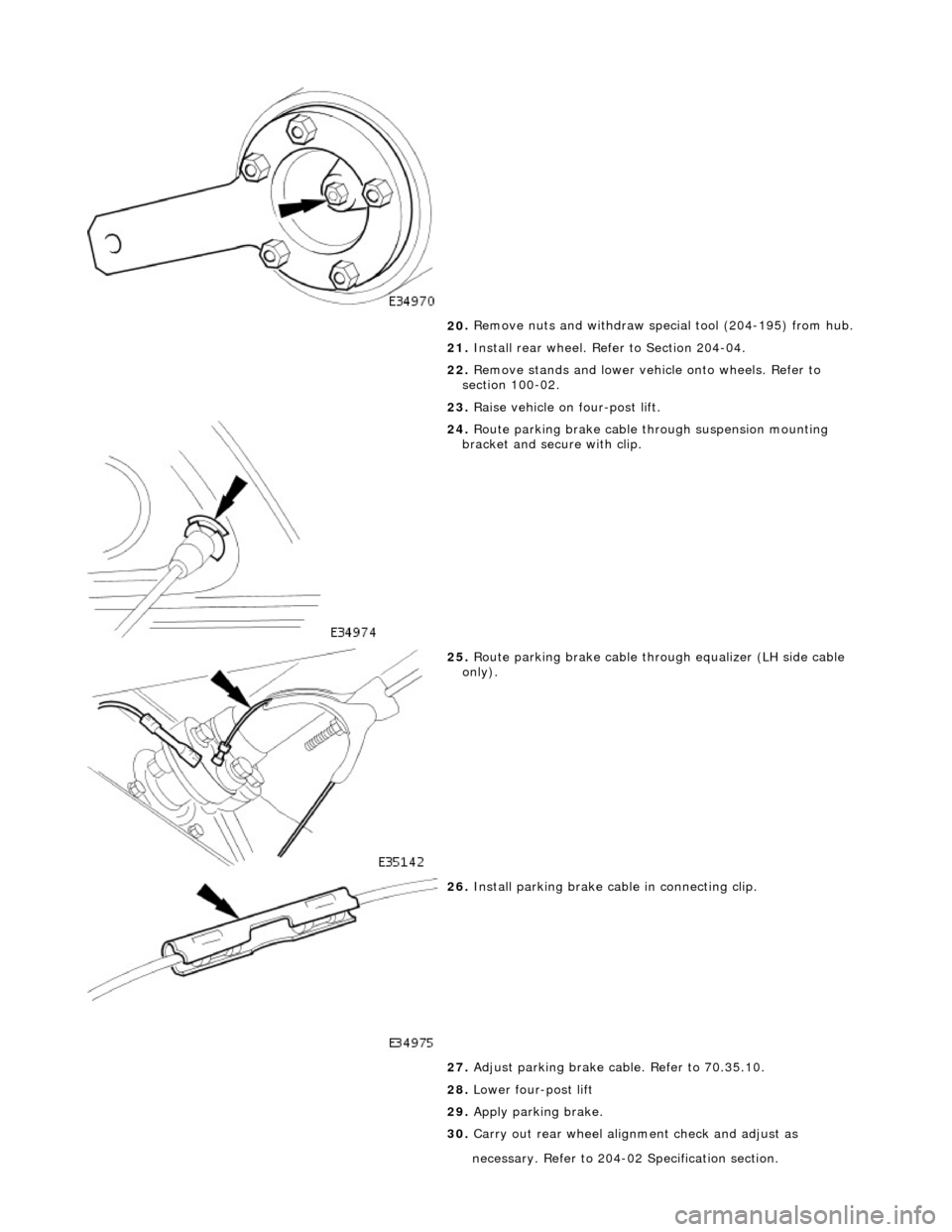

20
.
Remove nuts and withdraw special tool (204-195) from hub.
21. Install rear wheel. Refer to Section 204-04.
22. Remove stands and lower vehi cle onto wheels. Refer to
section 100-02.
23. Raise vehicle on four-post lift.

24
.
Route parking brake cable through suspension mounting
bracket and secure with clip.

25
.
Route parking brake cable through equalizer (LH side cable
only).

26
.
Install parking brake cabl e in connecting clip.
27. Adjust parking brake cable. Refer to 70.35.10.
28. Lower four-post lift
29. Apply parking brake.
30. Carry out rear wheel alignm ent check and adjust as


necessary. Refer
t
o 204-02 Specification section.

cli
p.

5. With
draw parking brake cable th
rough equalizer (LH side cable
only).
6. Lower four-post lift.
7. Raise rear of vehicle to workin g height and support on stands.
Refer to section 100-02.
8. Remove rear wheel. Refer to section 204-04.

9. Posit
ion special tool (204-1
95) on hub studs and install
securing nuts.

10
.
Slacken but do not remove hub to axle shaft securing nut.
11. Remove securing nuts from stud s and withdraw special tool
(204-195) from hub.
12. Remove rear brake disc. Refer to 70.10.13.
13. Remove parking brake shoe s. Refer to 70.40.05.
14. Remove wheel speed sensor.
