Ensure spring
upper se
at is correctly positioned in turret.
Engage tool dowel in turret slo
t.
R
o
tate adjuster of Special Tool 204-111 to lightly tension
spring.
17 . Ins
tall guide pins ( supplied with Special Tool 204-111) in
spring pan/wishbone bolt locations.
18 . WARNING: WHE
N ROTATING TOOL ADJUSTER, ENSURE
THAT TOOL STEM DOES NOT TU RN AND DISTURB POSITION OF
DOWEL IN SUSPENSION TURRET.
Install spring pan to wishbone securing bolts.
Ro t
ate tool adjuster to gradua
lly increase spring tension.
Pr
ogressively install but do no
t tighten spring pan securing
bolts.
Tigh ten spring pan
bolts to 70-90Nm.
Ensure spri
ng
lower seat is co
rrectly positioned in spring
pan.
19 . WARNING: WHE
N ROTATING TOOL ADJUSTER, ENSURE
THAT TOOL STEM DOES NOT TU RN AND DISTURB POSITION OF
DOWEL IN SUSPENSION TURRET.
Remove Special Tool 204-111 from suspension.
Rotat
e adjuster of Special Tool to release tension on
spring.
R otate
tool stem to release dowel from turret.
With
draw tool and adaptor
.assembly.
20
. Lower vehi
cle to working heig
ht and support on stands.
21. Install wheel speed sensor.
Positi
on wheel speed sensor on vertical link.
Page 89 of 2490

Inst
all sensor bolt an
d tighten to 8-10Nm.
22
.
Connect wheel speed sensor harness.
1. Connect wheel speed sensor harness to sensor.
2. Using new tiestraps secure wheel speed sensor harness to upper wishbone.
23
.
Install brake calipers.
R
emove tie supporting brake caliper.
1. Install caliper on carrier.
2. Install guide pins.
3. Install guide pin dust caps.
4. Install caliper spring clip.
24. Install road wheel. Re fer to Section 100-02.
25. Raise vehicle, remove stands and lower vehicle onto road
wheels.
26
.
Ensuring graduation mark remains aligned, finally tighten
wishbone rear eccentric bolt to 113-153Nm.
27. Check wheel alignment and if necessary adjust. Refer to
57.65.01.
Page 91 of 2490

1
11 and support on stands. Refer to Section 100-02.
5. Ins
tall Special Tool 204-111 in road spring.
Sl
acken tool adjuster to suit spring length.
Fit adaptor and th
rust collar.
Posit
ion stem of tool in center of spring passing dowel
through slot in su spension turret.
6. R
otate stem of Special Tool to
position dowel across slot.
7. W
ARNING: WHEN TURNING TOOL ADJUSTER, ENSURE
THAT TOOL STEM DOES NOT ROTATE AND DISTURB POSITION
OF DOWEL IN SUSPENSION TURRET.
Rotate adjuster of Special Tool to tension spring.
8. R
emove spring pan securing bolts.
9. Rotate adjuster of Special Tool to release tension from spring.
Page 92 of 2490

10. NOTE
: It is not necessary to re
move Special Tool from spring
at this stage.
Remove spring assembly and Special Tool 204-111 from
suspension turret.
11. Lower vehicle to working heig ht and support on stands.
12 . Re
move tiestraps securing wheel speed sensor harness to
upper wishbone.
13 . R
emove wheel speed sensor se
curing screw and withdraw
sensor from vertical link.
14. Remove nut securing tie rod oute r ball joint to steering arm.
Page 93 of 2490

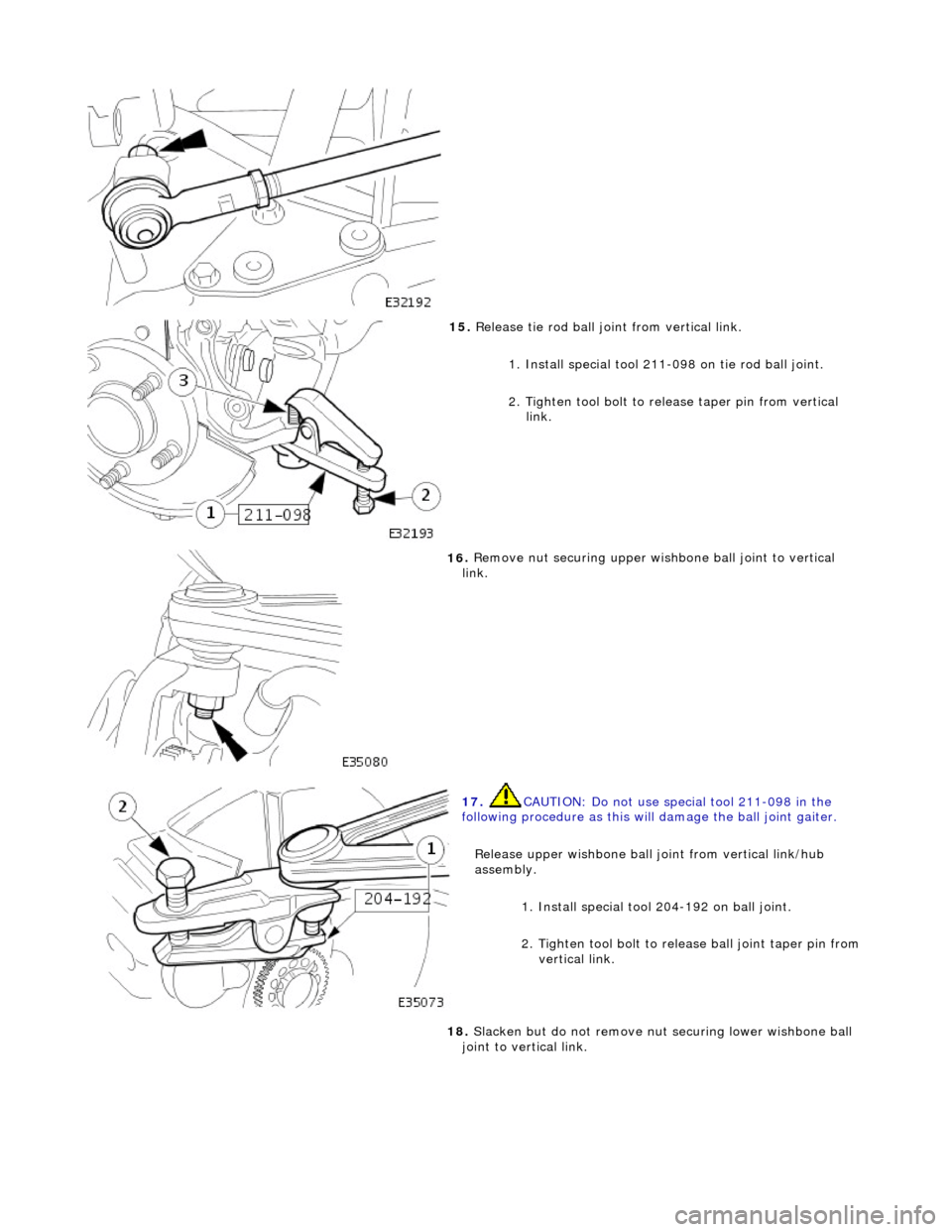

15
.
Release tie rod ball joint from vertical link.
1. Install special tool 211-098 on tie rod ball joint.
2. Tighten tool bolt to rele ase taper pin from vertical
link.
16
.
Remove nut securing upper wish bone ball joint to vertical
link.
17
.
CAUTION: Do not use special tool 211-098 in the
following procedure as this will damage the ball joint gaiter.
Release upper wishbone ball joint from vertical link/hub
assembly.
1. Install special tool 204-192 on ball joint.
2. Tighten tool bolt to rele ase ball joint taper pin from
vertical link.
18
.
Slacken but do not remove nut securing lower wishbone ball
joint to vertical link.
Page 94 of 2490

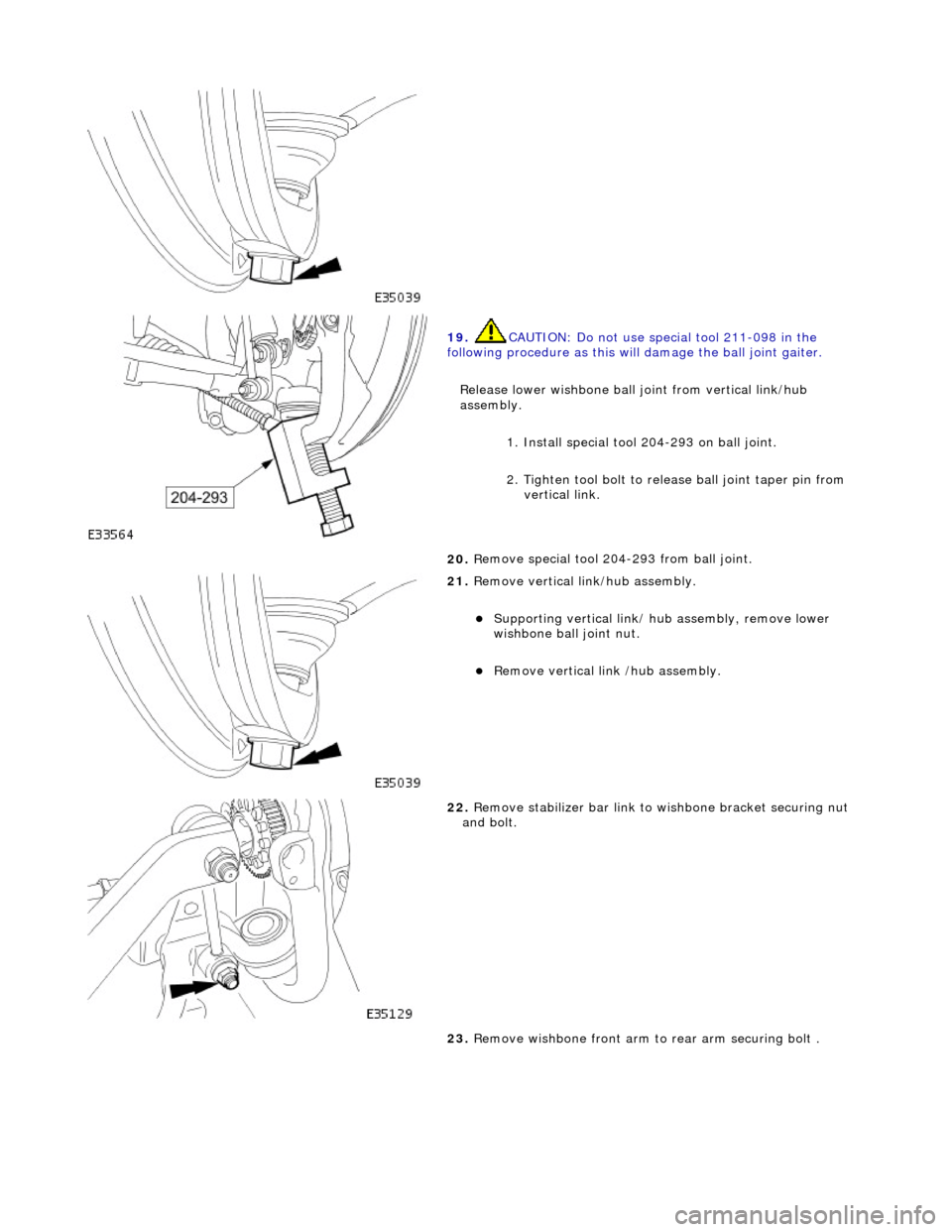

19. CAUTI
ON: Do not use special tool 211-098 in the
following procedure as this will damage the ball joint gaiter.
Release lower wishbone ball joint from vertical link/hub
assembly. 1. Install special tool 204-293 on ball joint.
2. Tighten tool bolt to rele ase ball joint taper pin from
vertical link.
20 . R
emove special tool 204-293 from ball joint.
21 . R
emove vertical link/hub assembly.
Support
ing ver
tical link/ hu
b assembly, remove lower
wishbone ball joint nut.
R e
move vertical link /hub assembly.
22 . R
emove stabilizer bar link to
wishbone bracket securing nut
and bolt.
23. Remove wishbone front arm to rear arm securing bolt .
Page 95 of 2490

24
.
Slacken but do not remove shock absorber lower nut and
bolt.
25
.
Release lower steering column from pinion shaft.
1. Remove lower steering column nut and bolt.
Move column up
wards to release it from pinion shaft.
26
.
Disconnect harness connector from steering transducer.
27. Remove tiestrap securing retu rn pipe, harness (RHD only)
and rubber support to steering rack.
Page 96 of 2490

28. CAU
TION: Do not allow steerin
g pipes to support weight
of steering rack.
Position steering rack for access.
Pivot steering arm ful
ly downwards
Re
move steering rack securing bolts.
Carefully move steer
ing rack
downwards for access to
wishbone eccentric bolt.
29 . R
emove lower wishbone rear
arm eccentric bolt and nut.
Mark position of eccentri
c bo
lt large graduation mark on
crossbeam.
Remove wish
bone eccent
ric bolt and nut.
30. Remove lower wishbone rear arm/ball joint assembly from
crossbeam.
31 . R
emove lower wishbone front
arm eccentric bolt and nut.
Mark position of eccentri
c bo
lt large graduation mark on
crossbeam.
Re
move wishbone front ec
centric bolt and nut.
32. Remove lower wishbone front arm from crossbeam.
33. NOTE: For assembly purposes, note orientation of bush.
• NOTE: Initial press action will cause tool to sh ear bush flange.
Using a hydraulic press, remove bush from wishbone front arm.
Page 98 of 2490

not ti
ghten eccentric bolt and nut.
4. Install steeri
ng rack on crossbeam.
Ensure that b
ushes are correct
ly positioned on steering
rack.
Posi ti
on steering rack on crossbeam.
Position support brac
kets over bus
hes.
Install mountin
g bracket bolts an
d tighten to 41-54Nm.
5. Inst al
l lower steering column on pinion shaft.
Move col
u
mn downwards to engage coupling splines on
pinion shaft.
1. Install nut and bolt and tighten to 22-28Nm.
6. Position an d
connect harnes
s to steering transducer.
RHD veh
icles. Position steeri
ng harness behind return
pipe.
Conne ct
harness to transducer.
7. Secure return pipe on steering rack.
1. Position pipe rubber support on steering rack.
2. Position pipe on support .
3. RHD vehicles. Position harness on pipe support rubber.
Page 99 of 2490

4
. Secure pipe and harnes
s(RHD vehicles) to support
with new tiestrap.
8. Posi
tion wishbone front arm on crossbeam and install but do
not tighten eccentric bolt and nut.
9. Inst
all shock absorber mounting bracket.
Posit
ion shock absorber moun
ting bracket on wishbone
rear arm.
Install
wishbone front arm to
rear arm securing bolt and
tighten to 77-103Nm.
10
.
Install stabilizer bar link to wi shbone bracket nut and bolt and
tighten to 41-54Nm.
11. Tighten shock absorber lowe r bolt and nut to 43-57Nm.
