Hold the housing assembly in a vice with soft jaws fitted
and carefully insert the coupling.
Fit tool 205 - 053 to the coupling.

3. Use tool 307 - 356 to tighten th e coupling nut to the specified
torque figure.

4. Stake the coupling nut at two positions.
5. Refit the rear extension housing. Refer to Operation 44.20.19.
6. Check the transmission fluid level. Refer to Operation
44.24.02.

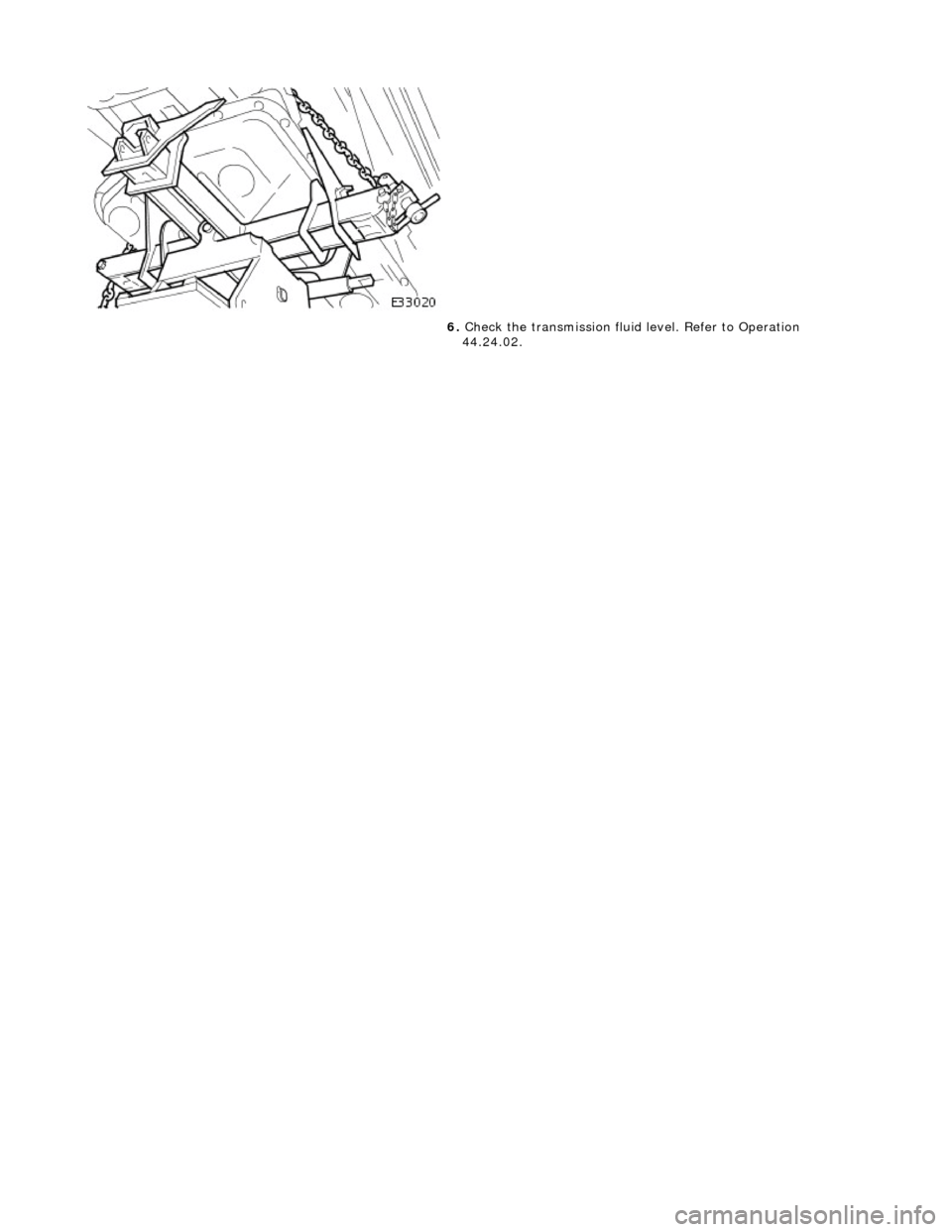

6. Check the transmission fluid level. Refer to Operation
44.24.02.

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Main Control Valve Body
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle for access.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.
4. Remove the fluid filter, (44.24.07).

5. Remove the input speed sensor.
• NOTE: M5 fixing.
1. Remove the screw from the input speed sensor securing bracket and pu ll the sensor clear.
Disconnect the harness multiplug.

6. Remove the output speed sensor.
• NOTE: M6 fixing.
1. Remove the screw from the output speed sensor
securing bracket and pu ll the sensor clear.
Disconnect the harness multiplug.

7. Disconnect the five pressure regulator connectors and three
solenoid connectors.

8. Reposition the internal harness for access.
Release the internal harness from the retaining clips.

9. Drain the valve body.
1. Position a suitable drain tin below the valve body.
2. Slacken (do not remove) the twenty-two screws, valve body to transmission case.
Allow the fluid to drain.
10. Remove the valve body.
Remove five M6 X 30 screws, valve body to transmission
case.
Remove seventeen M6 X 60 screws, valve body to
transmission case.

Fit the inpu
t speed sensor and
tighten the retaining screw to
the specified to rque figure..

5. Re
position the inte
rnal harness for.
R
elease the internal harness
from the retaining clips.

6. Connect
the five pressure re
gulator connectors and three
solenoid connectors.

7. N
OTE: Ensure extreme clea
nliness and never reuse
transmission fluid.
Using a new gasket, install the fl uid pan and tighten the twenty-
two fixings to the specified. torque figure
8. Connect the battery and fit the battery cover..
Reset th
e radio and the clock.
9. Refer to (44.24.02) for fluid fill procedure.
10. Check for leaks and remove spilt fluid.

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Output Shaft Speed (OSS) Sensor
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle on a lift.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.

4. Remove the output speed sensor.
• NOTE: M6 fixing.
1. Release the screw which secures the output speed sensor bracket and pull the sensor clear.
5. Disconnect the multiplug from the speed sensor.

Installation



1.
NOTE: M6 fixing.
Connect the multiplug, install the output speed sensor and
securing bracket. Tighten the screw to the specified torque
figure.

2. NOTE: Ensure extreme clea nliness and never reuse
transmission fluid.
Using a new gasket, install the fl uid pan and tighten the twenty-
two fixings to the specified. torque figure.
3. Connect the battery and fit the battery cover..
Reset the radio and the clock.
4. Refer to (44.24.02) for fluid fill procedure.

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Shift Solenoids (SS)
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle on a lift.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.

4. Disconnect the eight soleno id / regulator connectors.
5. Remove the RH rear valve body securing screws.

3. NOTE: Ensure extreme clea nliness and never reuse
transmission fluid.
Using a new gasket, install the fl uid pan and tighten the twenty-
two fixings to the specified torque figure.
4. Connect the battery and fit the battery cover..
Reset the radio and the clock.
5. Refer to (44.24.02) for fluid fill procedure.

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Transmission Fluid Filter
In-vehicle Repair
Removal
Installation

1.
Raise the vehicle for access.
2. Remove the fluid pan, 44.24.04.

3. Remove and discard the fluid filter.
Remove the two bolts which secure the filter.
Discard the 'O' ring.
Clean the fluid filter mating face.
1. Installation is th e reverse of the re moval procedure.
2. Renew the 'O' ring.

3. Tighten the two bolts to the spec ified torque figure, to secure
the filter .
4. Refill the transmission with flui d. Refer to Operation 44.24.02.
