7
Apply the specified chemical with a roller 8
Apply hot glue to the specified component 9
Apply the specified amount of fluid from the fluid can 10
Apply fluid from the fluid can 11
Clean the specified component with the specified material 12
Apply a broken bead from the specified tube 13
Apply the specified chemical from a spray can 14
Apply the specified lubricant to the specified component 15
Apply spot welds to the specified component 16
Apply a continuous weld to the specified component 17
Handle the fluid using a syringe 18
Extract the specified amount of fluid using a syringe
Page 92 of 3039
1
Measure the current using a digital multimeter 2
Measure the voltage using a digital multimeter 3
Measure the resistance using a digital multimeter 4
Measure the length/distance 5
Check that the specified pressure is available using a suitable pressure gauge
Page 93 of 3039
7
Measure the time using a suitable stopwatch 8
Wait for the specified period of time 9
The specified task requires the specified minimum temperature 10
The specified task requires the specified maximum temperature not to be exceeded 11
The specified task requires the specified temperature range 12
The specified task requires the specified temperature 13
Measure and check for the specified value using a dial indicator gauge 14
Measure and check for the specified MAX value using a dial indicator gauge 15
Measure and check for the specified MIN value using a dial indicator gauge
Page 94 of 3039
1

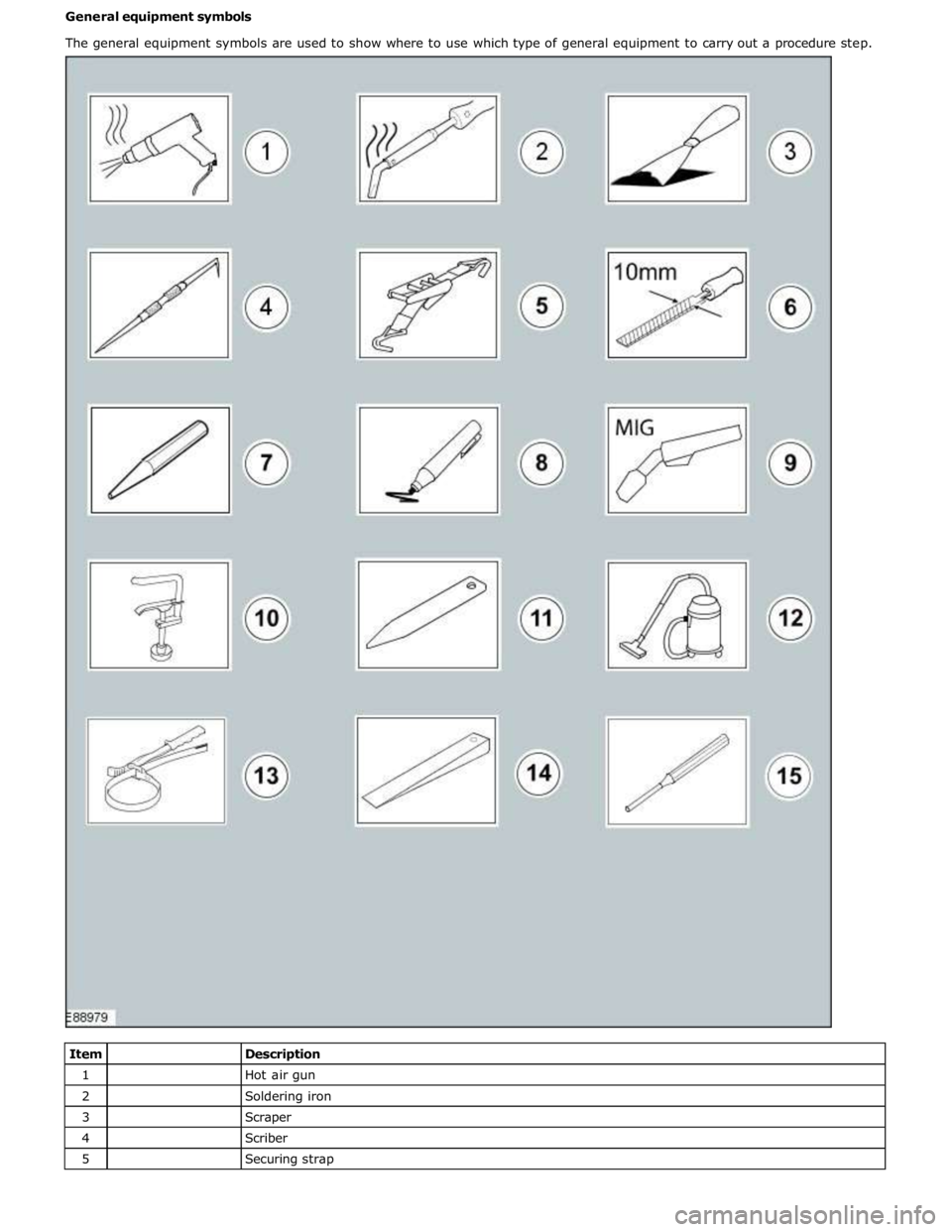

Hot air gun 2
Soldering iron 3
Scraper 4
Scriber 5
Securing strap
Page 95 of 3039
7
Center punch 8
Marker 9
Metal inert gas (MIG) welding equipment 10
Hose clamp 11
Interior trim remover 12
Vacuum cleaner 13
Strap wrench 14
Wedge 15
Pin Punch Material symbols
The material symbols are used to show where to use which type of material to carry out a procedure step.
Item
Description 1

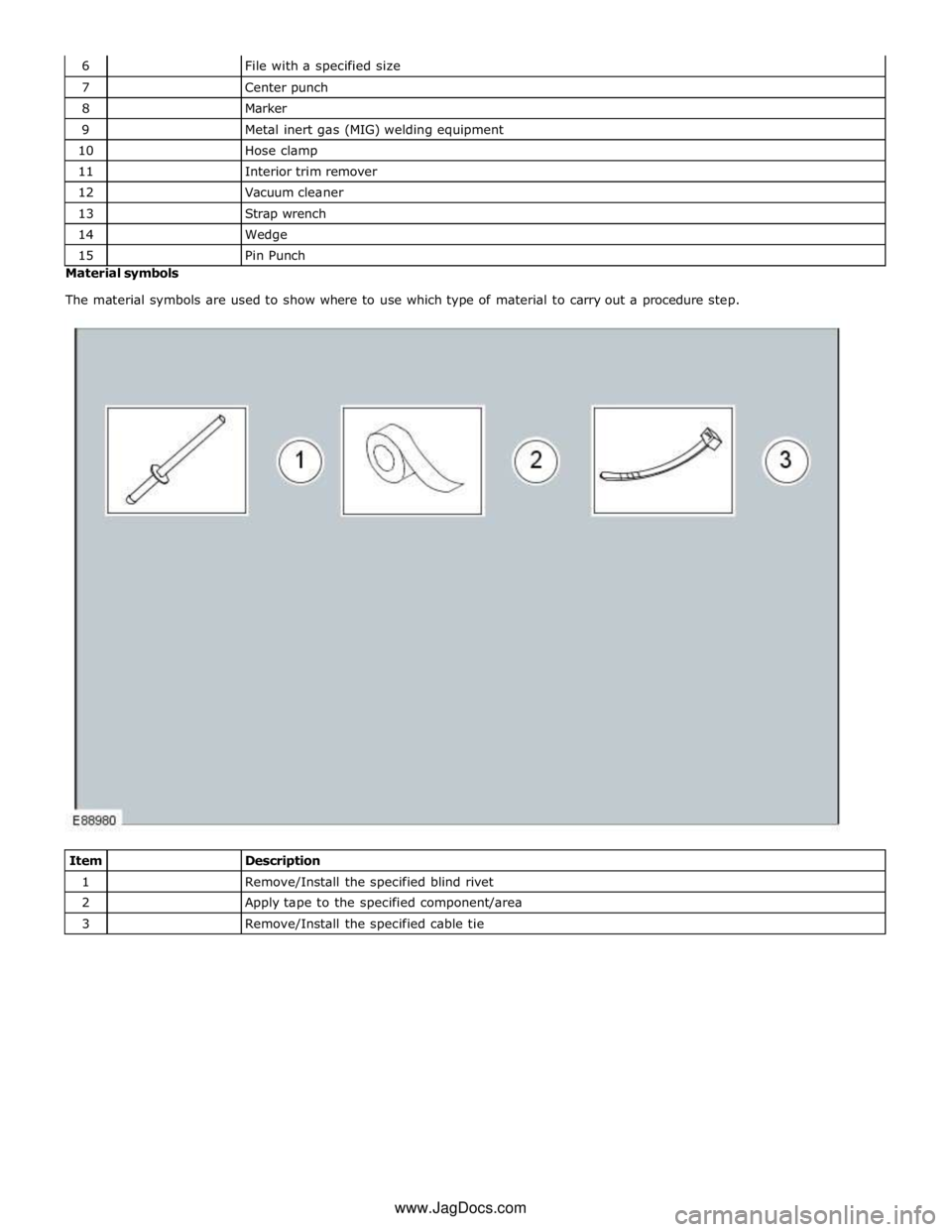

Remove/Install the specified blind rivet 2
Apply tape to the specified component/area 3
Remove/Install the specified cable tie www.JagDocs.com
Page 96 of 3039
1

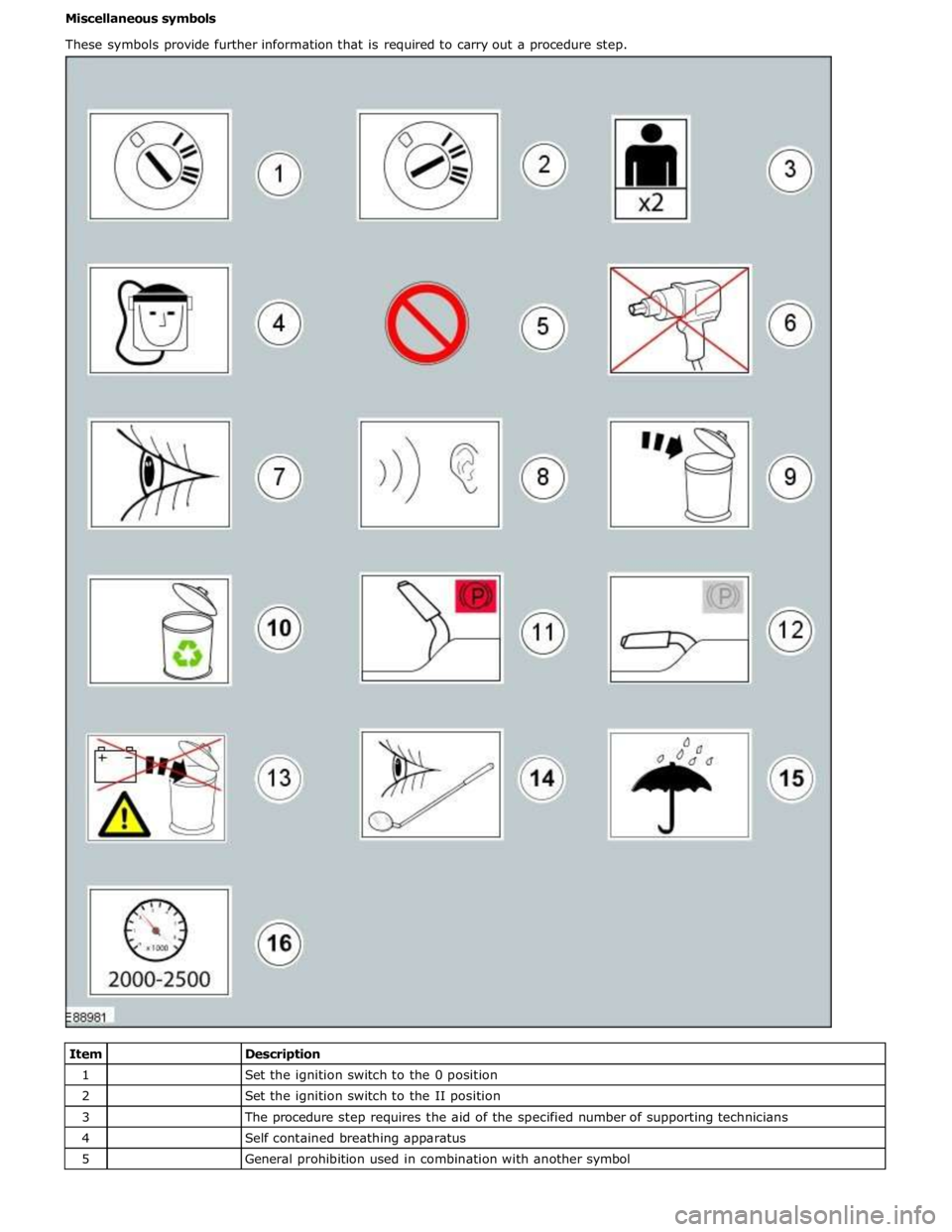

Set the ignition switch to the 0 position 2
Set the ignition switch to the II position 3
The procedure step requires the aid of the specified number of supporting technicians 4
Self contained breathing apparatus 5
General prohibition used in combination with another symbol
Page 97 of 3039
7
Visual check 8
Noise check 9
Dispose the specified component 10
Replaced by item 9 (Dispose the specified component) 11
Set the engine speed to the specified value 12
Fully apply the parking brake lever 13
Fully release the parking brake lever 14
Do not dispose of batteries into the waste bin 15
Visual check using a mirror 16
Area/component must be dry Mandatory Protective equipment - Health and safety symbols
The protective equipment symbols advise to use a mandatory protective equipment to avoid or at least reduce possible health
and safety risks.
Page 98 of 3039
1
Wear protective gloves 2
Wear face guard 3
Wear safety goggles 4
Wear ear protectors 5
Wear safety goggles and ear protectors 6
Wear a respirator Prohibition - Health and safety symbols and component damage
The prohibition symbols are used to prohibit the specified actions to avoid or at least reduce possible component damage and
health and safety risks.
Item
Description 1
General prohibition symbol 2
No naked flames 3
No smoking 4
No water 5
Do not touch
Page 99 of 3039
7
No grinding Warning symbols - Health and safety and component damage
The warning symbols are used to advise on hazardous conditions to avoid or at least reduce possible component damage and
health and safety risks.
Item
Description 1
Hazardous voltage/Electrical shock/Electrocution 2
Fire Hazard/Highly flammable 3
Burn hazard/Hot surface 4
Automatic start-up 5
Toxic 6
Explosive material 7
Battery hazard 8
Corrosive material 9
Lifting hazard
Page 100 of 3039
11
Cutting of fingers or hand 12
Pressure hazard Control Diagram symbols - Description and Operation procedures
These symbols provide further information on the type of connectivity, direction of flow or type of data bus of a system.
Item
Description 1
Mid-speed Controller Area Network (CAN) 2
High-speed Controller Area Network (CAN) 3
Local Interconnect Network (LIN) 4
Wires crossing not connected www.JagDocs.com
