JAGUAR XFR 2010 1.G Workshop Manual

Published: 11-May-2011
Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Transmission V8 5.0L Petrol/V8 S/C 5.0L Petrol
Installation


NOTE: Some variation in the illustrations may occur, but the essential information is always correct.


1. CAUTION: Make sure that the torque converter
remains in the transmission.


NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

Raise the powertrain assembly jack and transmission
assembly.








2. NOTE: Transmission shown removed for clarity.
Torque: 48 Nm




















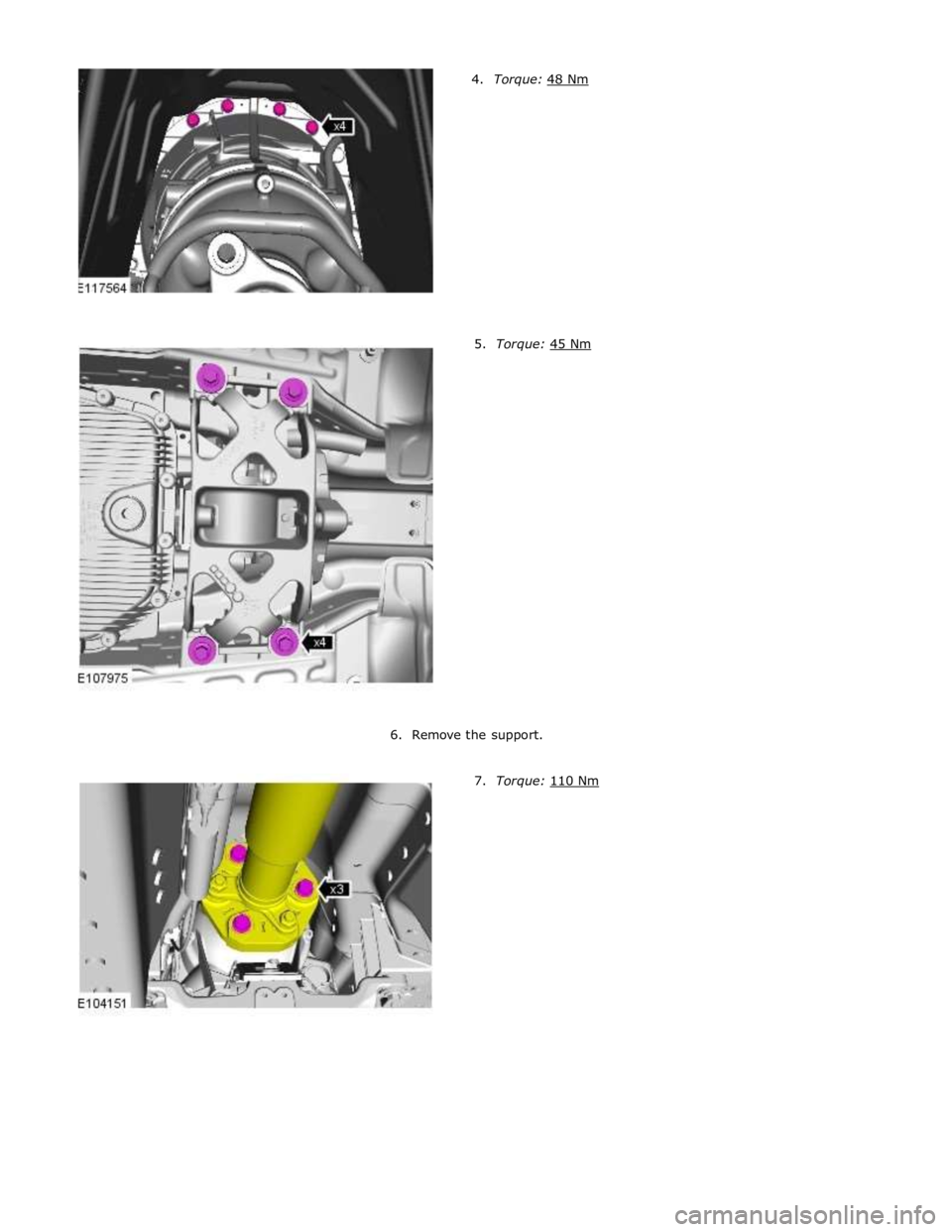

3. Torque: 48 Nm

5. Torque: 45 Nm



















6. Remove the support.

7. Torque: 110 Nm

8.























9.
10. CAUTION: Only rotate the crankshaft clockwise.


NOTE: Make sure that the alignment mark is visable
through the inspection hole as illustrated.
Torque: 63 Nm

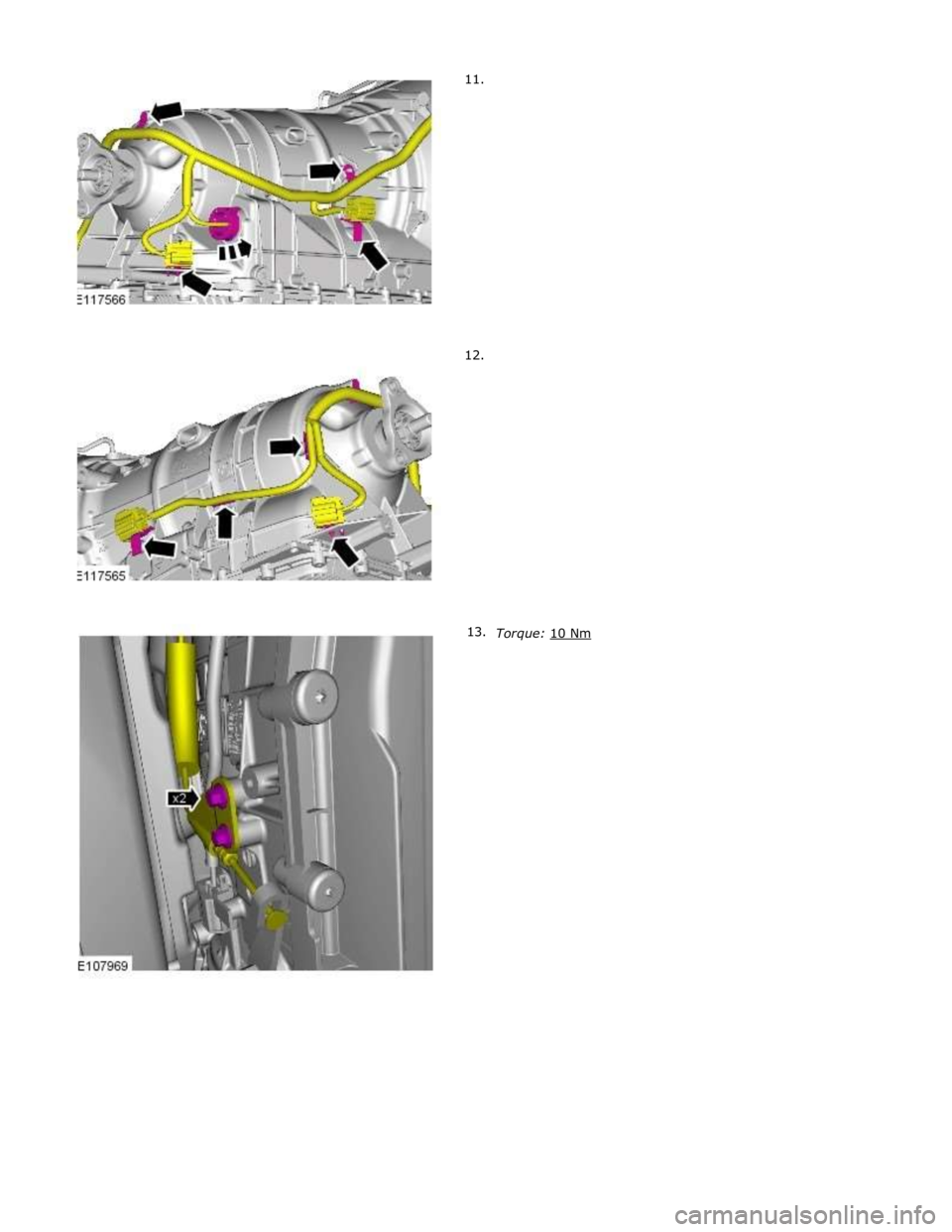

14.
















15.
16. CAUTION: Install new o-ring seals

Torque: 10 Nm













17.
Refer to: Catalytic Converter LH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

18. Refer to: Catalytic Converter RH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

19. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). www.JagDocs.com

20. NOTE: For NAS vehicles only.

If required, carry out a long drive cycle.

Refer to: Powertrain Control Module (PCM) Long Drive Cycle Self-Test (303-14D Electronic Engine Controls - V8 S/C 5.0L Petrol, General
Procedures).

Transmission fluid ATF Shell M 1375.4 Vehicles with 3.0L diesel engine
Description Nm lb-ft Transmission fluid cooler tube to transmission housing bolt 23 17 Transmission fluid cooler tube bracket to engine oil pan retaining bolt 23 17 Vehicles with 5.0L engine
Description Nm lb-ft Transmission fluid cooler tube to transmission housing bolt 23 17 Transmission fluid cooler tube bracket to engine oil pan retaining bolt 11 8

1 Latch-plate 2 Feed hose and pipe (from transmission) 3 Transmission fluid cooler 4 Engine coolant hose connections 5 Return hose and pipe (to transmission)

Published: 11-May-2011
Transmission/Transaxle Cooling - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Transmission Cooling - Overview
Description and Operation

OVERVIEW

Transmission cooling is provided by a transmission fluid cooler, which transfers heat from the transmission to the engine
cooling system. The transmission fluid cooler is attached to a mounting bracket on the front subframe, in the front left corner
of the engine compartment.

Two hose and pipe assemblies connect the transmission fluid cooler to the automatic transmission. Two engine coolant hose
connections are incorporated into the top of the transmission fluid cooler for the supply and return of coolant from the engine
cooling system. For additional information, refer to 303-03D Engine Cooling.

Published: 11-May-2011
Transmission/Transaxle Cooling - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Transmission Cooling - System Operation and Component Description
Description and Operation

System Operation
Fluid from the pump in the automatic transmission flows through the feed hose and pipe to the transmission fluid cooler. The
fluid then flows through the transmission fluid cooler, and the return hose and pipe, to the sump of the automatic
transmission.
