JAGUAR XFR 2010 1.G Workshop Manual

Published: 12-Sep-2011
Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Transmission, Transmission Fluid Cooler and Transmission Fluid
Cooler Tubes V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Removal


CAUTION: Make sure that all openings are sealed. Use new blanking caps.


NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Catalytic Converter RH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

4. Refer to: Catalytic Converter LH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

5.

9.
10.
11.



















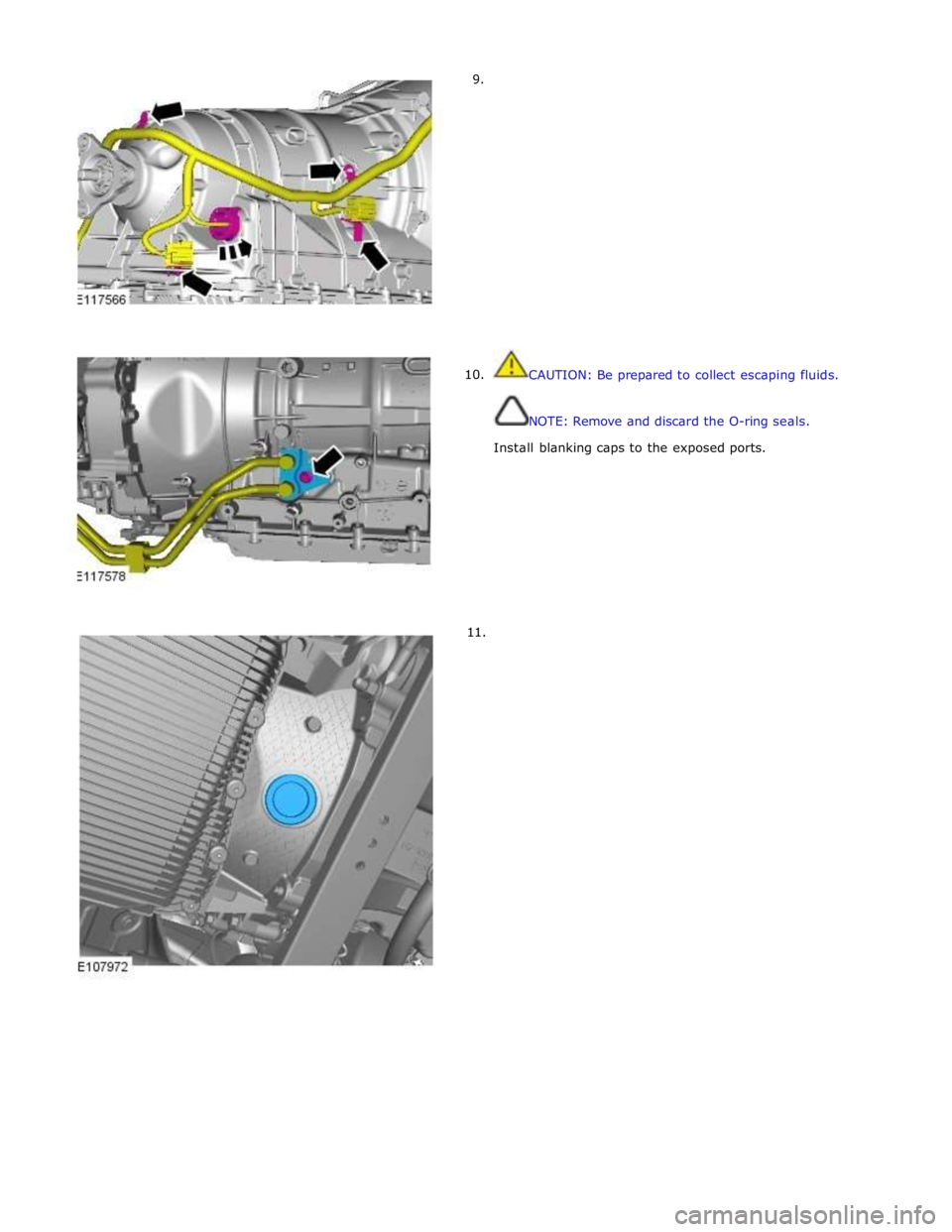

CAUTION: Be prepared to collect escaping fluids.


NOTE: Remove and discard the O-ring seals.

Install blanking caps to the exposed ports.

12.
13.
14.



















Make sure that the alignment mark is visible through
the inspection hole on removal of the last torque
converter bolt.























NOTE: Mark the position of the driveshaft on the
transmission flange.

15.
Using a suitable tie strap, secure the driveshaft.














16. WARNING: Make sure that the transmission is secured with
suitable retaining straps.
Using a suitable stand, support the transmission.

17.
18.


























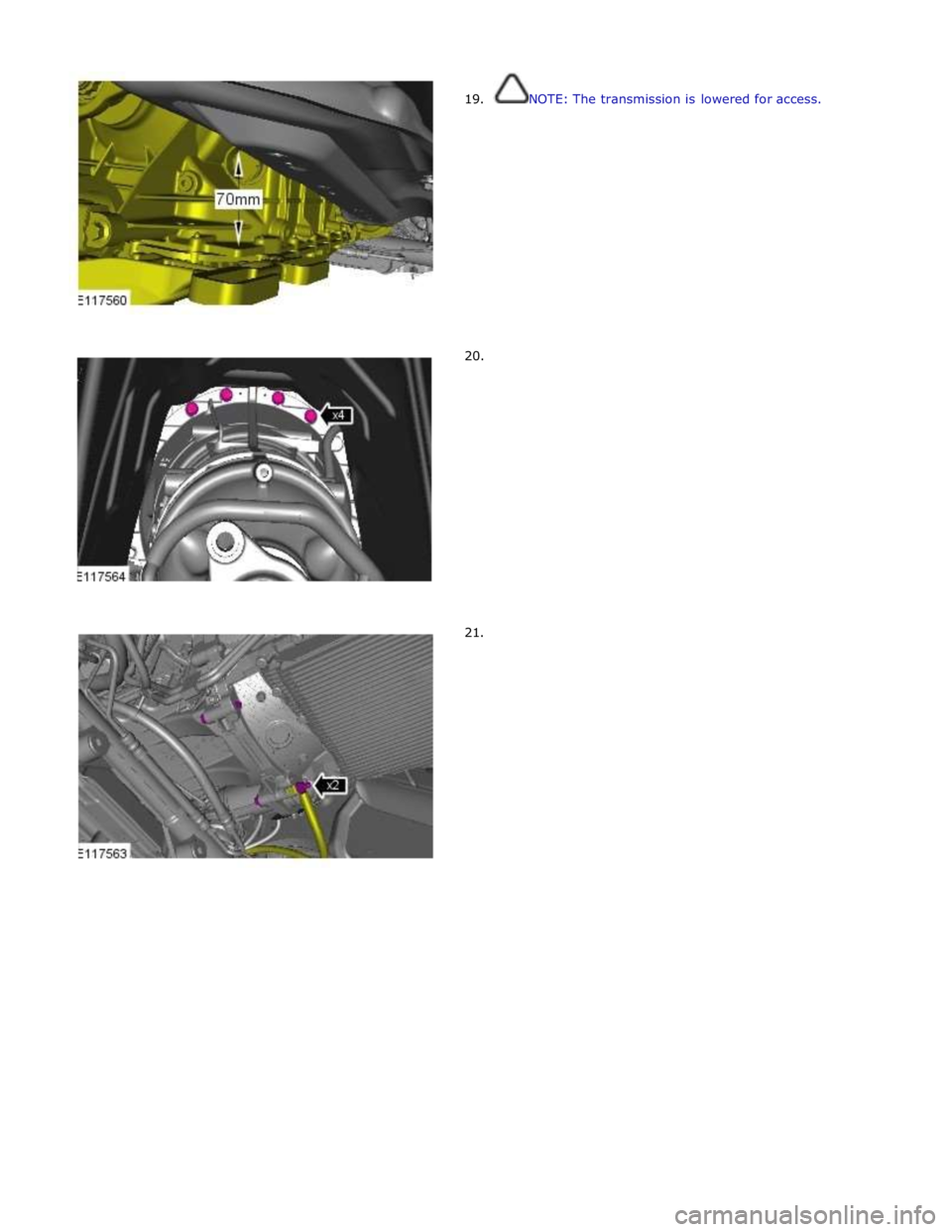

NOTE: The transmission is lowered for access.

Lower the rear of the transmission for access. www.JagDocs.com

19.
















20.
21. NOTE: The transmission is lowered for access.

22.
23.
24.


























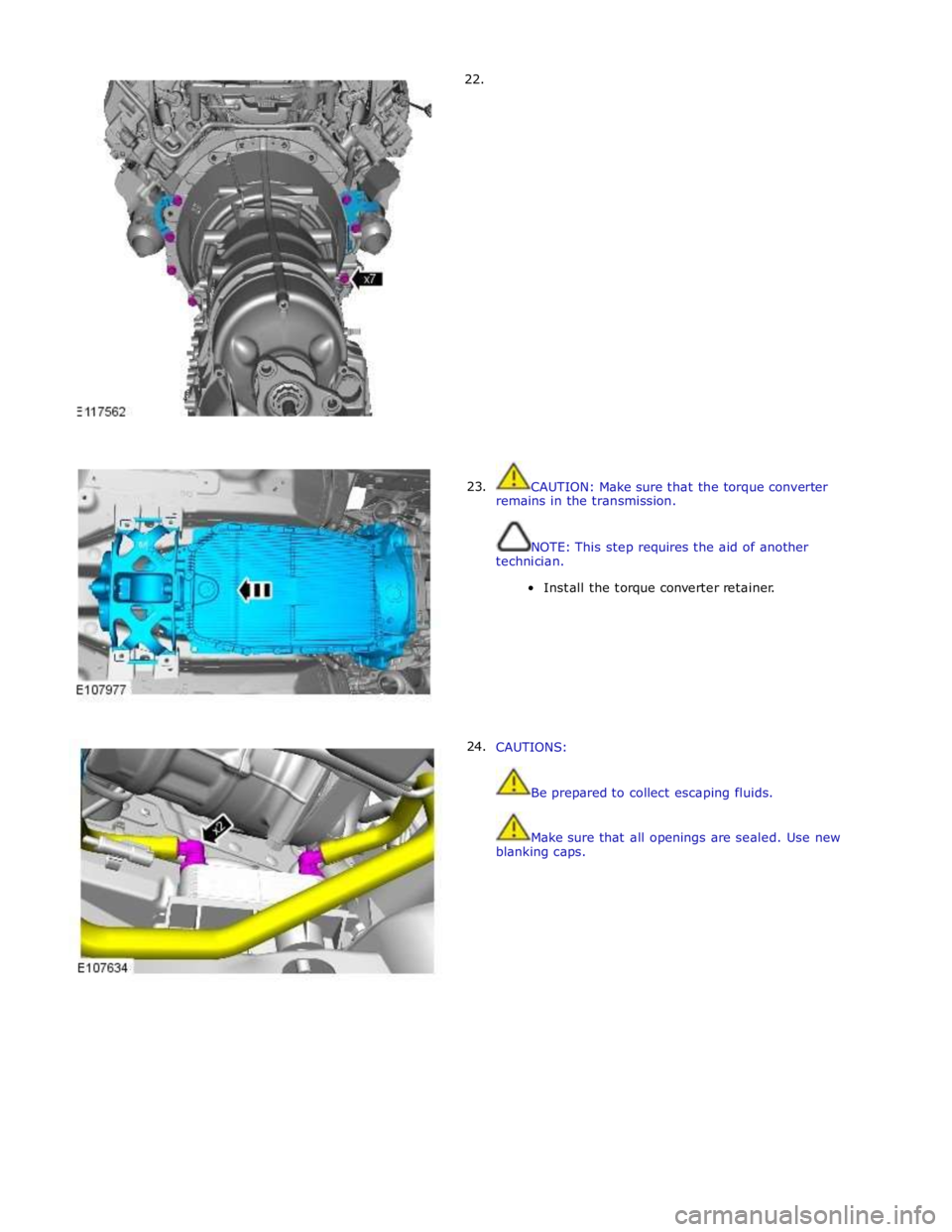

CAUTION: Make sure that the torque converter
remains in the transmission.


NOTE: This step requires the aid of another
technician.
Install the torque converter retainer.









CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new
blanking caps.

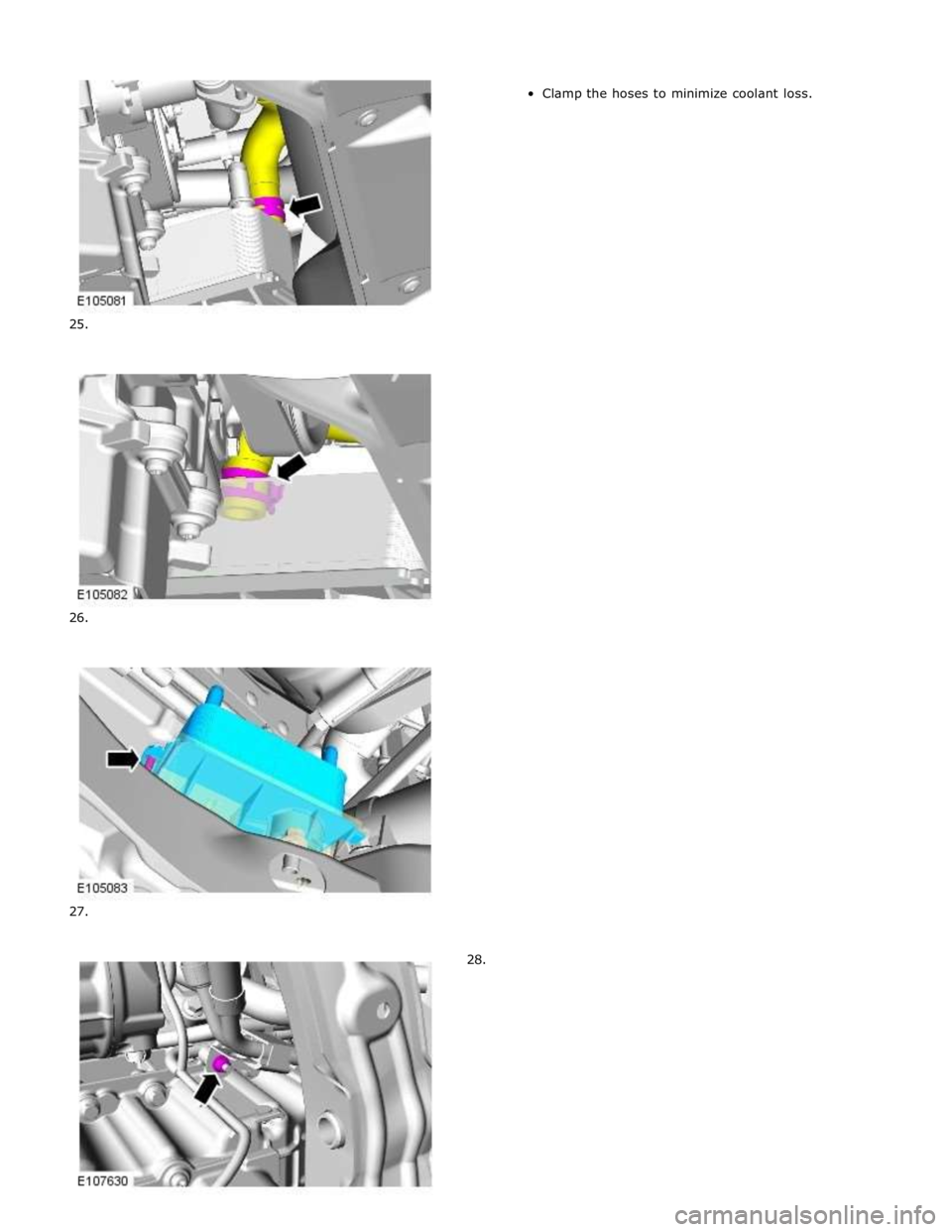

Installation
29.

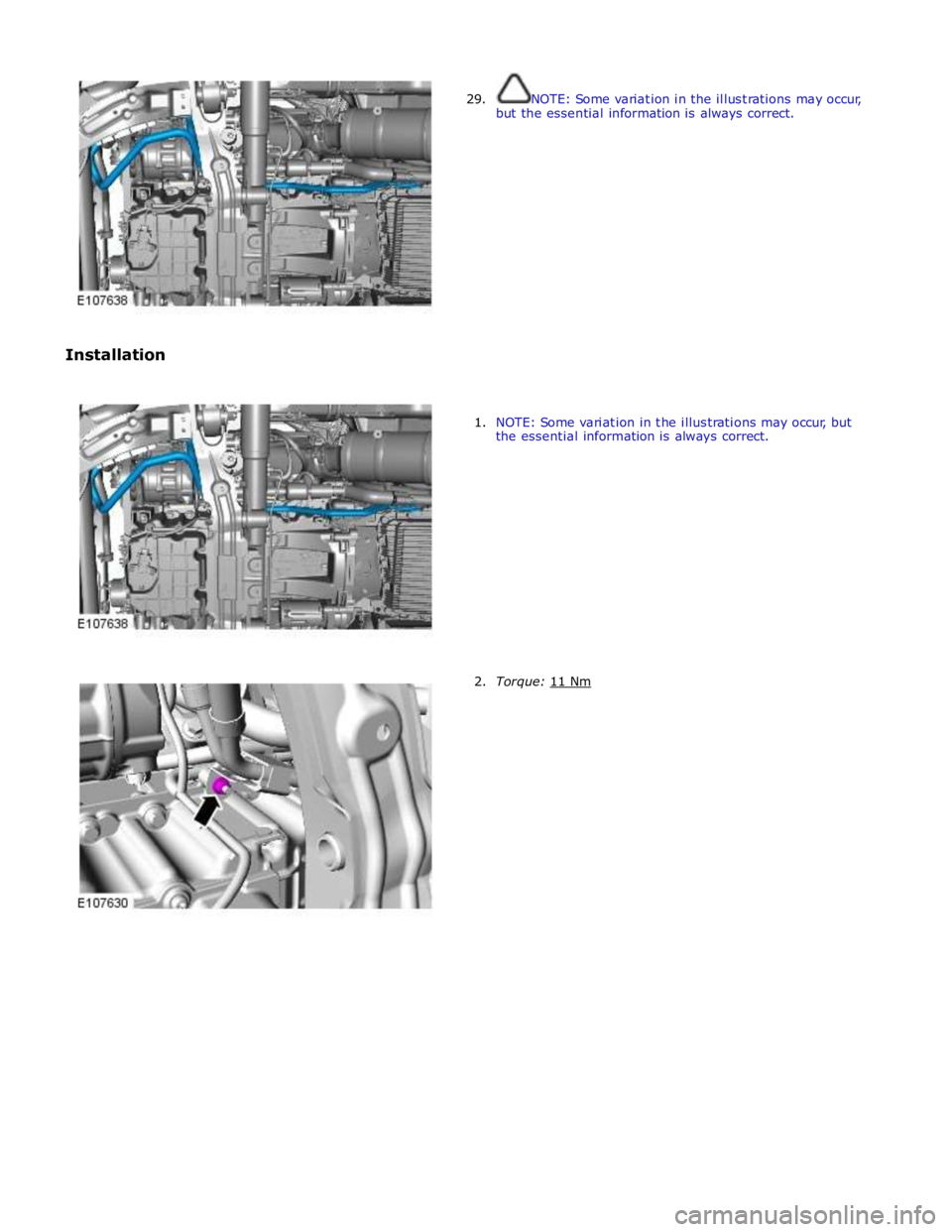

NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.


1. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct.















2. Torque: 11 Nm

3. Torque: 5 Nm 4.
5.
Clamp the hoses to minimize coolant loss.
















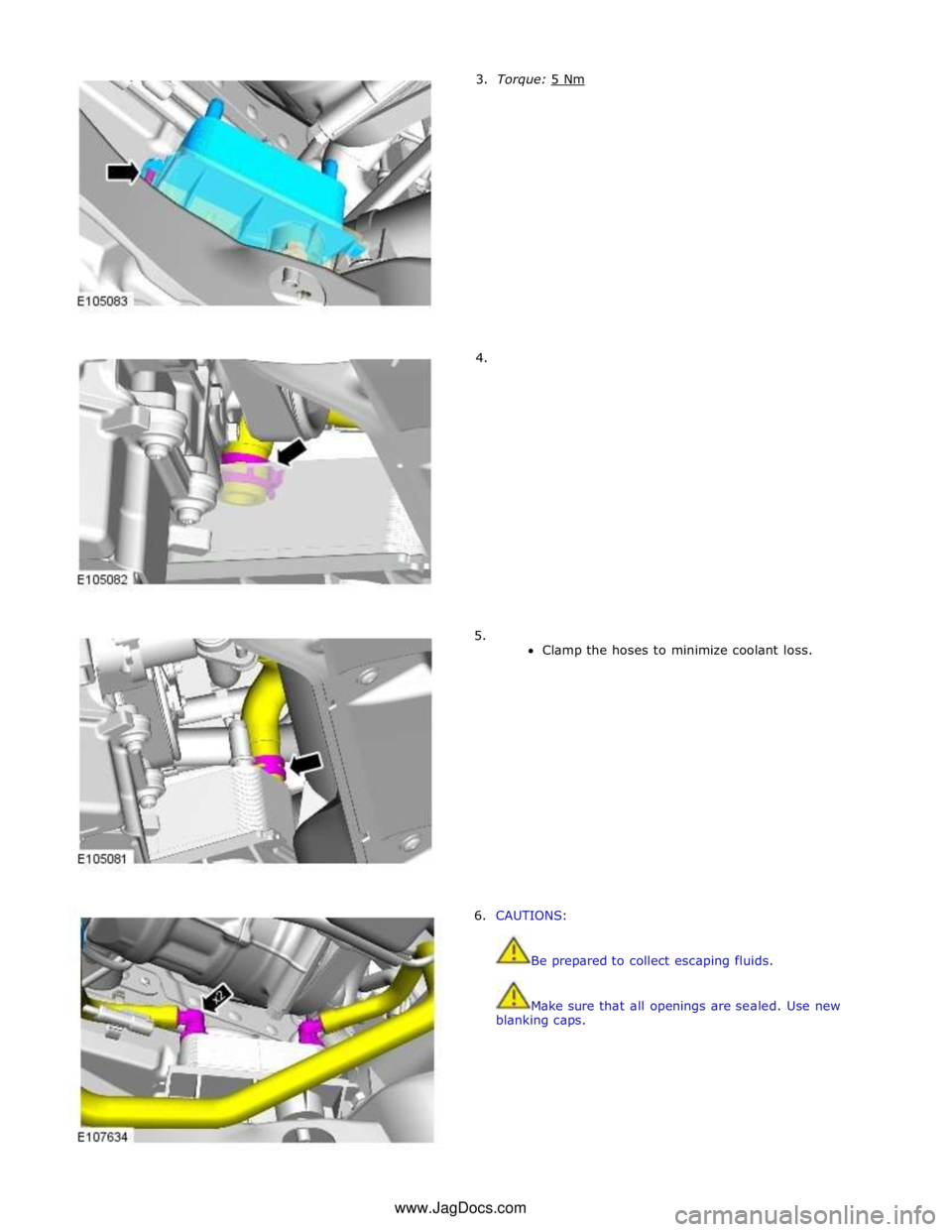

6. CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new
blanking caps. www.JagDocs.com
