JAGUAR XFR 2010 1.G Workshop Manual

17.
18.
19.

















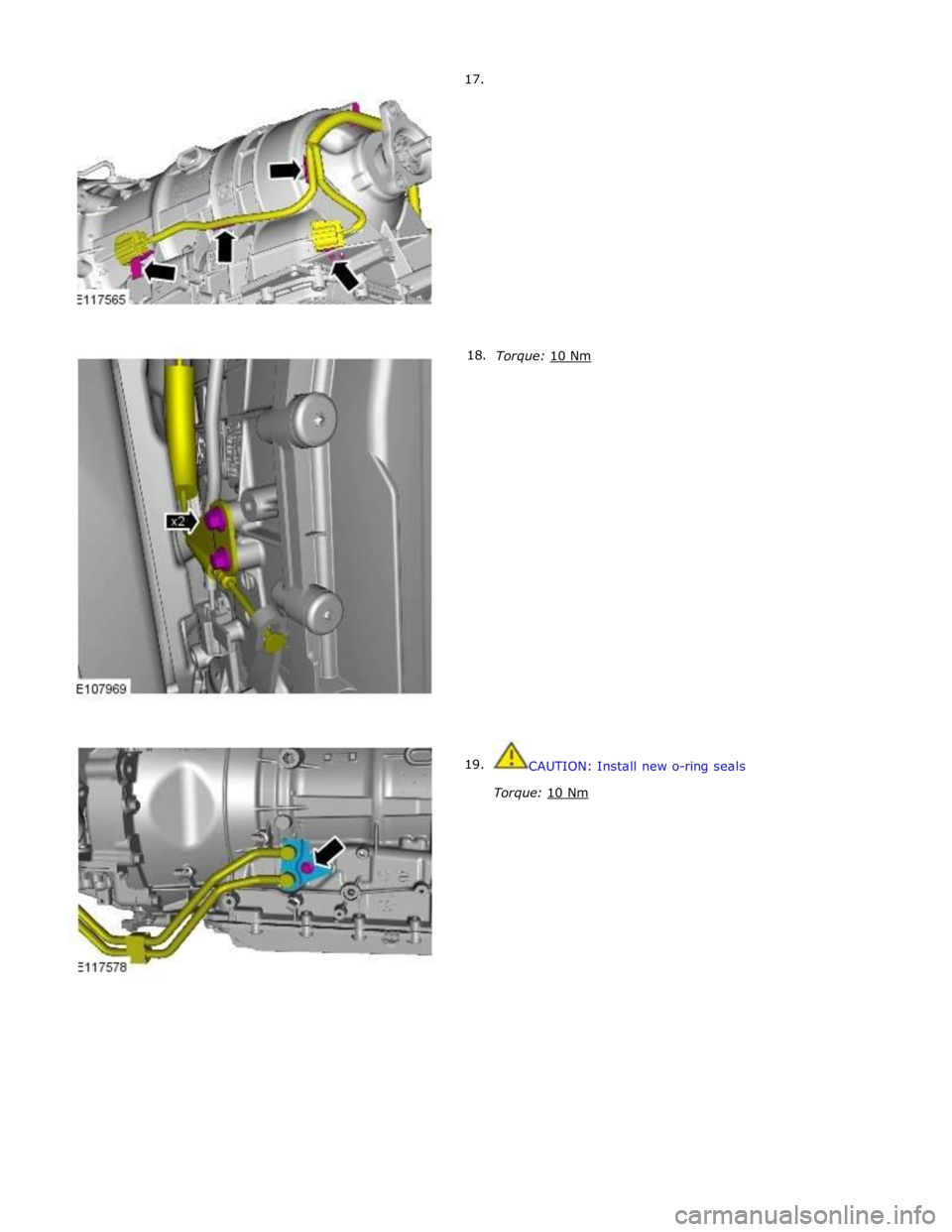

Torque: 10 Nm

























CAUTION: Install new o-ring seals

Torque: 10 Nm

20.
21.














22.
Refer to: Catalytic Converter LH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

23. Refer to: Catalytic Converter RH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

24. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

25. Check and top up the cooling system as required.

26. Set the heater controls to HOT.


27. CAUTION: Observe the engine temperature warning light. If the
warning light is displayed, switch off immediately and allow to cool.
Failure to follow this instruction may cause damage to the vehicle.

Start the engine and allow to idle until hot air is emited at the face
registers. www.JagDocs.com

28. CAUTION: Observe the engine temperature warning light. If the
warning light is displayed, switch off immediately and allow to cool.
Failure to follow this instruction may cause damage to the vehicle.

Raise the engine speed to 2000 RPM and maintain at 2000 RPM until the
engine cooling fan operates.


29. CAUTION: Switch off the engine and allow the coolant temperature
to go cold.
Switch the engine off and allow to cool.

30. Visually check the engine and cooling system for signs of coolant
leakage.

31. WARNINGS:


When releasing the cooling system pressure, cover the coolant
expansion tank cap with a thick cloth.


Since injury such as scalding could be caused by escaping steam or
coolant, make sure the vehicle cooling system is cool prior to carrying
out this procedure.
CAUTIONS:


Make sure the coolant level remains above the "COLD FILL RANGE"
lower level mark.


Anti-freeze concentration must be maintained at 50%.


NOTE: When the cooling system is warm, the coolant will be
approximately 10mm above the upper level mark on the expansion tank
with the cap removed.
Check and top-up the coolant if required.

32. Refer to: Transmission Fluid Level Check (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L
Petrol, General Procedures).

Published: 11-May-2011
Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Transmission V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Catalytic Converter RH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

4. Refer to: Catalytic Converter LH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

5.
6.

10.
















11.

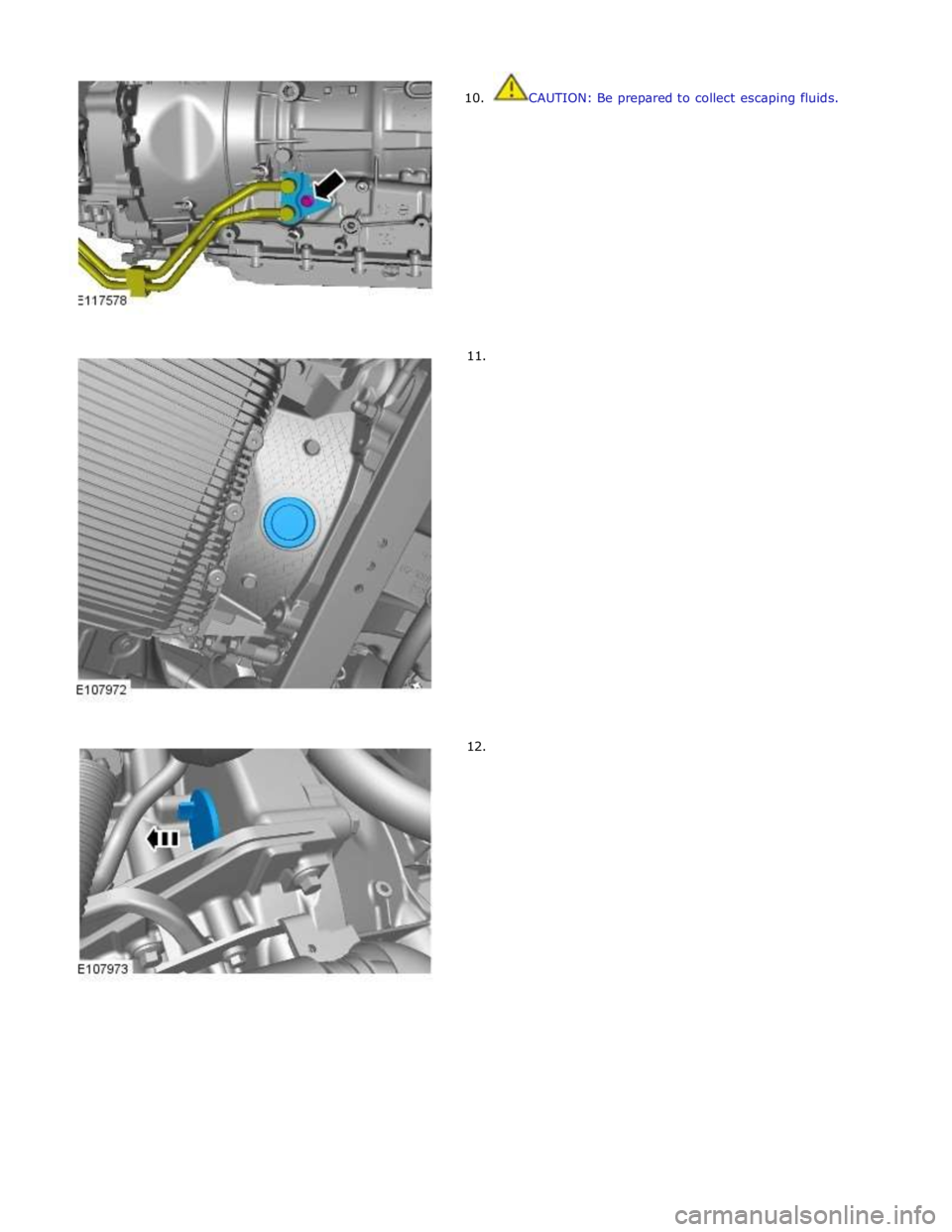

12. CAUTION: Be prepared to collect escaping fluids.

13.
14.

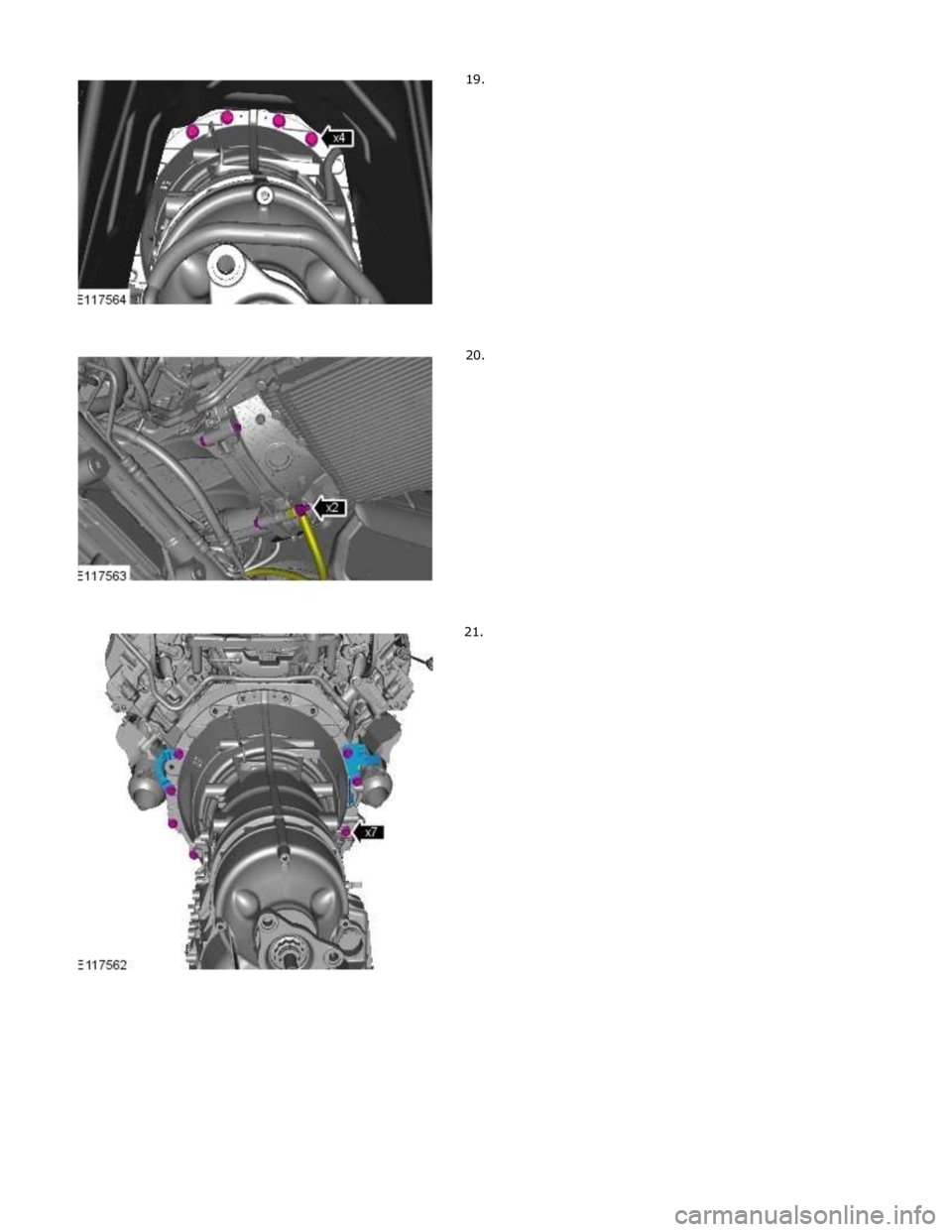

Make sure that the alignment mark is visable
through the inspection hole on removal of the last
torque converter bolt.















15.
WARNING: Make sure that the transmission is secured with
suitable retaining straps.
Using a suitable stand, support the transmission.

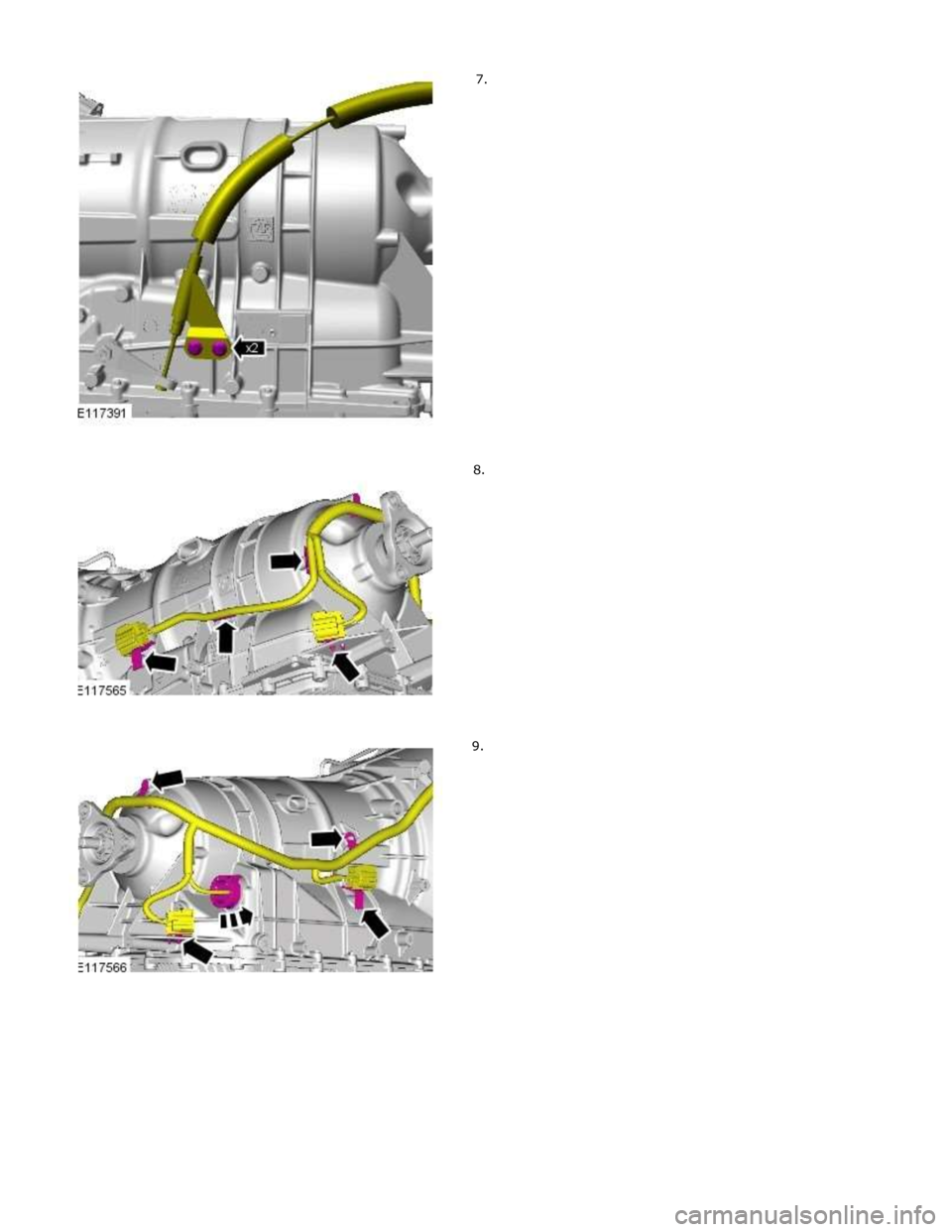

16.
17.
18.


























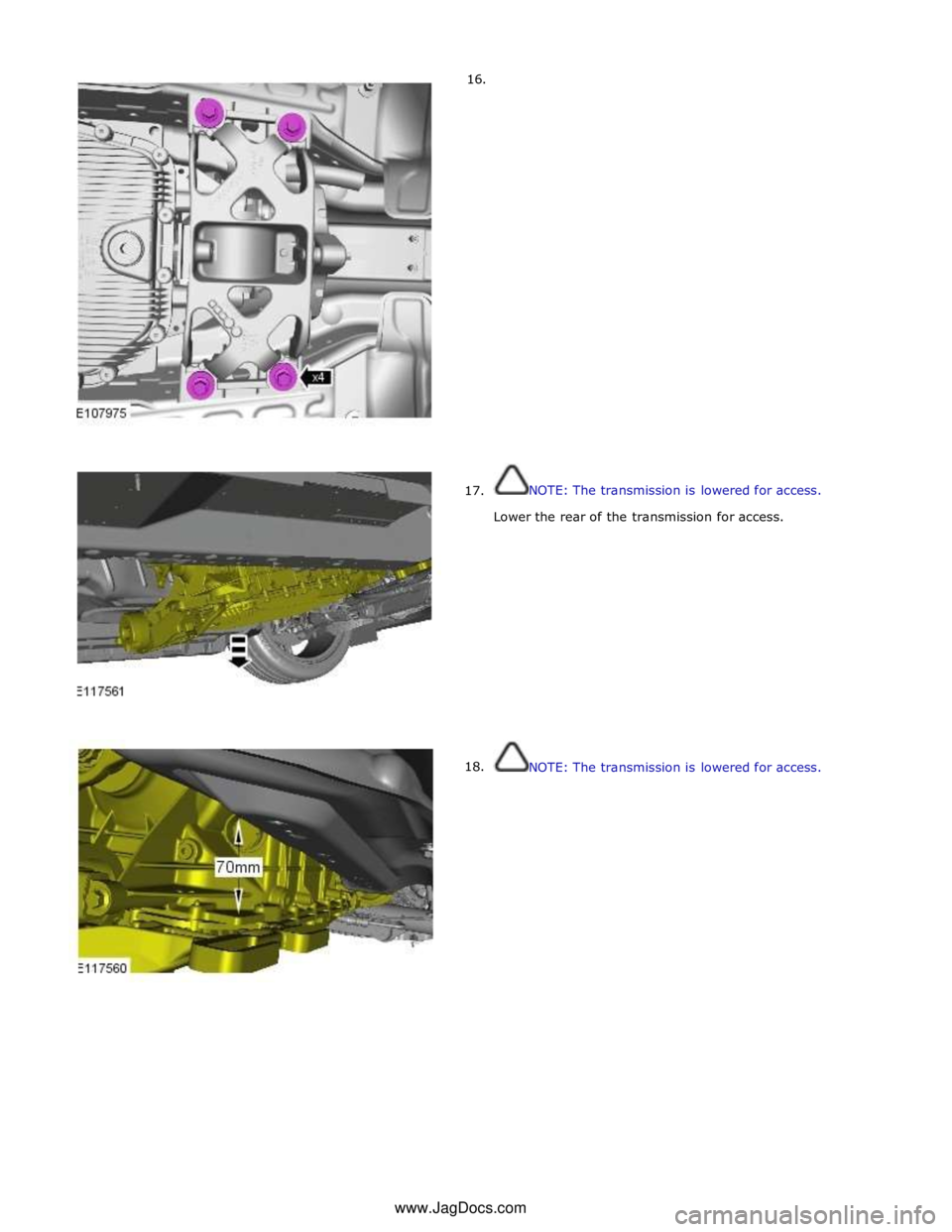

NOTE: The transmission is lowered for access.

Lower the rear of the transmission for access.















NOTE: The transmission is lowered for access. www.JagDocs.com

22. CAUTION: Make sure that the torque converter
remains in the transmission.


NOTE: This step requires the aid of another
technician.
Install the torque converter retainer.
