JAGUAR XFR 2010 1.G Workshop Manual

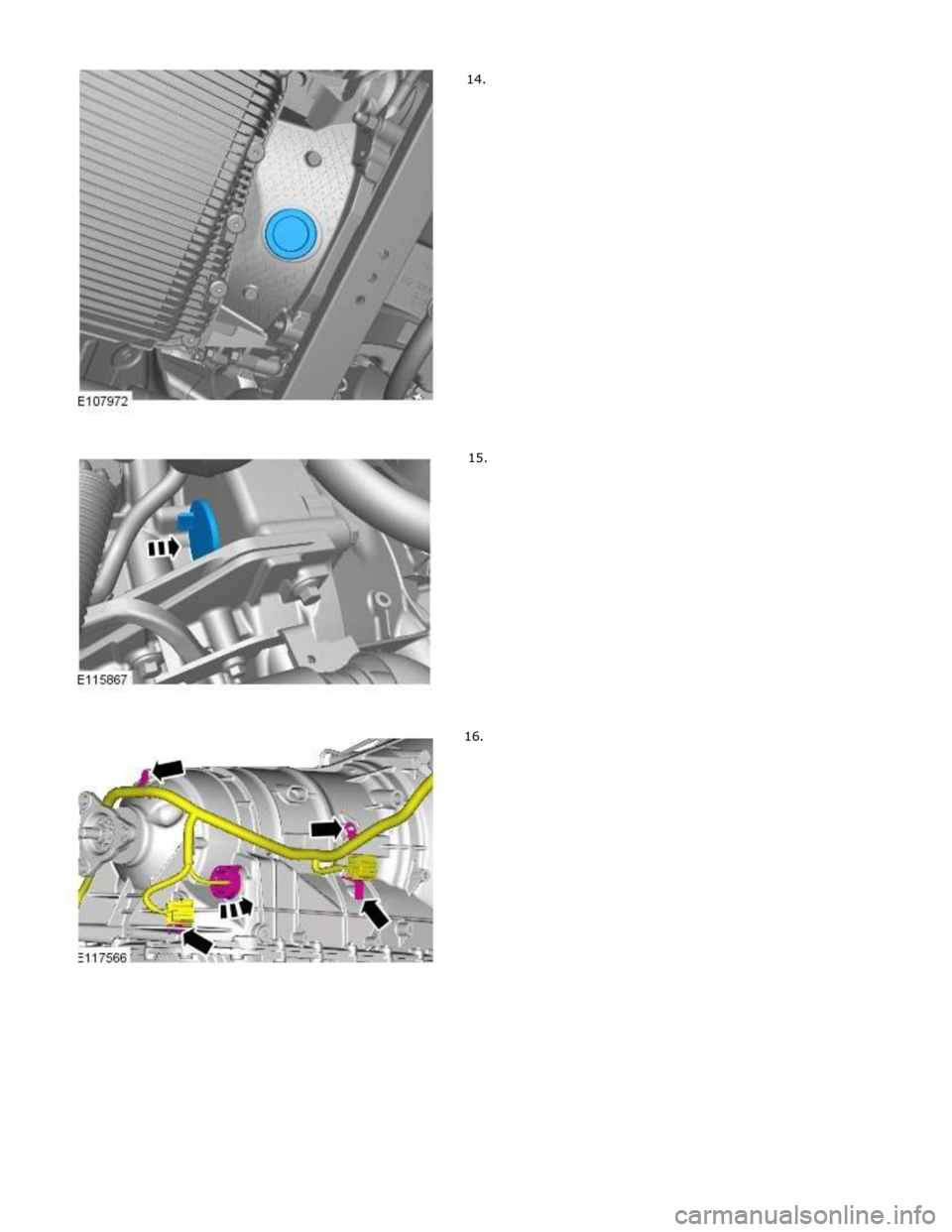

12.
13.
14.



















Make sure that the alignment mark is visible through
the inspection hole on removal of the last torque
converter bolt.























NOTE: Mark the position of the driveshaft on the
transmission flange.

15.
Using a suitable tie strap, secure the driveshaft.














16. WARNING: Make sure that the transmission is secured with
suitable retaining straps.
Using a suitable stand, support the transmission.

17.
18.


























NOTE: The transmission is lowered for access.

Lower the rear of the transmission for access. www.JagDocs.com

19.
















20.
21. NOTE: The transmission is lowered for access.

22.
23.
24.


























CAUTION: Make sure that the torque converter
remains in the transmission.


NOTE: This step requires the aid of another
technician.
Install the torque converter retainer.









CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new
blanking caps.

Installation

1. Torque: 5 Nm
















2.

















3.
Clamp the hoses to minimize coolant loss.
















4. CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new
blanking caps.

5. CAUTION: Make sure the torque converter is fully
located into the oil pump drive.

































6. CAUTION: Make sure that the torque converter
remains in the transmission.


NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

Raise the powertrain assembly jack and transmission
assembly. www.JagDocs.com

7. NOTE: Transmission shown removed for clarity.

Torque: 48 Nm




















8. Torque: 48 Nm 9. Torque: 48 Nm

10. Torque: 45 Nm



















11.
Remove the support.

12.
13. Torque: 110 Nm

















CAUTION: Only rotate the crankshaft clockwise.


NOTE: Make sure that the alignment mark is visible
through the inspection hole as illustrated.
Torque: 63 Nm
