JAGUAR XFR 2010 1.G Workshop Manual

Front End Body Panels - Radiator Splash Shield Removal and Installation
Removal Published: 11-May-2011


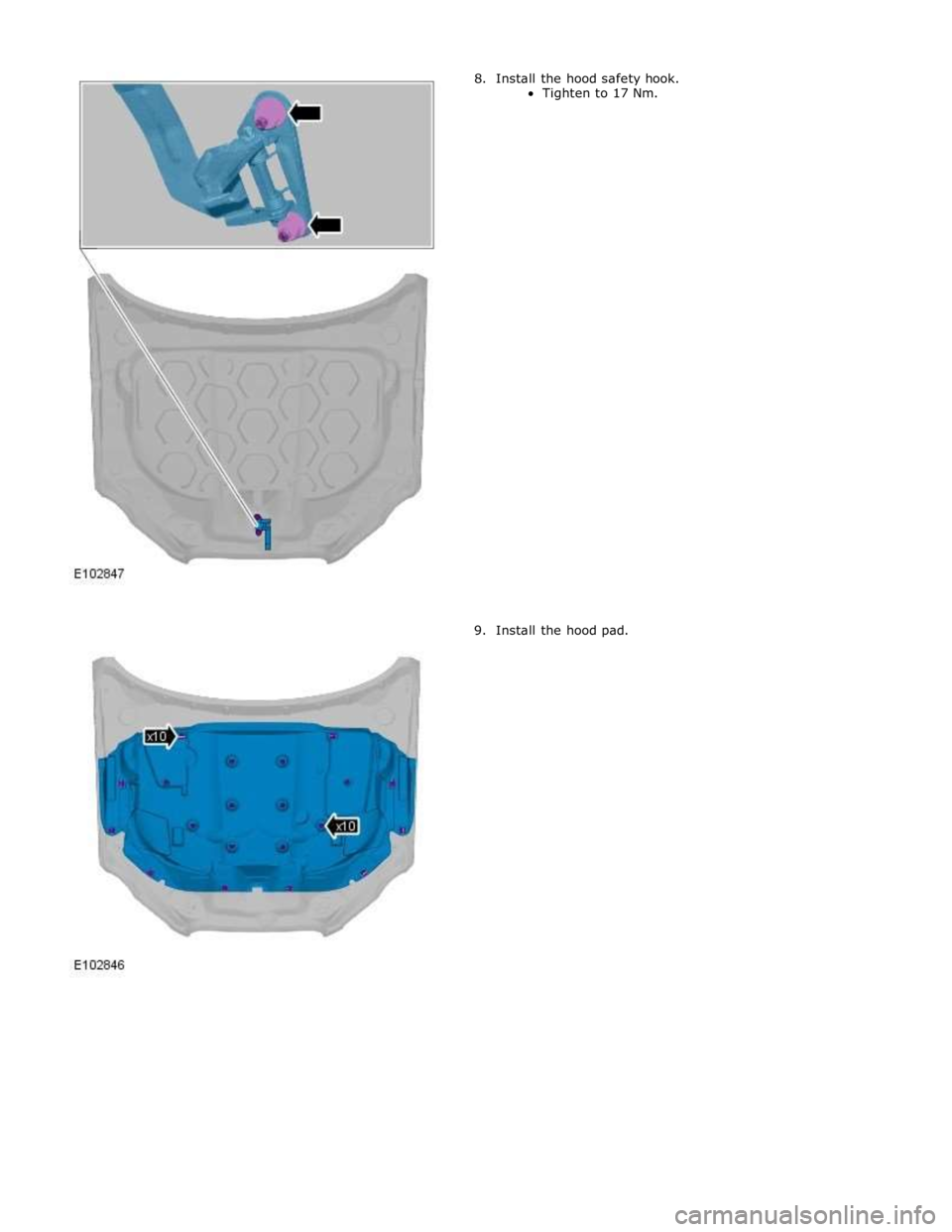

1. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2. Installation
1. To install, reverse the removal procedure.

Installation).







Installation

2.

























3. NOTE: Do not disassemble further if the component is
removed for access only.

1. To install, reverse the removal procedure.

Published: 11-May-2011
Front End Body Panels - Secondary Bulkhead Panel LH TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

All vehicles

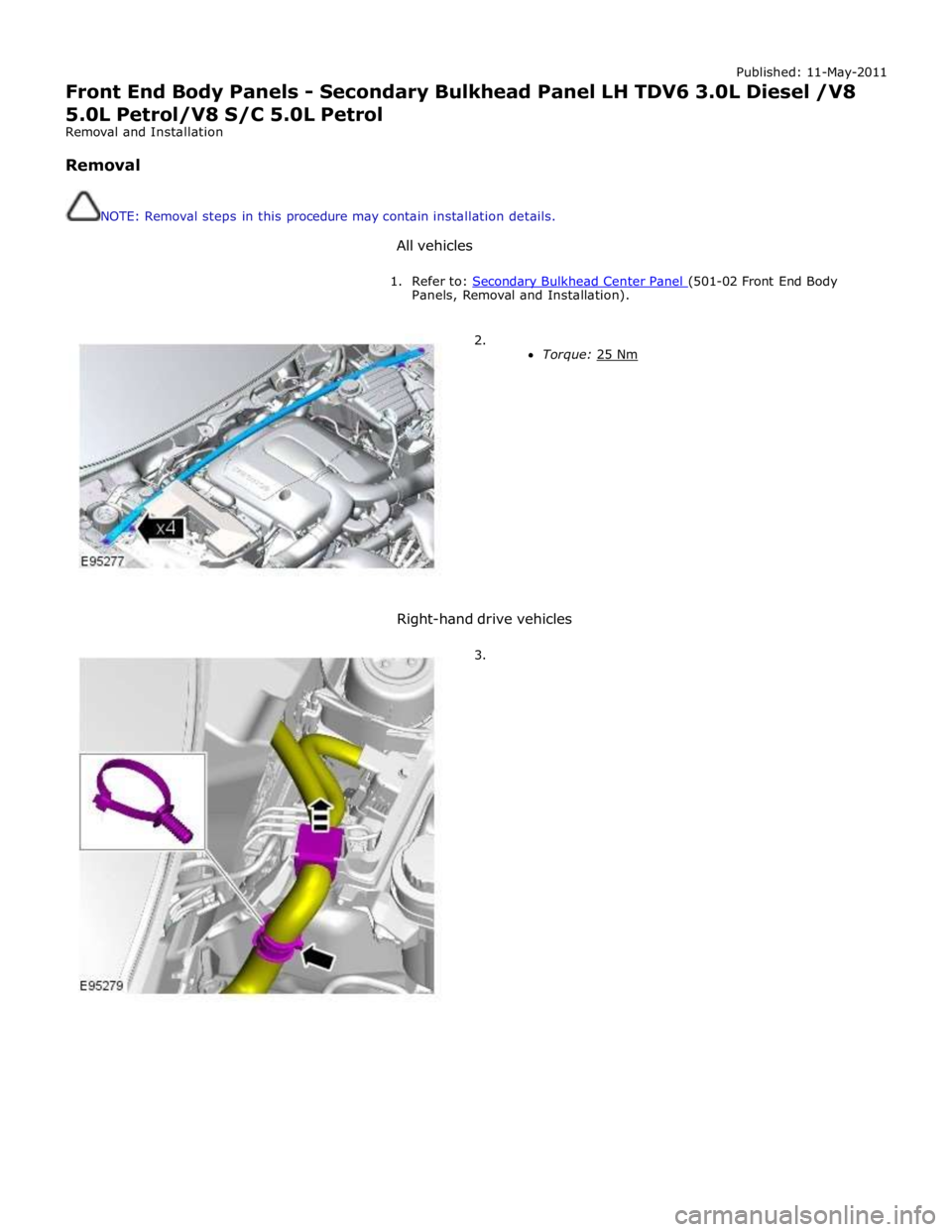

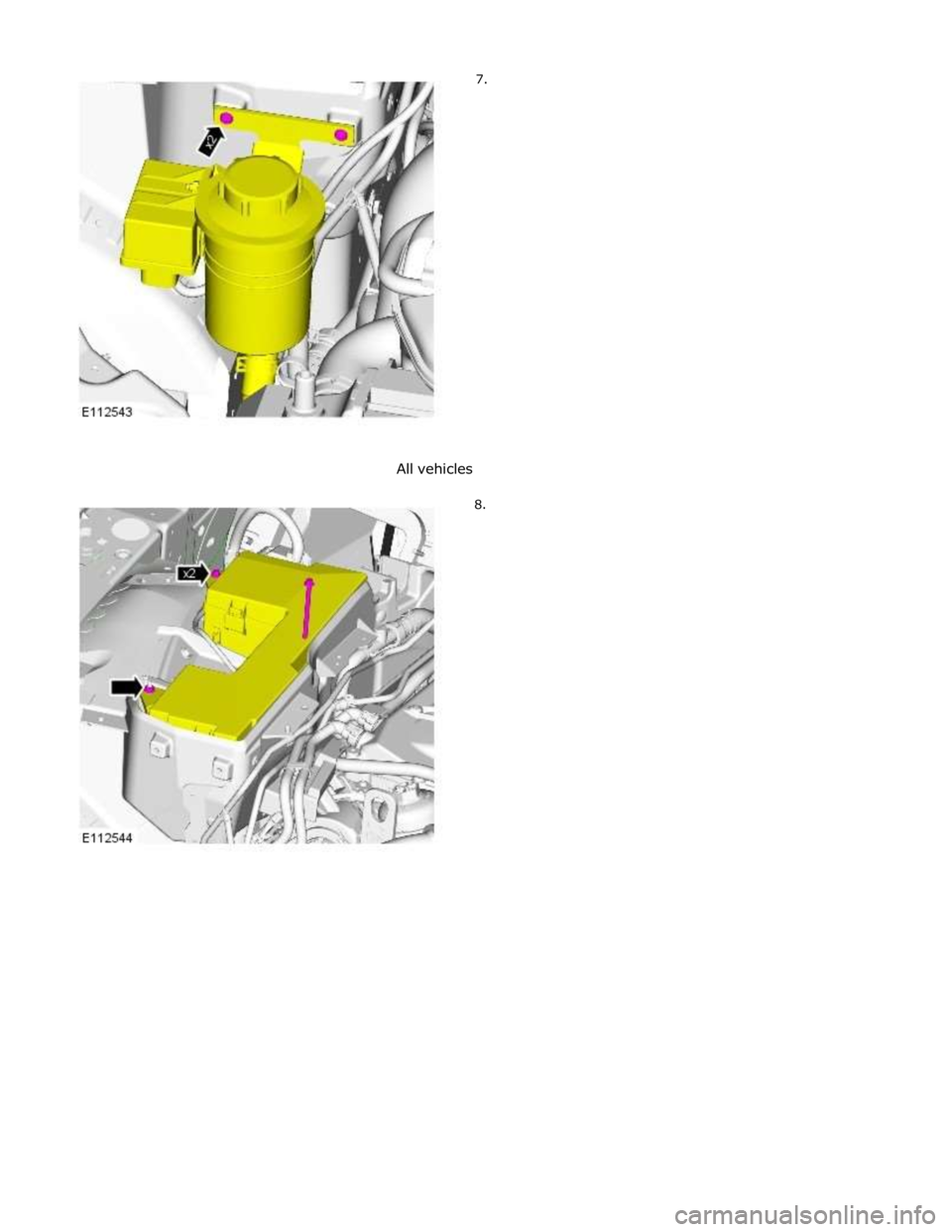

1. Refer to: Secondary Bulkhead Center Panel (501-02 Front End Body Panels, Removal and Installation).

2.
Torque: 25 Nm












Right-hand drive vehicles

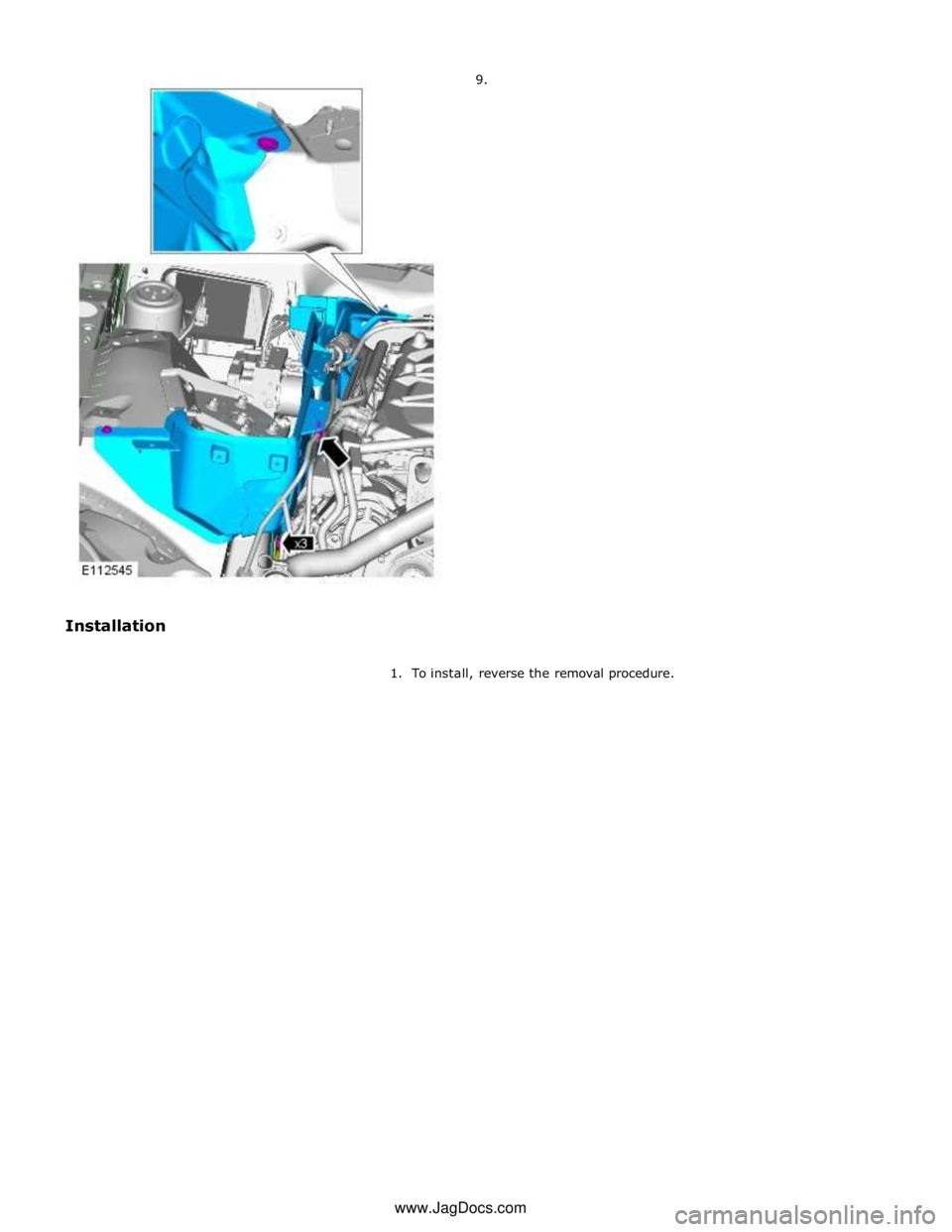

3.

Torque: 5 Nm www.JagDocs.com

Published: 11-May-2011
Front End Body Panels - Secondary Bulkhead Panel RH TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

All vehicles

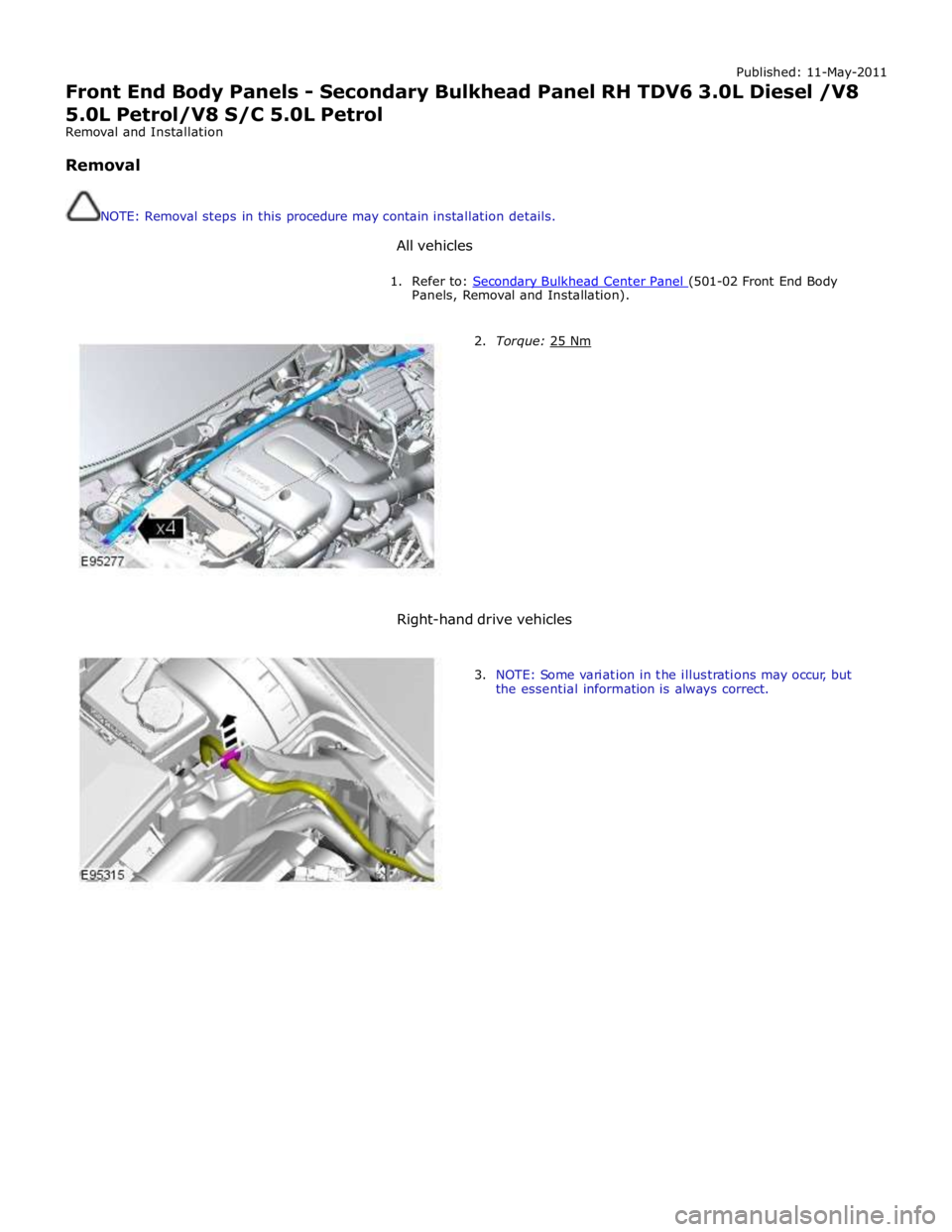

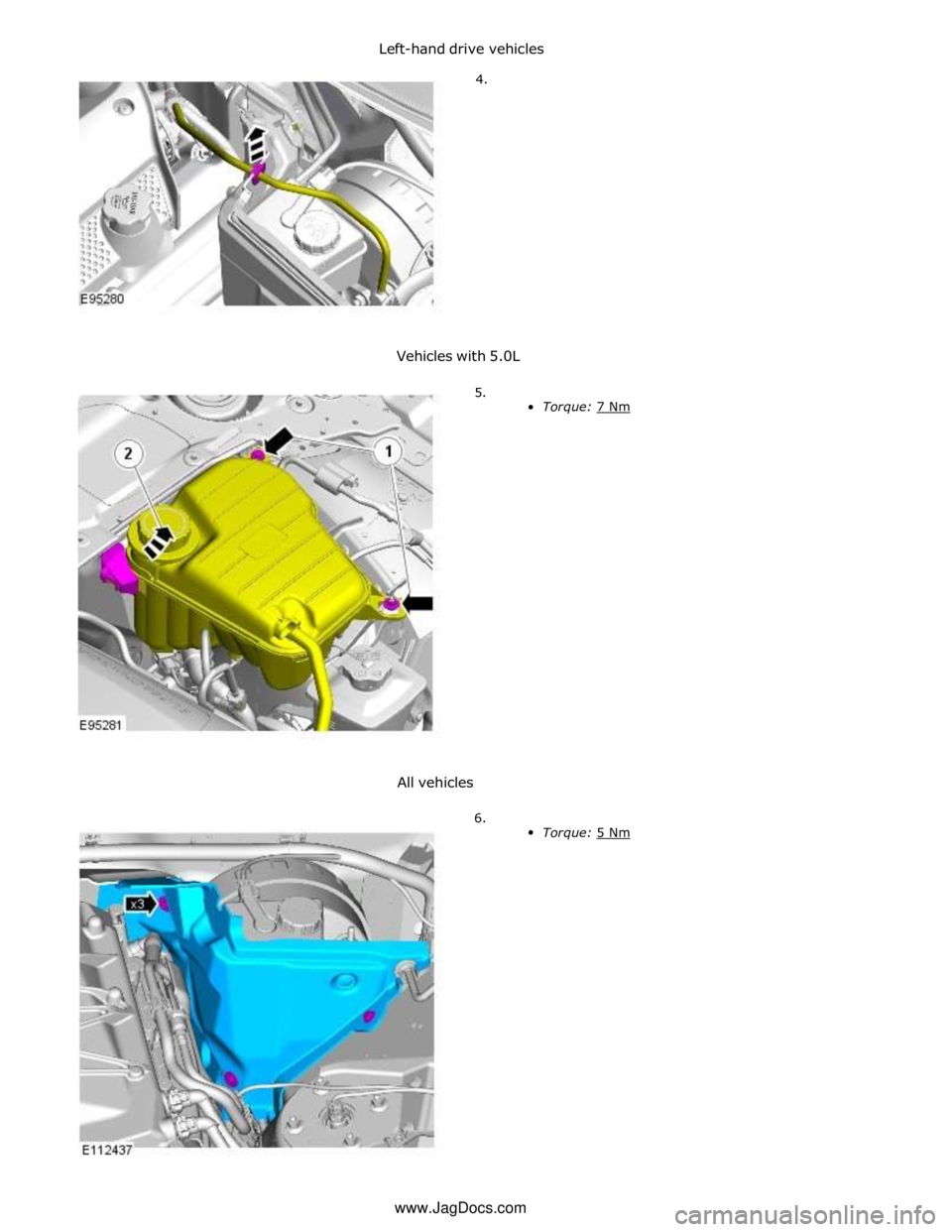

1. Refer to: Secondary Bulkhead Center Panel (501-02 Front End Body Panels, Removal and Installation).

2. Torque: 25 Nm













Right-hand drive vehicles


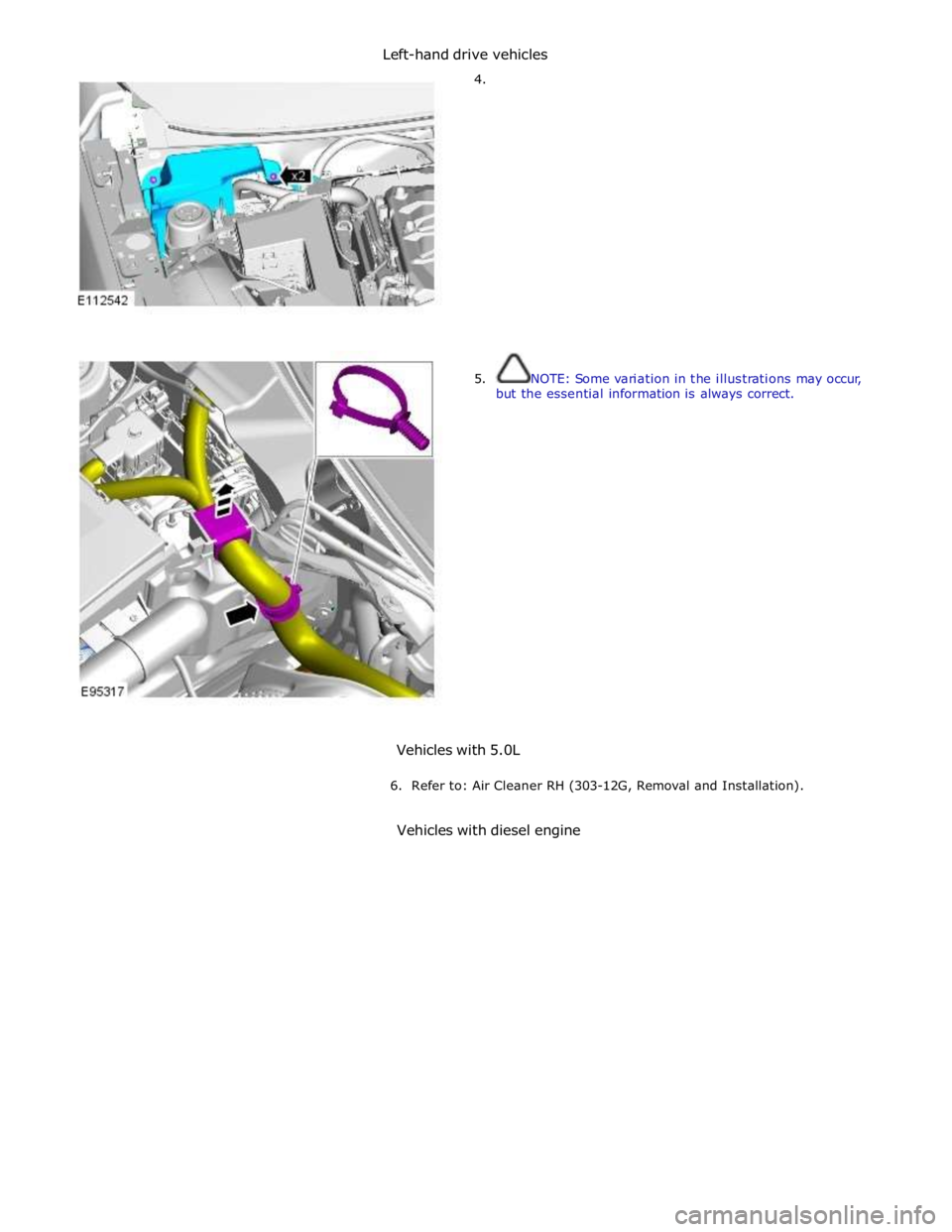

3. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct.
