JAGUAR XFR 2010 1.G Workshop Manual

10.



































11. WARNING: Failure to follow this instruction may cause
damage to the vehicle.


CAUTION: Make sure the locating dowels are installed
correctly.






























CAUTION: Make sure that these components are
installed to the noted removal position.



























1. To install, reverse the removal procedure. Installation

Interior Trim and Ornamentation - C-Pillar Lower Trim Panel
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

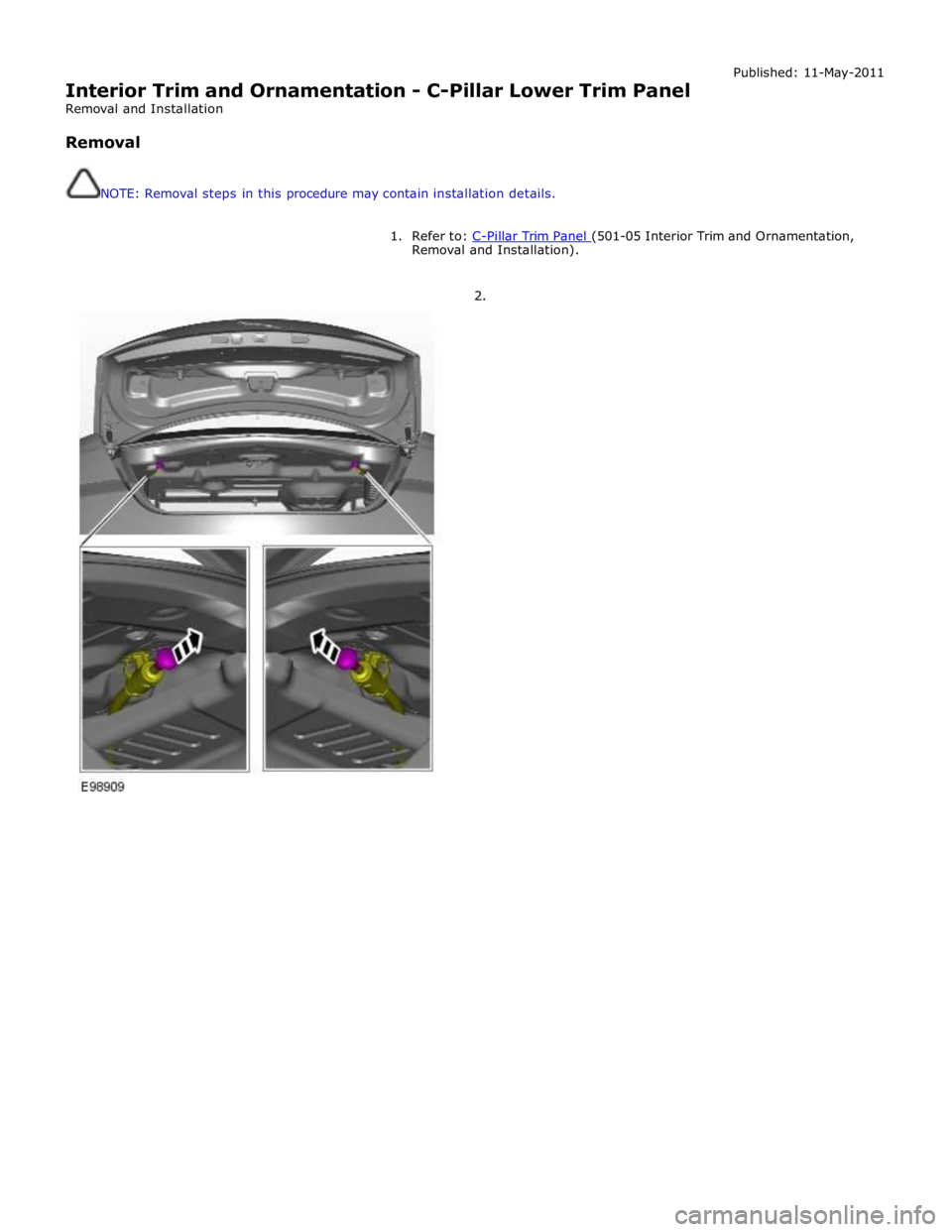

1. Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

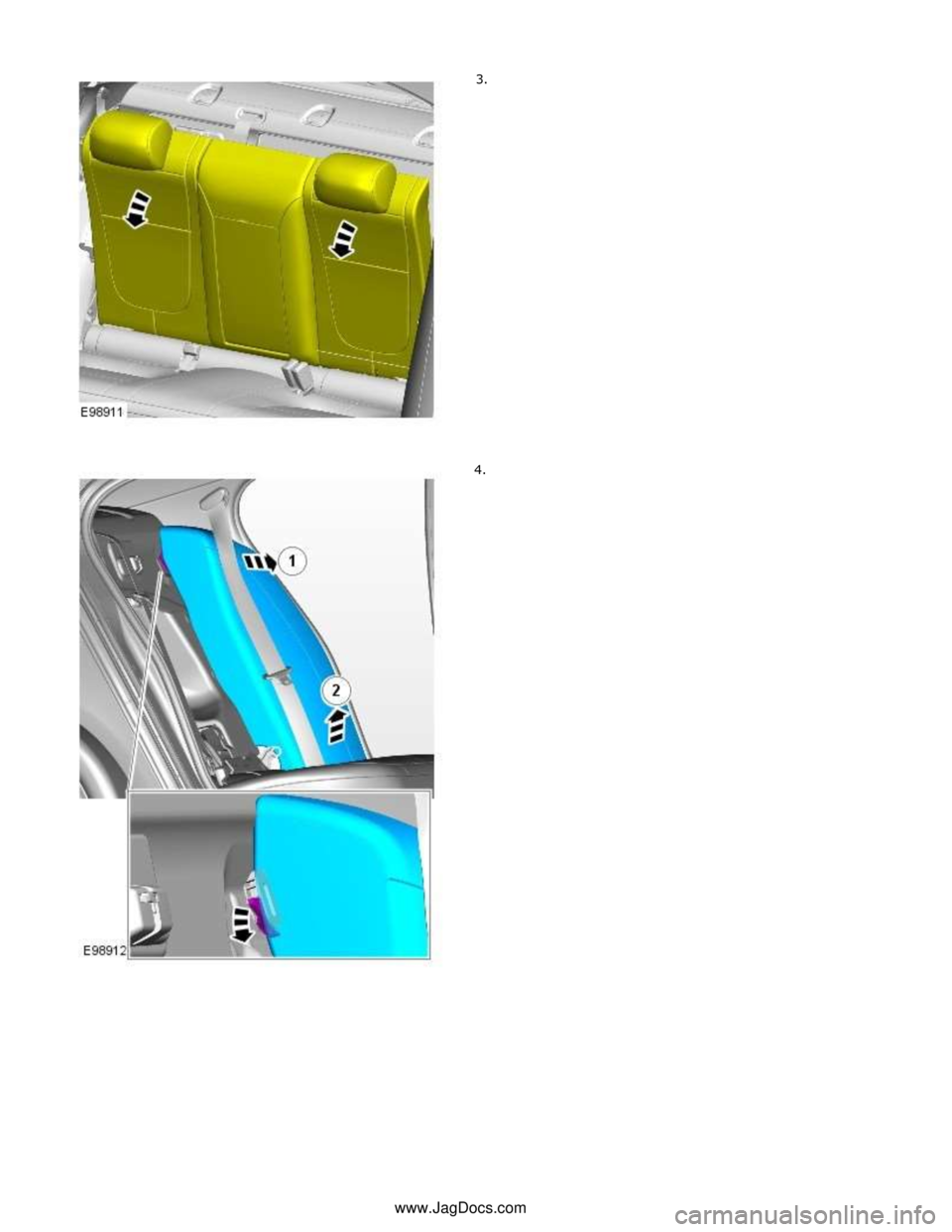

2.

www.JagDocs.com

5.
6. Torque: 40 Nm 7. CAUTIONS:


Note the fitted position of the component prior to
removal.


Make sure that these components are installed to the
noted removal position.
Torque: 9 Nm

Interior Trim and Ornamentation - C-Pillar Trim Panel
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 12-May-2014

1. Refer to: Loadspace Trim Panel RH - Sportbrake (501-05, Removal and
Installation).

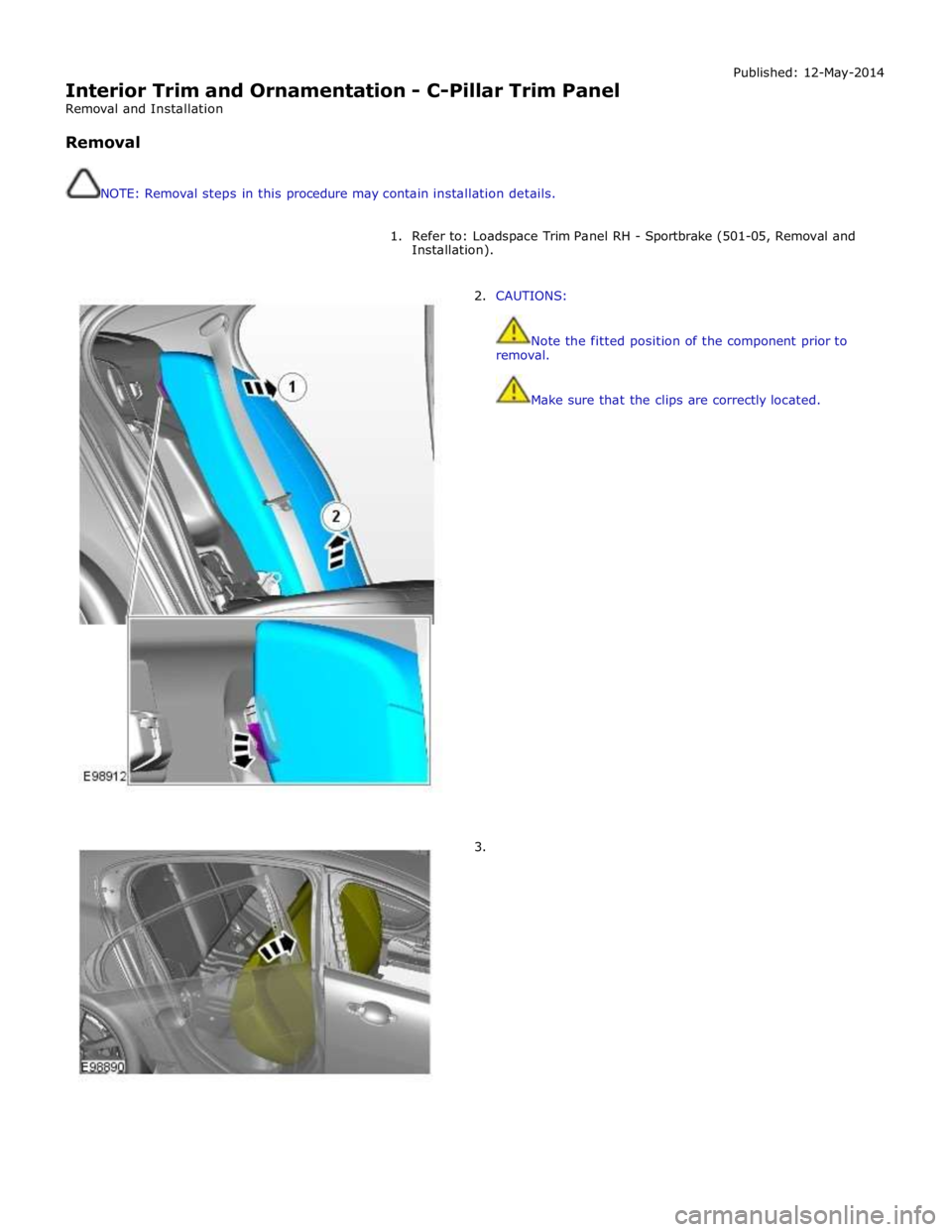

2. CAUTIONS:


Note the fitted position of the component prior to
removal.


Make sure that the clips are correctly located.




























3.

5.

6. CAUTIONS:
Make sure the locating dowels are installed correctly.
Make sure that the clips are correctly located.

Torque: 6 Nm
















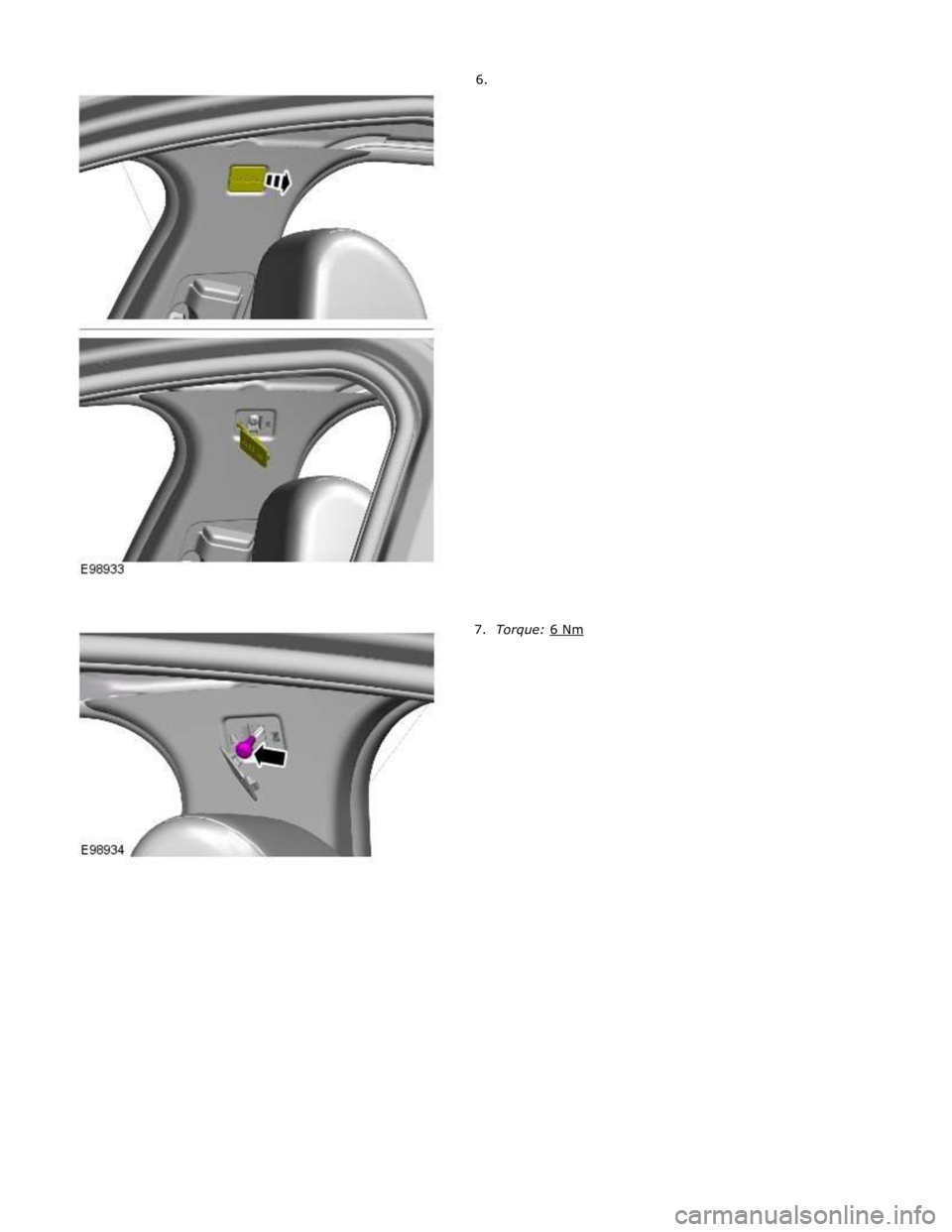

7. CAUTIONS:


Note the fitted position of the component prior to
removal.


Make sure that the clips are correctly located.














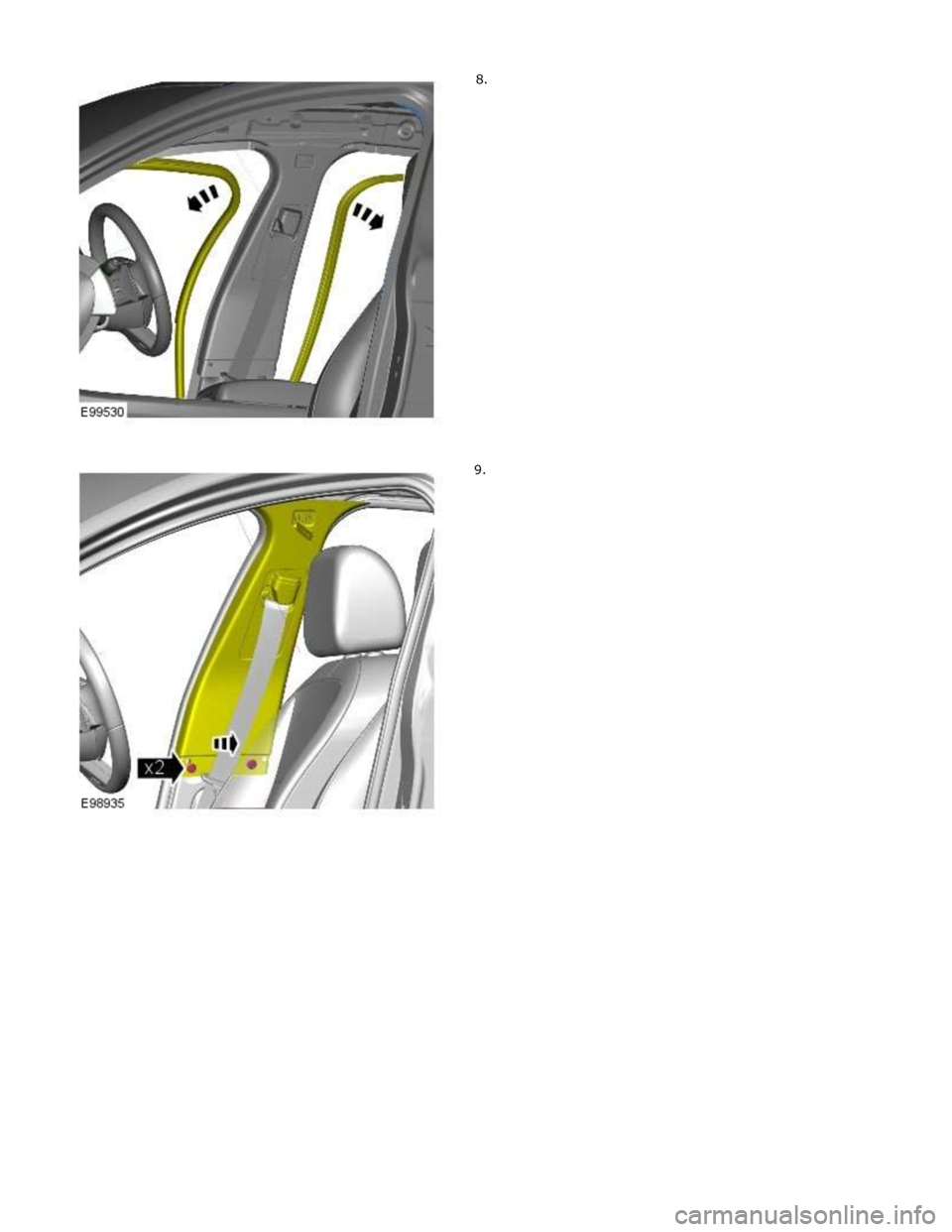

8. CAUTIONS:


Note the fitted position of the component prior to removal.
Make sure that the clips are correctly located. www.JagDocs.com
