JAGUAR XFR 2010 1.G Workshop Manual

Interior Trim and Ornamentation - Cowl Side Trim Panel
Removal and Installation

Removal Published: 11-May-2011

1. Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


2. NOTE: Left-hand shown, right-hand similar.


































3.
LH side only: Remove the hood release lever.

Published: 11-May-2011
Interior Trim and Ornamentation - Engine Cover V8 5.0L Petrol/V8 S/C 5.0L
Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.




Installation

1. NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

1. To install, reverse the removal procedure. www.JagDocs.com

Interior Trim and Ornamentation - Front Door Trim Panel Removal and Installation
Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

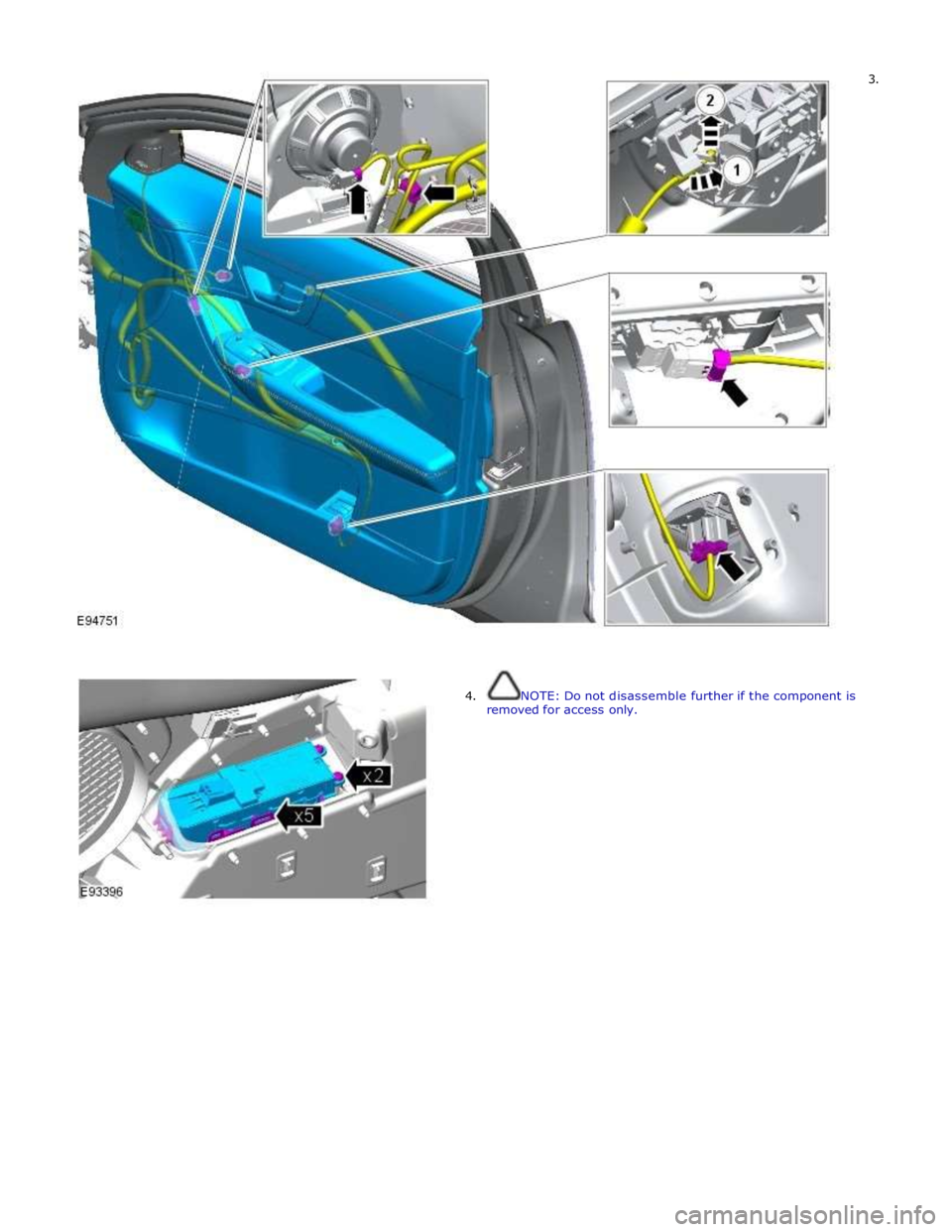

1.

2. X13 E94750

3.
































4. NOTE: Do not disassemble further if the component is removed for access only.

www.JagDocs.com

Interior Trim and Ornamentation - Front Scuff Plate Trim Panel
Removal and Installation

Removal

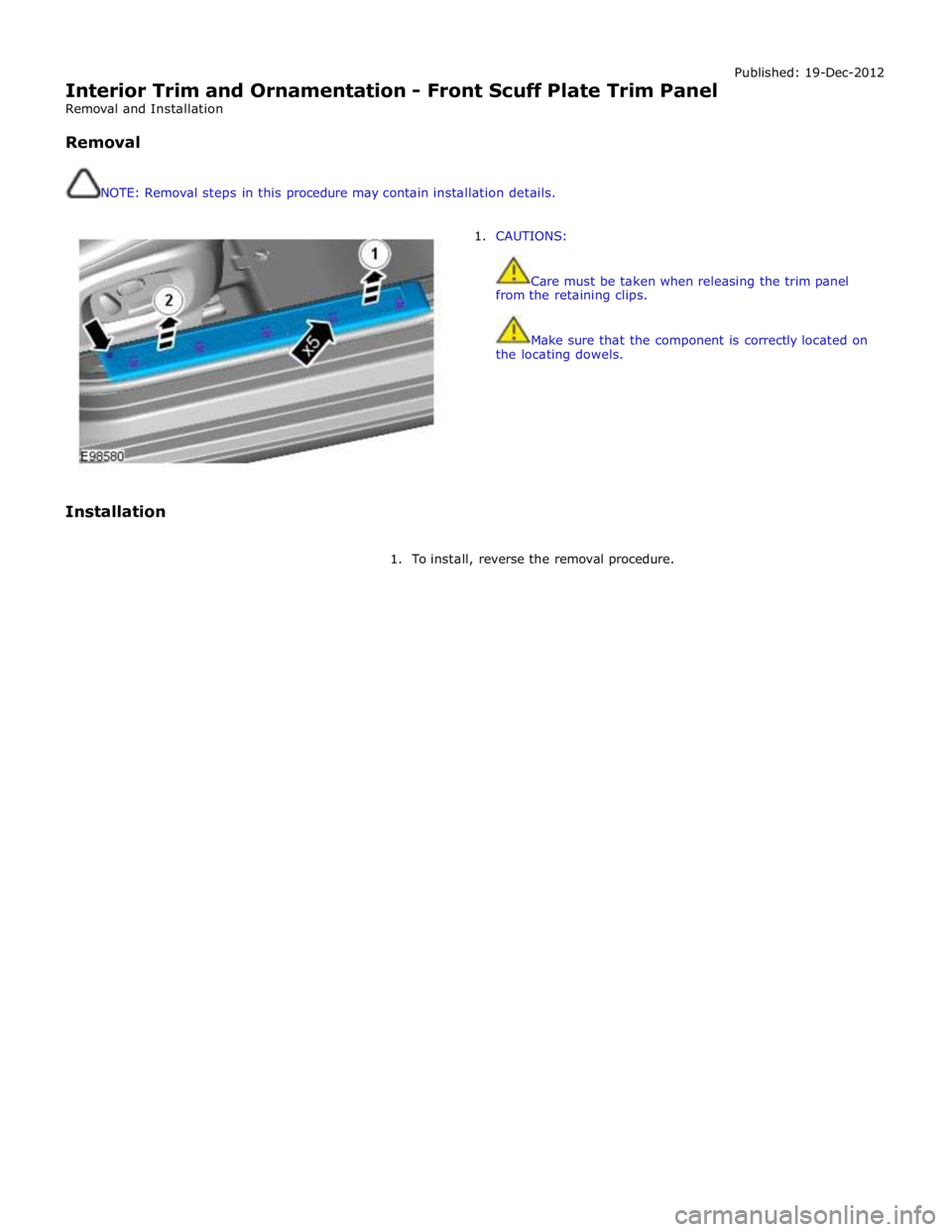

NOTE: Removal steps in this procedure may contain installation details. Published: 19-Dec-2012




Installation

1. CAUTIONS:


Care must be taken when releasing the trim panel
from the retaining clips.


Make sure that the component is correctly located on
the locating dowels.

1. To install, reverse the removal procedure.
