JAGUAR XFR 2010 1.G Workshop Manual

Published: 11-May-2011
Wheels and Tires - Tire Pressure Monitoring System (TPMS) Front Antenna
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.


1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. NOTES:

This step requires the aid of another technician.
Lower the radiator splash shield enough to access the tire pressure
monitoring system front antenna.

Note the position of the component before removal.




Installation


1. CAUTION: Make sure that the component is secured in the retainer.


NOTE: Make sure that the component is installed to the noted
removal position.
To install, reverse the removal procedure.

Published: 11-May-2011
Wheels and Tires - Tire Pressure Monitoring System (TPMS) Rear Antenna
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.


1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

3.
4. NOTE: Note the position of the component before
removal.

Installation

1. CAUTION: Make sure that the component is secured in the retainer.


NOTE: Make sure that the component is installed to the noted
removal position.
To install, reverse the removal procedure.

Published: 11-May-2011

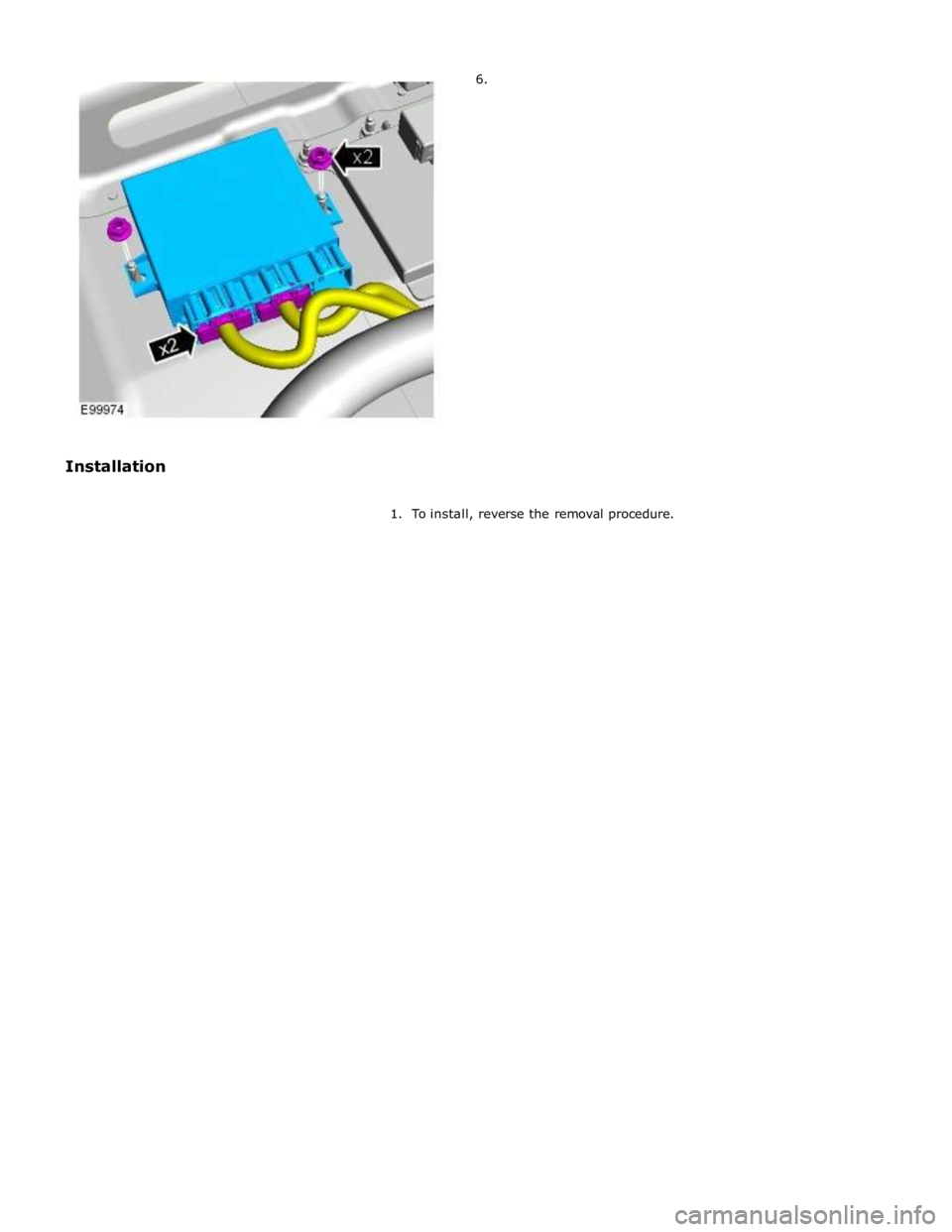

Wheels and Tires - Tire Pressure Monitoring System (TPMS) Module
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Switch the igntion off.

2. Remove the right-hand front seat.

Refer to: Front Seat (501-10 Seating, Removal and Installation).
3. Refer to: B-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

4. Detach and reposition the floor covering.
5. www.JagDocs.com

Published: 11-May-2011

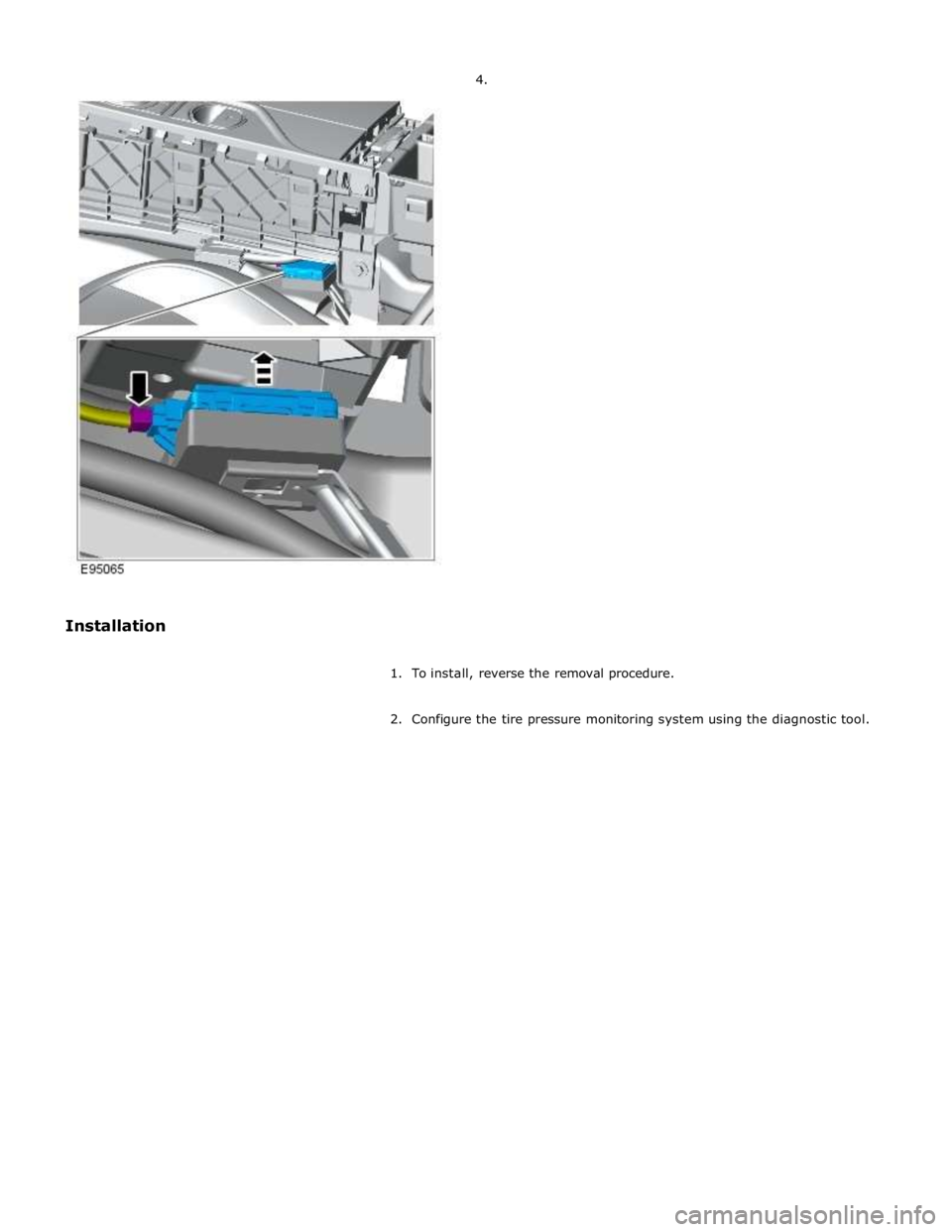

Wheels and Tires - Tire Pressure Monitoring System (TPMS) Receiver
Removal and Installation

Removal

NOTES:

Removal steps in this procedure may contain installation details.

The tire pressure monitoring system receiver is installed in the same location on both LHD and RHD vehicles.

1. Switch the ignition off.

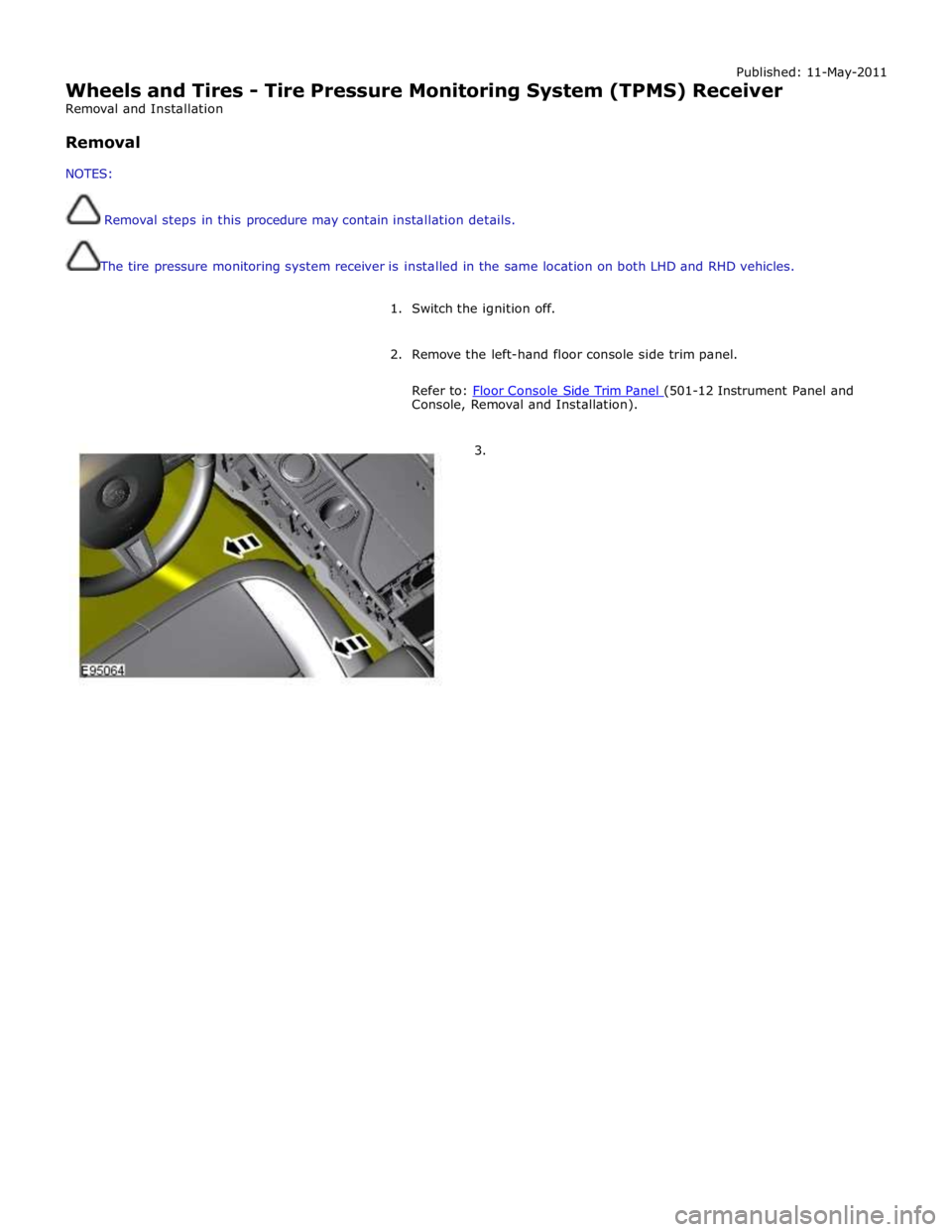

2. Remove the left-hand floor console side trim panel.

Refer to: Floor Console Side Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).

3.

Wheels and Tires - Wheel and Tire
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011


1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.




Installation

2. Torque: 125 Nm

1. CAUTION: Apply a small amount of grease to the hub and wheel mating
surfaces before installation. Make sure the grease does not come into
contact with the vehicles braking components and the wheel stud
threads. Failure to follow these instructions may result in personal
injury.
To install, reverse the removal procedure.

1 RH (right-hand) front-spring and damper assembly 2 RH rear suspension height sensor 3 RH rear-spring and damper assembly 4 Rear vertical accelerometer 5 LH (left-hand) rear-spring and damper assembly 6 LH rear suspension height sensor 7 Adaptive damping module 8 LH front-spring and damper assembly www.JagDocs.com

10 LH front vertical accelerometer 11 RH front suspension height sensor 12 RH front vertical accelerometer
