Security System - RESTRICTED ISSUE 84
eb
Description
Security / Locking Control Module
Central locking switch
Front passenger door ajar switch
RH rear passenger door ajar switch
LH rear passenger door ajar switch
Driver's door ajar switch
Driver's door lock switch
Passenger's door lock switch
Driver's door unlock relay (NAS only)
Non
-deadlock shorting links (NAS only)
Front left
/ rear right deadlock relay
Front right
/ rear left deadlock relay
Door lock relay
Door unlock relay
LH Rear door actuator and switch
RH Rear door actuator and switch
Front door actuator lock
/ deadlock status
switches
Driver's door actuator lock
/ deadlock status
switches
Driver's door unlock shorting link
RH 'A' post base fuse-box
A5.9 PIN-POINT TESTS
The following information details test procedures to identify specific component faults.
The table below provides a key to items identified on the following schematic diagrams.
Item Description No.
21 Hood switch
22 LH Engine bay fuse-box
23 Horn relay
24 Horn unit LH
25 Horn unit
RH
26 Horn switches
27
Inclination sensor
28 Intrusion sensor LH
29 Intrusion sensor
RH
30
31
32 Reader exciter module
33 Reader exciter coil
34 Trunk fuse
-box
35 Security active indicator
36 Security sounder
37 Trunk release relay
38 Trunk release actuator
39 Trunk release switch (fascia)
40 Trunk release switch
41 Valet switch
Passenger
door key barrel switch
Driver's door key barrel switch
Item No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
X300 VSM 24 Issue 1 August 1994
Page 502 of 521
I
AS. 9.1 Central locking switch
1.
2.
3.
4.
Check continuity from 22-way multi-plug pin 19 to ground, open circuit should be recorded.
Operate switch and check that short circuit to ground is now present.
Check wiring continuity from
224vay multi-plug pin 19 to switch connector pin 3.
Check wiring continuity from switch connector pin 1 to ground.
If switch is faulty the whole clock module must be renewed; refer to
sub-section 15.9.10. m:
PI 9
1
Fig. 1 Central Locking Switch Circuit
Issue 1 August 1994 X300 VSM 25
Page 503 of 521
Security System - RESTRICTED ISSUE
A5.9.2
1.
2.
3.
4.
Door ajar switches
Close all four doors and turn ignition to ON.
Open each door in turn, checking that instrument pack indicator lamp illuminates at every
opening action.
On identification of non
-illumination check continuity across suspect door switch, door closed -
switch open circuit, door open switch short circuit.
If switches test correctly check wiring continuity between SLCM connector and switches, then to
ground as detailed below
Door SLCM Switch Ground
Driver's Pin 07,12-way Pin 06 Pin 07
Passenger's Pin 01, 16-way Pin
06 Pin 06
(front)
Passenger's (rear) Pin
21,22-way Pin 05 Pin 06
PolC
1 Po7C
J86 - 1907
Fig. 1 Door Ajar Switches Circuit
X300 VSM Issue 1 August 1994 26
Page 504 of 521
0
1
AS. 9.3 Door locks
U 1. Check harness wiring continuity between multi-plug 12-way connector pins 10 (driver's side)
and
4 (passenger's side) to respective door lock connector pin 8. Ensure secure ground
connection from each lock connector pin
9.
Test continuity across switch pins, reading should be open circuit with door unlocked, short
circuit with door locked. 2.
7 e-----
I I I
1 r
I-, -a
.-
mT
YB .
mcE?-l
YR
7 7 p-ww--
I I I
) ,
1
JBB-1908
I Fig. 1 Door Locks Circuit
9 J
3
X300 VSM 27 Issue 1 August 1994
Page 505 of 521
Security System - RESTRICTED ISSUE 84
4b
A5.9.4 Door lock actuators and switch
1.
2.
3.
Examine fuse F1 in right hand 'A' post base fusebox, if blown determine reason for rupture and
renew.
Check continuity of harness wiring as shown on Fig.
1 below. Ensure secure ground connection
from lock/ unlock and deadlock (not N.A.S.) relay pins
4 and 9.
Remove the left hand rear seat hell board, gaining access to lock/ unlock and deadlock (not
N.A.S.) relays. Operate lock/ unlock and deadlock checking for audible relay operation. renew
suspect relays.
Release door lock and measure resistance between actuator unit pins
2 and 3, a value of
approximately
8Q should be recorded. Operate door lock and check that circuit between pins 2
and 3 is opened. Resistance across pins 1 and 3 should now be approximately 88.
4.
SI
+
SR SI I I sa VI II
I 1
J8S-1909
Fig. 1 Door Lock Actuator Circuit
*I N.A.S. only
*2 Not N.A.S.
X300 VSM Issue 1 August 1994 28
Page 506 of 521

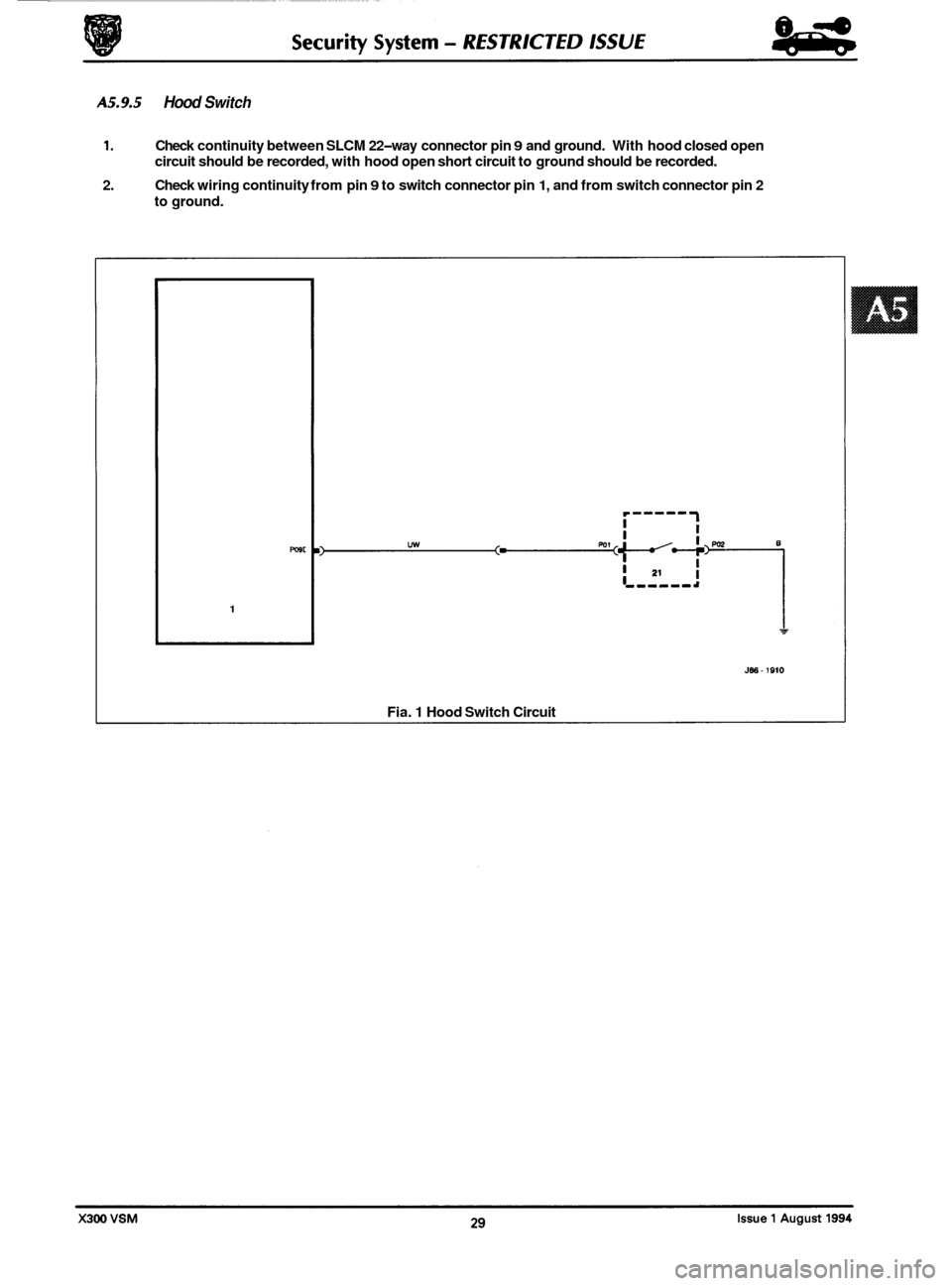

A5.9.5 Hood Switch
8
1.
2. Check
continuity between SLCM 22
-way connector pin 9 and ground. With hood closed open
circuit should be recorded, with hood open short circuit to ground should be recorded.
Check wiring continuity from pin
9 to switch connector pin 1, and from switch connector pin 2
to ground.
Po9c
1
Fia. 1 Hood Switch Circuit
Page 507 of 521
Security System - RESTRICTED ISSUE
AS. 9.6 Horns
1.
2.
Check fuses FIO and F14 in LH engine bay fuse box; if blown determine reason for rupture and
renew.
Check wiring harness continuity from multi
-plug 26-way connector pin 24 to relay unit
connector pin
6 and column switchgear connector pin 16. Ensure secure ground connection
from column switchgear connector pin
7.
Check wiring harness continuity from fuse connector pins 7 and 8 to LH and RH horn
respectively. Ensure secure ground connection from both horn units.
Ensure that
+12V (nominal) is present at the relay connector pin.
Operate horn switches and check that
+12V (nominal) is present at the two fuse connector pins
and
at speaker connector pin 44 (both units).
Check resistance across speaker unit pins;
a value of approximately 2Q should be recorded.
P21.
1
r- I
$ I
I
I
I I I,, Fu
0
J86- 1911
Fig. 1 Horn Unit and Relay Circuit
X300 VSM Issue 1 August 1994 30
Page 508 of 521
4. Remove trim to gain access to sensor and loosen fixings. Lock and arm the vehicle (an error beep
will sound indicating boot open but alarm will still set), then tilt the sensor a minimum of
15" away
from horizontal checking that the alarm is activated.
w6
Po7c
1
Fig. 1 Inclination Sensor Circuit
1
Jffi- 1912
Page 509 of 521
Security System - RESTRICTED ISSUE 84
-
A5.9.8 Intrusion sensors
1. Check harness wiring continuity as shown below:
SLCM connector Sensor connector Function
Lsft-hand side sensor
pin 10 pin 2 ground
pin
11 pin 4 40kHz
pin 12 pin 5 I/P
pin 13 pin 3 +av
RightAand side sensor
pin 2 pin 2 ground
pin
3 pin 4 40kHz
pin 4 pin 1 I/P
pin 5 pin 3 +av
2. Lock and arm the vehicle while sat inside; wait 15 seconds, then attempt to cover either sensor rea
with the palm
of the hand. Check that sensor detects movement and activates alarm. Repeat test
for second sensor.
+8v P13B
40KHz P11 B
IPP128
rPloB
1
Fig. 1 Intrusion Sensor Circuit J86- 1013
Issue 1 August 1994 32 X300 VSM
Page 510 of 521
AS. 9.9 Key barrel switches
1. Check
harness wiring continuity as follows:
SLCM 1hay connector Switch Function
Driver's side
pin 6 pin 11 unlock signal
pin 12 pin
10 lock signal
pin 12 ground
Passenger's side
pin 5 pin 11 unlock signal
pin
10 pin 10 lock signal
pin 12 ground
Check continuity from switch pin
10 to ground with door locked, and from switch pin 11 to
ground with door unlocked.
2.
J88 - 1814
Fig. 1 Key Barrel Switches
Issue 1 August 1994 X300 VSM 33
