Page 21 of 408
To Arm The SystemFollow these steps to arm the theft alarm:
1. Remove the key from the ignition system
(refer to"Starting Procedures" in"Starting And
Operating" for further information).
• For vehicles equipped with Keyless Enter-N-
Go™, make sure the vehicle ignition system is
"OFF".
• For vehicles not equipped with Keyless Enter-
N-Go™, make sure the vehicle ignition system
is "OFF" and the key is physically removed from
the ignition.
2. Perform one of the following methods to lock
the vehicle:
• Press LOCK on the interior power door lock
switch with the driver and/or passenger door
open.
• Press the LOCK button on the exterior Pas-
sive Entry Door Handle with a valid Key Fob
available in the same exterior zone (refer to
"Keyless Enter-N-Go™" in"Things To Know
Before Starting Your Vehicle" for further infor-
mation). •
Press the LOCK button on the Remote Key-
less Entry (RKE) transmitter.
3. If any doors are open, close them.
NOTE:
• Once the security system is armed, it
remains in that state until you disarm it by
following either of the disarming proce-
dures described. If a power loss occurs
after arming the system, you must disarm
the system after restoring power to pre-
vent alarm activation.
• The ultrasonic intrusion sensor (motion
detector) actively monitors your vehicle
every time you arm the security system. If
you prefer, you can turn off the ultrasonic
intrusion sensor when arming the secu-
rity system. To do so, press the LOCK
button on the RKE transmitter three times
within 15 seconds of arming the system
(while the Vehicle Security Light is flash-
ing rapidly).To Disarm The SystemThe Vehicle Security Alarm can be disarmed
using any of the following methods:
•Press the UNLOCK button on the Remote
Keyless Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle
(if equipped, refer to "Keyless Enter-N-Go" in
"Things To Know Before Starting Your Ve-
hicle" for further information).
• Cycle the vehicle ignition system out of the
OFF position.
• For vehicles equipped with Keyless Enter-
N-Go, press the Keyless Enter-N-Go Start/
Stop button (requires at least one valid
Key Fob in the vehicle).
• For vehicles not equipped with Keyless
Enter-N-Go, insert a valid key into the
ignition switch and turn the key to the ON
position.
17
Page 22 of 408
NOTE:
•The driver’s door key cylinder and the
liftgate button on the RKE transmitter
cannot arm or disarm the Vehicle Security
Alarm.
• The Vehicle Security Alarm remains
armed during power liftgate entry. Press-
ing the liftgate button will not disarm the
Vehicle Security Alarm. If someone enters
the vehicle through the liftgate and opens
any door the alarm will sound.
•
When the Vehicle Security Alarm is armed,
the interior power door lock switches will
not unlock the doors.
• The ultrasonic intrusion sensor (motion
detector) actively monitors your vehicle
every time you arm the security system. If
you prefer, you can turn off the ultrasonic
intrusion sensor when arming the secu-
rity system. To do so, press the LOCK
button on the RKE transmitter three times
within 15 seconds of arming the system
(while the Vehicle Security Light is flash-
ing rapidly). The Vehicle Security Alarm is designed to pro-
tect your vehicle; however, you can create
conditions where the system will give you a
false alarm. If one of the previously described
arming sequences has occurred, the Vehicle
Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If
this occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the
battery becomes disconnected, the Vehicle Se-
curity Alarm will remain armed when the battery
is reconnected; the exterior lights will flash, the
horn will sound. If this occurs, disarm the Ve-
hicle Security Alarm.Security System Manual OverrideThe system will not arm if you lock the doors
using the manual door lock plunger.
ILLUMINATED ENTRY
The courtesy lights will turn on when you use
the Remote Keyless Entry (RKE) transmitter to
unlock the doors or open any door.
This feature also turns on the approach lighting
in the outside mirrors (if equipped). Refer to
“Mirrors” in “Understanding The Features Of
Your Vehicle” for further information.
The lights will fade to off after approximately
30 seconds or they will immediately fade to off
once the ignition switch is turned to ON/RUN
from the OFF position.
NOTE:
•
The front courtesy overhead console and
door courtesy lights do not turn on if the
dimmer control is in the Dome ONposi-
tion (extreme top position).
•
The Illuminated Entry system will not oper-
ate if the dimmer control is in the “Dome
defeat” position (extreme bottom position).
18
Page 23 of 408
REMOTE KEYLESS
ENTRY (RKE)
This system allows you to lock or unlock the
doors or liftgate from distances up to approxi-
mately 33 ft (10 m) using a hand-held Key Fob
with RKE transmitter. The RKE transmitter does
not need to be pointed at the vehicle to activate
the system.
NOTE:
Inserting the Key Fob with RKE transmitter
into the ignition switch disables the system
from responding to any button presses from
that RKE transmitter. Driving at speeds
5 mph (8 km/h) and above disables the
system from responding to all RKE transmit-
ter buttons for all RKE transmitters.
To Unlock The DoorsPress and release the UNLOCK button on the
RKE transmitter once to unlock the driver’s door
or twice to unlock all doors. The turn signal lights
will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
Refer to “Keyless Enter-N-Go™ — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.Remote Unlock Sequence
This feature lets you program the system to
unlock either the driver’s door or all doors, on
the first press of the UNLOCK button on the
RKE transmitter. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic Ve-
hicle Information Center (EVIC), refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
Flash Lamps With Lock
This feature will cause the turn signal lights to
flash when the doors are locked or unlocked
with the RKE transmitter. This feature can be
turned on or off. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic Ve-
hicle Information Center (EVIC), refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
Key Fob With RKE Transmitter
19
Page 24 of 408

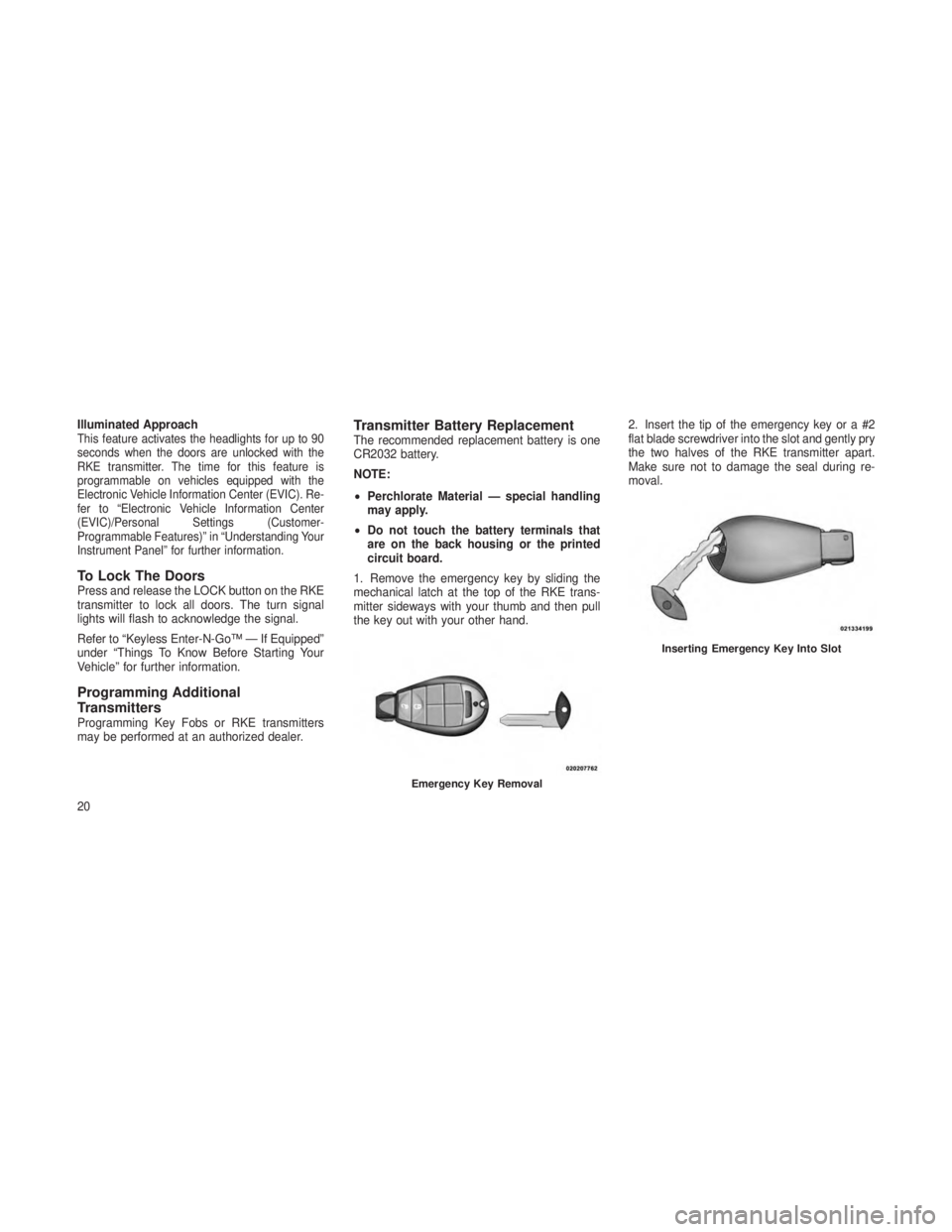

Illuminated ApproachThis feature activates the headlights for up to 90
seconds when the doors are unlocked with the
RKE transmitter. The time for this feature is
programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Re-
fer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your
Instrument Panel” for further information.
To Lock The DoorsPress and release the LOCK button on the RKE
transmitter to lock all doors. The turn signal
lights will flash to acknowledge the signal.
Refer to “Keyless Enter-N-Go™ — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.
Programming Additional
Transmitters
Programming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
Transmitter Battery ReplacementThe recommended replacement battery is one
CR2032 battery.
NOTE:
•Perchlorate Material — special handling
may apply.
• Do not touch the battery terminals that
are on the back housing or the printed
circuit board.
1. Remove the emergency key by sliding the
mechanical latch at the top of the RKE trans-
mitter sideways with your thumb and then pull
the key out with your other hand. 2. Insert the tip of the emergency key or a #2
flat blade screwdriver into the slot and gently pry
the two halves of the RKE transmitter apart.
Make sure not to damage the seal during re-
moval.
Emergency Key Removal
Inserting Emergency Key Into Slot
20
Page 25 of 408

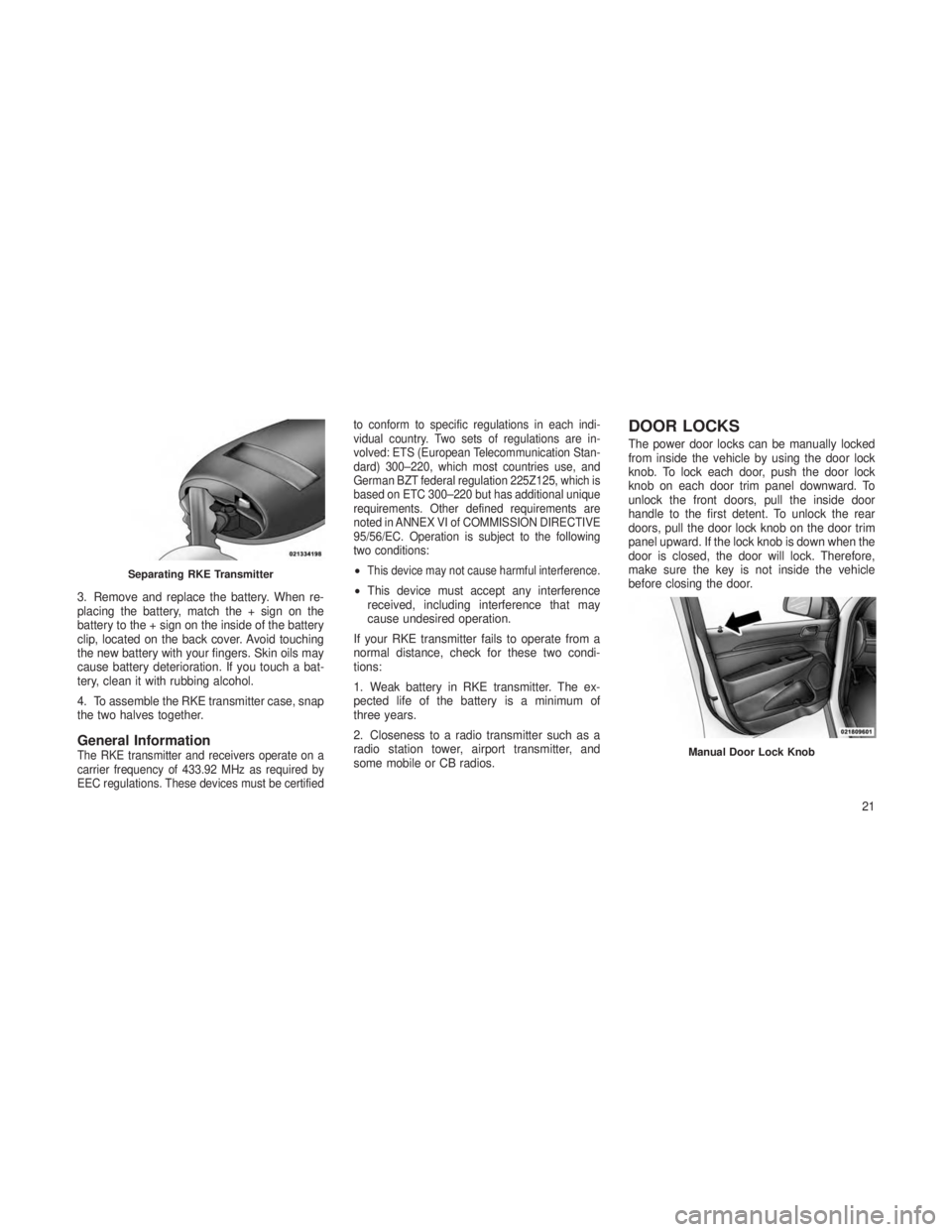

3. Remove and replace the battery. When re-
placing the battery, match the + sign on the
battery to the + sign on the inside of the battery
clip, located on the back cover. Avoid touching
the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a bat-
tery, clean it with rubbing alcohol.
4. To assemble the RKE transmitter case, snap
the two halves together.
General InformationThe RKE transmitter and receivers operate on a
carrier frequency of 433.92 MHz as required by
EEC regulations. These devices must be certifiedto conform to specific regulations in each indi-
vidual country. Two sets of regulations are in-
volved: ETS (European Telecommunication Stan-
dard) 300–220, which most countries use, and
German BZT federal regulation 225Z125, which is
based on ETC 300–220 but has additional unique
requirements. Other defined requirements are
noted in ANNEX VI of COMMISSION DIRECTIVE
95/56/EC. Operation is subject to the following
two conditions:
•This device may not cause harmful interference.
•
This device must accept any interference
received, including interference that may
cause undesired operation.
If your RKE transmitter fails to operate from a
normal distance, check for these two condi-
tions:
1. Weak battery in RKE transmitter. The ex-
pected life of the battery is a minimum of
three years.
2. Closeness to a radio transmitter such as a
radio station tower, airport transmitter, and
some mobile or CB radios.
DOOR LOCKS
The power door locks can be manually locked
from inside the vehicle by using the door lock
knob. To lock each door, push the door lock
knob on each door trim panel downward. To
unlock the front doors, pull the inside door
handle to the first detent. To unlock the rear
doors, pull the door lock knob on the door trim
panel upward. If the lock knob is down when the
door is closed, the door will lock. Therefore,
make sure the key is not inside the vehicle
before closing the door.
Separating RKE Transmitter
Manual Door Lock Knob
21
Page 26 of 408

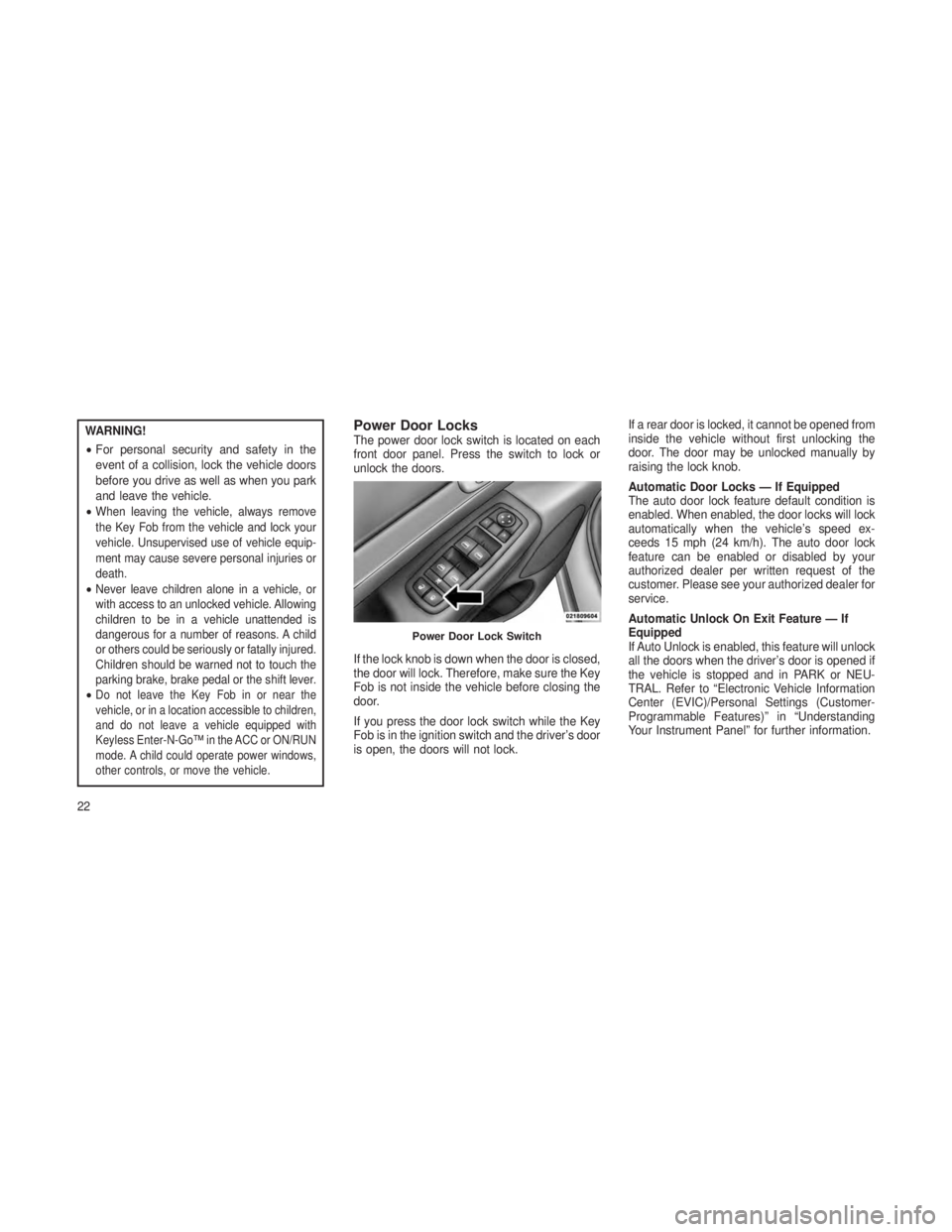

WARNING!
•For personal security and safety in the
event of a collision, lock the vehicle doors
before you drive as well as when you park
and leave the vehicle.
•
When leaving the vehicle, always remove
the Key Fob from the vehicle and lock your
vehicle. Unsupervised use of vehicle equip-
ment may cause severe personal injuries or
death.
•Never leave children alone in a vehicle, or
with access to an unlocked vehicle. Allowing
children to be in a vehicle unattended is
dangerous for a number of reasons. A child
or others could be seriously or fatally injured.
Children should be warned not to touch the
parking brake, brake pedal or the shift lever.
•Do not leave the Key Fob in or near the
vehicle, or in a location accessible to children,
and do not leave a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows,
other controls, or move the vehicle.
Power Door LocksThe power door lock switch is located on each
front door panel. Press the switch to lock or
unlock the doors.
If the lock knob is down when the door is closed,
the door will lock. Therefore, make sure the Key
Fob is not inside the vehicle before closing the
door.
If you press the door lock switch while the Key
Fob is in the ignition switch and the driver’s door
is open, the doors will not lock. If a rear door is locked, it cannot be opened from
inside the vehicle without first unlocking the
door. The door may be unlocked manually by
raising the lock knob.
Automatic Door Locks — If Equipped
The auto door lock feature default condition is
enabled. When enabled, the door locks will lock
automatically when the vehicle’s speed ex-
ceeds 15 mph (24 km/h). The auto door lock
feature can be enabled or disabled by your
authorized dealer per written request of the
customer. Please see your authorized dealer for
service.
Automatic Unlock On Exit Feature — If
Equipped
If Auto Unlock is enabled, this feature will unlock
all the doors when the driver’s door is opened if
the vehicle is stopped and in PARK or NEU-
TRAL. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
Power Door Lock Switch
22
Page 27 of 408
Child-Protection Door Lock
System — Rear Doors
To provide a safer environment for small children
riding in the rear seats, the rear doors are equipped
with Child-Protection Door Lock system.
To Engage Or Disengage The
Child-Protection Door Lock System
1. Open the rear door.
2.
Insert the tip of the emergency key into the
lock and rotate to the LOCK or UNLOCK position.
3. Repeat steps 1 and 2 for the opposite rear
door.WARNING!
Avoid trapping anyone in a vehicle in a
collision. Remember that the rear doors can
only be opened from the outside when the
Child-Protection locks are engaged (locked).
NOTE:
For emergency exit from the rear seats when
the Child-Protection Door Lock System is
engaged, manually raise the door lock knob
to the unlocked position, roll down the win-
dow, and open the door using the outside
door handle.
KEYLESS ENTER-N-GO™
The Passive Entry system is an enhancement
to the vehicle’s Remote Keyless Entry (RKE)
system and a feature of Keyless Enter-N-Go™.
This feature allows you to lock and unlock the
vehicle’s door(s) without having to press the
RKE transmitter lock or unlock buttons.
NOTE:
•
Passive Entry may be programmed ON/
OFF; refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in
“Understanding Your Instrument Panel” for
further information.
• If a Passive Entry door handle has not
been used for 72 hours, the Passive Entry
feature for the handle may time out. Pull-
ing the deactivated front door handle will
reactivate the door handle’s Passive En-
try feature.
•
If wearing gloves on your hands, or if it has
been raining on the Passive Entry door
handle, the unlock sensitivity can be af-
fected, resulting in a slower response time.
Child-Protection Door Lock Location
Child-Protection Door Lock Function
23
Page 28 of 408

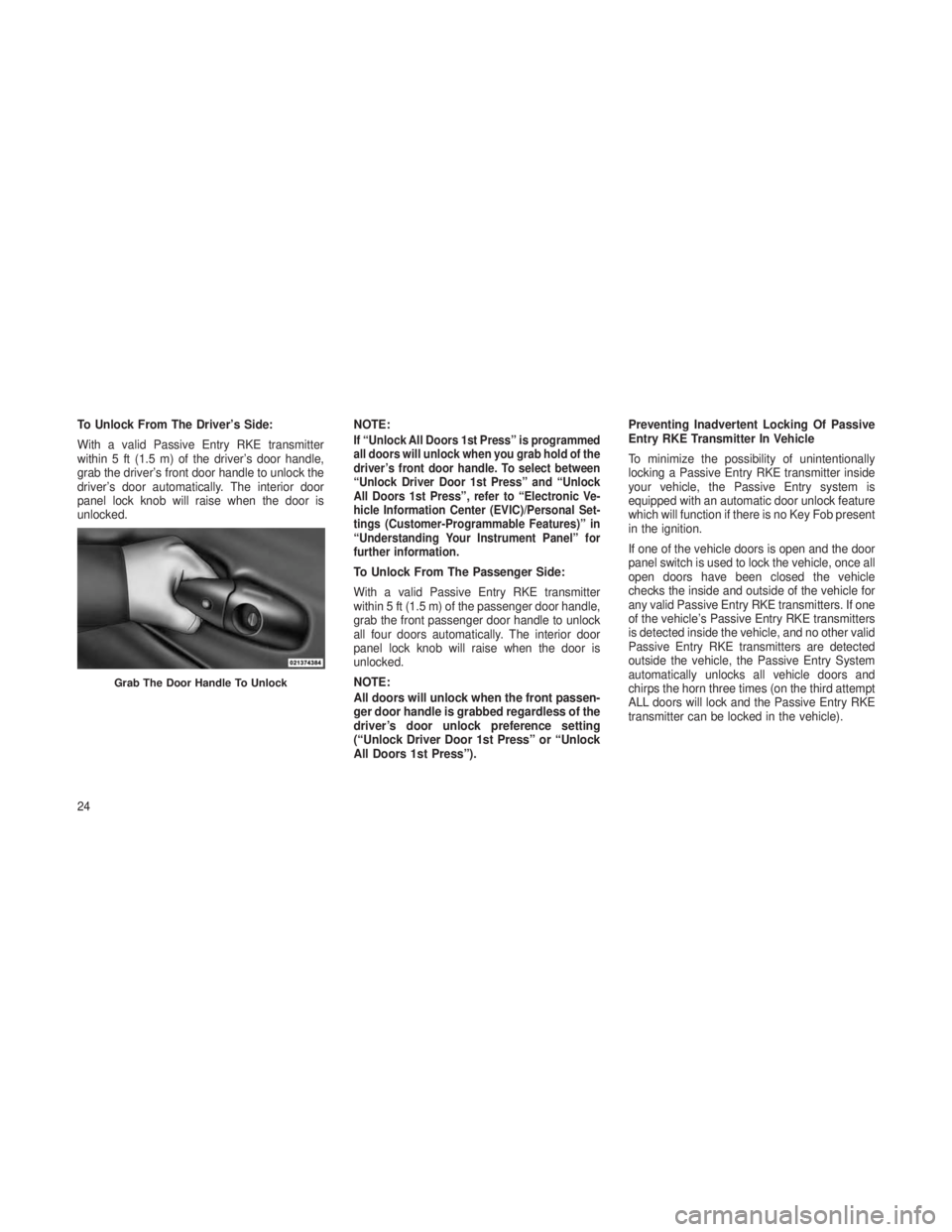

To Unlock From The Driver’s Side:
With a valid Passive Entry RKE transmitter
within 5 ft (1.5 m) of the driver’s door handle,
grab the driver’s front door handle to unlock the
driver’s door automatically. The interior door
panel lock knob will raise when the door is
unlocked.NOTE:If “Unlock All Doors 1st Press” is programmed
all doors will unlock when you grab hold of the
driver’s front door handle. To select between
“Unlock Driver Door 1st Press” and “Unlock
All Doors 1st Press”, refer to “Electronic Ve-
hicle Information Center (EVIC)/Personal Set-
tings (Customer-Programmable Features)” in
“Understanding Your Instrument Panel” for
further information.
To Unlock From The Passenger Side:
With a valid Passive Entry RKE transmitter
within 5 ft (1.5 m) of the passenger door handle,
grab the front passenger door handle to unlock
all four doors automatically. The interior door
panel lock knob will raise when the door is
unlocked.
NOTE:
All doors will unlock when the front passen-
ger door handle is grabbed regardless of the
driver’s door unlock preference setting
(“Unlock Driver Door 1st Press” or “Unlock
All Doors 1st Press”).Preventing Inadvertent Locking Of Passive
Entry RKE Transmitter In Vehicle
To minimize the possibility of unintentionally
locking a Passive Entry RKE transmitter inside
your vehicle, the Passive Entry system is
equipped with an automatic door unlock feature
which will function if there is no Key Fob present
in the ignition.
If one of the vehicle doors is open and the door
panel switch is used to lock the vehicle, once all
open doors have been closed the vehicle
checks the inside and outside of the vehicle for
any valid Passive Entry RKE transmitters. If one
of the vehicle’s Passive Entry RKE transmitters
is detected inside the vehicle, and no other valid
Passive Entry RKE transmitters are detected
outside the vehicle, the Passive Entry System
automatically unlocks all vehicle doors and
chirps the horn three times (on the third attempt
ALL doors will lock and the Passive Entry RKE
transmitter can be locked in the vehicle).
Grab The Door Handle To Unlock
24
Page 29 of 408
To Enter The Liftgate
With a valid Passive Entry RKE transmitter
within 3 ft (1.0 m) of the liftgate, press the button
on the right side of the chrome accent bar,
which is located on the liftgate below the liftgate
glass to lock or unlock the vehicle.NOTE:
If “Unlock All Doors 1st Press” is pro-
grammed in EVIC, all doors will unlock when
you push the button on the liftgate. If
Un-
lock Driver Door 1st press is programmed
in EVIC, the liftgate will unlock when you
press the button on the liftgate For further
information, refer to “Electronic Vehicle In-
formation Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in
“Understanding Your Instrument Panel”.
To Lock The Vehicle’s Doors
With one of the vehicle’s Passive Entry RKE
transmitters within 5 ft (1.5 m) of the driver or
passenger front door handle, press the door
handle LOCK button to lock all four doors and
liftgate.
Do NOT grab the door handle, when pressing
the door handle lock button. This could unlock
the door(s).
Liftgate Passive Entry Button
Press The Door Handle Button To Lock
Do NOT Grab The Door Handle When Locking
25
Page 30 of 408
NOTE:
•After pressing the door handle LOCK but-
ton, you must wait two seconds before
you can lock or unlock the doors, using
either Passive Entry door handle. This is
done to allow you to check if the vehicle is
locked by pulling the door handle, without
the vehicle reacting and unlocking.
• The Passive Entry system will not operate
if the RKE transmitter battery is dead.
The vehicle doors can also be locked by using
the RKE transmitter lock button or the lock
button located on the vehicle’s interior door
panel.WINDOWS
Power WindowsThe power window controls are located on the
driver’s door trim panel. There is a single switch
on the front passenger door and rear doors
which operate the front passenger and rear
passenger door windows. The window controls
will operate only when the ignition switch is in
the ON/RUN or ACC position.
The power window switches remain active for
up to 10 minutes after the ignition switch has
been turned OFF. Opening a vehicle front door
will cancel this feature.
WARNING!
Never leave children unattended in a vehicle,
and do not let children play with power
windows. Do not leave the key fob in or near
the vehicle, and do not leave a vehicle
equipped with Keyless Enter-N-Go™ in the
ACC or ON/RUN mode. Occupants, particu-
larly unattended children, can become en-
trapped by the windows while operating the
power window switches. Such entrapment
may result in serious injury or death.
Auto-Down
Both the driver and front passenger window
switches have an “Auto-Down” feature. Press
the window switch past the first detent, release,
and the window will go down automatically. To
cancel the “Auto-Down” movement, operate the
switch in either the up or down direction and
release the switch.
Power Window Switches
26
