JEEP GRAND CHEROKEE 2013 Owner handbook (in English)

To open the window part way, press to the first
detent and release it when you want the window
to stop.
Auto Up Feature With Anti-Pinch Protection —
Driver And Front Passenger Door Only
Lift the window switch fully upward to the sec-
ond detent, release, and the window will go up
automatically.
To stop the window from going all the way up
during the Auto Up operation, push down on the
switch briefly.To close the window part way, lift the window
switch to the first detent and release when you
want the window to stop.
NOTE:If the window runs into any obstacle during
Auto Up it will reverse direction and then go
back down. Remove the obstacle and use the
window switch again to close the window. Any
impact due to rough road conditions may
trigger the auto reverse function unexpectedly
during Auto Up. If this happens, pull the
switch lightly to the first detent and hold it to
close the window manually.
WARNING!
There is no anti-pinch protection when the
window is almost closed. Be sure to clear all
objects from the window before closing.
Resetting The Auto Up Feature
Should the Auto Up feature stop working, the
window probably needs to be reset. To reset
Auto Up:
1. Pull the window switch up to close the win-
dow completely and continue to hold the switch
up for an additional two seconds after the
window is closed.
2. Push the window switch down firmly to the
second detent to open the window completely
and continue to hold the switch down for an
additional two seconds after the window is fully
open.
Auto Down Window SwitchesAuto Up Window Switches
27

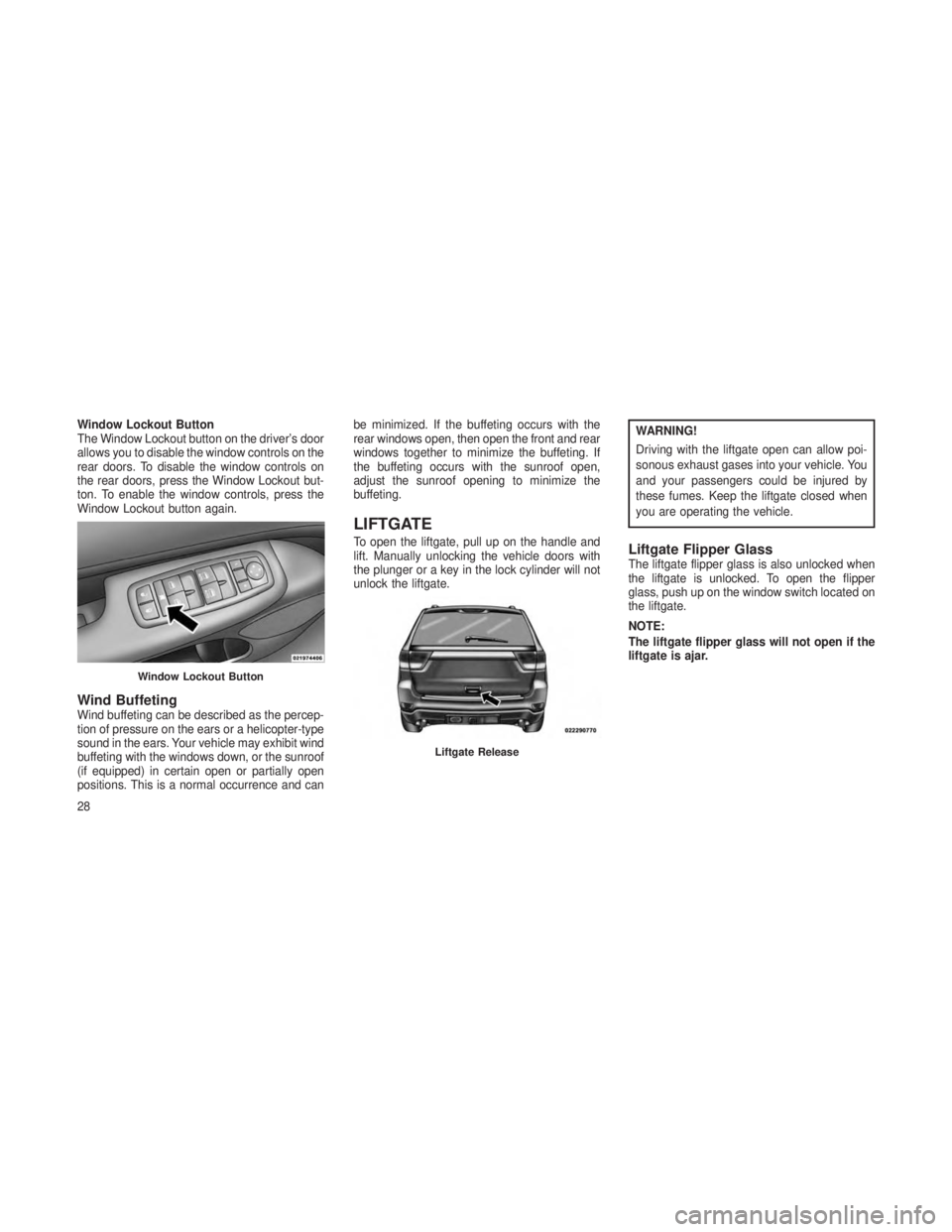

Window Lockout Button
The Window Lockout button on the driver’s door
allows you to disable the window controls on the
rear doors. To disable the window controls on
the rear doors, press the Window Lockout but-
ton. To enable the window controls, press the
Window Lockout button again.
Wind BuffetingWind buffeting can be described as the percep-
tion of pressure on the ears or a helicopter-type
sound in the ears. Your vehicle may exhibit wind
buffeting with the windows down, or the sunroof
(if equipped) in certain open or partially open
positions. This is a normal occurrence and canbe minimized. If the buffeting occurs with the
rear windows open, then open the front and rear
windows together to minimize the buffeting. If
the buffeting occurs with the sunroof open,
adjust the sunroof opening to minimize the
buffeting.
LIFTGATE
To open the liftgate, pull up on the handle and
lift. Manually unlocking the vehicle doors with
the plunger or a key in the lock cylinder will not
unlock the liftgate.
WARNING!
Driving with the liftgate open can allow poi-
sonous exhaust gases into your vehicle. You
and your passengers could be injured by
these fumes. Keep the liftgate closed when
you are operating the vehicle.
Liftgate Flipper GlassThe liftgate flipper glass is also unlocked when
the liftgate is unlocked. To open the flipper
glass, push up on the window switch located on
the liftgate.
NOTE:
The liftgate flipper glass will not open if the
liftgate is ajar.
Window Lockout Button
Liftgate Release
28

Once the liftgate flipper glass has been opened,
connection to the rear window wiper is inter-
rupted, preventing activation of the rear wiper
blade while the flipper glass is open.
NOTE:
If a malfunction to the liftgate latch should
occur, an emergency liftgate latch release
can be used to open the liftgate. The emer-
gency liftgate latch release can be accessed
through a snap-in cover located on the lift-
gate trim panel.
WARNING!
Driving with the flipper glass open can allow
poisonous exhaust gases into your vehicle.
You and your passengers could be injured by
these fumes. Keep the flipper glass closed
when you are operating the vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened
by pulling up on the liftgate handle
or by pressing the LIFTGATE but-
ton on the Remote Keyless Entry
(RKE) transmitter. Press the LIFT-
GATE button on the RKE transmit-
ter twice within five seconds, to open the power
liftgate. Once the liftgate is open, pressing the
button twice within five seconds a second time
will close the liftgate.
The power liftgate may also be opened or
closed by pressing the LIFTGATE button lo-
cated on the front overhead console, or closed
by pressing the LIFTGATE button located on left rear trim, near the liftgate opening. Pressing the
LIFTGATE button located on left rear trim once
will close the liftgate only, this button cannot be
used to open the liftgate.
To operate the power liftgate manually in the
open direction, pull the liftgate handle once to
initiate a power cycle and then pull the handle a
second time to put liftgate into manual mode.
When the LIFTGATE button on the RKE transmitter
is pressed two times, the turn signals will flash
twice to signal that the liftgate is opening or closing
(if Flash Lamps with Lock is enabled in the EVIC)
and the liftgate chime will be audible. For further
information, refer to
"Customer-Programmable
Features (System Setup)/Electronic Vehicle Infor-
mation Center (EVIC) "in "Understanding Your In-
strument Panel".
NOTE:
• In the event of a power malfunction to the
liftgate, an emergency liftgate latch re-
lease can be used to open the liftgate. The
emergency liftgate latch release can be
accessed through a snap-in cover located
on the liftgate trim panel.
Liftgate Glass Release
29

•If liftgate is left open for an extended
period of time, the liftgate may need to be
closed manually to reset power liftgate
functionality.
WARNING!
During power operation, personal injury or
cargo damage may occur. Ensure the liftgate
travel path is clear. Make sure the liftgate is
closed and latched before driving away.
NOTE:
• The power liftgate buttons will not oper-
ate if the vehicle is in gear or the vehicle
speed is above 0 mph (0 km/h).
• The power liftgate will not operate in tem-
peratures below 22°F (30°C) or tem-
peratures above 150°F (65°C). Be sure to
remove any buildup of snow or ice from
the liftgate before pressing any of the
power liftgate switches. •
If anything obstructs the power liftgate
while it is closing or opening, the liftgate
will automatically reverse to the closed or
open position, provided it meets suffi-
cient resistance.
• There are also pinch sensors attached to
the side of the liftgate. Light pressure
anywhere along these strips will cause
the liftgate to return to the open position.
• The power liftgate must be in the full open
position for rear liftgate close button on
the left rear trim, near the liftgate opening
to operate. If the liftgate is not fully open,
press the Liftgate button on the Key Fob
to fully open the liftgate, and then press it
again to close.
• If the liftgate handle is pulled while the
power liftgate is closing, the liftgate will
reverse to the full open position.
•
If the liftgate handle is pulled while the
power liftgate is opening, the liftgate motor
will disengage to allow manual operation.
•If the power liftgate encounters multiple
obstructions within the same cycle, the
system will automatically stop and the lift-
gate must be opened or closed manually.
• If your liftgate is power closing and you
put the vehicle in gear, the liftgate will
continue to power close. However, ve-
hicle movement may result in a detection
of an obstruction.
WARNING!
•Driving with the liftgate open can allow
poisonous exhaust gases into your ve-
hicle. You and your passengers could be
injured by these fumes. Keep the liftgate
closed when you are operating the vehicle.
• If you are required to drive with the liftgate
open, make sure that all windows are
closed, and the climate control blower
switch is set at high speed. Do not use the
recirculation mode.
30

Gas props support the liftgate in the open
position. However, because the gas pressure
drops with temperature, it may be necessary to
assist the props when opening the liftgate in
cold weather.
OCCUPANT RESTRAINTS
Some of the most important safety features in
your vehicle are the restraint systems:
•Three-point lap and shoulder belts for the
driver and all passengers
• Advanced Front Air Bags for driver and front
passenger
• Supplemental Active Head Restraints (AHR)
located on top of the front seats (integrated
into the head restraint)
• Supplemental Driver Side Knee Air Bag
• Supplemental Side Air Bag Inflatable Cur-
tains (SABIC) for the driver and passengers
seated next to a window
• Supplemental Seat-Mounted Side Air
Bags (SAB) •
An energy-absorbing steering column and
steering wheel
•
Knee bolsters/blockers for front seat occupant
• Front seat belts incorporate pretensioners
that may enhance occupant protection by
managing occupant energy during an impact
event
• All seat belt systems (except the driver’s and
front passenger) include Automatic Locking
Retractors (ALRs), which lock the seat belt
webbing into position by extending the belt all
the way out and then adjusting the belt to the
desired length to restrain a child seat or
secure a large item in a seat — if equipped
Please pay close attention to the information in
this section. It tells you how to use your restraint
system properly, to keep you and your passen-
gers as safe as possible.
If you will be carrying children too small for
adult-sized seat belts, the seat belts or the ISO-
FIX feature also can be used to hold infant and
child restraint systems. Refer to ISOFIX — Child
Seat Anchorage System for more information.
NOTE:
The Advanced Front Air Bags have a multi-
stage inflator design. This allows the air bag
to have different rates of inflation based on
several factors, including the severity and
type of collision.
Here are some simple steps you can take to
minimize the risk of harm from a deploying air
bag:
1. Children 12 years old and under should
always ride buckled up in a rear seat.
WARNING!
Infants in rear facing child restraints should
never ride in the front seat of a vehicle with a
passenger Advanced Front Air Bag. An air
bag deployment can cause severe injury or
death to infants in that position.
Children that are not big enough to wear the
vehicle seat belt properly (see section on Child
Restraints) should be secured in the rear seat in
child restraints or belt-positioning booster seats.
31

Older children who do not use child restraints or
belt-positioning booster seats should ride prop-
erly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them
or under their arm.
If a child from 1 to 12 years old (not in a rear
facing child seat) must ride in the front passen-
ger seat, move the seat as far back as possible
and use the proper child restraint. (Refer to
“Child Restraints”)
You should read the instructions provided with
your child restraint to make sure that you are
using it properly.
2.All occupants should always wear their
lap and shoulder belts properly.
3. The driver and front passenger seats
should be moved back as far as practical to
allow the Advanced Front Air Bags room to
inflate.
4. Do not lean against the door or window. If
your vehicle has side air bags, and deploy-
ment occurs, the side air bags will inflate
forcefully into the space between you and
the door. 5.
If the air bag system in this vehicle needs
to be modified to accommodate a disabled
person, contact the Customer Center. Phone
numbers are provided under If You Need
Assistance.
WARNING!
• Relying on the air bags alone could lead to
more severe injuries in a collision. The air
bags work with your seat belt to restrain
you properly. In some collisions, the air
bags won’t deploy at all. Always wear your
seat belts even though you have air bags.
• Being too close to the steering wheel or
instrument panel during Advanced Front
Air Bag deployment could cause serious
injury, including death. Air Bags need room
to inflate. Sit back, comfortably extending
your arms to reach the steering wheel or
instrument panel.
(Continued)
WARNING!(Continued)
•Supplemental Side Air Bag Inflatable Cur-
tain (SABIC) and Seat-Mounted Side Air
Bags (SAB) also need room to inflate. Do
not lean against the door or window. Sit
upright in the center of the seat.
• In a collision, you and your passengers
can suffer much greater injuries if you are
not properly buckled up. You can strike the
interior of your vehicle or other passen-
gers, or you can be thrown out of the
vehicle. Always be sure you and others in
your vehicle are buckled up properly.
• Being too close to the Supplemental Side
Air Bag Inflatable Curtain (SABIC) and/or
Seat-Mounted Side Air Bag (SAB) during
deployment could cause you to be se-
verely injured or killed.
Buckle up even though you are an excellent
driver, even on short trips. Someone on the
road may be a poor driver and cause a collision
that includes you. This can happen far away
from home or on your own street.
32

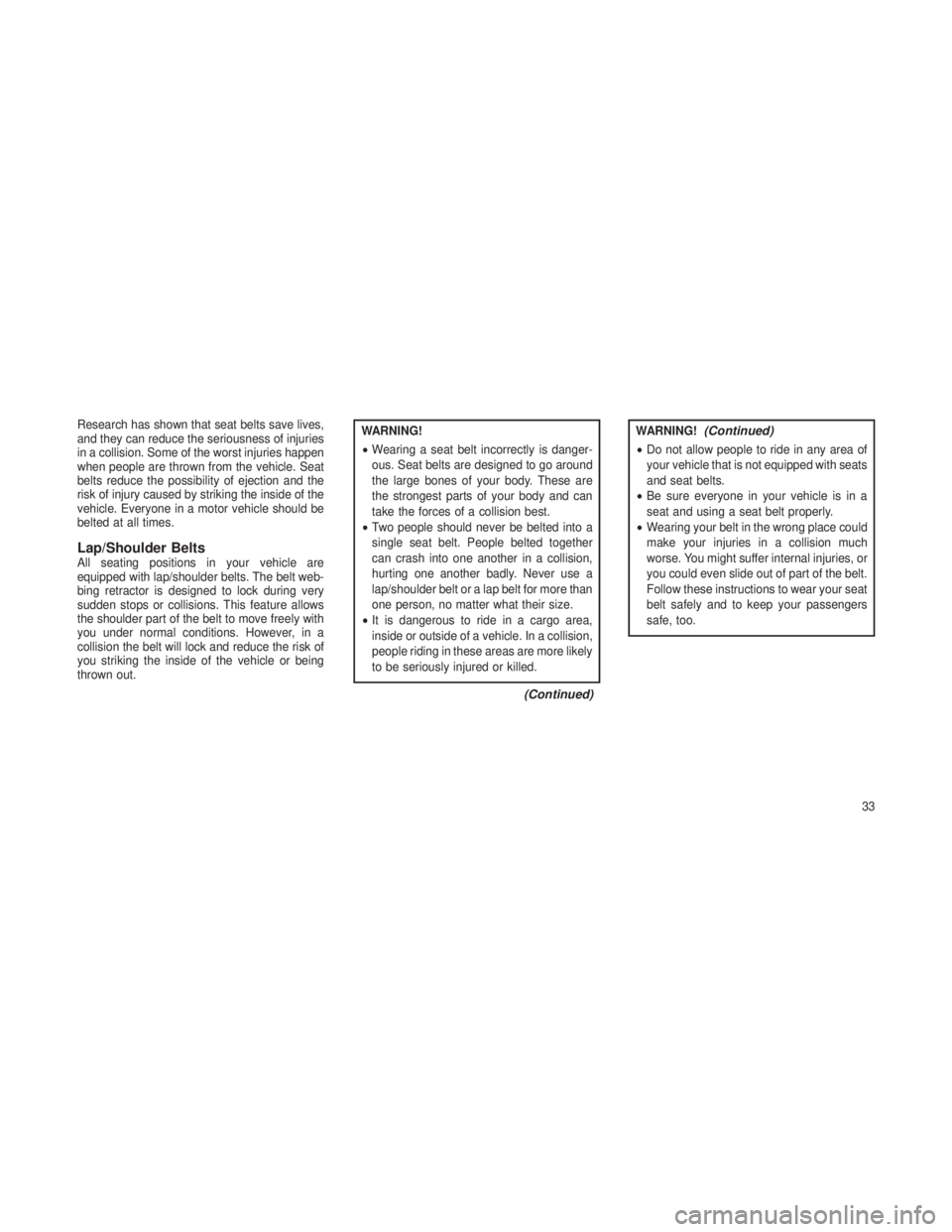

Research has shown that seat belts save lives,
and they can reduce the seriousness of injuries
in a collision. Some of the worst injuries happen
when people are thrown from the vehicle. Seat
belts reduce the possibility of ejection and the
risk of injury caused by striking the inside of the
vehicle. Everyone in a motor vehicle should be
belted at all times.
Lap/Shoulder BeltsAll seating positions in your vehicle are
equipped with lap/shoulder belts. The belt web-
bing retractor is designed to lock during very
sudden stops or collisions. This feature allows
the shoulder part of the belt to move freely with
you under normal conditions. However, in a
collision the belt will lock and reduce the risk of
you striking the inside of the vehicle or being
thrown out.
WARNING!
•Wearing a seat belt incorrectly is danger-
ous. Seat belts are designed to go around
the large bones of your body. These are
the strongest parts of your body and can
take the forces of a collision best.
• Two people should never be belted into a
single seat belt. People belted together
can crash into one another in a collision,
hurting one another badly. Never use a
lap/shoulder belt or a lap belt for more than
one person, no matter what their size.
• It is dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely
to be seriously injured or killed.
(Continued)
WARNING!(Continued)
•Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
• Wearing your belt in the wrong place could
make your injuries in a collision much
worse. You might suffer internal injuries, or
you could even slide out of part of the belt.
Follow these instructions to wear your seat
belt safely and to keep your passengers
safe, too.
33

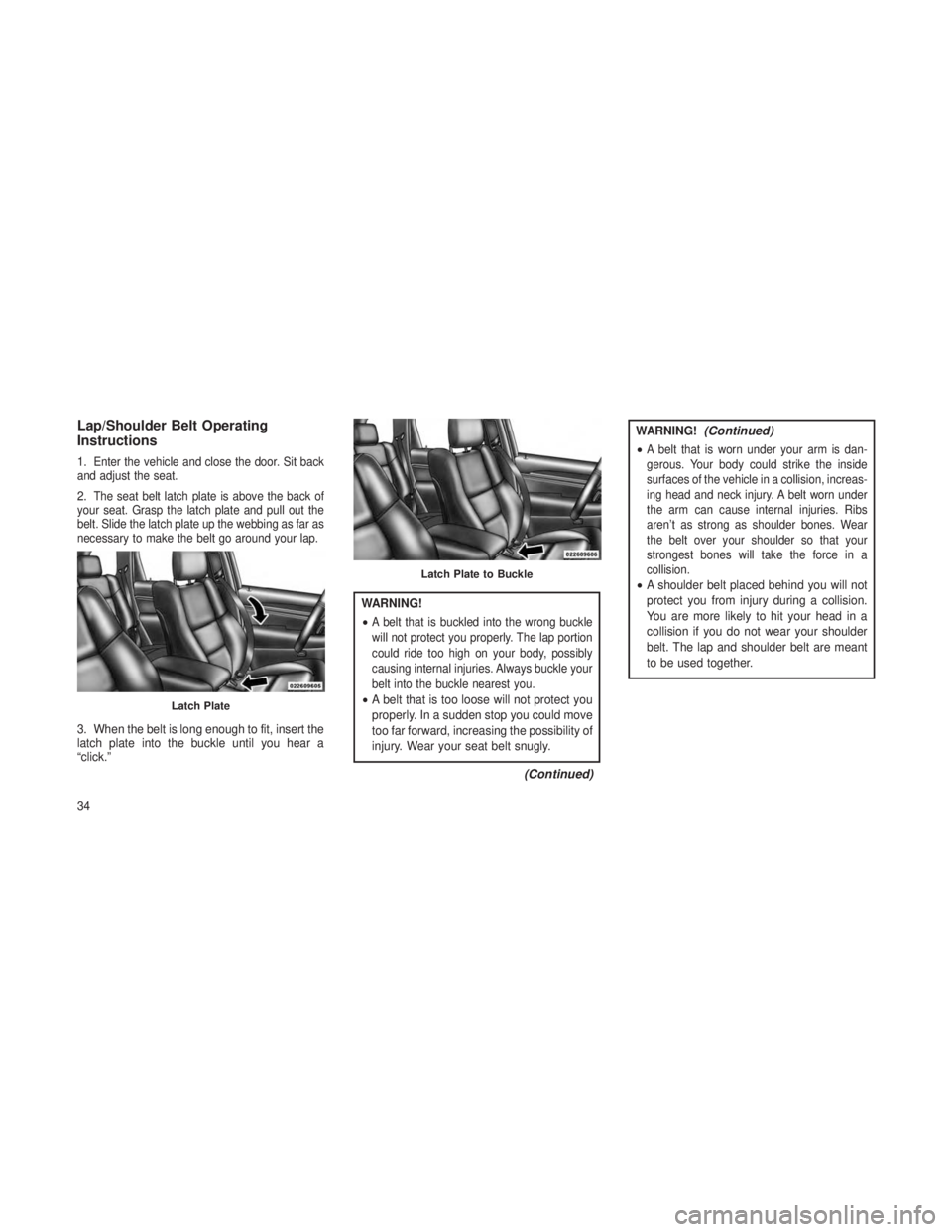

Lap/Shoulder Belt Operating
Instructions
1.Enter the vehicle and close the door. Sit back
and adjust the seat.
2.The seat belt latch plate is above the back of
your seat. Grasp the latch plate and pull out the
belt. Slide the latch plate up the webbing as far as
necessary to make the belt go around your lap.
3. When the belt is long enough to fit, insert the
latch plate into the buckle until you hear a
“click.”
WARNING!
•
A belt that is buckled into the wrong buckle
will not protect you properly. The lap portion
could ride too high on your body, possibly
causing internal injuries. Always buckle your
belt into the buckle nearest you.
• A belt that is too loose will not protect you
properly. In a sudden stop you could move
too far forward, increasing the possibility of
injury. Wear your seat belt snugly.
(Continued)
WARNING!(Continued)
•A belt that is worn under your arm is dan-
gerous. Your body could strike the inside
surfaces of the vehicle in a collision, increas-
ing head and neck injury. A belt worn under
the arm can cause internal injuries. Ribs
aren’t as strong as shoulder bones. Wear
the belt over your shoulder so that your
strongest bones will take the force in a
collision.
•A shoulder belt placed behind you will not
protect you from injury during a collision.
You are more likely to hit your head in a
collision if you do not wear your shoulder
belt. The lap and shoulder belt are meant
to be used together.
Latch Plate
Latch Plate to Buckle
34

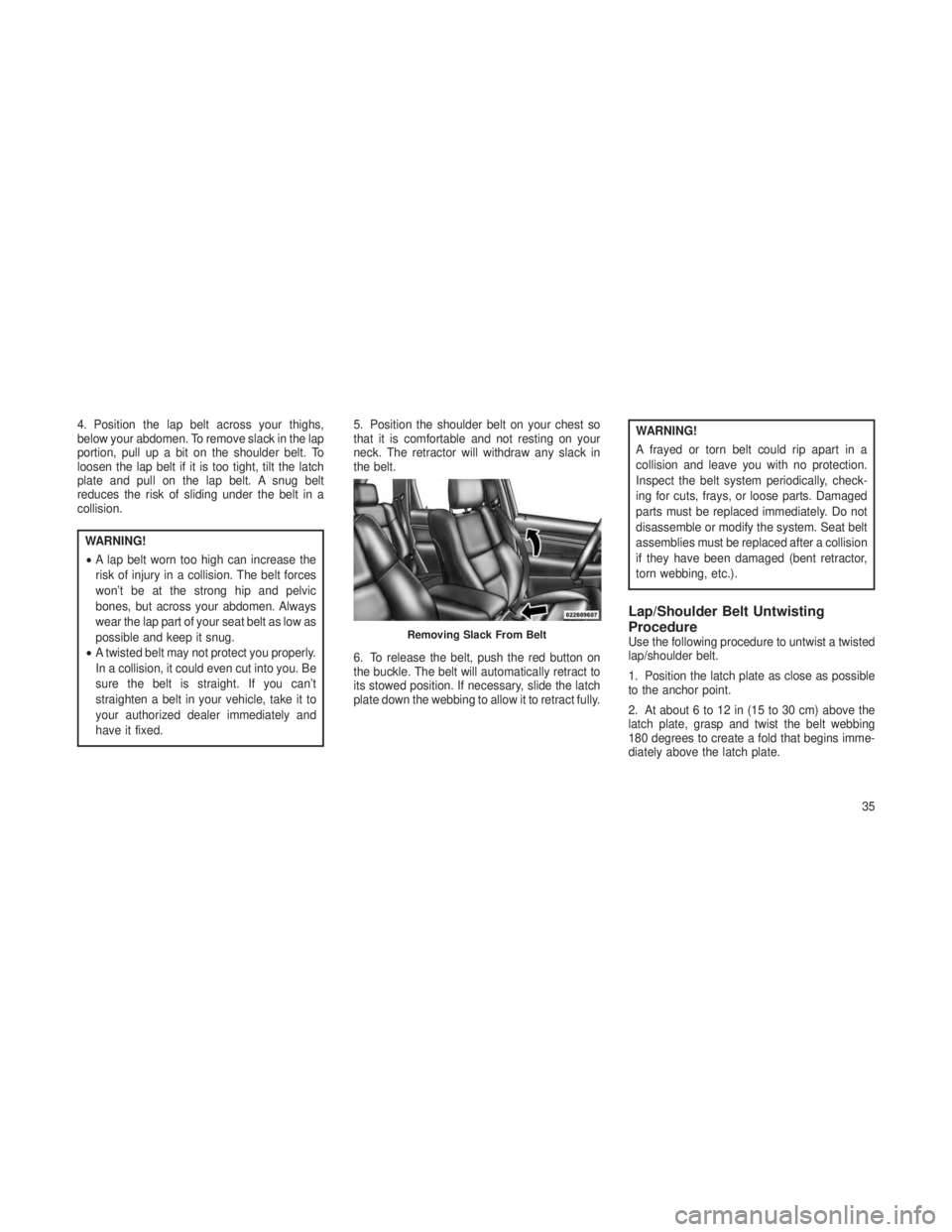

4. Position the lap belt across your thighs,
below your abdomen. To remove slack in the lap
portion, pull up a bit on the shoulder belt. To
loosen the lap belt if it is too tight, tilt the latch
plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in a
collision.
WARNING!
•A lap belt worn too high can increase the
risk of injury in a collision. The belt forces
won’t be at the strong hip and pelvic
bones, but across your abdomen. Always
wear the lap part of your seat belt as low as
possible and keep it snug.
• A twisted belt may not protect you properly.
In a collision, it could even cut into you. Be
sure the belt is straight. If you can’t
straighten a belt in your vehicle, take it to
your authorized dealer immediately and
have it fixed. 5. Position the shoulder belt on your chest so
that it is comfortable and not resting on your
neck. The retractor will withdraw any slack in
the belt.
6. To release the belt, push the red button on
the buckle. The belt will automatically retract to
its stowed position. If necessary, slide the latch
plate down the webbing to allow it to retract fully.
WARNING!
A frayed or torn belt could rip apart in a
collision and leave you with no protection.
Inspect the belt system periodically, check-
ing for cuts, frays, or loose parts. Damaged
parts must be replaced immediately. Do not
disassemble or modify the system. Seat belt
assemblies must be replaced after a collision
if they have been damaged (bent retractor,
torn webbing, etc.).
Lap/Shoulder Belt Untwisting
Procedure
Use the following procedure to untwist a twisted
lap/shoulder belt.
1. Position the latch plate as close as possible
to the anchor point.
2. At about 6 to 12 in (15 to 30 cm) above the
latch plate, grasp and twist the belt webbing
180 degrees to create a fold that begins imme-
diately above the latch plate.Removing Slack From Belt
35

3. Slide the latch plate upward over the folded
webbing. The folded webbing must enter the
slot at the top of the latch plate.
4. Continue to slide the latch plate up until it
clears the folded webbing.
Adjustable Upper Shoulder Belt
Anchorage
In the front seating positions, the shoulder belt
can be adjusted upward or downward to posi-
tion the belt away from your neck. Press the
release button to release the anchorage, and
then move it up or down to the position that
serves you best.As a guide, if you are shorter than average, you
will prefer a lower position, and if you are taller
than average, you will prefer a higher position.
When you release the button, verify the shoul-
der belt anchorage is latched by pulling down-
ward on the shoulder belt anchorage until it is
locked into position.
NOTE:The adjustable upper shoulder belt anchorage
is equipped with an Easy Up feature. This
feature allows the shoulder belt anchorage to
be adjusted in the upward position without
pressing the release button. To verify the
shoulder belt anchorage is latched, pull down-
ward on the shoulder belt anchorage until it is
locked into position.
In the rear seat, move toward the center of the
seat to position the belt away from your neck.
Seat Belts In Passenger Seating
Positions
The seat belts in the passenger seating positions
are equipped with Automatic Locking Retractors
(ALR) which are used to secure a child restraint
system. For additional information, refer to “In-
stalling Child Restraints Using The Vehicle Seat Belt” under the “Child Restraints” section. The
chart below defines the type of feature for each
seating position.
Driver Center Passen-
ger
First Row N/A N/A N/A Second Row ALR ALR ALR
• N/A — Not Applicable
• ALR — Automatic Locking Retractor
If the passenger seating position is equipped
with an ALR and is being used for normal
usage:
Only pull the belt webbing out far enough to
comfortably wrap around the occupant’s mid-
section so as to not activate the ALR. If the ALR is
activated, you will hear a ratcheting sound as the
belt retracts. Allow the webbing to retract com-
pletely in this case and then carefully pull out only
the amount of webbing necessary to comfortably
wrap around the occupant’s mid-section. Slide the
latch plate into the buckle until you hear a "click."
Adjusting Upper Shoulder Belt
36
