❒flashing- indicates the possibility of damage to the catalyst (see
“EOBD system” in section “Dashboard and controls”).
If the light flashes, it is necessary to release the accelerator pedal to
lower the speed of the engine until the warning light stops flashing;
continue the journey at moderate speed, trying to avoid driving
conditions that may cause further flashing and contact Lancia
Dealership as soon as possible.U
amber
amber
8:30
continued from previous page
If with ignition key at MAR, the
Uwarning light does not turn on or if it turns on with fixed light
or flashing when the car is travelling (on certain versions together with the message on the display),
contact Lancia Dealership as soon as possible. Warning light
Uoperation can by checked by traf-
fic agents by proper equipment therefore, comply with laws and regulations in force in the country
where you are driving.
GENERIC FAILURE INDICATION
The warning light on the dial comes on when the engine oil pressure
sensor is faulty and, for Multijet versions with modal instrument
panel, also when a failure is detected in diesel fuel sensor. Contact
Lancia Dealership as soon as possible.
è
Warning
light on
dial Message on
multifunction
display

248
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
t
Warning
light on
dialMessage on
multifunction
display
“DUAL FUNCTION SYSTEM” TRANSMIS. FAIL.
(red) (where provided)
Turning the ignition key to MAR the warning light on the cluster shall
come on, but it should go off as soon as the engine is started.
The warning light comes on flashing on the cluster (together with the
message on the multifunction display and the buzzer) to indicate a
gearbox failure.
WARNING
In the case of a gearbox fault, contact Lancia Dealership as soon as possible to
have the system checked. red

249
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dial Message on
multifunction
display
ESP SYSTEM FAILURE (where provided) - SYSTEM NOT
AVAILABLE
Turning the ignition key to MAR, the warning light on the dial comes
on but shall go off after few seconds.
If the warning light does not go off or stays on when travelling
(together with the message on the display) and with led on ASR
button, contact Lancia Dealership.
Warning light flashing when driving indicates that the ESP system is
active.
á
amber

250
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
*
amberHILL HOLDER FAILURE - SYSTEM NOT AVAILABLE
Turning the ignition key to MAR, the warning light on the dial comes
on but shall go off after few seconds. Hill holder failure/system not
available are indicated by warning light *coming on (together with
the message on the display). Contact Lancia Dealership as soon as
possible.

251
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
IN AN EMERGENCY
DOOR OPENING/CLOSING ................................. 252
ENGINE STARTING ............................................. 253
QUICK TYRE REPAIR KIT
FIX & GO automatic ............................................... 256
IF A TYRE IS PUNCTURED ................................. 261
WHEN NEEDING TO CHANGE A BULB ............ 268
IF AN EXTERIOR LIGHT BURNS OUT ............... 271
IF AN INTERIOR LIGHT BURNS OUT ................ 277
IF A FUSE BLOWS ............................................... 280
IF THE BATTERY IS FLAT .................................. 286
JACKING THE CAR .............................................. 287
TOWING THE CAR ............................................. 287

252
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
DOOR OPENING/CLOSING
Emergency door locking device from outside
The doors are fitted with a device which makes it possible to close the
doors with the lock without power supply.
To close, proceed as follows:
❒insert the ignition key in the pawl B
❒turn the device to position 1 and close the ledge.
To open, proceed as follows:
❒insert the key in the pawl and turn it clockwise
❒open the driver’s door
❒from the vehicle inside open the remaining doors by operating the
levers located in the handles.
L0D0247m

253
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
ENGINE STARTING
EMERGENCY START-UP
If the Lancia CODE cannot deactivate the engine
immobilising system, the
YandUwarning lights
stay on and the engine will not start.
To start the engine the emergency start-up can be
performed.
Read the whole procedure carefully before trying to
carry it out. If you make a mistake, you must turn
the ignition key back to STOP and repeat the whole
operation from beginning.
Proceed as follows:
❒Read the 5-figure electronic code given on the
CODE card;
❒Turn the ignition key to MAR;
❒Press and hold down the accelerator pedal. The
instrument panel warning light
Uwill come on
for about 8 seconds and then go out;
❒Release the accelerator pedal and get ready to
count the flashes of the
Uwarning light;
❒Count the number of flashes that corresponds to
the first figure of the code on the CODE card,
then press the accelerator pedal and keep it there
until the
Uwarning light comes on for four
seconds and then goes out; release the
accelerator pedal;
❒TheUwarning light will start flashing again:
after it has flashed the number of times that
corresponds to the second figure on the CODE
card, press the accelerator pedal to the floor and
keep it there;
❒Do the same for the remaining figures on the
CODE card;
❒Once the final figure has been entered, keep the
accelerator pedal pressed. The
Uwarning light
will light up for four seconds and then go out;
release the accelerator pedal;
❒Rapid flashing of the warning light U(for
about 4 seconds) confirms the operation has
been carried out successfully;
❒Start the engine by turning the ignition key from
MAR to AVV.
If however the warning light
Ustays on, turn the
ignition key to STOP and repeat the procedure from
step one
IMPORTANT After an emergency start-up, you
should contact a Lancia Dealership otherwise you
will have to repeat the procedure described each
time you want to start the engine.

254
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
JUMP STARTING
If the battery is flat, it is possible to start the engine using an
auxiliary battery with the same capacity or a little higher than the flat
one.
Proceed as follows:
❒Connect positive terminals (+) of the two batteries with a jump
lead;
❒With a second lead, connect the negative terminal (–) of the
auxiliary battery and to an earthing point Eon the engine or the
gearbox of the car to be started;
❒Start the engine;
❒When the engine has been started, remove the leads reversing the
order above.
If after a few attempts the engine does not start, do not insist but
contact the nearest Lancia Dealership.
IMPORTANT Do not directly connect the two negative terminals:
sparks could ignite the flammable gas from the battery. If the other
battery is fitted in a vehicle, prevent accidental contacts between the
metal parts of the two vehicles.
Under no circumstances should a battery charger be used to start the engine: it could damage the
electronic systems and in particular the ignition and injection control units.
WARNING
Do not carry out this procedure if you lack experience; if it is not done correctly it
can cause very intense electrical discharges. In addition, the fluid contained in the
battery is poisonous and corrosive. Avoid contact with skin and eyes. You are also
advised not to put naked flames or lighted cigarettes near the battery and not to
cause sparks.
L0D0160m

255
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
BUMP STARTING
Never bump start the engine (by pushing, towing,
or coasting downhill) as this could cause fuel to
flow into the catalytic exhaust system and damage
it beyond repair.IMPORTANT Remember that until the engine has
started the brake booster and electrical power
steering systems will not work and a greater effort
will therefore be required to press the brake pedal
or turn the steering wheel.

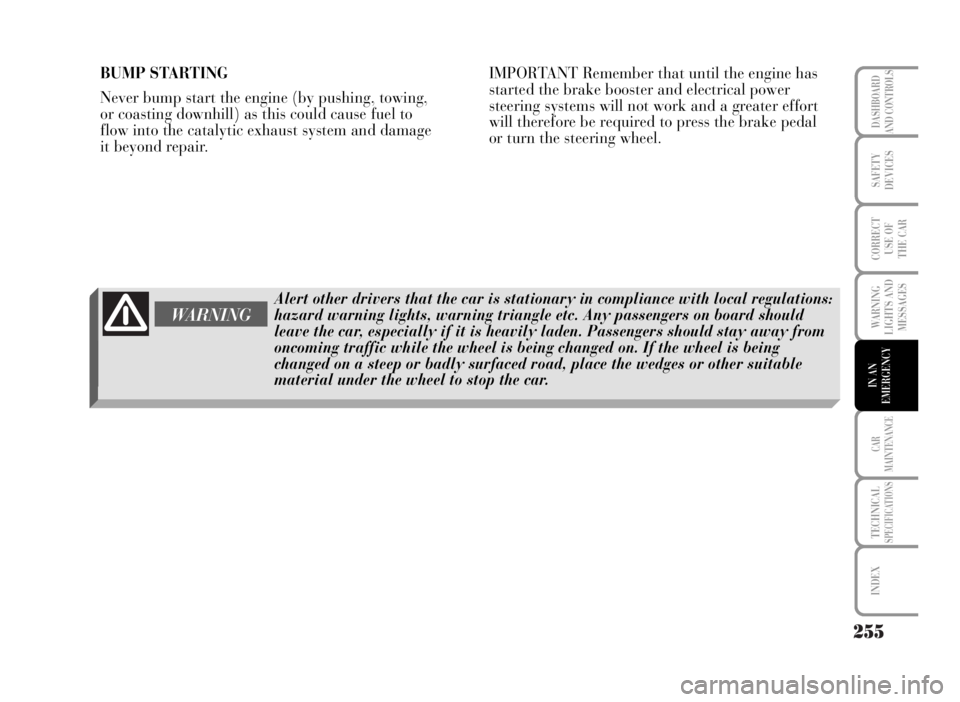

WARNING
