DOORS
76-1-16 REPAIRS
Refit
1.Fit sill button guide to trim casing and secure
with retainer.
2.Fit speaker grille to trim casing and secure with
Torx screws.
3.Fit door pull to trim casing and secure with Torx
screws.
4.Fit door pocket to trim casing and secure with
Torx screws.
5.Fit trim studs to casing.
6.Fit trim casing to door and secure trim studs.
7.Fit screws to door pull and door pocket.
8.Fit door release escutcheon and secure with
screw.
9.Position cheater panel, connect Lucars to
tweeter speaker and fit cheater panel.
Trim casing - front door - 5 door - from
04MY
$% 76.34.01
Remove
1.Carefully release window lift switch pack from
door trim casing.
2.Disconnect 3 multiplugs from window lift switch
pack and remove switch pack.
M76 4698

DOORS
REPAIRS 76-1-17

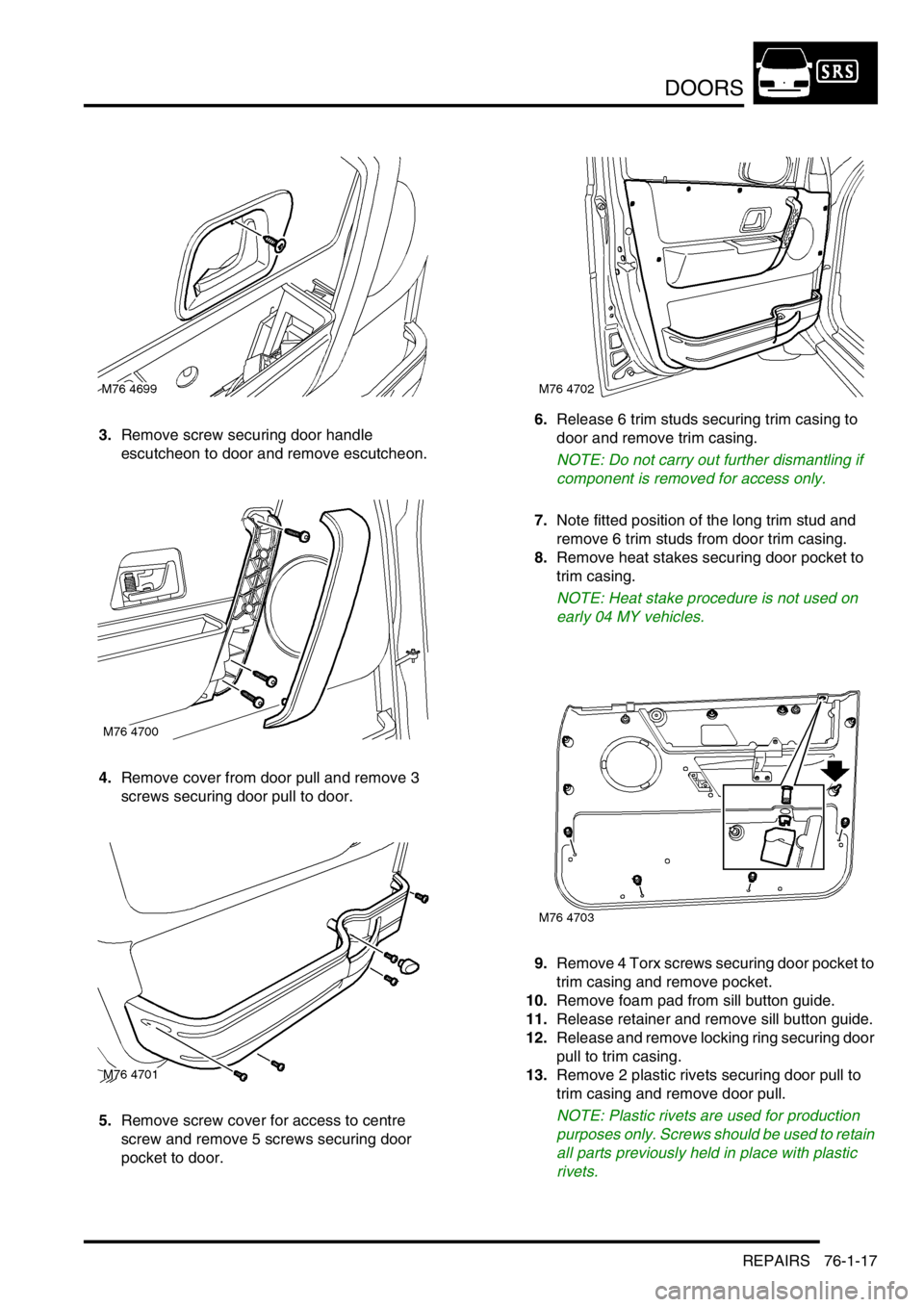

3.Remove screw securing door handle
escutcheon to door and remove escutcheon.
4.Remove cover from door pull and remove 3
screws securing door pull to door.
5.Remove screw cover for access to centre
screw and remove 5 screws securing door
pocket to door.6.Release 6 trim studs securing trim casing to
door and remove trim casing.
NOTE: Do not carry out further dismantling if
component is removed for access only.
7.Note fitted position of the long trim stud and
remove 6 trim studs from door trim casing.
8.Remove heat stakes securing door pocket to
trim casing.
NOTE: Heat stake procedure is not used on
early 04 MY vehicles.
9.Remove 4 Torx screws securing door pocket to
trim casing and remove pocket.
10.Remove foam pad from sill button guide.
11.Release retainer and remove sill button guide.
12.Release and remove locking ring securing door
pull to trim casing.
13.Remove 2 plastic rivets securing door pull to
trim casing and remove door pull.
NOTE: Plastic rivets are used for production
purposes only. Screws should be used to retain
all parts previously held in place with plastic
rivets.

DOORS
76-1-18 REPAIRS
Refit
1.Fit door pull to trim casing and secure with
screws and locking ring.
2.Fit sill button guide to trim casing and secure
with retainer.
3.Fit foam pad to sill button guide.
4.Fit door pocket to trim casing and secure with
Torx screws.
5.Fit trim studs to casing.
6.Fit trim casing to door and secure trim studs.
7.Fit screws securing door pull and fit screw
cover.
8.Fit door release handle escutcheon and secure
with screw.
9.Fit screws securing door pocket and fit screw
cover.
10.Position switch pack, connect multiplugs and
secure switch pack to trim casing.
Trim casing - rear door - up to 04MY
$% 76.34.04
Remove
1.Remove screw securing door release
escutcheon and remove escutcheon.
2.Remove 2 screws from door pull.
3.Release 10 trim studs securing trim casing to
door.
4.Disconnect multiplug and remove door trim
casing.
NOTE: Do not carry out further dismantling if
component is removed for access only.

DOORS
REPAIRS 76-1-19
5.Remove 2 Torx screws securing window switch
to door trim and remove window switch.
6.Remove 4 Torx screws securing door pull to
trim casing and remove door pull.
7.Remove 4 Torx screws securing door speaker
grille to trim casing and remove grille.
8.Release retainer and remove sill button guide.
9.Remove 10 trim studs from door trim.Refit
1.Fit trim studs to casing.
2.Fit sill button guide to trim casing and secure
with retainer.
3.Fit speaker grille to trim casing and secure with
Torx screws.
4.Fit door pull to trim casing and secure with Torx
screws.
5.Fit window switch to trim casing and secure
with Torx screws.
6.Position door trim casing and connect window
switch multiplug.
7.Fit trim casing to door and secure trim studs.
8.Fit screws to door pull.
9.Fit door release escutcheon and secure with
screw.

DOORS
76-1-20 REPAIRS
Trim casing - rear door - from 04MY
$% 76.34.04
Remove
1.Remove screw securing door release
escutcheon and remove escutcheon.
2.Release and remove door pull finisher from
door pull.
3.Remove 3 screws securing door pull to door
assembly.4.Release trim casing from door assembly.
5.Disconnect multiplug from door tweeter.
6.Disconnect multiplug from window lift switch
and remove trim casing.
NOTE: Do not carry out further dismantling if
component is removed for access only.
7.Release 2 clips and remove window lift switch
finisher from trim casing.
M76 4710

DOORS
REPAIRS 76-1-21
8.Remove locking ring securing tweeter to trim
casing and remove tweeter.
9.Remove foam pad from sill button guide.
10.Release retainer and remove sill button guide.
11.Note the fitted position of the 2 long trim studs
and remove 9 trim studs from trim casing.
12.Release and remove locking ring securing door
pull to trim casing.
13.Remove 2 plastic rivets securing door pull to
trim casing and remove door pull.
NOTE: Plastic rivets are used for production
purposes only. Screws should be used to retain
all parts previously held in place with plastic
rivets.Refit
1.Fit door pull to trim casing and secure with
screws and locking ring.
2.Fit trim studs to casing.
3.Fit sill button guide to trim casing and secure
with retainer.
4.Fit foam pad to sill button guide.
5.Fit tweeter to trim casing and secure with
locking ring.
6.Fit and secure window lift switch and finisher to
trim casing.
7.Connect multiplugs to window lift switch and
door tweeter.
8.Position trim casing, align fasteners with holes
in door and press firmly into position.
9.Fit and tighten screws securing door pull to
door assembly.
10.Fit and secure door pull finisher to door pull.
11.Fit door release escutcheon to trim casing and
secure with screw.

DOORS
76-1-22 REPAIRS
Trim casing - tail door
$% 76.34.10
Remove
1.Remove 4 screws securing bottom of trim
casing to door.
2.Release 8 clips securing sides and bottom of
casing.
3.Release 5 clips securing top of casing and
remove casing.
4.Remove 8 trim studs from casing.Refit
1.Fit trim studs to casing.
2.Position casing and secure top clips.
3.Secure clips on sides and bottom of casing.
4.Fit screws to bottom of casing.

DOORS
REPAIRS 76-1-23
Plastic sheet - front door - lower - 3 door
$% 76.34.18
Remove
1.Remove front door pocket.

+ DOORS, REPAIRS, Pocket - front
door - 3 door.
2.Release and discard plastic sheet.
Refit
1.Clean door contact area with white spirit.
2.Position NEW plastic sheet to door and seal in
position, by applying hand pressure to centre
bottom of sheet first then move out from this
point in both directions applying an even
pressure to the seal, smooth out any creases.
3.Fit front door pocket.

+ DOORS, REPAIRS, Pocket - front
door - 3 door.
Pocket - front door - 3 door
$% 76.34.19
Remove
1.Remove 8 Torx screws securing pocket to door
and remove pocket.
Refit
1.Fit pocket and secure with Torx screws.
M76 4026

DOORS
76-1-24 REPAIRS
Plastic sheet - front door - upper - 3 door
$% 76.34.24
Remove
1.Remove front door trim casing.

+ DOORS, REPAIRS, Trim casing -
front door - 3 door.
2.Release and discard plastic sheet.
Refit
1.Clean door contact area with white spirit.
2.Position NEW plastic sheet to door and seal in
position, by applying hand pressure to centre
bottom of sheet first then move out from this
point in both directions applying an even
pressure to the seal, smooth out any creases.
3.Fit front door trim casing.

+ DOORS, REPAIRS, Trim casing -
front door - 3 door.
Plastic sheet - tail door
$% 76.34.25
Remove
1.Remove tail door trim casing.

+ DOORS, REPAIRS, Trim casing - tail
door.
2.Release and discard plastic sheet.
Refit
1.Clean door contact area with white spirit.
2.Position NEW plastic sheet to door and seal in
position, by applying hand pressure to centre
bottom of sheet first then move out from this
point in both directions applying an even
pressure to the seal, smooth out any creases.
3.Fit tail door trim casing.

+ DOORS, REPAIRS, Trim casing - tail
door.

DOORS
REPAIRS 76-1-25
Plastic sheet - front door - 5 door
$% 76.34.26
Remove
1.Remove front door speaker.

+ IN CAR ENTERTAINMENT,
REPAIRS, Speaker - front.
2.Remove 5 door pocket screw fixings.
3.Remove 2 door handle screw fixings. 04MY:
Remove 1 additional screw.
4.Release and discard plastic sheet.
Refit
1.Clean door contact area with white spirit.
2.Position NEW plastic sheet to door and seal in
position, by applying hand pressure to centre
bottom of sheet first then move out from this
point in both directions applying an even
pressure to the seal, smooth out any creases.
CAUTION: It is crucial that no creases are
present along the base of the plastic sheet.
3.Fit and secure door handle and pocket fixings.
4.Fit front door speaker.

+ IN CAR ENTERTAINMENT,
REPAIRS, Speaker - front.
Plastic sheet - rear door
$% 76.34.28
Remove
1.Remove rear door speaker.

+ IN CAR ENTERTAINMENT,
REPAIRS, Speaker - rear - 5 door.
2.Noting their fitted position, remove 7 trim stud
retainers, 2 door pull screw retainers and 4
speaker screw retainers.
3.Release and discard plastic sheet.
Refit
1.Clean door contact area with white spirit.
2.Position NEW plastic sheet to door and seal in
position, by applying hand pressure to centre
bottom of sheet first then move out from this
point in both directions applying an even
pressure to the seal, smooth out any creases.
CAUTION: It is crucial that no creases are
present along the base of the plastic sheet.
3.Fit trim stud retainers and screw retainers to
door.
4.Fit rear door speaker.

+ IN CAR ENTERTAINMENT,
REPAIRS, Speaker - rear - 5 door.
