LAND ROVER FREELANDER 2001 Workshop Manual

DOORS
76-1-26 REPAIRS
Latch - front door - 3 door
$% 76.37.12
Remove
1.Remove upper plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - upper - 3 door.
2.Release sill button lock rod from door latch.
3.Remove control rod from exterior handle.
4.Disconnect multiplug from latch.
5.Remove 3 Torx screws securing latch to door.
6.On drivers door, release door lock barrel
paddle from latch.
7.Remove latch from aperture.8.Open security flap on latch.
9.Release interior release cable clamp from
latch.
10.Disengage interior release cable from latch.
Refit
1.Secure interior release cable to latch and close
latch security flap.
2.Fit interior release cable clamp to latch.
3.Position latch to door. On drivers door, align
lock barrel paddle to latch.
4.Fit and tighten Torx screws securing latch to
door.
5.Connect multiplug to latch.
6.Connect exterior handle control rod to latch.
7.Fit sill button lock rod to latch.
8.Check operation of latch.
9.Fit plastic sheet to door.

+ DOORS, REPAIRS, Plastic sheet -
front door - upper - 3 door.

DOORS
REPAIRS 76-1-27
Latch - front door - 5 door
$% 76.37.12
Remove
1.Remove front door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - 5 door.
2.Release sill button lock rod from door latch.
3.Release control rod from exterior handle.
4.Disconnect multiplug from latch.
5.Remove 2 screws securing RH glass cable
guide and position guide aside.
6.Remove 3 Torx screws securing latch to door.
7.On drivers door, release door lock barrel
paddle from latch.8.Remove latch from aperture.
9.Open security flap on latch.
10.Release interior release cable clamp from
latch.
11.Disengage interior release cable from latch.
Refit
1.Secure interior release cable to latch and close
latch security flap.
2.Fit interior release cable clamp to latch.
3.Position latch to door. On drivers door, align
lock barrel paddle to latch.
4.Fit and tighten Torx screws securing latch to
door.
5.Position RH glass cable guide and tighten
screws.
6.Connect multiplug to door latch.
7.Connect exterior handle control rod to latch.
8.Fit sill button lock rod to latch.
9.Check operation of door latch.
10.Fit front door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - 5 door.

DOORS
76-1-28 REPAIRS
Latch - rear door
$% 76.37.13
Remove
1.Remove rear door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
rear door.
2.Release exterior handle control rod from latch.
3.Release sill button lock rod from door latch.
4.Disconnect multiplug from latch.
5.Remove 3 Torx screws securing latch to door.
6.Remove latch from aperture.7.Open security flap on latch.
8.Release interior release cable clamp from
latch.
9.Disengage interior release cable from latch.
Refit
1.Secure interior release cable to latch and close
latch security flap.
2.Position latch to door, fit and tighten Torx
screws.
3.Connect multiplug to latch.
4.Connect exterior handle control rod to latch.
5.Fit sill button lock rod to latch.
6.Check operation of latch.
7.Fit rear door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
rear door.

DOORS
REPAIRS 76-1-29

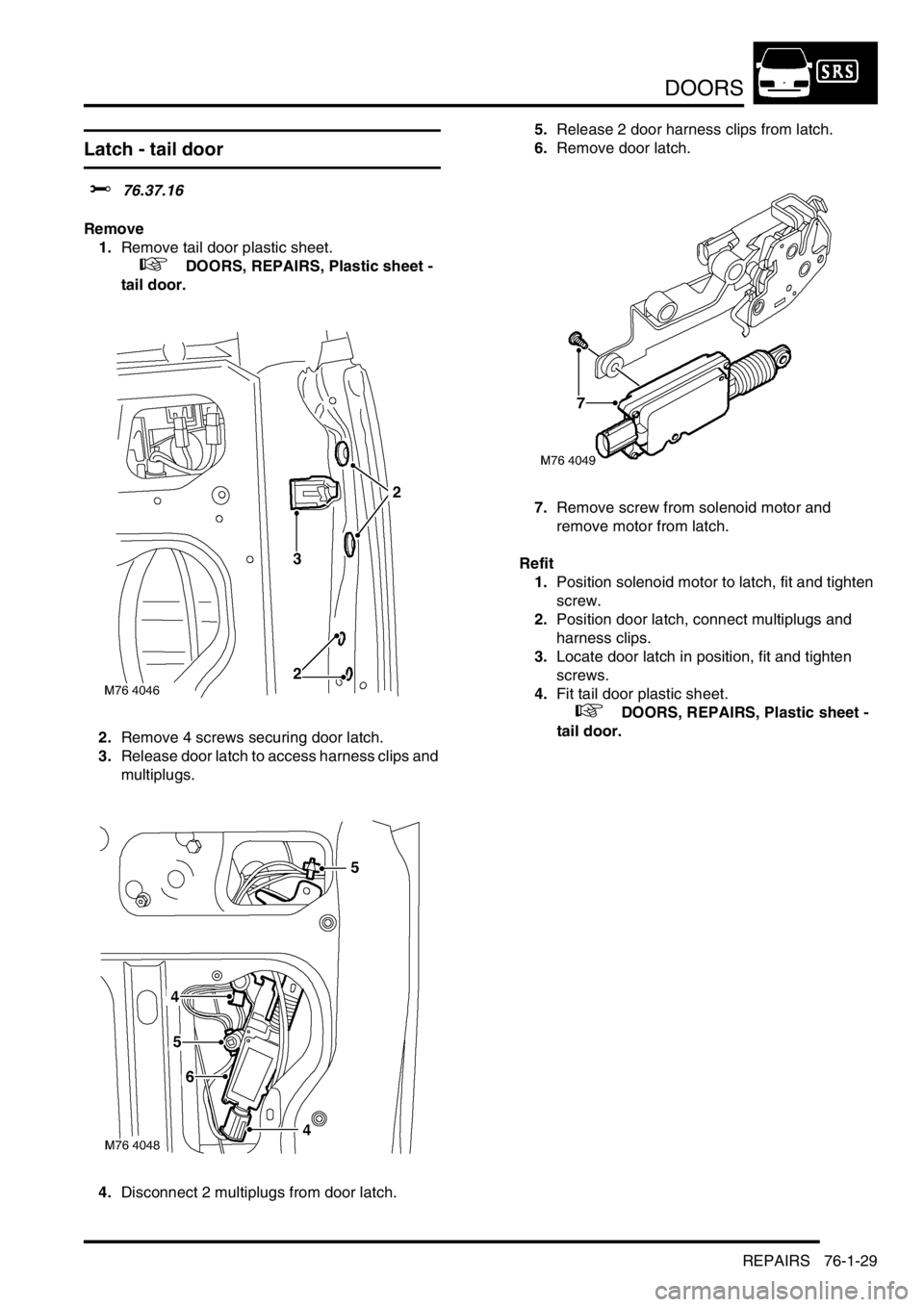

Latch - tail door
$% 76.37.16
Remove
1.Remove tail door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
tail door.
2.Remove 4 screws securing door latch.
3.Release door latch to access harness clips and
multiplugs.
4.Disconnect 2 multiplugs from door latch.5.Release 2 door harness clips from latch.
6.Remove door latch.
7.Remove screw from solenoid motor and
remove motor from latch.
Refit
1.Position solenoid motor to latch, fit and tighten
screw.
2.Position door latch, connect multiplugs and
harness clips.
3.Locate door latch in position, fit and tighten
screws.
4.Fit tail door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
tail door.

DOORS
76-1-30 REPAIRS
Remote control - front door
$% 76.37.31
Remove
1.Remove front door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - 5 door.
2.Drill out 2 rivets from door release.
3.Remove door release.
4.Release cable from door release.
Refit
1.Connect cable to door release.
2.Position door release and secure with rivets.
3.Fit front door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - 5 door.
Remote control - rear door
$% 76.37.32
Remove
1.Remove rear door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
rear door.
2.Release cable from door release.
3.Drill out 2 rivets from door release.
4.Remove door release.
Refit
1.Connect cable to door release.
2.Position door release and secure with rivets.
3.Fit rear door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
rear door.

DOORS
REPAIRS 76-1-31
Operating cable - lock remote control - 5
door
$% 76.37.60
Remove
1.Remove door latch.

+ DOORS, REPAIRS, Latch - front
door - 5 door.

+ DOORS, REPAIRS, Latch - rear door.
2.Release cable from interior door release and
remove cable.
Refit
1.Connect cable to interior door release.
2.Fit door latch.

+ DOORS, REPAIRS, Latch - front
door - 5 door.

+ DOORS, REPAIRS, Latch - rear door.
Finisher - rear screen - side - 5 door
$% 76.43.81
Remove
1.Open tail door.
2.Release tail door glass seal from aperture for
access to side finisher fixings.
3.Using a suitable trim stud removal tool, release
3 side finisher fixings from studs on body.
4.Remove side finisher from upper fixing.
5.Remove and discard fixings from finisher.
Refit
1.Fit NEW fixings to finisher.
2.Fit door glass seal to flange.
3.Fit finisher and secure fixings.

DOORS
76-1-32 REPAIRS

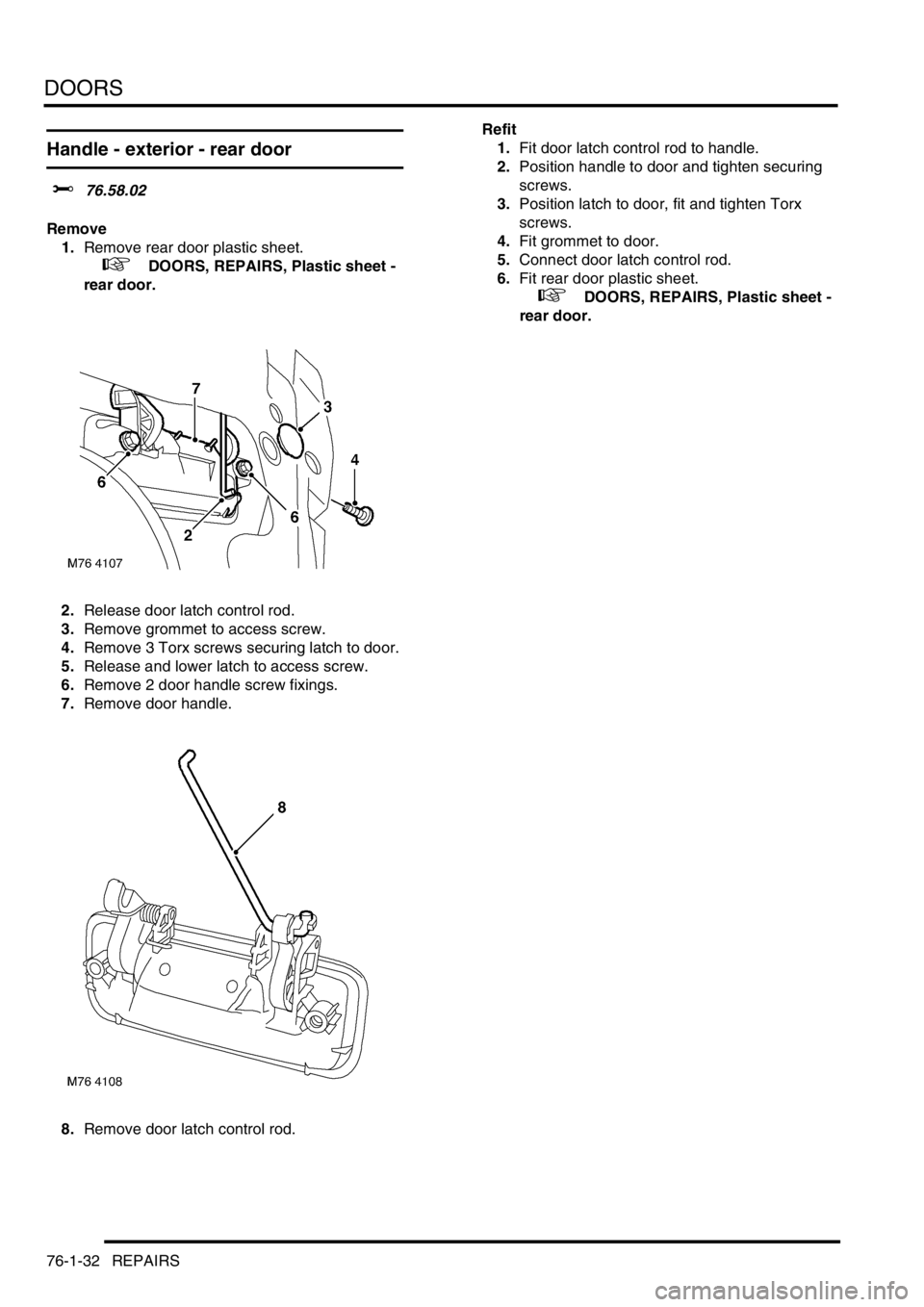

Handle - exterior - rear door
$% 76.58.02
Remove
1.Remove rear door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
rear door.
2.Release door latch control rod.
3.Remove grommet to access screw.
4.Remove 3 Torx screws securing latch to door.
5.Release and lower latch to access screw.
6.Remove 2 door handle screw fixings.
7.Remove door handle.
8.Remove door latch control rod.Refit
1.Fit door latch control rod to handle.
2.Position handle to door and tighten securing
screws.
3.Position latch to door, fit and tighten Torx
screws.
4.Fit grommet to door.
5.Connect door latch control rod.
6.Fit rear door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
rear door.

DOORS
REPAIRS 76-1-33
Handle - exterior - tail door
$% 76.58.05
Remove
1.Remove tail door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
tail door.
2.Raise glass by clicking latch.
3.Remove 3 nuts securing tail door handle to tail
door.
4.Release handle from tail door.
5.Disconnect 2 Lucars from number plate lamp.
6.Disconnect multiplug and remove handle from
door.7.Collect gasket.
8.Remove nut from lock barrel.
9.Remove lock barrel from handle.
Refit
1.Fit lock barrel to handle.
2.Fit gasket to handle.
3.Position handle and connect Lucars and
multiplug.
4.Fit handle to door and tighten nuts to 5 Nm (3.5
lbf.ft).
5.Fit tail door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
tail door.
6.Reset latch to lower glass.
7.Close door.

DOORS
76-1-34 REPAIRS

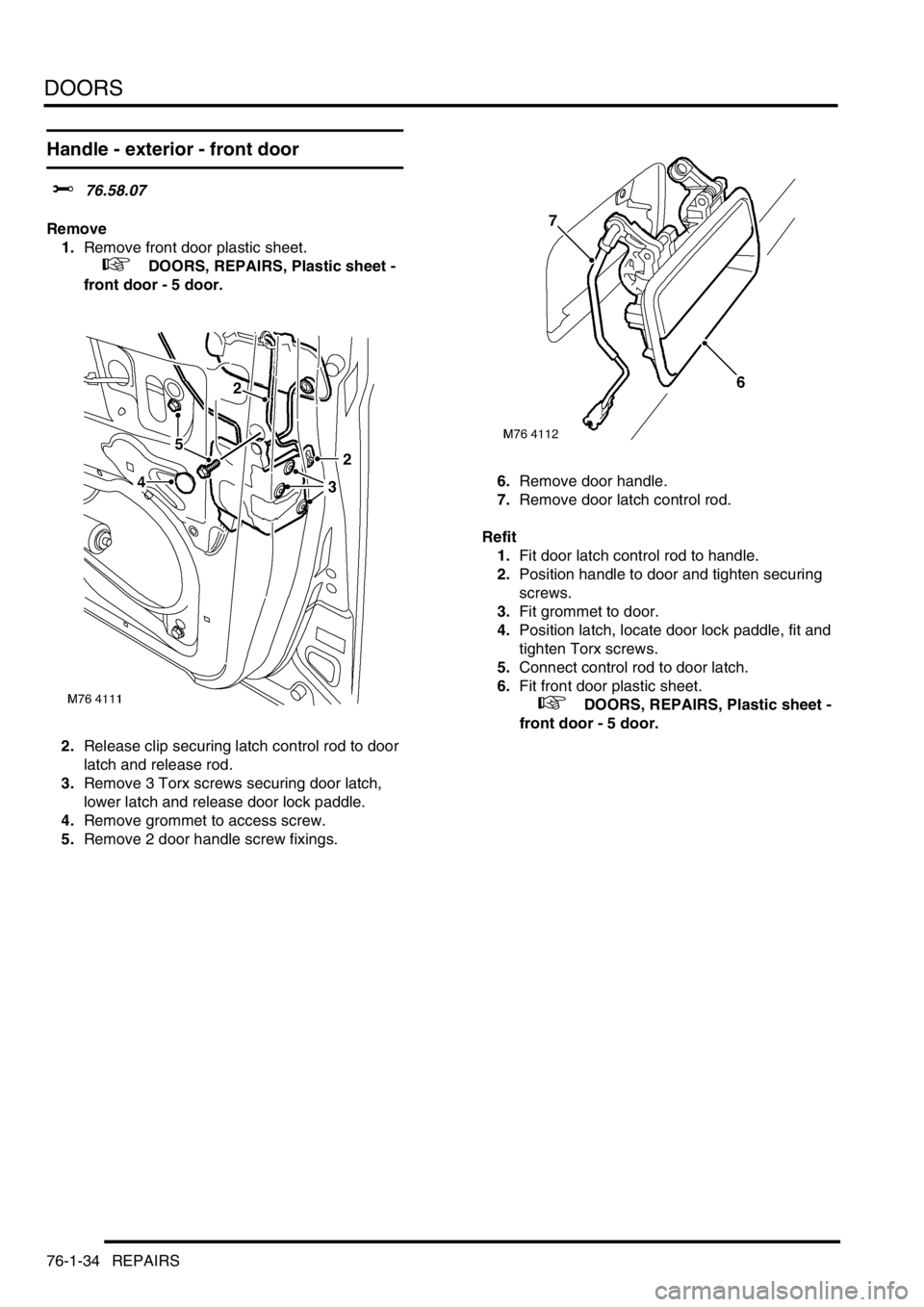

Handle - exterior - front door
$% 76.58.07
Remove
1.Remove front door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - 5 door.
2.Release clip securing latch control rod to door
latch and release rod.
3.Remove 3 Torx screws securing door latch,
lower latch and release door lock paddle.
4.Remove grommet to access screw.
5.Remove 2 door handle screw fixings.6.Remove door handle.
7.Remove door latch control rod.
Refit
1.Fit door latch control rod to handle.
2.Position handle to door and tighten securing
screws.
3.Fit grommet to door.
4.Position latch, locate door lock paddle, fit and
tighten Torx screws.
5.Connect control rod to door latch.
6.Fit front door plastic sheet.

+ DOORS, REPAIRS, Plastic sheet -
front door - 5 door.

DOORS
REPAIRS 76-1-35

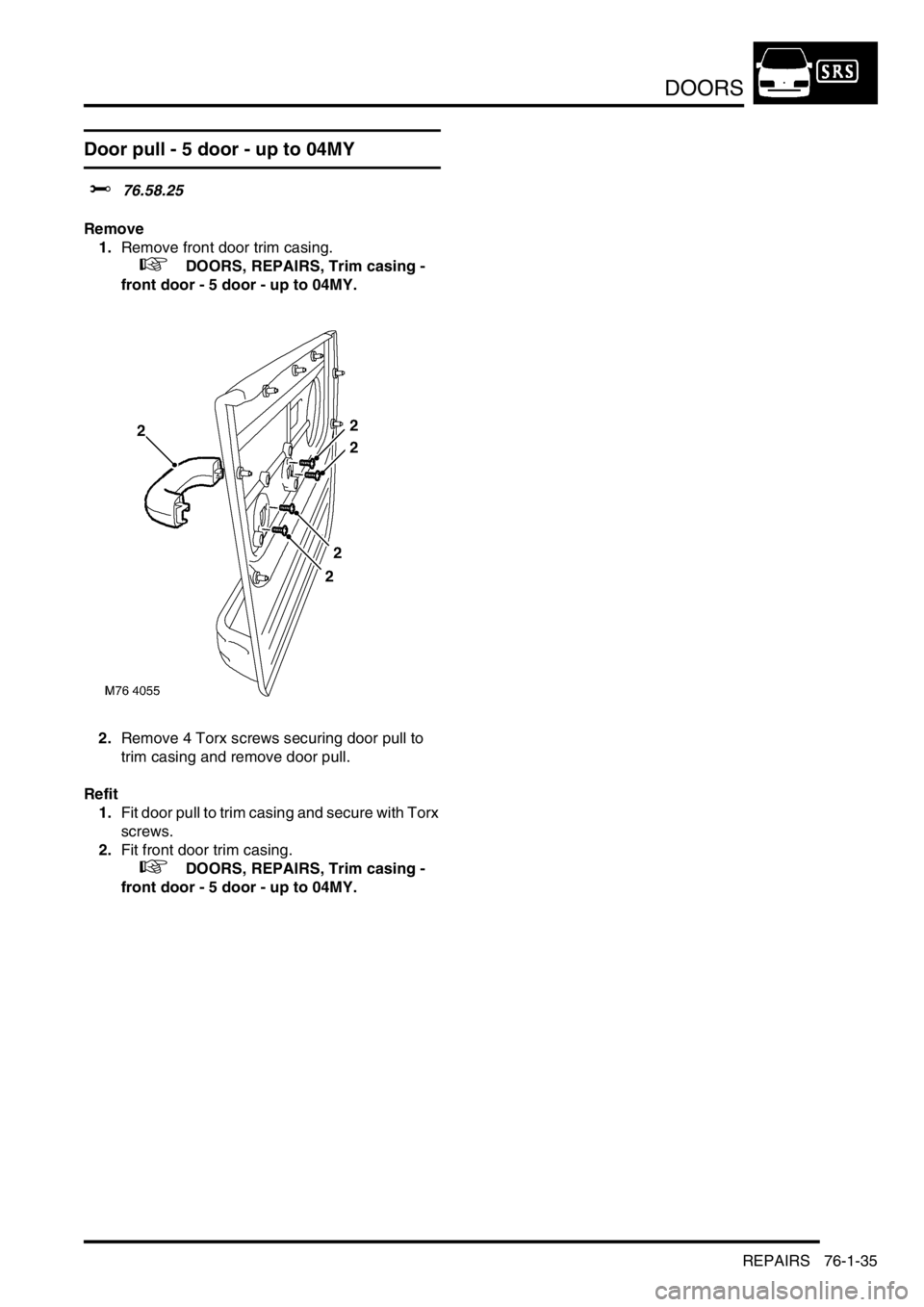

Door pull - 5 door - up to 04MY
$% 76.58.25
Remove
1.Remove front door trim casing.

+ DOORS, REPAIRS, Trim casing -
front door - 5 door - up to 04MY.
2.Remove 4 Torx screws securing door pull to
trim casing and remove door pull.
Refit
1.Fit door pull to trim casing and secure with Torx
screws.
2.Fit front door trim casing.

+ DOORS, REPAIRS, Trim casing -
front door - 5 door - up to 04MY.
