LAND ROVER FREELANDER 2001 Workshop Manual

PANEL REPAIRS
77-2-6 REPLACEMENT PANELS
Outer body side panels - 5 door
1Outer body side assembly
2Rear outer body side panel
3Lower outer body side panel
4Front outer body side panel

PANEL REPAIRS
REPLACEMENT PANELS 77-2-7
Front inner body side panels - 3 door
1'A' post reinforcement
2Inner 'A' post
3Inner sill reinforcement
4Lower 'A' post reinforcement

PANEL REPAIRS
77-2-8 REPLACEMENT PANELS
Front inner body side panels - 5 door
1Inner `'A' post
2'A' post reinforcement
3Inner 'B/C' post panel
4'B/C' post reinforcement
5Inner sill reinforcement
6Lower 'A' post reinforcement

PANEL REPAIRS
REPLACEMENT PANELS 77-2-9
Rear inner body side panels - 3 door
1Complete rear quarter assembly
2Squab side reinforcement
3Rear body side reinforcement assembly
4Lower inner 'E' post assembly
5Outer rear wheelarch assembly
6Rear quarter front lower reinforcement
7'B/C' post reinforcement

PANEL REPAIRS
77-2-10 REPLACEMENT PANELS
Rear inner body side panels - 5 door
1Complete rear quarter assembly
2Inner 'E' post assembly
3Rear body side reinforcement assembly
4Outer rear wheelarch assembly

PANEL REPAIRS
REPLACEMENT PANELS 77-2-11
Roof assemblies - 3 door
1Front roof assembly
2Rear roof assembly

PANEL REPAIRS
77-2-12 REPLACEMENT PANELS
Roof assembly - 5 door
1Roof assembly (with sunroof)
2Roof assembly (without sunroof)

PANEL REPAIRS
REPLACEMENT PANELS 77-2-13
Rear end panels
1Rear floor crossmember assembly
2Inner panel
3Bumper mounting bracket
4Safe well assembly
5Gusset, rear floor to quarter inner LH
6LH floor longitudinal
7Rear floor assembly
8RH floor longitudinal
9Gusset, rear floor to quarter inner RH

PANEL REPAIRS
77-2-14 REPLACEMENT PANELS

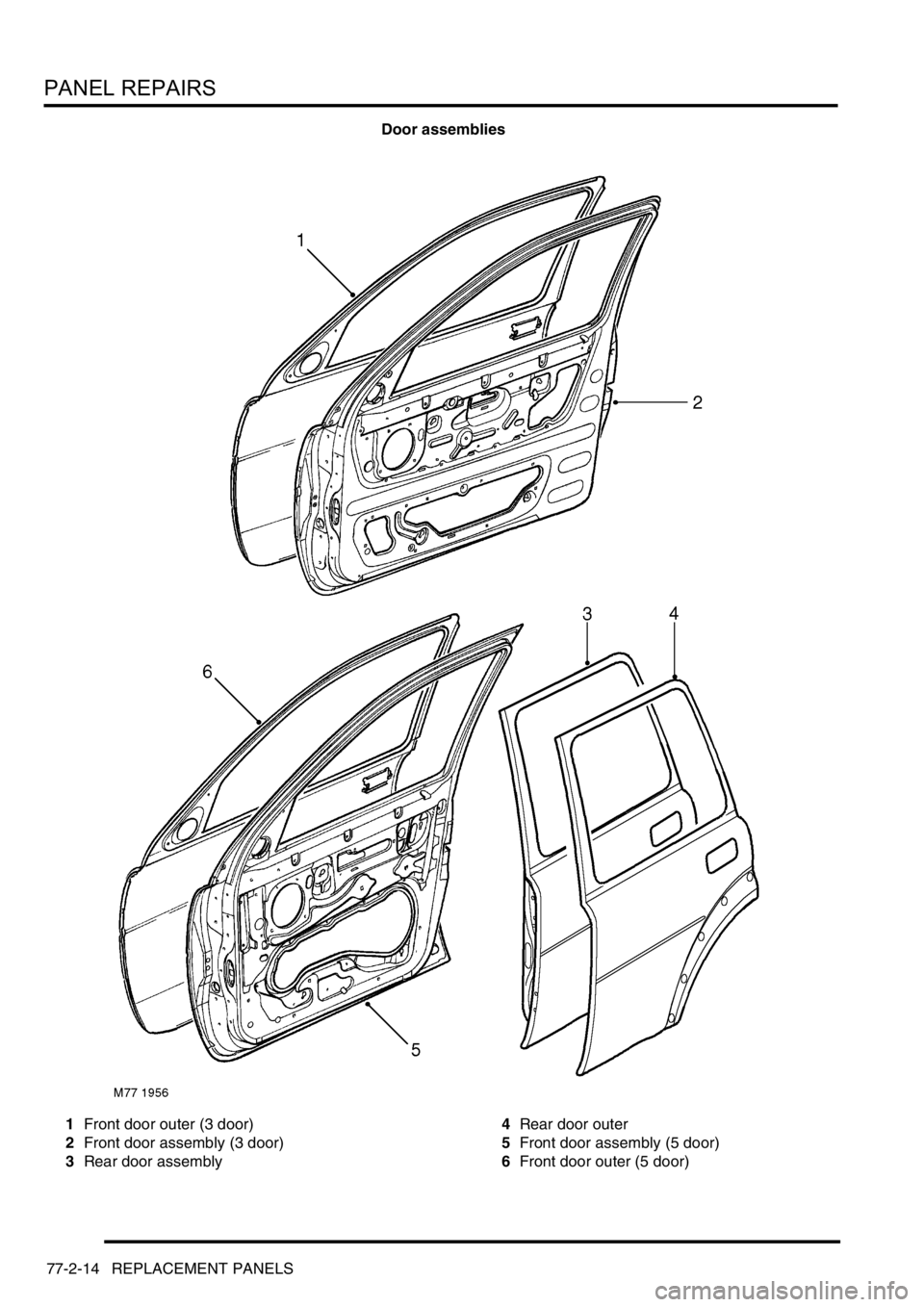

Door assemblies
1Front door outer (3 door)
2Front door assembly (3 door)
3Rear door assembly4Rear door outer
5Front door assembly (5 door)
6Front door outer (5 door)

PANEL REPAIRS
WELDING PROCEDURES 77-2-15
WE LDING PROCEDURE S
ECU locations (3 door model shown, 5
door model similar)
1Central control unit (on forward side of
passenger compartment fusebox, behind
driver's glove box)
2RF Receiver (on top of instrument pack)
3Immobiliser ECU (rear of fascia)
4DCU (SRS on transmission tunnel below
heater)
5EAT ECU (inside Environmental 'E' box)
6ECM (inside 'E' box)
7Fuel Burning Heater (behind wheelarch liner)
'Diesel only'8Cooling Fan Ecu (rear of radiator housing) all
models except 1.8
9ABS ECU (RH side front of engine
compartment)
10Folding door mirror ECU (on transmission
tunnel under centre console)
11Window lift ECU (on driver `A` post)
12Cruise Control Interface ECU (under R/H seat)
13Cruise control ECU (under R/H seat)
