LAND ROVER FREELANDER 2001 Workshop Manual

BODY DIMENSIONS

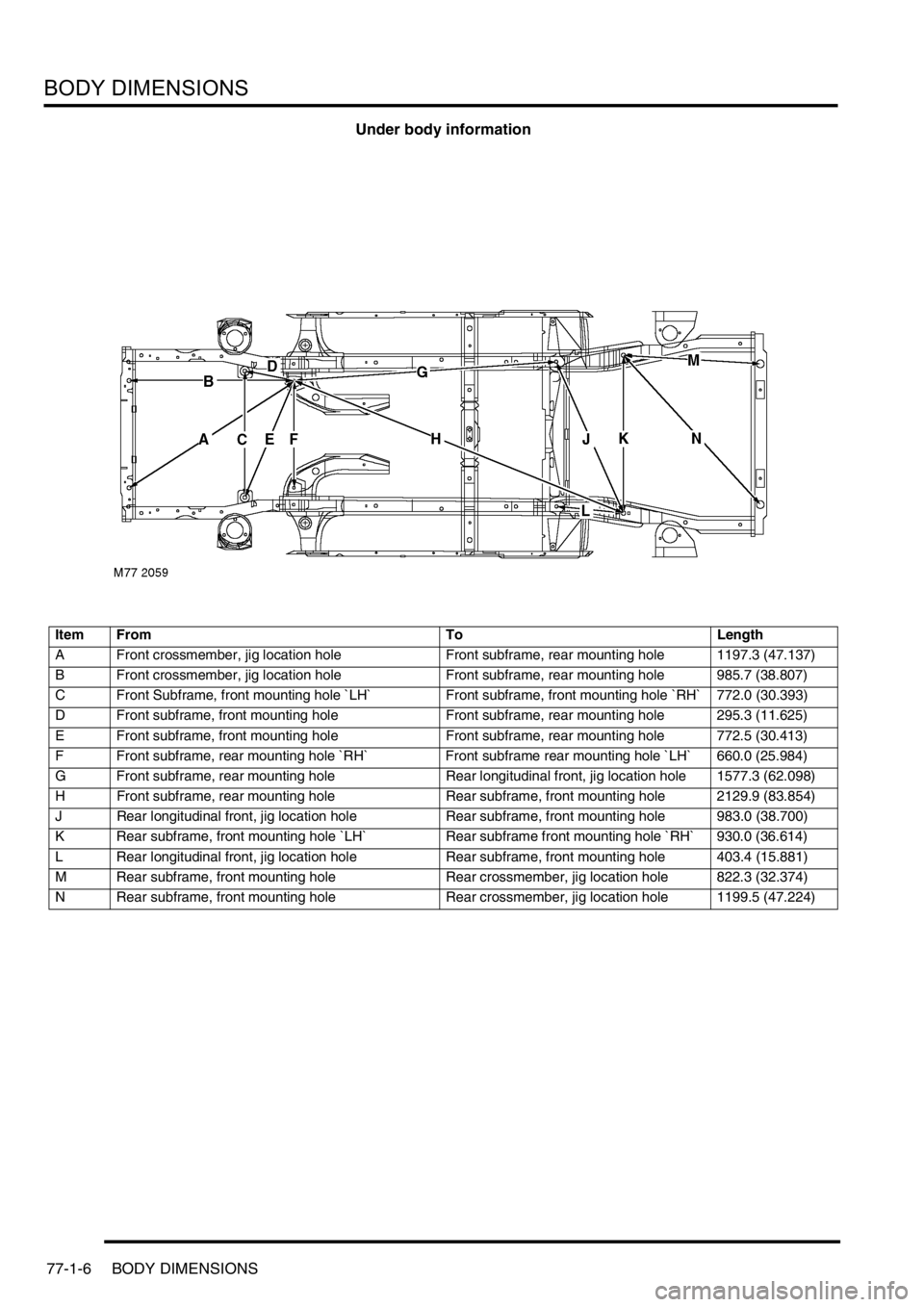

77-1-6 BODY DIMENSIONS
Under body information
Item From To Length
A Front crossmember, jig location hole Front subframe, rear mounting hole 1197.3 (47.137)
B Front crossmember, jig location hole Front subframe, rear mounting hole 985.7 (38.807)
C Front Subframe, front mounting hole `LH` Front subframe, front mounting hole `RH` 772.0 (30.393)
D Front subframe, front mounting hole Front subframe, rear mounting hole 295.3 (11.625)
E Front subframe, front mounting hole Front subframe, rear mounting hole 772.5 (30.413)
F Front subframe, rear mounting hole `RH` Front subframe rear mounting hole `LH` 660.0 (25.984)
G Front subframe, rear mounting hole Rear longitudinal front, jig location hole 1577.3 (62.098)
H Front subframe, rear mounting hole Rear subframe, front mounting hole 2129.9 (83.854)
J Rear longitudinal front, jig location hole Rear subframe, front mounting hole 983.0 (38.700)
K Rear subframe, front mounting hole `LH` Rear subframe front mounting hole `RH` 930.0 (36.614)
L Rear longitudinal front, jig location hole Rear subframe, front mounting hole 403.4 (15.881)
M Rear subframe, front mounting hole Rear crossmember, jig location hole 822.3 (32.374)
N Rear subframe, front mounting hole Rear crossmember, jig location hole 1199.5 (47.224)

BODY DIMENSIONS

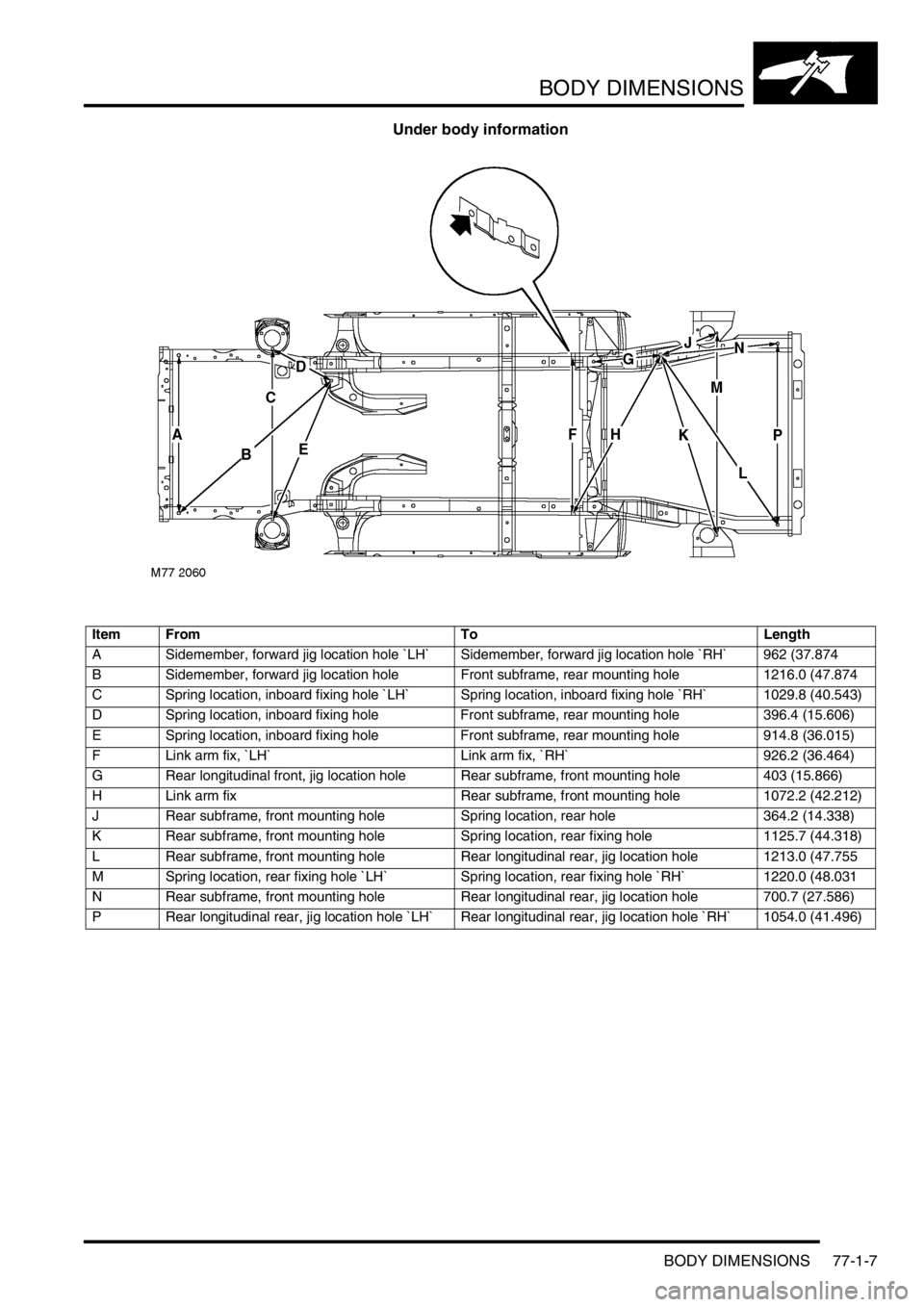

BODY DIMENSIONS 77-1-7
Under body information
Item From To Length
A Sidemember, forward jig location hole `LH` Sidemember, forward jig location hole `RH` 962 (37.874
B Sidemember, forward jig location hole Front subframe, rear mounting hole 1216.0 (47.874
C Spring location, inboard fixing hole `LH` Spring location, inboard fixing hole `RH` 1029.8 (40.543)
D Spring location, inboard fixing hole Front subframe, rear mounting hole 396.4 (15.606)
E Spring location, inboard fixing hole Front subframe, rear mounting hole 914.8 (36.015)
F Link arm fix, `LH` Link arm fix, `RH` 926.2 (36.464)
G Rear longitudinal front, jig location hole Rear subframe, front mounting hole 403 (15.866)
H Link arm fix Rear subframe, front mounting hole 1072.2 (42.212)
J Rear subframe, front mounting hole Spring location, rear hole 364.2 (14.338)
K Rear subframe, front mounting hole Spring location, rear fixing hole 1125.7 (44.318)
L Rear subframe, front mounting hole Rear longitudinal rear, jig location hole 1213.0 (47.755
M Spring location, rear fixing hole `LH` Spring location, rear fixing hole `RH` 1220.0 (48.031
N Rear subframe, front mounting hole Rear longitudinal rear, jig location hole 700.7 (27.586)
P Rear longitudinal rear, jig location hole `LH` Rear longitudinal rear, jig location hole `RH` 1054.0 (41.496)

BODY DIMENSIONS

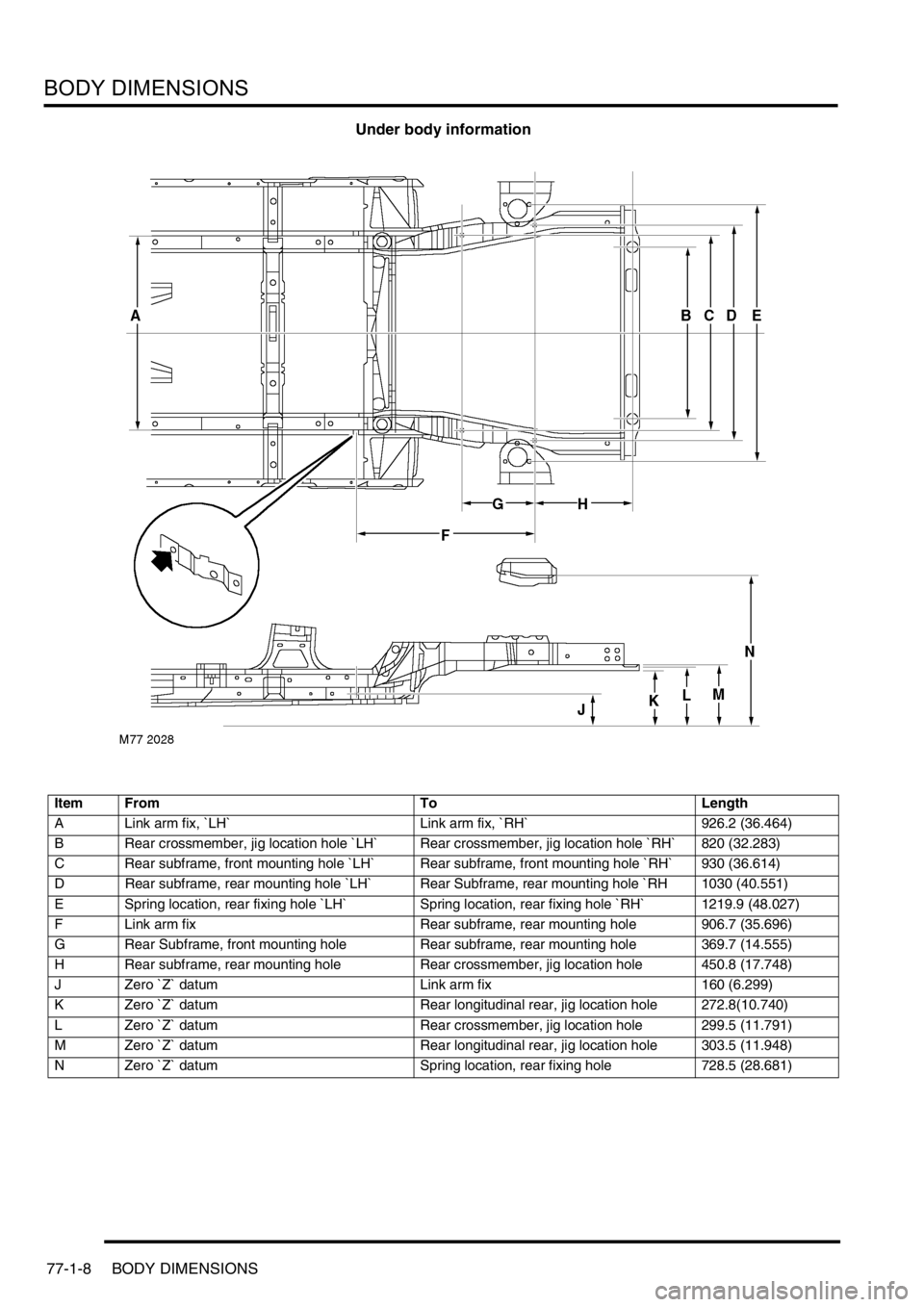

77-1-8 BODY DIMENSIONS
Under body information
Item From To Length
A Link arm fix, `LH` Link arm fix, `RH` 926.2 (36.464)
B Rear crossmember, jig location hole `LH` Rear crossmember, jig location hole `RH` 820 (32.283)
C Rear subframe, front mounting hole `LH` Rear subframe, front mounting hole `RH` 930 (36.614)
D Rear subframe, rear mounting hole `LH` Rear Subframe, rear mounting hole `RH 1030 (40.551)
E Spring location, rear fixing hole `LH` Spring location, rear fixing hole `RH` 1219.9 (48.027)
F Link arm fix Rear subframe, rear mounting hole 906.7 (35.696)
G Rear Subframe, front mounting hole Rear subframe, rear mounting hole 369.7 (14.555)
H Rear subframe, rear mounting hole Rear crossmember, jig location hole 450.8 (17.748)
J Zero `Z` datum Link arm fix 160 (6.299)
K Zero `Z` datum Rear longitudinal rear, jig location hole 272.8(10.740)
L Zero `Z` datum Rear crossmember, jig location hole 299.5 (11.791)
M Zero `Z` datum Rear longitudinal rear, jig location hole 303.5 (11.948)
N Zero `Z` datum Spring location, rear fixing hole 728.5 (28.681)

BODY DIMENSIONS

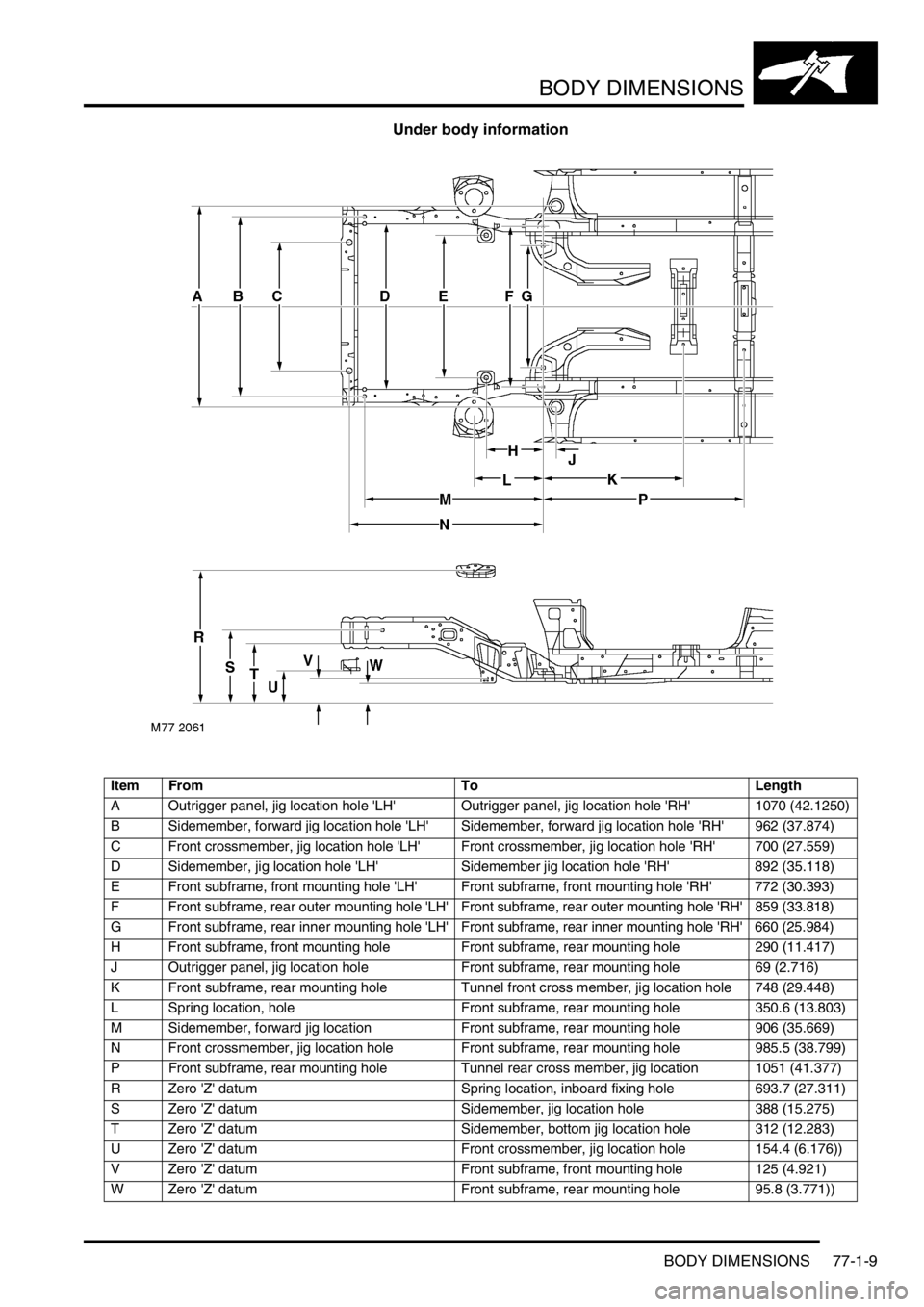

BODY DIMENSIONS 77-1-9
Under body information
Item From To Length
A Outrigger panel, jig location hole 'LH' Outrigger panel, jig location hole 'RH' 1070 (42.1250)
B Sidemember, forward jig location hole 'LH' Sidemember, forward jig location hole 'RH' 962 (37.874)
C Front crossmember, jig location hole 'LH' Front crossmember, jig location hole 'RH' 700 (27.559)
D Sidemember, jig location hole 'LH' Sidemember jig location hole 'RH' 892 (35.118)
E Front subframe, front mounting hole 'LH' Front subframe, front mounting hole 'RH' 772 (30.393)
F Front subframe, rear outer mounting hole 'LH' Front subframe, rear outer mounting hole 'RH' 859 (33.818)
G Front subframe, rear inner mounting hole 'LH' Front subframe, rear inner mounting hole 'RH' 660 (25.984)
H Front subframe, front mounting hole Front subframe, rear mounting hole 290 (11.417)
J Outrigger panel, jig location hole Front subframe, rear mounting hole 69 (2.716)
K Front subframe, rear mounting hole Tunnel front cross member, jig location hole 748 (29.448)
L Spring location, hole Front subframe, rear mounting hole 350.6 (13.803)
M Sidemember, forward jig location Front subframe, rear mounting hole 906 (35.669)
N Front crossmember, jig location hole Front subframe, rear mounting hole 985.5 (38.799)
P Front subframe, rear mounting hole Tunnel rear cross member, jig location 1051 (41.377)
R Zero 'Z' datum Spring location, inboard fixing hole 693.7 (27.311)
S Zero 'Z' datum Sidemember, jig location hole 388 (15.275)
T Zero 'Z' datum Sidemember, bottom jig location hole 312 (12.283)
U Zero 'Z' datum Front crossmember, jig location hole 154.4 (6.176))
V Zero 'Z' datum Front subframe, front mounting hole 125 (4.921)
W Zero 'Z' datum Front subframe, rear mounting hole 95.8 (3.771))

BODY DIMENSIONS
77-1-10 BODY DIMENSIONS

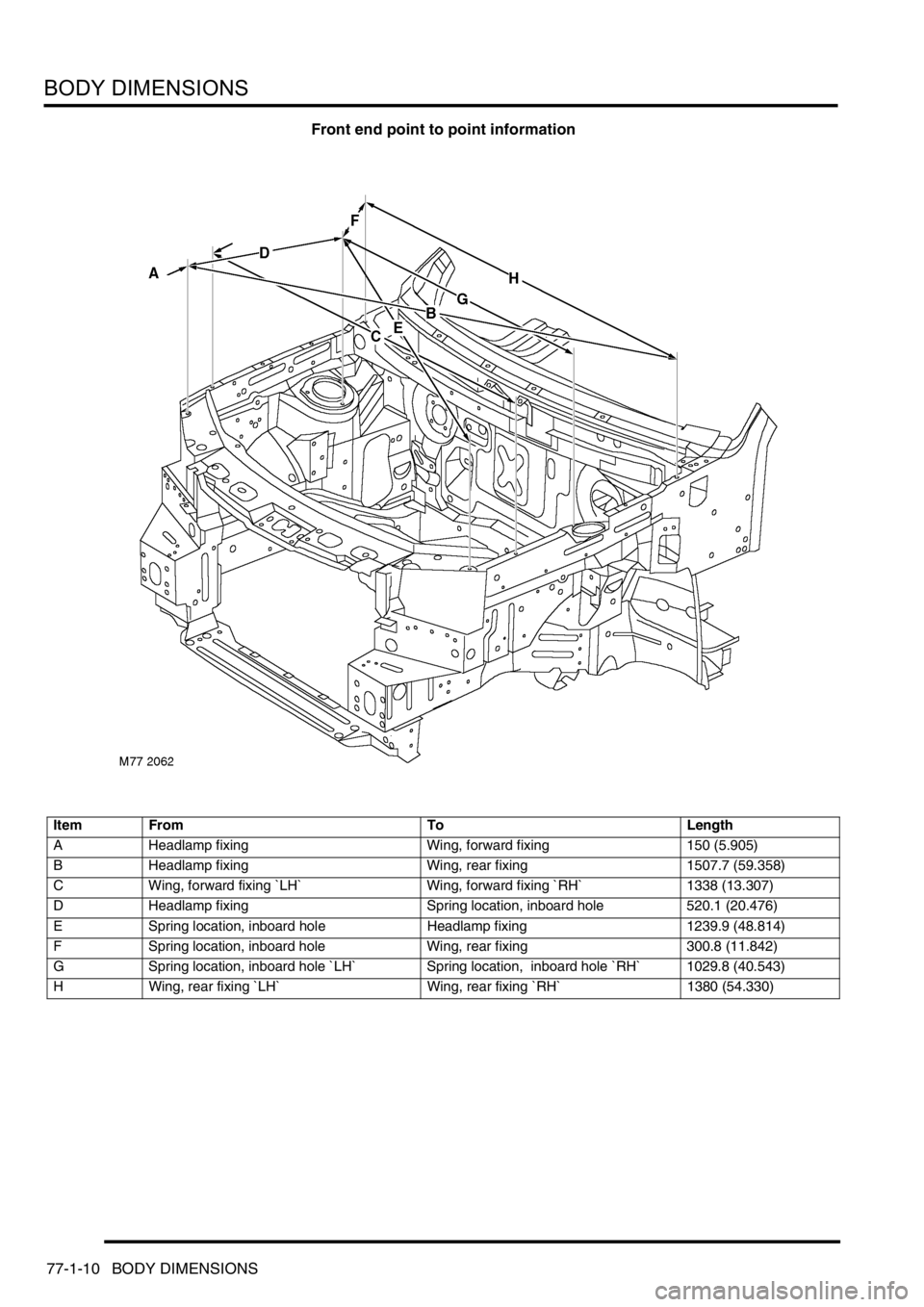

Front end point to point information
Item From To Length
A Headlamp fixing Wing, forward fixing 150 (5.905)
B Headlamp fixing Wing, rear fixing 1507.7 (59.358)
C Wing, forward fixing `LH` Wing, forward fixing `RH` 1338 (13.307)
D Headlamp fixing Spring location, inboard hole 520.1 (20.476)
E Spring location, inboard hole Headlamp fixing 1239.9 (48.814)
F Spring location, inboard hole Wing, rear fixing 300.8 (11.842)
G Spring location, inboard hole `LH` Spring location, inboard hole `RH` 1029.8 (40.543)
H Wing, rear fixing `LH` Wing, rear fixing `RH` 1380 (54.330)

BODY DIMENSIONS

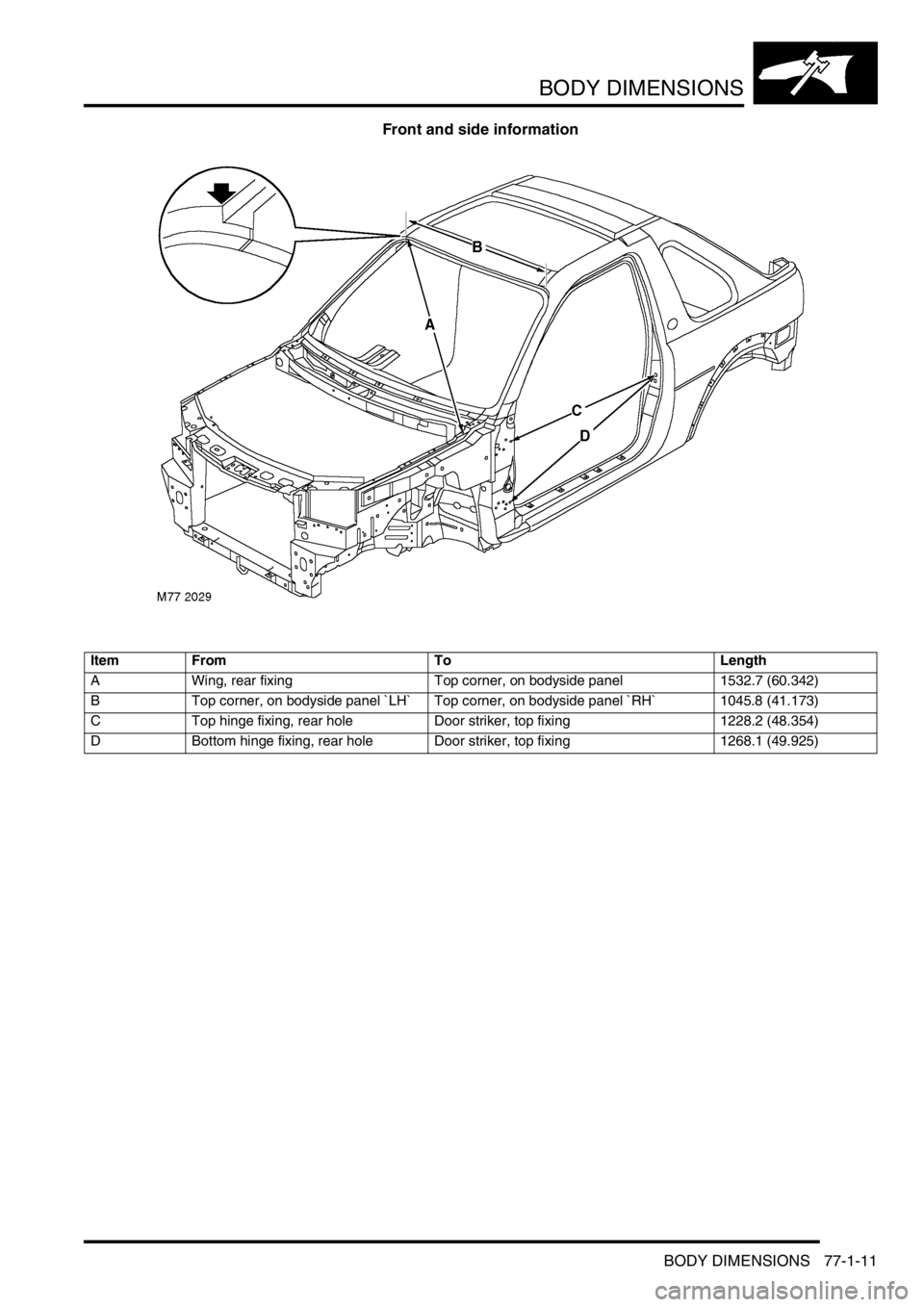

BODY DIMENSIONS 77-1-11
Front and side information
Item From To Length
A Wing, rear fixing Top corner, on bodyside panel 1532.7 (60.342)
B Top corner, on bodyside panel `LH` Top corner, on bodyside panel `RH` 1045.8 (41.173)
C Top hinge fixing, rear hole Door striker, top fixing 1228.2 (48.354)
D Bottom hinge fixing, rear hole Door striker, top fixing 1268.1 (49.925)

BODY DIMENSIONS
77-1-12 BODY DIMENSIONS

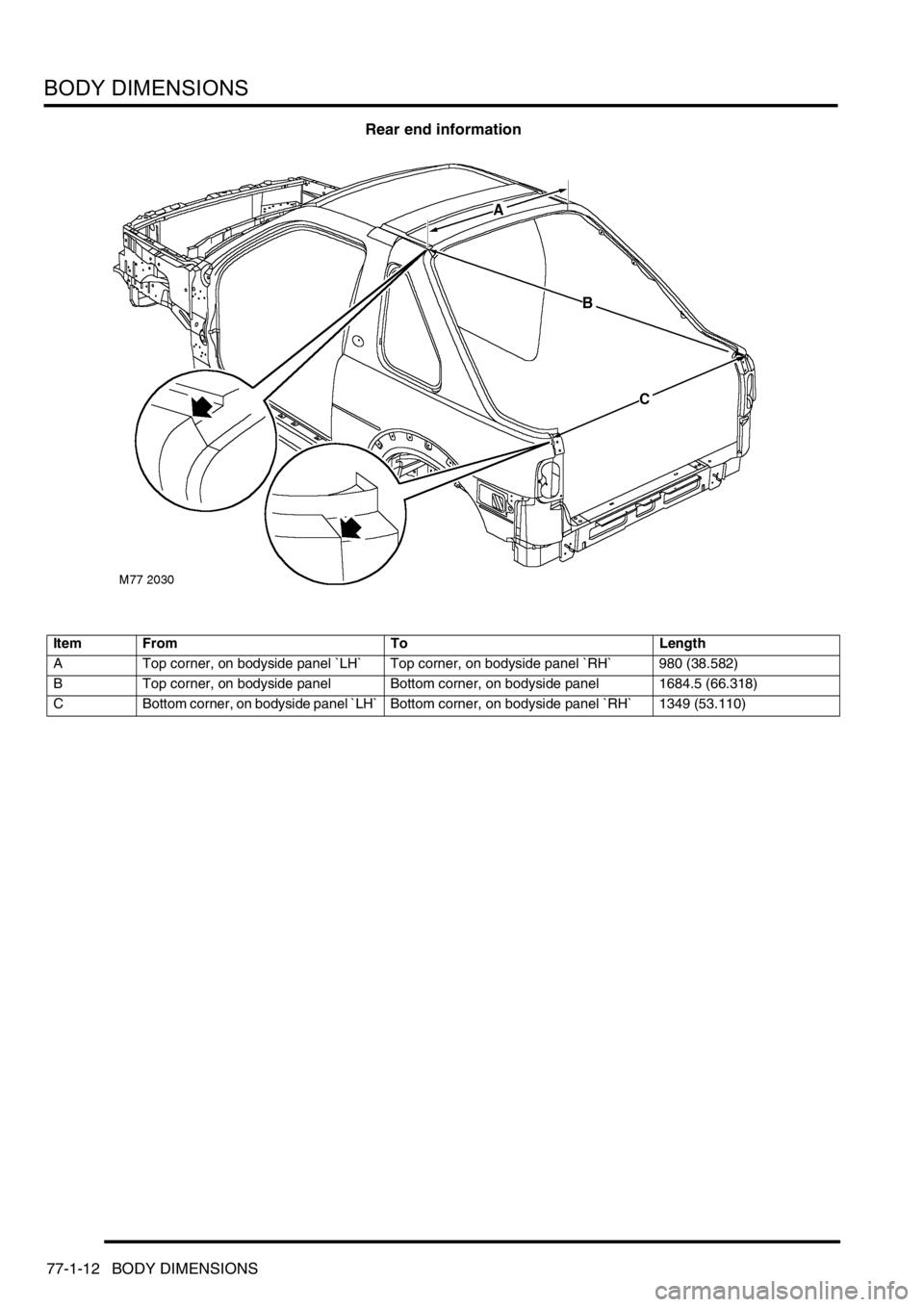

Rear end information
Item From To Length
A Top corner, on bodyside panel `LH` Top corner, on bodyside panel `RH` 980 (38.582)
B Top corner, on bodyside panel Bottom corner, on bodyside panel 1684.5 (66.318)
C Bottom corner, on bodyside panel `LH` Bottom corner, on bodyside panel `RH` 1349 (53.110)

BODY DIMENSIONS

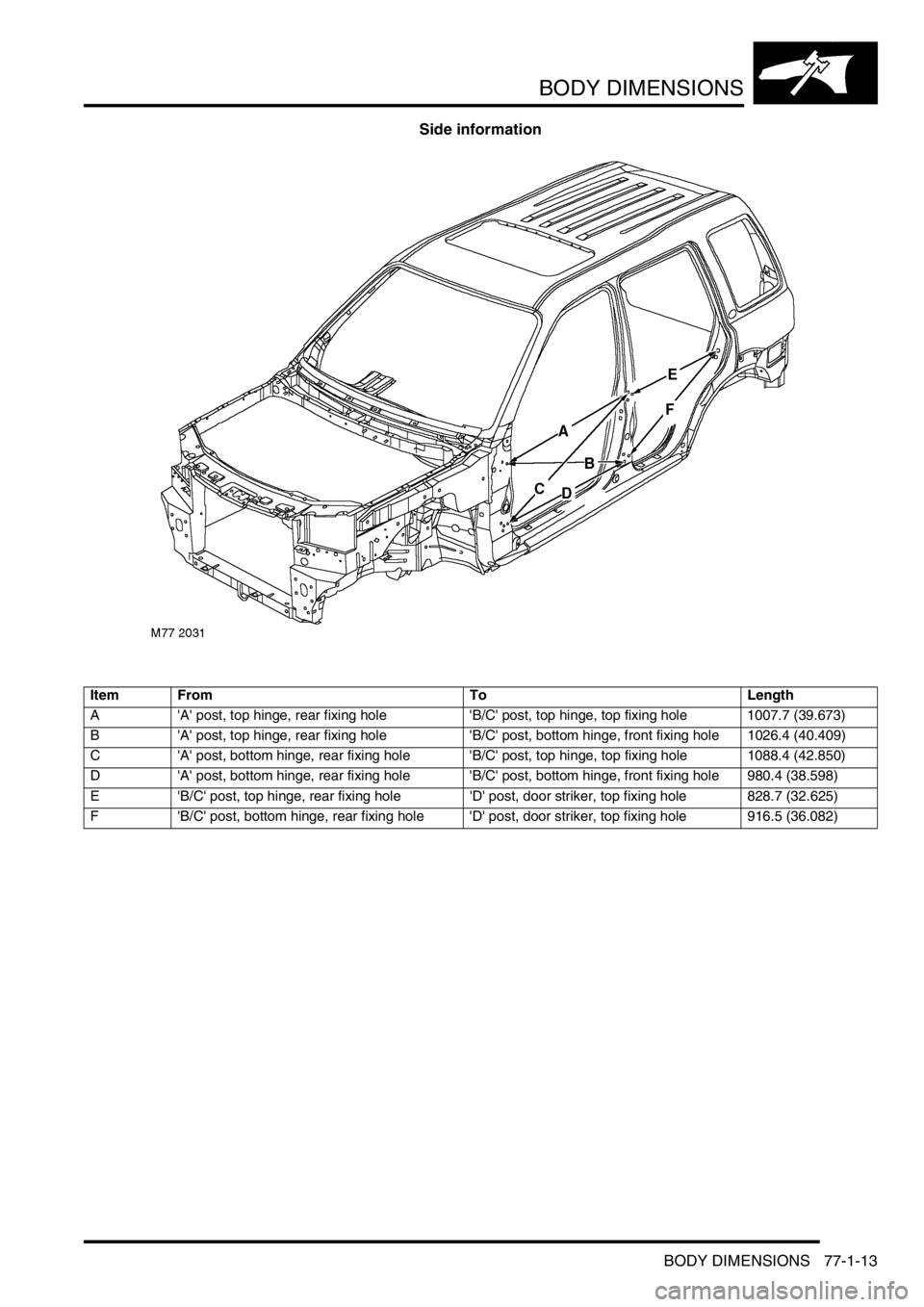

BODY DIMENSIONS 77-1-13
Side information
Item From To Length
A 'A' post, top hinge, rear fixing hole 'B/C' post, top hinge, top fixing hole 1007.7 (39.673)
B 'A' post, top hinge, rear fixing hole 'B/C' post, bottom hinge, front fixing hole 1026.4 (40.409)
C 'A' post, bottom hinge, rear fixing hole 'B/C' post, top hinge, top fixing hole 1088.4 (42.850)
D 'A' post, bottom hinge, rear fixing hole 'B/C' post, bottom hinge, front fixing hole 980.4 (38.598)
E 'B/C' post, top hinge, rear fixing hole 'D' post, door striker, top fixing hole 828.7 (32.625)
F 'B/C' post, bottom hinge, rear fixing hole 'D' post, door striker, top fixing hole 916.5 (36.082)

BODY DIMENSIONS

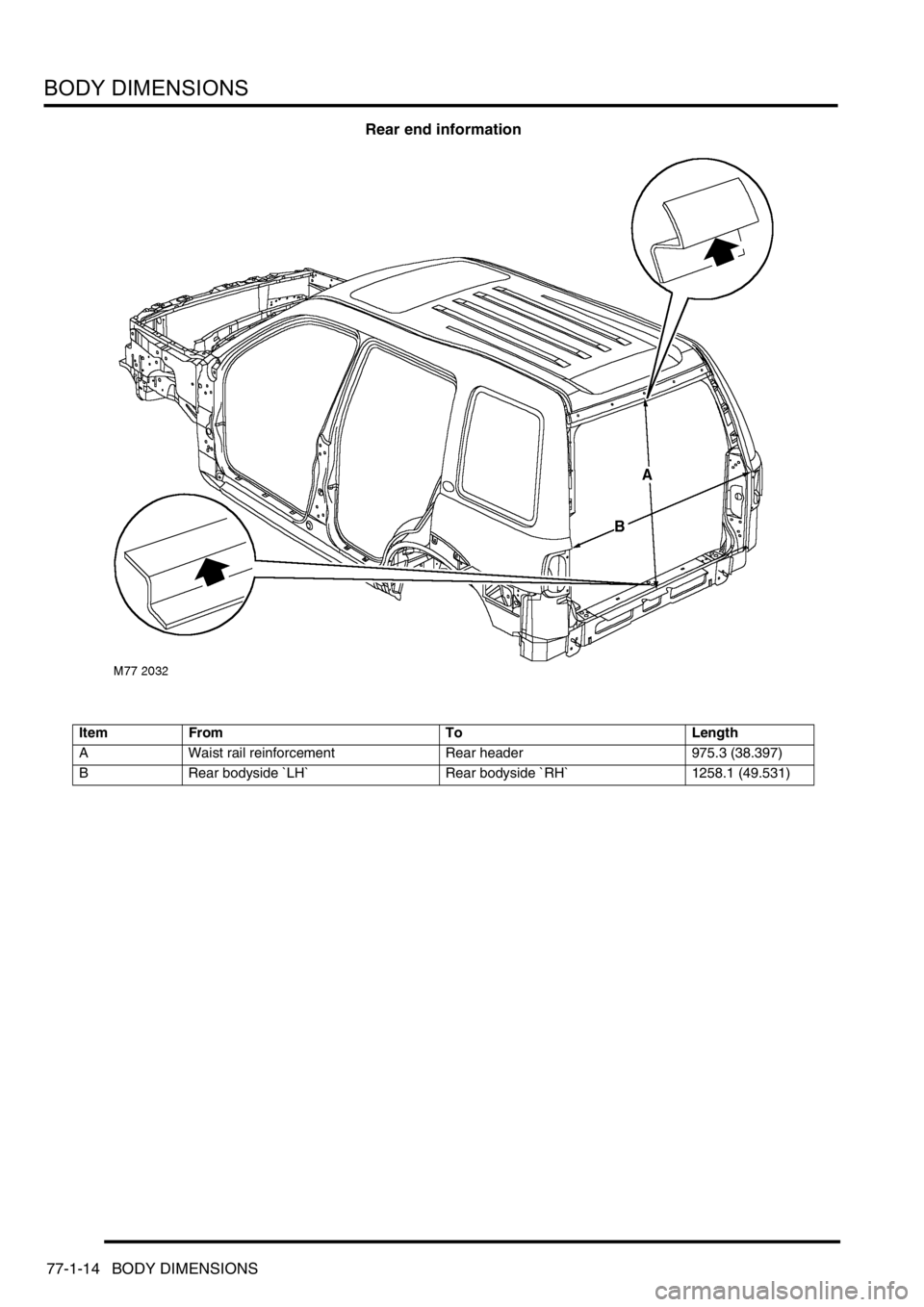

77-1-14 BODY DIMENSIONS
Rear end information
Item From To Length
A Waist rail reinforcement Rear header 975.3 (38.397)
B Rear bodyside `LH` Rear bodyside `RH` 1258.1 (49.531)

BODY DIMENSIONS

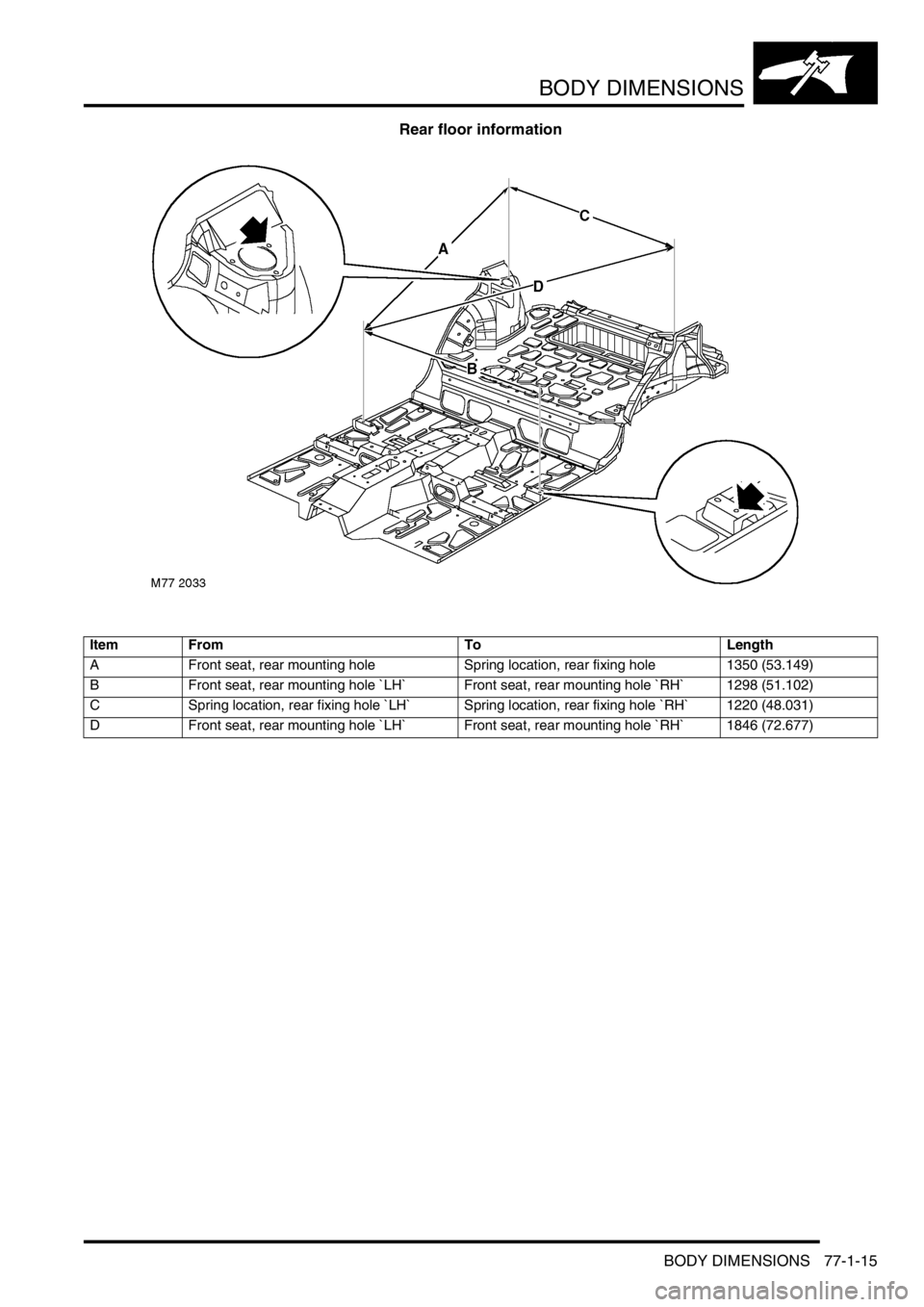

BODY DIMENSIONS 77-1-15
Rear floor information
Item From To Length
A Front seat, rear mounting hole Spring location, rear fixing hole 1350 (53.149)
B Front seat, rear mounting hole `LH` Front seat, rear mounting hole `RH` 1298 (51.102)
C Spring location, rear fixing hole `LH` Spring location, rear fixing hole `RH` 1220 (48.031)
D Front seat, rear mounting hole `LH` Front seat, rear mounting hole `RH` 1846 (72.677)
