LAND ROVER FRELANDER 2 2006 Repair Manual

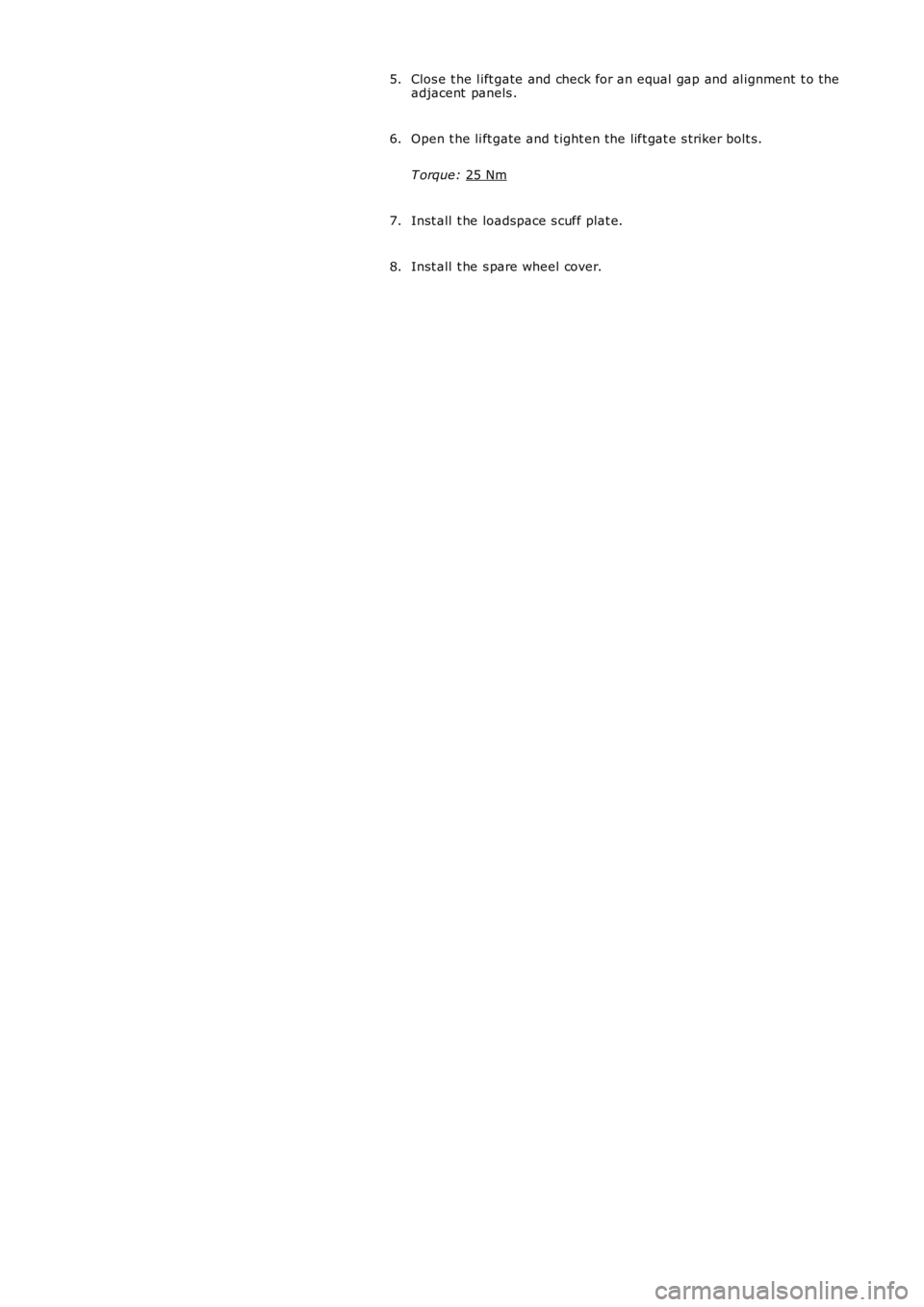

Clos e t he l ift gate and check for an equal gap and al ignment t o the
adjacent panels .
5.
Open t he li ft gate and t ight en the lift gat e s triker bolt s.
T orque: 25 Nm 6.
Inst all t he loadspace s cuff plat e.
7.
Inst all t he s pare wheel cover.
8.

Publi s hed: 11-May-2011

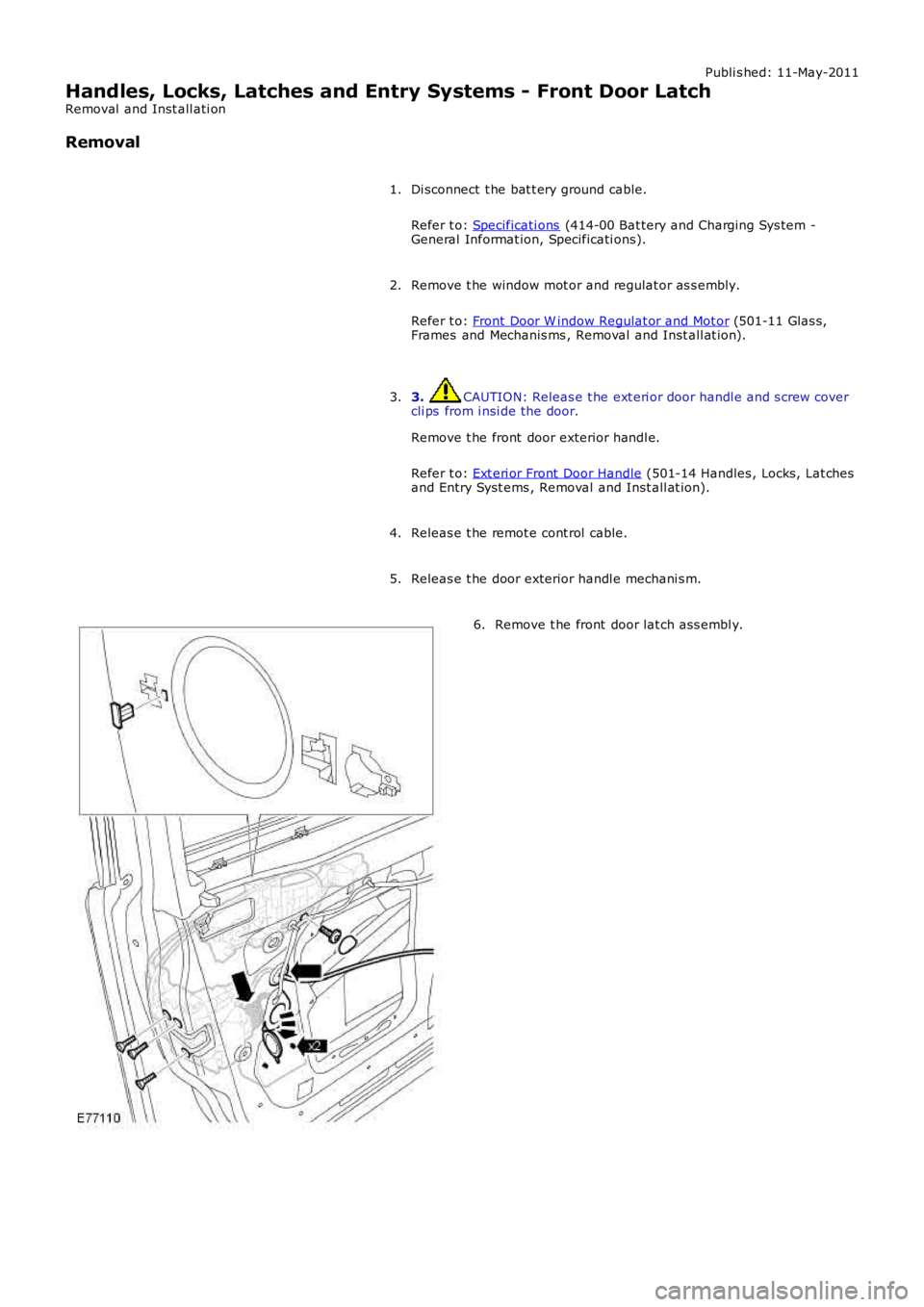

Handles, Locks, Latches and Entry Systems - Front Door Latch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he window mot or and regulat or as s embly.
Refer t o: Front Door W indow Regulat or and Mot or (501-11 Glas s,Frames and Mechanis ms , Removal and Inst all at ion).
2.
3. CAUTION: Releas e t he ext eri or door handl e and s crew covercli ps from i nsi de the door.
Remove t he front door exterior handl e.
Refer t o: Ext eri or Front Door Handle (501-14 Handles , Locks, Lat chesand Entry Syst ems , Removal and Inst all at ion).
3.
Releas e t he remot e cont rol cable.4.
Releas e t he door exterior handl e mechani s m.5.
Remove t he front door lat ch ass embl y.6.

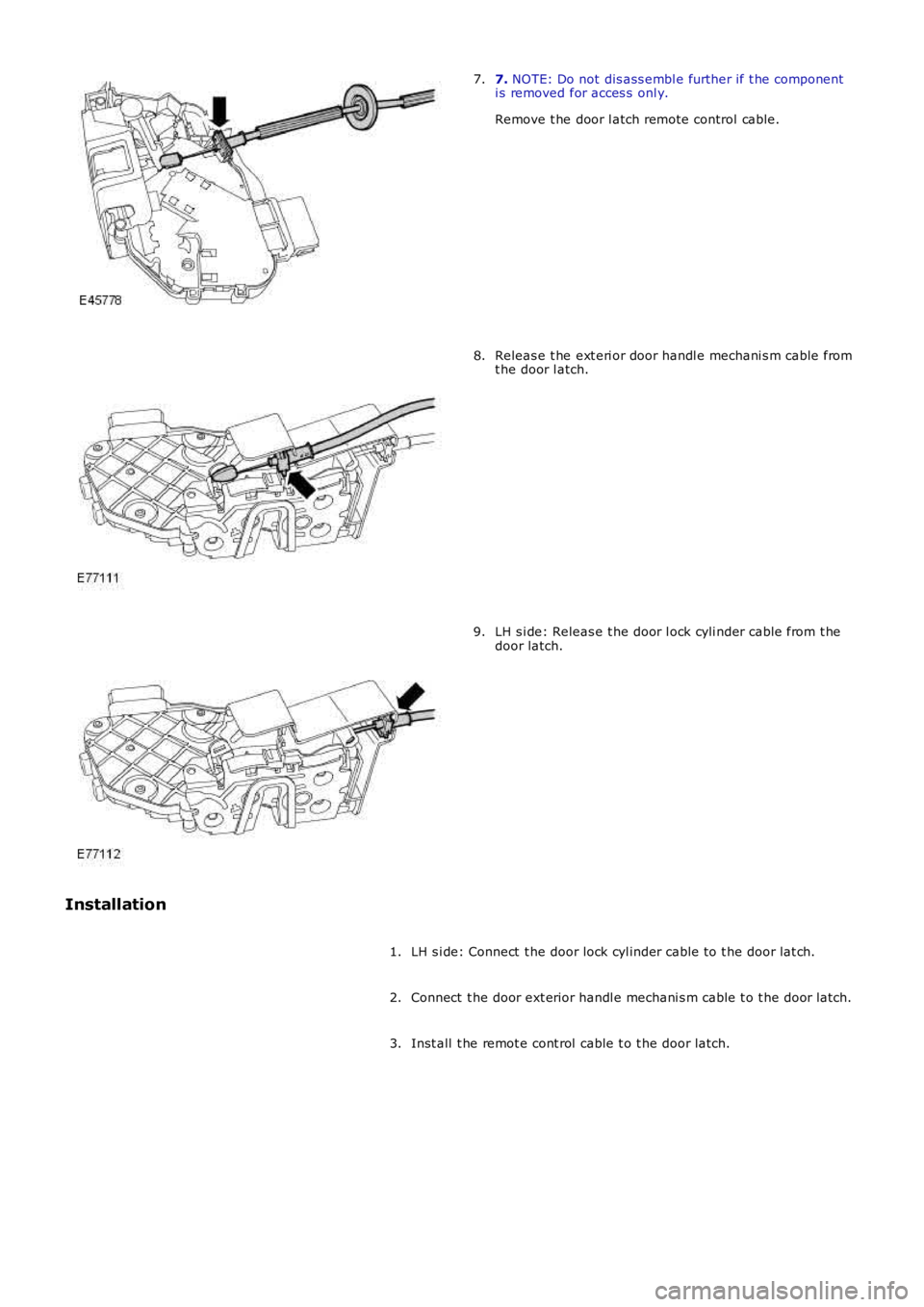

7. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he door l atch remote control cable.
7.
Releas e t he ext eri or door handl e mechani s m cable fromt he door l atch.8.
LH s i de: Releas e t he door l ock cyli nder cable from t hedoor latch.9.
Installation
LH s i de: Connect t he door lock cyl inder cable to t he door lat ch.1.
Connect t he door ext erior handl e mechani s m cable t o t he door latch.2.
Inst all t he remot e cont rol cable t o t he door latch.3.

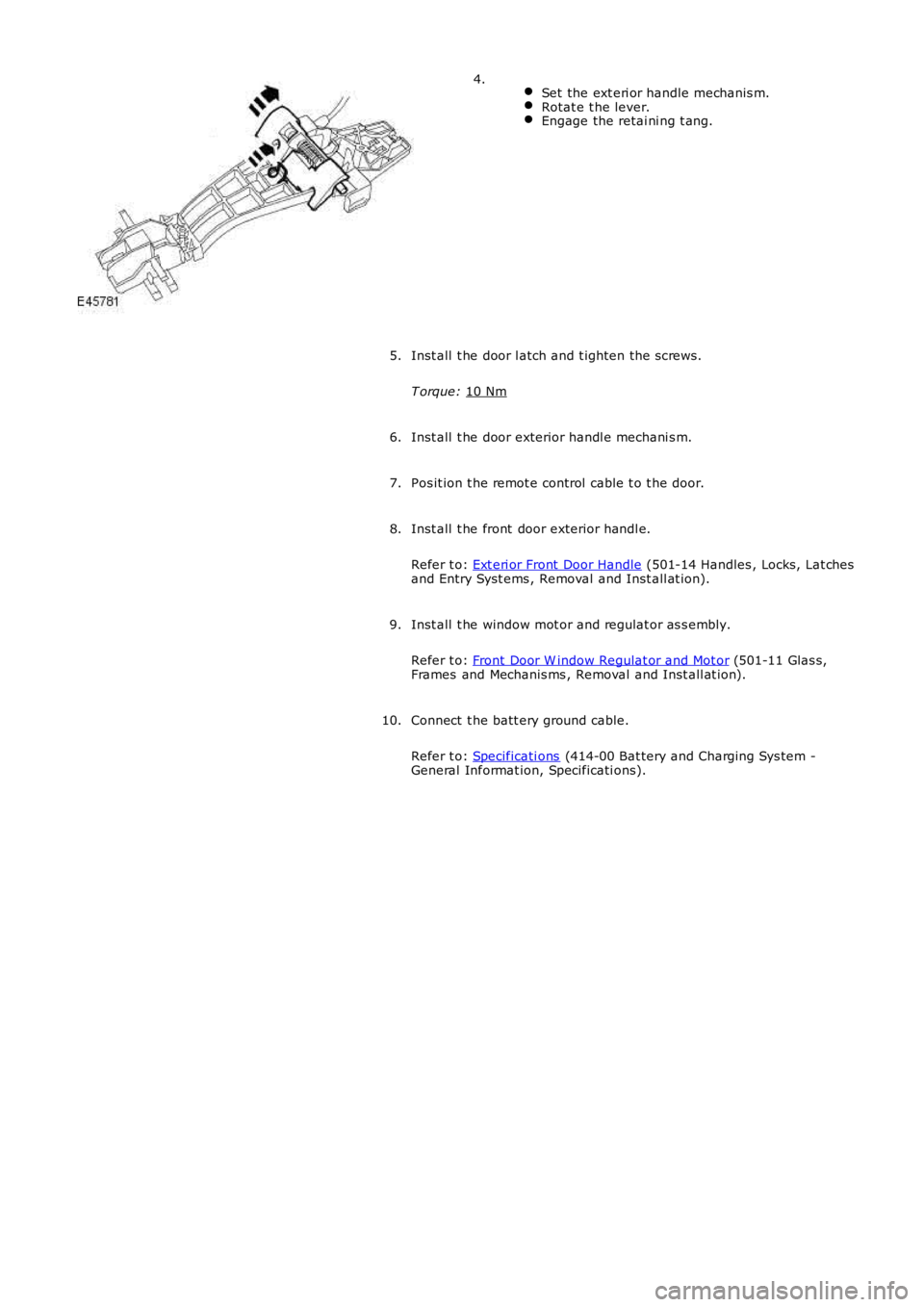

Set the ext eri or handle mechanis m. Rotat e t he lever.
Engage the retai ni ng t ang.4.
Inst all t he door l atch and t ighten the s crews .
T orque: 10 Nm 5.
Inst all t he door exterior handl e mechani s m.
6.
Pos it ion t he remot e control cable t o t he door.
7.
Inst all t he front door exterior handl e.
Refer t o: Ext eri or Front Door Handle (501-14 Handles , Locks, Lat ches
and Entry Syst ems , Removal and Inst all at ion).
8.
Inst all t he window mot or and regulat or as s embly.
Refer t o: Front Door W indow Regulat or and Mot or (501-11 Glas s,
Frames and Mechanis ms , Removal and Inst all at ion).
9.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
10.

Publi s hed: 11-May-2011

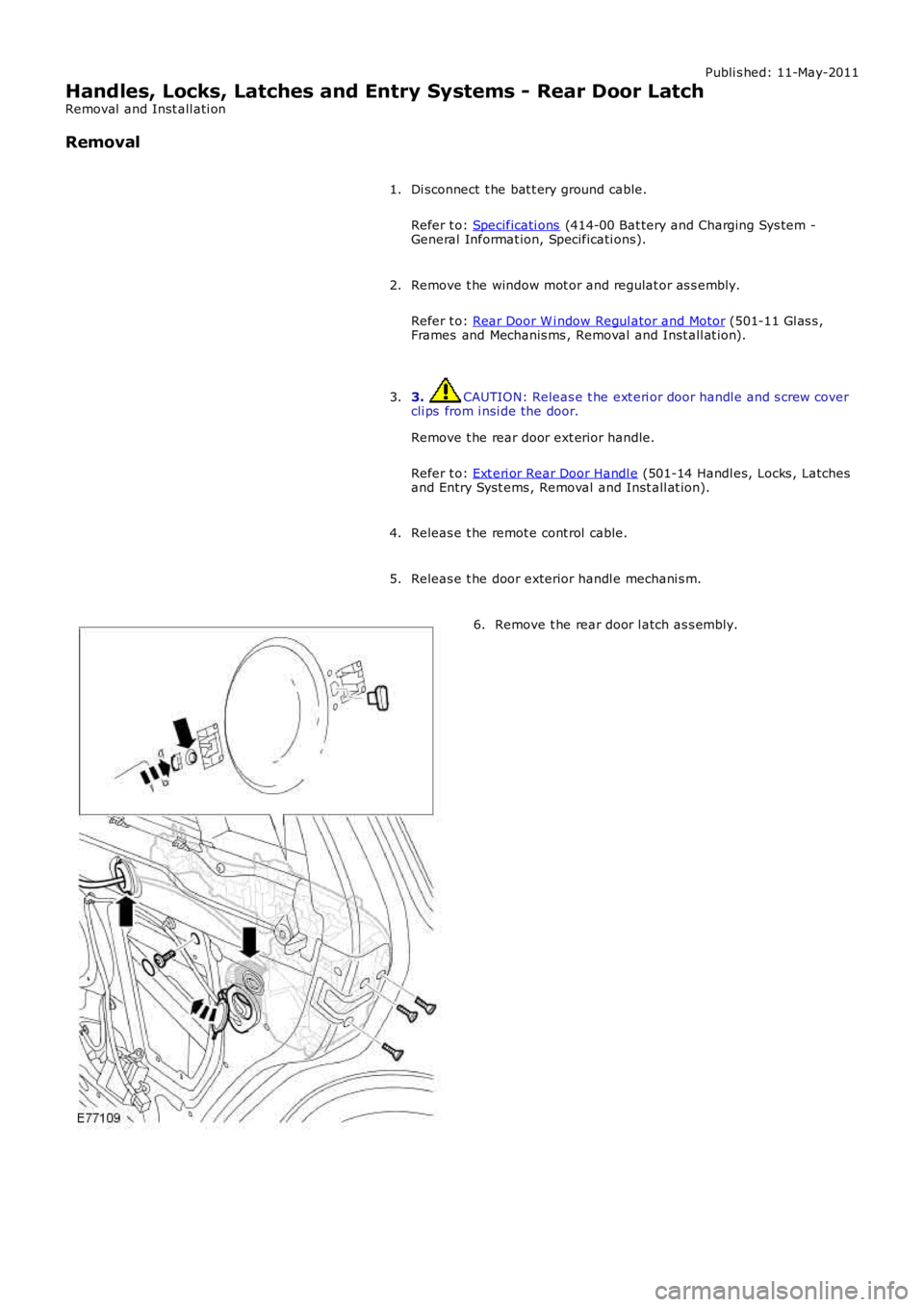

Handles, Locks, Latches and Entry Systems - Rear Door Latch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Remove t he window mot or and regulat or as s embly.
Refer t o: Rear Door W i ndow Regul ator and Motor (501-11 Gl as s ,
Frames and Mechanis ms , Removal and Inst all at ion).
2.
3. CAUTION: Releas e t he ext eri or door handl e and s crew cover
cli ps from i nsi de the door.
Remove t he rear door ext erior handle.
Refer t o: Ext eri or Rear Door Handl e (501-14 Handl es, Locks , Latches
and Entry Syst ems , Removal and Inst all at ion).
3.
Releas e t he remot e cont rol cable.
4.
Releas e t he door exterior handl e mechani s m.
5. Remove t he rear door l atch as s embly.
6.

7.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
Remove t he door l atch remote control cable.
7. Releas e t he ext eri or door handl e mechani s m cable from
t he door l atch.
8.
Installation Connect t he door ext erior handl e mechani s m cable t o t he door latch.
1.
Inst all t he remot e cont rol cable t o t he door latch.
2.
Set the ext eri or handle mechanis m. Rotat e t he lever.
Engage the retai ni ng t ang.3.
Inst all t he door l atch and t ighten the s crews .
T orque: 10 Nm 4.
Inst all t he door exterior handl e mechani s m.
5.
Pos it ion t he remot e control cable t o t he door.
6.
Inst all t he rear door ext erior handle.
7.

Refer t o:
Ext eri or Rear Door Handl e (501-14 Handl es, Locks , Latches
and Entry Syst ems , Removal and Inst all at ion).

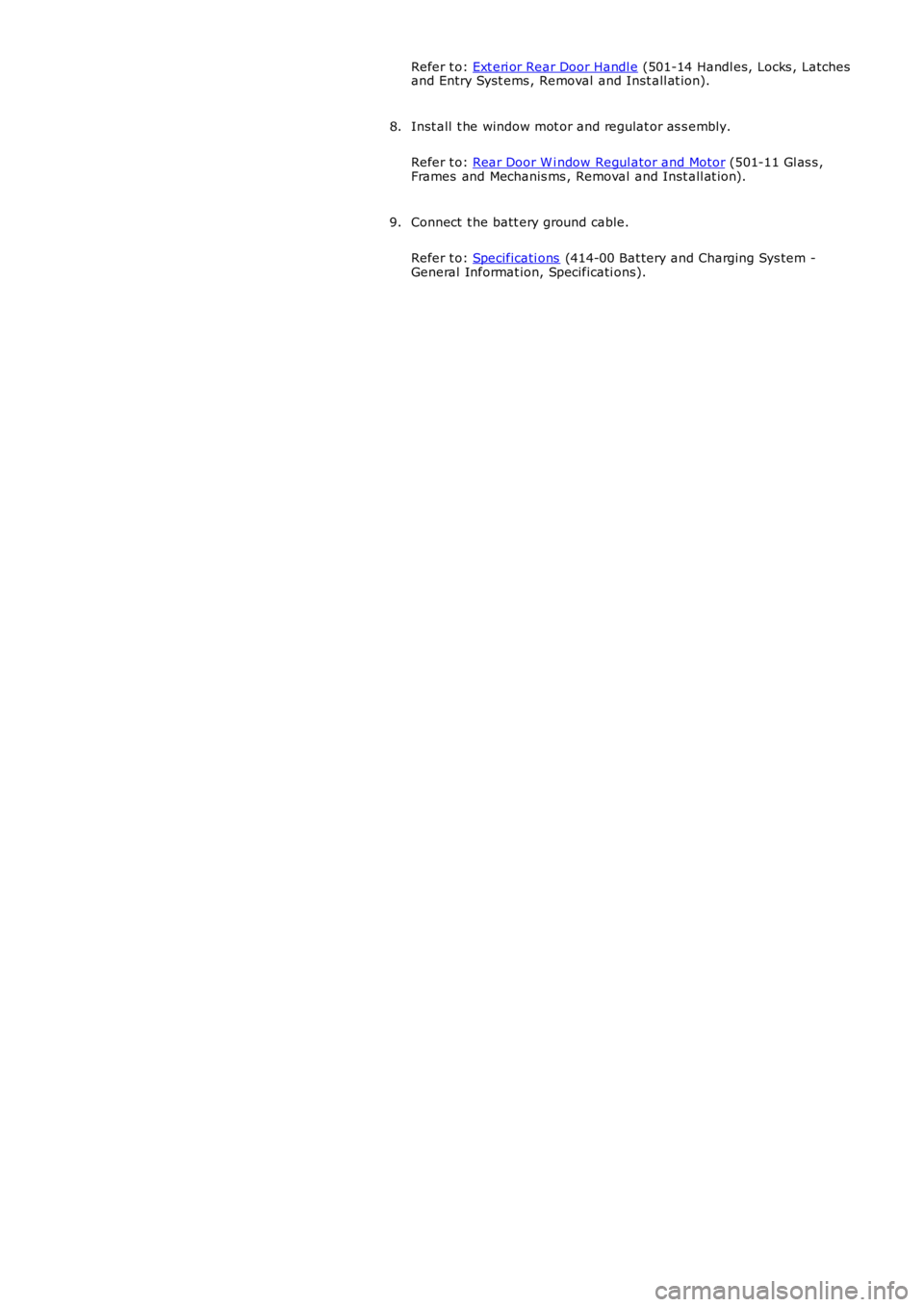

Inst all t he window mot or and regulat or as s embly.
Refer t o: Rear Door W i ndow Regul ator and Motor (501-11 Gl as s ,
Frames and Mechanis ms , Removal and Inst all at ion).
8.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
9.

Publi s hed: 11-May-2011

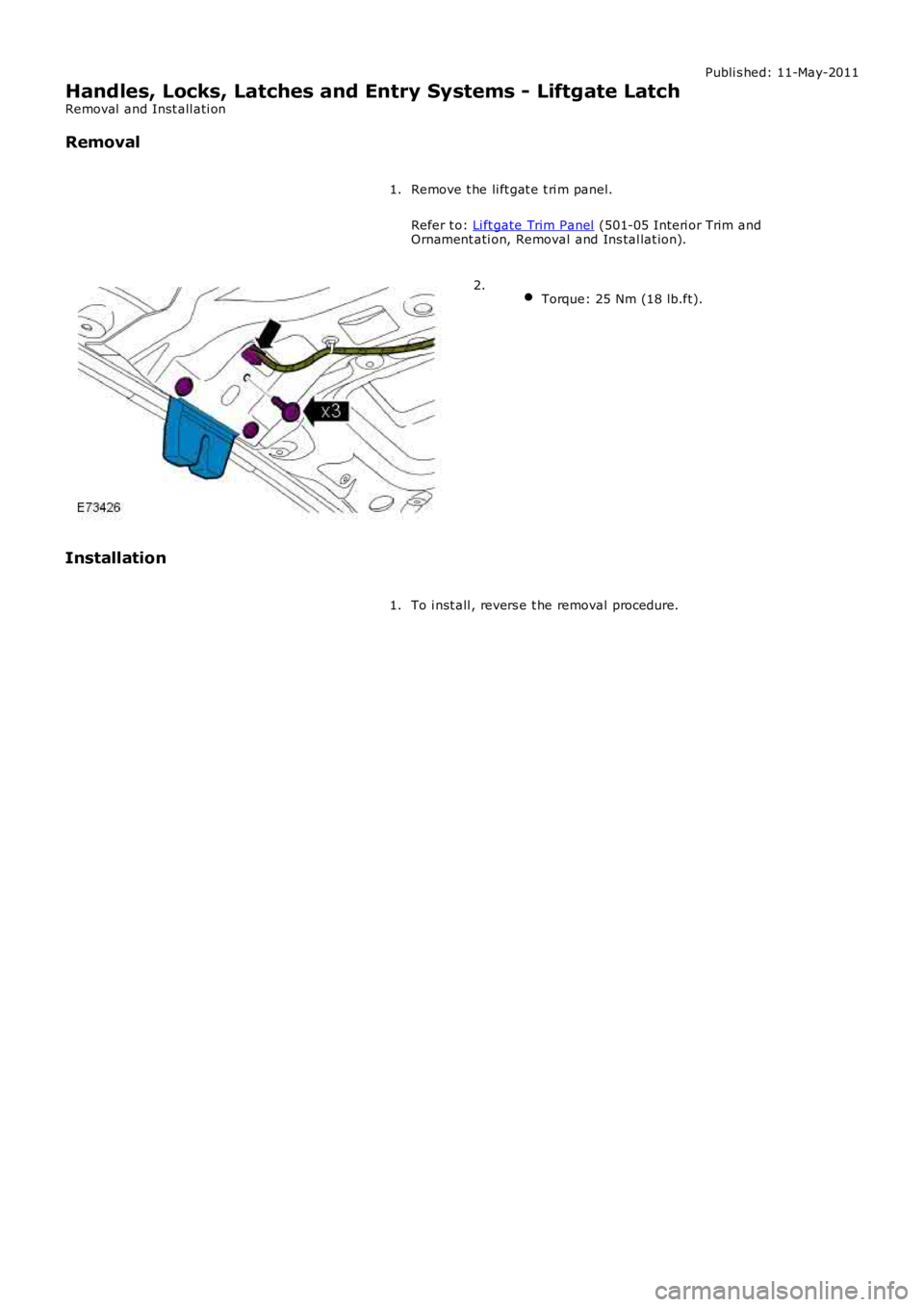

Handles, Locks, Latches and Entry Systems - Liftgate Latch
Removal and Inst all ati on
Removal
Remove t he li ft gat e t ri m panel.
Refer t o: Li ft gate Trim Panel (501-05 Interi or Trim andOrnament ati on, Removal and Ins tal lat ion).
1.
Torque: 25 Nm (18 lb.ft).2.
Installation
To i nst all , revers e t he removal procedure.1.

Publi s hed: 11-May-2011

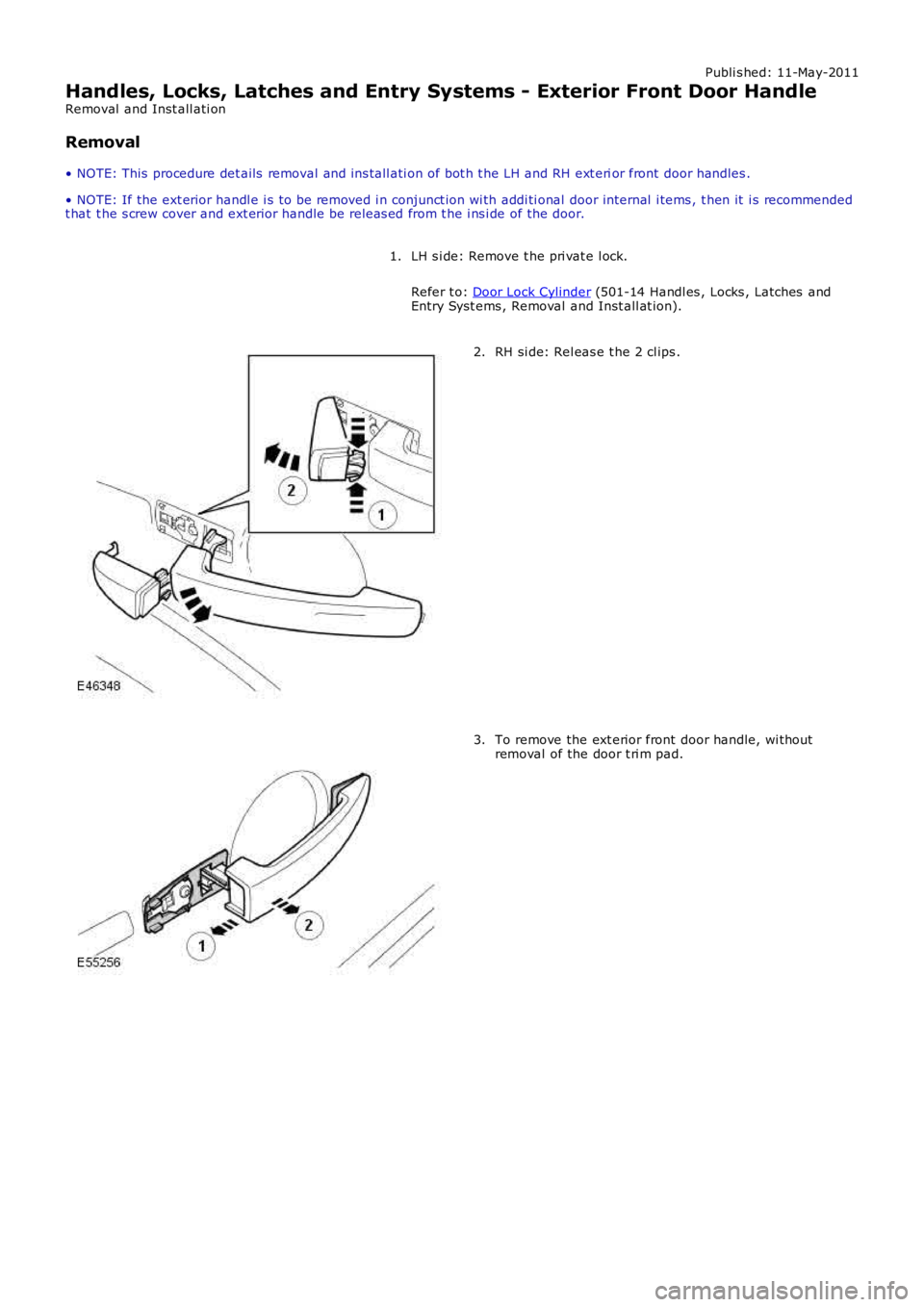

Handles, Locks, Latches and Entry Systems - Exterior Front Door Handle
Removal and Inst all ati on
Removal
• NOTE: This procedure det ails removal and ins tall ati on of bot h t he LH and RH ext erior front door handles .
• NOTE: If the ext erior handl e i s to be removed i n conjunct ion wi th addi ti onal door internal i tems , t hen it i s recommendedt hat t he s crew cover and ext erior handle be releas ed from t he i ns i de of the door.
LH s i de: Remove t he pri vat e l ock.
Refer t o: Door Lock Cylinder (501-14 Handl es , Locks , Latches andEntry Syst ems , Removal and Inst all at ion).
1.
RH si de: Rel eas e t he 2 cl ips .2.
To remove the ext erior front door handle, wi thoutremoval of the door t ri m pad.3.

To remove the ext erior front door handle, aft er removalof t he door t ri m pad and regul ator.4.
Installation
To i nst all , revers e t he removal procedure.1.
Us e a lengt h of cord to hol d the lock lever agai ns ts pri ng pres sure, while engaging t he outs i de handl e.2.
