Fig. 190: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CONNECT CONNECTOR
a. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
3.CHECK CAN BUS LINE FOR SHORT TO +B (CAN BUSES TO P-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

Fig. 191: Identifying CAN Main Bus Line Connector (J45)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).

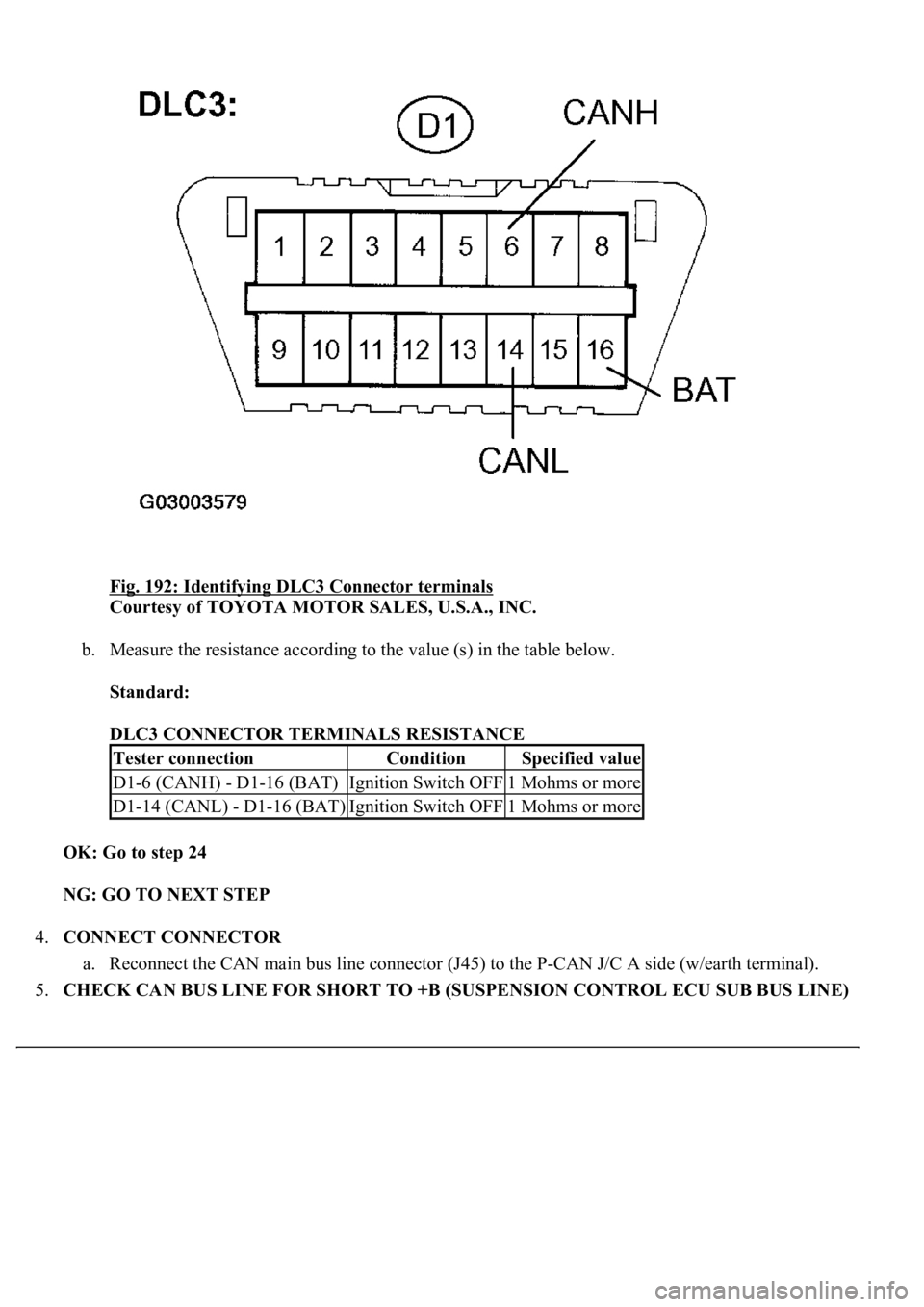

Fig. 192: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 24
NG: GO TO NEXT STEP
4.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
5.CHECK CAN BUS LINE FOR SHORT TO +B (SUSPENSION CONTROL ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

Fig. 193: Identifying Suspension Control ECU Sub Bus Line Connector (J38)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the suspension control ECU sub bus line connector (J38) from the D-CAN J/C A side
(w/earth terminal).

Fig. 194: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 14
NG: GO TO NEXT STEP
6.CONNECT CONNECTOR
a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side
(w/earth terminal).
7.CHECK CAN BUS LINE FOR SHORT TO +B (GATEWAY ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

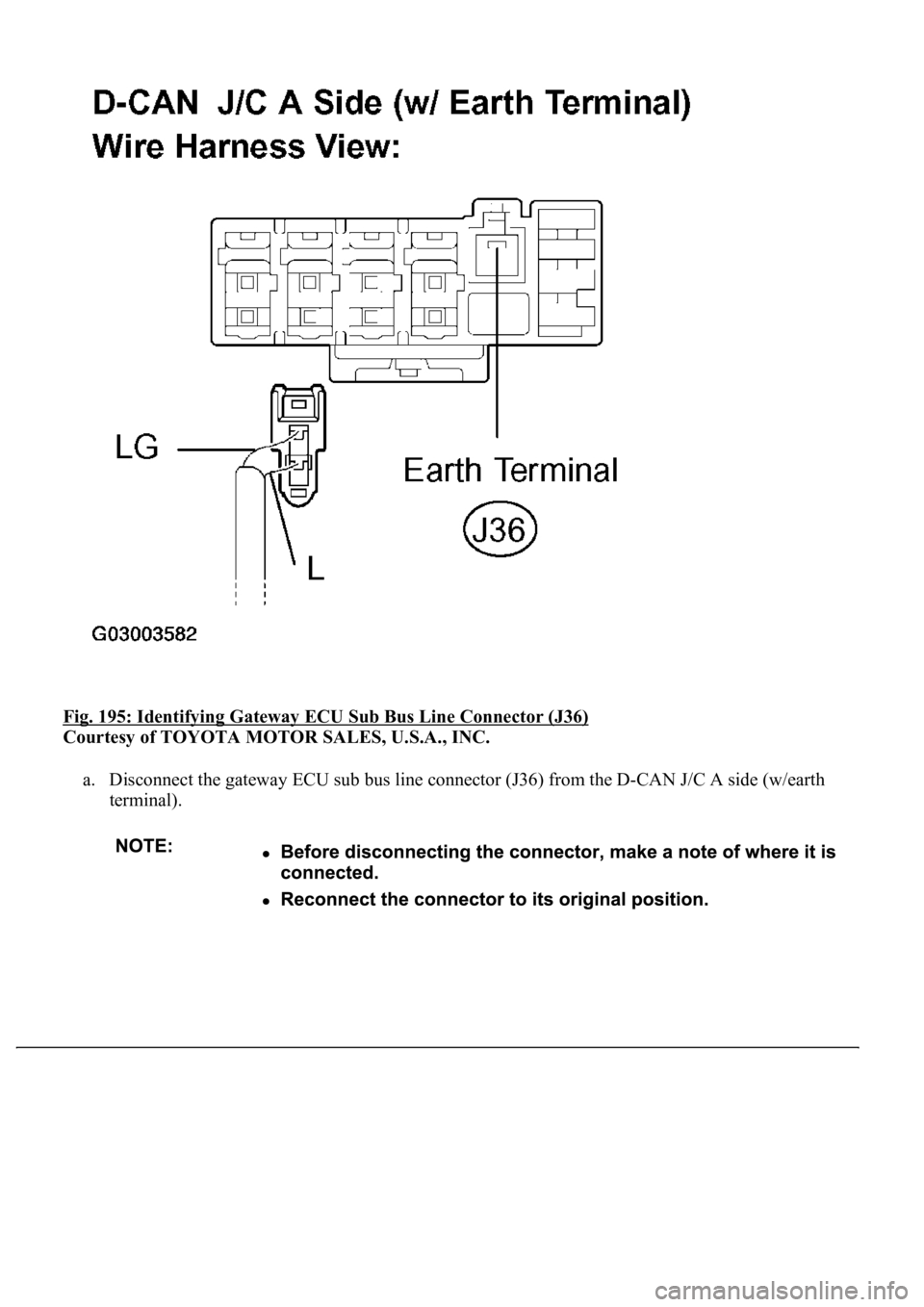

Fig. 195: Identifying Gateway ECU Sub Bus Line Connector (J36)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the gateway ECU sub bus line connector (J36) from the D-CAN J/C A side (w/earth
terminal).

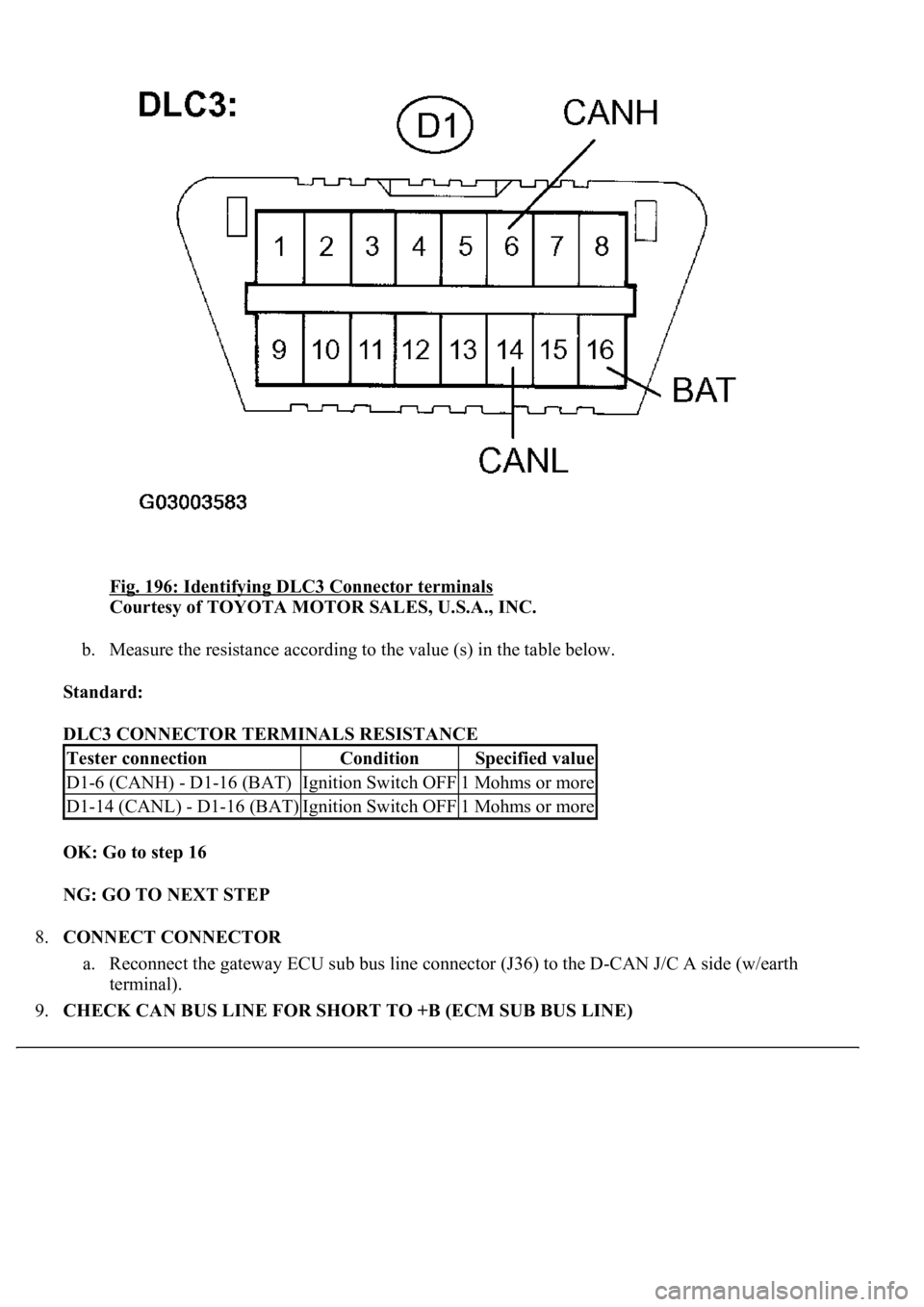

Fig. 196: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 16
NG: GO TO NEXT STEP
8.CONNECT CONNECTOR
a. Reconnect the gateway ECU sub bus line connector (J36) to the D-CAN J/C A side (w/earth
terminal).
9.CHECK CAN BUS LINE FOR SHORT TO +B (ECM SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

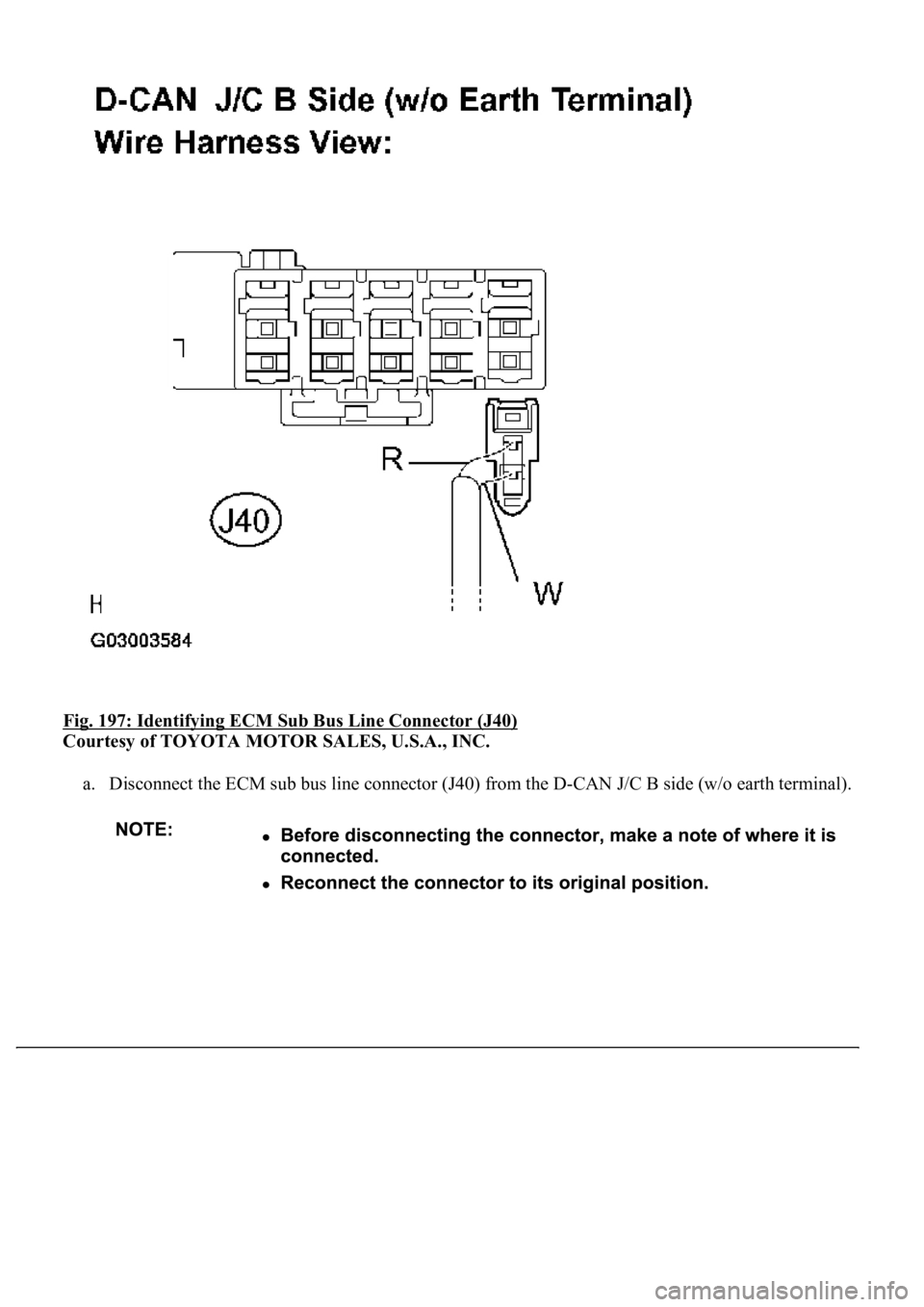

Fig. 197: Identifying ECM Sub Bus Line Connector (J40)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the ECM sub bus line connector (J40) from the D-CAN J/C B side (w/o earth terminal).

Fig. 198: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 18
NG: GO TO NEXT STEP
10.CONNECT CONNECTOR
a. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
11.CHECK CAN BUS LINE FOR SHORT TO +B (SKID CONTROL ECU WITH ACTUATOR SUB
BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

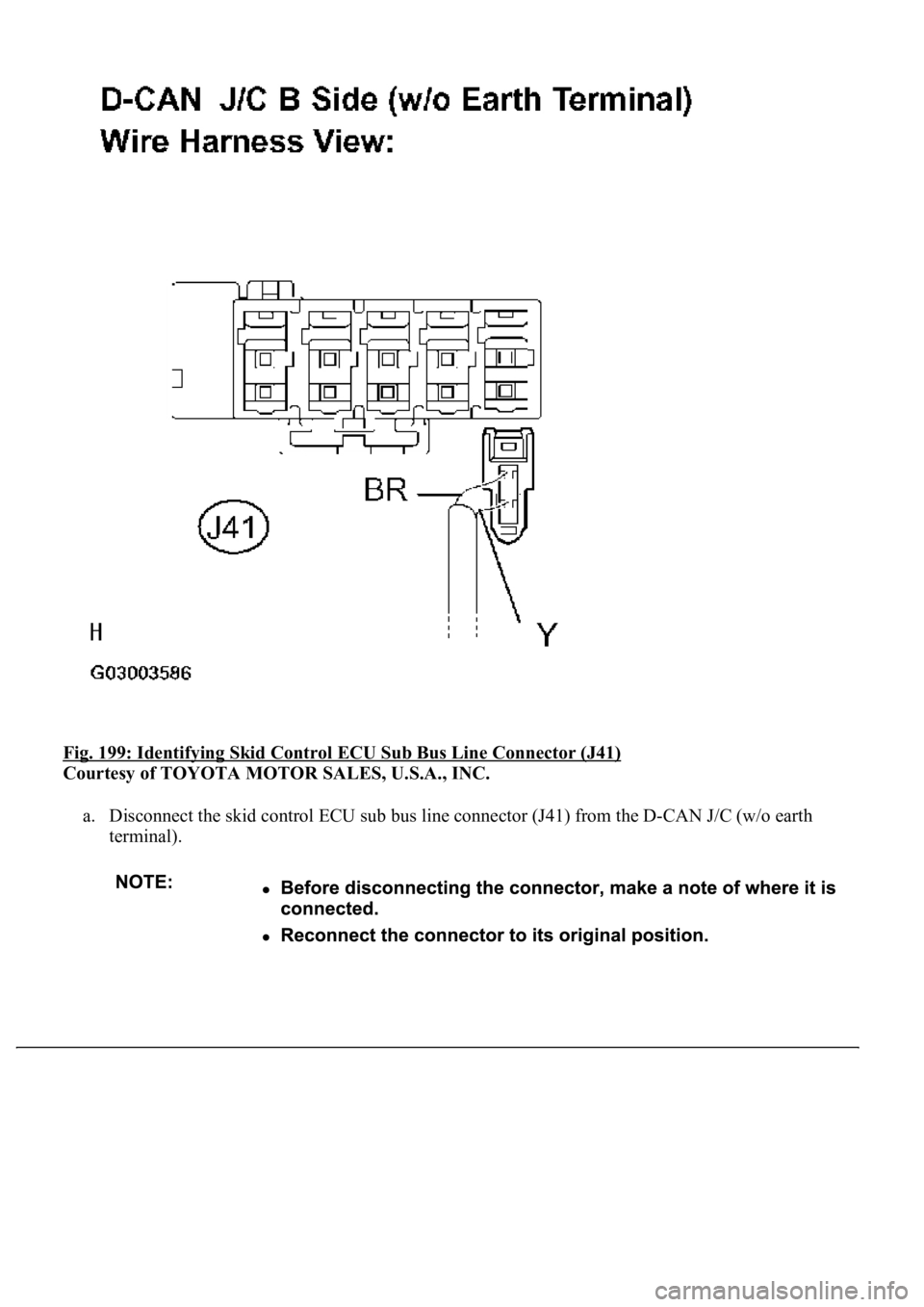

Fig. 199: Identifying Skid Control ECU Sub Bus Line Connector (J41)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the skid control ECU sub bus line connector (J41) from the D-CAN J/C (w/o earth
terminal).
