32.CONNECT CONNECTOR
a. Reconnect the yaw rate sensor sub bus line connector (J44) to the P-CAN J/C A side (w/earth
terminal).
33.CHECK CAN BUS LINES FOR SHORT CIRCUIT (YAW RATE SENSOR SUB BUS LINE)
Fig. 151: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the yaw rate sensor connector (Y1).
b. Measure the resistance according to the value (s) in the table below.
Standard:
YAW RATE SENSOR CONNECTOR TERMINALS RESISTANCE
OK: REPLACE YAW RATE SENSOR (SEE REPLACEMENT
)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

NG: REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H,
CAN-L)
CIRCUIT DESCRIPTION
There may be a short circuit between the CAN bus line and +B when there is resistance between terminals 6
(CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.
Fig. 152: Problem Symptom Diagnostic Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM

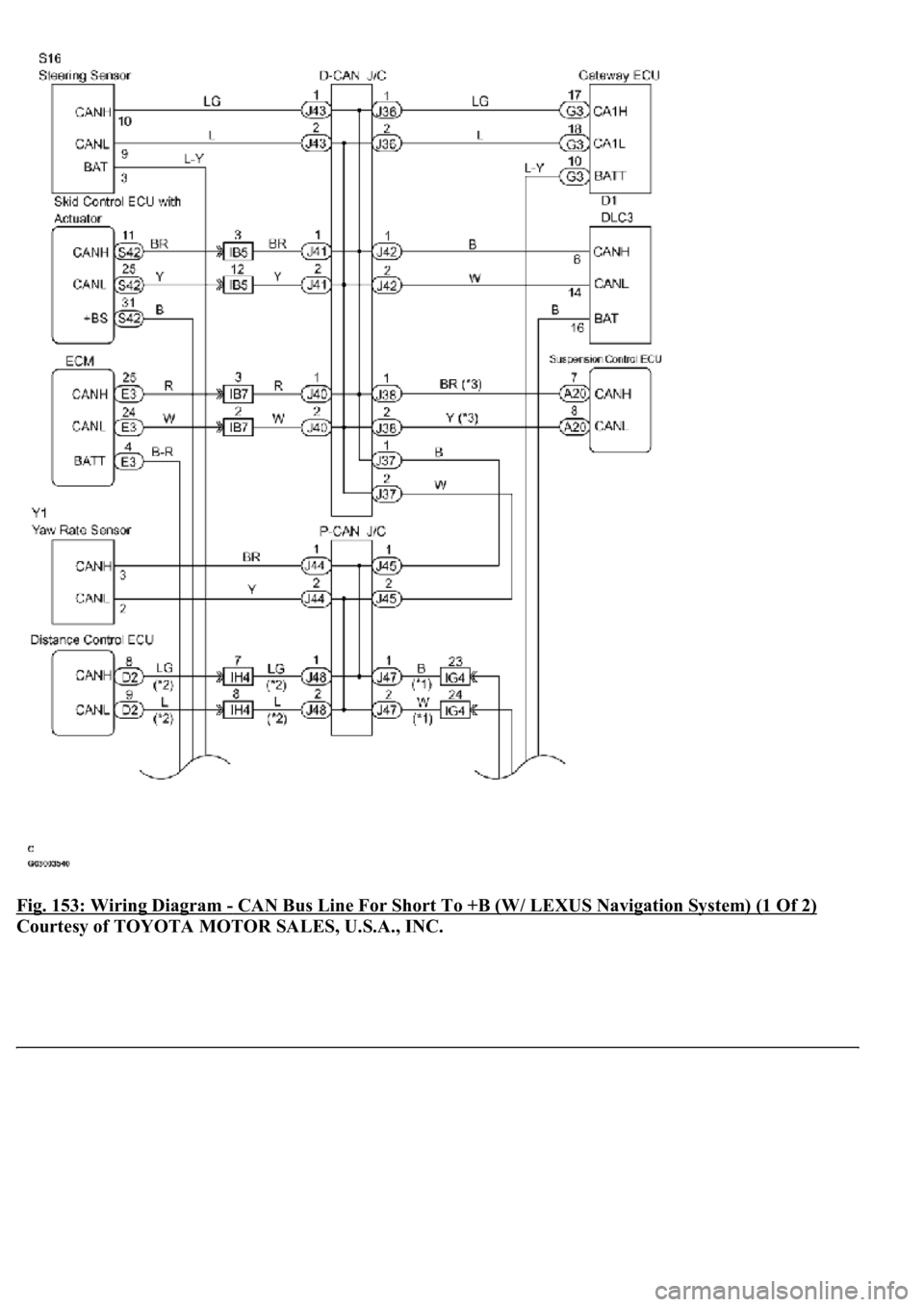

Fig. 153: Wiring Diagram - CAN Bus Line For Short To +B (W/ LEXUS Navigation System) (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

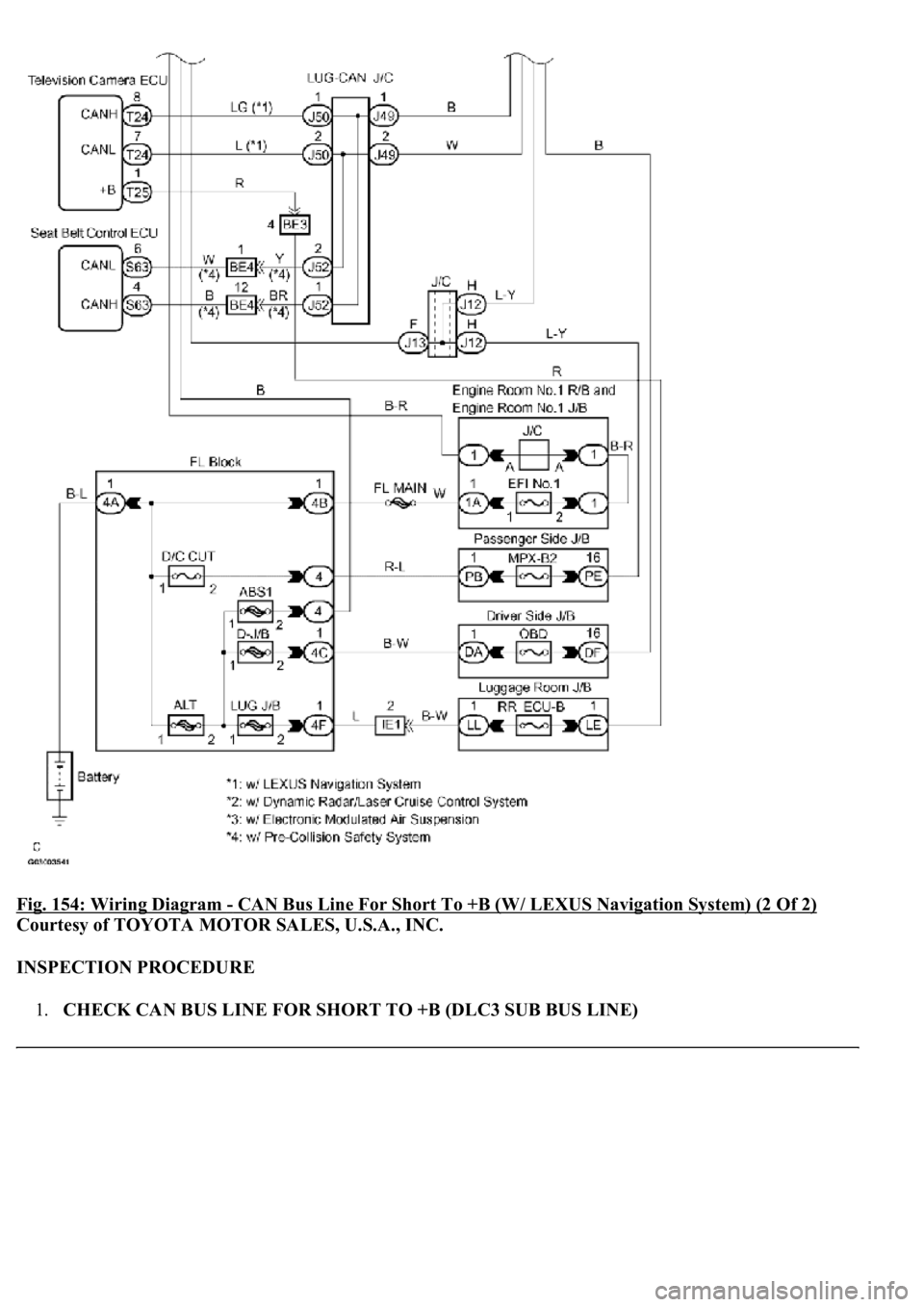

Fig. 154: Wiring Diagram - CAN Bus Line For Short To +B (W/ LEXUS Navigation System) (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINE FOR SHORT TO +B (DLC3 SUB BUS LINE)

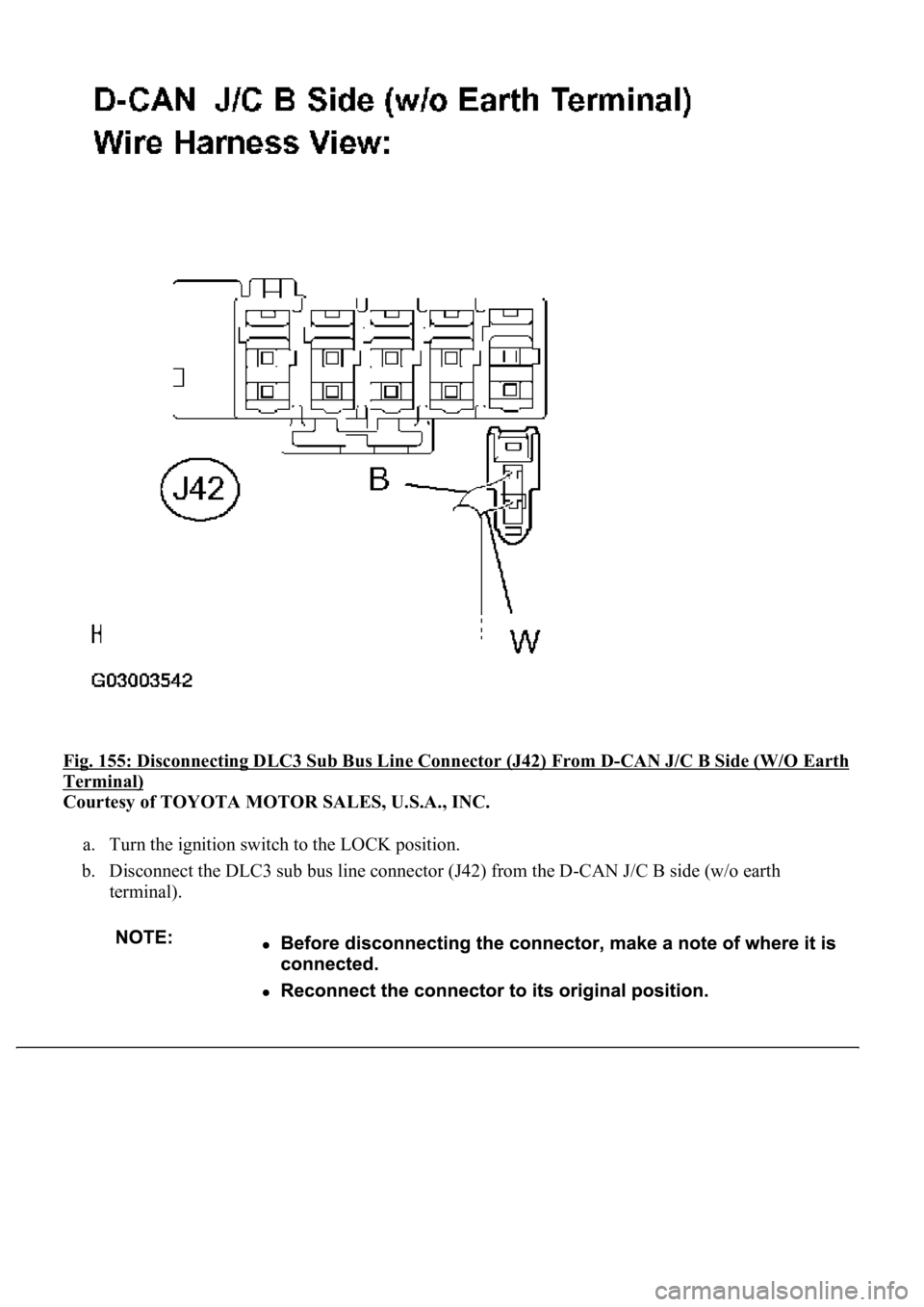

Fig. 155: Disconnecting DLC3 Sub Bus Line Connector (J42) From D-CAN J/C B Side (W/O Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the DLC3 sub bus line connector (J42) from the D-CAN J/C B side (w/o earth
terminal).

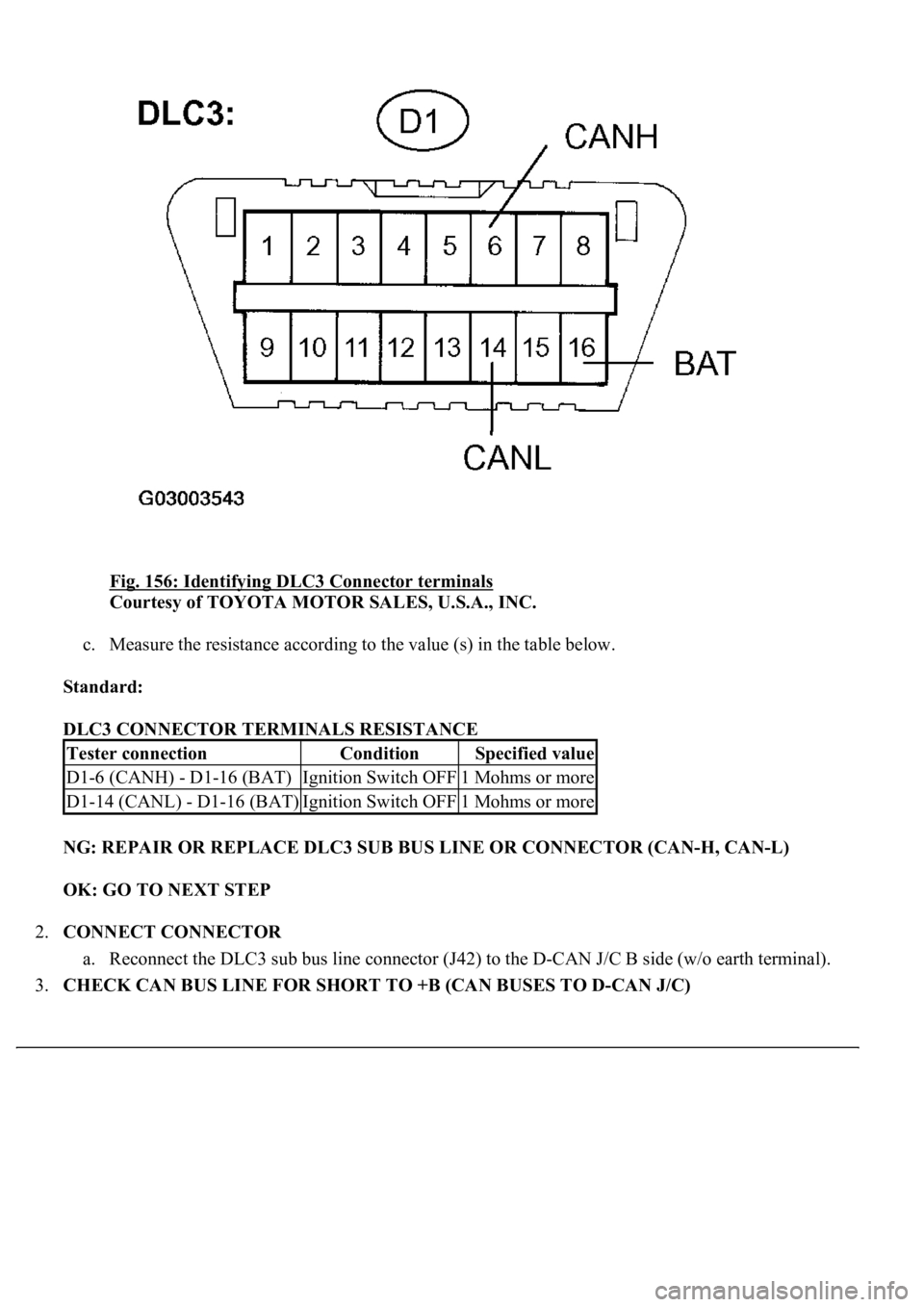

Fig. 156: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CONNECT CONNECTOR
a. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
3.CHECK CAN BUS LINE FOR SHORT TO +B (CAN BUSES TO D-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

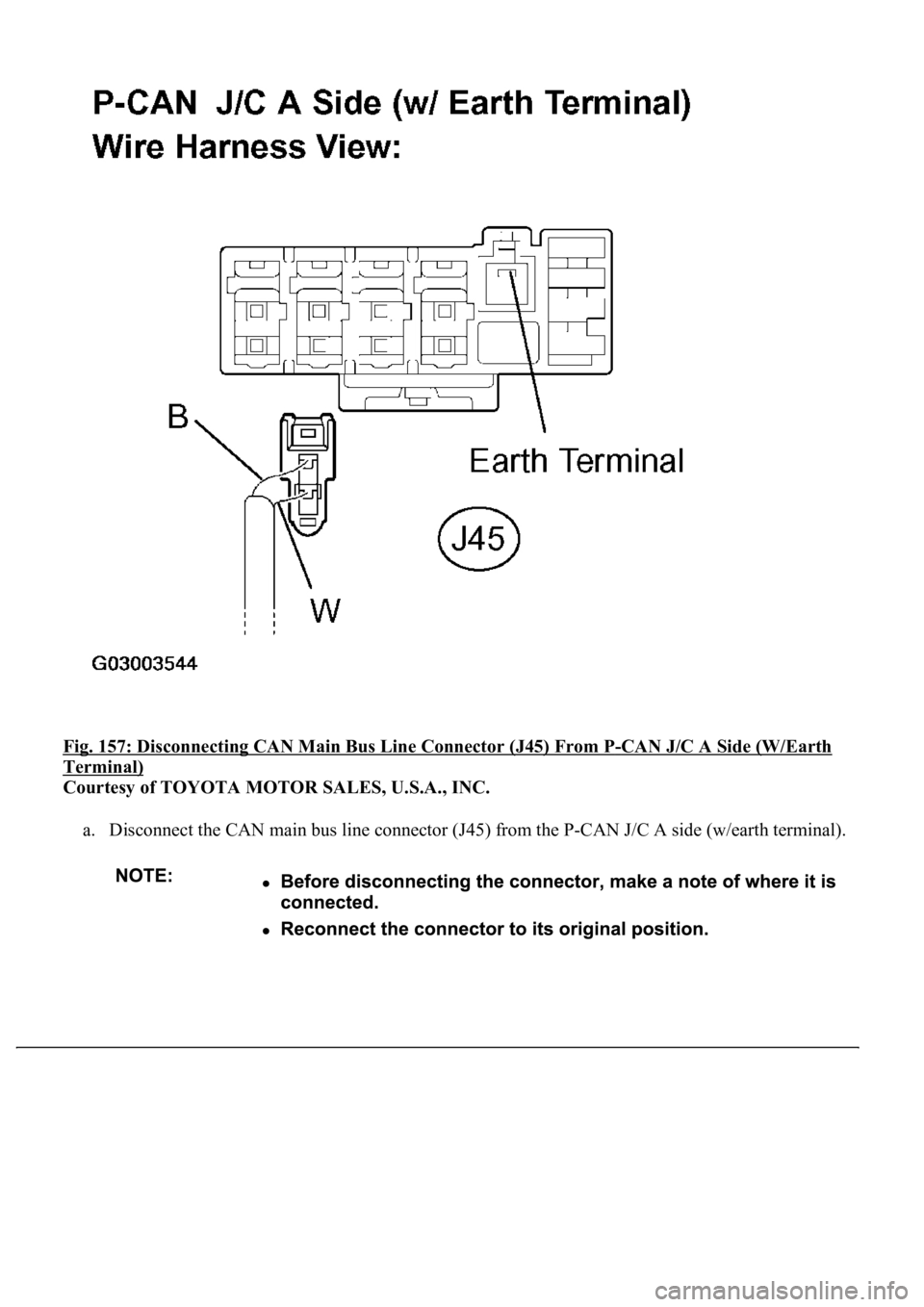

Fig. 157: Disconnecting CAN Main Bus Line Connector (J45) From P-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).

Fig. 158: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 24
NG: GO TO NEXT STEP
4.CONNECT CONNECTOR
a. Reconnect the CAN main bus line connector (J45) to the P-CAN J/C A side (w/earth terminal).
5.CHECK CAN BUS LINE FOR SHORT TO +B (SUSPENSION CONTROL ECU SUB BUS LINE)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more

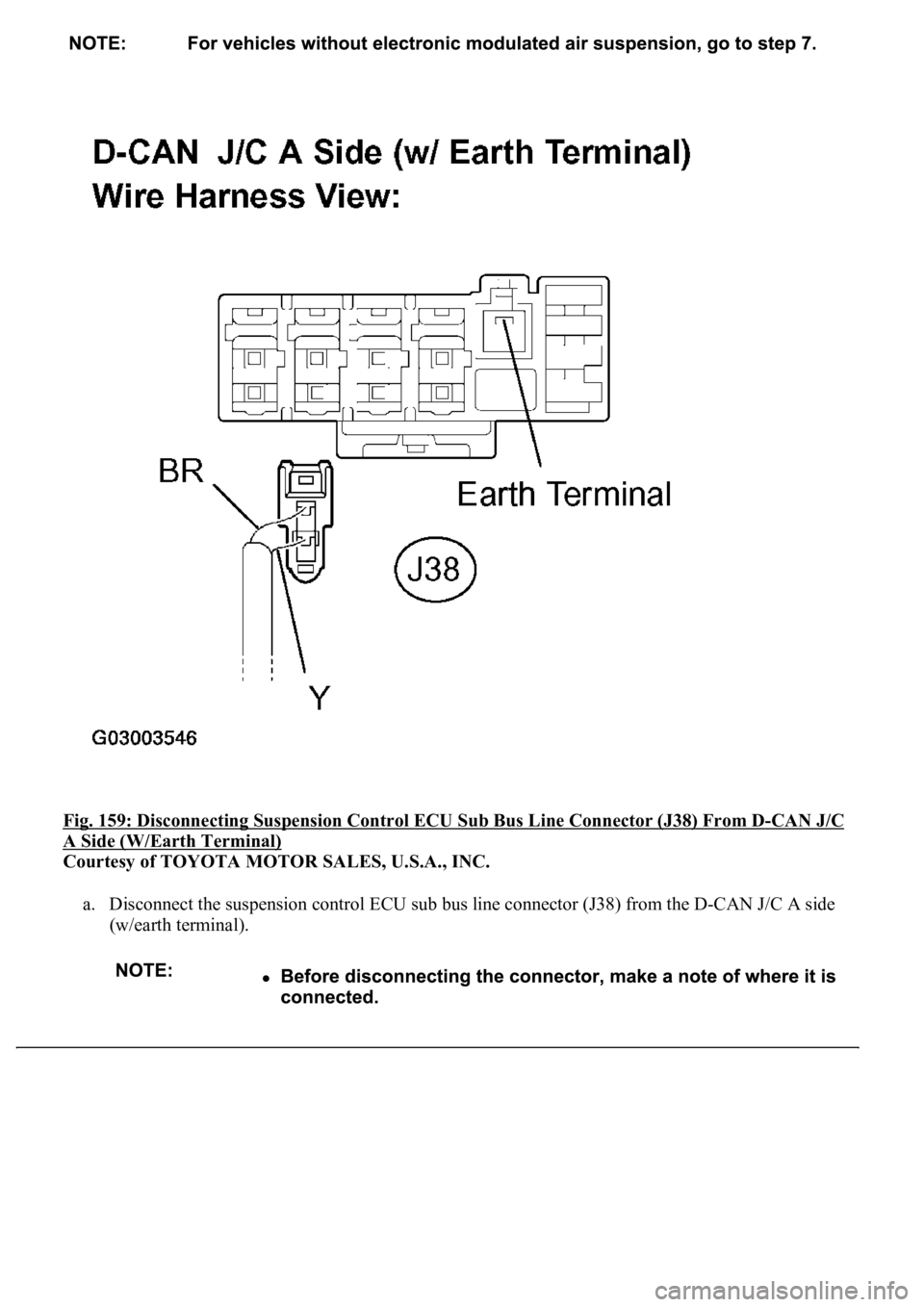

Fig. 159: Disconnecting Suspension Control ECU Sub Bus Line Connector (J38) From D-CAN J/C
A Side (W/Earth Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the suspension control ECU sub bus line connector (J38) from the D-CAN J/C A side
(w/earth terminal).

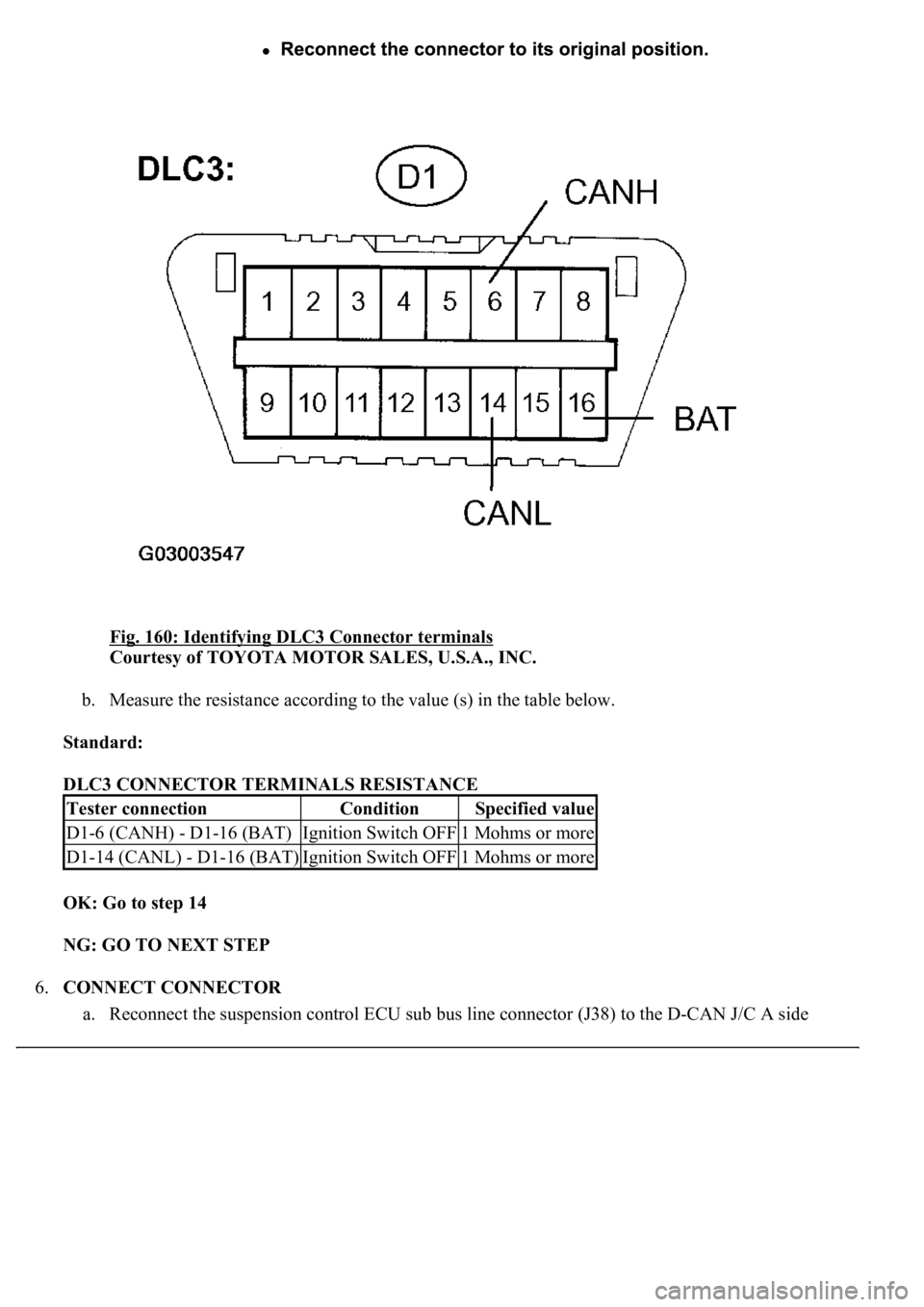

Fig. 160: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 14
NG: GO TO NEXT STEP
6.CONNECT CONNECTOR
a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
D1-14 (CANL) - D1-16 (BAT)Ignition Switch OFF1 Mohms or more
