clearing and reading the sensor calibration data are necessary.
b. Follow the chart to perform calibration.
Fig. 14: VSC Relevant Components Description

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 15: Connecting Hand
-Held Tester To DLC3 (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.CLEAR ZERO POINT CALIBRATION
a. Clearing the DTCs.
1. Connect the han
d-held tester to the DLC3.

2. Turn the ignition switch to the ON position.
3. Operate the hand-held tester to erase the codes.
HINT:
Refer to the hand-held tester operator's manual for further details.
Check if "VSC" is displayed on the multi-information display.
3.PERFORM ZERO POINT CALIBRATION OF YAW RATE SENSOR AND DECELERATION
SENSOR
a. Check that the steering wheel is in the straight-ahead position and move the shift lever to the P
position.
b. Connect the hand-held tester to the DLC3.
c. Turn the ignition switch to the ON position.
d. Operate the hand-held tester to test mode.
e. Obtain the zero point of the yaw rate sensor and deceleration sensor:
1. Keep the vehicle in the stationar
y condition on a level surface for 2 seconds or more.

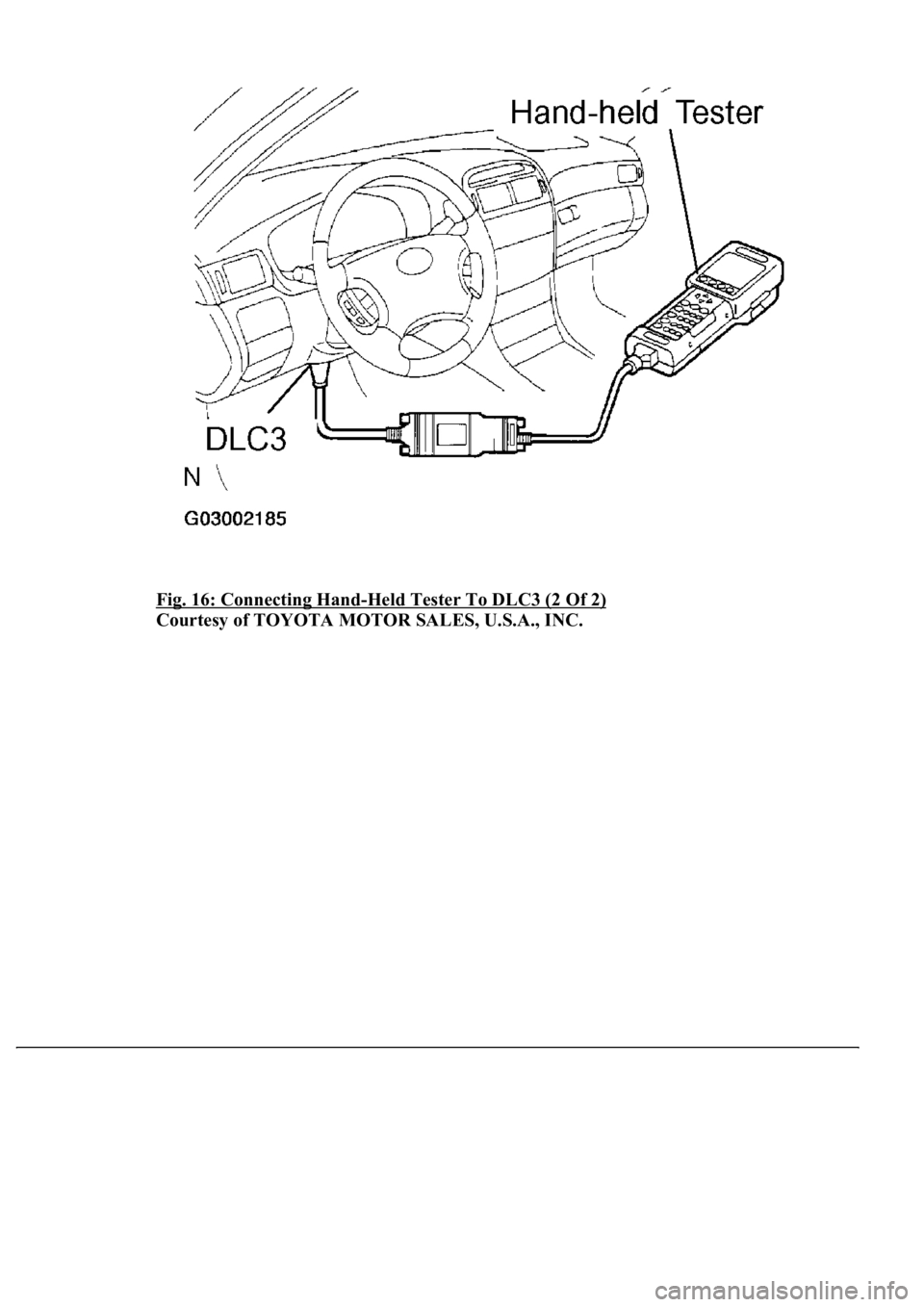

Fig. 16: Connecting Hand-Held Tester To DLC3 (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

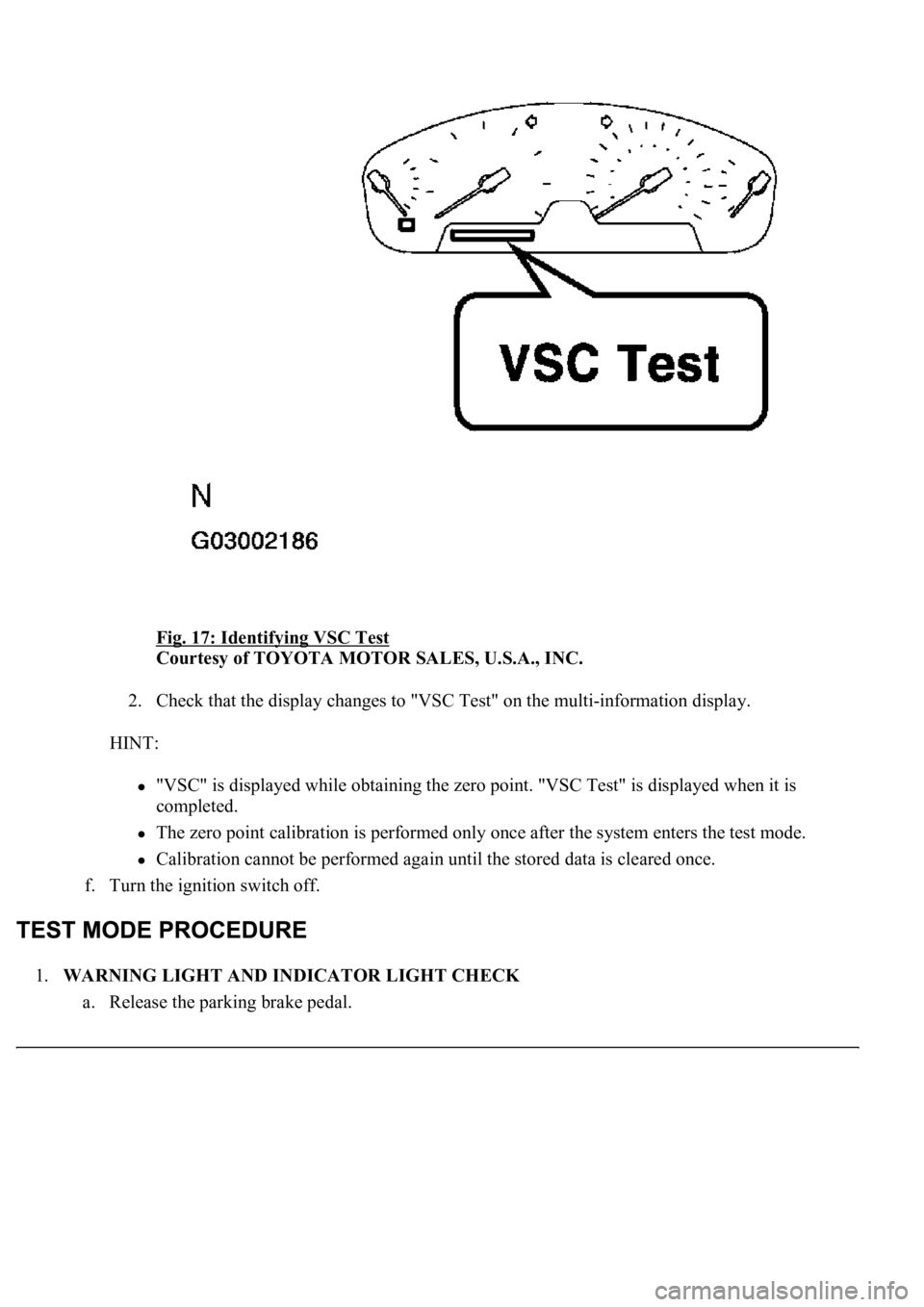

Fig. 17: Identifying VSC Test
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Check that the display changes to "VSC Test" on the multi-information display.
HINT:
"VSC" is displayed while obtaining the zero point. "VSC Test" is displayed when it is
completed.
The zero point calibration is performed only once after the system enters the test mode.
Calibration cannot be performed again until the stored data is cleared once.
f. Turn the ignition switch off.

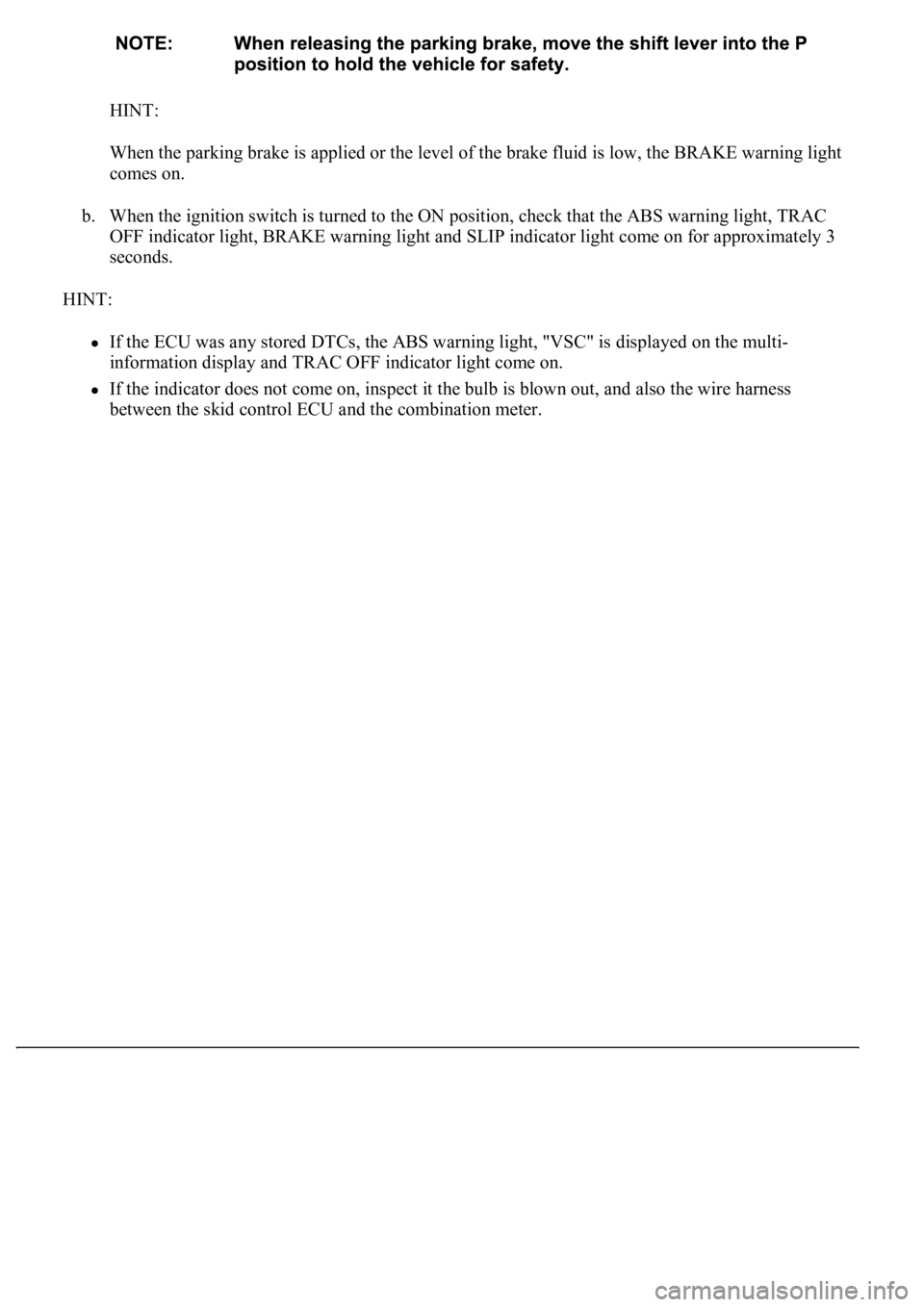

1.WARNING LIGHT AND INDICATOR LIGHT CHECK
a. Release the parking brake pedal.

HINT:
<003a004b0048005100030057004b00480003005300440055004e004c0051004a0003004500550044004e00480003004c00560003004400530053004f004c0048004700030052005500030057004b00480003004f004800590048004f000300520049000300
57004b00480003004500550044004e004800030049004f0058[id is low, the BRAKE warning light
comes on.
b. When the ignition switch is turned to the ON position, check that the ABS warning light, TRAC
OFF indicator light, BRAKE warning light and SLIP indicator light come on for approximately 3
seconds.
HINT:
If the ECU was any stored DTCs, the ABS warning light, "VSC" is displayed on the multi-
information display and TRAC OFF indicator light come on.
If the indicator does not come on, inspect it the bulb is blown out, and also the wire harness
between the skid control ECU and the combination meter.

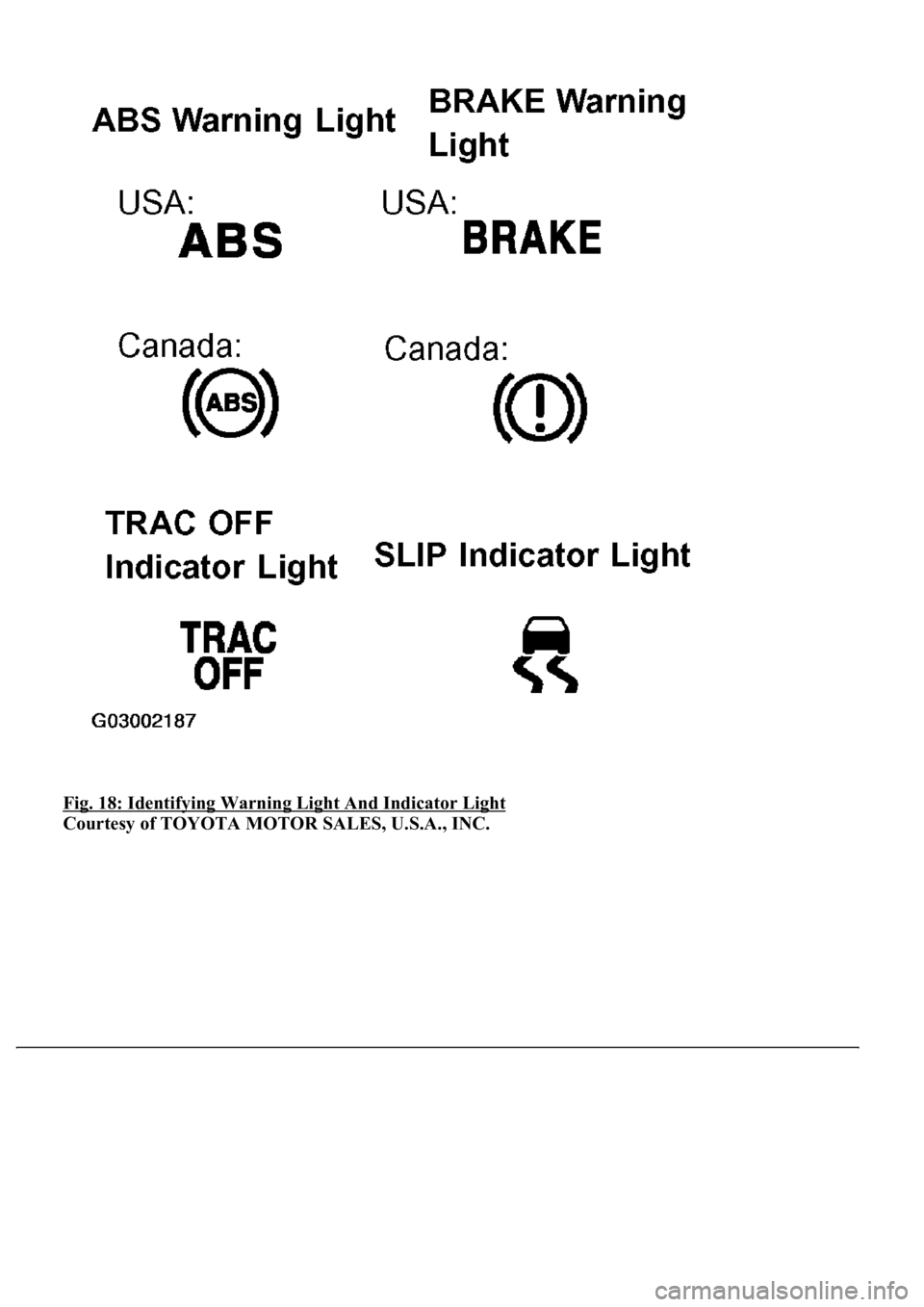

Fig. 18: Identifying Warning Light And Indicator Light
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 19: Identifying VSC Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
If the indicator remains on, proceed to troubleshooting for the light circuit below.
TROUBLE AREA REFERENCE
2.SENSOR SIGNAL CHECK BY TEST MODE
HINT:
If the ignition switch is turned from ON to the ACC or LOCK position during test mode, DTC of
Trouble areaSee Procedure
ABS warning light circuitABS WARNING LIGHT CIRCUIT (REMAINS ON)
BRAKE warning light circuitBRAKE WARNING LIGHT CIRCUIT
TRAC OFF indicator light
circuitTRAC OFF INDICATOR LIGHT, TRAC OFF SWITCH
CIRCUIT
SLIP indicator light circuitSLIP INDICATOR LIGHT CIRCUIT

sensor check function will be erased.
<002700580055004c0051004a0003005700480056005700030050005200470048000f00030028002600380003005500480046005200550047005600030044004f004f0003002700370026000300520049000300560048005100560052005500030046004b00
480046004e000300490058005100460057004c005200510011[ By preforming sensor signal
check, the codes are erased if normality is confirmed. The codes left over are the codes where
abnormality was found.
a. PROCEDURES FOR TEST MODE
1. Turn the ignition switch off.
2. Connect the hand-held tester to the DLC3.
3. Check that the steering wheel is in the straight-ahead position and move the shift lever to the
P position.
4. Turn the ignition switch to the ON position.
Fig. 20: Connecting Hand
-Held Tester To DLC3
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 21: ABS Warning Light Blinking Pattern
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5. Check that the ABS warning light blinking TEST MODE and "VSC Test" is displayed on the
multi-information display.
HINT:
If the ABS warning light and VSC information do not blink, inspect the ABS warning light
circuit and VSC warning information circuit.
TROUBLE AREA REFERENCE
6. Start the engine.
b. DECELERATION SENSOR CHECK
1. Check that the ABS warning lamp is blinking in TEST MODE.
2. Keep the vehicle in the stationar
y<00030046005200510047004c0057004c00520051000300520051000300440003004f004800590048004f0003005600580055004900440046004800030049005200550003001400030056004800460052005100470003005200550003005000520055004800
110003[
Trouble areaSee Procedure
ABS warning light circuitABS WARNING LIGHT CIRCUIT (DOES NOT
LIGHT UP)
VSC warning information
circuitVSC WARNING LIGHT CIRCUIT (DOES NOT
LIGHT UP)

HINT:
The blinking pattern of the ABS warning lamp and the "VSC Test" display on the multi-
information do not change. When the sensor is normal and in the test mode, if the above conditions
are met, the check is completed.
Fig. 22: Identifying VSC Test Location

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. CHECK THE MASTER CYLINDER PRESSURE SENSOR
1. Leaving the vehicle in a stationary condition engine is off and the brake pedal in a free
condition for 1 second. or more, continue to quickly depress the brake pedal with a force of
98 N (10 kgf, 22 lbf) or more for 1 second, or more.
HINT:
At this time, the ABS warnin
g light stays on for 3 seconds.
