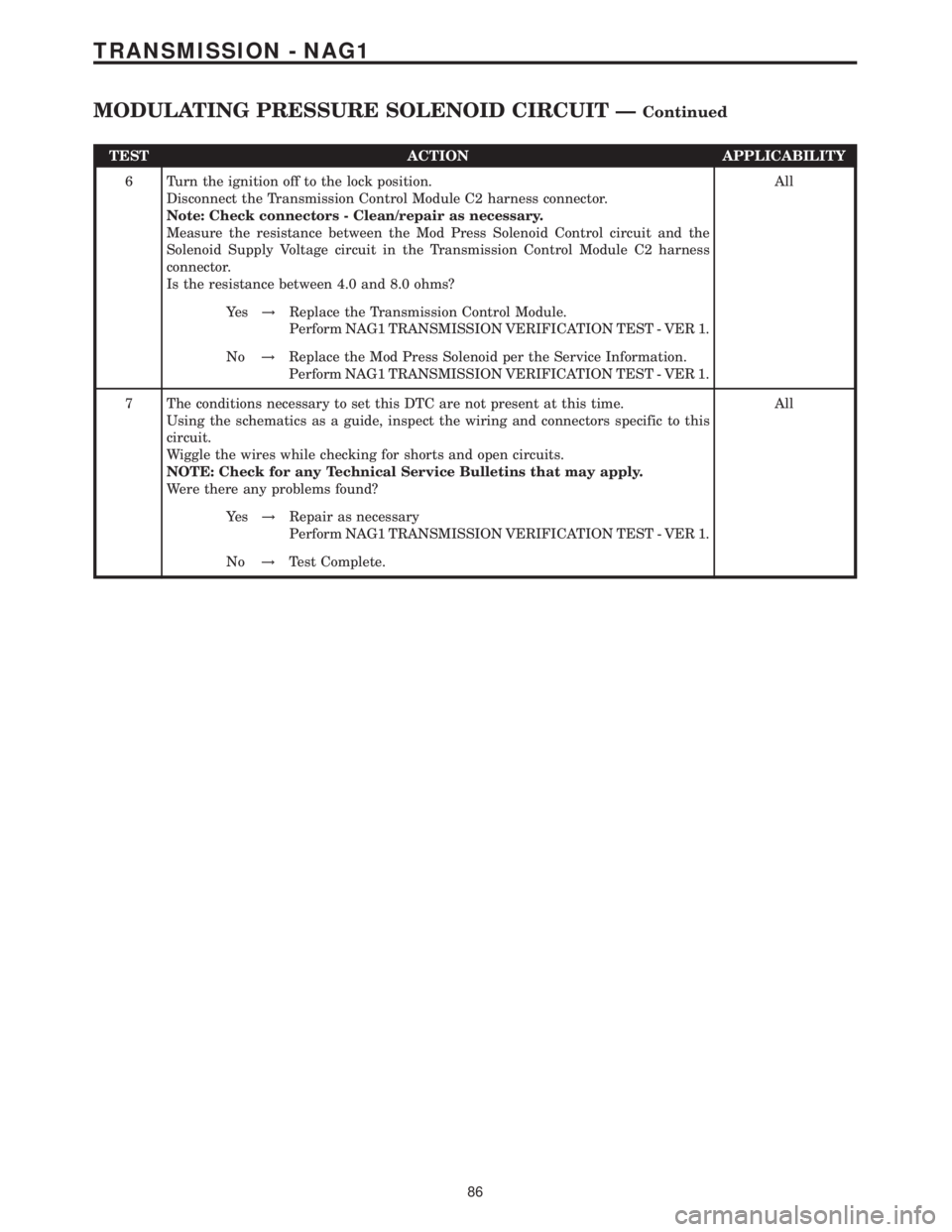

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
6 Turn the ignition off to the lock position.
Disconnect the Transmission Control Module C2 harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the

Page 2252 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual Symptom:
N2 INPUT SPEED SENSOR CIRCUIT
When Monitored and Set Condition:
N2 INPUT SPEED SENSOR CIRCUIT
When Monitored: Engine speed greater than 450 rpm, no engine speed DTCs, no TCM
under-voltage sy

Page 2253 of 2305

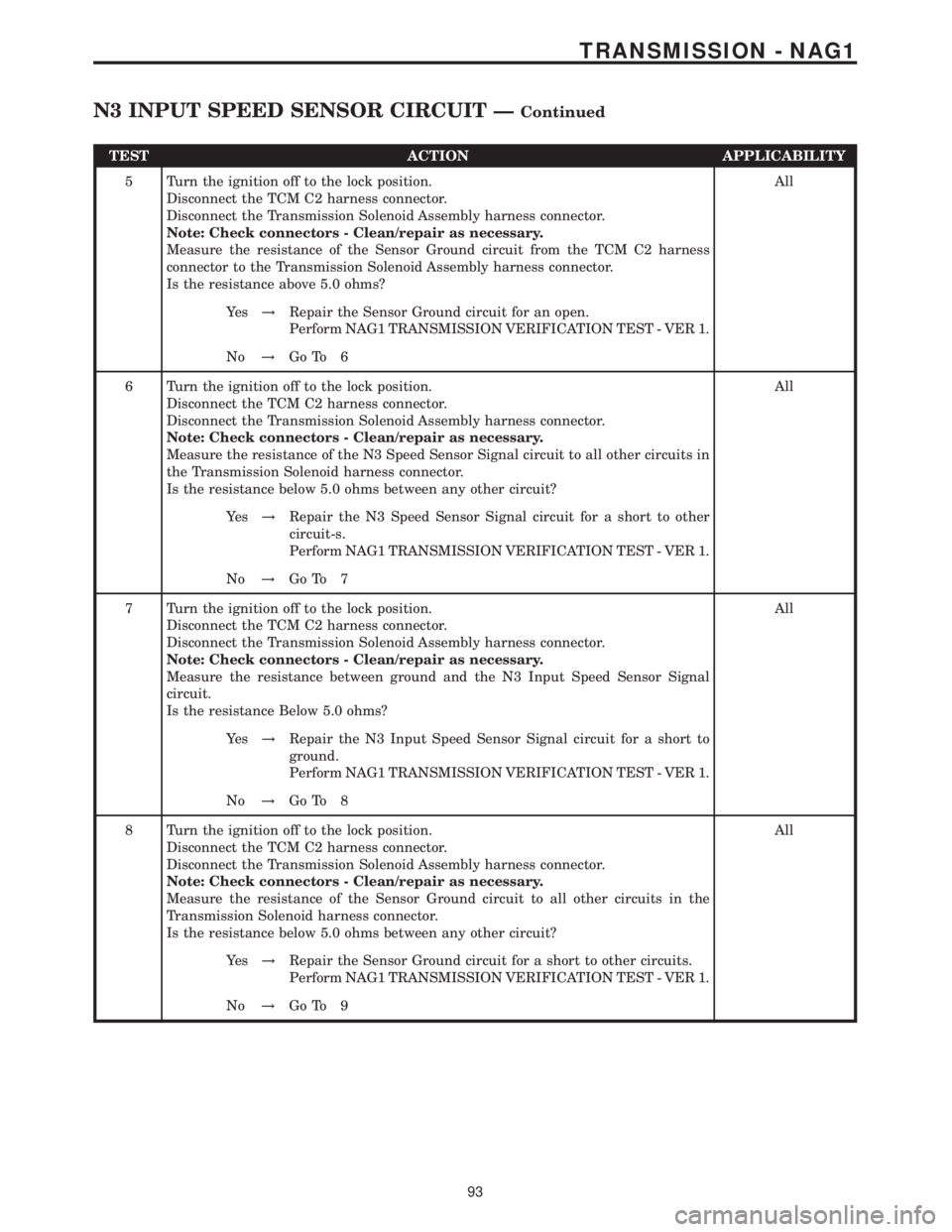

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the serv

Page 2254 of 2305

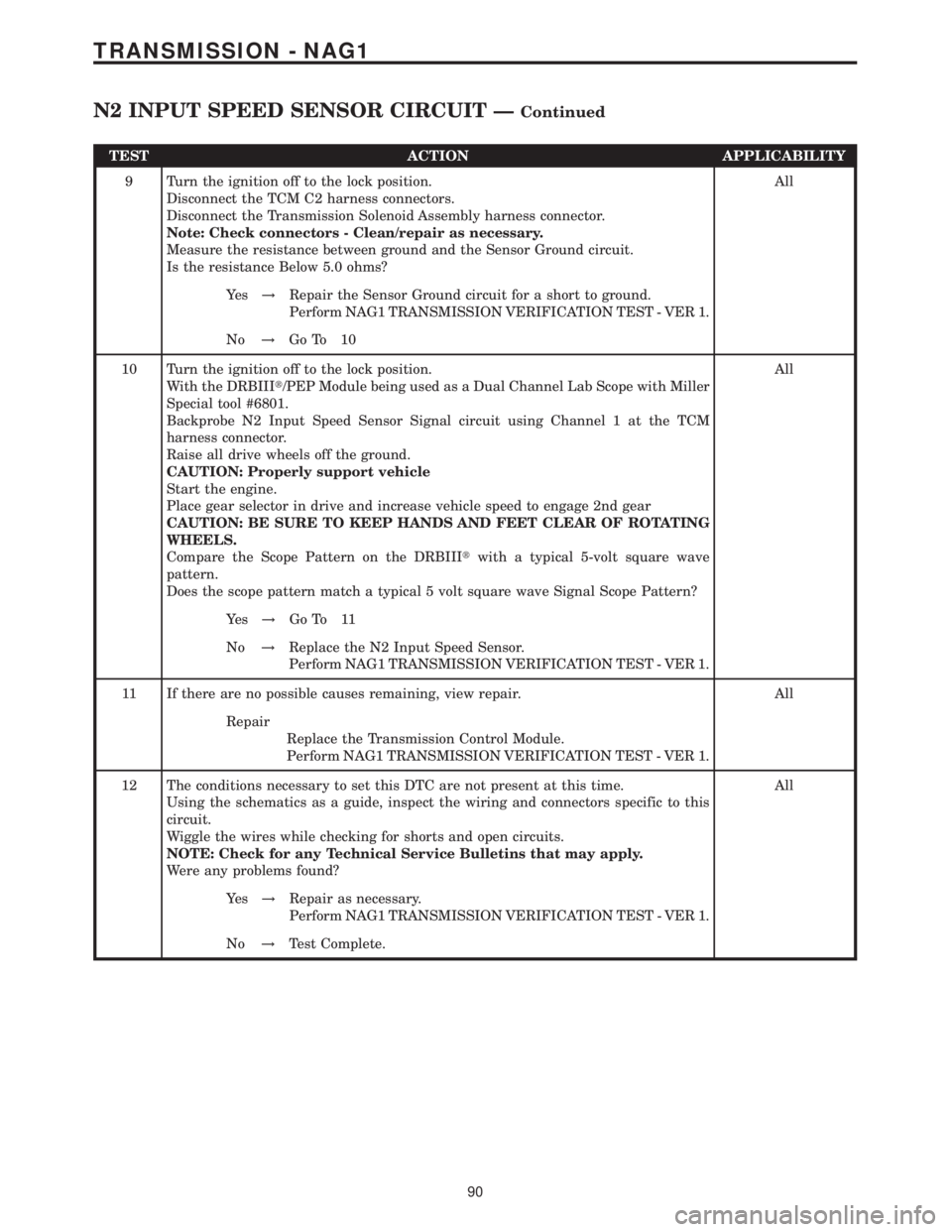

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
5 Turn the ignition off to the lock position.
Disconnect the TCM C2 harness connectors.
Disconnect the Transmission Solenoid Assembly harness connector.
Note: Check connector

Page 2255 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
9 Turn the ignition off to the lock position.
Disconnect the TCM C2 harness connectors.
Disconnect the Transmission Solenoid Assembly harness connector.
Note: Check connector

Page 2256 of 2305

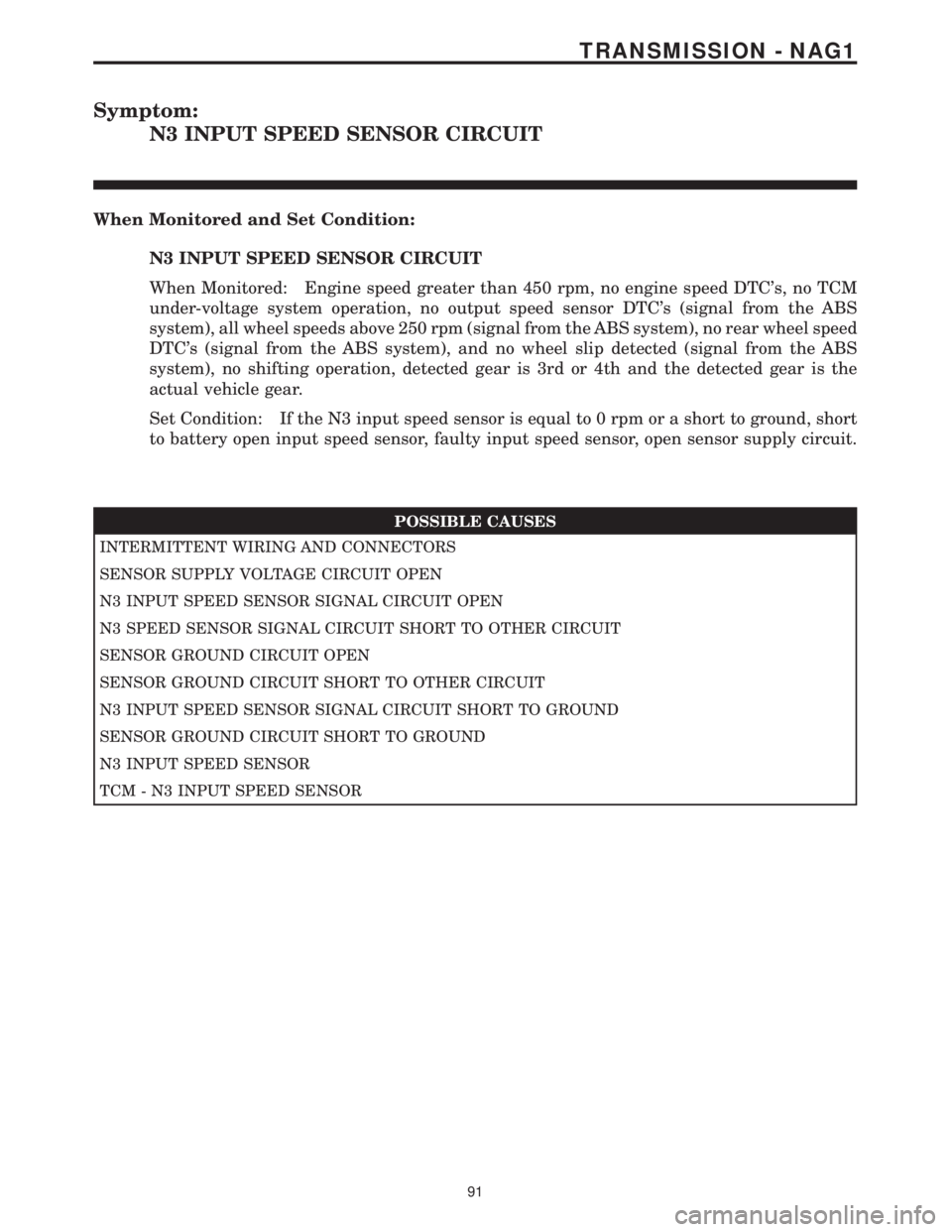

MERCEDES-BENZ SPRINTER 2006  Service Manual Symptom:
N3 INPUT SPEED SENSOR CIRCUIT
When Monitored and Set Condition:
N3 INPUT SPEED SENSOR CIRCUIT
When Monitored: Engine speed greater than 450 rpm, no engine speed DTCs, no TCM
under-voltage sy

Page 2257 of 2305

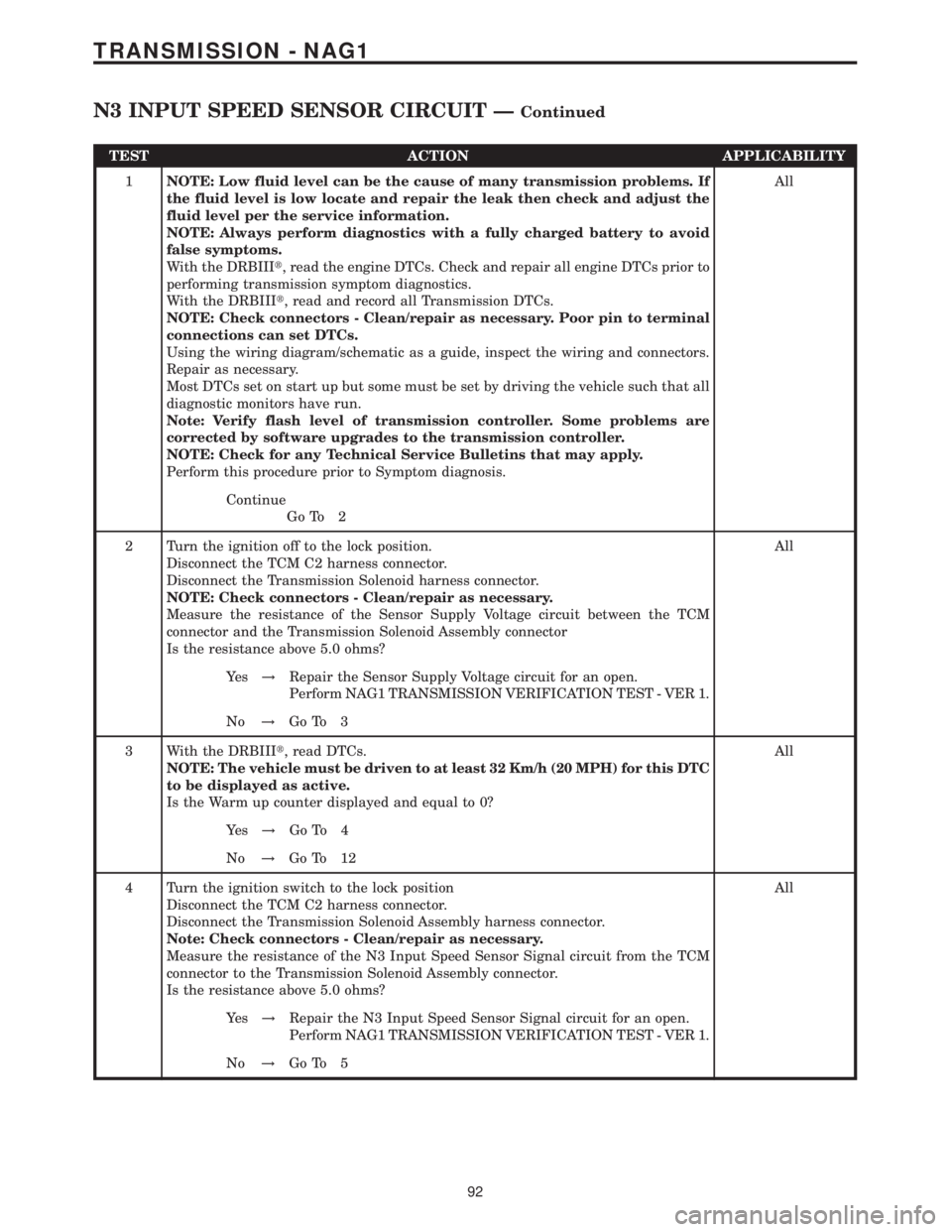

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the serv

Page 2258 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
5 Turn the ignition off to the lock position.
Disconnect the TCM C2 harness connector.
Disconnect the Transmission Solenoid Assembly harness connector.
Note: Check connectors

Page 2259 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual TEST ACTION APPLICABILITY
9 Turn the ignition off to the lock position.
Disconnect the TCM C2 harness connectors.
Disconnect the Transmission Solenoid Assembly harness connector.
Note: Check connector

Page 2260 of 2305

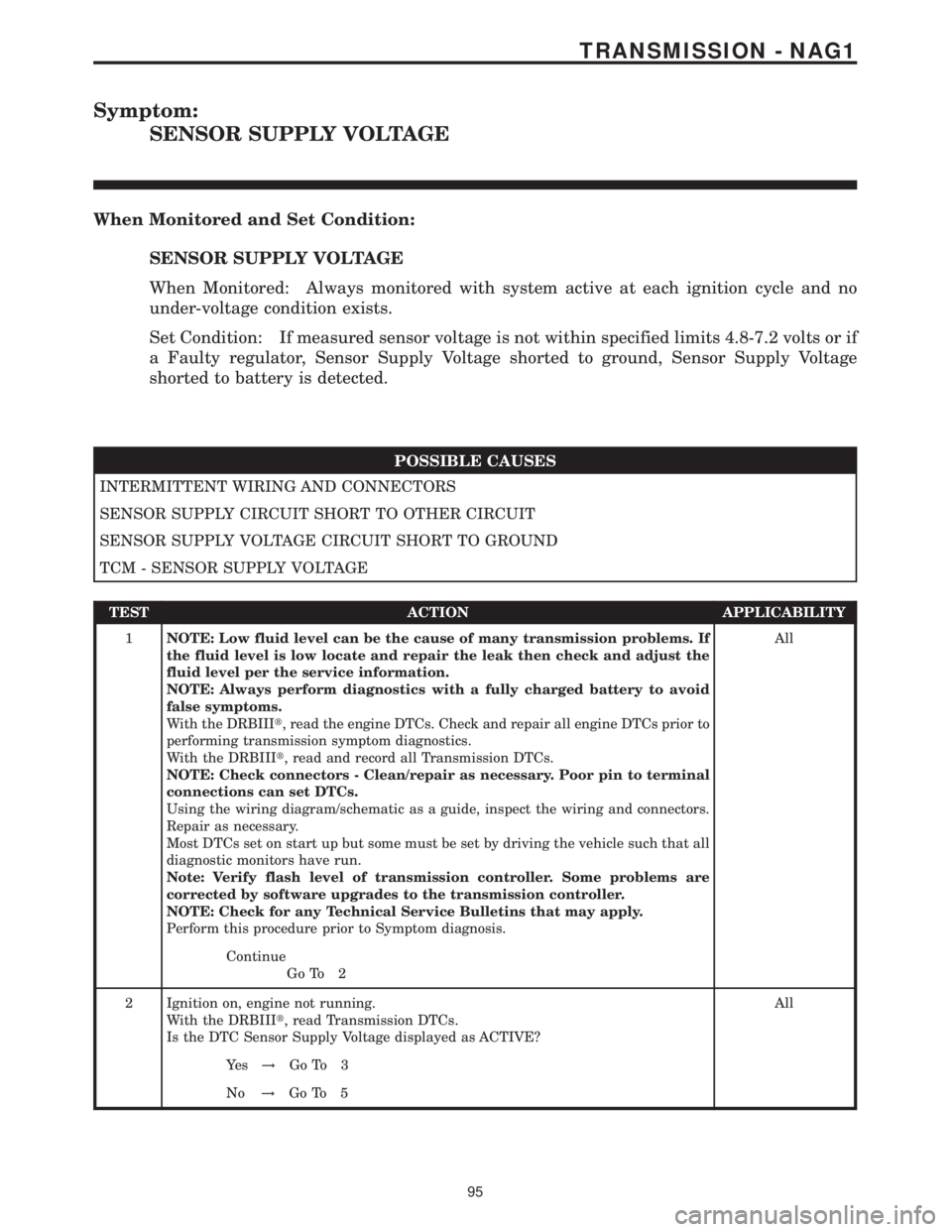

MERCEDES-BENZ SPRINTER 2006  Service Manual Symptom:
SENSOR SUPPLY VOLTAGE
When Monitored and Set Condition:
SENSOR SUPPLY VOLTAGE
When Monitored: Always monitored with system active at each ignition cycle and no
under-voltage condition exists.
