Roadside Emergencies
265
[RE07500(ALL)09/93]
24 pica art:0040170-C
Jack storage location
*
[RE07600(ALL)01/93]3.
Insert the tapered end of the jack handle behind the wheel
cover of the tire to be changed and gently pry it off. When
you want to replace the wheel cover, simply align the valve
stem to the slot in the cover and press it back on.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

266
[RE07700(ALL)06/95]
17-1/2 pica
art:0040177-D
Removing the wheel cover
[RE07800(ALL)01/93]
If you have the optional cast-aluminum wheel covers, remove
the wheel cap to gain access to the lug nuts. Insert the tapered
end of the jack handle behind the notch in the wheel cap and
gently pry it off. To replace it, press it back on. You must line
up the raised circle on the back of the wheel cap with the
indented area on the wheel in order to press the wheel cap on.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

Roadside Emergencies
267
[RE07900(ALL)09/93]
13-1/2 pica
art:0040181-B
Removing the optional wheel cap
*
[RE08000(ALL)02/95]4.
Fit the hex-shaped end of the lug wrench over the wheel lug
nuts and loosen them one-half turn (counterclockwise). Do
not remove the wheel lug nuts until you raise the tire off the
ground.
*
[RE08100(ALL)02/95]
If your vehicle has the optional locking lug nuts, you must
use the lug nut removal tool provided with your vehicle's
tool kit.
*
[RE08200(ALL)02/95]
7-1/2 pica art:0040182-A
Anti-theft lug nut
*
[RE08300(ALL)01/93]5.
Fit the jack under the proper jacking point indicated by the
notch in the bottom of the door frame panel.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

268
[RE08400(ALL)06/94]
10-1/2 pica
art:0040180-A
The notches for the jack
[RE08500(ALL)09/93]
17-1/2 pica
art:0040174-B
Placing the jack
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

Roadside Emergencies
269
[RE08550(ALL)05/95]
RWARNING
Do not jack on the running board.
*
[RE08600(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
*
[RE08700(ALL)05/95]
RWARNING
To lessen the risk of personal injury, do not put any part
of your body under the vehicle while changing a tire. Do
not start the engine when your vehicle is on the jack.
The jack is only meant for changing the tire.
*
[RE08800(ALL)05/94]
RWARNING
Never raise your vehicle by using a bumper jack. The
bumper could be damaged or the jack could slip and you
could be injured.
[RE08900(ALL)01/93]6.
Insert the jack handle into the jack, and then slide the
tapered end of the jack handle through one of the slots in
the lug nut wrench. All of these tools are needed to jack up
a vehicle.
[RE09000(ALL)01/93]
NOTE: If Ford Accessory Running Boards have been
installed, use the jack adapters supplied with the
running boards as described on the inside of the jack
storage area cover.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

270
[RE09100(ALL)09/93]
17-1/2 pica
art:0040175-B
The jack and handle assembly
*
[RE09200(ALL)01/93]7.
Turn the lug nut wrench (attached to the jack handle)
clockwise to raise the vehicle off the ground.
*
[RE09300(ALL)01/93]8.
Remove the wheel lug nuts with the lug nut wrench.
*
[RE09400(ALL)01/93]9.
Remove the flat tire and replace it with the spare tire.
*
[RE09500(ALL)05/94]10.
Place the wheel lug nuts on the spare tire. Use the lug nut
wrench to screw the lug nuts snug against the wheel, but do
not tighten fully.
*
[RE09600(ALL)02/95]11.
Lower the vehicle by turning the jack handle
counterclockwise.
*
[RE09700(ALL)01/93]12.
Use the wheel lug wrench to tighten lug nuts in the
appropriate sequence. Re-check for complete tightness.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

Roadside Emergencies
271
%*
[RE09800(ALL)09/93]
7-1/2 pica art:0040176-A
Lug nut tightening sequence
[RE09900(ALL)04/95]
The lug nuts should be tightened to 72Ð87 ft-lb (98Ð118 N%m).
[RE10000(ALL)12/93]
RWARNING
Using wheels or lug nuts different than the original
equipment could damage the wheel or mounting system.
This damage could allow the wheels to come off while
the vehicle is being driven. If a wheel comes off while
the vehicle is in motion, it could cause loss of vehicle
control and may result in collision.
*
[RE10100(ALL)01/93]13.
Replace the wheel cover by pressing it into place. If you
have the standard wheel covers, you must align the notch in
the wheel cover with the tire's valve stem and align the
recess in the back of the wheel cover with one of the lug
nuts. If you have the optional aluminum wheel, press the
center wheel cap into place after matching up the design of
the wheel cap to the wheel.
[RE10200(ALL)01/93]14.
Make sure the jack is securely fastened. When you replace
the jack in the jack storage compartment, place the base
against the square-shaped fastening bracket and open the
jack slightly so that the jack is snug against the fastening
brackets.
*
[RE10300(ALL)01/93]15.
Store the flat tire under the vehicle just as you would store
the spare tire. Refer to the section onStowing the Spare Tire
in this chapter.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

272
[RE10400(ALL)09/93]
24 pica art:0040178-C
Storing the jack
[RE10500(ALL)01/93]16.
Make sure the lug wrench is secured back into the tool kit
and store it next to the jack.
[RE10600(ALL)01/93]17.
Unblock the wheels.
*
[RE10700(ALL)01/93]
Retighten the lug nuts to the specified torque at 500 miles
(800 km) of operation, after any wheel change, or any time the
lug nuts are loosened.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

Roadside Emergencies
273
*
[RE10800(ALL)01/93]
Fuel Pump Shut-Off Switch
*
[RE10900(ALL)03/95]
If the engine cranks but does not start or if you have had a
collision, the fuel pump shut-off switch may have been
triggered. The shut-off switch is a device that stops the fuel
pump when your vehicle has been involved in a substantial jolt.
*
[RE11000(ALL)01/95]
For information on how to check and reset the fuel pump
shut-off switch, seeFuel pump shut-off switchin the Index.
*
[RE11150(ALL)05/95]
Towing Your Vehicle
[RE11175(ALL)04/95]
If you need to have your vehicle towed, contact a professional
towing service or, if you are a member, your roadside assistance
center.
[RE11200(ALL)07/95]
DO NOT TOW YOUR VILLAGER WITH SLINGBELT
EQUIPMENT. Ford Motor Company has not developed or
approved a T-hook sling-type procedure. Use wheel lift or
flatbed equipment.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

274
[RE11500(ALL)09/93]
27-1/2 pica
art:0040179-B

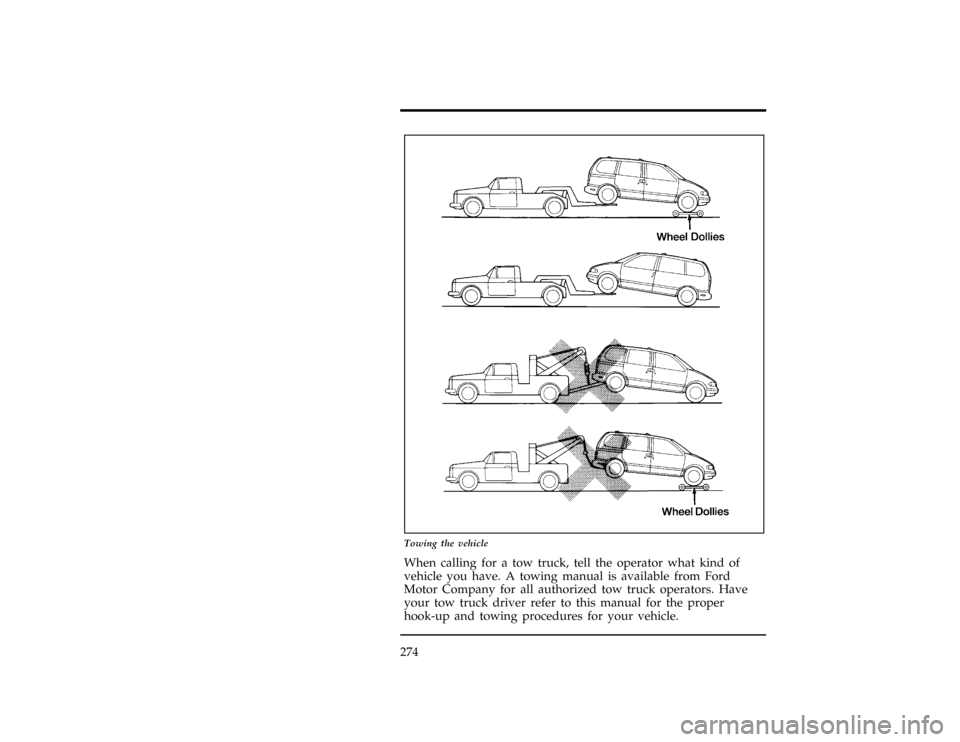

Towing the vehicle
*
[RE11550(ALL)04/95]
When calling for a tow truck, tell the operator what kind of
vehicle you have. A towing manual is available from Ford
Motor Company for all authorized tow truck operators. Have
your tow truck driver refer to this manual for the proper
hook-up and towing procedures for your vehicle.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996
