MITSUBISHI COLT 2006 Service Repair Manual

SEAT BELT
INTERIOR52A-11
SEAT BELT RETRACTOR WITH FORCE
LIMITER
The driver’s/front passenger’s seat belt retractor has
been equipped with a force limiter. The force limiter
is a device which operates when a predetermined
force is applied, and limits the force.
OPERATION
1. If a collision energy is transmitted to the seat belt, the ELR mechanism will oper ate to lock the seat
belt.
AC100083
Torsion bar
Spindle
Belt
AC
2.
Th en, if the en ergy increase s to a prede termined
value , the t o rsion bar will b e distorted . As th e
spind l e ro t a te s tog e ther with the torsion bar , the
seat b e lt webb ing is p u lle d out, reducing th e
imp a ct against t he occup ant s.

TRIMS
INTERIOR52A-12
TRIMS

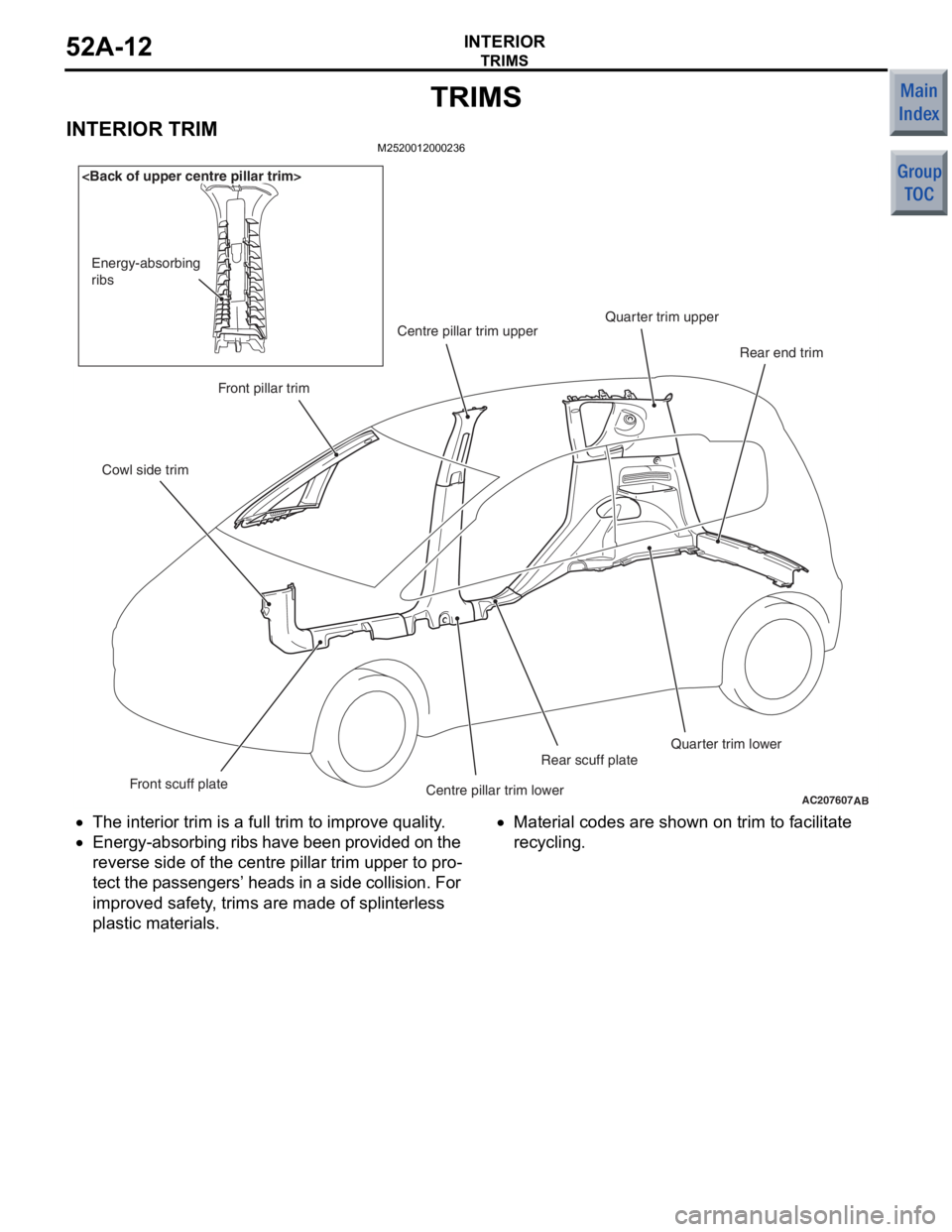

INTERIOR TRIMM2520012000236
AC207607
Cowl side trimFront pillar trim
Centre pillar trim upper
Front scuff plate Centre pillar trim lowerRear scuff plate
Quarter trim lower
Quarter trim upper
Rear end trim
AB

Energy-absorbing
ribs
•The interior trim is a fu ll t r im t o improve quality .
•Ener gy-absorbing ribs have b een provided on the
reverse
sid e of th e cen t re pillar trim upper to pro
-
te c t t h e p a s s e n g e rs ’ he ad s in a si de co lli si on . F o r
improved safety
, trims are made o f splinte r less
plastic materials.
•Material co des are shown on t r im t o facilit a t e
recy
cling.

TRIMS
INTERIOR52A-13
DOOR TRIM
M2520012300431

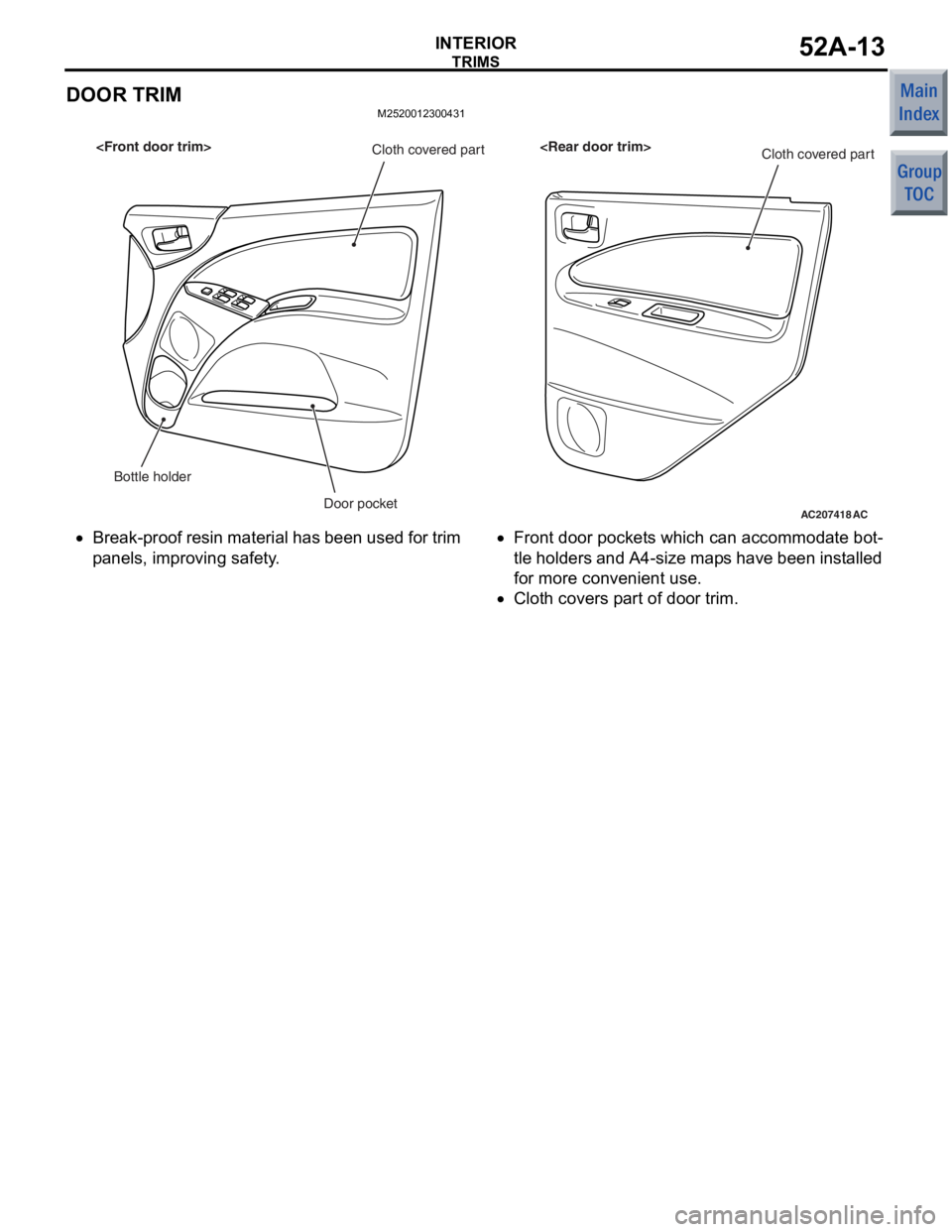

AC207418
Bottle holderDoor pocket

AC
Cloth covered part Cloth covered part
•Break-proof resin material has been used for trim
p
anels, impro v in g saf e ty .•Front door p o cket s which can accommod ate bo t-
tle holder s a nd A4-size map s have be en inst alled
for more convenie
n t use.
•Cloth covers p a rt of do or trim.

HEADLINING
INTERIOR52A-14
HEADLINING
M2520014000210
AC601599
Headlining
Overhead console

AB
Sunglasses holder
Card holder
Room and map lamp
Interior design with sa fe ma terial has been adopt ed,
achieving more safe and
comfort able inte rior .
•The sound-absorbing structure has been adopted
in
the he adlining to improve the soun d insula tion
perf
o rman ce a nd noise contro l.
•The overhead console with a room and map lamp
for f
r ont seat s, pu sh type card h o lder , and large
sungla
s ses ho lder h a ve been inst alled. models>

LUGGAGE ROOM
INTERIOR52A-15
LUGGAGE ROOM
M2520013000132

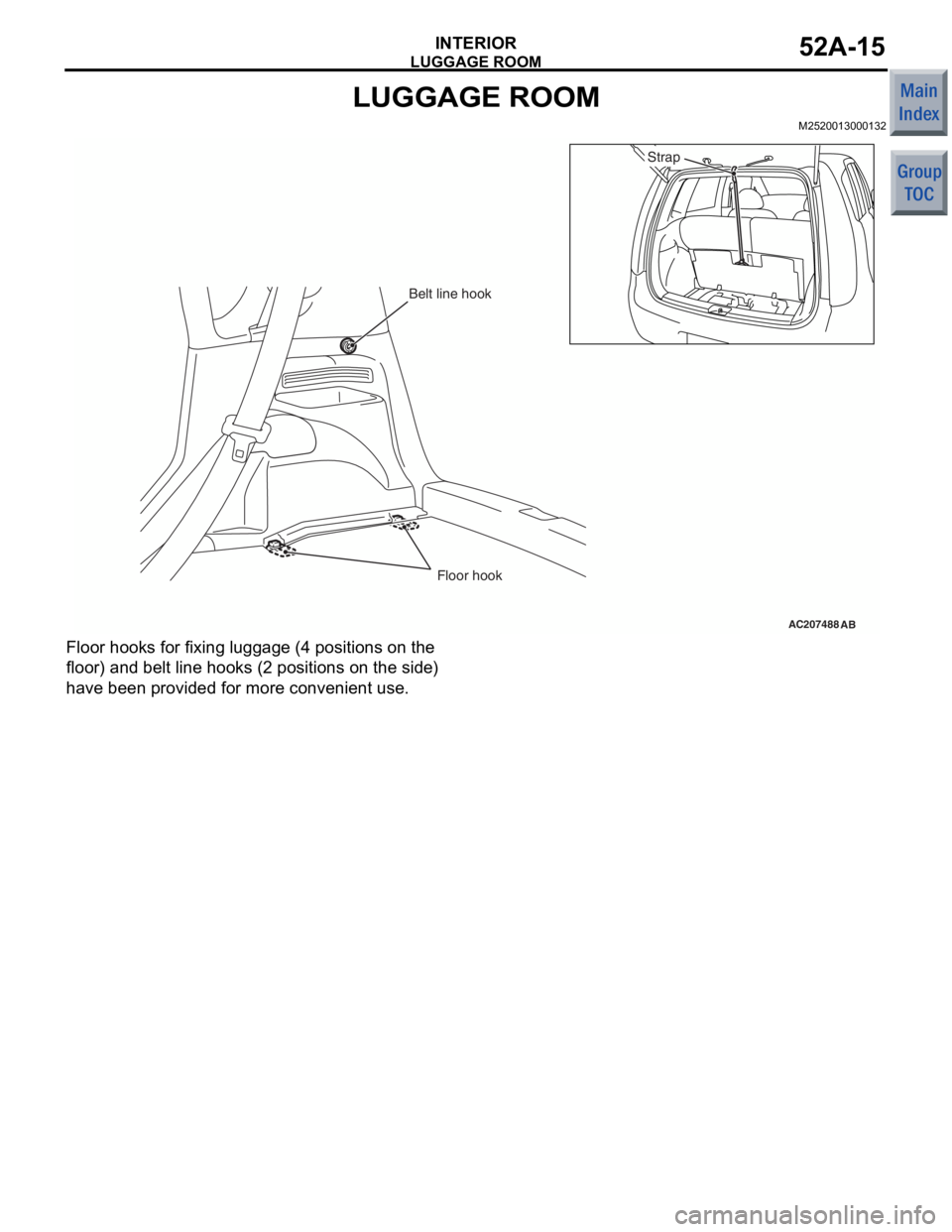

AC207488
Floor hook
Belt line hook
Strap
AB
Floor h
ooks for f i xing lu ggage (4 positions on the
floor) a
nd be lt line ho oks (2 positions on the sid e )
have
been p r ovided fo r more con v enient use.

FLOOR CARPET
INTERIOR52A-16
FLOOR CARPET
M2520015000105
AC207419
AA
Heel stopper
Heel stopper
AB
Floor carpet Section A – A
He
el stop pe r h a s be en ad opt ed on the floo r car pet of
the driver
’ s sid e foot we ll. T he hee l st opper p r even t s
the forward
moveme nt of th e driver ’ s legs during col
-
lision and minimizes t he se verity o f an injury .

GROUP 54B
SMART WIRING SYSTEM (SWS)
CONTENTS
GENERAL INFORMATIO N . . . . . . . .54B-2
COMMUNICATION METHOD . . . . . .54B-3
MULTI-DISTRIBUTION
INPUT/OUTPUT BY CIRCUIT . . . . . .54B-4
DIAGNOSTIC FUNCTION . . . . . . . . .54B-8
ECU FUNCTIONS AND CONTROLS
IN THE SWS . . . . . . . . . . . . . . . . . . . .54B-11
CUSTOMISE FUNCTION . . . . . . . . . .54B-25

GENERAL INFORMATION
SMART WIRING SYSTEM (SWS)54B-2
GENERAL INFORMATION
M2541000100424
SWS is a minimal line system which transmits
numerous signals using one wiring.
To transmit numerous signals, the ETACS*1-ECU,
column switch (incorporating inside the col
-
umn-ECU) incorporate multi-distribution circuits to
carry out communication between control units.
ETACS-ECU can receive some input signals through
CAN
*2 communication, improving the SWS function.
NOTE: *1: ETACS (Electronic Time and Alarm Con-
trol System)
NOTE: *2: CAN (Controller Area Network)
For more information, refer to GROUP 54C P.54C-2.

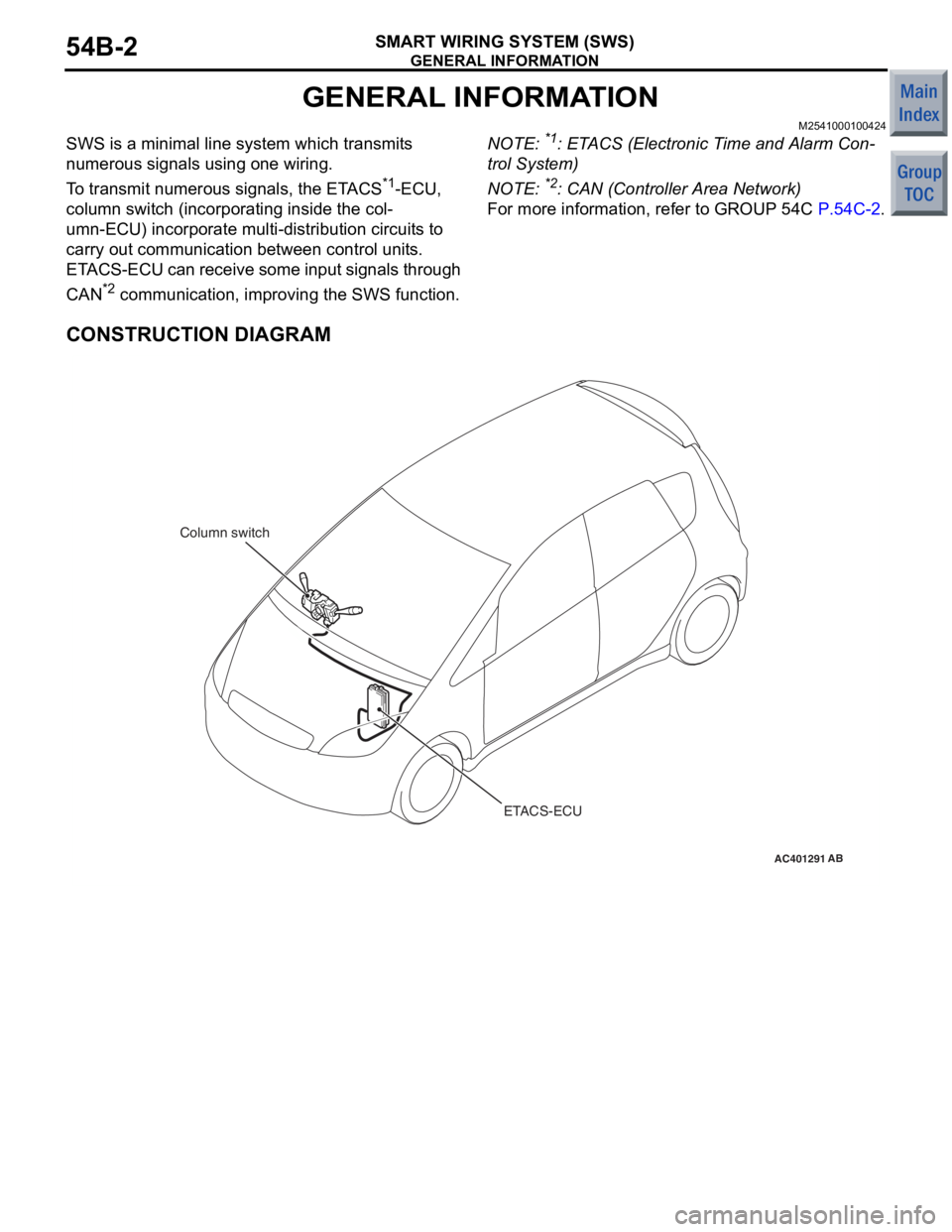

CONSTRUCTION DIAGRAM
AC401291
ETACS-ECU
Column switch
AB

COMMUNICATION METHOD
SMART WIRING SYSTEM (SWS)54B-3
COMMUNICATION METHOD
M2541001000527

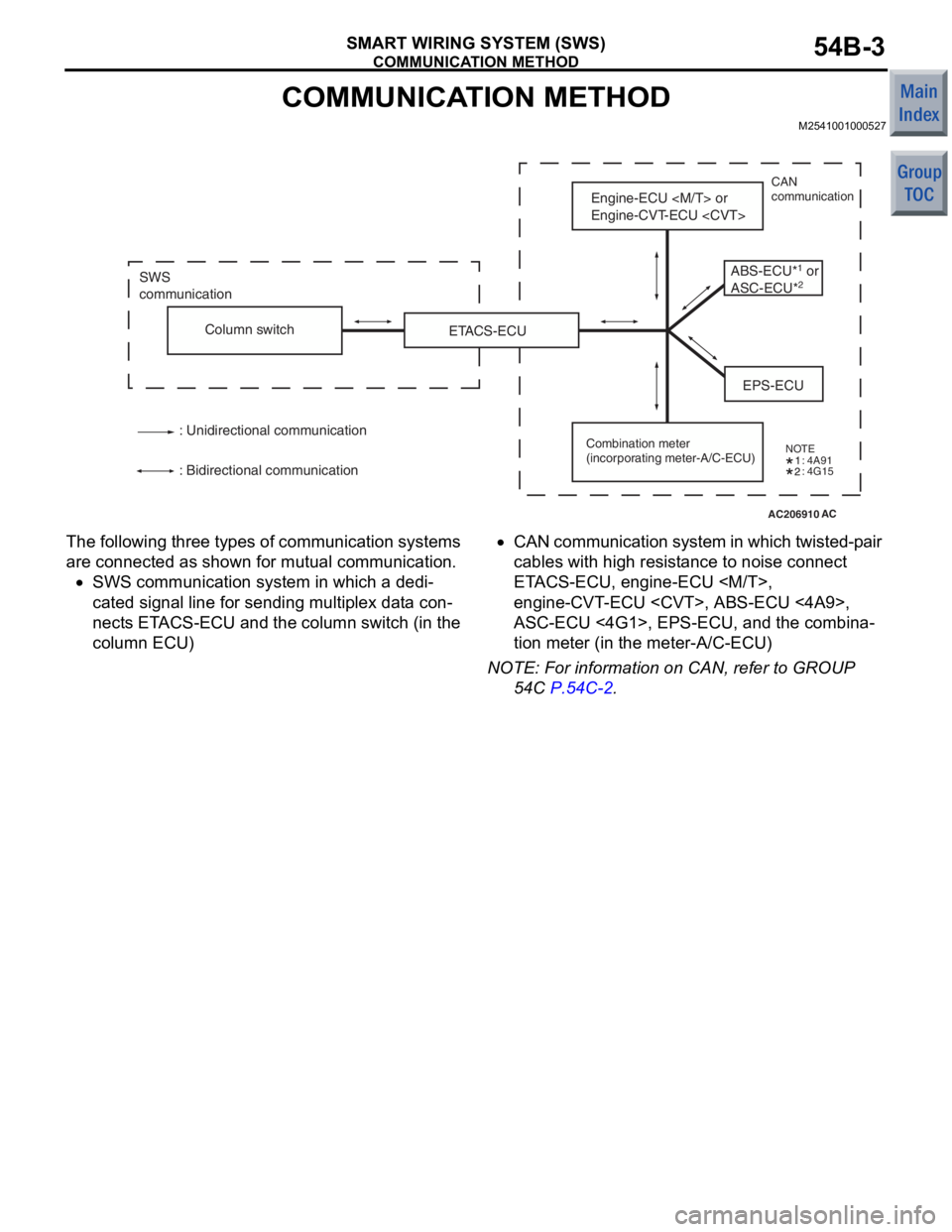

AC206910
Engine-ECU or
Engine-CVT-ECU EPS-ECU
ABS-ECU*
1 or
ASC-ECU*2
ETACS-ECU
Combination meter
(incorporating meter-A/C-ECU)
AC
SWS
communication
Column switch
CAN
communication
: Bidirectional communication : Unidirectional communication
NOTE: 4A91
: 4G15
The following th ree type s of co mmunicatio n systems
are co
nnected as sh own for mutual commu n ication .
•SWS communicatio n system in wh ich a ded i-
cated signa l line for send ing mult iple x da t a con-
nects ET ACS-ECU and the column swit ch (in the
co
lum n ECU)
•CAN communication system in which twisted-p a ir
cables with h
i gh resist ance to noise conn ect
ET
ACS-ECU, engine-ECU ,
engine-CVT
- ECU , ABS -E CU <4A9>,
ASC-ECU <4G1>, EPS-ECU,
and the combina
-
tion meter (in the meter-A/C-ECU)
NOTE: For informatio n on CAN, refe r to GROUP
54C
P.54C-2.

MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
SMART WIRING SYSTEM (SWS)54B-4
MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
M2541002000649
Multi-distribution is employed by the following cir-
cuits. The relation of the input switches, sensors,
ECUs connected by multi-distribution lines, and out
-
puts are also shown below.
Buzzer
•Lamp reminder buzzer function
•Door-ajar warning buzzer function
•
AC601725AB
• Ignition switch (IG1)
• Driver's door switch
• Hazard lamp switch
Combination meter
• Vehicle speed signal
• Ignition switch (IG1) ETACS-ECU
Circuit and Input Switch
ECUs and Switches
Connected by
Multi-DistributionOutput
Buzzer (built-in ETACS-ECU)
: CAN communication line : SWS communication line
Column switch
(Lighting or turn
signal lamp
switch)
T u rn-sign a l op eratio n so und fun c tion
Keyless e n try
•Multi-mode keyless en try system
•Keyless entry hazard a n swerba ck function
•
AC401127AB
• Respective door switches
• Key reminder switch
• Keyless entry transmitter ETACS-ECU
•
Electric retractable remote
controlled mirror
• Respective turn signal lamps
• Room lamp
Circuit and Input Switch
ECUs and Switches
Connected by
Multi-DistributionOutput
Keyless ent
ry roo m la mp a n swerba ck funct i on
