MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
SMART WIRING SYSTEM (SWS)54B-5

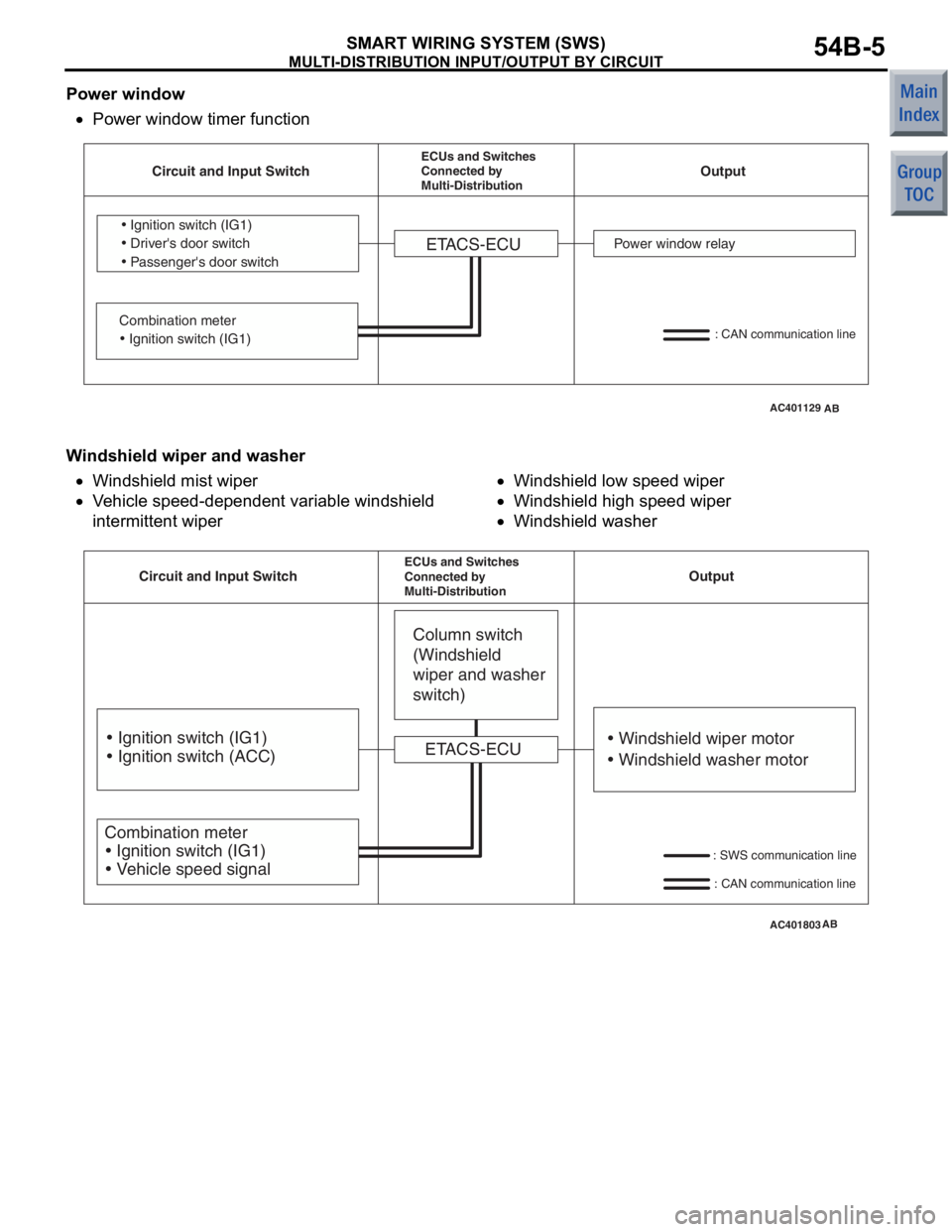

Power window
•
AC401129AB
ETACS-ECU
Circuit and Input SwitchECUs and Switches
Connected by
Multi-DistributionOutput
Power window relay
: CAN communication line
• Ignition switch (IG1)
• Driver's door switch
• Passenger's door switch
Combination meter
• Ignition switch (IG1)
Power win dow timer functio n
Wi n dshield wipe r a nd wa sher
•Windshi eld mist wipe r
•Vehicle spe ed-dep enden t variable windshield
in
termittent wiper
•Windsh i eld low speed wiper
•Windshi eld high spe ed wipe r
•
AC401803
ETACS-ECU
AB
• Ignition switch (IG1)
• Ignition switch (ACC)
Combination meter
• Ignition switch (IG1)
• Vehicle speed signal
Circuit and Input SwitchECUs and Switches
Connected by
Multi-DistributionOutput
Column switch
(Windshield
wiper and washer
switch)
• Windshield wiper motor
• Windshield washer motor
: SWS communication line
: CAN communication line
W i n d s hi e l d wa s h er

MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
SMART WIRING SYSTEM (SWS)54B-6

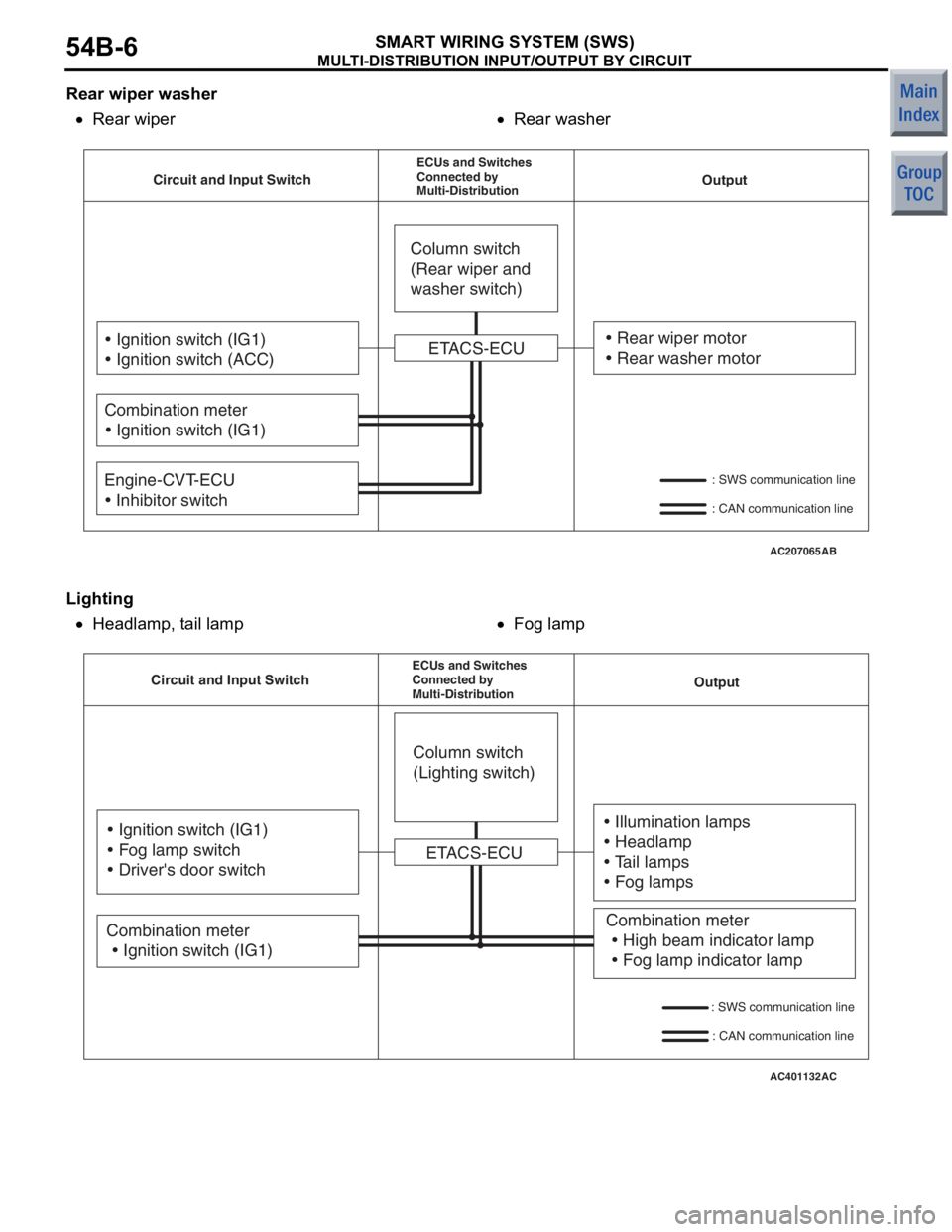

Rear wiper washer
•Rear wiper•
AC207065
ETACS-ECU
AB
Circuit and Input Switch
ECUs and Switches
Connected by
Multi-Distribution
Output
• Ignition switch (IG1)
• Ignition switch (ACC)
Engine-CVT-ECU
• Inhibitor switch
Combination meter
•
Ignition switch (IG1) Column switch
(Rear wiper and
washer switch)
• Rear wiper motor
• Rear washer motor
: SWS communication line
: CAN communication line
Rear washer
Lighting
•Headlamp , t a il lamp•
AC401132AC
• Ignition switch (IG1)
• Fog lamp switch
• Driver's door switch
Combination meter
• High beam indicator lamp
• Fog lamp indicator lamp
•
Illumination lamps
• Headlamp
• Tail lamps
• Fog lamps
Combination meter
• Ignition switch (IG1) ETACS-ECU
Circuit and Input SwitchECUs and Switches
Connected by
Multi-Distribution
Output
Column switch
(Lighting switch)
: SWS communication line
: CAN communication line
Fog lamp

MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
SMART WIRING SYSTEM (SWS)54B-7

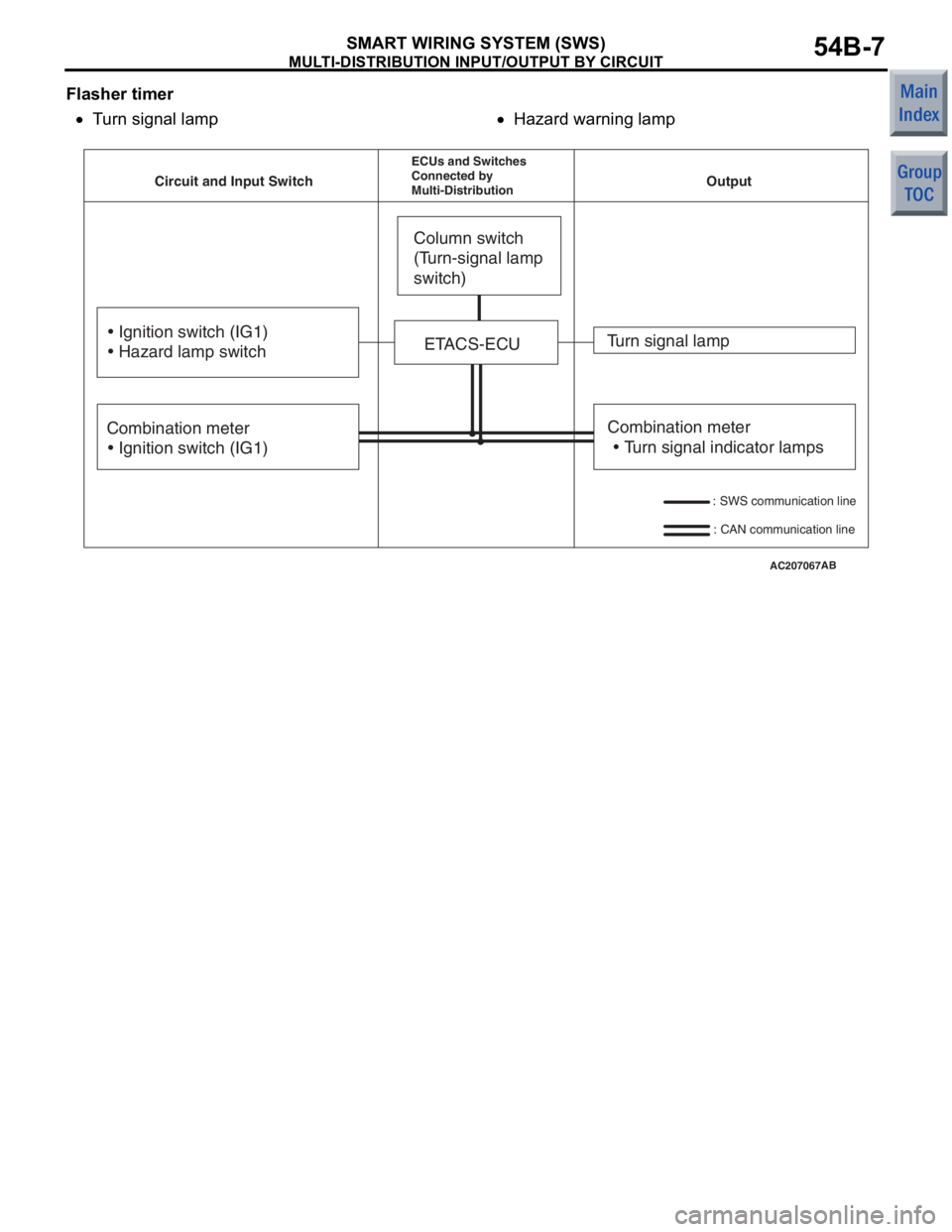

Flasher timer
•Turn signal lamp•
AC207067
Combination meter
• Turn signal indicator lamps
ETACS-ECU
AB
Circuit and Input Switch
ECUs and Switches
Connected by
Multi-Distribution
Output
Column switch
(Turn-signal lamp
switch)
• Ignition switch (IG1)
• Hazard lamp switch
Combination meter
• Ignition switch (IG1) Turn signal lamp
: SWS communication line
: CAN communication line
Hazard warning lamp

DIAGNOSTIC FUNCTION
SMART WIRING SYSTEM (SWS)54B-8
DIAGNOSTIC FUNCTION
M2541003000642
DIAGNOSIS CODE SET
For more information about diagnosis code output,
refer to the Workshop Manual.
SWS INPUT SIGNAL CHECK USING
M.U.T.-III
When the M.U.T.-III is connected to the diagnosis
connector and any of the SWS-linked switches is
operated, the PC buzzer sounds to evaluate whether
the switch is normal or not.
SWS INPUT SIGNAL CHECK AND ECU
CHECK BY USING SWS MONITOR
The switch signals sent by ECUs and the operations
of these ECUs can be confirmed by using the SWS
monitor and the M.U.T.-III.
INPUT SIGNALS THAT CAN BE CHECKED
Input signalCondition for sounding buzzerDisplay on
M.U.T.-III (when
SWS monitor is
used)
Ignition switch (ACC)Turn from "LOCK" (OFF) to "ACC" positionfrom OFF to ON
Ignition switch (IG1)Turn from "ACC" to "ON" positionfrom OFF to ON
Key reminder switchRemove the ignition key from ignition key cylinder
(form inserted position)from OFF to ON
Hazard lamp switchTurn from OFF to ONfrom OFF to ON
Fog lamp switch
Remote controlled mirror
switch (unfolding/folding
switch)
Speed signal When the speed changes from less than 10 km/h to
more than 10 km/hDisplays the
vehicle speed
Cranking signalWhile the ignition switch is in START position (while
cranking the engine)−
Selector lever P position signal
(parking)When the selector lever is shifted to the "P" position
(Ignition switch: ON or START)−
Selector lever R position signal
(reverse)When the selector lever is shifted to the "R" position
(Ignition switch: ON or START)−
Buzzer triggered by
ETACS-ECU
*1
When the following conditions are satisfied
•Ignition switch: LOCK (OFF) position
•Lighting switch: ON
•Driver’s door switch: ON (Driver’s door: OPEN)
ON
When requirements for sounding each warning buzzer
are not satisfiedOFF
Door switchDriver’s doorWhen door(s) or tailgate is opened from the closed
positionfrom OFF to ON
Passenger’s
door
Rear door
All door switchA door is opened when all the doors are closedfrom OFF to ON

DIAGNOSTIC FUNCTION
SMART WIRING SYSTEM (SWS)54B-9
Driver's door lock actuator
switchMove the door lock knob or driver’s door key cylinder
from lock position to unlock position or vice versafrom ON to OFF or
from OFF to ON
Driver's door unlock actuator
switchfrom OFF to ON or
from ON to OFF
Power window timer duration*1When the power window timer is activatedDisplays the
operation duration
Column
switchTail lamp switchWhen the lighting switch is turned from one position to
the tail lamp positionfrom OFF to ON
Headlamp
switchWhen the lighting switch is turned from one position to
the headlamp position
Dimmer switchWhen the switch is turned from the OFF to the ON
position
Passing switch
Turn signal
lamp LH switch
Turn signal
lamp RH switch
Headlamp specification*1The display alters according to the headlamp
specification ("4 BULBS" or "2 BULBS").4 BULBS
Column
switch (wiper
switch)Windshield
mist wiper
switchWhen the switch is turned from OFF to ONfrom OFF to ON
Windshield
intermittent
wiper switch
Windshield low
speed wiper
switch
Windshield
high speed
wiper switch
Windshield
washer switch
Rear wiper
switch
Rear washer
switch
Windshield
intermittent
wiper volumeWhen the interval adjusting knob is turned from
"FAST" to "SLOW" while the ignition switch is ON.Displays the
windshield
intermittent wiper
volume voltage
Wiper
autostop
signalFrontWhen activated from the stopped conditionfrom OFF to ON
Rear
Input signal Condition for sounding buzzer Display on
M.U.T.-III (when
SWS monitor is
used)

DIAGNOSTIC FUNCTION
SMART WIRING SYSTEM (SWS)54B-10
NOTE: .
•− shown in the table indicates that the check item for the input of the corresponding signal is not present in
M.U.T.-III.
•*1Checking the input signal by the sound of the buzzer is not possible. Input signal must be checked on
the M.U.T.-III display.
•*2: Buzzer sound during the check is triggered by the input signal from the ignition switch. It is not to check
the presence of the power window switch acceptance permission signal.
•*3: Buzzer sound during the check is triggered by the input signal from the keyless entry transmitter. It is
not to check the presence of the multimode keyless entry input signal.
With windshield intermittent
wiper control
*1
The display alters according to the presence of the
equipment ("EQUIP" or "NONE").EQUIP
Specification switching
terminal
*1
The display alters according to the transmission type
("A/T" or "M/T").M/T or A/T
Diagnosis connector*1Diagnosis control line: EarthedON
Diagnosis control line: Not earthedOFF
Input signal Condition for sounding buzzer Display on
M.U.T.-III (when
SWS monitor is
used)

ECU FUNCTIONS AND CONTROLS IN THE SWS
SMART WIRING SYSTEM (SWS)54B-11
ECU FUNCTIONS AND CONTROLS IN THE SWS
M2541004000805
Following functions are controlled by ECUs of SWS.
FunctionControl ECUFunction
description
BuzzerLamp reminder buzzer functionETACS-ECU, Column switchP.54B-12
Door-ajar warning buzzer functionETACS-ECUP.54B-12
Turn-signal lamp operation sound
functionETACS-ECU, Column switchP.54B-13
Central door
locking systemCentral door locking control functionETACS-ECUP.54B-13
Shift "P" position linked door unlock
function P.54B-13
Power windowPower window timer functionETACS-ECUP.54B-14
Keyless entry
systemMulti-mode keyless entry system ETACS-ECUP.54B-14
Keyless entry hazard answerback
functionETACS-ECUP.54B-14
Keyless entry room lamp answerback
functionETACS-ECUP.54B-15
Windshield
wiper and
washerIntermittent control speed-dependent variable type>ETACS-ECU, Column switchP.54B-16
Mist wiper controlP.54B-16
Low speed wiper and high speed wiper
controlP.54B-17
Windshield wiper linked with washer
functionP.54B-18
Rear wiper and
washerRear wiper controlETACS-ECU, Column switchP.54B-19
Rear wiper linked with washer functionP.54B-20
Electric
retractable
remote
controlled
mirrorElectric retractable remote controlled
mirror timer functionETACS-ECUP.54B-20
Automatic unfolding functionP.54B-21
Flasher timer
functionTurn-signal lampETACS-ECU, Column switchP.54B-21
Hazard lampP.54B-22
Turn-signal lamp indicatorP.54B-22
HeadlampHigh-beam indicatorETACS-ECU, Column switchP.54B-22
Fog lampFog lamp controlETACS-ECU, Column switchP.54B-22
Fog lamp indicatorP.54B-22

ECU FUNCTIONS AND CONTROLS IN THE SWS
SMART WIRING SYSTEM (SWS)54B-12
BUZZER
LAMP REMINDER BUZZER FUNCTION
AC208400AB
Tail lamp, headlamp
or fog lamp
Driver's
door switch
Buzzer
output
ON
OFF
ON (Open)
OFF (Closed)
ON (Buzzer sounds) OFF (Buzzer does not sound)
When th e ign i tio n ke y is removed and th en the
driver's d
oor is ope ned with turn ing ON the t a il lamp ,
fog la
mp o r head lamp, the b u zzer so unds con t inu
-
ously to alert the driver t hat the lamp is still ON.
However, if t he t a il lamp or th e headlamp is tu rned of f
by th
e head lamp auto m atic-shut down functio n , the
buzzer doe
s no t sou nd.
DOOR-AJAR WARNING BUZZER
FUNCTION (THE INIT
IAL CONDITION:
WITH FUNCTION)
AC101625AD
0 km/h 8 km/h
(Closed) OFF
(Opened) ON ON
OFF
Door or
tailgate
switch
Vehicle speed
Buzzer
output OFF
(Does not sounds) (Sounds) ON
Ignition switch
If the
ve hicle speed se nt fro m t he comb ination meter
via
CAN communication exceed s 8 km/h when a
door is op
en for o ne se cond or more, the
ET
ACS-ECU makes the door ajar in dicator lamp
flash 16 times and
activate s the buzzer (b eepin g 16
time
s) to inform the driver that a door is o pen.
NOTE: Av ailability of the door -a jar alarm function
can b
e
se lected by the cust omize fu nction (Refer to
P.54B-25).
Interio r lampInterior lamp dimme r cont rol fun c tionETA C S-ECUP.54B-23
Ignition ke y cylinder illuminatio n lamp
control functionP.54B-24
Door-ajar indicatorP.54B-24
Customize functionETA C S-ECURefer to
P.54B-25.
Function C ontrol ECU Function
descriptio n

ECU FUNCTIONS AND CONTROLS IN THE SWS
SMART WIRING SYSTEM (SWS)54B-13
TURN-SIGNAL LAMP OPERATION SOUND FUNCTION (T HE INITIAL CONDITION:
WITHOUT FUNCTION)
AC206262AB
Turn signal
lamp switch

(RH) OFFON
Turn signal
lamp (RH)
OFFON
OFF ON
Turn signal
lamp (LH) Turn signal
lamp switch
(LH) OFFON
Hazard lamp
switch OFFON
Hazard lamp OFFON
ON (Buzzer sounds)
OFF (Buzzer
does not sound)
Buzzer
output
ET
ACS-ECU buzzer soun ds simult an eously with the
blin
ks of the turn-signal lamp an d the h a zard lamp.
NOTE: Av ailability of the turn-signal lamp op eratio n
tone fu
nction can be sele cted by th e cu stomize func
-
tion (Refer to P.54B- 25).
CENTRAL DOOR LOCKING SYSTEM
CENTRAL DOOR LOCKING CONTROL
FUNCTION
AC101496
AC
t
t
ON
OFF ON
OFF ON
OFF
ON
OFF
t: 0.25 second
Lock switch
Lock relay output
Unlock relay output Unlock switch
When th e front doors are locked (when the lock
switch turns ON a
f te r turning OFF the u n lock switch
in the driver's door lo
ck a c tuat or), ET ACS-ECU turn s
ON the
lock relay o u tput fo r 0.25 second, a nd lo cks
all
doors (including th e t a ilg ate).
When the front doors is unlo cke d (when th e unlock
switch turns ON
af ter turn ing OFF t he lock switch on
the driver's door
lock actuator ), ET ACS-ECU tu rns
ON the
unlock re lay outpu t for 0.2 5 se cond , and
unlocks all doors (in
c lu ding the t a ilgate).
SH IFT "P " POS I TIO N LIN K ED DOO R
UNLOCK FUNCTION (THE INITIAL
CONDITION: WITH FUNCTION)
AC208135AB
t
T
ON
OFF ON
OFF
Inhibiter switch "P"
Unlock relay output
t: 0.25 second
T: 0.3 second
When the se lector lever is shif ted to "P" position
(p
a r kin g ) (inh ibit or swit ch "P" is ON) with the ignition
switch turne
d to th e ON po sit i on, t he ET ACS-ECU
turns
on the u n lock re lay output for 0.25 second (0. 3
second af
ter the selector le ver o peration) an d
unlocks all the d
oors (including the t a ilga t e).
NOTE: Using a cust omisation fun c tio n , this fu nction
can b
e
ena bled or disabled. For more informatio n
about t
he customisatio n function , refer to
P.54B-25.

ECU FUNCTIONS AND CONTROLS IN THE SWS
SMART WIRING SYSTEM (SWS)54B-14
POWER WINDOW
POWER WINDOW TIMER FUNCTION
AC309963
Ignition switch (IG1)ON
(Open)ON
ON tt
OFF
t:30 seconds
(Close)OFF
OFF
Driver's door and
passenger's switch
Power window relay
AB
When the power window relay is turn ed ON with the
ignition
switch ON, t he power window relay is kept
ON for 3
0 seconds even af ter th e ign i tio n swit ch is
turned OFF
, enab ling the do or windo w to be o pened
and closed with
the po we r window switch .
If the dr ive r's or t he fron t p a ssenger d oor is ope ned
during
timer ope ration , the p o we r windo w re lay is
turned OFF a
t the same time.
KEYLESS ENTR Y SYSTEM
MU L T I-MODE KEYLESS ENT R Y SYST EM
The door mirrors can b e opera t ed by the keyless
entry transmitte
r opera t ion.
For the operation, re fer to Group 42 − Body − Key-
less ent ry s yste m P.42-13.
KEYLESS ENTR Y HAZARD
ANSW
ERBACK FUNCTION (INITIAL
SETTING:
LOCK, FLASH ONCE,
UNLOCK, FLASH TW
ICE)
AC209072AG
ON
OFF OFF
ON
OFF
LOCK
UNLOCK
Illuminate
Extinguish
Keyless entry
transmitter
Lock relay output
Unlock relay output
Hazard lamp
The ha
zard a n swer b a ck function that allows check-
ing the lock/u nlock st a t e of t he doo r easily eve n in
the daytime is in
st alled. Whe n the lock signal from
the keyless entry transmitter is received in
to
ET
ACS-ECU, all do ors (includin g the t a ilgat e) are
LOCK, an
d the tu rn signal lamp blinks once. Wh en
the unlock signal is rece
ive d , all doors (in c lu ding the
t
a ilgat e) are UNLOCK, and the turn-signa l la mp
blin
ks twi c e.
NOTE: The answer back blink time can be ad just ed
by th
e customise function (Re f er to
P.54B-25).
