MITSUBISHI COLT 2006 Service Repair Manual

GENERAL INFORMATION
FRONT AXLE26-2
GENERAL INFORMATION
M2260000100701
The front axle consists of front hub, wheel bearing,
knuckles and driveshafts, and has the following fea
-
tures:
•The wheel bearing incorporates magnetic
encoder for wheel speed sensing.
•The driveshaft incorporates EBJ-TJ type constant
velocity joint <4A9-CVT, 4A9-M/T (LS)>,
EBJ-ETJ type constant velocity joint <4A9-M/T
(VR)>, BJ-TJ type constant velocity joint <4G1>.
•The dynamic damper is mounted to reduce differ-
ential gear noise.
•The bracket assembly is mounted to reduce
torque steer. < 4G1>
•For environmental protection, a lead-free grease
is used on the joints.
EBJ(Eight Ball Fixed Joint):The use of the
smaller-sized eight balls inside the joint achieves
weight saving and compact size compared with a
BJ(Birfield Joint).
ETJ(Eco type Tripod Joint):This joint achieves
weight saving and compact size compared with a
TJ(Tripod Joint).
BJ:Birfield Joint
TJ:Tripod Joint
SPECIFICATIONS
Item4A94G1
CVTM/T
LSVR
Wheel bearingTy p eDouble-row angular contact ball bearing
Bearing (OD x ID) mm76 × 4076 × 4076 × 4076 × 40
DriveshaftJoint typeOuterEBJEBJEBJBJ
InnerTJTJETJTJ
Length (joint to joint)
× diameter mm
LH377 × 21.2377 × 21.2379 × 23352 × 24.9
RH688 × 21.2688 × 21.2664.3 × 23378.2 × 24.9

GENERAL INFORMATION
FRONT AXLE26-3

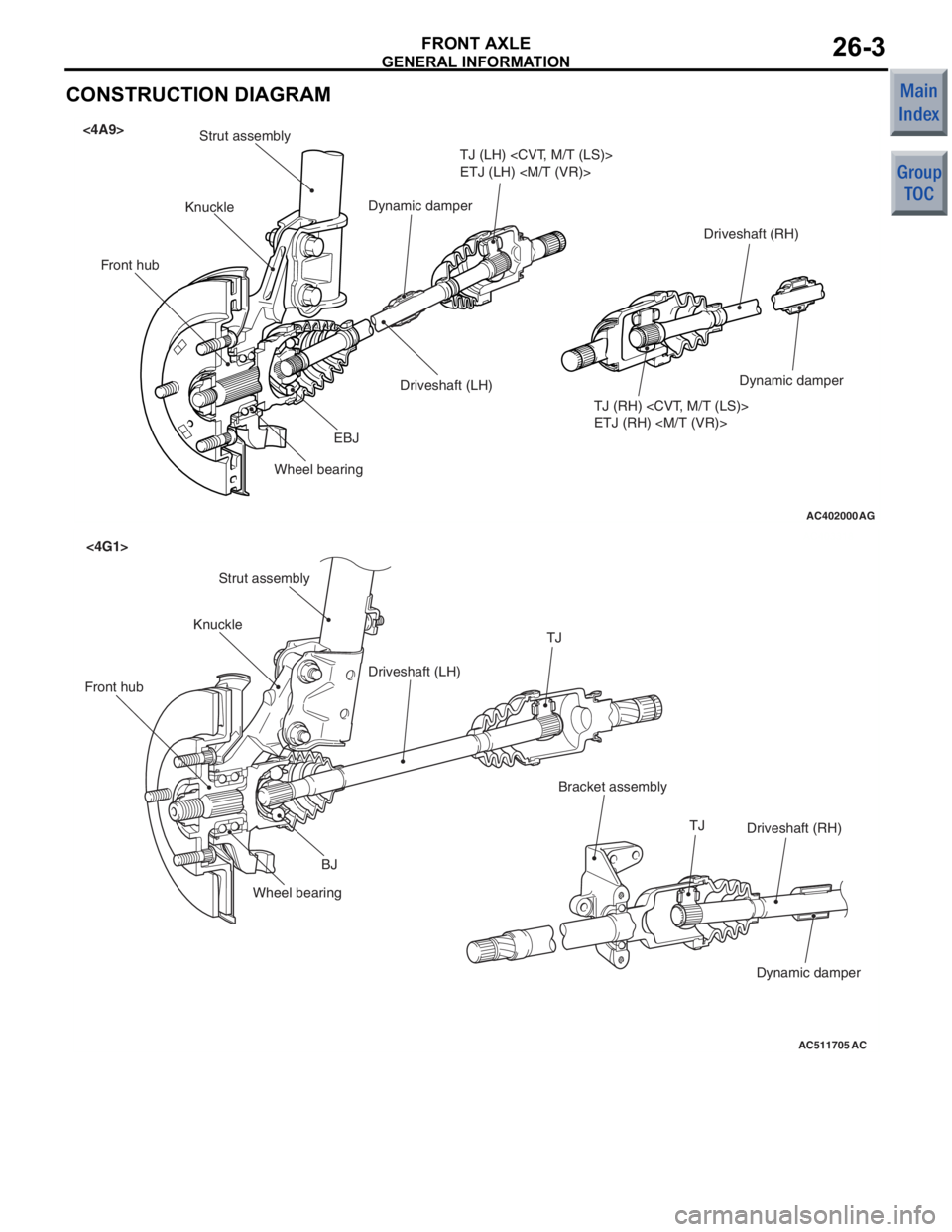

CONSTRUCTION DIAGRAM
AC402000AG
<4A9>EBJ TJ (RH)
ETJ (RH)
Driveshaft (LH) TJ (LH)
ETJ (LH)
Dynamic damper
Driveshaft (RH)
Front hub KnuckleStrut assembly
Wheel bearing Dynamic damper
AC403318
AC511705AC
<4G1>
Front hub Knuckle
Strut assembly
BJDriveshaft (LH)
TJ
Wheel bearing Driveshaft (RH)
Bracket assembly
TJ
Dynamic damper

AC306013AE
TJETJ

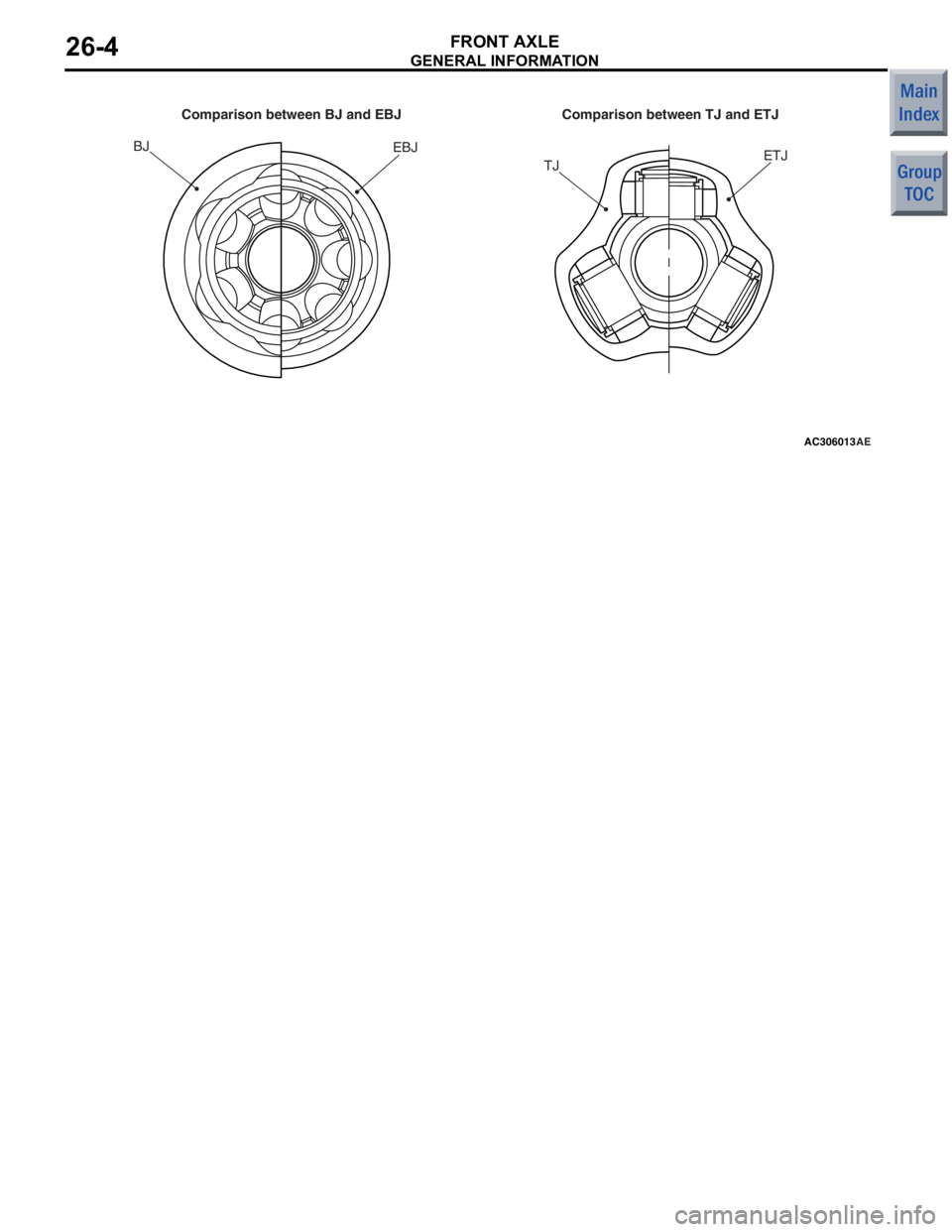

Comparison between TJ and ETJ
BJ EBJ
Comparison between BJ and EBJ
GENER
A L IN FORMA T ION
FRONT AXLE26-4

GROUP 33
FRONT
SUSPENSION
CONTENTS
GENERAL INFORMATIO N . . . . . . . .33-2

GENERAL INFORMATION
FRONT SUSPENSION33-2
GENERAL INFORMATION
M2330000100824
Newly developed MacPherson strut suspension has
been adopted.
•The steering gear box is installed in the lower
position for better cornering performance.
•The roll centre and the kingpin axle are installed
appropriately for better cornering performance.
•The long stroke strut is adopted for sufficient road
holding quality.
•High-rigid and light-weight flat crossmember is
adopted for sufficient suspension rigidity.
•The strut coil spring is installed appropriately for
friction reduction and comfortable ride.
•The coil spring of high tension material is adopted
for weight reduction.
•The open-section lower arm is adopted for weight
reduction.

GENERAL INFORMATION
FRONT SUSPENSION33-3

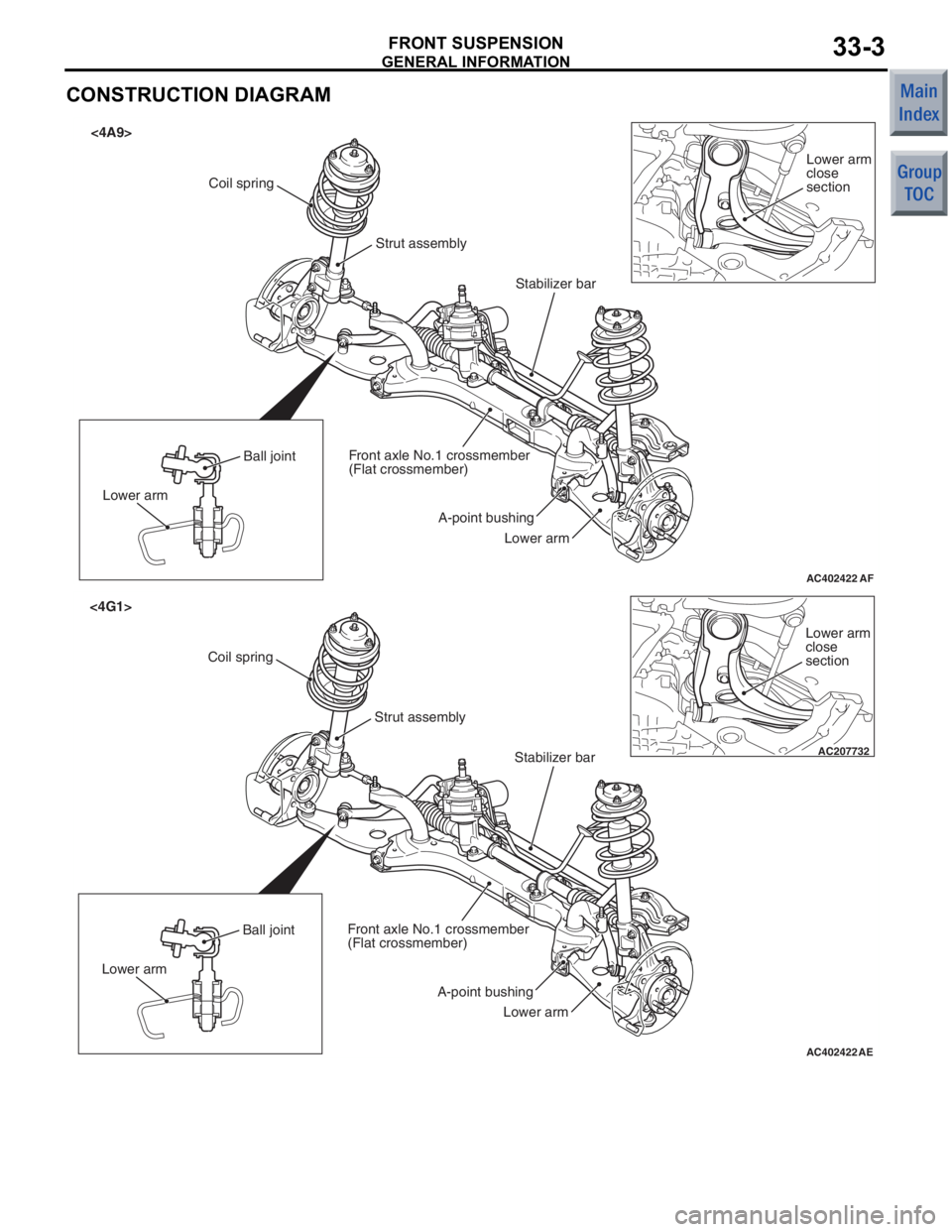

CONSTRUCTION DIAGRAM
AC402422AF
<4A9>
A-point bushing
Stabilizer bar
Coil spring
Strut assembly
Lower arm
Front axle No.1 crossmember
(Flat crossmember)
Lower arm Ball joint
Lower arm
close
section
AC402422AE
<4G1>
A-point bushing
Stabilizer bar
Coil spring
Strut assembly
Lower arm
Front axle No.1 crossmember
(Flat crossmember)
Lower arm Ball jointAC207732
Lower arm
close
section

GENERAL INFORMATION
FRONT SUSPENSION33-4
SPECIFICATIONS
SUSPENSION SYSTEM
ItemSpecification
Suspension typeMacPherson strut with coil spring
WHEEL ALIGNMENT
ItemSpecification
Camber − 0 °30'
Caster 4A92°35'
4G12°40'
Kingpin inclination 13°20'
Toe-inAt the centre of tyre tread mm0
Toe-angle (per wheel)0°
COIL SPRING
<4A9>
ItemSpecification
Wire diameter mm12
Average outside diameter mm133 − 149 − 154
Free length mmCVT331
5MT301
<4G1>
ItemSpecification
Wire diameter mm13
Average outside diameter mm133 − 150 − 154
Free length mm300

GROUP 31
WHEEL AND TYRE
CONTENTS
GENERAL INFORMATION . . . . . . . .31-2

GENERAL INFORMATION
WHEEL AND TYRE31-2
GENERAL INFORMATION
M2310000100800
The wheels and tyres of the following specifications
have been established.
SPECIFICATIONS
ROAD WHEEL AND TYRE
ItemLSVR, VR-XRALLIART
WheelTy p eSteel typeAluminium typeAluminium type
Size14 × 5.5JJ15 × 6JJ16 × 6.5JJ
Amount of wheel offset
mm464643
PCD mm100100114.3
Ty r eSize175/65R14 82S185/55R15 81V205/45R16 83W
NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.
SPARE WHEEL AND TYRE
ItemLS, VRVR-XRALLIART
Spare
wheelTy p eSteel typeSteel typeSteel type
Size14 × 4T15 × 4T15 × 3.5B
Amount of wheel offset
mm384640
PCD mm10010011 4 . 3
Spare tyreSizeT115/70D14 88MT125/70D15 95MT125/70D15 95M
NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

GROUP 14
ENGINE COOLING
CONTENTS
GENERAL INFORMATION . . . . . . . .14-2
