CUSTOMISE FUNCTION
SMART WIRING SYSTEM (SWS)54B-25
CUSTOMISE FUNCTION
M2541006000243
Using M.U.T.-III adjusts the following function. The
programmed information is held even when the bat
-
tery is disconnected.
•Vehicle speed-dependent wiper function
With the windshield wiper switch in the intermittent
position, the intermittent duration changes
depending on the intermittent adjusting knob
position and the vehicle speed.
•The selector "P" position-linked central door
unlocking function
When the selector lever is shifted to the "P" position,
all the doors unlock.
•Turn-signal lamp operation sound function
Synchronized with the hazard lamp and the turn sig-
nal lamp, the buzzer sounds.
•Dimmer interior lamp control duration
When the door is closed with the ignition switch
LOCK (OFF), the interior lamp is turned OFF
automatically in the specified time.
•Timer lock time after executing the keyless entry
unlock
If any door including a tailgate is not opened after
being unlocked with the keyless transmitter,
doors are locked automatically within the speci
-
fied time.
•Door-ajar warning function
Driving with any door, including a tailgate, not prop-
erly closed sounds the buzzer to let the driver
know the door-ajar state.
•Rear wiper intermittent duration
When the rear wiper switch is turned ON, the rear
wiper operates in the intermittent action. When
the rear wiper switch is turned from OFF to ON
two cycles, the rear wiper makes continuous
operation regardless of the intermittent operation
duration setting.
•Wiper linked with washer function
When this function is active, the windshield wiper
operates if the washer switch is turned ON.
•Hazard answer back function of the keyless entry
system
When lock/unlock is operated with the keyless entry
transmitter, the horn sounds so that the driver can
recognize the lock/unlock status of the vehicle
even if the driver is away from it.
•Initialising all functions (Returning to the initial
condition)
All adjusting functions are returned to the settings at
the time of factory shipment.
Item
No.Items shown
on M.U.T.-III
screenItemAdjustment items
shown on M.U.T.-III
screenAdjusting contents
4SPEED SEN
WIPVehicle
speed-dependent
wiper functionW.FUNCTIONWith function (Initial setting)
W/O FUNCTIONWithout function
9KEYLESS(HA
ZD)Hazard answer
back function of
the keyless entry
systemLOCK/UNLOCKWith function for lock/unlock (the initial
condition)
LOCKEDWith function only for lock
UNLOCKEDWithout function only for unlock
W/O FUNCTIONWithout function
14P UNLOCK
ACT.Door unlock
function linked
with "P" position
shift for centre
door lock systemW.FUNCTIONWith function
W/O FUNCTIONWithout function (the initial condition)
15T/SIG.BUZZE
RTurn-signal lamp
operation sound
functionW.FUNCTIONWith function
W/O FUNCTIONWithout function (the initial condition)

CUSTOMISE FUNCTION
SMART WIRING SYSTEM (SWS)54B-26
16RM LMP TN
OFFDimmer interior
lamp control
duration60s60 seconds
30s30 seconds
15s15 seconds (the initial condition)
7.5s7.5 seconds
W/O FUNCTION0 second (no delay action)
24KEYLES
LOCK TTimer lock time
after executing the
keyless entry
unlock30s30 seconds (the initial condition)
60s1 minute
120s2 minutes
180s3 minutes
26DOOR WARN
BUZDoor-ajar warning
functionW.FUNCTIONWith function (Initial setting)
W/O FUNCTIONWithout function
28R.INT WIPER
TRear wiper
intermittent
duration8s8 seconds: Without continuous
operation (Initial setting)
4s(W SUCSSON)4 seconds: With continuous operation
8s(W SUCSSON)8 seconds: With continuous operation
16s(W SUCSSON)16 seconds: With continuous operation
CONTIN ACTIONContinuous operation (without the
intermittence)
37WIP SYCR
WASHWiper linked with
washer functionW.FUNCTIONWith function (Initial setting)
W/O FUNCTIONWithout function
38KEYLES
HAZARDCustomise
function for
changing the
number of the
keyless hazard
warning lamp
answerback
flashingLOCK1,UNLOCK2LOCK: Flash once, UNLOCK: Flash
twice (Initial setting)
Whether the lamps flash or not is
determined by the keyless hazard
warning lamp answerback
customisation function.
LOCK2,UNLOCK1LOCK: Flash twice, UNLOCK: Flash
once
Whether the lamps flash or not is
determined by the keyless hazard
warning lamp answerback
customisation function.
39TURN-SIGNA
LTurn signal lamp
operation
condition
adjustment
functionIG-ONTurn signal lamp can be operated when
the ignition switch is turned ON (Initial
setting).
IG-ACCTurn signal lamp can be operated when
the ignition switch 1 is in ACC or ON
position.
Item
No.Items shown
on M.U.T.-III
screenItem Adjustment items
shown on M.U.T.-III
screenAdjusting contents

GROUP 52B
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
CONTENTS
GENERAL INFORMATIO N . . . . . . . .52B-2
SYSTEM OPERATION. . . . . . . . . . . .52B-8
FRONT AIR BAG AND SEAT BELT WITH
PRE-TENSIONER. . . . . . . . . . . . . . . . . . . . 52B-8
SIDE AND CURTAIN AIR BAGS . . . . . . . . 52B-9
SYSTEM CONSTRUCTION . . . . . . . .52B-10
DRIVER'S SIDE AIR BAG MODULE . . . . . 52B-10
PASSENGER'S (FRONT) AIR BAG
MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . 52B-10
SIDE-AIRBAG MODULE . . . . . . . . . . . . . . . 52B-10
CURTAIN AIR BAG MODULE . . . . . . . . . . . 52B-11
FRONT IMPACT SENSOR . . . . . . . . . . . . . 52B-12
SIDE IMPACT SENSOR . . . . . . . . . . . . . . . 52B-12
SEAT BELT WITH PRE-TENSIONER. . . . . 52B-13
SRS-ECU . . . . . . . . . . . . . . . . . . . . . . . . . . 52B-13
SRS AIR BAG SPECIAL CONNECTOR . . . 52B-17

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-2
GENERAL INFORMATION
M2521000100819
•The driver’s and front passenger’s air bags and
seat belts with pre-tensioner are standard
equipped on all vehicles.
•To improve safety against side impact collisions,
optional side-airbags and curtain air bags are
available to all the models.
•An inflator that does not contain sodium azide is
adopted for all types of the air bag modules.
SRS FRONT AIR BAG
The SRS is designed to supplement the front seat
belts. It reduces injury to the front passenger(s) by
deploying air bag(s) in case of a frontal collision.
SRS SIDE-AIRBAG
Side-airbag systems in the front seats are activated
when side collision applied to the vehicle exceed cri
-
teria to protect the occupants’ upper bodies.
SRS CURTAIN AIR BAG
The curtain air bag systems are activated when side
collision applied to the vehicle exceed criteria, to pro
-
tect the heads of the occupants in the front and rear
seats.
SEAT BELT WITH PRE-TENSIONER
The seat belts with pre-tensioner work simultane-
ously with the SRS. The pre-tensioner takes up seat
belt slack immediately when a collision takes place,
restraining the front passengers sooner than the
SRS. This prevents the passengers from moving for
-
ward.

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-3
CONSTRUCTION DIAGRAM
AC601639
AC207323
AC207321AC207230
AC601468
Driver's air bag
modulePassenger's (front)
air bag module
SRS-ECU
Diagnosis connector
Clock springSRS warning lamp
Seat belt with
pre-tensioner
Curtain air bag module
Front impact sensor
SRS-ECUSide impact sensor
Side-airbag module
AB
SRS warning lamp
SRS warning lamp

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-4
SRS SYSTEM CIRCUIT DIAGRAM
AC401544
Ignition switch (IG1)
Combination
meter (SRS
warning lamp)
No.40
7.5A
Driver's
air bag
module ON
OFF OFF
ON ON
OFF
ON
OFF
ON
ON
OFF
Passenger's
(front)
air bag
moduleClock spring
ON
OFF
OFF ON
OFF ON
OFF
ON
OFF
ON
ON
OFF
ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Connector
lock switch*
Connector
lock switch* Connector
lock switch*Connector
lock switch*
Seat belt
pre-tensioner
(LH)
Seat belt
pre-tensioner
(RH)
Side-airbag
module
(LH)
Side-airbag
module
(RH)
Curtain air bag
module
(LH)
Curtain air bag
module
(RH) ON
OFF
OFF ON
ON
OFF
ON
ON
OFF
OFFONON
OFF
OFFON
OFF
ON
Connector
lock switch*
Connector
lock switch* Connector
lock switch*
OFFON
OFF
Connector
lock switch*Side impact
sensor (RH)
Side impact
sensor (LH)
Diagnosis
connector
Front impact
sensor (RH)
Front impact
sensor (LH)
Note
*: Connector
connected: ON Connector
disconnected: OFF
AB
SRS-ECU
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
ON
OFF OFF
No.37
7.5A

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-5

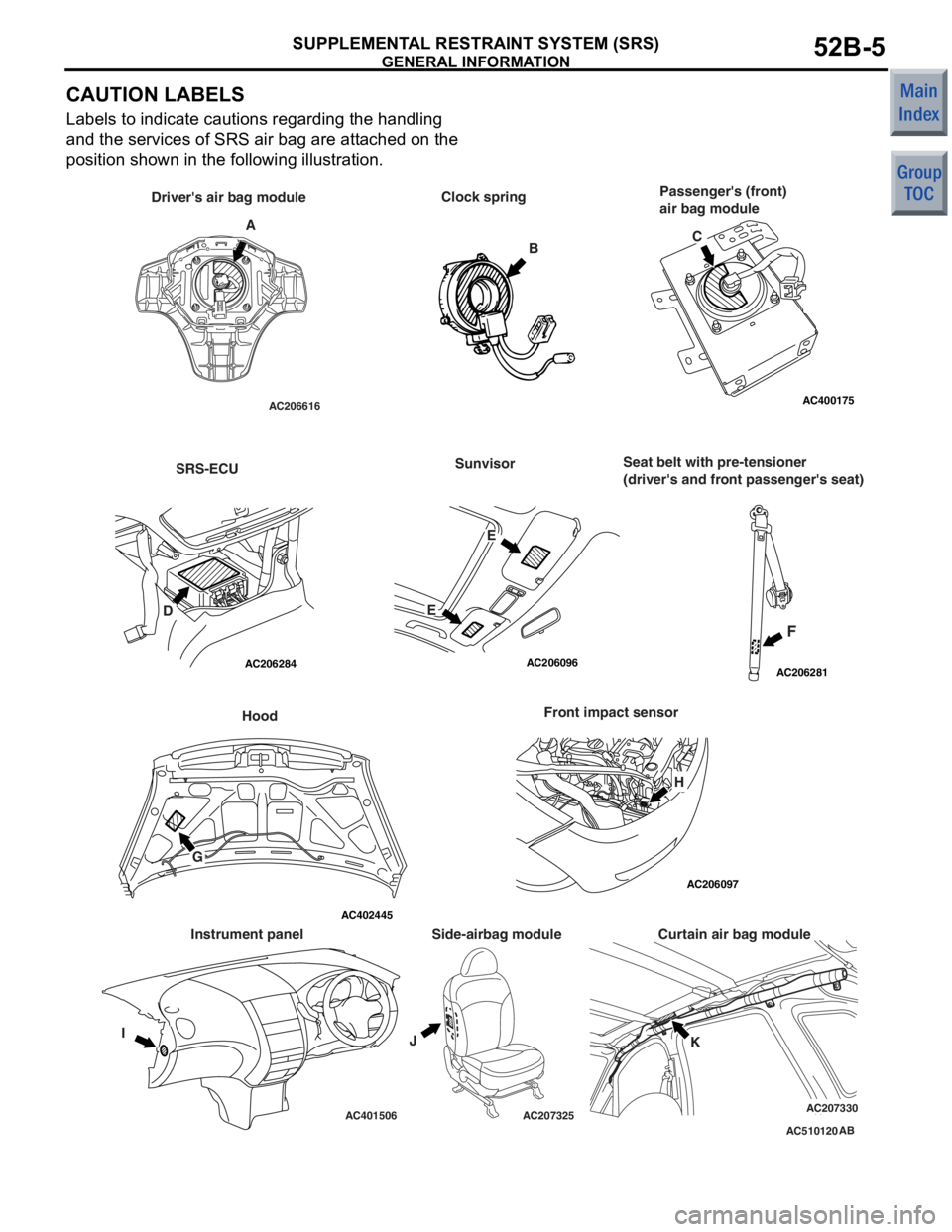

CAUTION LABELS
Labels to indicate cautions regarding the handling
and the services of SRS air bag are attached on the
position shown in the following illustration.
AC510120
AC206616
AC206284
AC206096AC206281
AC206097
AC400175
AC401506AC207325AC207330
AC402445
AB
A Clock spring
B
Driver's air bag module
Passenger's (front)
air bag module
SRS-ECUSunvisor
F
Seat belt with pre-tensioner
(driver's and front passenger's seat)
Hood
G Front impact sensor
IJK
Curtain air bag module
Side-airbag module
Instrument panel C
D EE
H

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-6
Label contents
ADANGER FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY. DO NOT DISMANTLE, INCINERATE, OR BRING
INTO CONTACT WITH ELECTRICITY. STORE BELOW 200
°F (93°C). READ SERVICE
MANUAL FOR DETAIL.
BCAUTION: SRS CLOCK SPRING
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE, REPLACE ENTIRE UNIT
ACCORDING TO THE SERVICE MANUAL INSTRUCTIONS. TO RE-CENTRE: ROTATE
CLOCKWISE UNTIL TIGHT. THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3
3/4 TURNS AND ALIGN ARROWS >><<.
CDANGER FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY. DO NOT DISMANTLE, INCINERATE, OR BRING
INTO CONTACT WITH ELECTRICITY. STORE BELOW 200
°F (93°C). READ SERVICE
MANUAL FOR DETAIL.
DCAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE MANUAL.
E
WARNING
•DEATH OR SERIOUS INJURY can occur.
•ALWAYS use SEAT BELT and CHILD SEAT.
•DO NOT sit or lean unnecessarily close to the air bag.
•DO NOT place or install any objects over the air bag or between the air bag and
yourself.

WARNING
•DEATH OR SERIOUS INJURY can occur
•DO NOT place rear-facing child seat on this seat with airbag.
FDANGER: SEAT BELT PRETENSIONER
DO NOT DISASSEMBLE OR IMPACT
REFER TO SERVICE MANUAL FOR INSTRUCTIONS, HANDLING, STORAGE AND
DISPOSAL PROCEDURES.
GWARNING
THIS VEHICLE HAS AN AIR BAG SYSTEM. REFER TO SERVICE MANUAL BEFORE
SERVICING OR DISASSEMBLING UNDERHOOD COMPONENTS. READ THE "SRS"
SECTION OF MANUAL FOR IMPORTANT INSTRUCTIONS. IMPROPER SERVICE
PROCEDURES CAN RESULT IN THE AIR BAG FIRING OR BECOMING
INOPERATIVE, POSSIBLY LEADING TO INJURY.
HCAUTION:
DO NOT DISASSEMBLE OR DROP.

GENERAL INFORMATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-7
I
AC300151
JWA RNING FLAMMABLE/EXPLOSIV E
SRS AIR BAG MODULE
TO A V OID SERIOUS INJUR Y :
•DO NOT REPA IR, DISASSE MBLE OR T A MPER.
•AV OID CONT ACT WITH FLAME OR ELECTRICI T Y .
•DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.
•STORE BELOW 200°F (93°C).
•BEFORE DOING ANY WORK INVOL V ING MODULE, READ SER VICE MANUAL
FOR IMPOR
T A N T FUR T HER DA T A .
KWA RNING
•THIS AIRBAG MODULE CAN NOT BE REP A IRED. S EE SER VICE MANUAL FOR
INSTRUCTION (ON
DIAGNOSIS AND REPLACEMENT)
•DO NOT DIAGNOSE USING ELECTRICAL L Y POWE RED TEST EQUIPMENT OR
PROBING DE
VICES.
•TA MPERING OR MISHANDLING CAN RESUL T IN PERSONA L INJUR Y .
•STORE THE REMOVED AIRBA G MODULE WITH THE P A D OR COVER SURF ACE
UP
. (RE F E R T O SER VICE MANUAL FOR SPECIAL HANDLING OR ST ORAGE.)
•DO NOT STORE ABOVE 200°F (93°C).
Label c ontent s

SYSTEM OPERATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)52B-8

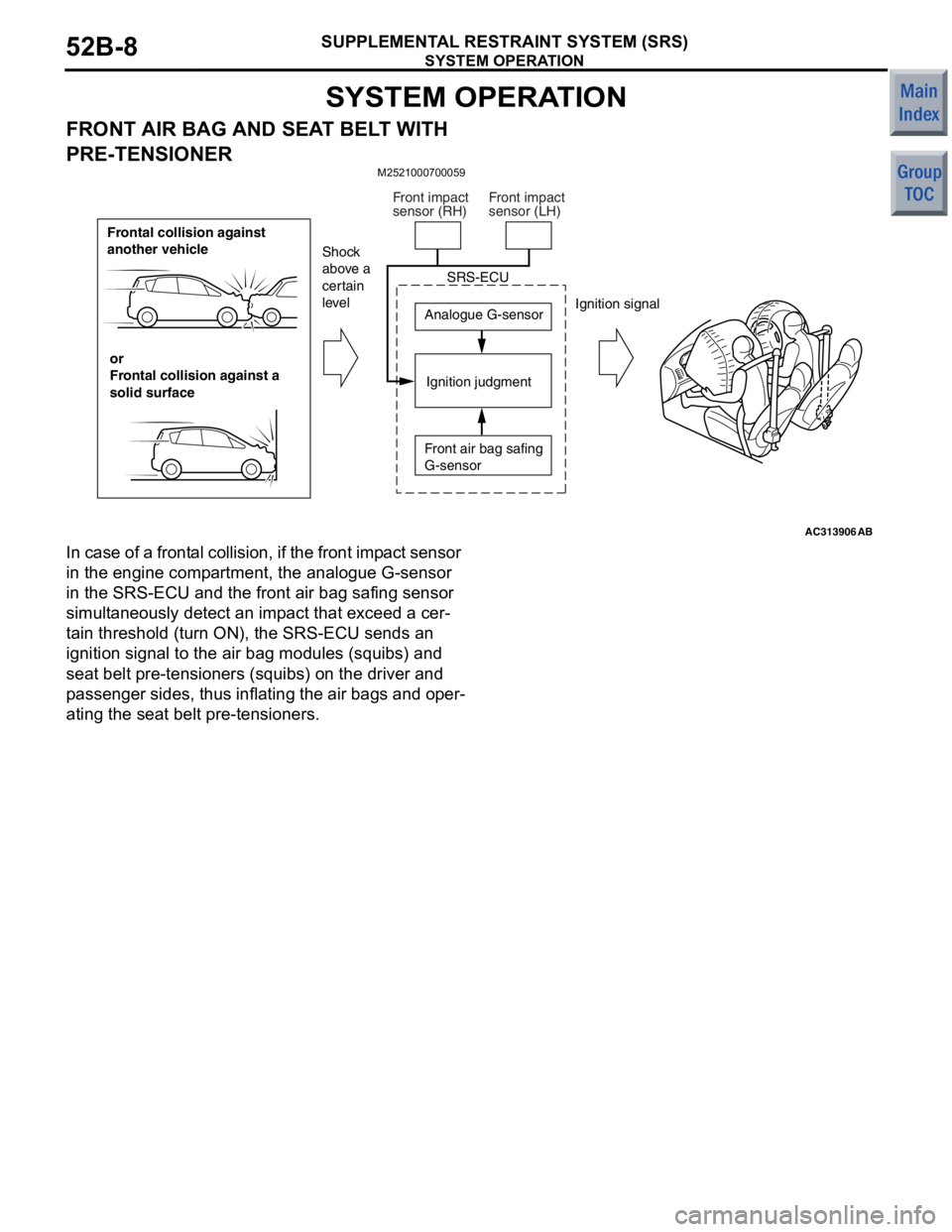

SYSTEM OPERATION
FRONT AIR BAG AND SEAT BELT WITH
PRE-TENSIONER
M2521000700059
AC313906
Frontal collision against
another vehicleor
Frontal collision against a
solid surface Analogue G-sensor
Ignition judgment
Shock
above a
certain
level
Ignition signal
SRS-ECU
Front air bag safing
G-sensor
Front impact
sensor (RH)
Front impact
sensor (LH)
AB
In case of a
front a l collision, if the front imp a ct sensor
in the
engine comp artment, th e ana logue G-sensor
in the
SRS-ECU and t he fron t air b ag sa fing sensor
simult
ane ously de tect an imp a ct th at excee d a cer
-
ta in threshold (turn ON), the SRS-ECU sen d s an
ignition
sign al to the air bag modu les (squ ibs) and
seat
belt p r e-tension e rs (squib s ) on the driver and
p
a sse nger sid e s, thus inflating the air bags an d op er
-
ating the seat be lt pre - tensioners.
