MITSUBISHI ENDEAVOR 2004 Service Repair Manual

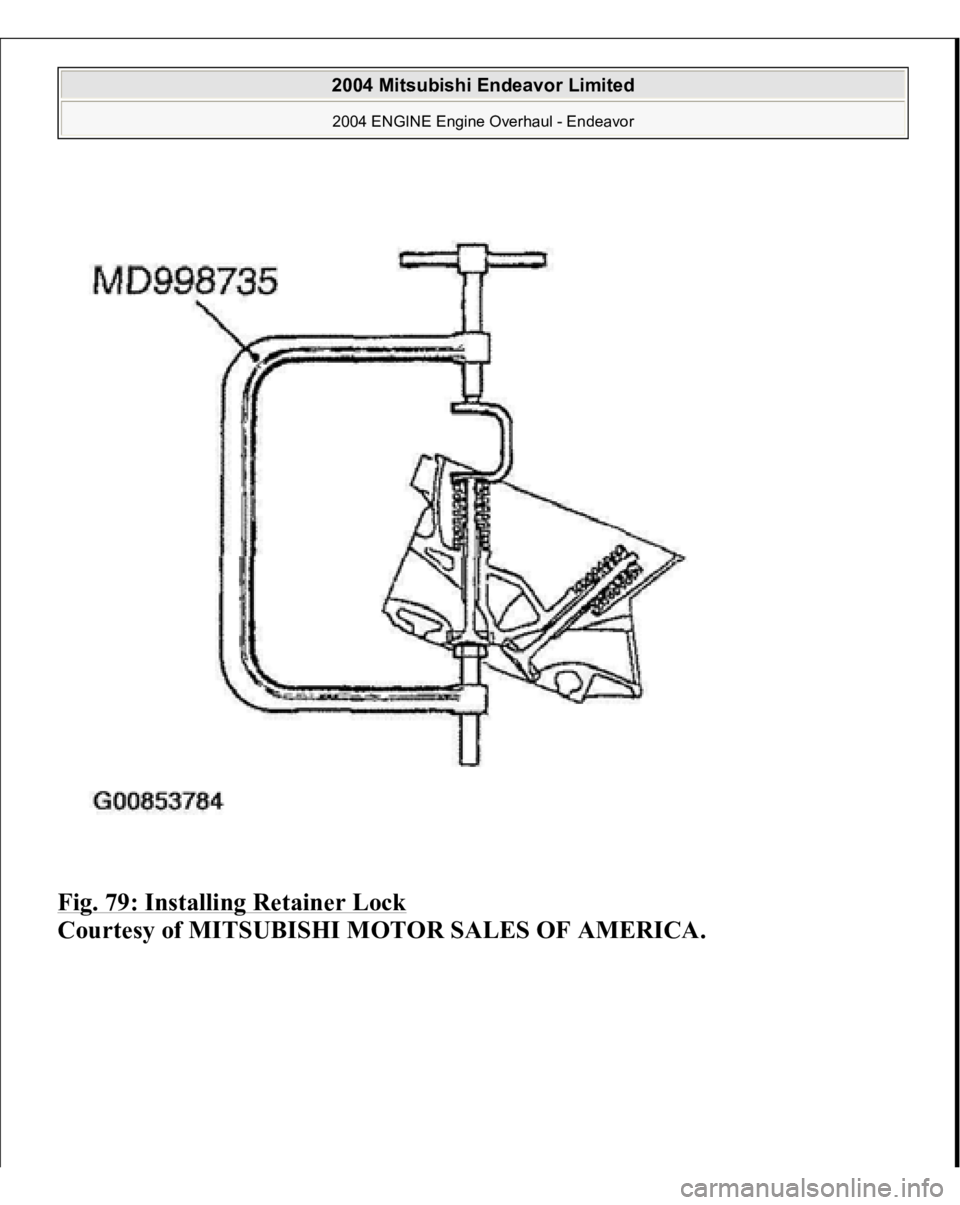

Fig. 79: Installing Retainer Lock

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 80: Using Special Tool MD998772 For Installing Retainer Lock

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>D<< CYLINDER HEAD BOLT INSTALLATION 1. Tighten the bolts in the illustrated sequence two or three steps.
Tightening torque: 108+/-5 N.m (80+/-4 ft-lb)
CAUTION: Attach the head bolt washer in the direction shown in
the figure.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 81: Installing Cylinder Head Bolt


2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Back off the bolts once and tighten them again to the specified torque in step 1.
INSPECTION CYLINDER HEAD 1. Check the cylinder head gasket surface for flatness by using a straightedge in
the directions of A through G shown in the illustration.
Standard value: 0.03 mm (0.0012 inch)
Limit: 0.2 mm (0.007 inch)
2. If the service limit is exceeded, correct to meet the specification.
Grinding limit: *0.2 mm (0.007 inch)
3. *If the service limit is exceeded, correct to meet the specification.
Cylinder head height (specification when new): 120 mm (4.7 inches)
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 82: Inspecting Cylinder Head To Meet Its Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
VALVE 1. Check the valve face for correct contact. If incorrect, reface using a valve
refacer. The valve should make a uniform contact with the seat at the center of
the valve face.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Fig. 83: Checking Valve Face And Margin

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. If the margin exceeds the service minimum limit, replace the valve.
Standard value:
< Intake > 1.0 mm (0.04 inch)
< Exhaust > 1.2 mm (0.05 inch)
Minimum limit:
< Intake > 0.5 mm (0.02 inch)
< Exhaust > 0.7 mm (0.03 inch)
3. Measure the valve's total length. If the measurement is less than specified,
replace the valve.
Standard value:

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

< Intake > 110.30 mm (4.343 inches)
< Exhaust > 112.11 mm (4.414 inches)
Minimum limit:
< Intake > 109.80 mm (4.323 inches)
< Exhaust > 111.61 mm (4.394 inches)
Fig. 84: Measuring Valve Length

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
VALVE SPRINGS 1. Measure the free height of the spring and, if it is smaller than the minimum
limit, replace the spring.
Standard value: 51.0 mm (2.01 inches)
Minimum limit: 50.0 mm (1.97 inches)
2. Measure the squareness of the spring and, if the limit is exceeded, replace the
s
prin
g.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Standard value: 2° or less
Limit: 4°

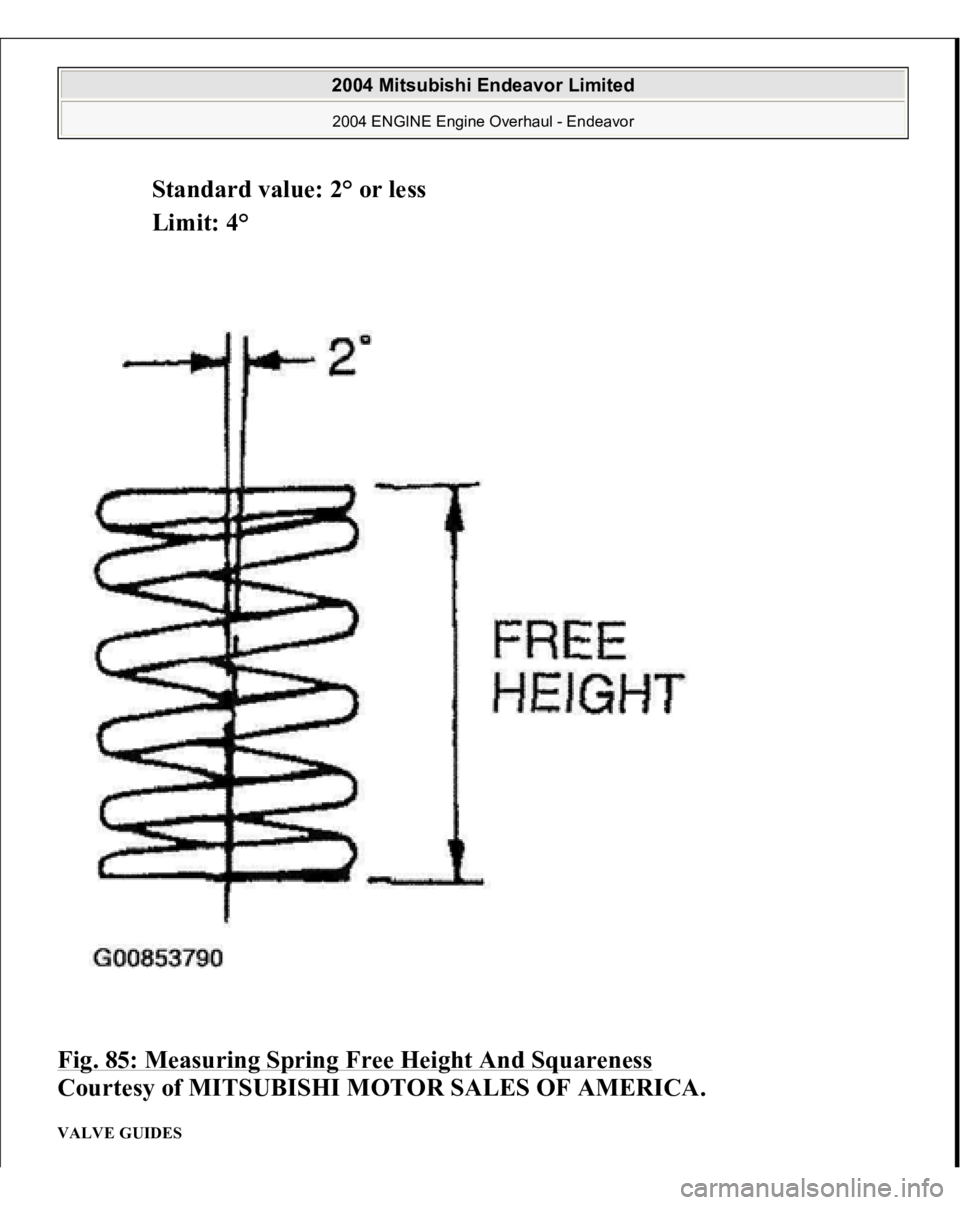

Fig. 85: Measuring Spring Free Height And Squareness

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
VALVE GUIDES
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Measure the clearance between the valve guide and valve stem. If the limit is
exceeded, replace the valve guide, valve, or both.
Standard value:
< Intake > 0.02 - 0.05 mm (0.0008 - 0.0019 inch)
< Exhaust > 0.04 - 0.06 mm (0.0016 - 0.0023 inch)
Limit:
< Intake > 0.10 mm (0.003 inch)
< Exhaust > 0.15 mm (0.005 inch)
Fig. 86: Measuring Clearance Between Valve Stem And Vale Guide

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
VALVE SEAT Assemble the valve, then measure the valve stem
projection between the end of the

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

valve stem and the spring seating surface. If the measurement exceeds the specified
limit, replace the valve seat.
Standard value:
< Intake > 48.30 mm (1.902 inches)
< Exhaust > 51.71 mm (2.036 inches)
Limit:
< Intake > 48.80 mm (1.921 inches)
< Exhaust > 52.21 mm (2.056 inches)
Fig. 87: Measuring Valve Stem Projection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
