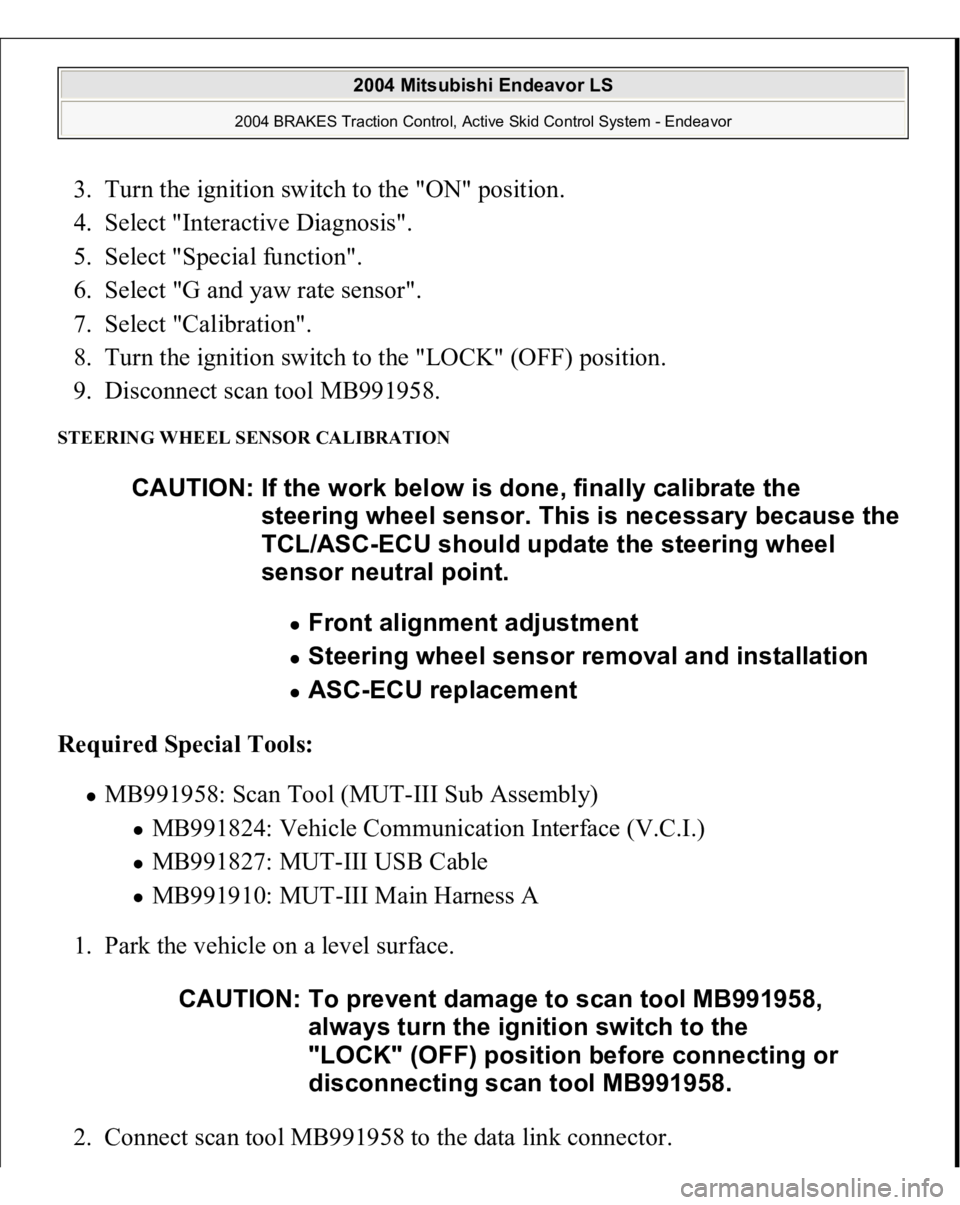

3. Turn the ignition switch to the "ON" position.
4. Select "Interactive Diagnosis".
5. Select "Special function".
6. Select "G and yaw rate sensor".
7. Select "Calibration".
8. Turn the ignition switch to the "LOCK" (OFF) position.
9. Disconnect scan tool MB991958. STEERING WHEEL SENSOR CALIBRATION Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
1. Park the vehicle on a level surface.
2. Connect scan tool MB991958 to the data link connec
tor. CAUTION: If the work below is done, finally calibrate the
steering wheel sensor. This is necessary because the
TCL/ASC-ECU should update the steering wheel
sensor neutral point.
Front alignment adjustment Steering wheel sensor removal and installation ASC-ECU replacement
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

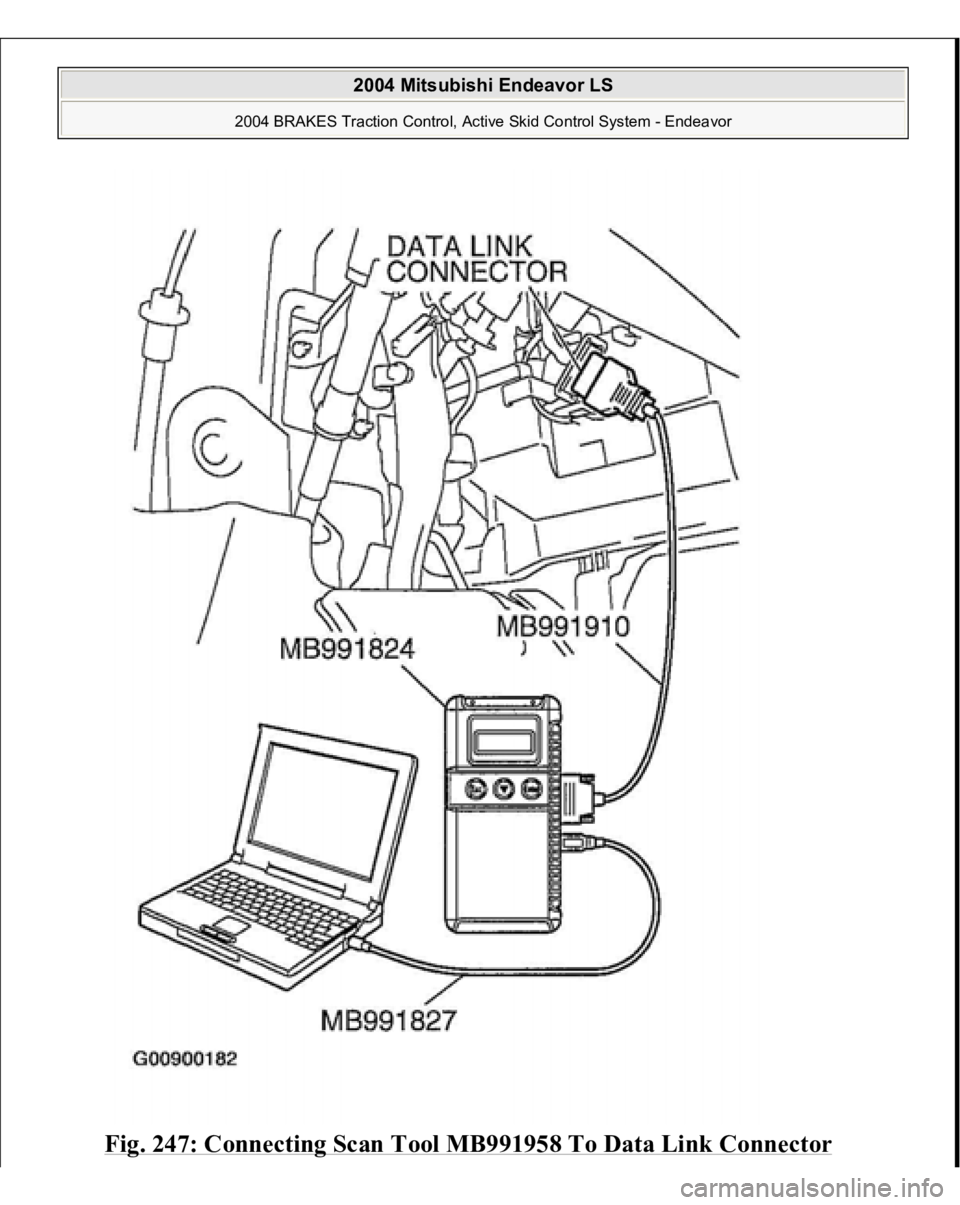

Fig. 247: Connecting Scan Tool MB991958 To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

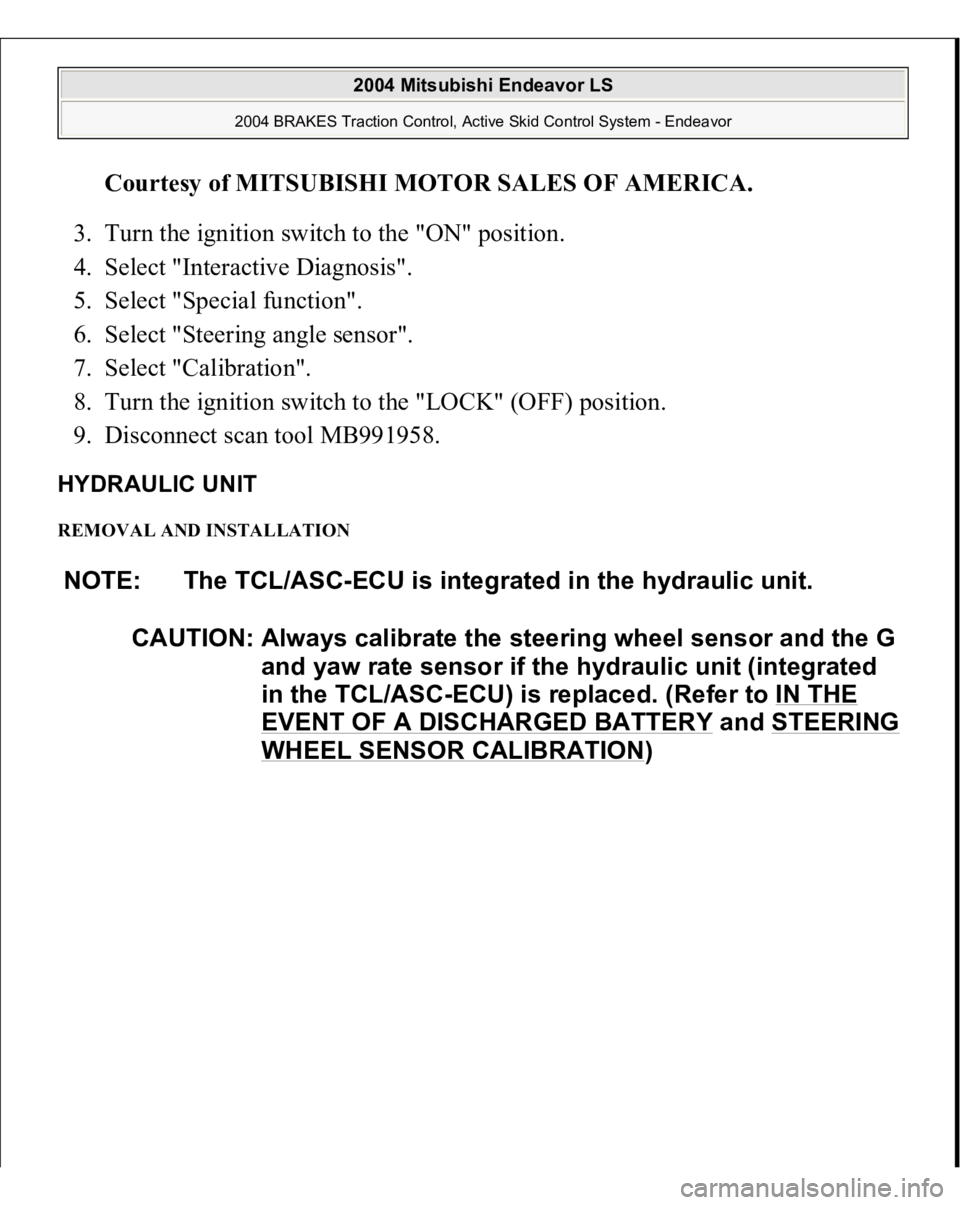

3. Turn the ignition switch to the "ON" position.
4. Select "Interactive Diagnosis".
5. Select "Special function".
6. Select "Steering angle sensor".
7. Select "Calibration".
8. Turn the ignition switch to the "LOCK" (OFF) position.
9. Disconnect scan tool MB991958.
HYDRAULIC UNIT REMOVAL AND INSTALLATION NOTE: The TCL/ASC-ECU is integrated in the hydraulic unit.
CAUTION: Alwa
ys calibrate the steerin
g wheel sensor and the G
and yaw rate sensor if the hydraulic unit (integrated
in the TCL/ASC-ECU) is replaced. (Refer to IN THE
EVENT OF A DISCHARGED BATTERY
and STEERING
WHEEL SENSOR CALIBRATION
)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

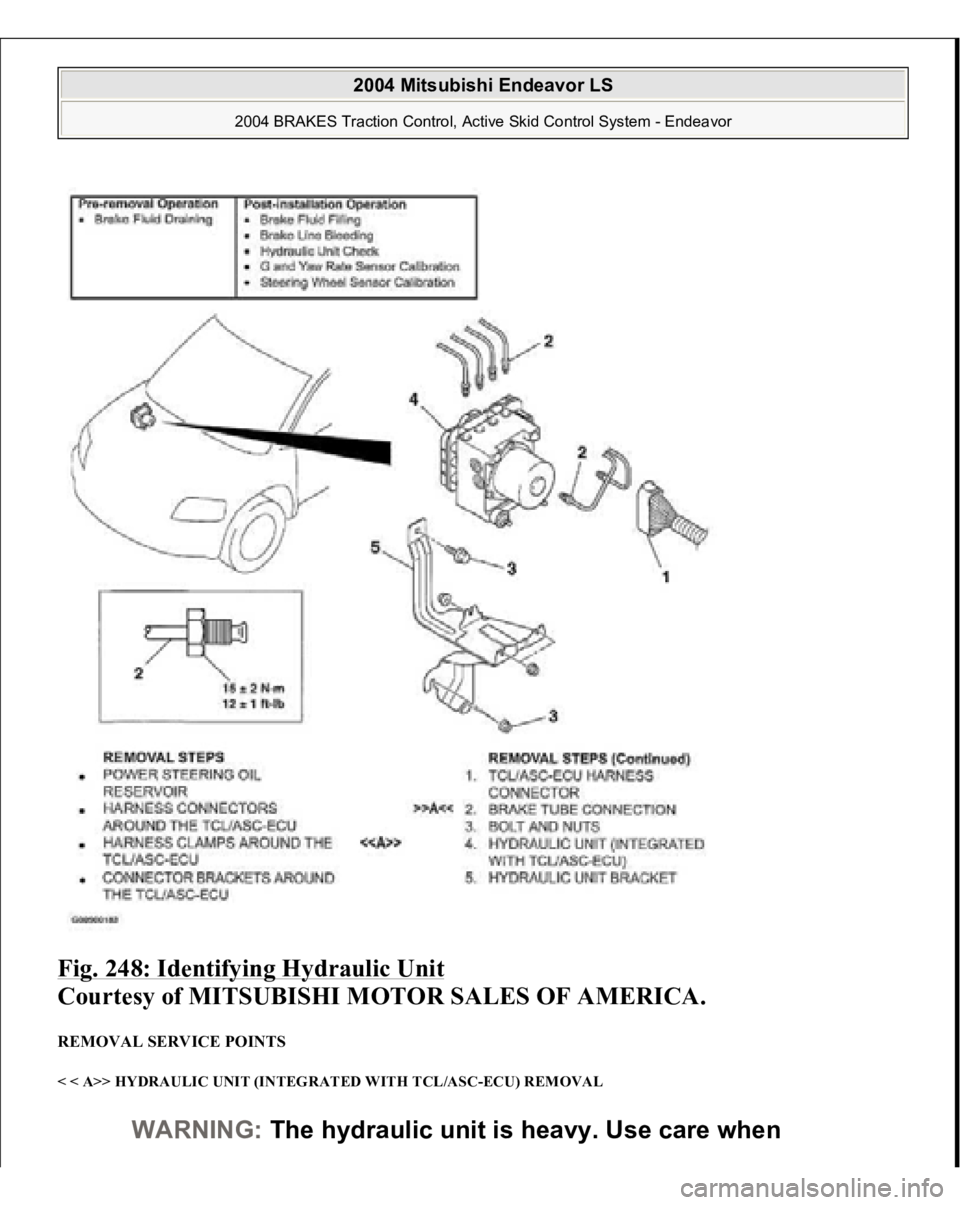

Fig. 248: Identifying Hydraulic Unit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINTS < < A>> HYDRAULIC UNIT (INTEGRATED WITH TCL/ASC-ECU) REMOVAL
WARNING:The hydraulic unit is heavy. Use care when

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

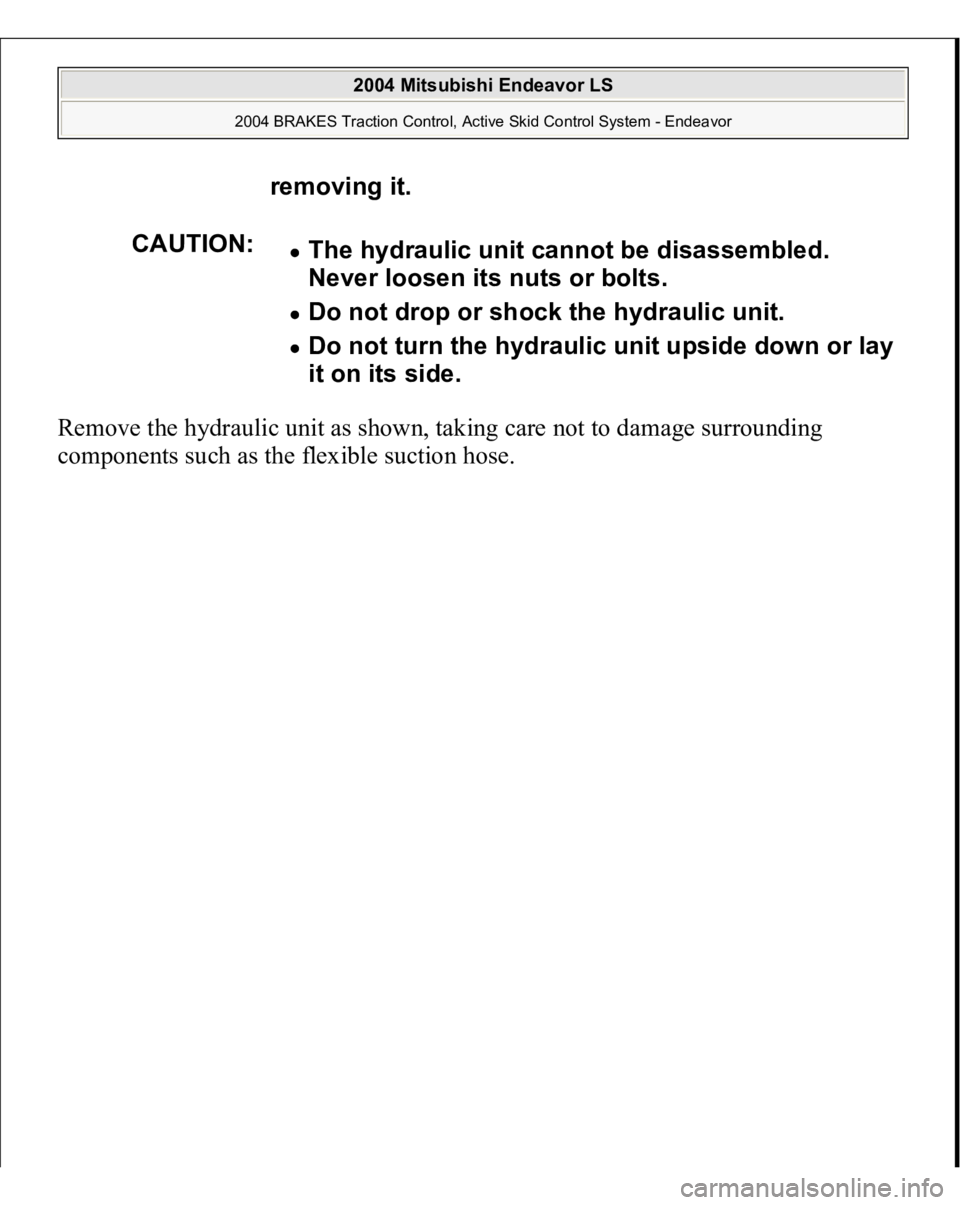

Remove the hydraulic unit as shown, taking care not to damage surrounding
com
ponents such as the flexible suction hose.removing it.
CAUTION:
The hydraulic unit cannot be disassembled.
Never loosen its nuts or bolts. Do not drop or shock the hydraulic unit. Do not turn the hydraulic unit upside down or lay
it on its side.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

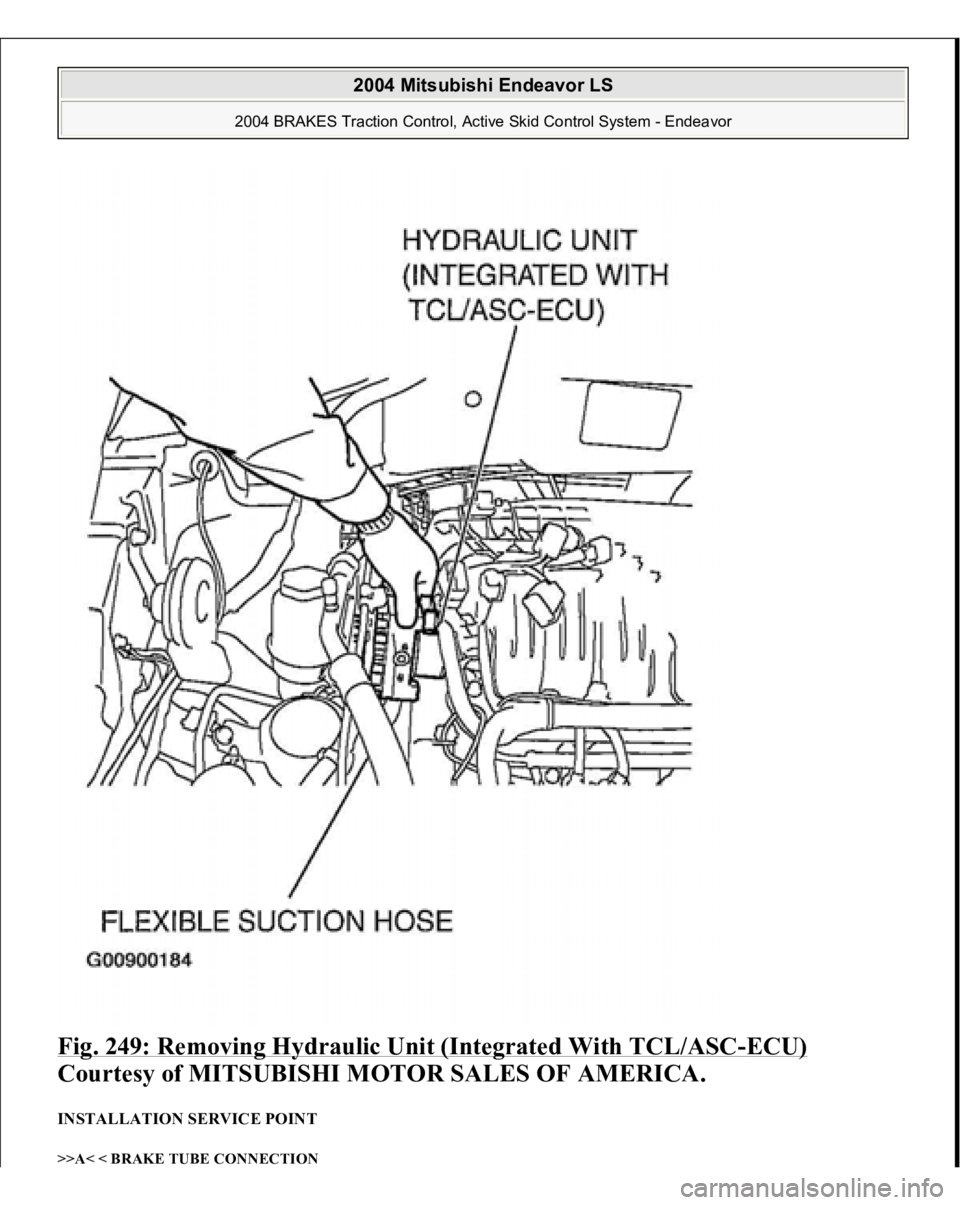

Fig. 249: Removing Hydraulic Unit (Integrated With TCL/ASC
-ECU)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A< < BRAKE TUBE CONNECTION
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

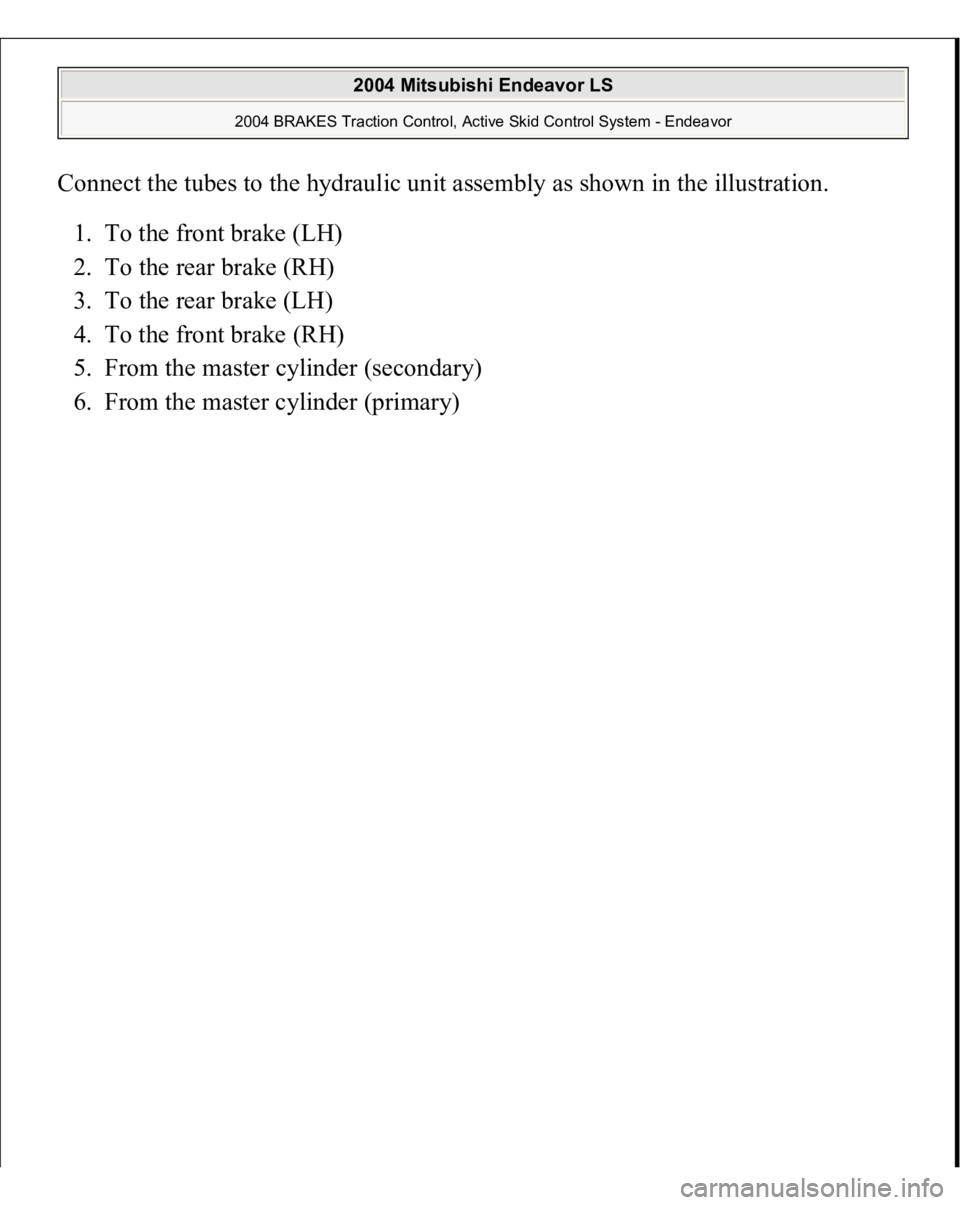

Connect the tubes to the hydraulic unit assembly as shown in the illustration.
1. To the front brake (LH)
2. To the rear brake (RH)
3. To the rear brake (LH)
4. To the front brake (RH)
5. From the master cylinder (secondary)
6. From the master c
ylinder
(primar
y)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

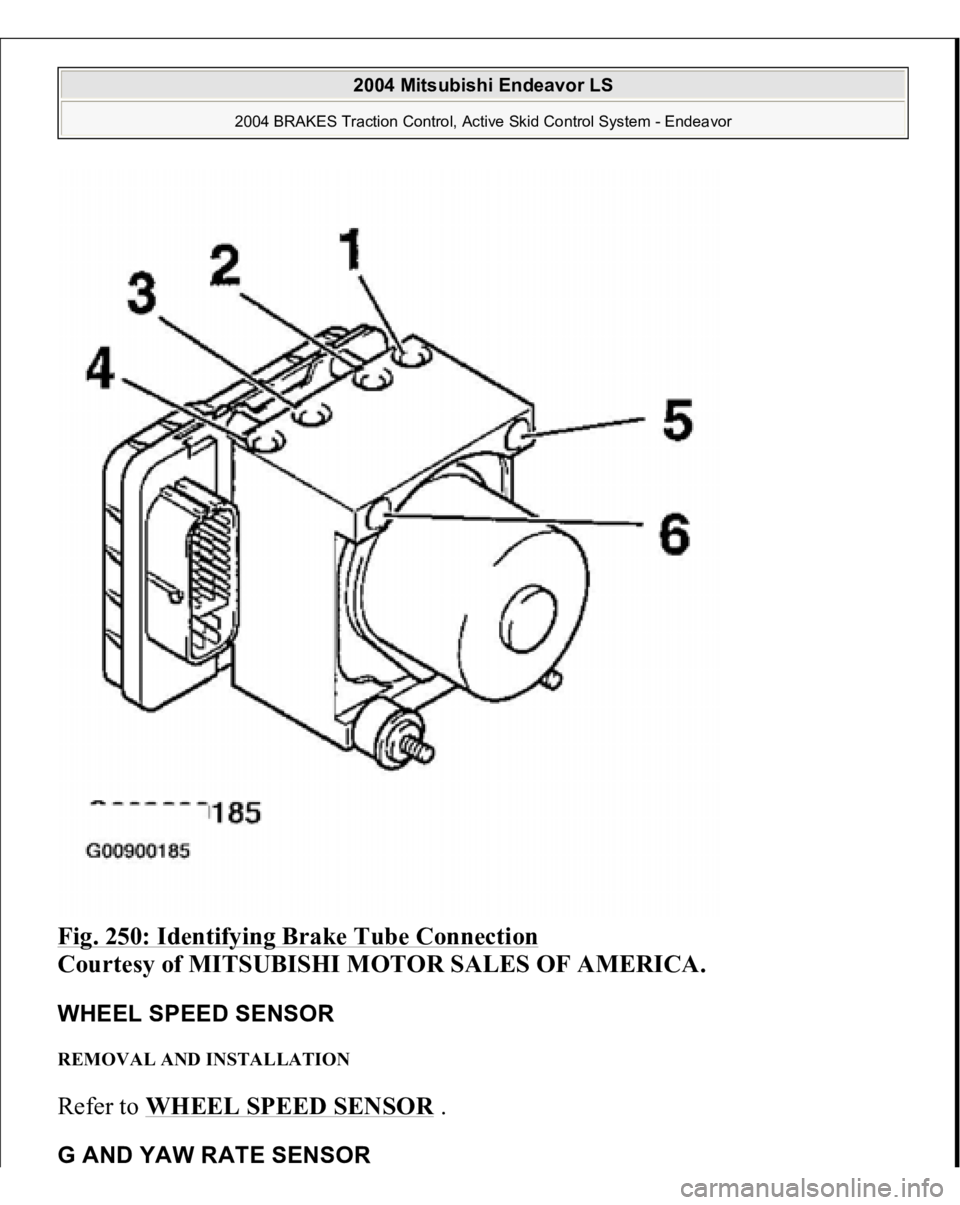

Fig. 250: Identifying Brake Tube Connection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEEL SPEED SENSOR REMOVAL AND INSTALLATION Refer to WHEEL SPEED SENSOR
.
G AND YAW RATE SENSOR
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

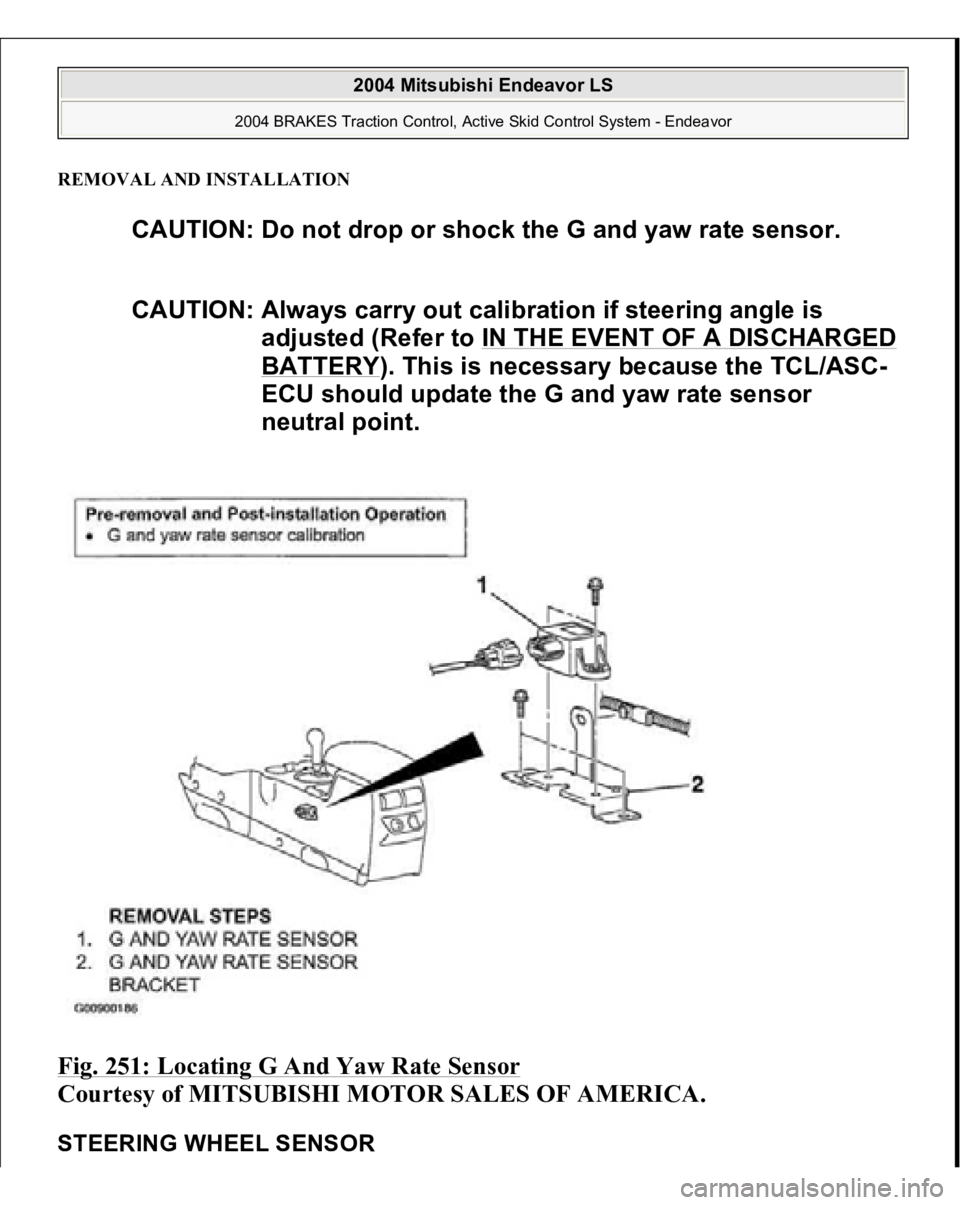

REMOVAL AND INSTALLATIONFig. 251: Locating G And Yaw Rate Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
STEERING WHEEL SENSOR
CAUTION: Do not drop or shock the G and yaw rate sensor.
CAUTION: Always carry out calibration if steering angle is
adjusted (Refer to IN THE EVENT OF A DISCHARGED
BATTERY
). This is necessary because the TCL/ASC-
ECU should update the G and yaw rate sensor
neutral point.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

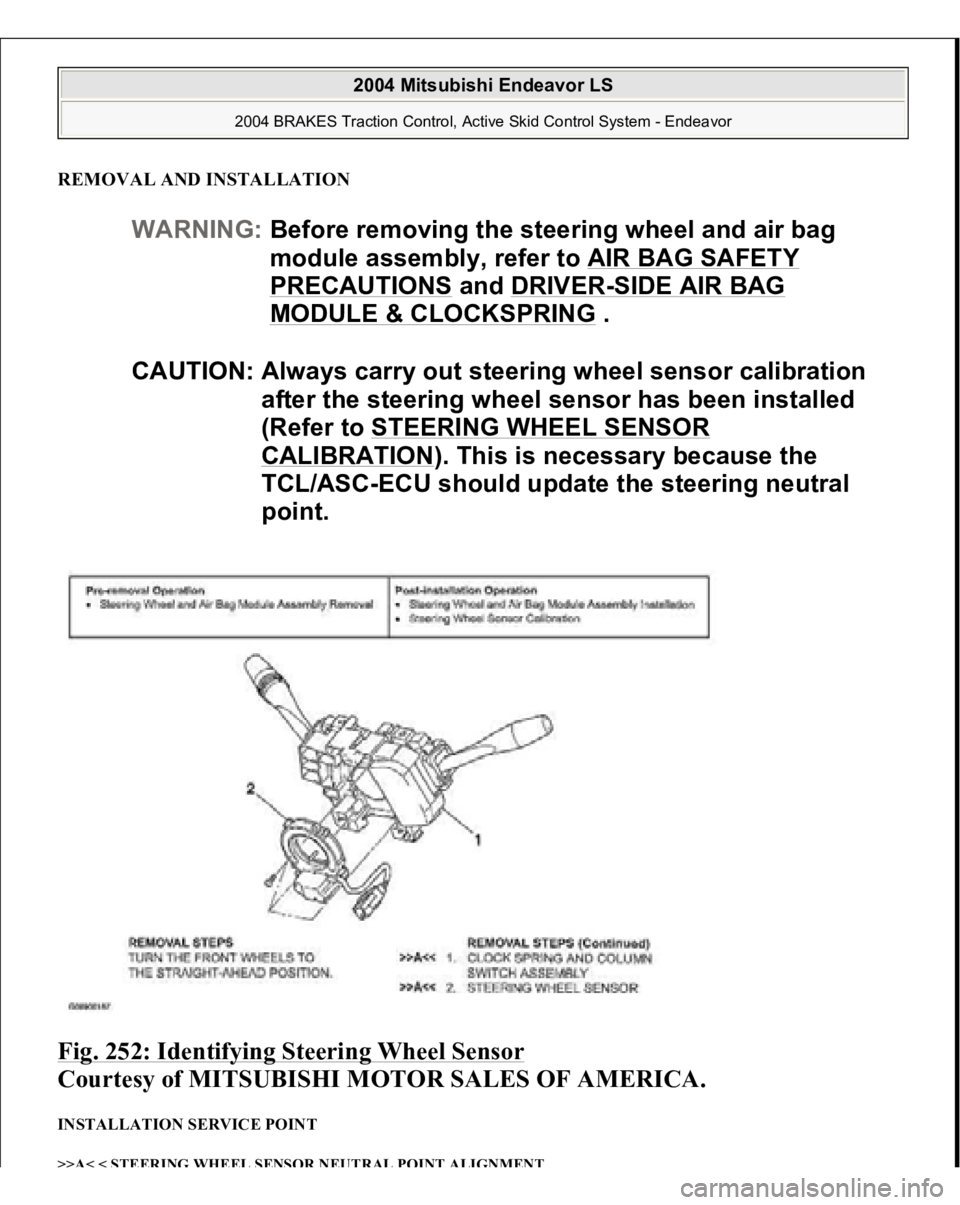

REMOVAL AND INSTALLATIONFig. 252: Identifying Steering Wheel Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSTALLATION SERVICE POINT >>A< < STEERING WHEEL SENSOR NEUTRAL POINT ALIGNMEN
T
WARNING:Before removing the steering wheel and air bag
module assembly, refer to AIR BAG SAFETY
PRECAUTIONS
and DRIVER
-SIDE AIR BAG
MODULE & CLOCKSPRING
.
CAUTION: Always carry out steering wheel sensor calibration
after the steering wheel sensor has been installed
(Refer to STEERING WHEEL SENSOR
CALIBRATION
). This is necessary because the
TCL/ASC-ECU should update the steering neutral
point.
