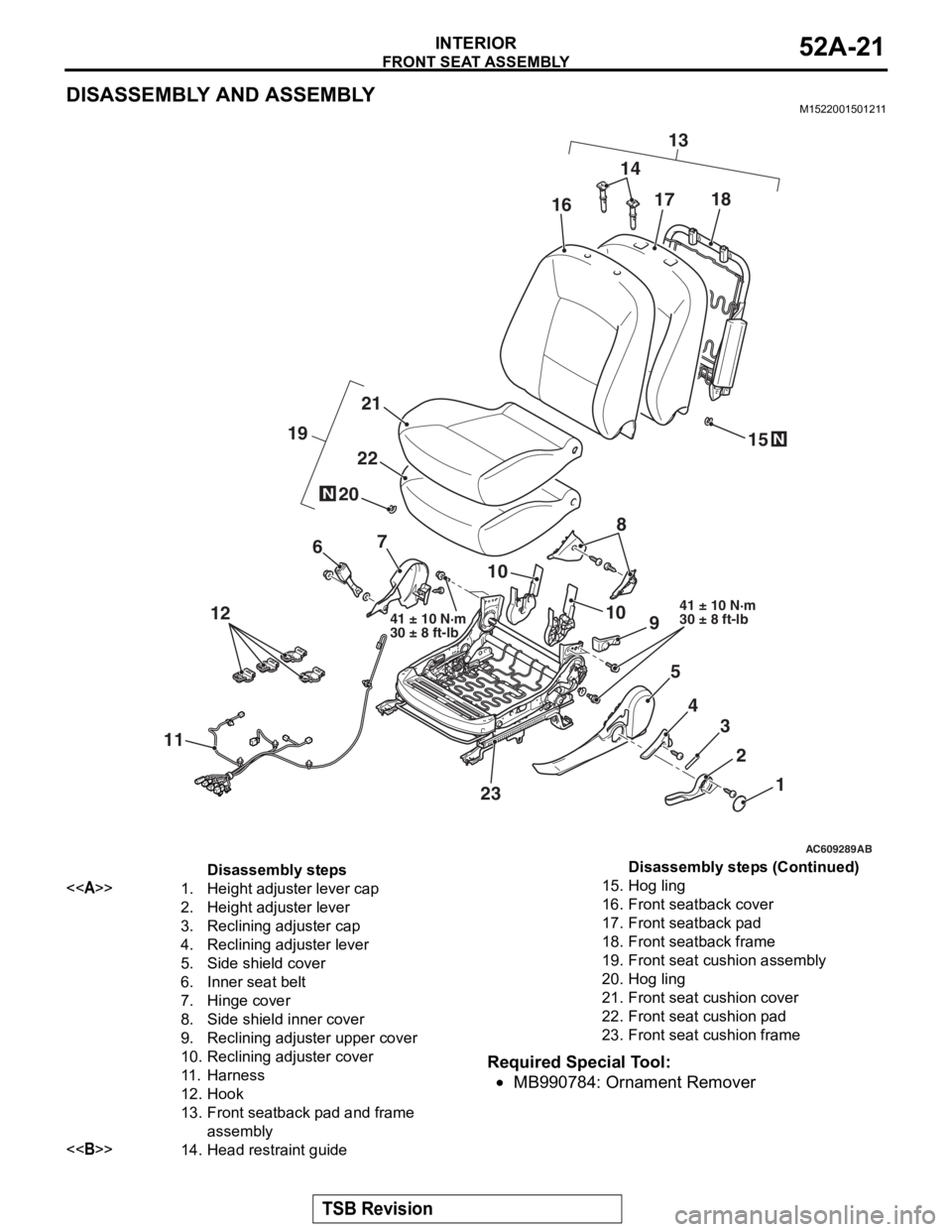

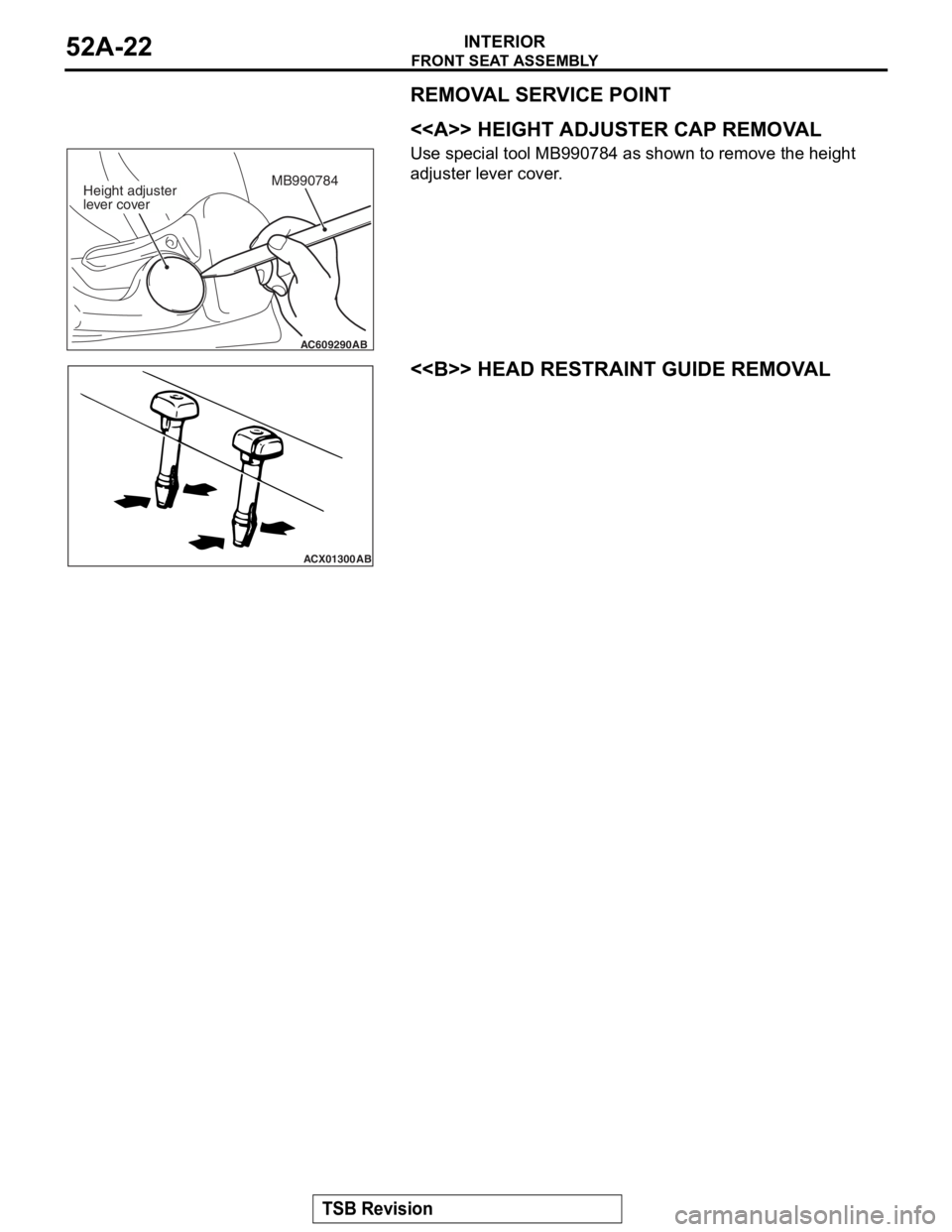

MITSUBISHI LANCER EVOLUTION X 2008 Workshop Manual

REAR SEAT ASSEMBLY
TSB Revision
INTERIOR52A-23
REAR SEAT ASSEMBLY
REMOVAL AND INSTALLATIONM1522001800639
AC611154AB
43 ± 8 N·m
32 ± 6 ft-lb
1
23
4
43 ± 8 N·m
32 ± 6 ft-lb

5
Removal steps
1.Rear seat head restraint
>>C<<2.Rear seat cushion assembly
>>A<<3.Rear seatback assembly
4.Rear seat hook
5.Luggage room partition board
Removal steps (Continued)

REAR SEAT ASSEMBLY
TSB Revision
INTERIOR52A-24
AC609245AB
11
410
10
5
3
9
8
2
6
7
21 ± 4 N·m
15 ± 3 ft-lb
21 ± 4 N·m
15 ± 3 ft-lb
38 ± 13 N·m
28 ± 10 ft-lb
43 ± 8 N·m
32 ± 6 ft-lb 43 ± 8 N·m
32 ± 6 ft-lb
43 ± 8 N·m
32 ± 6 ft-lb
43 ± 8 N·m
32 ± 6 ft-lb

Removal steps
1.Rear seat head restraint
>>C<<2.Rear seat cushion assembly
3.Rear seat hook
>>B<<4.Rear seatback side assembly (RH)
>>B<<5.Rear seatback side assembly (LH)
>>A<<6.Rear seatback assembly (RH)
>>A<<7.Rear seatback assembly (LH)
8.Spacer
9.Snap ring
10.Rear seat armrest
11 .Rear seat striker
Removal steps (Continued)

REAR SEAT ASSEMBLY
TSB Revision
INTERIOR52A-25
INSTALLATION SERVICE POINTS
.
>>A<< INSTALLATION OF REAR SEATBACK
ASSEMBLY (LH)/REAR SEATBACK ASSEMBLY
(RH)
Place the center hinge bracket of the rear seatback assembly
(LH) on top of the center hinge bracket of the rear seatback
assembly (RH) for installation.
.
>>B<< INSTALLATION OF REAR SEATBACK SIDE
ASSEMBLY (LH)/RE AR SEATBACK SIDE
ASSEMBLY (RH)
Press the rear seatback side as sembly in the direction shown
in the illustration and fit the attachment wire into the hook
securely to install the rear seatback side assembly.
.
>>C<< INSTALLATION OF REAR SEAT CUSHION
ASSEMBLY
Fit the rear seat cushion into the rear seat hook securely.
AC609262
Center hinge
bracket of rear
seatback assembly
(RH)
Center hinge
bracket of rear
seatback assembly
(LH)
AB
AC609261
AB
Hook
Rear seatback
side assembly
Attachment
wire
AC609260AB
Rear seat
hook
Rear seat
cushion
assembly

REAR SEAT ASSEMBLY
TSB Revision
INTERIOR52A-26
DISASSEMBLY AND ASSEMBLYM1522002000766
AC609246AB
5
5
5
1
4
3
2
6
7
N
N
Disassembly steps
1.Hog ring
2.Rear seat cushion cover
3.Rear seat cushion pad
4.Hog ring
5.Rear seat head restraint guide
6.Rear seatback cover
7.Rear seatback pad
Disassembly steps (Continued)

REAR SEAT ASSEMBLY
TSB Revision
INTERIOR52A-27

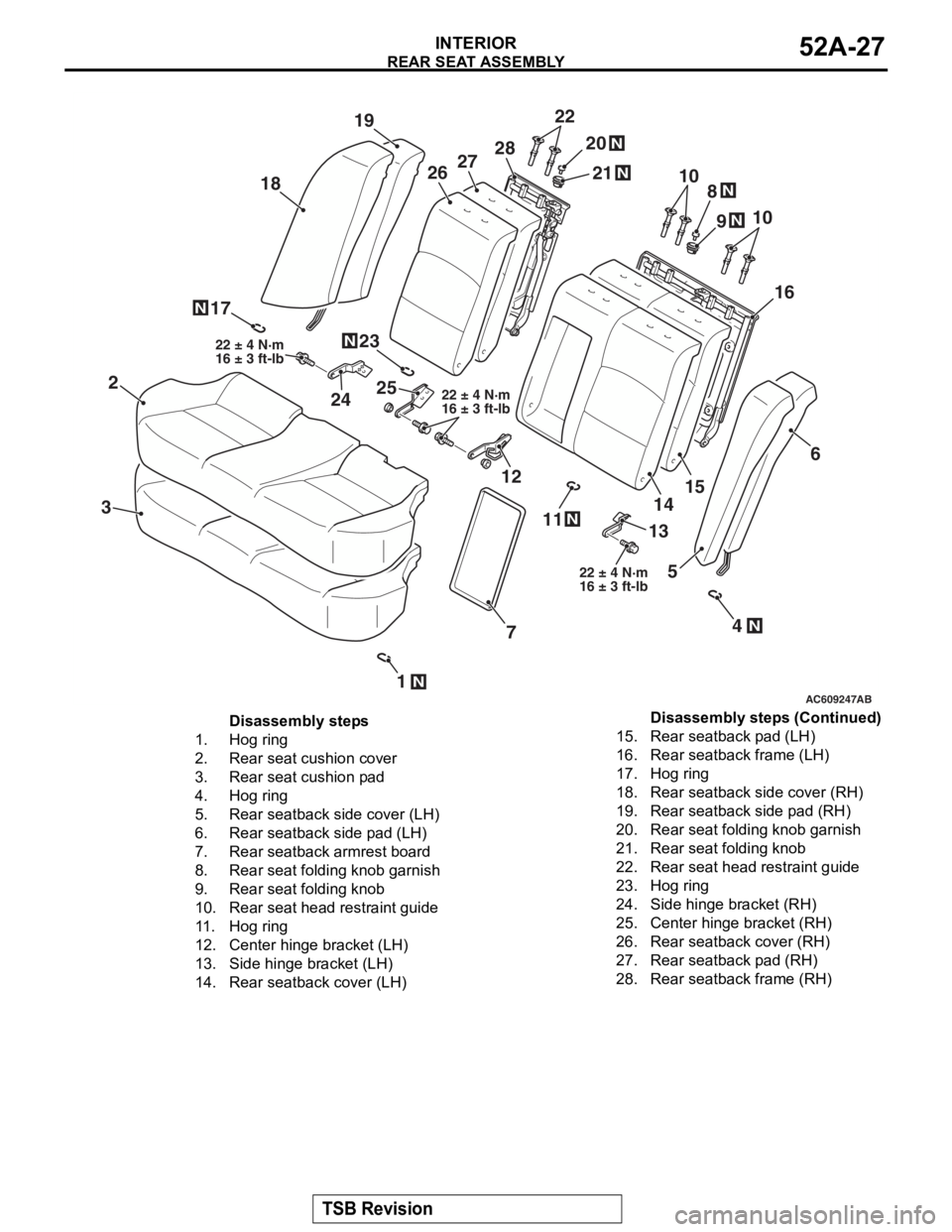

AC609247AB
10
17
218
19
1N
3
4
13
2524
14
12
11
23
15
6
7
8
9
5
10
22
16
20
21262728
N
N
N
N
N
N
N
N
22 ± 4 N·m
16 ± 3 ft-lb
22 ± 4 N·m
16 ± 3 ft-lb
22 ± 4 N·m
16 ± 3 ft-lb
Disassembly steps
1.Hog ring
2.Rear seat cushion cover
3.Rear seat cushion pad
4.Hog ring
5.Rear seatback side cover (LH)
6.Rear seatback side pad (LH)
7.Rear seatback armrest board
8.Rear seat folding knob garnish
9.Rear seat folding knob
10.Rear seat head restraint guide
11 .Hog ring
12.Center hinge bracket (LH)
13.Side hinge bracket (LH)
14.Rear seatback cover (LH)
15.Rear seatback pad (LH)
16.Rear seatback frame (LH)
17.Hog ring
18.Rear seatback side cover (RH)
19.Rear seatback side pad (RH)
20.Rear seat folding knob garnish
21.Rear seat folding knob
22.Rear seat head restraint guide
23.Hog ring
24.Side hinge bracket (RH)
25.Center hinge bracket (RH)
26.Rear seatback cover (RH)
27.Rear seatback pad (RH)
28.Rear seatback frame (RH)
Disassembly steps (Continued)

FRONT SEAT BELT
TSB Revision
INTERIOR52A-28
FRONT SEAT BELT
REMOVAL AND INSTALLATIONM1523001300972
CAUTION
SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B − SRS Ser-
vice Precautions P.52B-24 and Seat Belt with Pre-tensioner P.52B-393.
Required Special Tool:
•MB990784: Ornament Remover
Pre-removal and Post-installation Operation
•Turn the ignition key to the LOOK (OFF) position.
•Disconnect the negative battery terminal.
AC608130
AC610305
AC608130
1
43 ± 8 N·m
32 ± 6 ft-lb
43 ± 8 N·m
32 ± 6 ft-lb
AB
3
24
5
43 ± 8 N·m
32 ± 6 ft-lb
5 ± 1 N·m
44 ± 9 in-lb
43 ± 8 N·m
32 ± 6 ft-lb
6
Outer seat belt removal steps
<>1.Center pillar trim cup
•Lower center pillar trim (Refer to
P.52A-10).
2.Upper center pillar trim (Refer to
P.52A-10).
3.Outer seat belt (Refer to GROUP
52B, Seat Belt with Pre-tensioner
P.52B-389).
4.Adjustable seat belt anchor
Inner seat belt removal steps
5.Harness connector
•Shield cover (Refer to P.52A-21).
6.Inner seat belt

FRONT SEAT BELT
TSB Revision
INTERIOR52A-29
REMOVAL SERVICE POINT
.
<> UPPER CENTER PILLAR TRIM CAP
REMOVAL
Remove the opening trim. Remove the upper center pillar trim
cap by inserting the special tool MB990784 between the upper
center pillar trim and body as shown in the illustration.
INSPECTIONM1523004400451.
SEAT BELT BUCKLE SWITCH CONTINUITY
CHECK (DRIVER’S SIDE)
AC606516
A
A
MB990784
AIMB990784
Section A – A
Upper center
pillar trim cap
ItemTester
connectionSpecified
condition
Fastened seat
belt1 − 2Open circuit
Unfastened
seat belt1 − 2Continuity
exists (2
Ω or
less)
Fastened seat
belt3 − 4Open circuit
Unfastened
seat belt3 − 4Continuity
exists (2
Ω or
less)
AC610208
