MITSUBISHI LANCER EVOLUTION X 2008 Workshop Manual

FRONT SEAT BELT
TSB Revision
INTERIOR52A-30
.

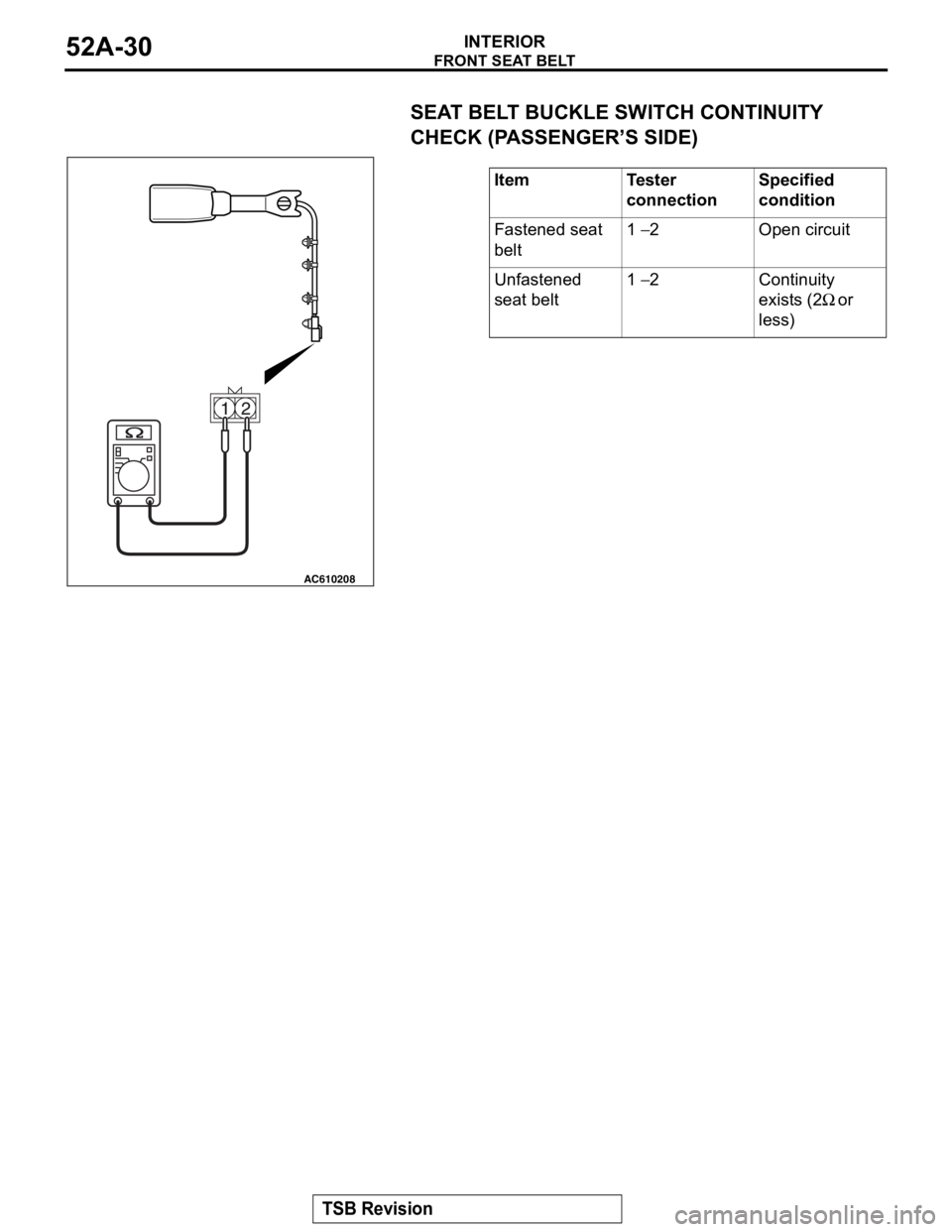

SEAT BELT BUCKLE SWITCH CONTINUITY
CHECK (PASSENGER’S SIDE)
ItemTester
connectionSpecified
condition
Fastened seat
belt1 − 2Open circuit
Unfastened
seat belt1 − 2Continuity
exists (2
Ω or
less)
AC610208

REAR SEAT BELT
TSB Revision
INTERIOR52A-31

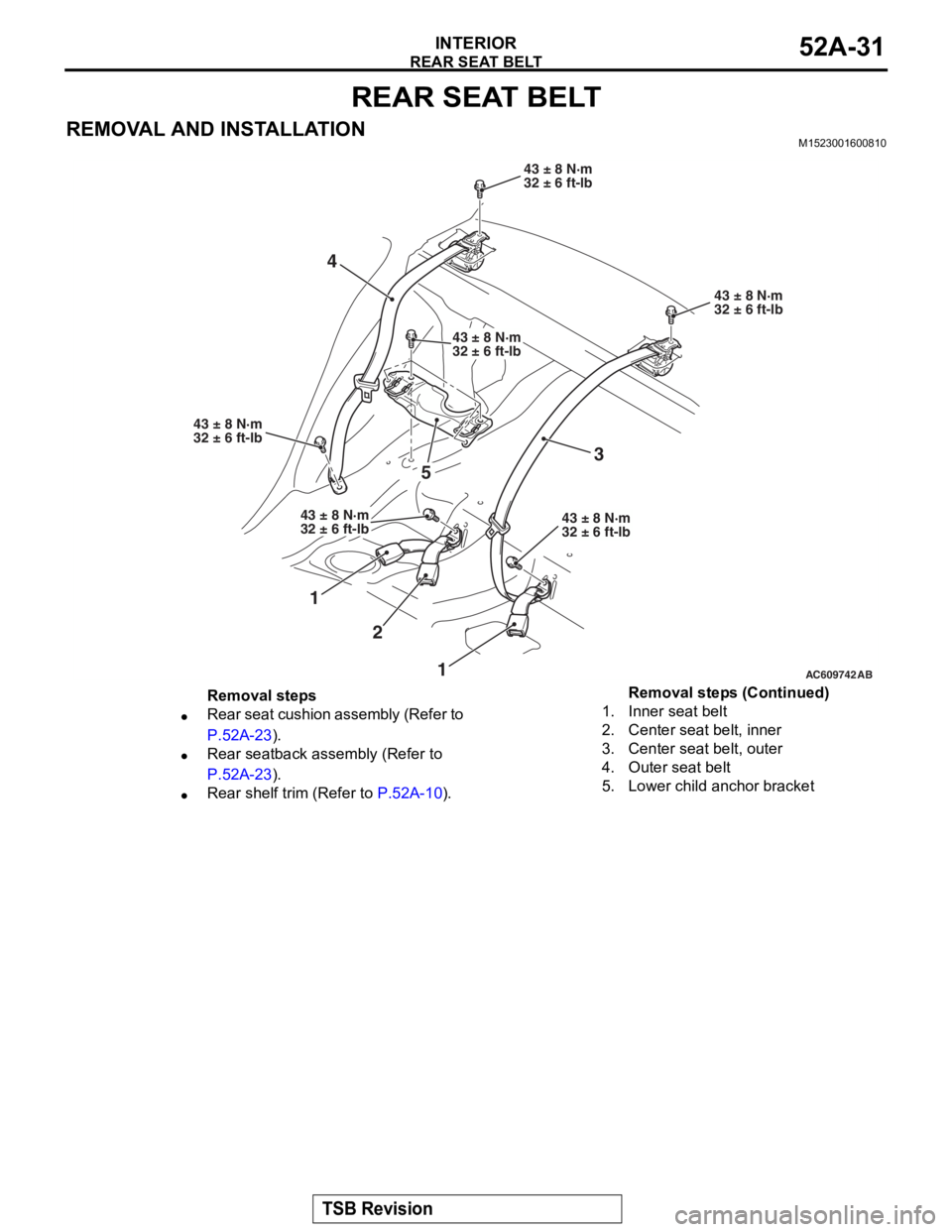

REAR SEAT BELT
REMOVAL AND INSTALLATIONM1523001600810
AC609742
43 ± 8 N·m
32 ± 6 ft-lb
43 ± 8 N·m
32 ± 6 ft-lb
42
AB
3
1
51
43 ± 8 N·m
32 ± 6 ft-lb 43 ± 8 N·m
32 ± 6 ft-lb
43 ± 8 N·m
32 ± 6 ft-lb43 ± 8 N·m
32 ± 6 ft-lb
Removal steps
•Rear seat cushion assembly (Refer to
P.52A-23).
•Rear seatback assembly (Refer to
P.52A-23).
•Rear shelf trim (Refer to P.52A-10).
1.Inner seat belt
2.Center seat belt, inner
3.Center seat belt, outer
4.Outer seat belt
5.Lower child anchor bracket
Removal steps (Continued)

NOTES

26-1
GROUP 26
FRONT AXLE
CONTENTS
GENERAL INFORMATION . . . . . . . .26-2

GENERAL INFORMATION
FRONT AXLE26-2
GENERAL INFORMATIONM2260000100819
For the front axle, a double-row angular contact ball
bearing with an integral oil seal is adopted as a
wheel bearing, and EBJ-ETJ type constant velocity
joint as a driveshaft.
It has the following features:
•The driveshaft incorporates lightweight and com-
pact EBJ-ETJ type constant velocity joints.
•Lead-free grease for the constant velocity joint is
adopted.
•Hexavalent chromium is eliminated from the dust
cover material.
•The number of parts is reduced by integrating the
magnetic encoder for ABS wheel speed detection
into the wheel bearing.
NOTE: .
ETJ (High Efficiency Compact Tripod Joint): the
lighter and smaller constant velocity joint com
-
pared with the conventional TJ has been
installed.
EBJ (High Efficiency Compact Birfield Joint): the
lighter and smaller constant velocity joint com
-
pared with the conventional BJ has been
achieved by adopting the eight small balls.
SPECIFICATIONS
NOTE: *: Indicates the distance between each joint
center.
ItemSpecification
Wheel bearingBearing typeUnit bearing (double-row angular contact ball
bearing)
Bearing (Outer diameter x inside
diameter) mm (in)80 × 43 (3.15 × 1.69)
DriveshaftJoint typeOutsideEBJ
InsideETJ
Shaft length* x shaft
diameter mm (in)M/T-LH380.5 × 24.5 (15.0 × 1.0)
M/T-RH715 × 28 (28.1 × 1.1)
CVT-LH399.5 × 24.5 (15.7 × 1.0)
CVT-RH715.0 × 28 (28.1 × 1.1)

GENERAL INFORMATION
FRONT AXLE26-3

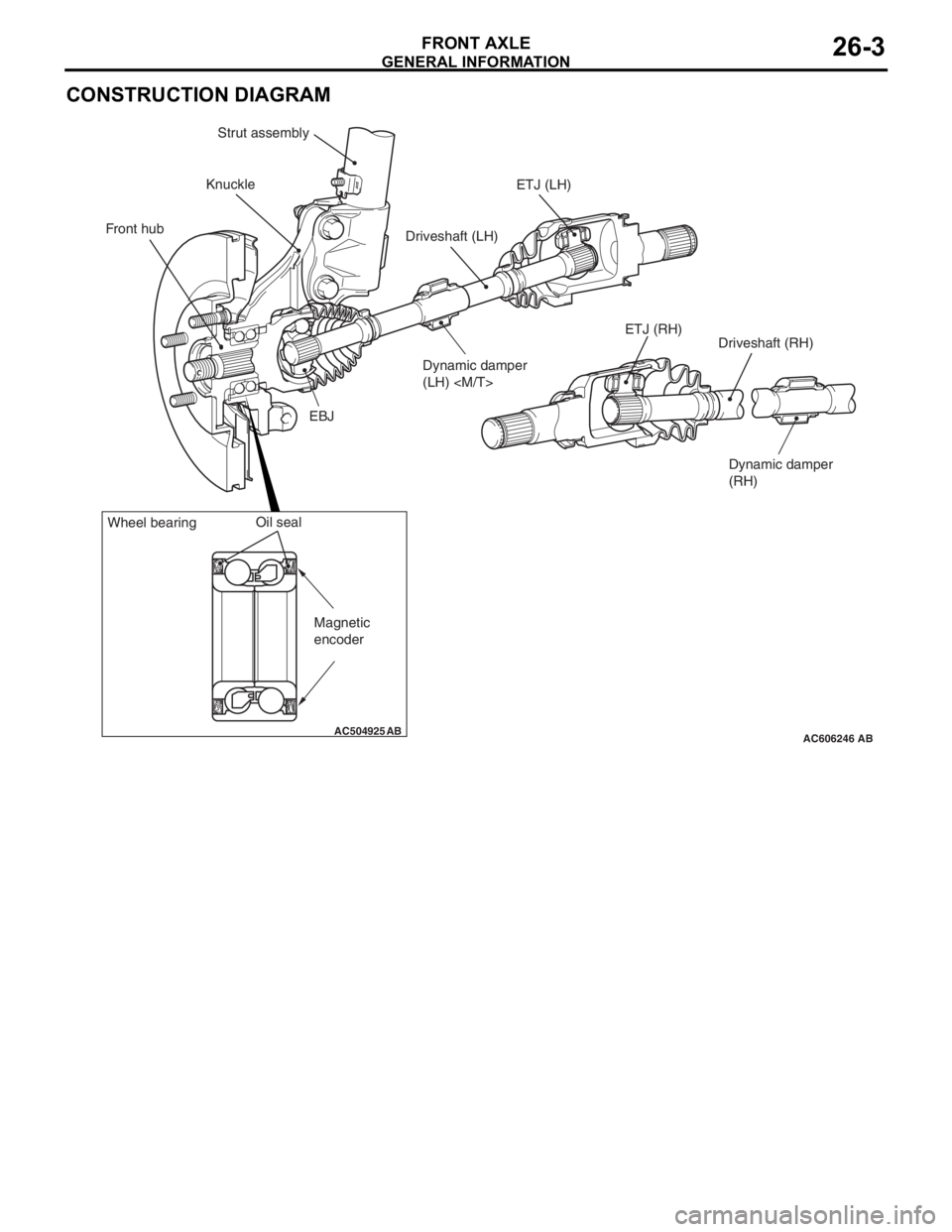

CONSTRUCTION DIAGRAM
AC606246AC504925
KnuckleStrut assembly
Driveshaft (LH)ETJ (LH)
ETJ (RH) Front hub
EBJ
AB
Driveshaft (RH)
Wheel bearingOil seal
Magnetic
encoder
AB
Dynamic damper
(LH)
Dynamic damper
(RH)

NOTES

36-1
GROUP 36
PARKING BRAKES
CONTENTS
GENERAL INFORMATION . . . . . . . .36-2

GENERAL INFORMATION
PARKING BRAKES36-2
GENERAL INFORMATIONM2360000100753
A parking brake lever is used to operate the mechan-
ical rear-wheel acting type parking brake.

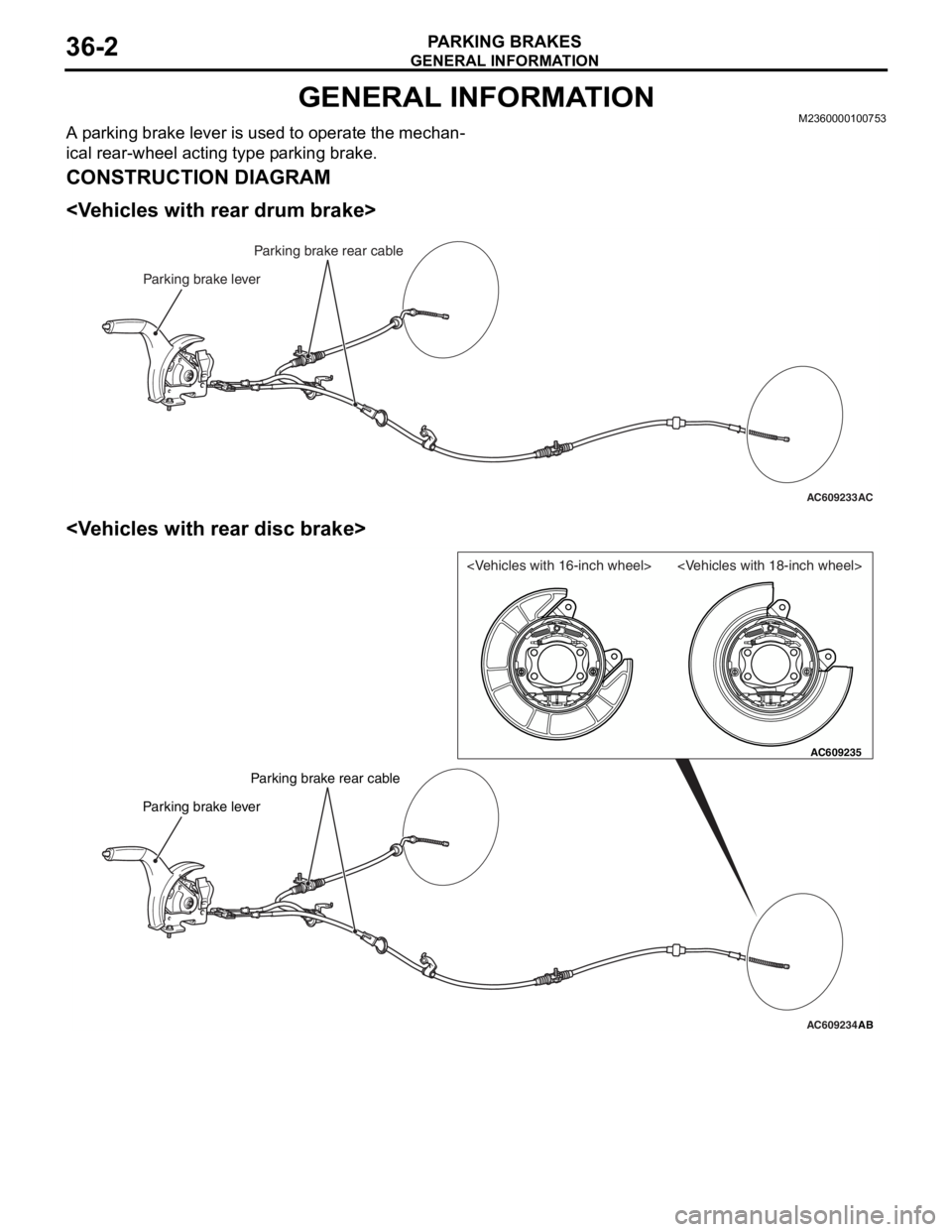

CONSTRUCTION DIAGRAM


AC609233
Parking brake leverParking brake rear cable
AC
AC609235
AC609234
Parking brake leverParking brake rear cable
AB

35A-1
GROUP 35A
BASIC BRAKE
SYSTEM
CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . .35A-2
CONSTRUCTION DESCRIPTION . . .35A-5
MASTER CYLINDER . . . . . . . . . . . . . . . . . 35A-5
BRAKE BOOSTER . . . . . . . . . . . . . . . . . . . 35A-5
BRAKE PEDAL . . . . . . . . . . . . . . . . . . . . . . 35A-7
FRONT BRAKE . . . . . . . . . . . . . . . . . . . . . . 35A-8
REAR BRAKE . . . . . . . . . . . . . . . . . . . . . . . 35A-9
BRAKE LINE . . . . . . . . . . . . . . . . . . . . . . . . 35A-10
