Cruise control*7-38 Starting and driving
7
E00609702434

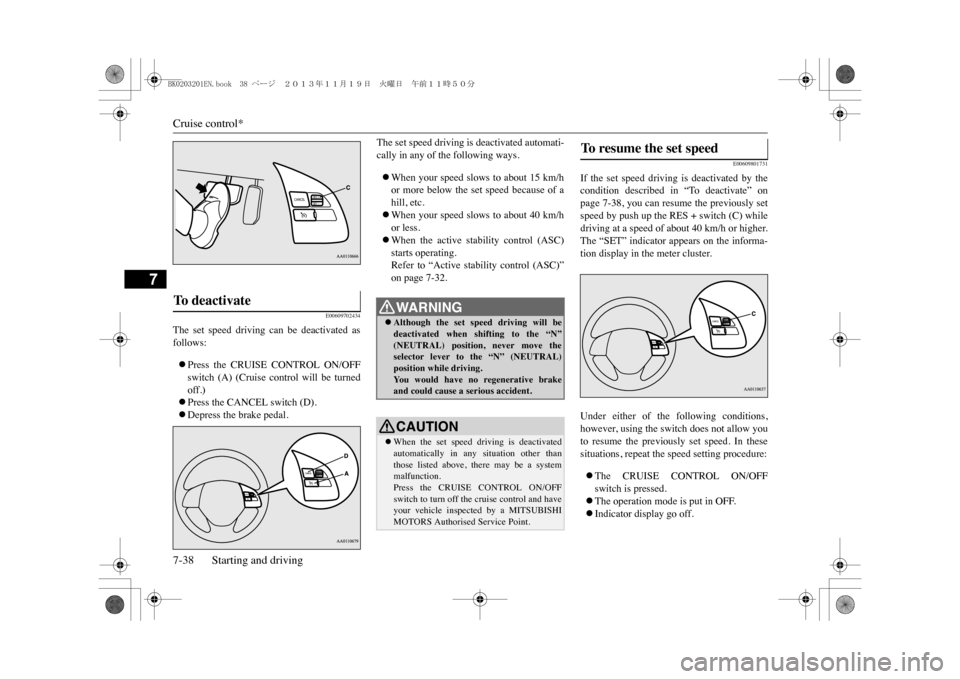

The set speed driving can be deactivated asfollows:zPress the CRUISE CONTROL ON/OFFswitch (A) (Cruise control will be turnedoff.)zPress the CANCEL switch (D).zDepress the brake pedal.
The set speed driving is deactivated automati-cally in any of the following ways.zWhen your speed slows to about 15 km/hor more below the set speed because of ahill, etc.zWhen your speed slows to about 40 km/hor less.zWhen the active stability control (ASC)starts operating.Refer to “Active stability control (ASC)”on page 7-32.
E00609801731
If the set speed driving is deactivated by thecondition described in “To deactivate” onpage 7-38, you can resume the previously setspeed by push up the RES + switch (C) whiledriving at a speed of about 40 km/h or higher.The “SET” indicator appears on the informa-tion display in the meter cluster.Under either of the following conditions,however, using the switch does not allow youto resume the previously set speed. In thesesituations, repeat the speed setting procedure:zThe CRUISE CONTROL ON/OFFswitch is pressed.zThe operation mode is put in OFF.zIndicator display go off.
To d e a c t i v a t e

WA R N I N GzAlthough the set sp
eed driving will be
deactivated when shifting to the “N”(NEUTRAL) position, never move theselector lever to the “N” (NEUTRAL)position while driving.Yo u w o u l d h a v e n o
regenerative brake
and could cause a serious accident.CAUTIONzWhen the set speed driving is deactivatedautomatically in any situation other thanthose listed above, there may be a systemmalfunction.Press the CRUISE CONTROL ON/OFFswitch to turn off the cruise control and haveyour vehicle inspected by a MITSUBISHIMOTORS Authorised Service Point.
To r e s u m e t h e s e t s p e e d

BK0203201EN.book 38 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Speed Limiter*
Starting and driving 7-39
7
E00633201035
The Speed Limiter is a driver assist functionto prevent from exceeding the speed set bydriver while Plug-in Hybrid EV Systempower control.If the vehicle speed exceeds the set speed(about 3 km/h), the indicator will brink in thecombination meter.If the vehicle speed exceeds the set speedabout +3 km/h more than about 5 secondsafter indicated alert message, beep alert issounded for about 10 seconds at the most.While running without alert message, if youdecrease the set speed and vehicle speed ismore than set speed about +3 km/h, alert mes-sage is displayed but beep alert is delayed.In this case, when vehicle speed keepsexceeding set speed about +3 km/h for about30 seconds after the alert message isappeared, beep alert is sounded for about 10seconds at the most.
If the vehicle speeds decreases less than setspeeds after the alert message is appeared, themessage is disappeared. When beep alert issounding, the beep alert also goes off.
E00633301023

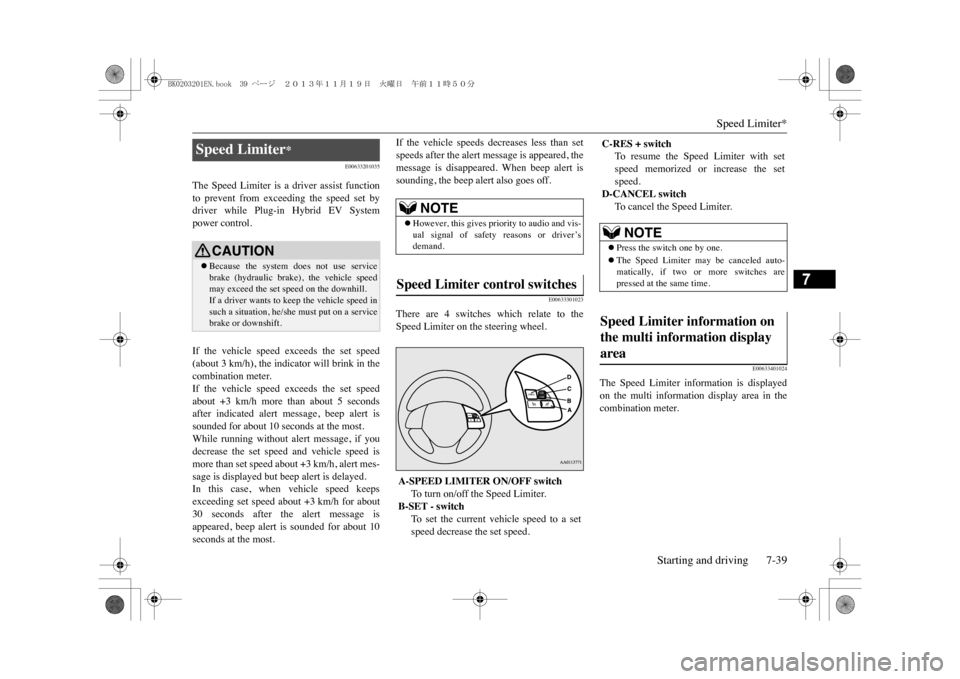

There are 4 switches which relate to theSpeed Limiter on the steering wheel.
E00633401024

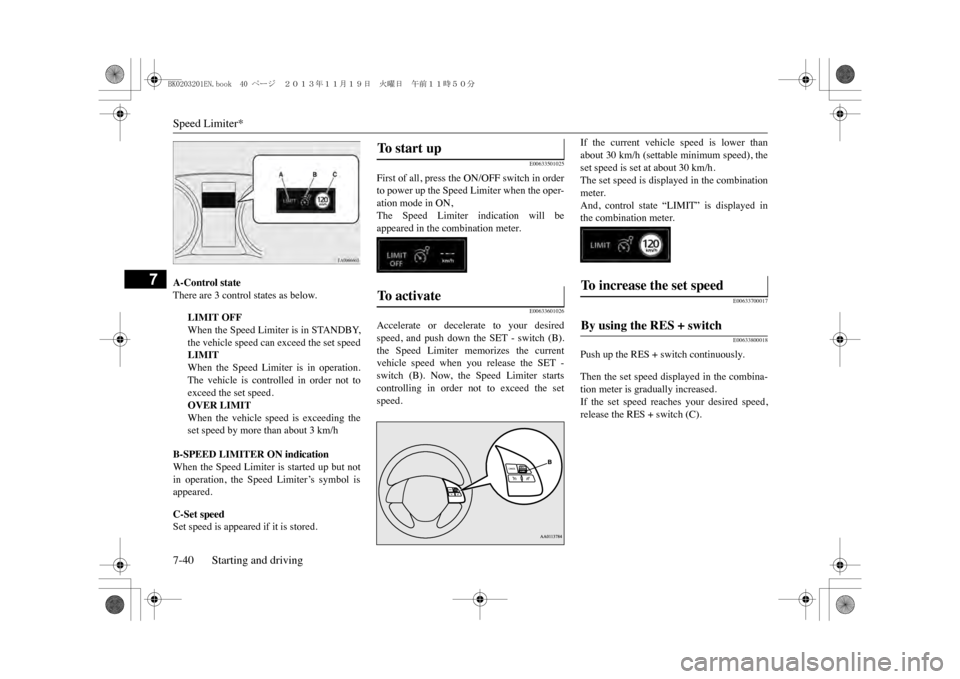

The Speed Limiter information is displayedon the multi information display area in thecombination meter.
Speed Limiter
*
CAUTIONzBecause the system does not use servicebrake (hydraulic brak
e), the vehicle speed
may exceed the set speed on the downhill.If a driver wants to keep the vehicle speed insuch a situation, he/she must put on a servicebrake or downshift.
NOTE
zHowever, this gives priority to audio and vis-ual signal of safety reasons or driver’sdemand.
Speed Limiter control switches

A-SPEED LIMITER ON/OFF switch
To t u r n o n / o f f t h e S p e e d L i m i t e r.
B-SET - switch
To s e t t h e c u r r e n t v e h i c l e s p e e d t o a s e tspeed decrease the set speed.
C-RES + switch
To r e s u m e t h e S p e e d L i m i t e r w i t h s e tspeed memorized or increase the setspeed.
D-CANCEL switch
To c a n c e l t h e S p e e d L i m i t e r.NOTE
zPress the switch one by one.zThe Speed Limiter may be canceled auto-matically, if two or more switches arepressed at the same time.
Speed Limiter information on the multi information display area

BK0203201EN.book 39 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Speed Limiter*7-40 Starting and driving
7
A-Control stateThere are 3 control states as below.
LIMIT OFFWhen the Speed Limiter is in STANDBY,the vehicle speed can exceed the set speedLIMITWhen the Speed Limiter is in operation.The vehicle is controlled in order not toexceed the set speed.OVER LIMITWhen the vehicle speed is exceeding theset speed by more than about 3 km/h
B-SPEED LIMITER ON indicationWhen the Speed Limiter is started up but notin operation, the Speed Limiter’s symbol isappeared.C-Set speedSet speed is appeared if it is stored.
E00633501025
First of all, press the ON/OFF switch in orderto power up the Speed Limiter when the oper-ation mode in ON,The Speed Limiter indication will beappeared in the combination meter.
E00633601026

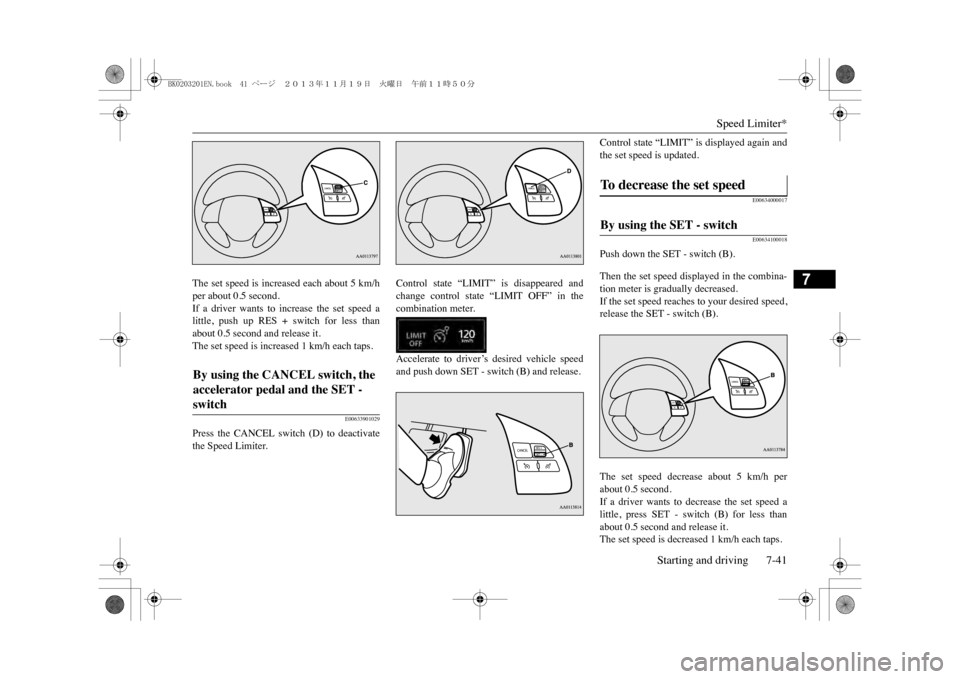

Accelerate or decelerate to your desiredspeed, and push down the SET - switch (B).the Speed Limiter memorizes the currentvehicle speed when you release the SET -switch (B). Now, the Speed Limiter startscontrolling in order not to exceed the setspeed.
If the current vehicle speed is lower thanabout 30 km/h (settable minimum speed), theset speed is set at about 30 km/h.The set speed is displayed in the combinationmeter.And, control state “LIMIT” is displayed inthe combination meter.
E00633700017E00633800018
Push up the RES + switch continuously.Then the set speed displayed in the combina-tion meter is gradually increased.If the set speed reaches your desired speed,release the RES + switch (C).
To s t a r t u p

To a c t i v a t e

To i n c r e a s e t h e s e t s p e e d

By using the RES + switch

BK0203201EN.book 40 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Speed Limiter*
Starting and driving 7-41
7
The set speed is increased each about 5 km/hper about 0.5 second.If a driver wants to increase the set speed alittle, push up RES + switch for less thanabout 0.5 second and release it.The set speed is increased 1 km/h each taps.
E00633901029
Press the CANCEL switc
h (D) to deactivate
the Speed Limiter.
Control state “LIMIT” is disappeared andchange control state “LIMIT OFF” in thecombination meter.Accelerate to driver’s desired vehicle speedand push down SET - switch (B) and release.
Control state “LIMIT” is displayed again andthe set speed is updated.
E00634000017E00634100018
Push down the SET - switch (B).Then the set speed displayed in the combina-tion meter is gradually decreased.If the set speed reaches to your desired speed,release the SET - switch (B).The set speed decrease about 5 km/h perabout 0.5 second.If a driver wants to decrease the set speed alittle, press SET - switch (B) for less thanabout 0.5 second and release it.The set speed is decreased 1 km/h each taps.
By using the CANCEL switch, the accelerator pedal and the SET - switch

To d e c r e a s e t h e s e t s p e e d

By using the SET - switch

BK0203201EN.book 41 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Speed Limiter*7-42 Starting and driving
7
E00634201029
Press the CANCEL switch (D) to deactivatethe Speed Limiter.Control state “LIMIT” is disappeared andchange control state “LIMIT OFF” in thecombination meter.Decelerate to driver’s desired speed and pushdown SET - switch (B) and release.
The Speed Limiter indication is displayedagain and the set speed is updated.
E00634301020
A driver can temporarily accelerate for emer-gency use.The Speed Limiter is temporarily deactivated,and the vehicle speed can be increased.The Speed Limiter will resume when thevehicle speed goes down to enough less thanthe set speed.
Put on an accelerator pedal to the pedal strokeend. (over a detent that makes pedal reactionforce bigger before pedal stroke end)If vehicle speed exceeds set speed about +3km/h, alert messages are appeared in thecombination meter.
By using the CANCEL switch, the service brake and the SET - switch

To i n c r e a s e t h e v e h i c l e s p e e d temporarily

CAUTIONzThere is a possibility for the Speed Limiterto allow abrupt acceleration corresponding toaccelerator pedal position. So be careful ofthe abrupt acceleration.CAUTIONzBe careful about over speed.
BK0203201EN.book 42 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-43
7
E00634400011
Use whichever following ways to deactivate.And the state of the Speed Limiter ON indi-cation, control state “LIMIT” is displayedand the set speed is changed.zPress CANCEL switchzPress the Speed Limiter ON/OFF switchzIf CRUISE CONTROL ON/OFF switchor ACC ON/OFF switch is pressed, theSpeed Limiter will be cancelled.
E00634501022
The Speed Limiter memorizes the set speedwhen system has been deactivated, the SpeedLimiter can resume by push up the RES +switch (C).However, the Speed Limiter immediatelystarts controlling and the vehicle decreases asif an accelerator pedal is closed fully, whenthe vehicle speed is higher than the set speed.
E00634601078
The ACC maintains a set speed with no needfor you to use the accelerator pedal. Using asensor (A), the system also measures the rela-tive speed and distance between your vehicleand a vehicle in front, and maintains a set fol-lowing distance between your vehicle and thevehicle in front by automatically deceleratingyour vehicle if it becomes too close to thevehicle in front.The ACC is the driver assist system to makecomfortable on a freeway. Stop lamps areilluminated during automatic braking.If you desire, a cruise control without inter-vention of the following distance control isalso selectable.
NOTE
zA driver can change th
e set speed during this
emergency use.
To d e a c t i v a t e

NOTE
zIf the Speed Limiter is cancelled by otherstates, it may be a system malfunction.Stop using the Speed Limiter and turn off theSpeed Limiter. Have your vehicle inspectedby a MITSUBISHI MOTORS Service Point.CAUTIONzThere is a possibility for the Speed Limiterto allow abrupt acceleration corresponding toaccelerator pedal position when the SpeedLimiter is deactivated. Be careful.
To r e s u m e

CAUTIONzThere is a possibility to occur jerk, depend-ing on a running resistance. Be careful.
Adaptive Cruise Control System (ACC)
*
BK0203201EN.book 43 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*7-44 Starting and driving
7
NOTE
zYou cannot operate the regenerative brakecontrols while the adaptive cruise controlsystem (ACC) is operating. If doing so, thebuzzer sounds.zIf you turn on the adaptive cruise control(ACC) when the select position is in “B”(including B0 to B5) position, the selectposition is changed to “D” position.WA R N I N GzA driver is responsible for driving safely.Even if the ACC is in use, always graspthe surrounding circumstances and pro-vide for safe driving.zNever rely solely on the ACC. The ACC isthe system to reduce load on the driver.The ACC is not a co
llision avoidance sys-
tem or an automatic
driving system. The

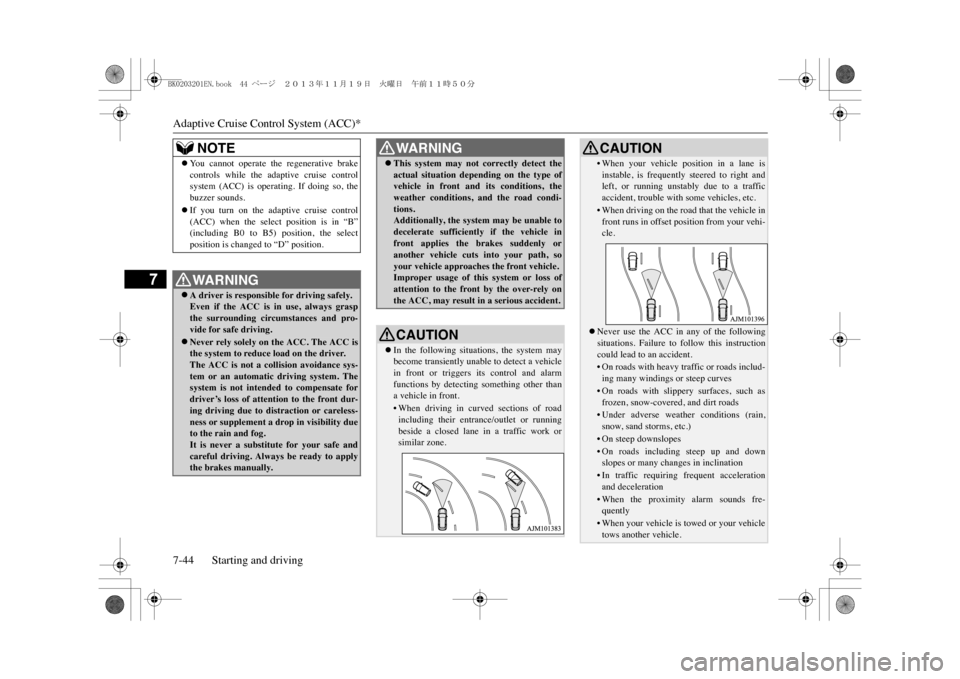

system is not intended to compensate fordriver’s loss of attention to the front dur-ing driving due to distraction or careless-ness or supplement a drop in visibility dueto the rain and fog.It is never a substitute for your safe andcareful driving. Always
be ready to apply
the brakes manually.
zThis system may not correctly detect theactual situation depending on the type ofvehicle in front and
its conditions, the
weather conditions,
and the road condi-
tions.Additionally, the system may be unable todecelerate sufficiently if the vehicle infront applies the
brakes suddenly or
another vehicle cuts into your path, soyour vehicle approaches the front vehicle.Improper usage of this system or loss ofattention to the front by the over-rely onthe ACC, may result in a serious accident.CAUTIONzIn the following situations, the system maybecome transiently unable to detect a vehiclein front or triggers its control and alarmfunctions by detecting something other thana vehicle in front.•When driving in curved sections of roadincluding their entrance/outlet or runningbeside a closed lane in a traffic work orsimilar zone.WA R N I N G
•When your vehicle position in a lane isinstable, is frequently steered to right andleft, or running unstably due to a trafficaccident, trouble with some vehicles, etc.•When driving on the road that the vehicle infront runs in offset
position from your vehi-
cle.
zNever use the ACC in any of the followingsituations. Failure to follow this instructioncould lead to an accident. •On roads with heavy traffic or roads includ-ing many windings or steep curves•On roads with slippery surfaces, such asfrozen, snow-covered,
and dirt roads
•Under adverse weathe
r conditions (rain,
snow, sand storms, etc.)•On steep downslopes•On roads including steep up and downslopes or many changes in inclination•In traffic requiring frequent accelerationand deceleration•When the proximity alarm sounds fre-quently•When your vehicle is towed or your vehicletows another vehicle.CAUTION
BK0203201EN.book 44 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-45
7

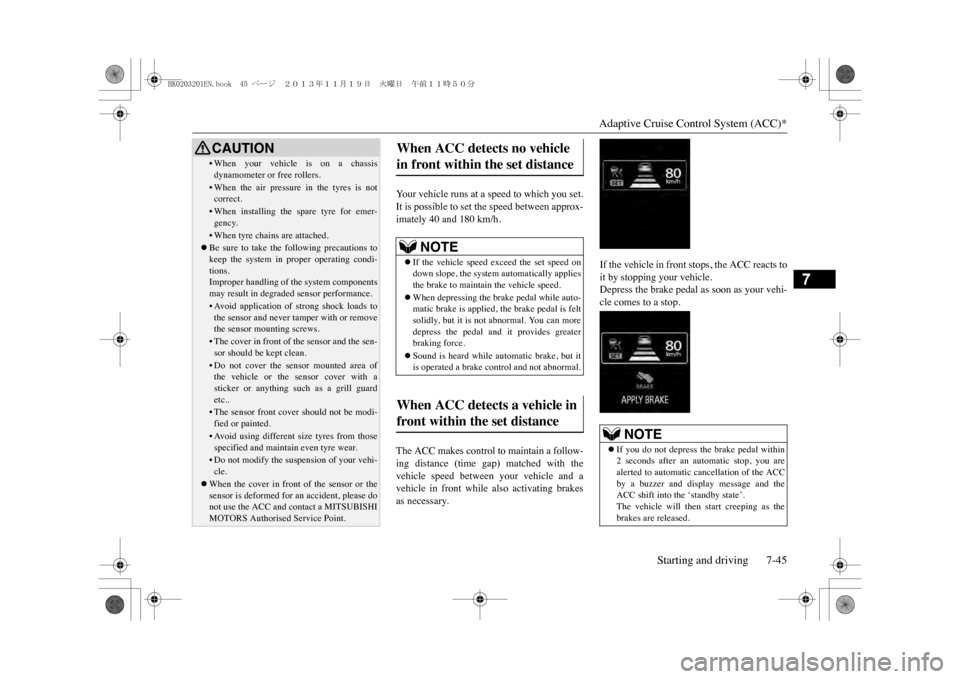

Yo u r v e h i c l e r u n s a t a s p e e d t o w h i c h y o u s e t .It is possible to set the speed between approx-imately 40 and 180 km/h.The ACC makes control to maintain a follow-ing distance (time gap) matched with thevehicle speed between your vehicle and avehicle in front while also activating brakesas necessary.
If the vehicle in front stops, the ACC reacts toit by stopping your vehicle.Depress the brake pedal as soon as your vehi-cle comes to a stop.
•When your vehicle is on a chassisdynamometer or free rollers.•When the air pressure in the tyres is notcorrect.•When installing the spare tyre for emer-gency.•When tyre chains are attached.zBe sure to take the following precautions tokeep the system in proper operating condi-tions.Improper handling of the system componentsmay result in degraded sensor performance.•Avoid application of
strong shock loads to
the sensor and never tamper with or removethe sensor mounting screws.• The cover in front of the sensor and the sen-sor should be kept clean.•Do not cover the sensor mounted area ofthe vehicle or the sensor cover with asticker or anything such as a grill guardetc..•The sensor front cove
r should not be modi-
fied or painted.•Avoid using different
size tyres from those
specified and maintain even tyre wear.•Do not modify the suspension of your vehi-cle.
zWhen the cover in front of the sensor or thesensor is deformed for an accident, please donot use the ACC and
contact a MITSUBISHI
MOTORS Authorised Service Point.CAUTION
When ACC detects no vehicle in front within the set distance

NOTE
zIf the vehicle speed exceed the set speed ondown slope, the system automatically appliesthe brake to maintain the vehicle speed.zWhen depressing the brake pedal while auto-matic brake is applied, the brake pedal is feltsolidly, but it is not abnormal. You can moredepress the pedal and it provides greaterbraking force.zSound is heard while automatic brake, but itis operated a brake control and not abnormal.
When ACC detects a vehicle in front within the set distance

NOTE
zIf you do not depress the brake pedal within2 seconds after an automatic stop, you arealerted to automatic cancellation of the ACCby a buzzer and display message and theACC shift into the ‘standby state’.The vehicle will then start creeping as thebrakes are released.
BK0203201EN.book 45 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*7-46 Starting and driving
7
When the ACC no longer detects any vehiclein front, a buzzer sounds and the symbol ofvehicle running ahead disappears from thescreen. The vehicle is slowly accelerated toresume the set speed and continues running atthat speed.
E00634701079
While the ACC is active, if your vehicleapproaches too closely to a vehicle in frontbecause the ACC cannot allow for an ade-quate deceleration in such cases as rapid
deceleration of the vehicle in front or appari-tion of a vehicle cutting in front of your vehi-cle, the ACC gives a warning by sounding abuzzer and displaying a message.If this happens, increase the following dis-tance by depressing the brake pedal or mak-ing other decelerating control.
CAUTIONzNever leave the vehi
cle during stopping by
automatic braking.WA R N I N GzYo u r v e h i c l e m a y a c c e l e r a t e u p t o t h e s e tspeed in the following situations. Applythe brake, if necessary, to slow down.
•When your vehicle no longer follows thevehicle in front, e.g. at a freeway exit orwhen your vehicle or the vehicle in frontchanges its lane.•When driving on a curve.zIf the vehicle in fron
t turns off or changes
lane and another stationary vehicle islocated in front of that vehicle, the ACCwill not make deceleration control to thestationary vehicle.
Proximity alarm

WA R N I N G
CAUTIONzWhen the ACC is not in use, turn off the sys-tem to prevent it from operating by mistakeand an unexpected accident.zNever operate the A
CC from outside the
vehicle.zNeither control nor a warning are performedby the following situation.•Something other than vehicle such as apedestrian.•When there is abnormality in the system(When the ACC detected abnormality,“ACC SERVICE REQUIRED” is indi-cated.)
BK0203201EN.book 46 ページ ２０１３年１１月１９日　火曜日　午前１１時５０分

Adaptive Cruise Control System (ACC)*
Starting and driving 7-47
7
E00634801025

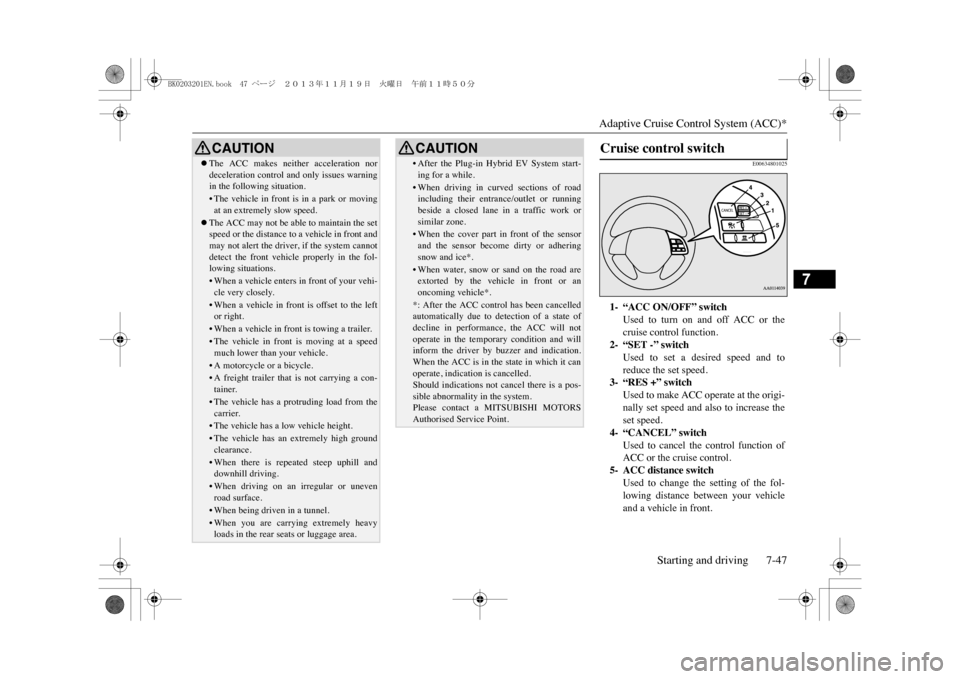

zThe ACC makes neither acceleration nordeceleration control and only issues warningin the following situation.•The vehicle in front is in a park or movingat an extremely slow speed.
zThe ACC may not be able to maintain the setspeed or the distance to a vehicle in front andmay not alert the driver, if the system cannotdetect the front vehicle properly in the fol-lowing situations.• When a vehicle enters in front of your vehi-cle very closely.•When a vehicle in front is offset to the leftor right.•When a vehicle in front is towing a trailer.•The vehicle in front is moving at a speedmuch lower than your vehicle.•A motorcycle or a bicycle.•A freight trailer that is not carrying a con-tainer.•The vehicle has a protruding load from thecarrier.•The vehicle has a low vehicle height.•The vehicle has an extremely high groundclearance.•When there is repeated steep uphill anddownhill driving.•When driving on an
irregular or uneven
road surface.•When being driven in a tunnel.•When you are carrying extremely heavyloads in the rear s
eats or luggage area.
CAUTION
•After the Plug-in Hybrid EV System start-ing for a while.•When driving in curved sections of roadincluding their entrance/outlet or runningbeside a closed lane in a traffic work orsimilar zone.•When the cover part in
front of the sensor
and the sensor become dirty or adheringsnow and ice*.•When water, snow or sand on the road areextorted by the vehicle in front or anoncoming vehicle*.*: After the ACC control has been cancelledautomatically due to detection of a state ofdecline in performance, the ACC will notoperate in the temporary condition and willinform the driver by buzzer and indication.When the ACC is in the state in which it canoperate, indication is cancelled.Should indications not
cancel there
is a pos-
sible abnormality in the system.Please contact a MITSUBISHI MOTORSAuthorised Service Point.CAUTION
Cruise control switch

1- “ACC ON/OFF” switch
Used to turn on and off ACC or thecruise control function.
2- “SET -” switch
Used to set a desired speed and toreduce the set speed.
3- “RES +” switch
Used to make ACC operate at the origi-nally set speed and also to increase theset speed.
4- “CANCEL” switch
Used to cancel the control function ofACC or the cruise control.
5- ACC distance switch
Used to change the setting of the fol-lowing distance between your vehicleand a vehicle in front.
