44. Remove forwardclutchassembly fromtransmission case.
45. Remove thrustwasher andbearing racefrom transmission
case.

- All models - •

46. Remove returnspring fromparking shaftusing ascrew-
i

driver.

- Except model34X81-

47. Remove outputshaft,output gearandreduction piniongear
according tothe following procedures.
a. Remove sidecover.

• Donot reuse sidecover bolts.

b. Set manual leverto"p" position tofix idler gear andout-
put gear.
c. Unlock bothidlergear andoutput gearlocknuts using apin
punch.

AT-61

SAT704D

Reduction
pinion gear

SAT706DADISASSEMBL
V

d. Remove idlergear andoutput gearlocknuts.

• Donot reuse idlergear andoutput gearlocknuts.

e. Remove idlergearandoutput gearusing apuller.
f. Remove reduction piniongearandoutput shaft.
g. Remove adjusting shimfromreduction piniongear.
h. Remove adjusting spacerfromoutput shaft.

- Model 34X81-

47. Remove outputshaftassembly according tothe following
procedures.
a. Remove sidecover bolts.
b. Remove sidecover bylightly tapping itwith asoft hammer.

• Becareful outputshaftassembly doesnotdrop outwhen
removing cover.
AT-62

SAT439DDISASSEMBL
Y

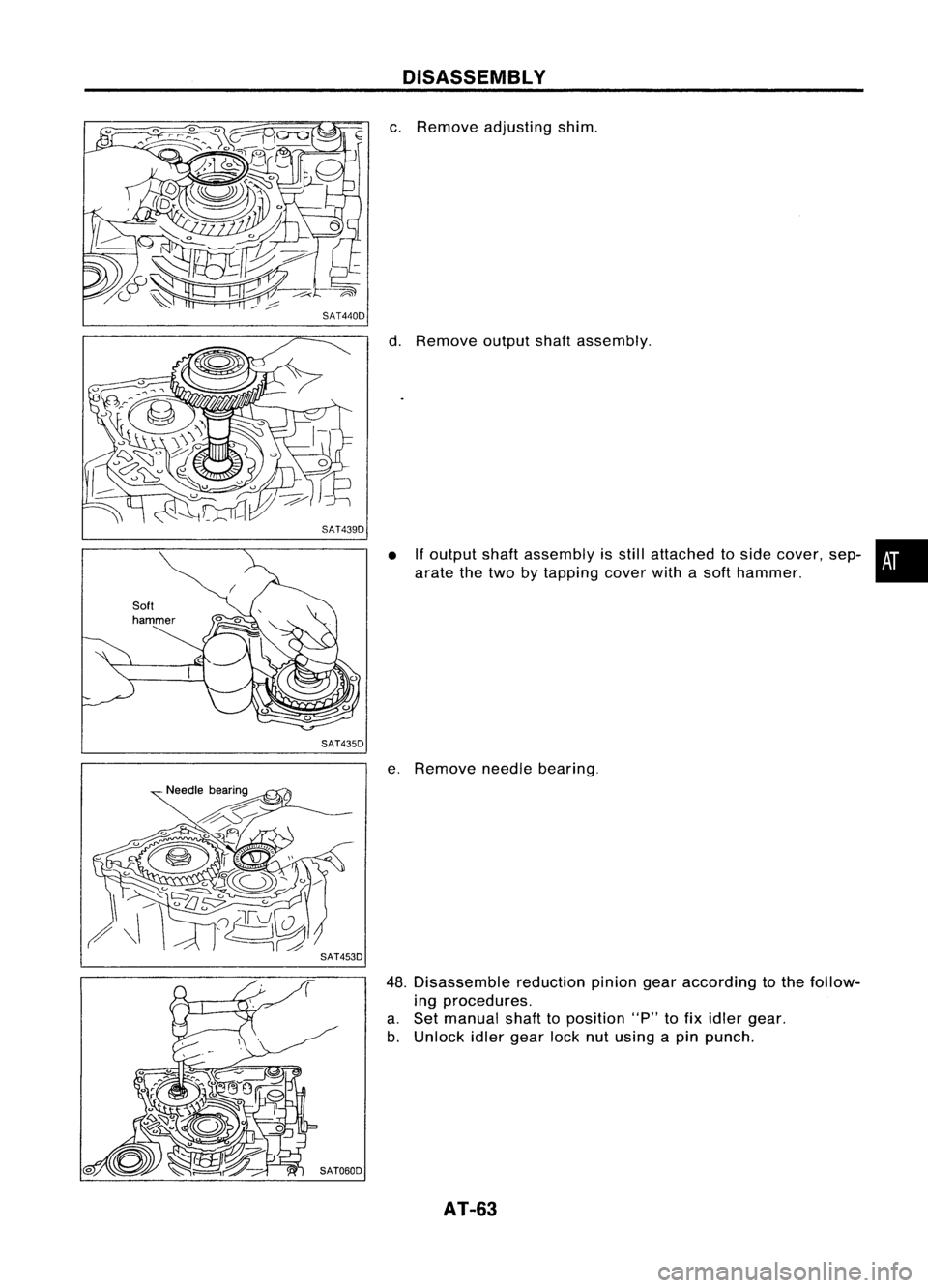

c. Remove adjusting shim.
d. Remove outputshaftassembly.

SAT435D •

If
output shaftassembly isstill attached toside cover, sep-•
arate thetwo bytapping coverwithasoft hammer.
e. Remove needlebearing.
48. Disassemble reductionpiniongearaccording tothe follow-
ing procedures.
a. Set manual shafttoposition "P"tofix idler gear.
b. Unlock idlergear locknutusing apin punch.

AT-53

SAT061D
ST27180001
--""SAT841DA
SAT310G
SAT065D

"( ~,O
Eh~ ~

~~~ 0
-vf~SD\O

II ~
~--'-:c
CH\0\)

,L.J,,=-.... \~~_

o
0 0_ 0

Parking actuator~\ \
support
C':lC':l

I-i

~~ SAT066D DISASSEMBL
V

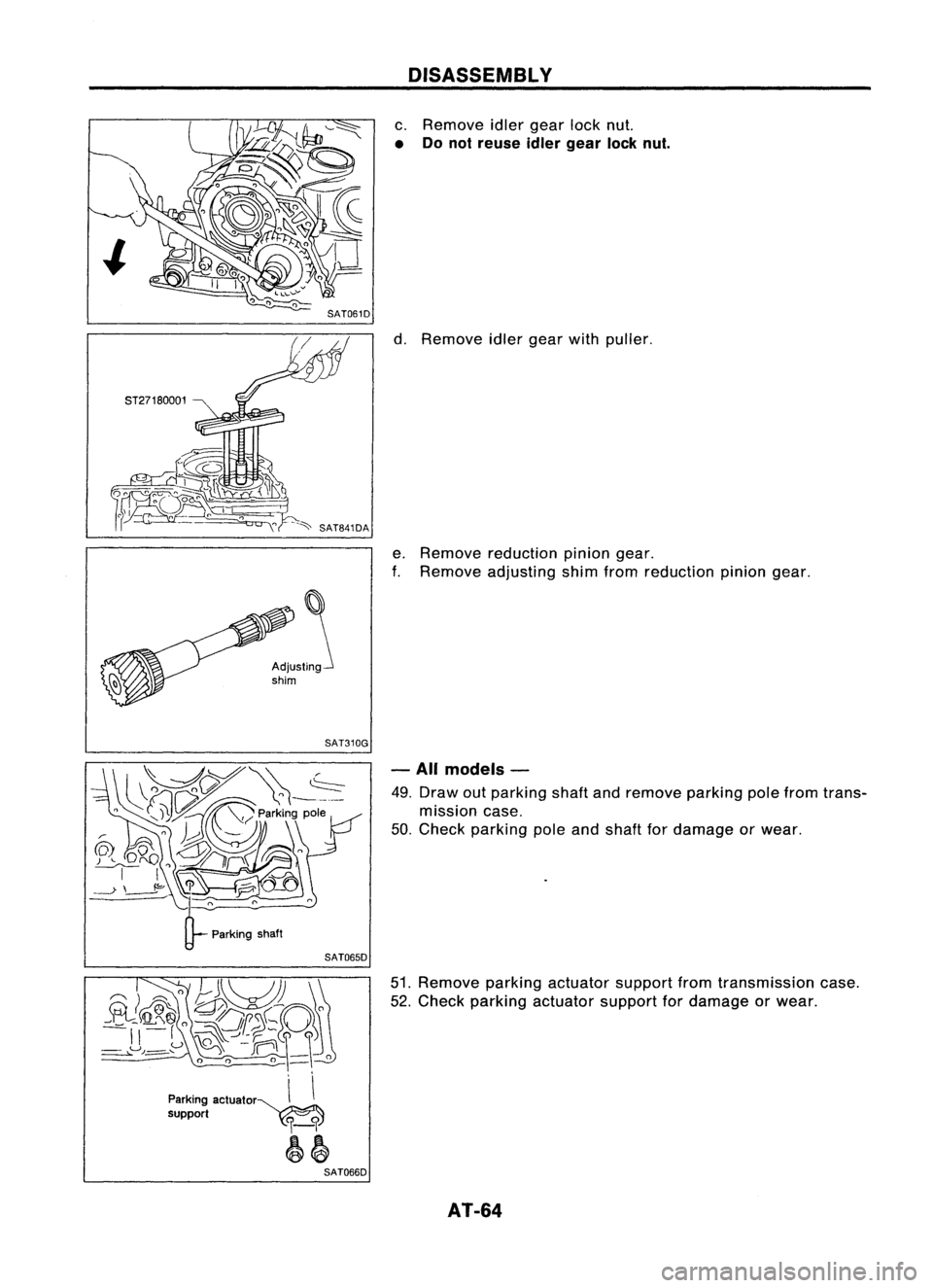

c. Remove idlergear locknut.

• Donot reuse idlergear locknut.

d. Remove idlergear withpuller.
e. Remove reduction piniongear.
f. Remove adjusting shimfromreduction piniongear.

- All models -

49. Draw outparking shaftandremove parkingpolefrom trans-
mission case.
50. Check parking poleandshaft fordamage orwear.
51. Remove parkingactuator supportfromtransmission case.
52. Check parking actuator supportfordamage orwear.

AT-64

SAT070D
\LOW secondary weight
Low primary weight
Governor valve
High primary weight
High secondary weight
SAT071DDISASSEMBL
Y

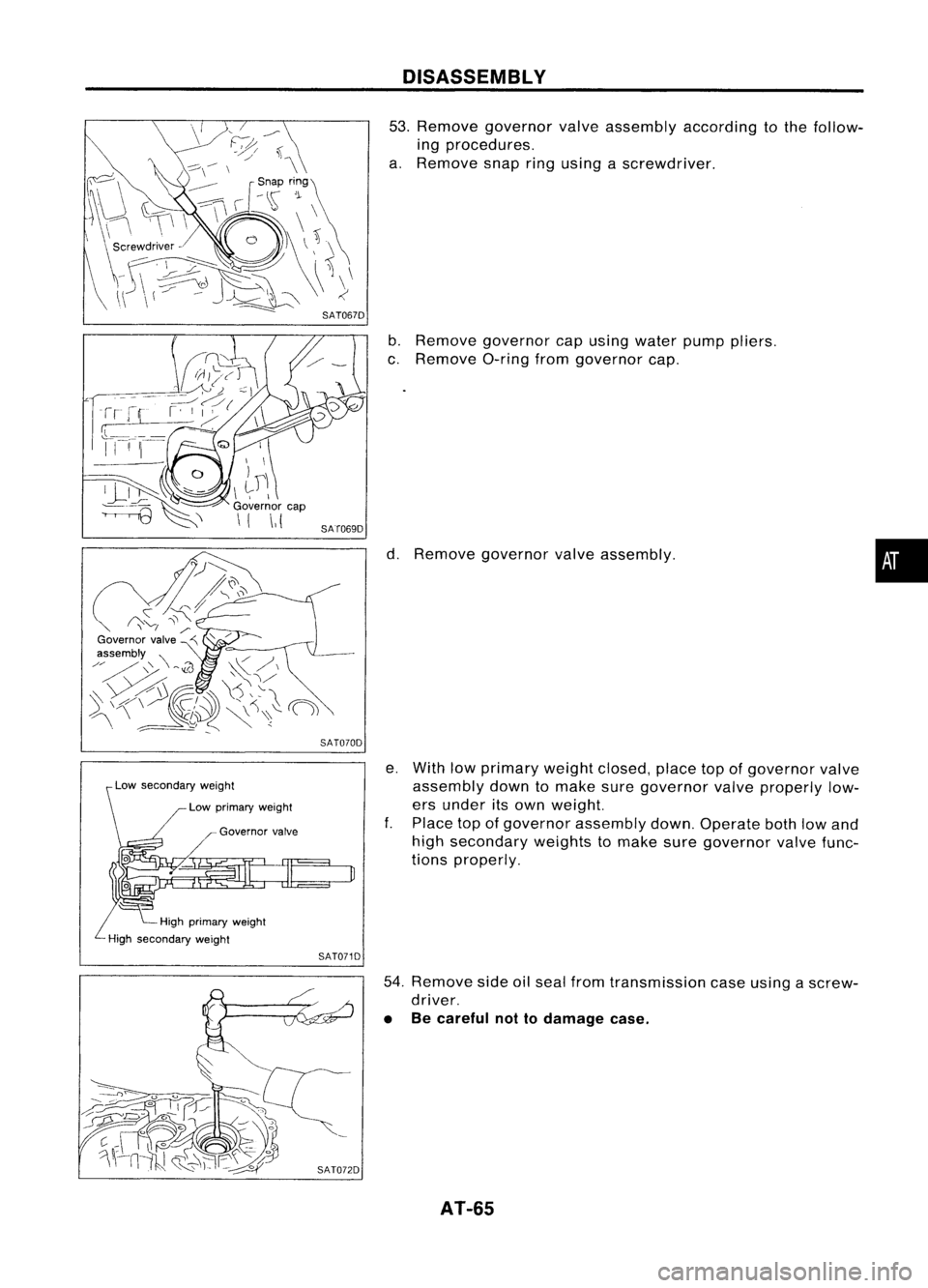

53. Remove governor valveassembly according tothe follow-
ing procedures.
a. Remove snapringusing ascrewdriver.
b. Remove governor capusing water pumppliers.
c. Remove a-ringfromgovernor cap.
d. Remove governor valveassembly.
e. With lowprimary weightclosed, placetopofgovernor valve
assembly downtomake suregovernor valveproperly low-
ers under itsown weight.
f. Place topofgovernor assembly down.Operate bothlowand
high secondary weightstomake suregovernor valvefunc-
tions properly.
54. Remove sideoilseal from transmission caseusing ascrew-
driver.

• Becareful nottodamage case.

AT-55
•

SEC.319

c&D:
ApplyATF. REPAIR
FORCOMPONENT PARTS

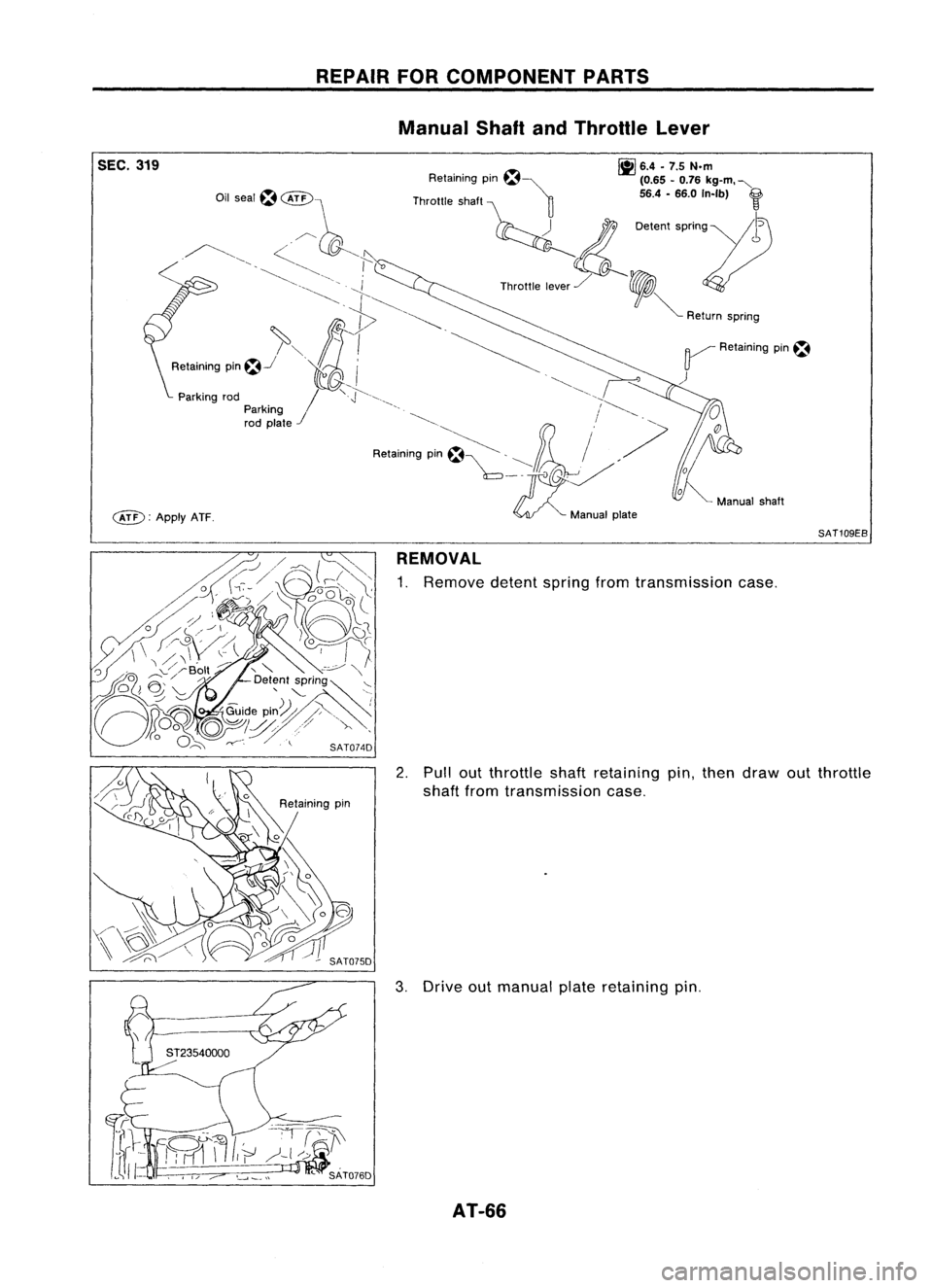

Manual ShaftandThrottle Lever

~ 6.4•7.5 N.m

Retaining pm~~ (0.65-0.76 kg-m. "-
Throttle shaft ~ 56.4-66.0 In-Ib)
f

~ 0.""
''''0'''11)

Th""'. ,,~,/ ,
V

~ Return spnng

~ Retaining pin~

)

SAT109EB

REMOVAL
1. Remove detentspringfromtransmission case.
2. Pullout throttleshaftretaining pin,then draw outthrottle
shaft fromtransmission case.
3. Drive outmanual plateretaining pin.

AT-66

REPAIRFORCOMPONENT PARTS
Manual ShaftandThrottle Lever(ConI'd)

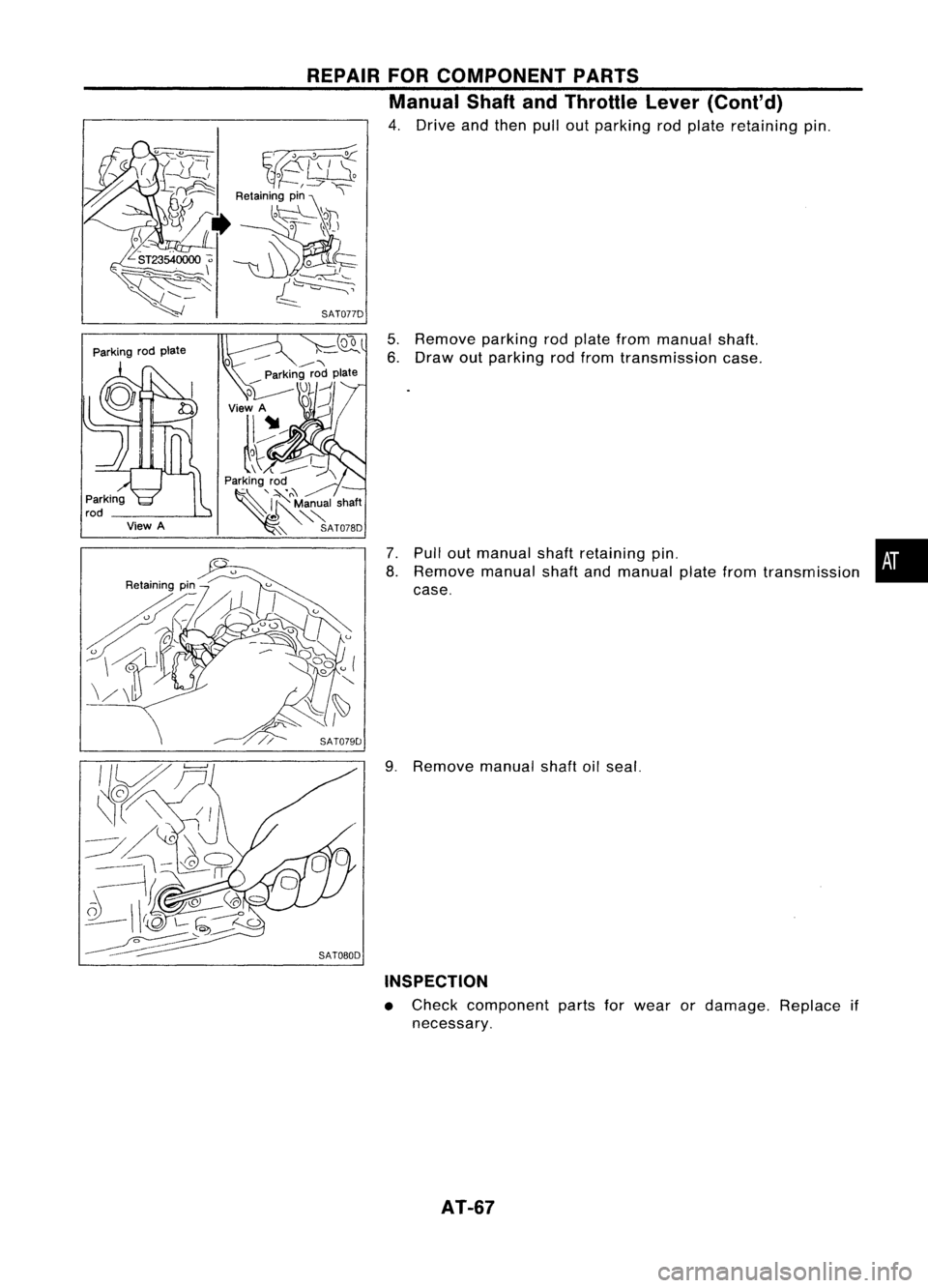

4. Drive andthen pulloutparking rodplate retaining pin.
5. Remove parkingrodplate frommanual shaft.
6. Draw outparking rodfrom transmission case.
7. Pull outmanual shaftretaining pin. •
8. Remove manualshaftandmanual platefromtransmission
i

case.
9. Remove manualshaftoilseal.

SATOBOD
INSPECTION

• Check component partsforwear ordamage. Replaceif
necessary.

AT-67

REPAIRFORCOMPONENT PARTS
Manual ShaftandThrottle Lever(Cont'd)

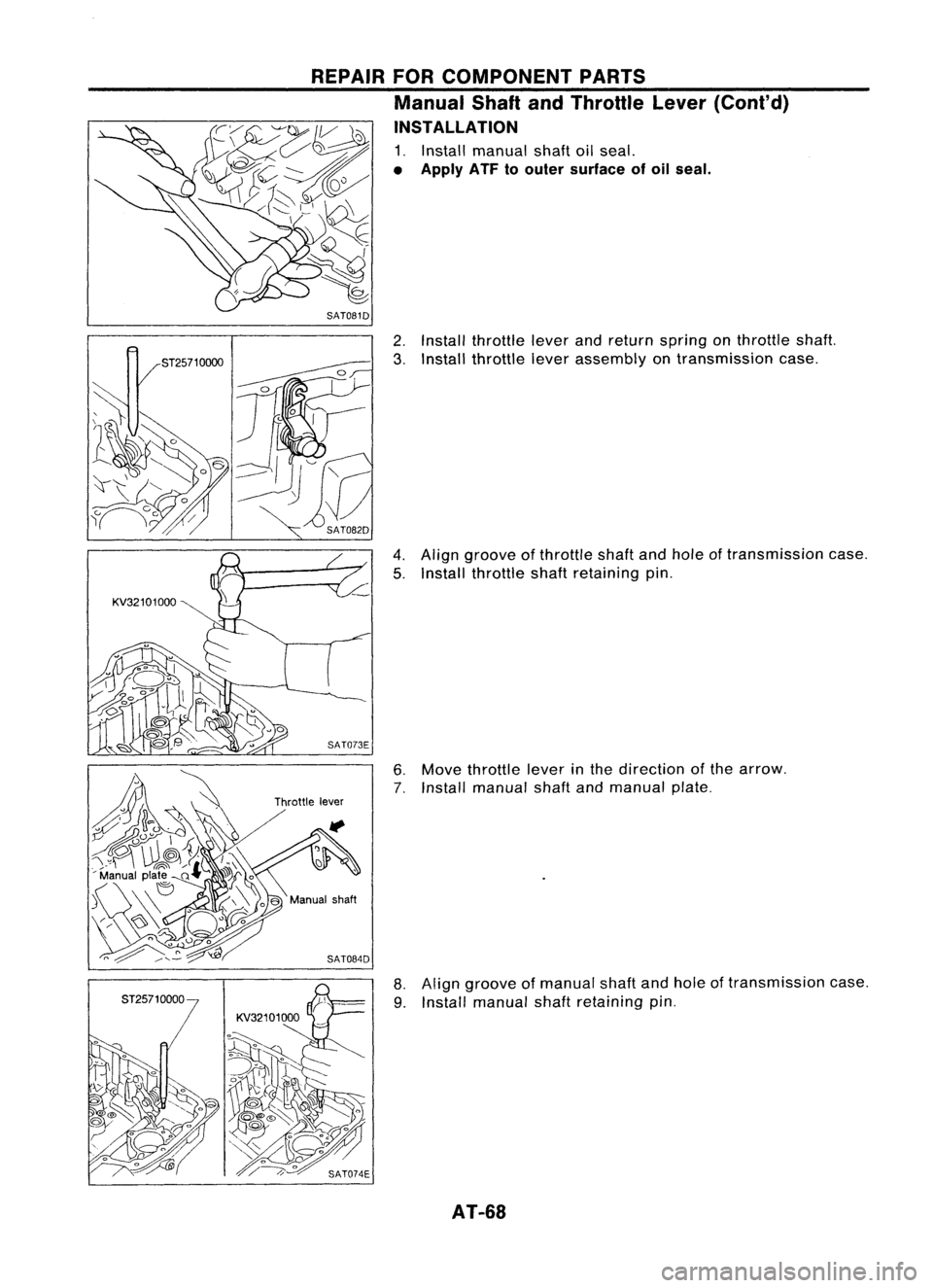

INSlALLA liON

1. Install manual shaftoilseal.

• Apply ATFtoouter surface ofoil seal.

2. Install throttle leverandreturn spring onthrottle shaft.
3. Install throttle leverassembly ontransmission case.
4. Align groove ofthrottle shaftandhole oftransmission case.
5. Install throttle shaftretaining pin.
6. Move throttle leverinthe direction ofthe arrow.
7. Install manual shaftandmanual plate.
8. Align groove ofmanual shaftandhole oftransmission case.
9. Install manual shaftretaining pin.

AT-68

•

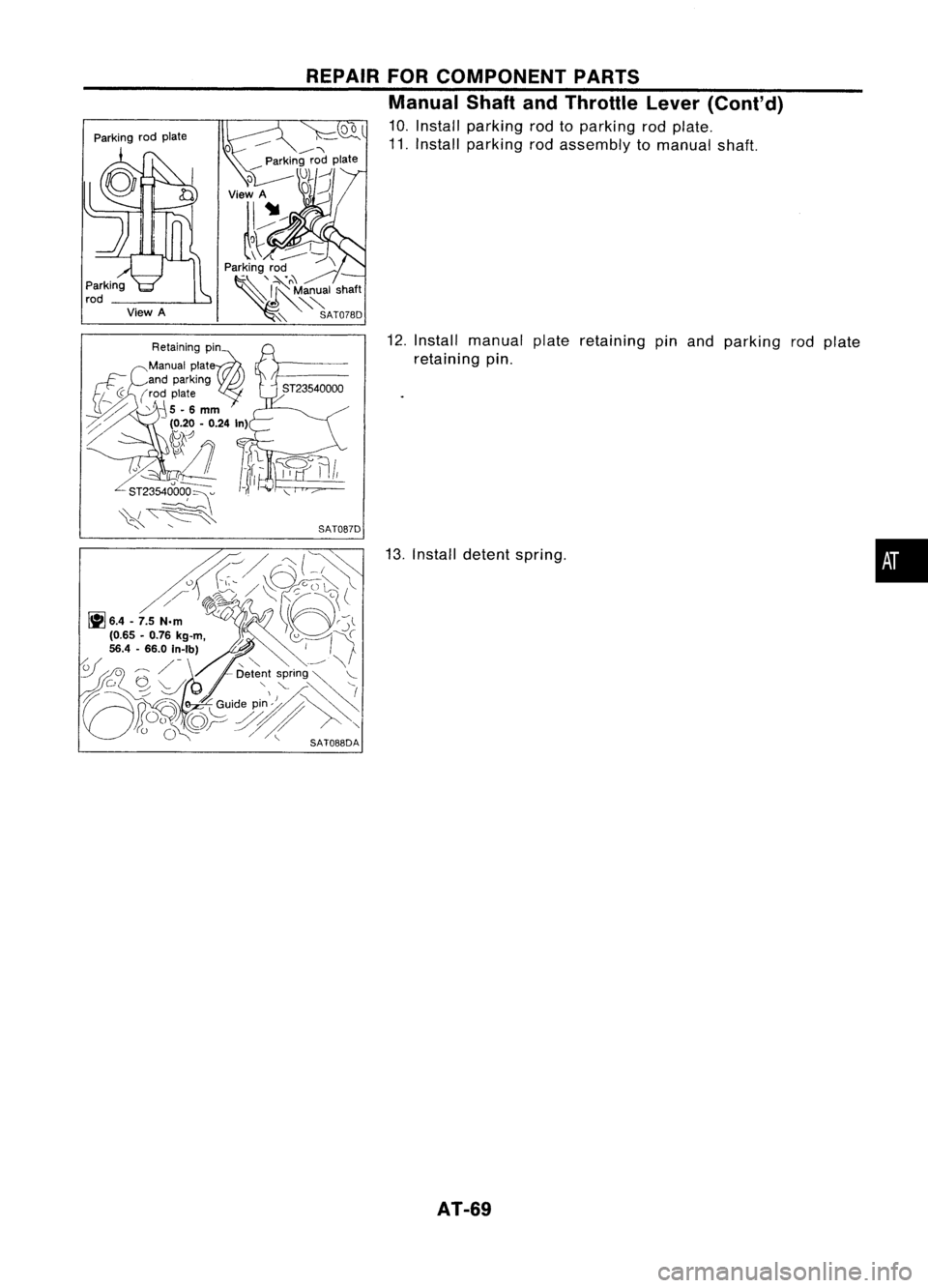

12.
Install manual plateretaining pinand parking rodplate
retaining pin.
13. Install detent spring.

SAT087D
REPAIR
FORCOMPONENT PARTS
Manual ShaftandThrottle Lever(Cont'd)

10. Install parking rodtoparking rodplate.
11. Install parking rodassembly tomanual shaft.

View A

Retaining Pin~
Manual plate
and parking
(rod plate

" ~5 .6
mm
- (0.20 •0.24 In)
tt
~ /1
ST2354~
~~

Parking
rodplate

AT-69

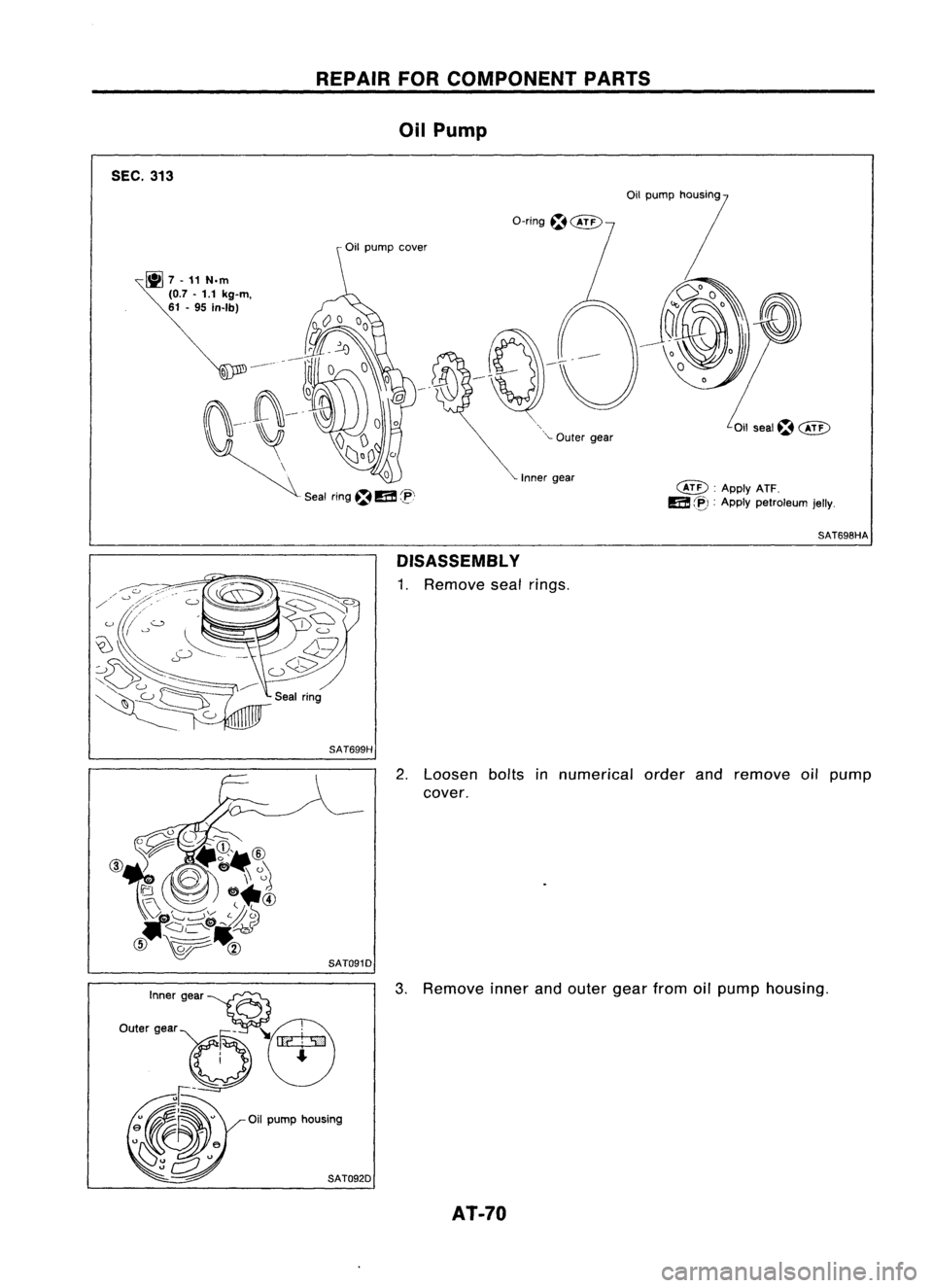

SEC.313
