High Clutch (Cont'd)

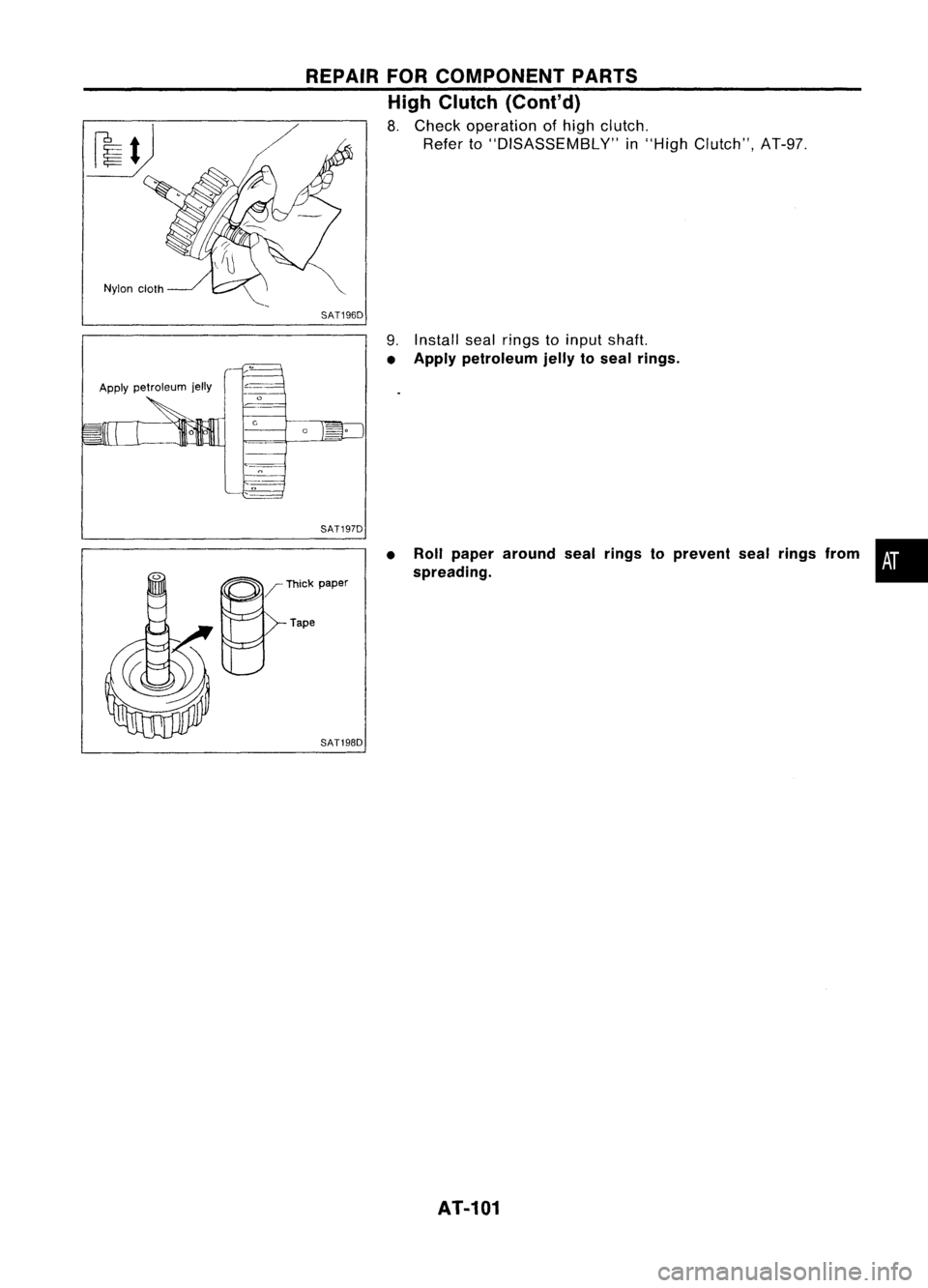

8. Check operation ofhigh clutch.
Refer to"DISASSEMBLY" in"High Clutch", AT-97.

SAT196D
9.Install sealrings toinput shaft.

• Apply petroleum jellytoseal rings.
SAT197D
/ Thick paper
Tape
SAT198D •
Roll paper around sealrings toprevent sealrings from •
spreading.
AT-101

andOverrun Clutch
REPAIR
FORCOMPONENT
Forward Clutch PARTS

Spring retainer Overrun
clutch
piston
CD

Snap ring
~ Retaining plate
*

~ Drive plate

o
Driven plate

CID
Dish plate
Oilseal~~
.~

* :
Select

@D:
Applyx~~per thickness.

SAT942HA
DISASSEMBLY
1. Check operat'

~: ~;t~" bearin~o~e~~i~:;ard clutchandov
c. Ch~:k ~ompressed airt~n forward ciutch,;;run clutch.

o see that
011
hole off rum.
retaining plateorwardclutchd

. movestos rum.

nap ring.

Bearing
retainer
•
• •
If
r~taining plated
D~nng mightboesnotconta

0,1
seal m"hedamaged ctsnap ring
F
ig
t
b d' '
luid might beamaged
e leak' '
mg past piston ch
eck ball.

AT.102

SAT205DSAT203D
SAT204D
4.
Remove snapringforoverrun clutch.
5. Remove driveplates, drivenplates, retaining plateanddish
plate foroverrun clutch.
6. Set Tool onspring retainer andremove snapringfrom for- •
ward clutch drumwhile compressing returnsprings.

• Set Tool directly abovereturn springs.
• Donot expand snapringexcessively.

7. Remove springretainer andreturn springs.
8. Remove forwardclutchpiston withoverrun clutchpiston
from forward clutchdrum
by
turning it.
9. Remove overrunclutchpiston fromforward clutchpiston by
turning it.

SAT216D
REPAIR
FORCOMPONENT PARTS
Forward ClutchandOverrun Clutch(Cont'd)

2. Remove snapringforforward clutch.
3. Remove driveplates, drivenplates, retaining plateanddish
plate forforward clutch.

Snap ring
AT-103

SAT140E
REPAIR
FORCOMPONENT PARTS
Forward ClutchandOverrun Clutch(Cont'd)

10. Remove D-ringsandoilseals fromforward clutchpiston
and overrun clutchpiston.

@

@
Oilseal

@
@'r:rY;)

, ~~o
~~o:~::'"
"'Ioh
pi","

l\~)t
D-rlng
Overrun clutch piston

INSPECTION
Snap ringsandspring retainer

• Check fordeformation, fatigueordamage.

Forward clutchandoverrun clutchreturnsprings

• Check fordeformation ordamage.
• Measure freelength andouter diameter.

Inspection standard:
Refer toSOS, AT-169.

• Replace ifdeformed orfatigued.

Q
(Length)

SAT138D

Facing
Core plate

SAT162D

t
Forward
clutchandoverrun clutchdriveplates

• Check facingforburns, cracks ordamage.
• Measure thickness offacing.

Thickness ofdrive plate:
Forward clutch
Standard value1.8mm (0.071 in)
Wear limit1.6mm (0.063 in)
Overrun clutch
Standard value1.6mm (0.063 in)
Wear limit1.4mm (0.055 in)

• Ifnot within wearlimit,replace.

Forward clutchandoverrun clutchdishplates

• Check fordeformation ordamage.
• Measure thickness ofdish plate.

Thickness ofdish plate:
Forward clutch2.35-2.65 mm(0.0925 -0.1043 in)
Overrun clutch2.00-2.30 mm(0.0787 -0.0906 in)

• Ifdeformed orfatigued, replace.

SAT163D AT-104

Checkairdoes notflow
through ballhole. REPAIR
FORCOMPONENT PARTS
Forward ClutchandOverrun Clutch(Cont'd)
Forward clutchdrum

• Make surecheck ballsarenotfixed.
• Apply compressed airtocheck balloilhole from outside of
forward clutchdrum.Makesureairleaks pastball.
• Apply compressed airtooil hole from inside offorward
clutch drum.Makesurethere isno air leakage.

SAT213D
@ @Oilseal

@,~~~

~ O;',':'doI"toh
pi","

~'U,.,
O-nng
Overrun
clutch piston SAT140EOverrun
clutchpiston

• Make surecheck ballsarenotfixed.
• Apply compressed airtocheck balloilhole opposite the
return spring. Makesurethere isno air leakage.
• Apply compressed airtooil hole onreturn spring side.
Make sureairleaks pastball.

pistonand.

ASSEMBLY

1. Install O-rings andoilseals onforward clutch
overrun clutchpiston.

• Take carewithdirection ofoil seal.
• Apply ATF toboth parts.
Check
airflows
through ballhole.
SAT212D
Check
airdoes notflow
through ballhole.
Overrunclutch
piston
2.
Install overrun clutchpiston assembly onforward clutch
piston whileturning itslowly.
3. Install forward clutchpiston assembly onforward clutch
drum while turning itslowly.

AT-105

Qr
springretainer

..

Snapring
Center---l

,
REPAIR
FORCOMPONENT PARTS
Forward ClutchandOverrun Clutch(Cont'd)

4. Align notch inforward clutchpistonwithgroove inforward
clutch drum.
5. Install returnsprings onpiston.
6. Install spring retainer onreturn springs.

SAT218D
7.Set Tool onspring retainer andinstall snapringwhile com-
pressing returnsprings.

/ _.SetTool directly abovereturnsprings.
SAT205D •Donot align snapringgapwith spring retainer stopper.
SAT220D
8.Install driveplates, drivenplates, retaining plateanddish
plate foroverrun clutch.
9. Install snapringforoverrun clutch.

SAT204D AT-106

11.Install driveplates, drivenplates, retaining plateanddish
plate forforward clutch.
12. Install snapringforforward clutch.
13. Measure clearance betweenforwardclutchretaining plate•
and snap ring.
If not within allowable limit,select proper retaining plate.

Specified clearance:
Standard 0.45-0.85 mm(0.0177 -0.0335 in)
Allowable limit1.85mm(0.0728 in)
Forward clutchretaining plate:
Refer toSOS, AT-1G8.

14. Check operation offorward clutch.
Refer to"DISASSEMBLY" in"Forward ClutchandOverrun
Clutch", AT-102.

SAT227D
SAT203D
REPAIR
FORCOMPONENT PARTS
Forward ClutchandOverrun Clutch(Cont'd)

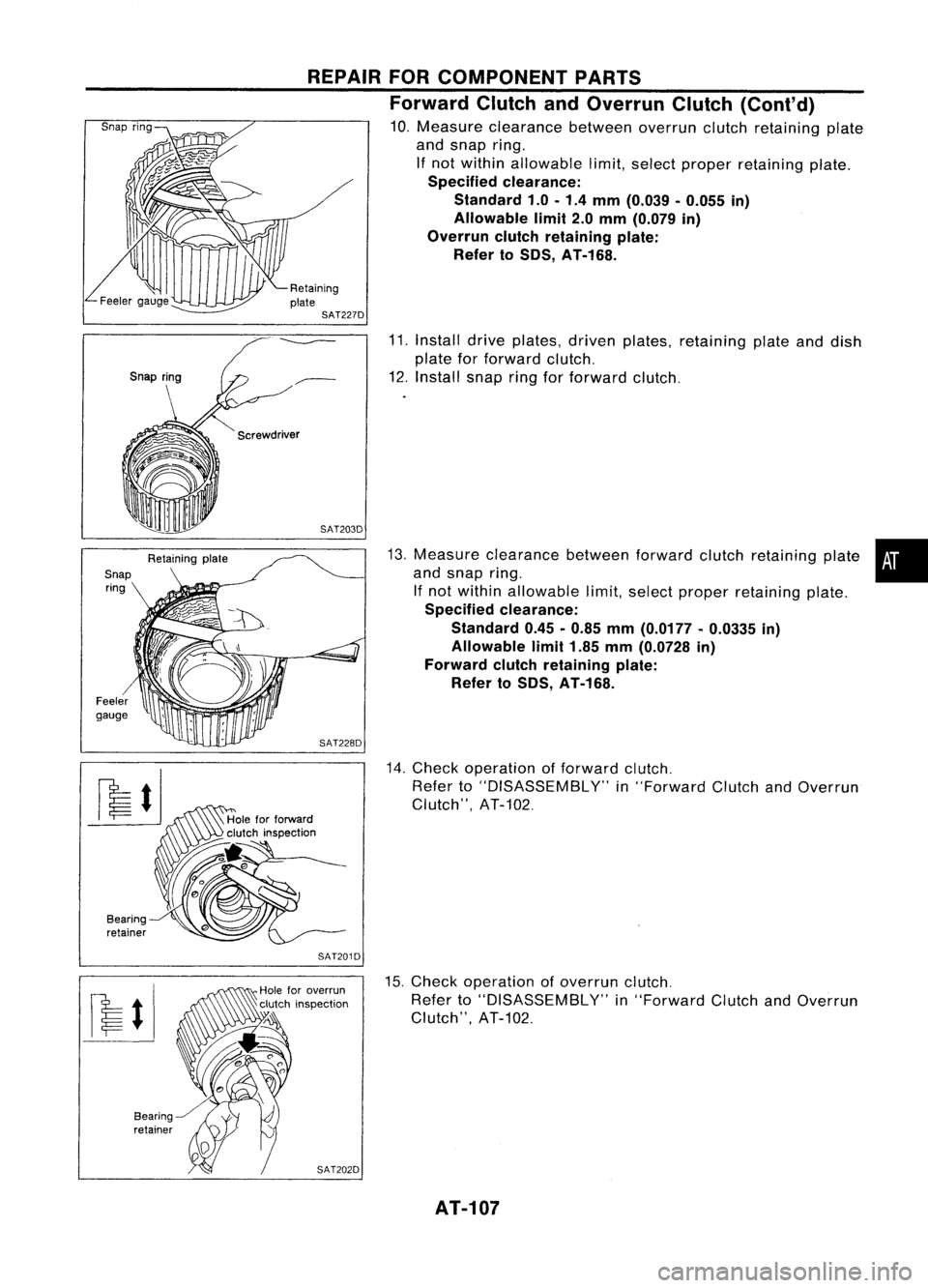

10. Measure clearance betweenoverrunclutchretaining plate
and snap ring.

If
not within allowable limit,select proper retaining plate.

Specified clearance:
Standard 1.0-1.4 mm (0.039 -0.055 in)
Allowable limit2.0mm (0.079 in)
Overrun clutchretaining plate:
Refer toSOS, AT-1G8.
Retaining
plate
Screwdriver
Retaining plate
Snap
ring

\

Bearing retainer
Snap
ring
SAT201D
Bearing
retainer
15.
Check operation ofoverrun clutch.
Refer to"DISASSEMBLY" in"Forward ClutchandOverrun
Clutch", AT-102.

AT-107

REPAIRFOR
COMPONENT PARTS
Low
&
Reverse Brake
SAT943HA

Dish
plate
Drive
plate
Retaining
plate
*

Driven plate
Retaining plate
Driven plate
Drive
plate

* :
Select
~: Applyx~~per thickness.

SEC.
315

For the numb
refer tothe b:~O~ clutch sheets (dri
cross-section
veplates anddI
,
rven plates),

DISASSEMBL Y

1. Check operat'
a. Apply co Ionoflow
&
r
b. Check tmpressed airtoo,el vherse brake

c If
0
see that
I
ole oft .

. retaining platdretaining plateransmission ca

• D-rin .eoes n
t
moves
t
se.

• Oil gmight bedama
0
contact snap
.0
snap ring.

seal might
be
ged. ring,

• FluId might bdamaged
e leak' .
Ing past piston h
c eck ball
2. Stand trans .,
3. Remove sn~l1IS~lOn case.
4. Remov .p nng.
d' ednve plate
Ish plates fromts,~riven plate
ransmlssio s,
n case. retaining
platesand

AT-108

REPAIRFORCOMPONENT PARTS
Low
&
Reverse Brake(Conl'd)

5. Set Tool onspring retainer andremove snapringwhile
compressing returnsprings.

• Set Tool directly abovereturnsprings.
• Donot expand snapringexcessively.

6. Remove springretainer andreturn springs.

• Donot remove returnsprings fromspring retainer.

7. Apply compressed airtooil hole oftransmission casewhile
holding piston.
8. Remove pistonfromtransmission case
by
turning it.
9. Remove D-ringandoilseal from piston.

piston
SAT618H
INSPECTION
Low
&
reverse clutchsnapring,spring retainer and
return springs

• Check fordeformation, fatigueordamage.
• Replace ifnecessary.

• When replacing springretainer andreturn springs, replace
them asaset.
AT-109
•

REPAIRFORCOMPONENT PARTS
Low
&
Reverse Brake(Coni'd)
Low &reverse brakedriveplate

• Check facing forburns, cracks ordamage.
• Measure thickness offacing.

Facing Thicknessofdrive plate:
Standard value2.0mm (0.079 in)
Wear limit1.8mm (0.071 in)

• Ifnot within wearlimit,replace.

SAT162D Low
&
reverse brakedishplates

• Check fordeformation ordamage.
• Measure thickness ofdish plate.

Thickness ofdish plate:
3.00 -3.30 mm(0.1181 -0.1299 in)
• If
deformed orfatigued, replace.

SAT163D ASSEMBLY
1. Install D-ring andoilseal onpiston.

• Take carewiththedirection ofthe oilseal.
• Apply ATFtoO-ring andoilseal.

2. Stand transmission case.
3. Install piston assembly ontransmission casewhile turning
it slowly.

• Apply ATFtoinner surface oftransmission case.

4. Install returnsprings andspring retainer onpiston.

AT-110
