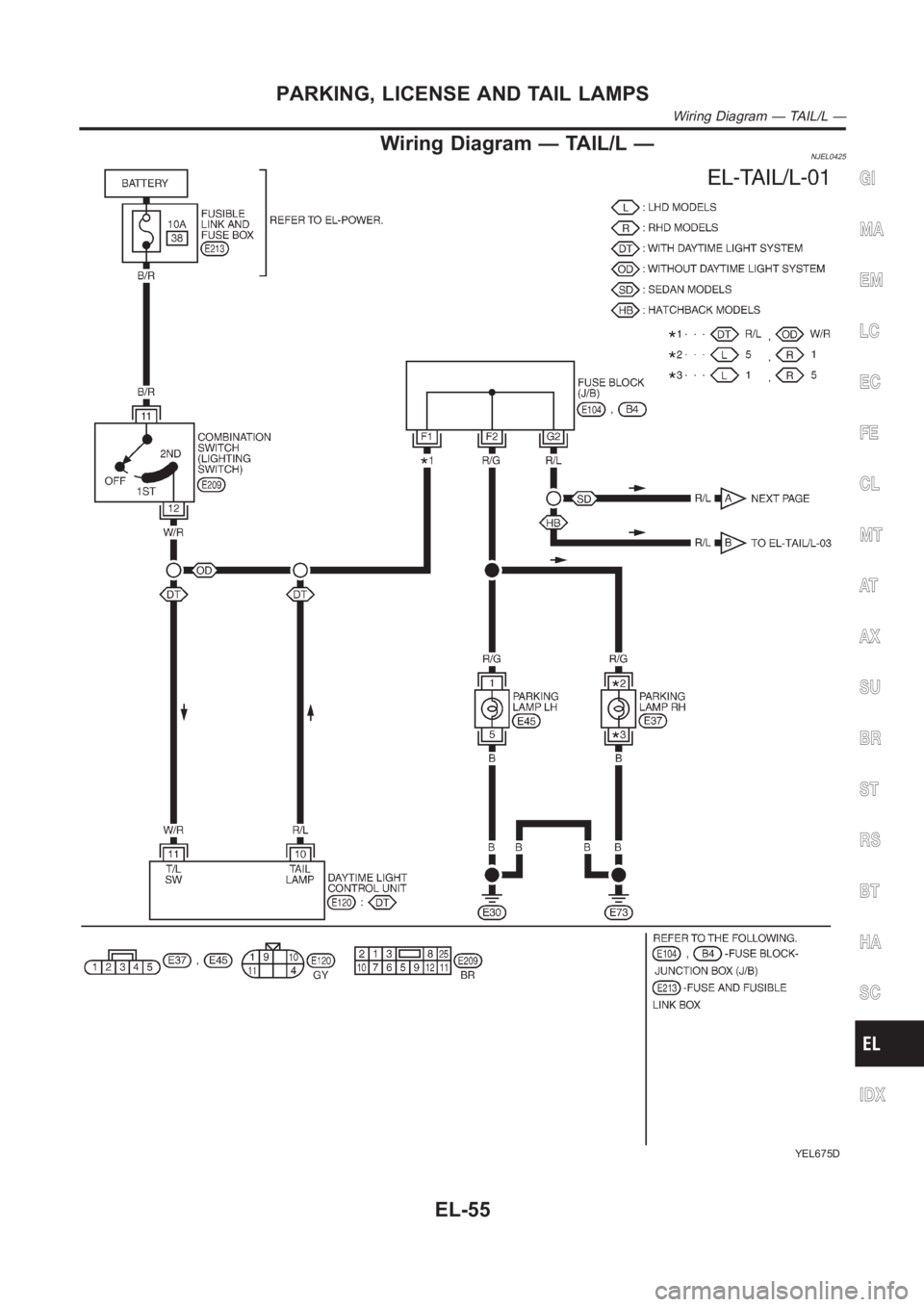

PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram — TAIL/L —
EL-55

YEL676D

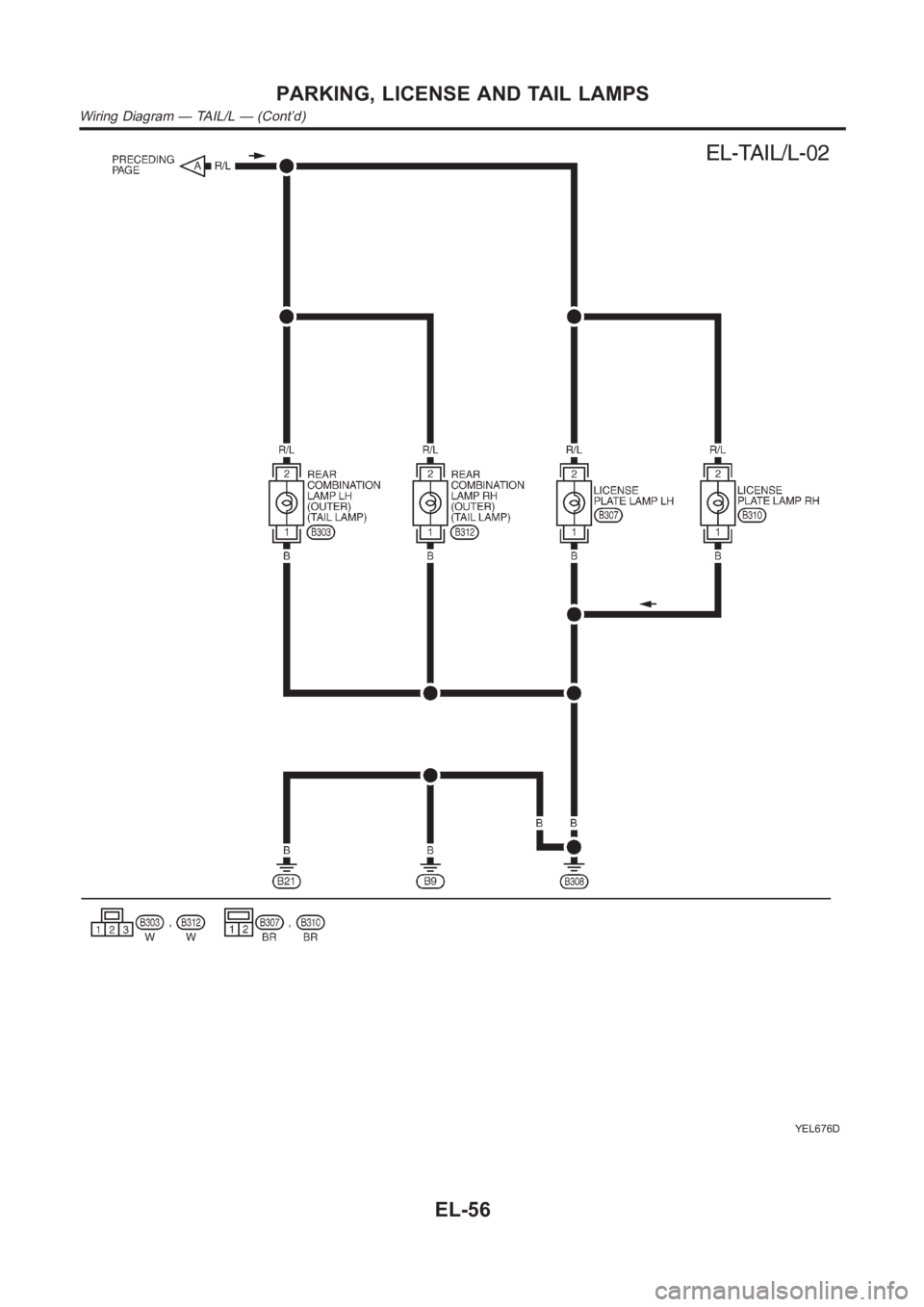

PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram — TAIL/L — (Cont’d)
EL-56

YEL677D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

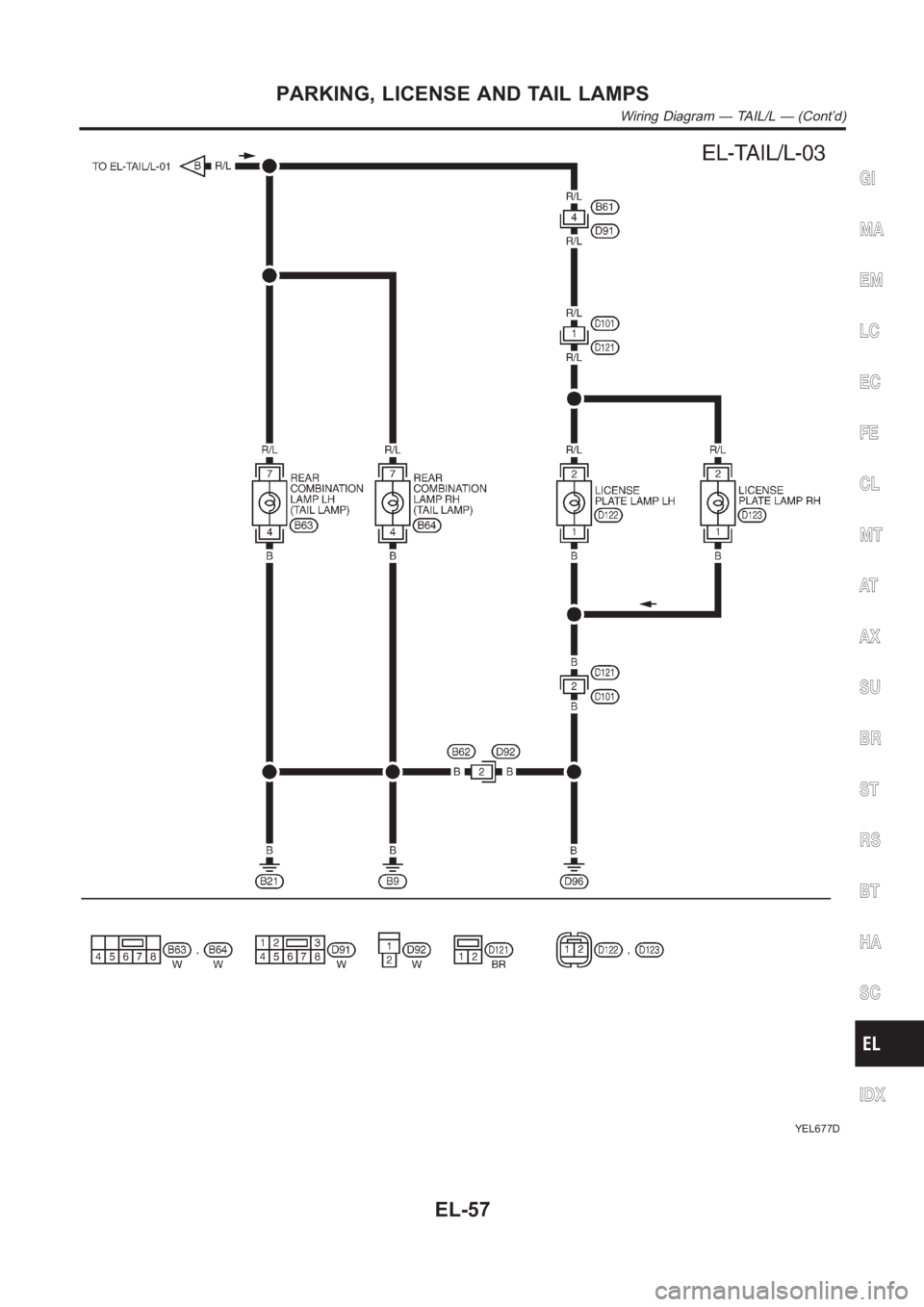

PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram — TAIL/L — (Cont’d)
EL-57

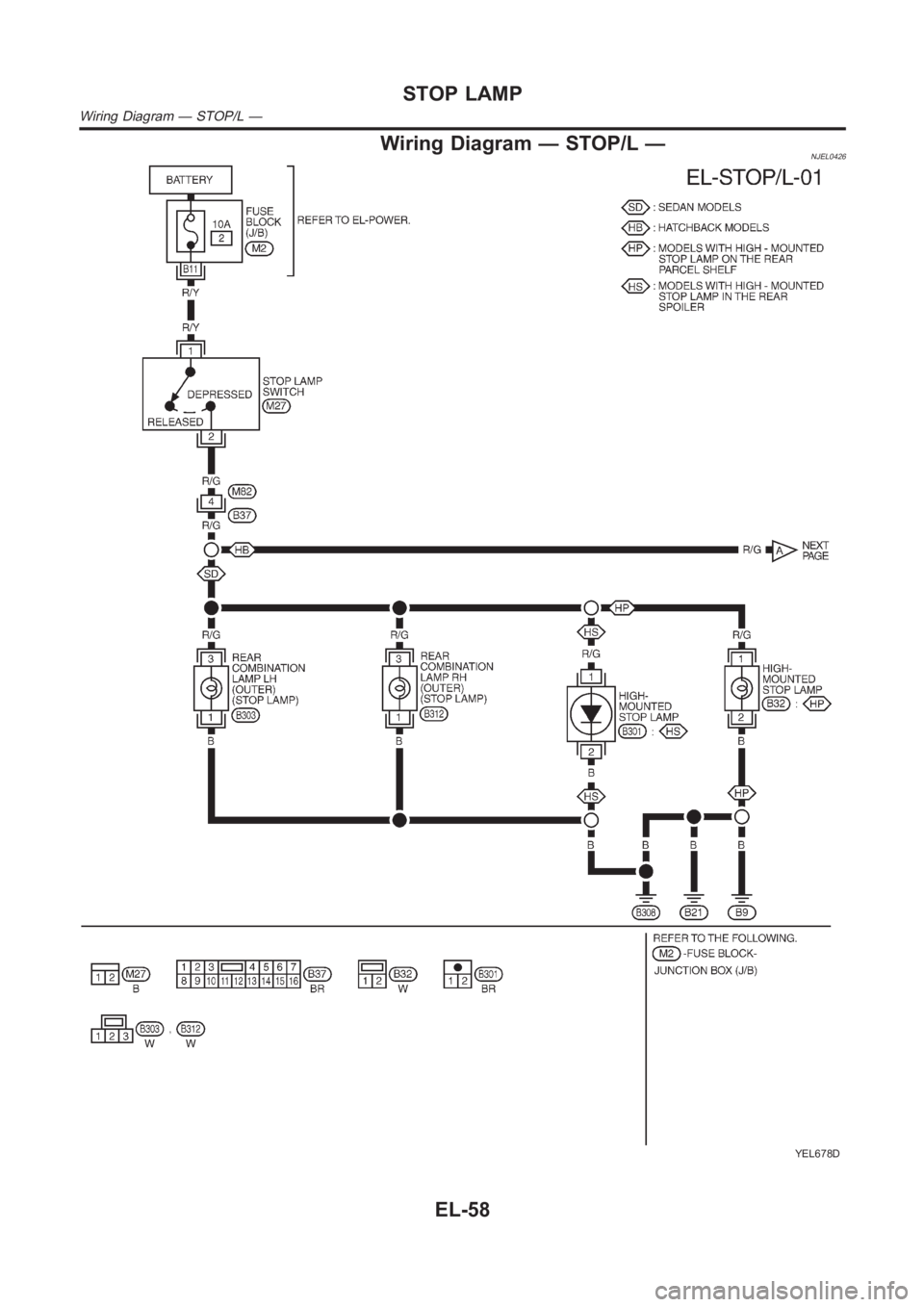

Wiring Diagram — STOP/L —NJEL0426
YEL678D
STOP LAMP
Wiring Diagram — STOP/L —
EL-58

YEL679D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

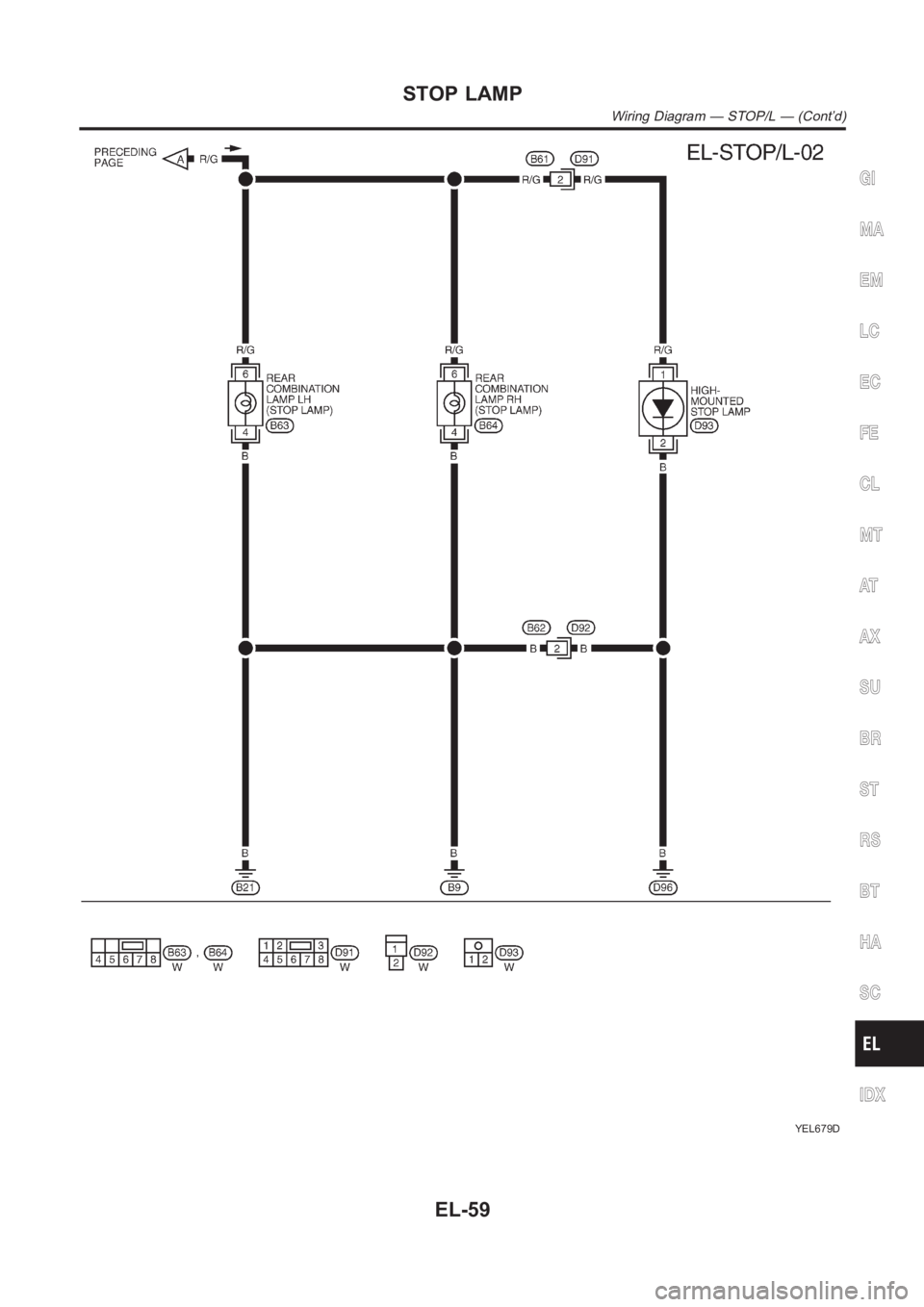

STOP LAMP
Wiring Diagram — STOP/L — (Cont’d)
EL-59

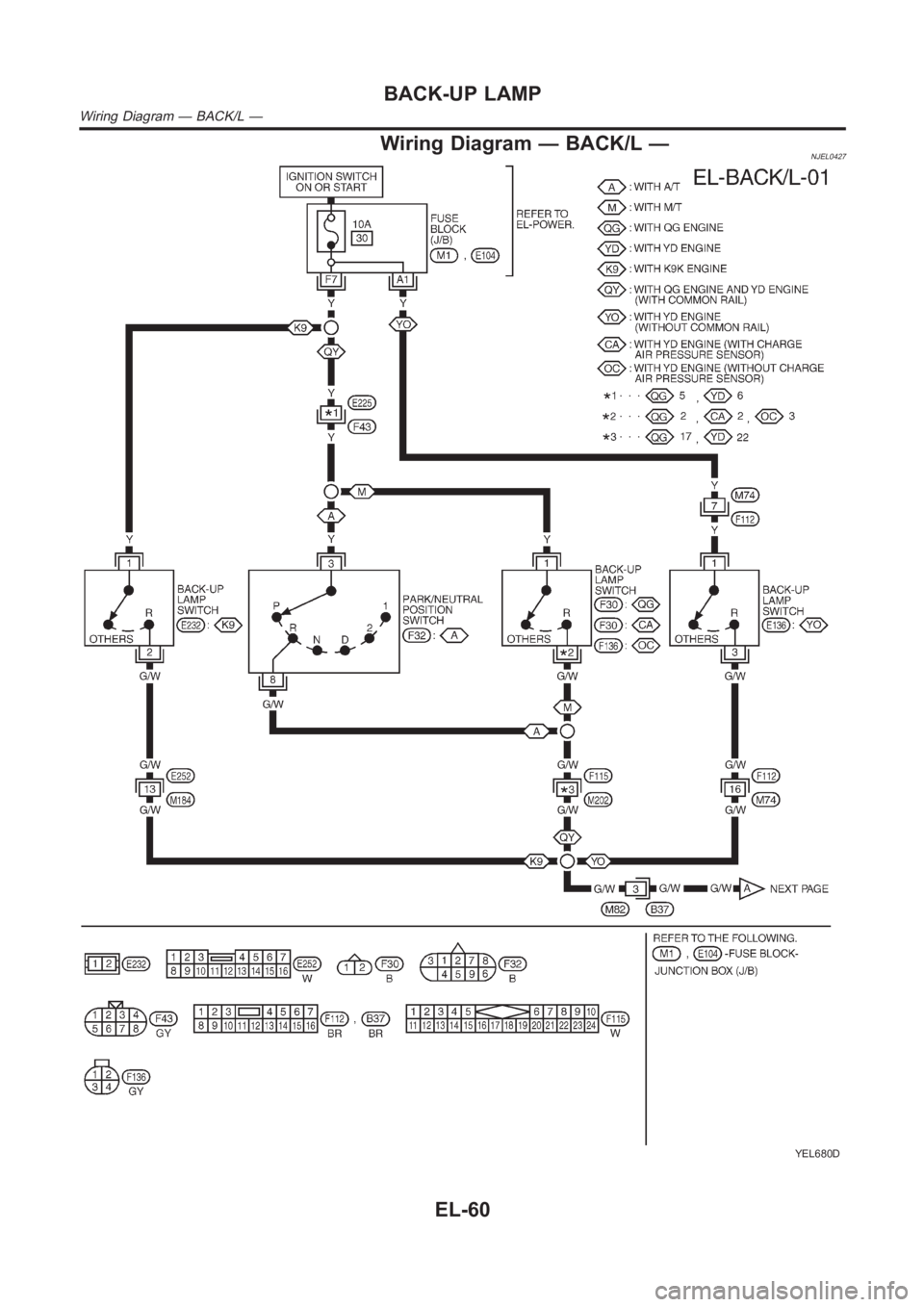

Wiring Diagram — BACK/L —NJEL0427
YEL680D
BACK-UP LAMP
Wiring Diagram — BACK/L —
EL-60

YEL681D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

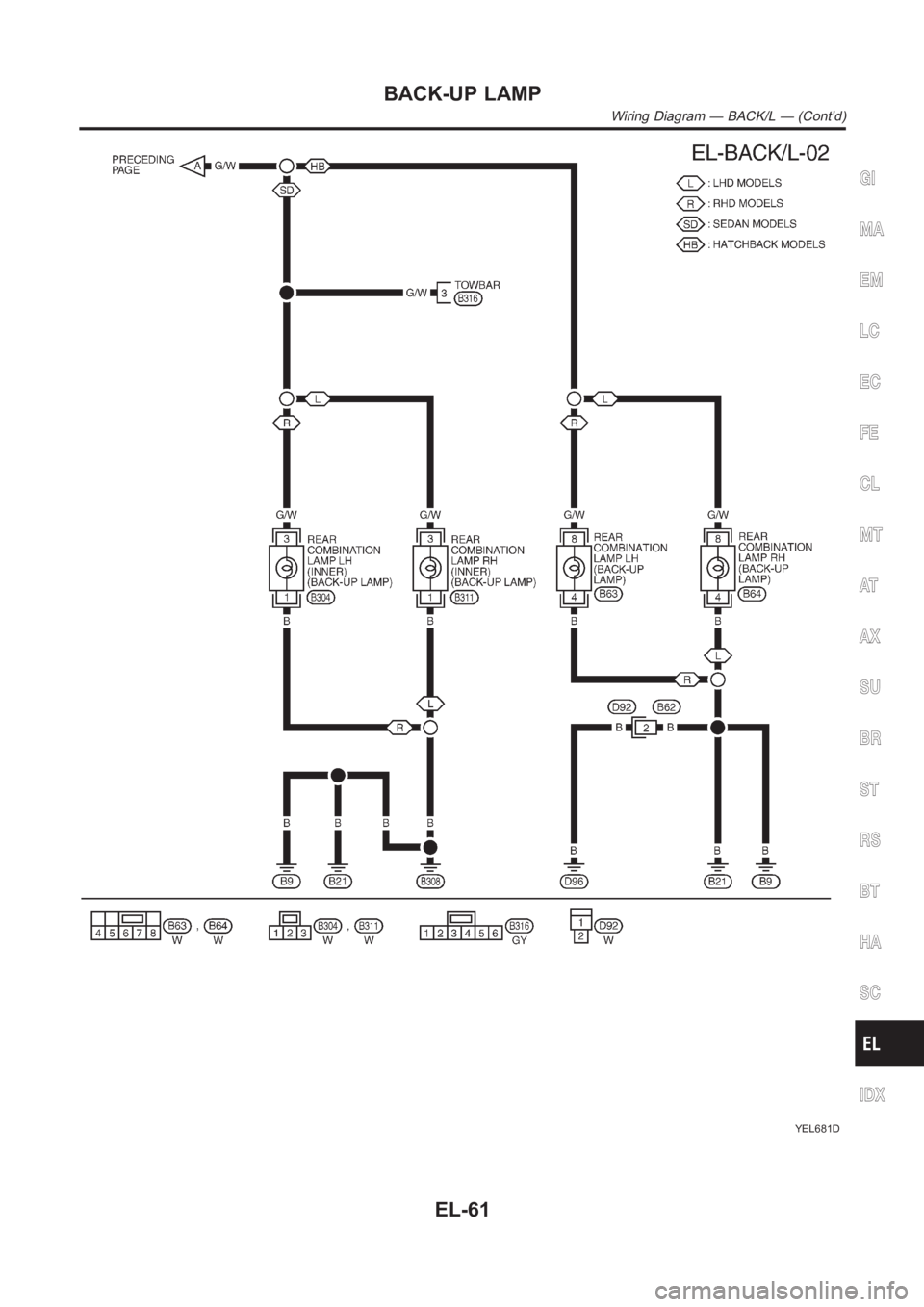

BACK-UP LAMP
Wiring Diagram — BACK/L — (Cont’d)
EL-61

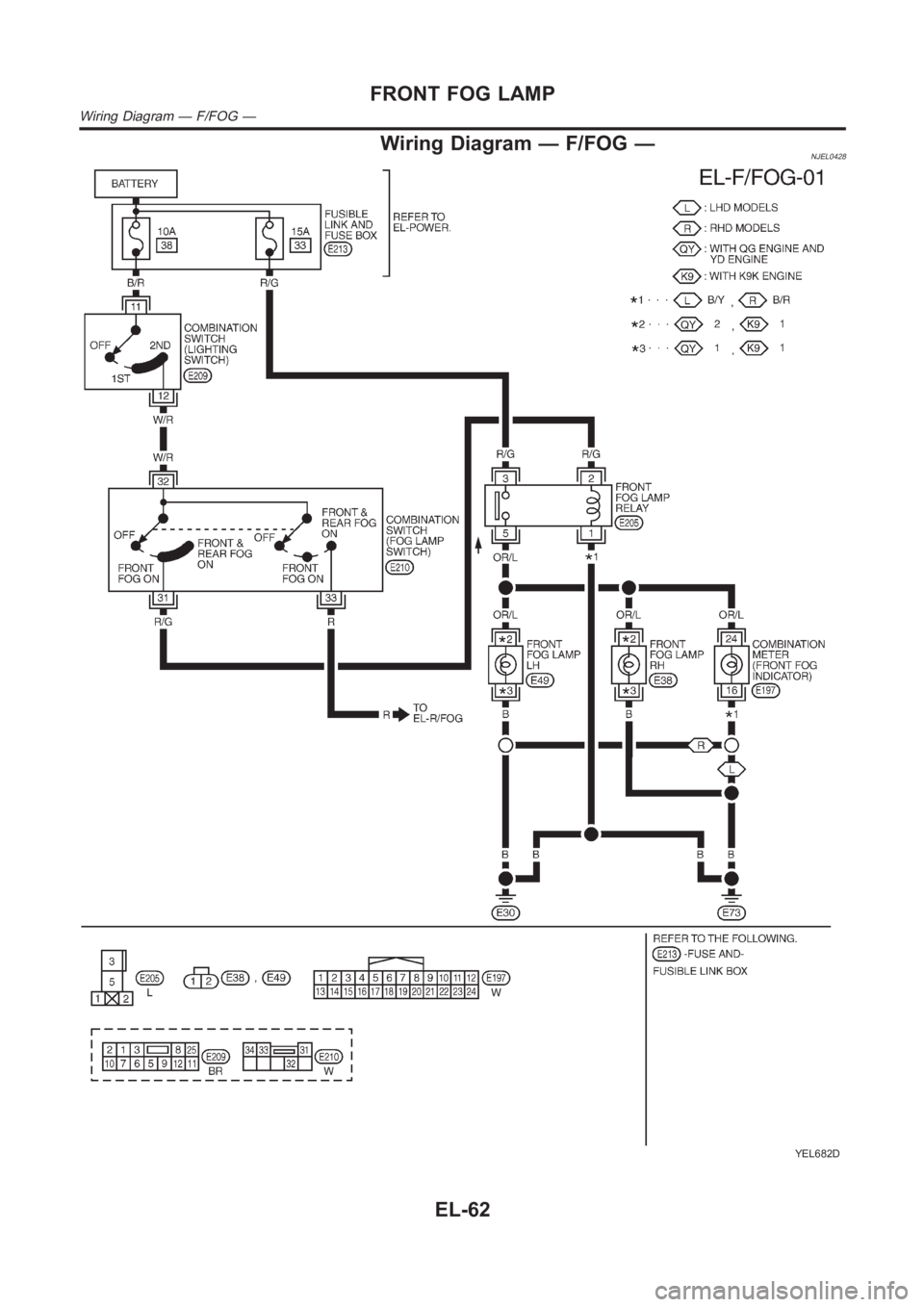

Wiring Diagram — F/FOG —NJEL0428
YEL682D
FRONT FOG LAMP
Wiring Diagram — F/FOG —
EL-62

YEL811D
Bulb ReplacementNJEL0314The front fog lamp is a semi-sealed beam type which uses a
replaceable halogen bulb.
Grasp only the plastic base when handling the bulb. Never
touch the glass envelope.
1. Disconnect the battery cable.
2. Disconnect the harness connector from the back side of the
bulb.
3. Pull off the bulb holder.
4. Remove the front fog lamp bulb carefully. Do not shake or
rotate the bulb when removing it.
5. Install in the reverse order of removal.
CAUTION:
Do not leave front fog lamp reflector without bulb for a
long period of time. Dust, moisture, smoke, etc. entering
front fog lamp body may affect the performance of the
front fog lamp. Remove front fog lamp bulb from the front
fog lamp reflector just before a replacement bulb is
installed.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
FRONT FOG LAMP
Bulb Replacement
EL-63

YEL812D

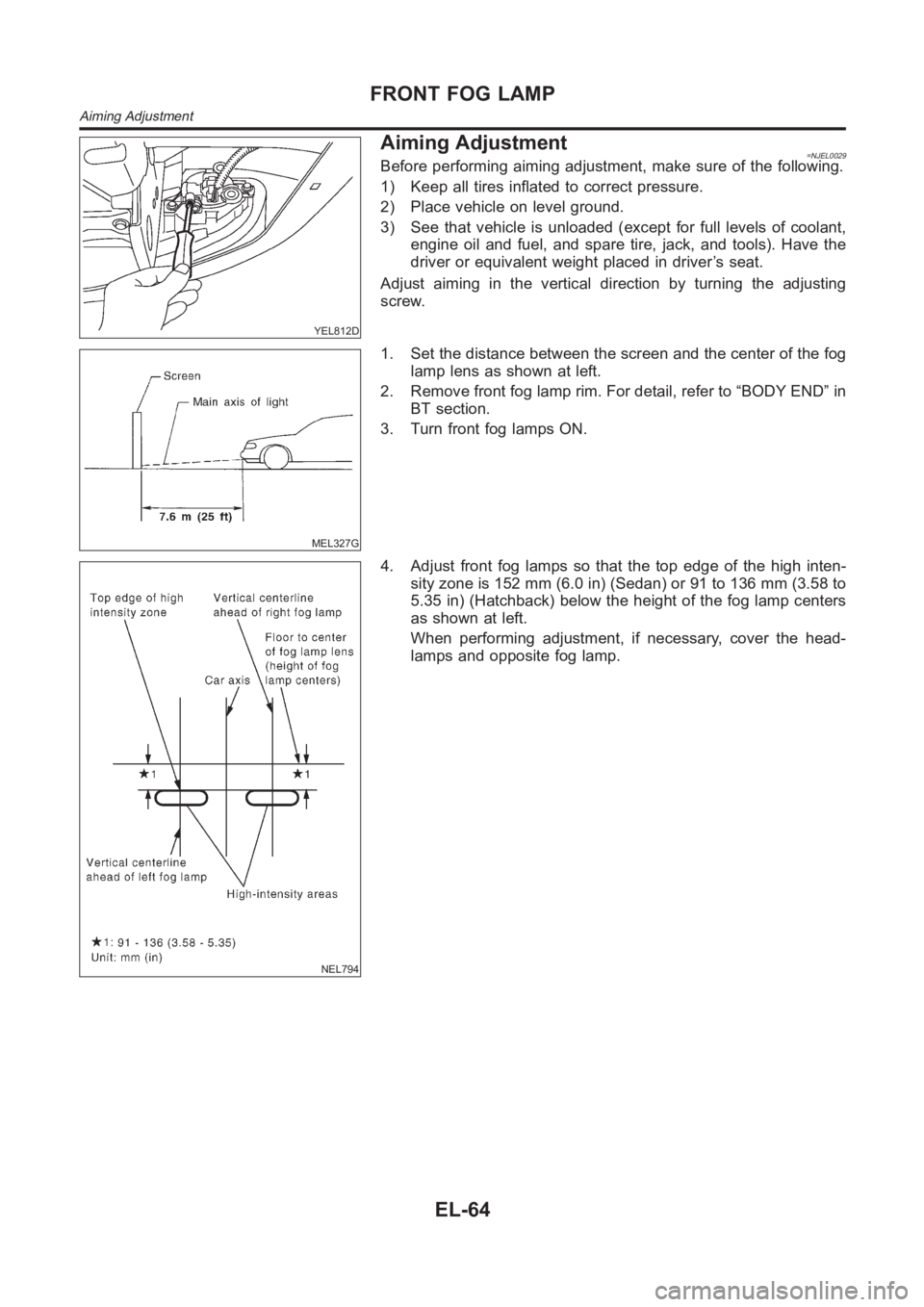

Aiming Adjustment=NJEL0029Before performing aiming adjustment, make sure of the following.
1) Keep all tires inflated to correct pressure.
2) Place vehicle on level ground.
3) See that vehicle is unloaded (except for full levels of coolant,
engine oil and fuel, and spare tire, jack, and tools). Have the
driver or equivalent weight placed in driver’s seat.
Adjust aiming in the vertical direction by turning the adjusting
screw.
MEL327G
1. Set the distance between the screen and the center of the fog
lamp lens as shown at left.
2. Remove front fog lamp rim. For detail, refer to “BODY END” in
BT section.
3. Turn front fog lamps ON.
NEL794
4. Adjust front fog lamps so that the top edge of the high inten-
sity zone is 152 mm (6.0 in) (Sedan) or 91 to 136 mm (3.58 to
5.35 in) (Hatchback) below the height of the fog lamp centers
as shown at left.
When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
FRONT FOG LAMP
Aiming Adjustment
EL-64
