NISSAN ALMERA N16 2003 Electronic Repair Manual

SKIA1382E

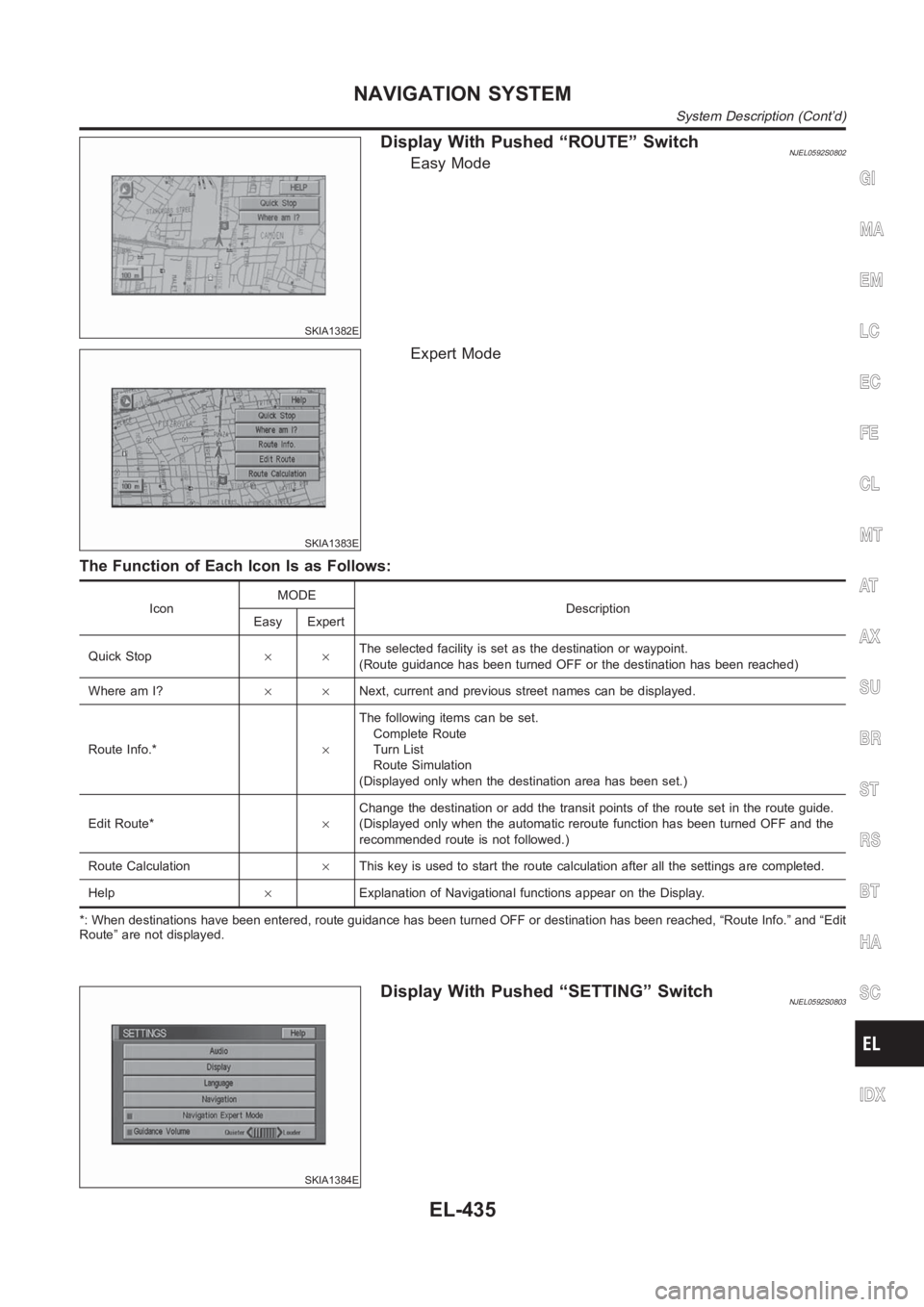

Display With Pushed “ROUTE” SwitchNJEL0592S0802Easy Mode
SKIA1383E
Expert Mode
The Function of Each Icon Is as Follows:
IconMODE
Description
Easy Expert
Quick Stop××The selected facility is set as the destination or waypoint.
(Route guidance has been turned OFF or the destination has been reached)
Where am I?××Next, current and previous street names can be displayed.
Route Info.*×The following items can be set.
Complete Route
Turn List
Route Simulation
(Displayed only when the destination area has been set.)
Edit Route*×Change the destination or add the transit points of the route set in the route guide.
(Displayed only when the automatic reroute function has been turned OFF andthe
recommended route is not followed.)
Route Calculation×This key is used to start the route calculation after all the settings are completed.
Help×Explanation of Navigational functions appear on the Display.
*: When destinations have been entered, route guidance has been turned OFFor destination has been reached, “Route Info.” and “Edit
Route” are not displayed.
SKIA1384E
Display With Pushed “SETTING” SwitchNJEL0592S0803
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
System Description (Cont’d)
EL-435

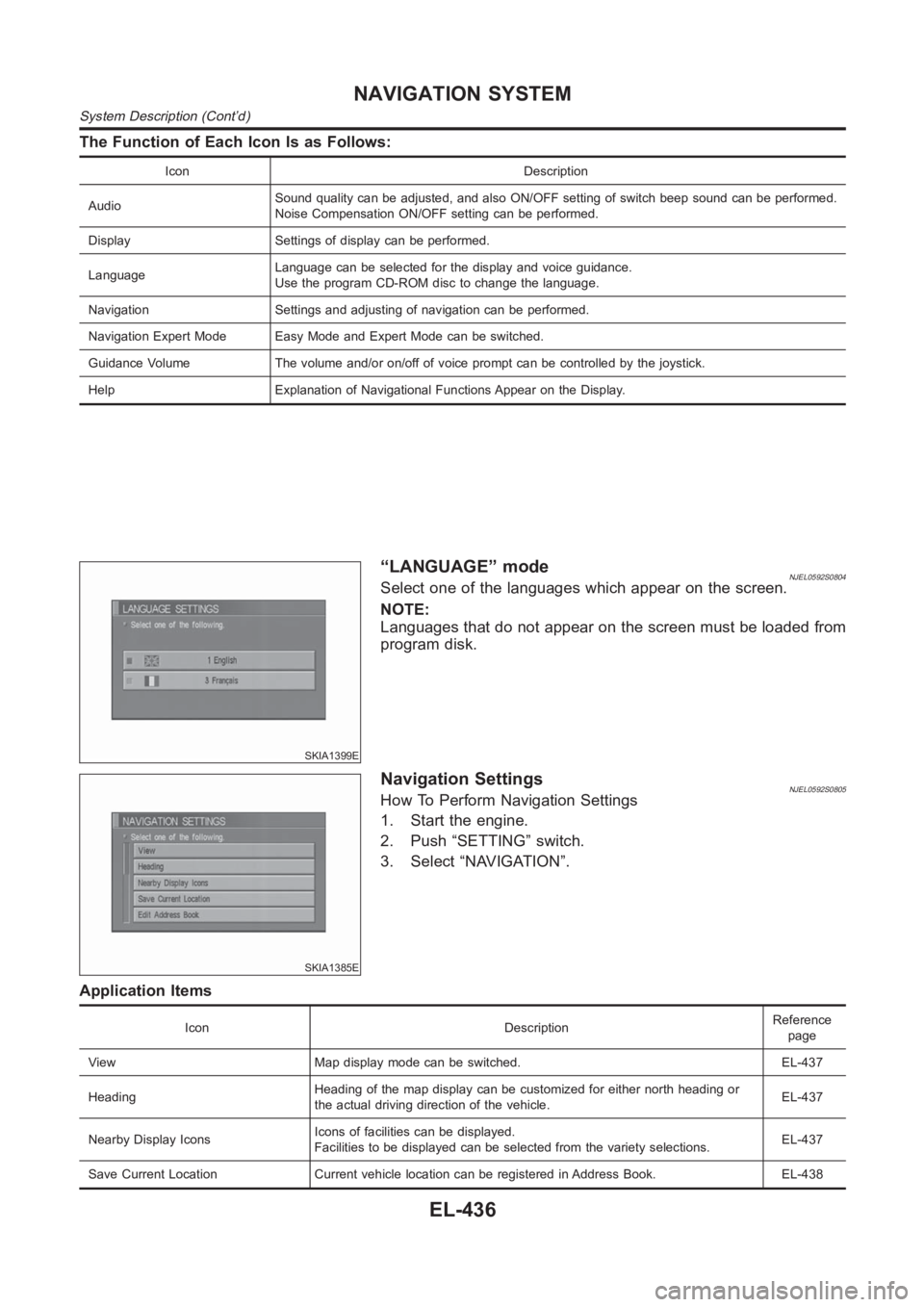

The Function of Each Icon Is as Follows:
Icon Description
AudioSound quality can be adjusted, and also ON/OFF setting of switch beep soundcan be performed.
Noise Compensation ON/OFF setting can be performed.
Display Settings of display can be performed.
LanguageLanguage can be selected for the display and voice guidance.
Use the program CD-ROM disc to change the language.
Navigation Settings and adjusting of navigation can be performed.
Navigation Expert Mode Easy Mode and Expert Mode can be switched.
Guidance Volume The volume and/or on/off of voice prompt can be controlledby the joystick.
Help Explanation of Navigational Functions Appear on the Display.
SKIA1399E
“LANGUAGE” modeNJEL0592S0804Select one of the languages which appear on the screen.
NOTE:
Languages that do not appear on the screen must be loaded from
program disk.
SKIA1385E
Navigation SettingsNJEL0592S0805How To Perform Navigation Settings
1. Start the engine.
2. Push “SETTING” switch.
3. Select “NAVIGATION”.
Application Items
Icon DescriptionReference
page
View Map display mode can be switched. EL-437
HeadingHeading of the map display can be customized for either north heading or
the actual driving direction of the vehicle.EL-437
Nearby Display IconsIcons of facilities can be displayed.
Facilities to be displayed can be selected from the variety selections.EL-437
Save Current Location Current vehicle location can be registered in Address Book. EL-438
NAVIGATION SYSTEM
System Description (Cont’d)
EL-436

Icon DescriptionReference
page
Edit Address Book Address Book can be edited. EL-438
Clear Memory Address Book, Previous destination or Avoid area can be deleted. EL-438
Auto Re-route ON/OFF ON/OFF of Auto Re-route can be switched. EL-438
Quick Stop Customer Setting One facility of your selection can be added to your Quick Stop. EL-438
Set Average speed for Estimated
Journey TimeAverage vehicle speed can be set to calibrate estimated journey time for the
destination.EL-439
GPS InformationThe GPS data includes longitude, latitude and altitude (distance above sea
level) of the present vehicle position, and current date and time for the area
in which the vehicle is being driven.
Also indicated are the GPS reception conditions and the GPS satellite posi-
tion.EL-439
Avoid Area Setting A particular area can be avoided when routing. —
Tracking on/off Tracking to the present vehicle position can be displayed.EL-439
Adjust Current LocationCurrent location of position marker can be adjusted. Direction of position
marker also can be calibrated when heading direction of the vehicle on the
display is not matched with the actual direction.EL-439
SKIA0554E

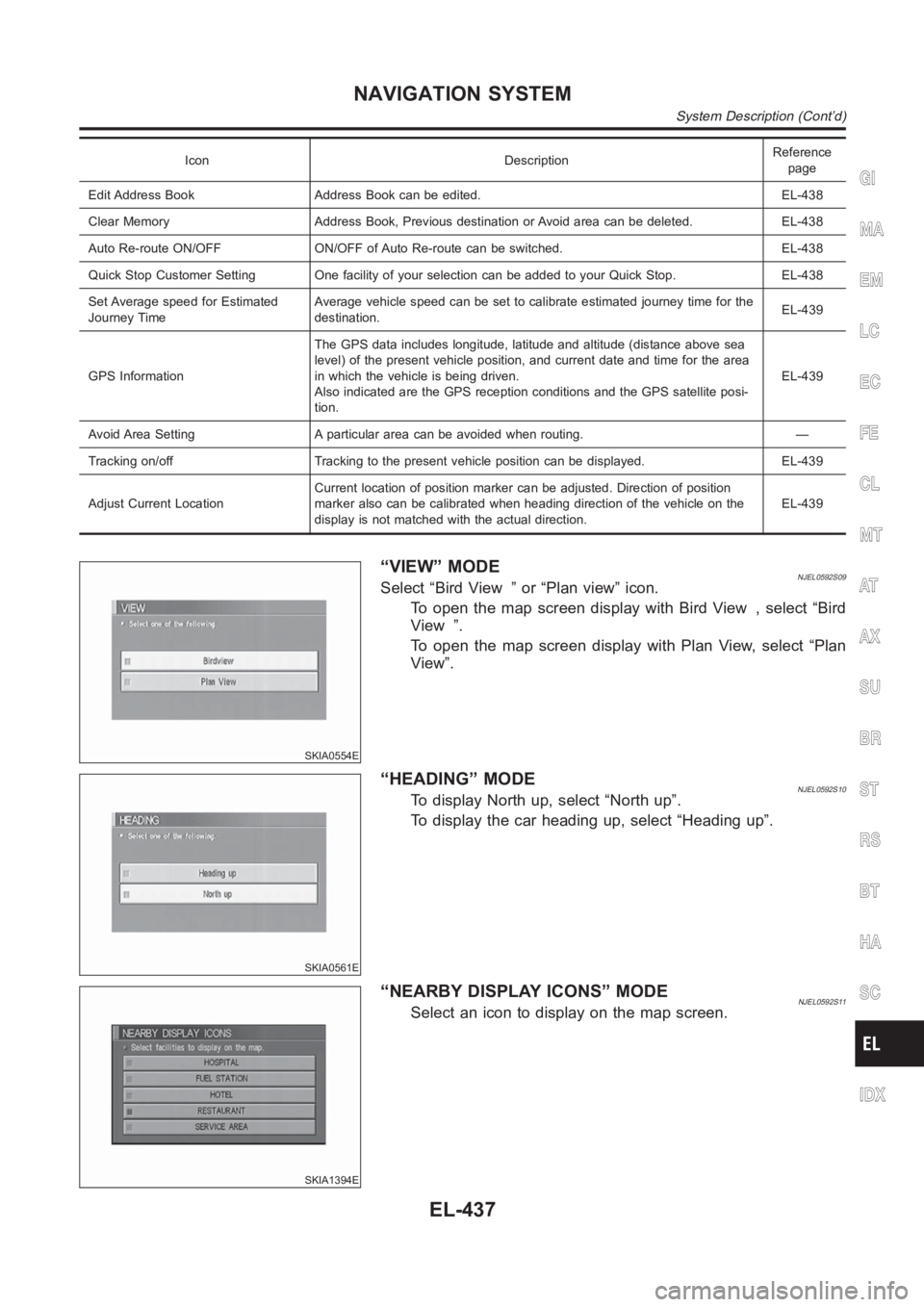

“VIEW” MODENJEL0592S09Select “Bird View ” or “Plan view” icon.
To open the map screen display with Bird View , select “Bird
View ”.
To open the map screen display with Plan View, select “Plan
View”.
SKIA0561E
“HEADING” MODENJEL0592S10To display North up, select “North up”.
To display the car heading up, select “Heading up”.
SKIA1394E
“NEARBY DISPLAY ICONS” MODENJEL0592S11Select an icon to display on the map screen.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
System Description (Cont’d)
EL-437

SKIA1388E

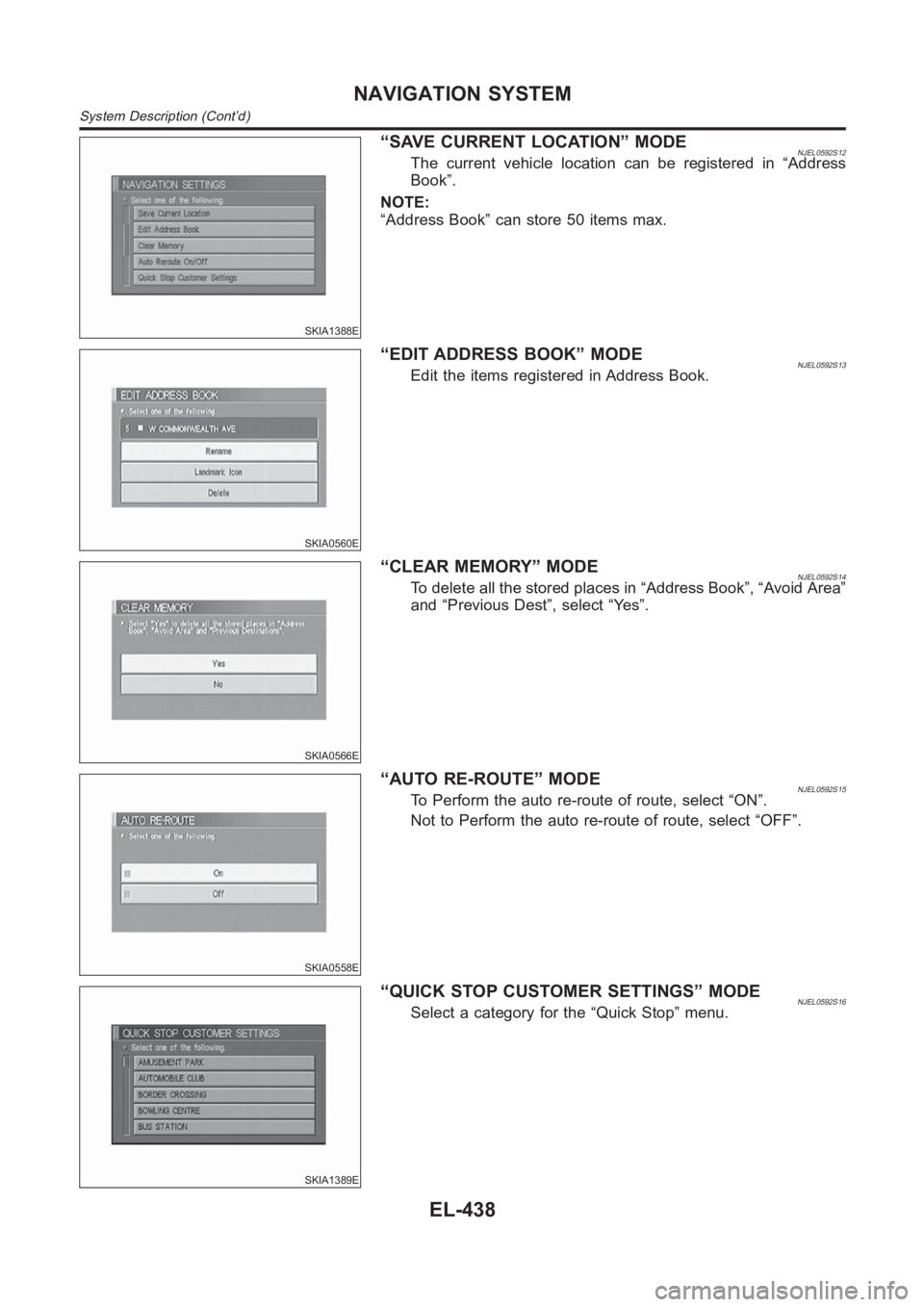

“SAVE CURRENT LOCATION” MODENJEL0592S12The current vehicle location can be registered in “Address
Book”.
NOTE:
“Address Book” can store 50 items max.
SKIA0560E
“EDIT ADDRESS BOOK” MODENJEL0592S13Edit the items registered in Address Book.
SKIA0566E
“CLEAR MEMORY” MODENJEL0592S14To delete all the stored places in “Address Book”, “Avoid Area”
and “Previous Dest”, select “Yes”.
SKIA0558E
“AUTO RE-ROUTE” MODENJEL0592S15To Perform the auto re-route of route, select “ON”.
Not to Perform the auto re-route of route, select “OFF”.
SKIA1389E
“QUICK STOP CUSTOMER SETTINGS” MODENJEL0592S16Select a category for the “Quick Stop” menu.
NAVIGATION SYSTEM
System Description (Cont’d)
EL-438

SKIA1397E

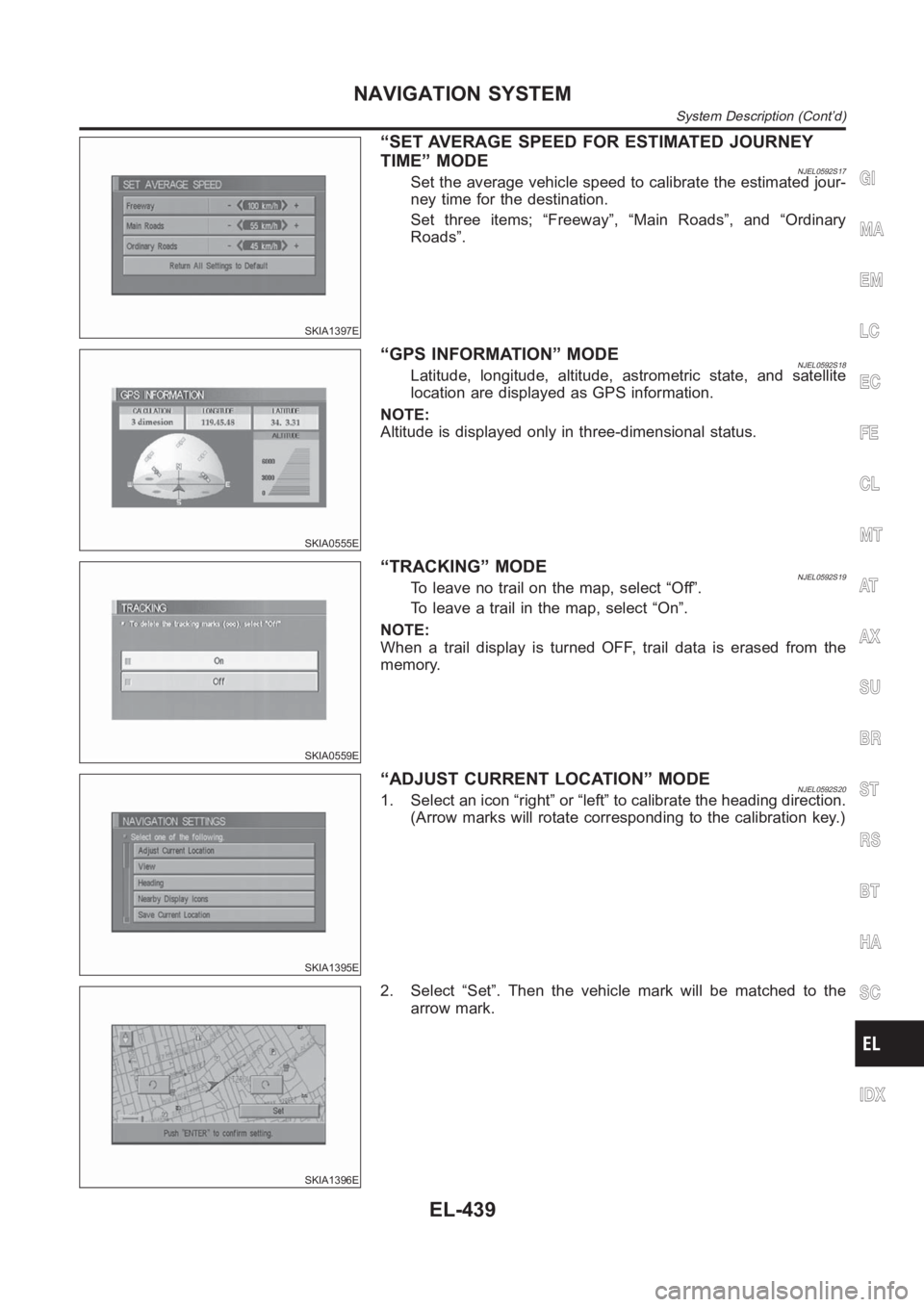

“SET AVERAGE SPEED FOR ESTIMATED JOURNEY
TIME” MODE
NJEL0592S17Set the average vehicle speed to calibrate the estimated jour-
ney time for the destination.
Set three items; “Freeway”, “Main Roads”, and “Ordinary
Roads”.
SKIA0555E
“GPS INFORMATION” MODENJEL0592S18Latitude, longitude, altitude, astrometric state, and satellite
location are displayed as GPS information.
NOTE:
Altitude is displayed only in three-dimensional status.
SKIA0559E
“TRACKING” MODENJEL0592S19To leave no trail on the map, select “Off”.
To leave a trail in the map, select “On”.
NOTE:
When a trail display is turned OFF, trail data is erased from the
memory.
SKIA1395E
“ADJUST CURRENT LOCATION” MODENJEL0592S201. Select an icon “right” or “left” to calibrate the heading direction.
(Arrow marks will rotate corresponding to the calibration key.)
SKIA1396E
2. Select “Set”. Then the vehicle mark will be matched to the
arrow mark.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
System Description (Cont’d)
EL-439

SKIA1400E

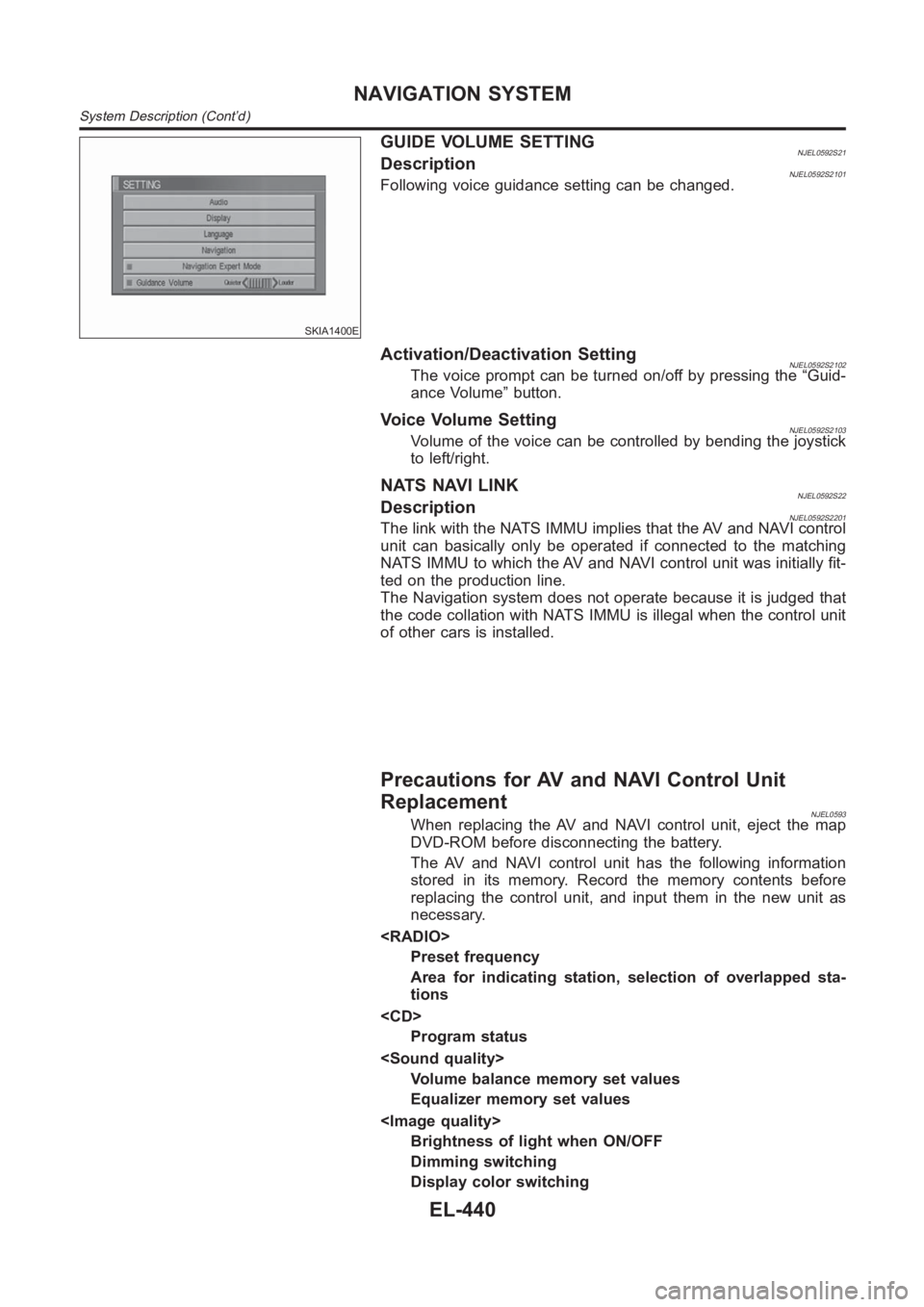

GUIDE VOLUME SETTINGNJEL0592S21DescriptionNJEL0592S2101Following voice guidance setting can be changed.
Activation/Deactivation SettingNJEL0592S2102The voice prompt can be turned on/off by pressing the “Guid-
ance Volume” button.
Voice Volume SettingNJEL0592S2103Volume of the voice can be controlled by bending the joystick
to left/right.
NATS NAVI LINKNJEL0592S22DescriptionNJEL0592S2201The link with the NATS IMMU implies that the AV and NAVI control
unit can basically only be operated if connected to the matching
NATS IMMU to which the AV and NAVI control unit was initially fit-
ted on the production line.
The Navigation system does not operate because it is judged that
the code collation with NATS IMMU is illegal when the control unit
of other cars is installed.
Precautions for AV and NAVI Control Unit
Replacement
NJEL0593When replacing the AV and NAVI control unit, eject the map
DVD-ROM before disconnecting the battery.
The AV and NAVI control unit has the following information
stored in its memory. Record the memory contents before
replacing the control unit, and input them in the new unit as
necessary.

Preset frequency
Area for indicating station, selection of overlapped sta-
tions

Program status

Volume balance memory set values
Equalizer memory set values

Brightness of light when ON/OFF
Dimming switching
Display color switching
NAVIGATION SYSTEM
System Description (Cont’d)
EL-440

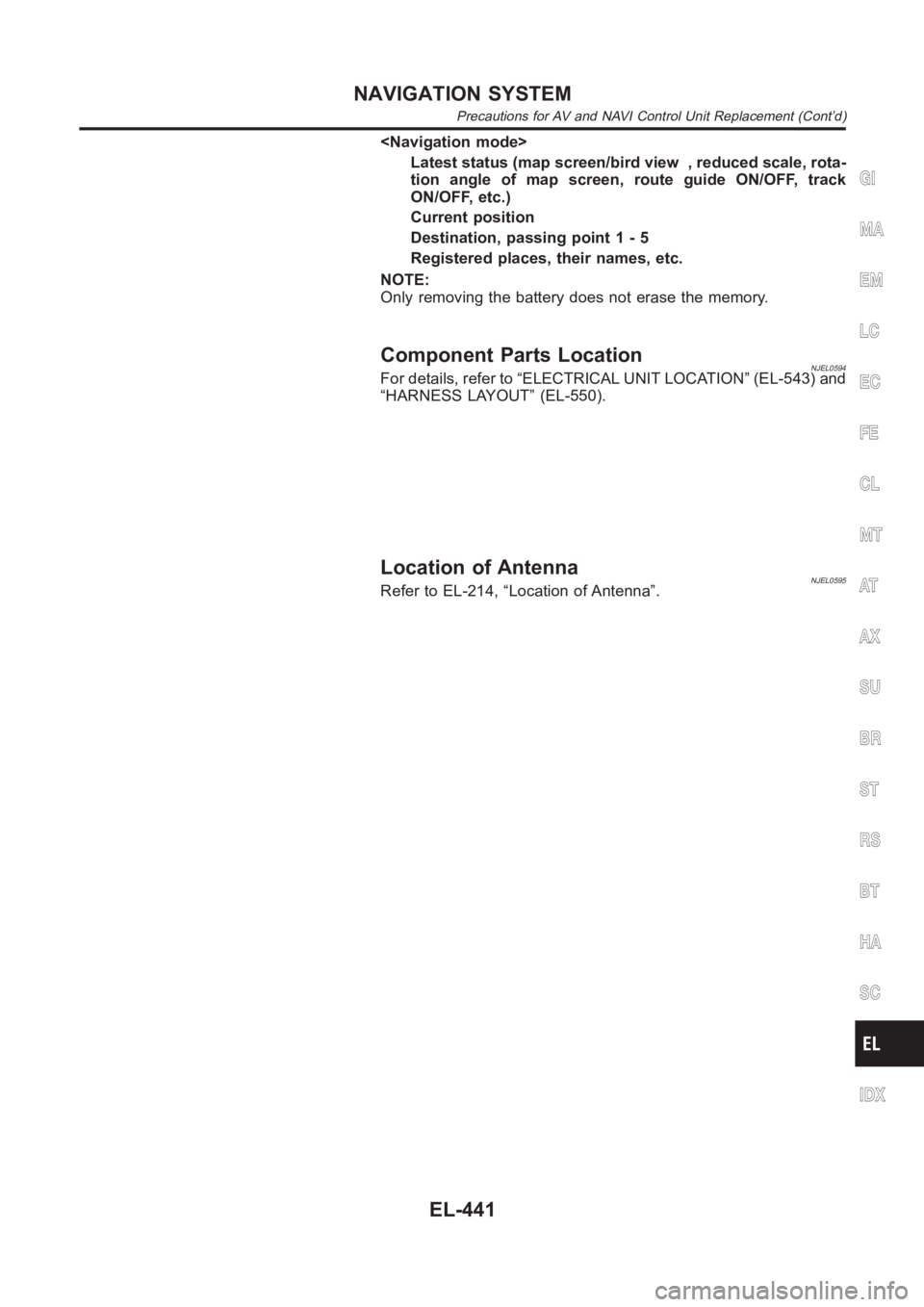

Latest status (map screen/bird view , reduced scale, rota-
tion angle of map screen, route guide ON/OFF, track
ON/OFF, etc.)
Current position
Destination, passing point 1 - 5
Registered places, their names, etc.
NOTE:
Only removing the battery does not erase the memory.
Component Parts LocationNJEL0594For details, refer to “ELECTRICAL UNIT LOCATION” (EL-543) and
“HARNESS LAYOUT” (EL-550).
Location of AntennaNJEL0595Refer to EL-214, “Location of Antenna”.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
Precautions for AV and NAVI Control Unit Replacement (Cont’d)
EL-441

SchematicNJEL0596
YEL774D
NAVIGATION SYSTEM
Schematic
EL-442

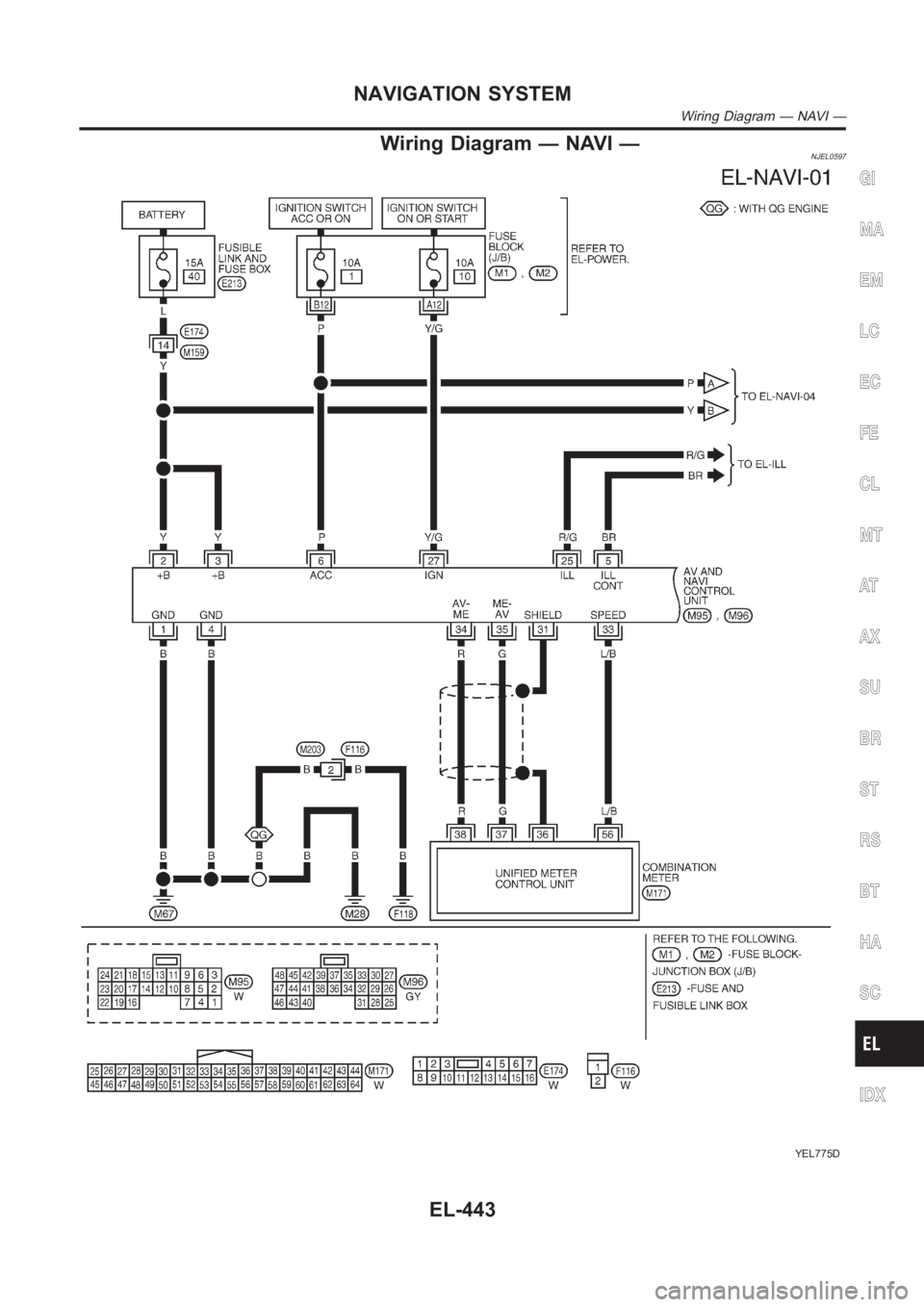

Wiring Diagram — NAVI —NJEL0597
YEL775D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
Wiring Diagram — NAVI —
EL-443

YEL776D
NAVIGATION SYSTEM

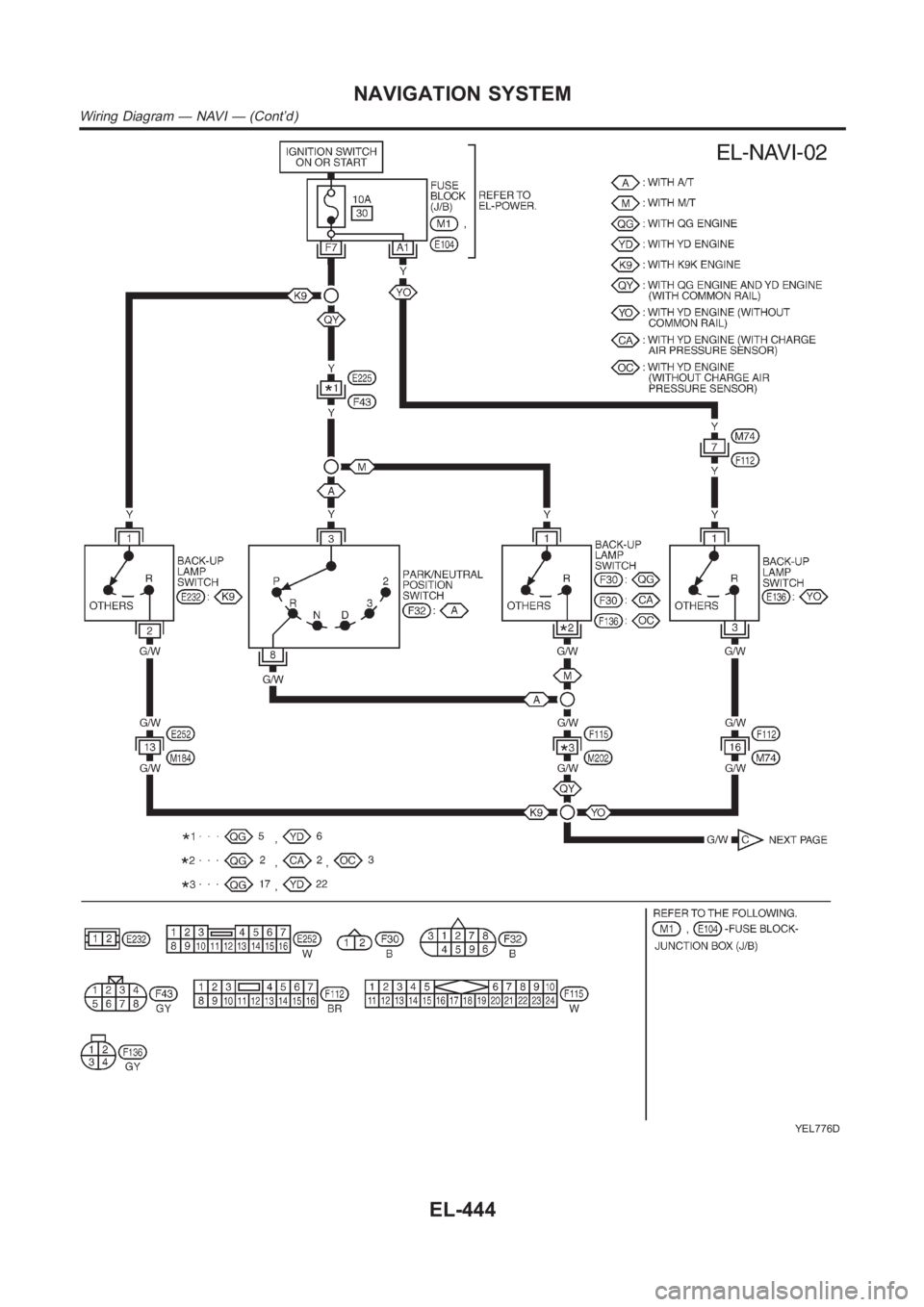

Wiring Diagram — NAVI — (Cont’d)
EL-444
