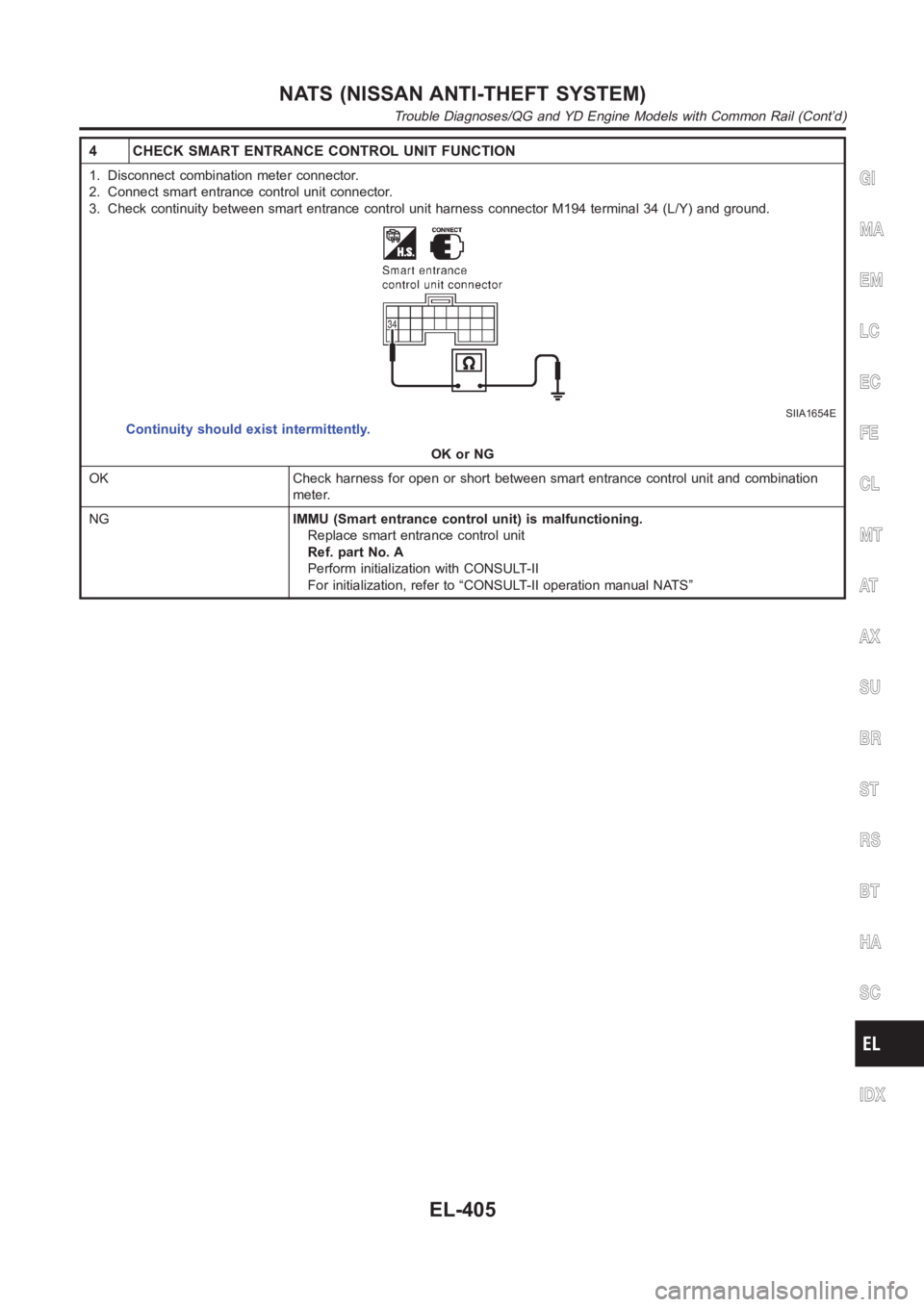

4 CHECK SMART ENTRANCE CONTROL UNIT FUNCTION
1. Disconnect combination meter connector.
2. Connect smart entrance control unit connector.
3. Check continuity between smart entrance control unit harness connector M194 terminal 34 (L/Y) and ground.
SIIA1654E
Continuity should exist intermittently.
OK or NG
OK Check harness for open or short between smart entrance control unit and combination
meter.
NGIMMU (Smart entrance control unit) is malfunctioning.
Replace smart entrance control unit
Ref. part No. A
Perform initialization with CONSULT-II
For initialization, refer to “CONSULT-II operation manual NATS”
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-405

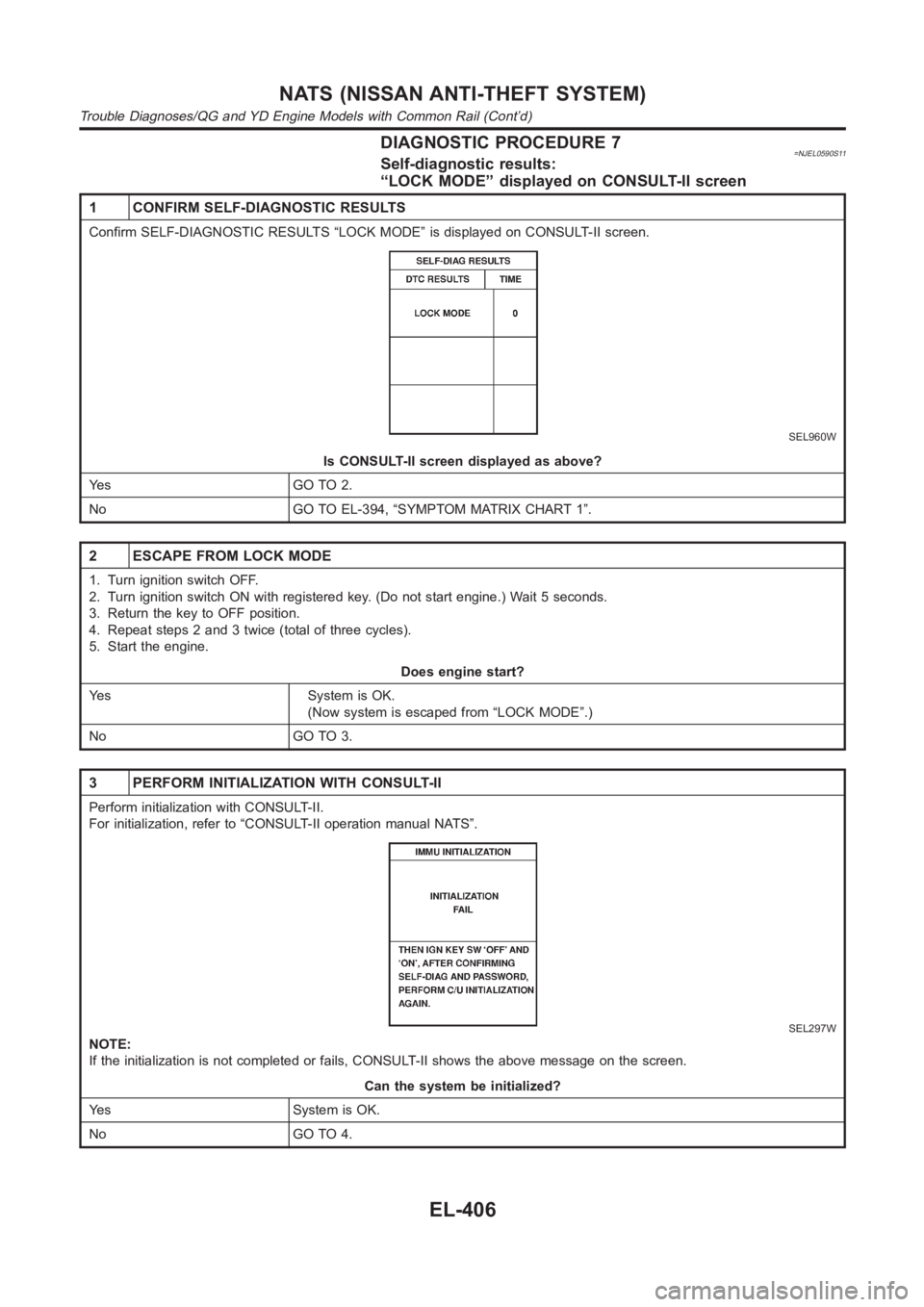

DIAGNOSTIC PROCEDURE 7=NJEL0590S11Self-diagnostic results:
“LOCK MODE” displayed on CONSULT-II screen
1 CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “LOCK MODE” is displayed on CONSULT-II screen.
SEL960W
Is CONSULT-II screen displayed as above?
Ye s G O T O 2 .
No GO TO EL-394, “SYMPTOM MATRIX CHART 1”.
2 ESCAPE FROM LOCK MODE
1. Turn ignition switch OFF.
2. Turn ignition switch ON with registered key. (Do not start engine.) Wait5 seconds.
3. Return the key to OFF position.
4. Repeat steps 2 and 3 twice (total of three cycles).
5. Start the engine.
Does engine start?
Yes System is OK.
(Now system is escaped from “LOCK MODE”.)
No GO TO 3.
3 PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual NATS”.
SEL297W
NOTE:
If the initialization is not completed or fails, CONSULT-II shows the above message on the screen.
Can the system be initialized?
Yes System is OK.
No GO TO 4.
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-406

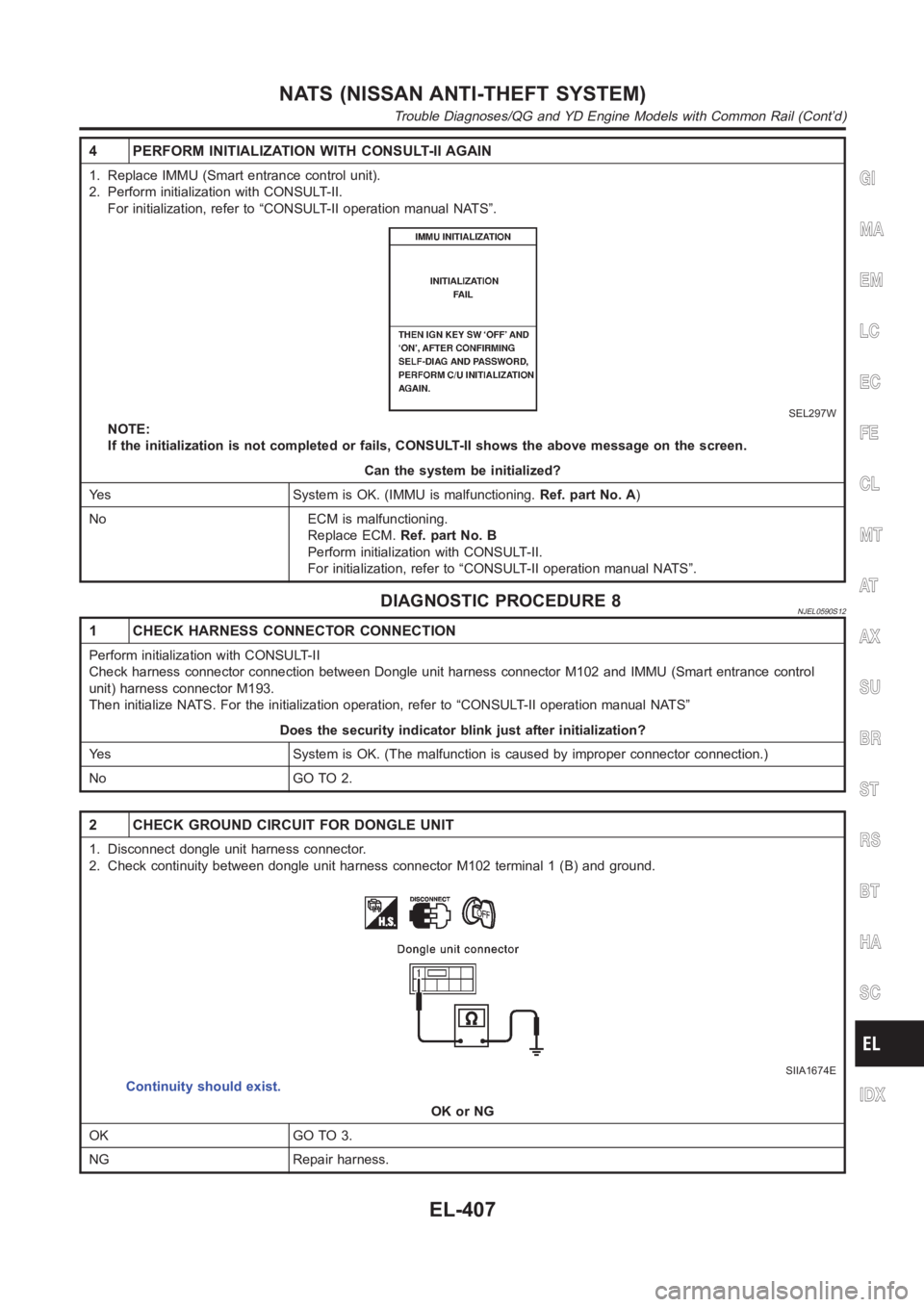

4 PERFORM INITIALIZATION WITH CONSULT-II AGAIN
1. Replace IMMU (Smart entrance control unit).
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual NATS”.
SEL297W
NOTE:
If the initialization is not completed or fails, CONSULT-II shows the above message on the screen.
Can the system be initialized?
Yes System is OK. (IMMU is malfunctioning.Ref. part No. A)
No ECM is malfunctioning.
Replace ECM.Ref. part No. B
Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual NATS”.
DIAGNOSTIC PROCEDURE 8NJEL0590S12
1 CHECK HARNESS CONNECTOR CONNECTION
Perform initialization with CONSULT-II
Check harness connector connection between Dongle unit harness connector M102 and IMMU (Smart entrance control
unit) harness connector M193.
Then initialize NATS. For the initialization operation, refer to “CONSULT-II operation manual NATS”
Does the security indicator blink just after initialization?
Yes System is OK. (The malfunction is caused by improper connector connection.)
No GO TO 2.
2 CHECK GROUND CIRCUIT FOR DONGLE UNIT
1. Disconnect dongle unit harness connector.
2. Check continuity between dongle unit harness connector M102 terminal 1(B) and ground.
SIIA1674E
Continuity should exist.
OK or NG
OK GO TO 3.
NG Repair harness.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-407

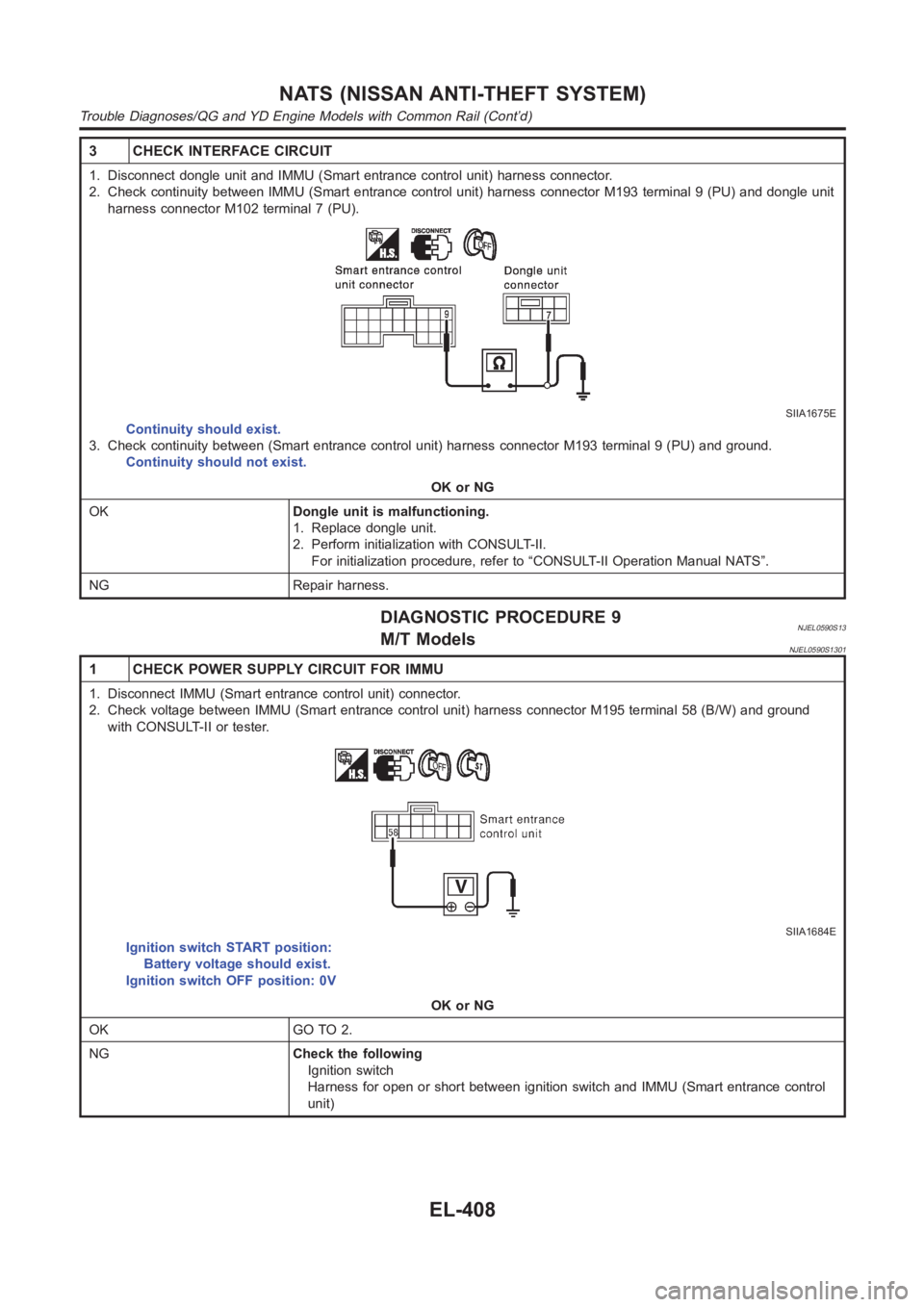

3 CHECK INTERFACE CIRCUIT
1. Disconnect dongle unit and IMMU (Smart entrance control unit) harness connector.
2. Check continuity between IMMU (Smart entrance control unit) harness connector M193 terminal 9 (PU) and dongle unit
harness connector M102 terminal 7 (PU).
SIIA1675E
Continuity should exist.
3. Check continuity between (Smart entrance control unit) harness connector M193 terminal 9 (PU) and ground.
Continuity should not exist.
OK or NG
OKDongle unit is malfunctioning.
1. Replace dongle unit.
2. Perform initialization with CONSULT-II.
For initialization procedure, refer to “CONSULT-II Operation Manual NATS”.
NG Repair harness.
DIAGNOSTIC PROCEDURE 9NJEL0590S13M/T ModelsNJEL0590S1301
1 CHECK POWER SUPPLY CIRCUIT FOR IMMU
1. Disconnect IMMU (Smart entrance control unit) connector.
2. Check voltage between IMMU (Smart entrance control unit) harness connector M195 terminal 58 (B/W) and ground
with CONSULT-II or tester.
SIIA1684E
Ignition switch START position:
Battery voltage should exist.
Ignition switch OFF position: 0V
OK or NG
OK GO TO 2.
NGCheck the following
Ignition switch
Harness for open or short between ignition switch and IMMU (Smart entrancecontrol
unit)
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-408

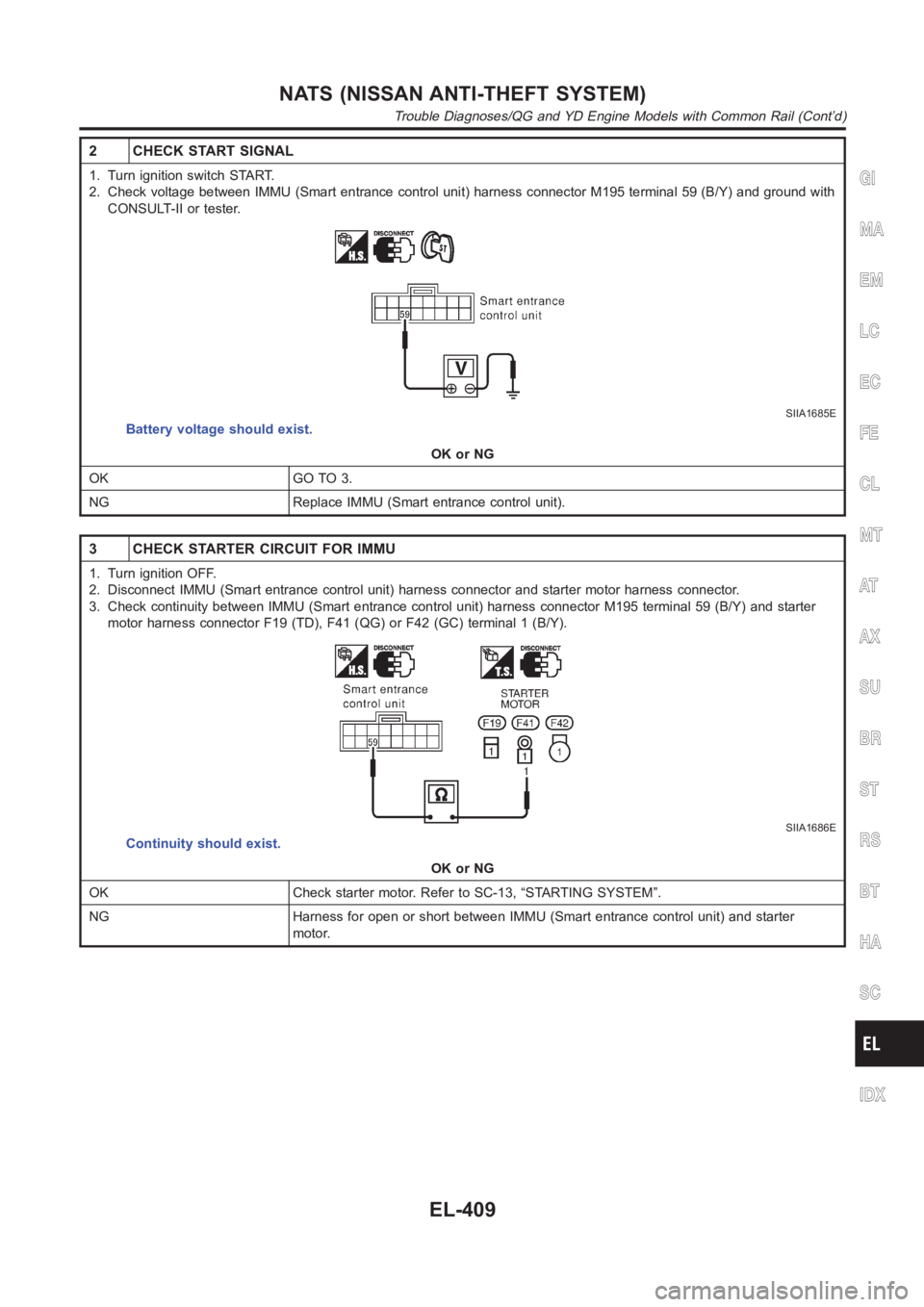

2 CHECK START SIGNAL
1. Turn ignition switch START.
2. Check voltage between IMMU (Smart entrance control unit) harness connector M195 terminal 59 (B/Y) and ground with
CONSULT-II or tester.
SIIA1685E
Battery voltage should exist.
OK or NG
OK GO TO 3.
NG Replace IMMU (Smart entrance control unit).
3 CHECK STARTER CIRCUIT FOR IMMU
1. Turn ignition OFF.
2. Disconnect IMMU (Smart entrance control unit) harness connector and starter motor harness connector.
3. Check continuity between IMMU (Smart entrance control unit) harness connector M195 terminal 59 (B/Y) and starter
motor harness connector F19 (TD), F41 (QG) or F42 (GC) terminal 1 (B/Y).
SIIA1686E
Continuity should exist.
OK or NG
OK Check starter motor. Refer to SC-13, “STARTING SYSTEM”.
NG Harness for open or short between IMMU (Smart entrance control unit) andstarter
motor.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-409

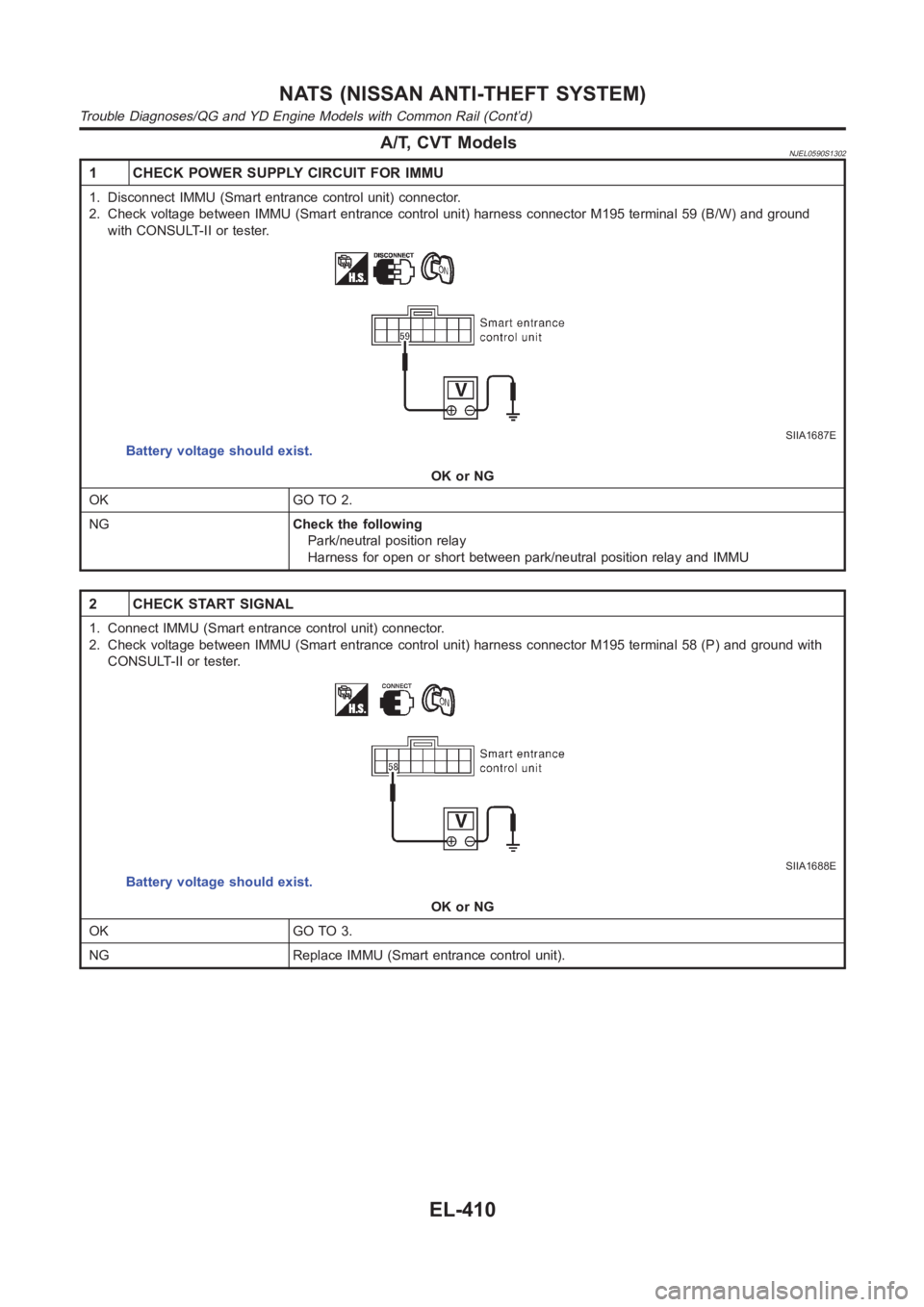

A/T, CVT ModelsNJEL0590S1302
1 CHECK POWER SUPPLY CIRCUIT FOR IMMU
1. Disconnect IMMU (Smart entrance control unit) connector.
2. Check voltage between IMMU (Smart entrance control unit) harness connector M195 terminal 59 (B/W) and ground
with CONSULT-II or tester.
SIIA1687E
Battery voltage should exist.
OK or NG
OK GO TO 2.
NGCheck the following
Park/neutral position relay
Harness for open or short between park/neutral position relay and IMMU
2 CHECK START SIGNAL
1. Connect IMMU (Smart entrance control unit) connector.
2. Check voltage between IMMU (Smart entrance control unit) harness connector M195 terminal 58 (P) and ground with
CONSULT-II or tester.
SIIA1688E
Battery voltage should exist.
OK or NG
OK GO TO 3.
NG Replace IMMU (Smart entrance control unit).
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-410

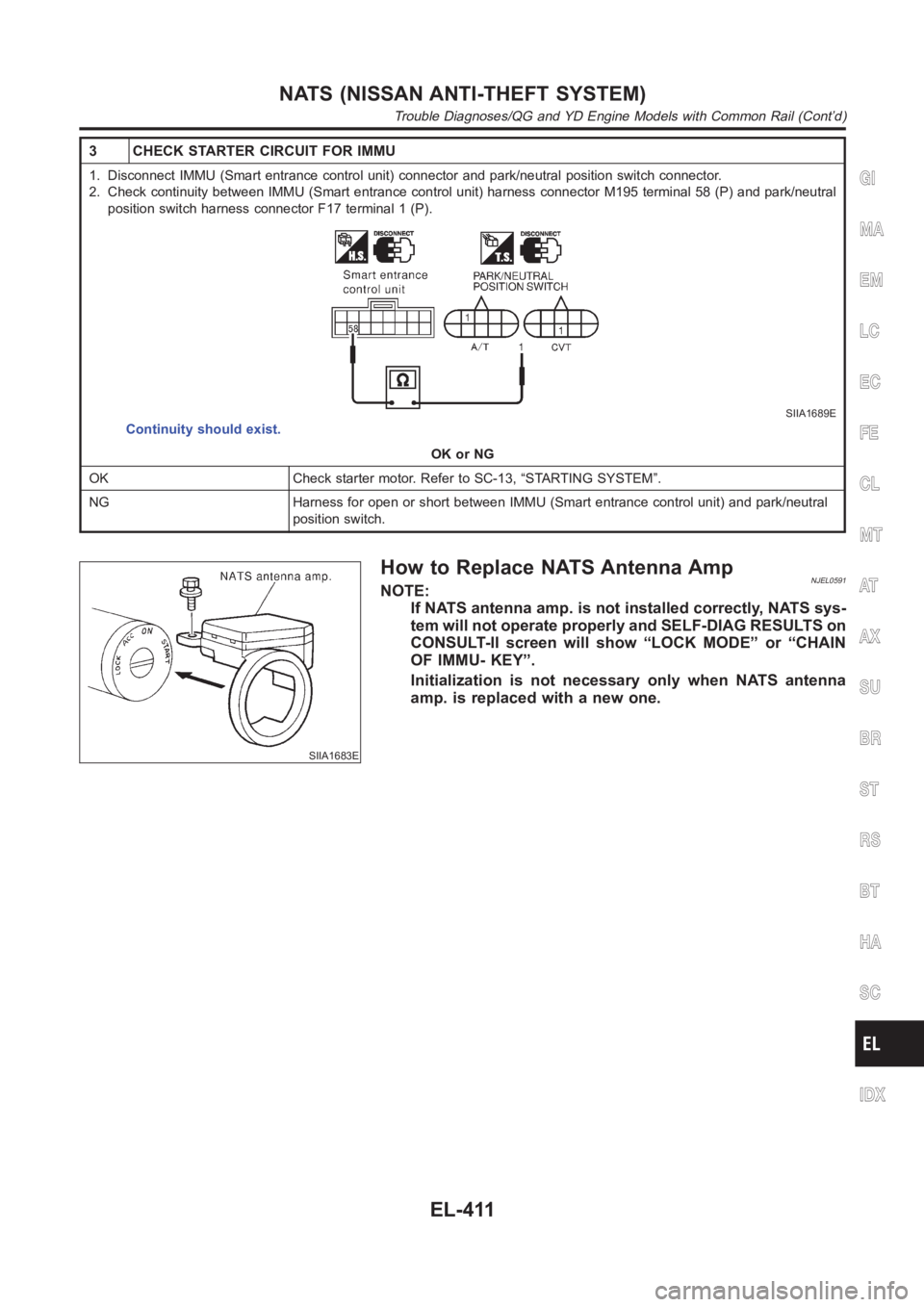

3 CHECK STARTER CIRCUIT FOR IMMU
1. Disconnect IMMU (Smart entrance control unit) connector and park/neutral position switch connector.
2. Check continuity between IMMU (Smart entrance control unit) harness connector M195 terminal 58 (P) and park/neutral
position switch harness connector F17 terminal 1 (P).
SIIA1689E
Continuity should exist.
OK or NG
OK Check starter motor. Refer to SC-13, “STARTING SYSTEM”.
NG Harness for open or short between IMMU (Smart entrance control unit) andpark/neutral
position switch.
SIIA1683E
How to Replace NATS Antenna AmpNJEL0591NOTE:
If NATS antenna amp. is not installed correctly, NATS sys-
tem will not operate properly and SELF-DIAG RESULTS on
CONSULT-II screen will show “LOCK MODE” or “CHAIN
OF IMMU- KEY”.
Initialization is not necessary only when NATS antenna
amp. is replaced with a new one.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-411

Trouble Diagnoses/YD Engine Models without
Common Rail and K9K Engine Models

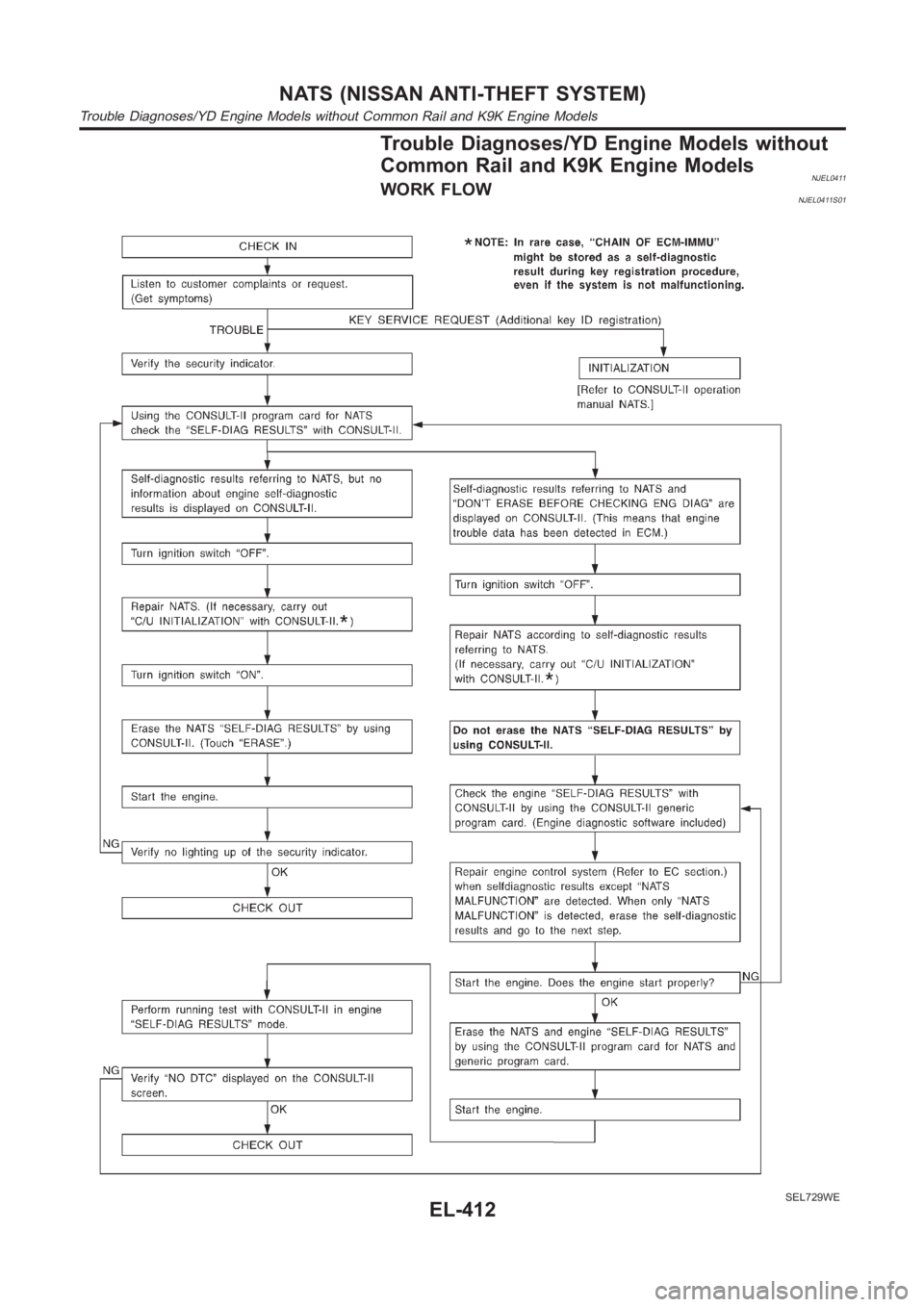

NJEL0411WORK FLOWNJEL0411S01
SEL729WE
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models
EL-412

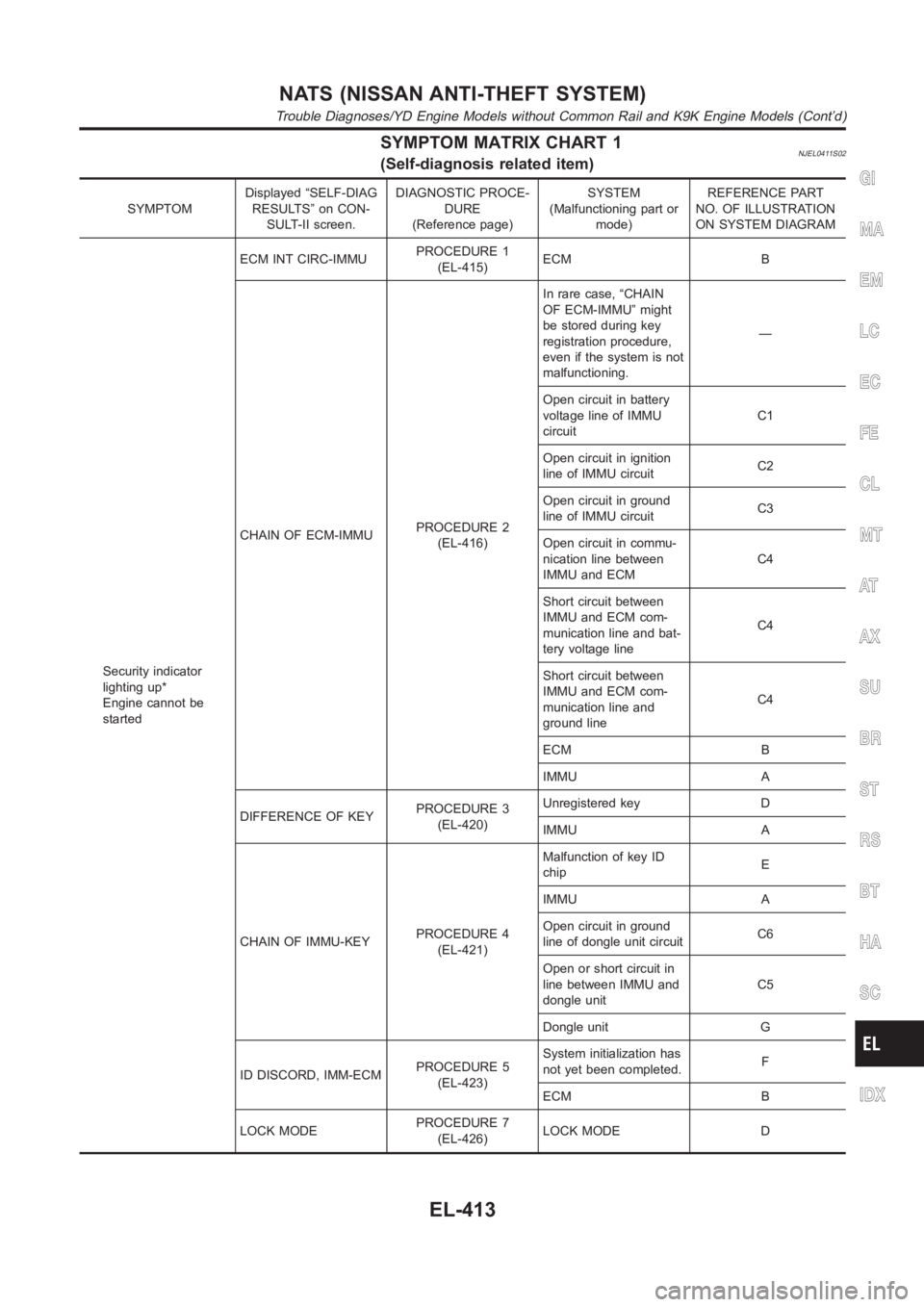

SYMPTOM MATRIX CHART 1NJEL0411S02(Self-diagnosis related item)
SYMPTOMDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.DIAGNOSTIC PROCE-
DURE
(Reference page)SYSTEM
(Malfunctioning part or
mode)REFERENCE PART
NO. OF ILLUSTRATION
ON SYSTEM DIAGRAM
Security indicator
lighting up*
Engine cannot be
startedECM INT CIRC-IMMUPROCEDURE 1
(EL-415)ECM B
CHAIN OF ECM-IMMUPROCEDURE 2
(EL-416)In rare case, “CHAIN
OF ECM-IMMU” might
be stored during key
registration procedure,
even if the system is not
malfunctioning.—
Open circuit in battery
voltage line of IMMU
circuitC1
Open circuit in ignition
line of IMMU circuitC2
Open circuit in ground
line of IMMU circuitC3
Open circuit in commu-
nication line between
IMMU and ECMC4
Short circuit between
IMMU and ECM com-
munication line and bat-
tery voltage lineC4
Short circuit between
IMMU and ECM com-
munication line and
ground lineC4
ECM B
IMMU A
DIFFERENCE OF KEYPROCEDURE 3
(EL-420)Unregistered key D
IMMU A
CHAIN OF IMMU-KEYPROCEDURE 4
(EL-421)Malfunction of key ID
chipE
IMMU A
Open circuit in ground
line of dongle unit circuitC6
Open or short circuit in
line between IMMU and
dongle unitC5
Dongle unit G
ID DISCORD, IMM-ECMPROCEDURE 5
(EL-423)System initialization has
not yet been completed.F
ECM B
LOCK MODEPROCEDURE 7
(EL-426)LOCK MODE D
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-413

SYMPTOMDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.DIAGNOSTIC PROCE-
DURE
(Reference page)SYSTEM
(Malfunctioning part or
mode)REFERENCE PART
NO. OF ILLUSTRATION
ON SYSTEM DIAGRAM
MIL staying ON
Security indicator
lighting up*DON’T ERASE
BEFORE CHECKING
ENG DIAGWORK FLOW
(EL-412)Engine trouble data and
NATS trouble data have
been detected in ECM—
*: When NATS detects trouble, the security indicator lights up while ignition key is in the “ON” position.
*: When the vehicle is equipped with a dongle unit (RHD models for Europe), the security indicator blinks 6 times just after the ignition
switch is turned to ON. Then the security indicator lights up while the ignition key is in the “ON” position.

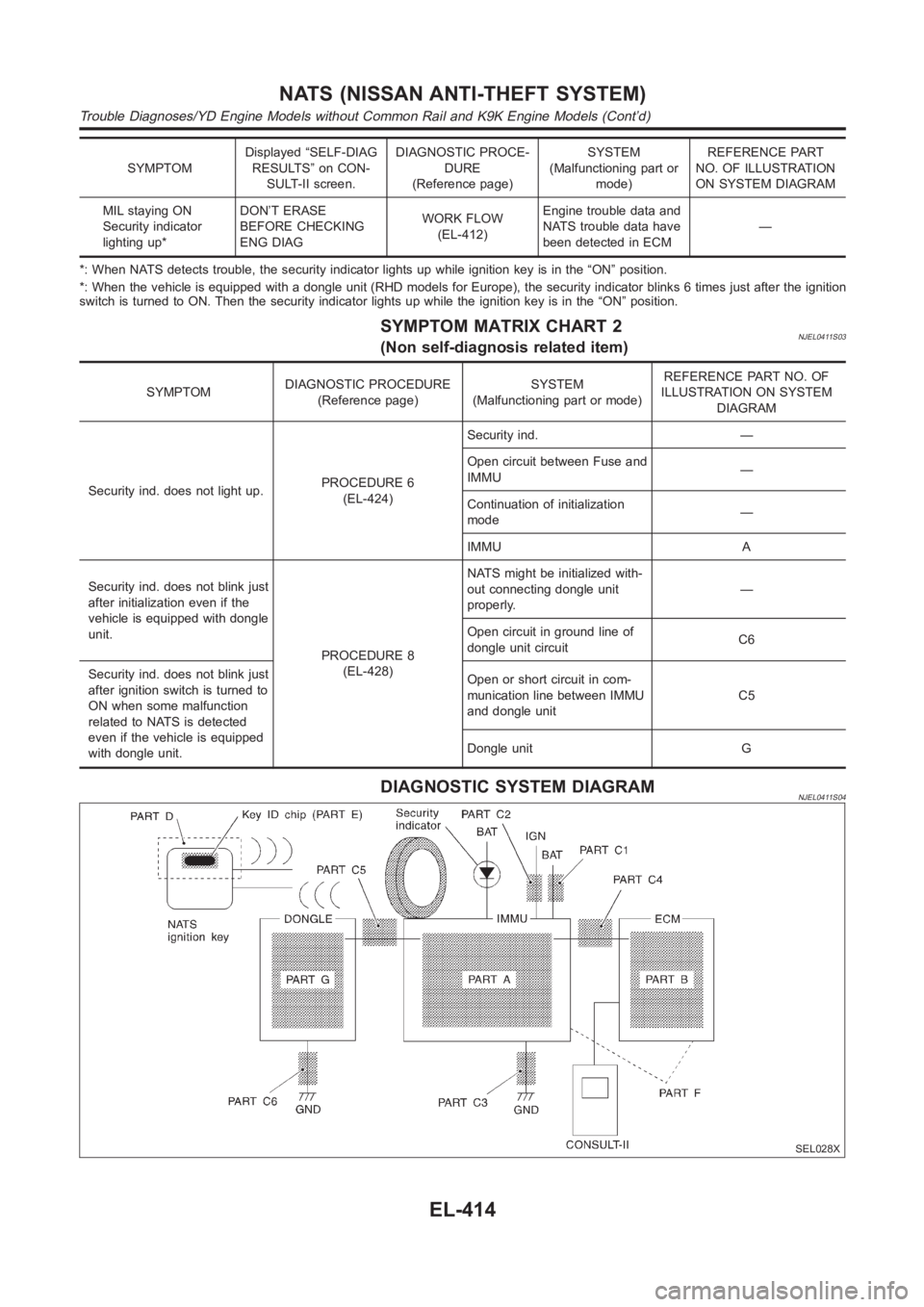

SYMPTOM MATRIX CHART 2NJEL0411S03(Non self-diagnosis related item)
SYMPTOMDIAGNOSTIC PROCEDURE
(Reference page)SYSTEM
(Malfunctioning part or mode)REFERENCE PART NO. OF
ILLUSTRATION ON SYSTEM
DIAGRAM
Security ind. does not light up.PROCEDURE 6
(EL-424)Security ind. —
Open circuit between Fuse and
IMMU—
Continuation of initialization
mode—
IMMU A
Security ind. does not blink just
after initialization even if the
vehicle is equipped with dongle
unit.
PROCEDURE 8
(EL-428)NATS might be initialized with-
out connecting dongle unit
properly.—
Open circuit in ground line of
dongle unit circuitC6
Security ind. does not blink just
after ignition switch is turned to
ON when some malfunction
related to NATS is detected
even if the vehicle is equipped
with dongle unit.Open or short circuit in com-
munication line between IMMU
and dongle unitC5
Dongle unit G
DIAGNOSTIC SYSTEM DIAGRAMNJEL0411S04
SEL028X
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/YD Engine Models without Common Rail and K9K Engine Models (Cont’d)
EL-414
