NISSAN NAVARA 2005 Repair Workshop Manual

LAN-44
[CAN]
CAN SYSTEM (TYPE 1)
CAN SYSTEM (TYPE 1)
PFP:23710
Component Parts and Harness Connector LocationEKS00OLL
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OLM
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OLN
Refer toLAN-26, "Wiring Diagram—CAN—".

CAN SYSTEM (TYPE 1)
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

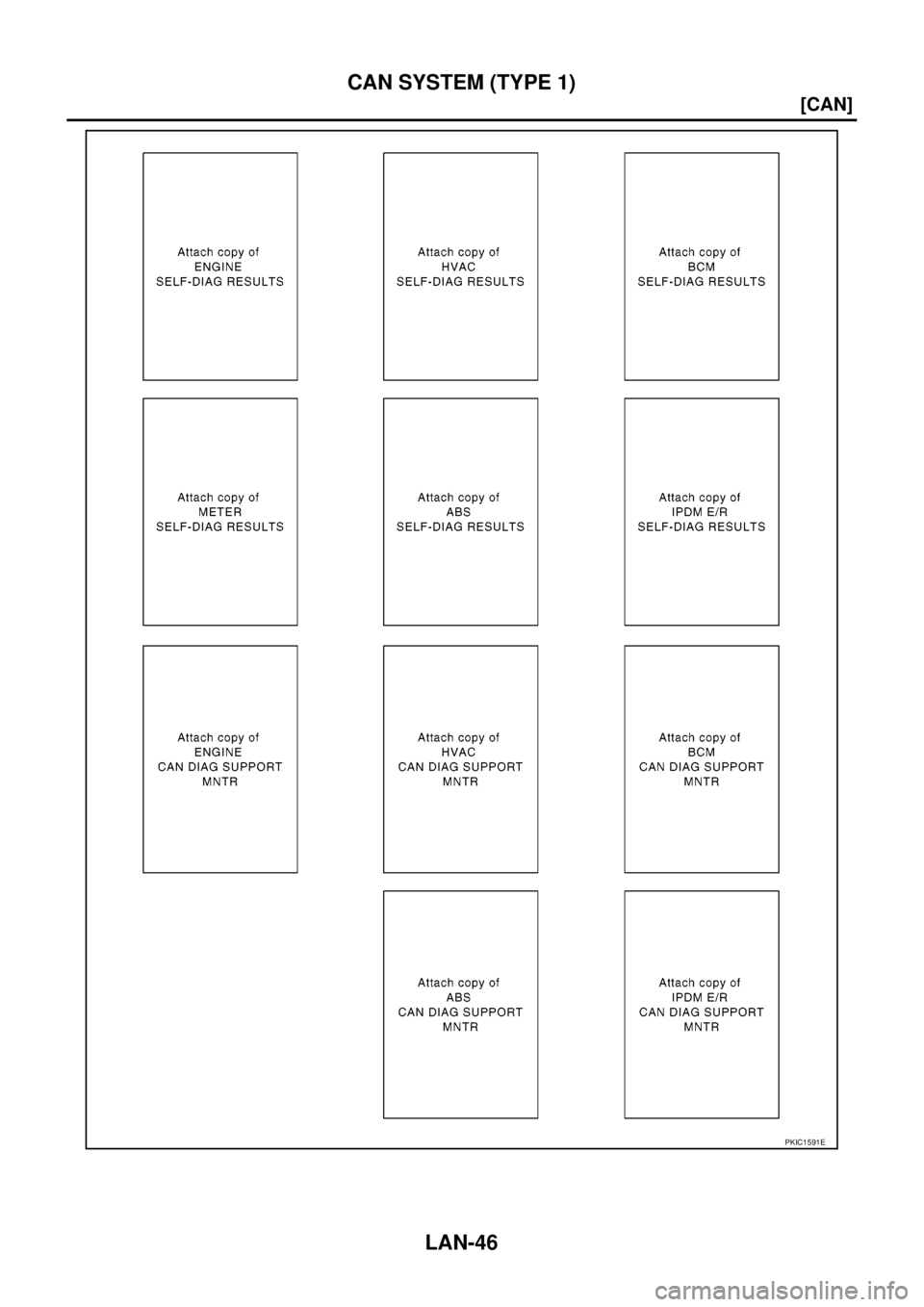

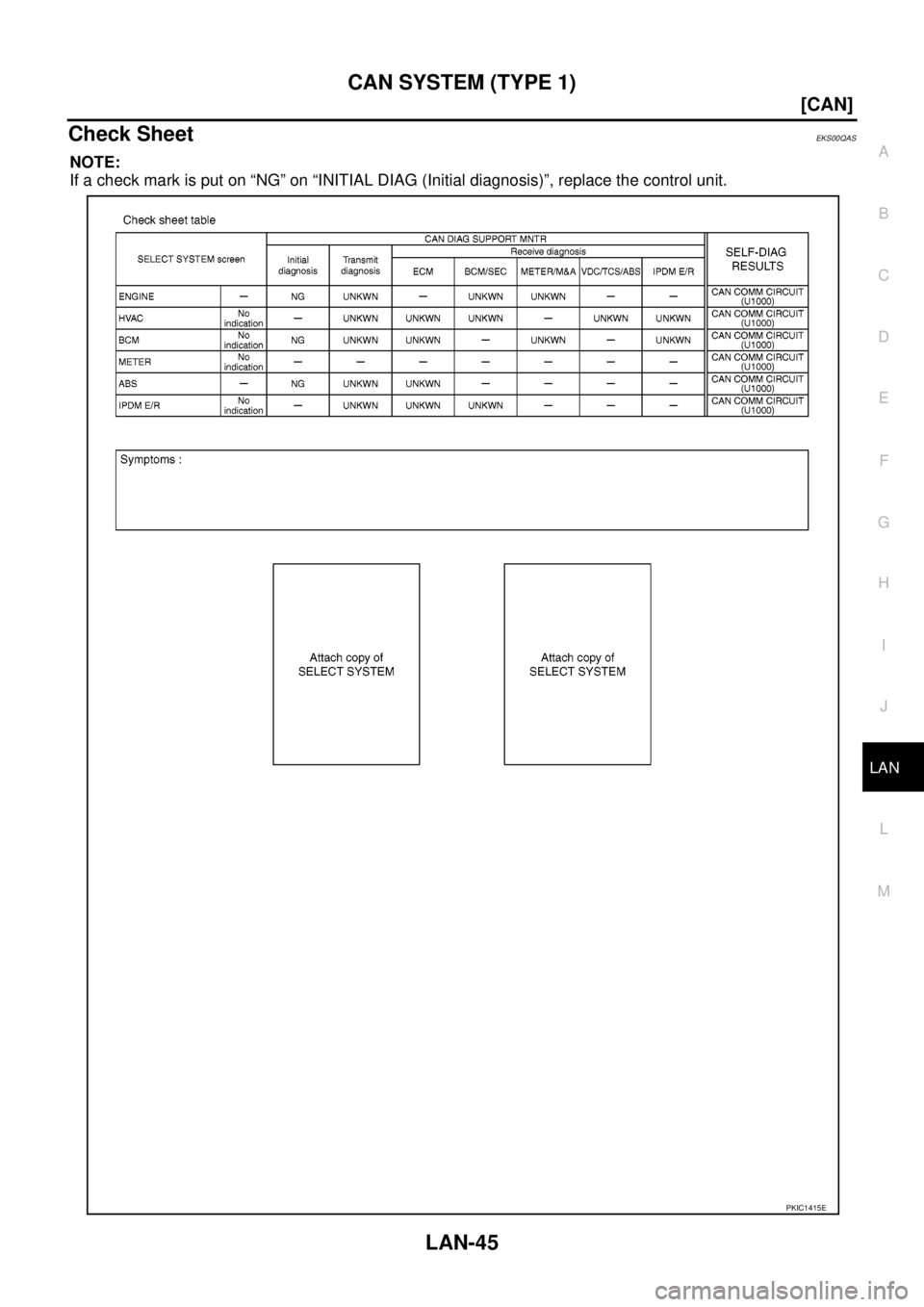

Check SheetEKS00QAS
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1415E

LAN-46
[CAN]
CAN SYSTEM (TYPE 1)
PKIC1591E

CAN SYSTEM (TYPE 1)
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

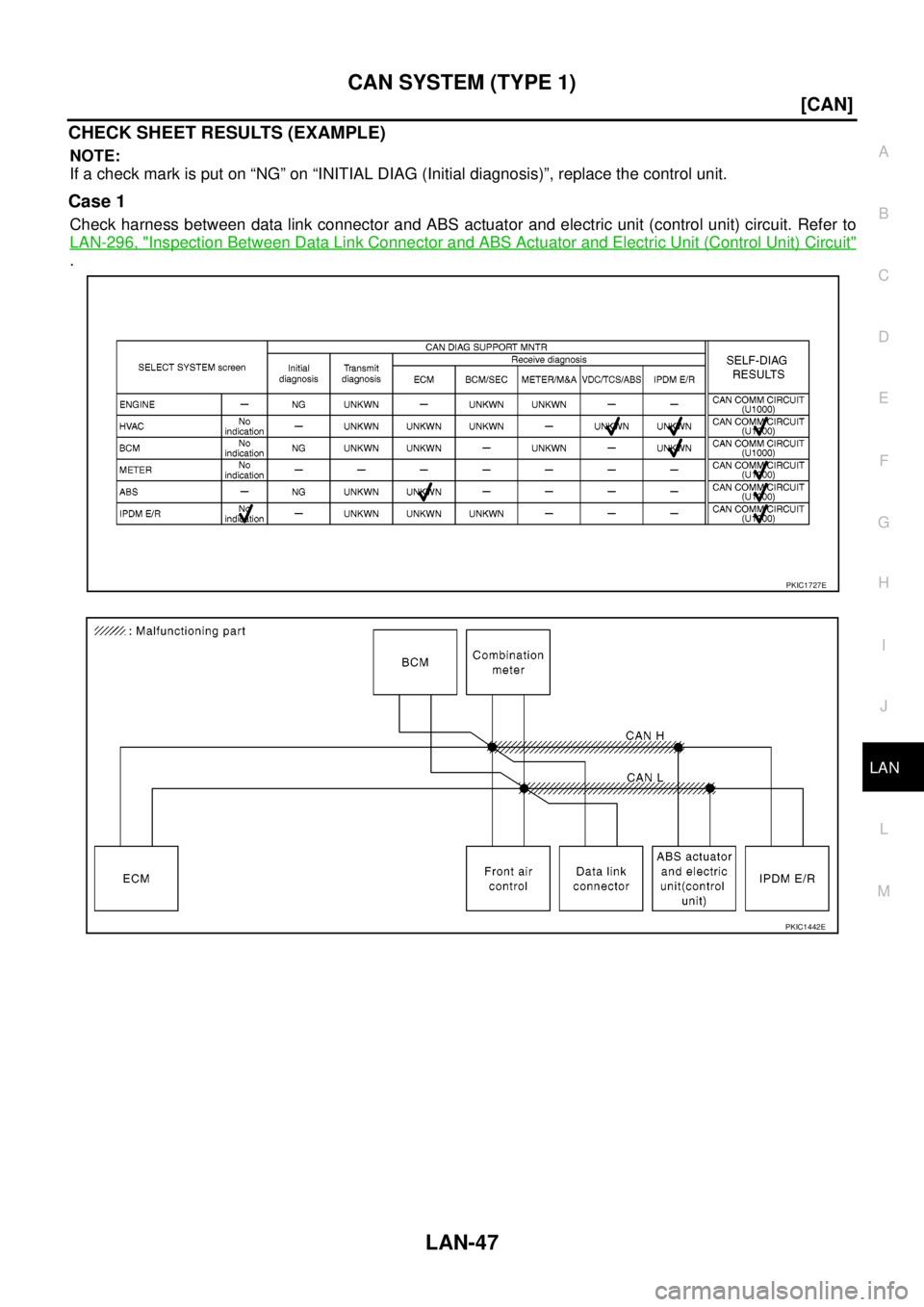

Case 1
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1727E
PKIC1442E

LAN-48
[CAN]
CAN SYSTEM (TYPE 1)

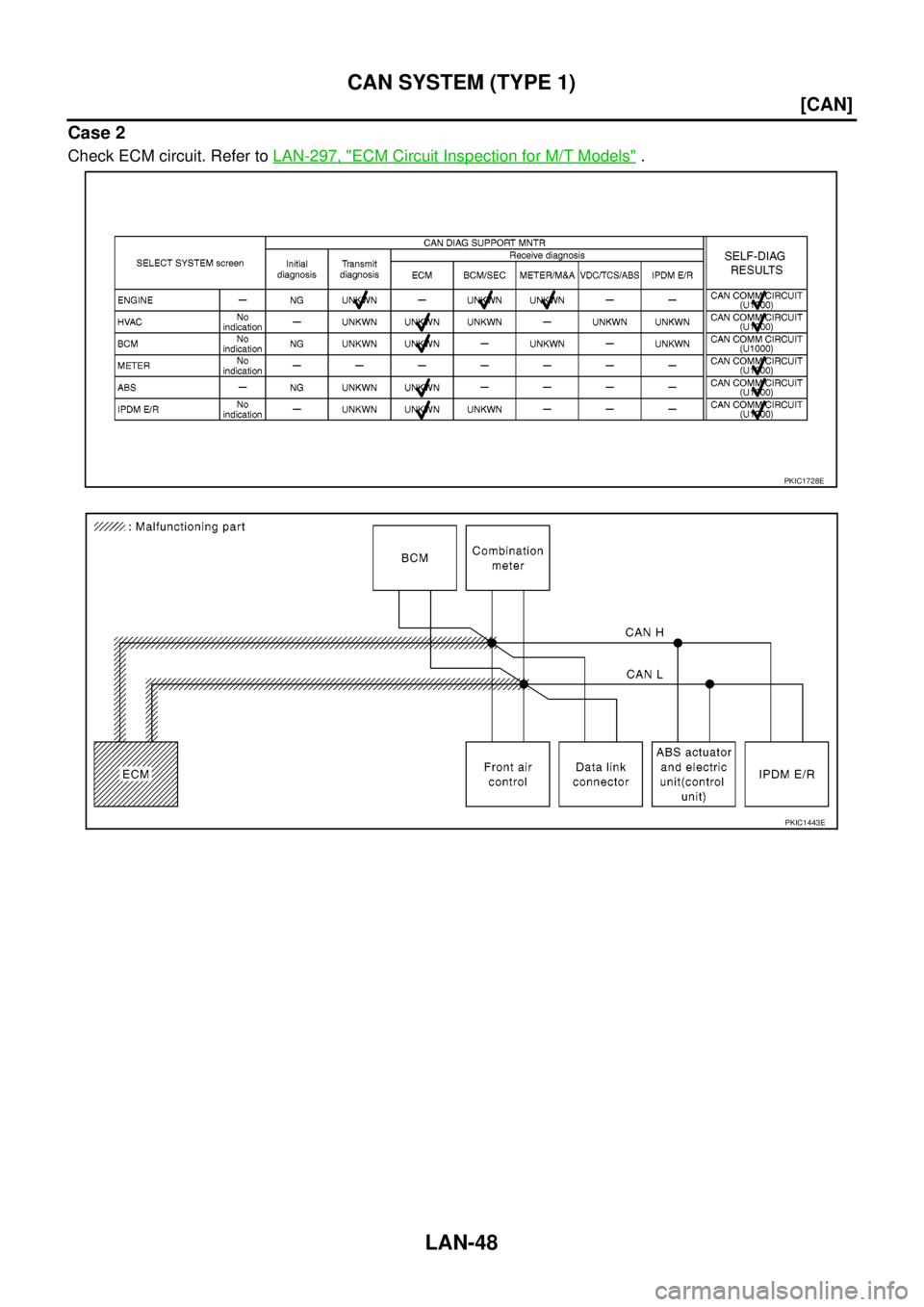

Case 2
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1728E
PKIC1443E

CAN SYSTEM (TYPE 1)
LAN-49
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

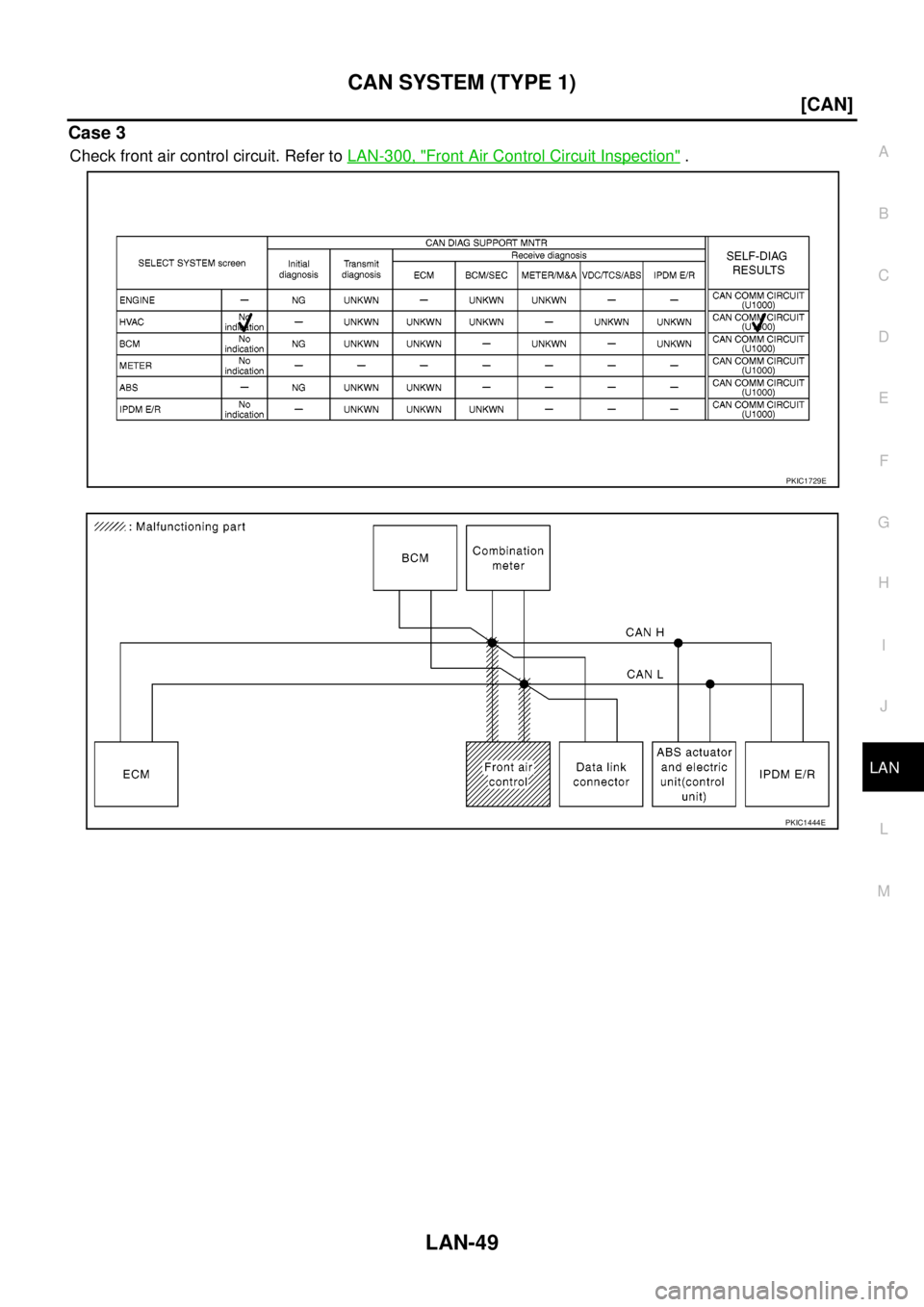

Case 3
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1729E
PKIC1444E

LAN-50
[CAN]
CAN SYSTEM (TYPE 1)

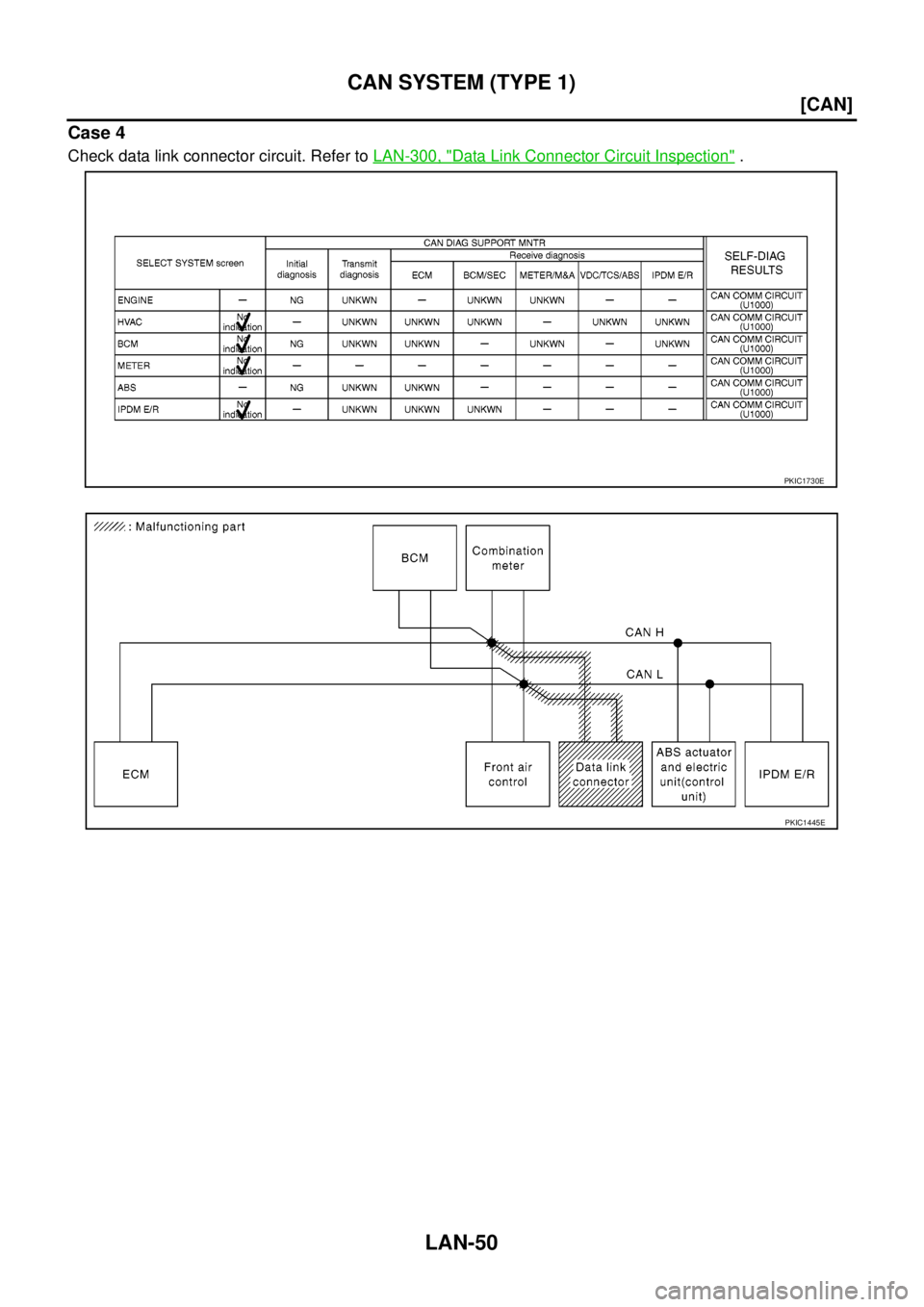

Case 4
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1730E
PKIC1445E

CAN SYSTEM (TYPE 1)
LAN-51
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

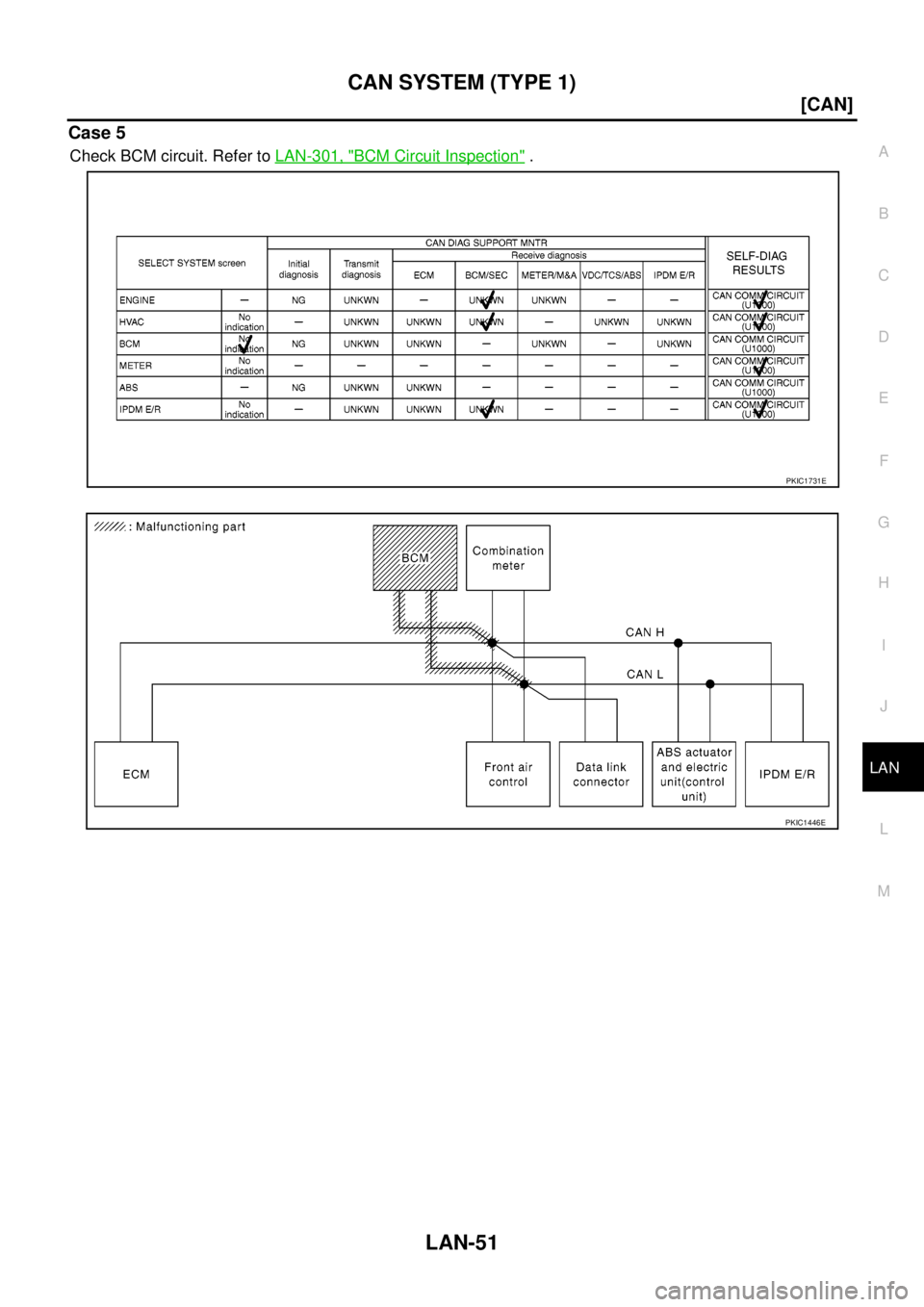

Case 5
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1731E
PKIC1446E

LAN-52
[CAN]
CAN SYSTEM (TYPE 1)

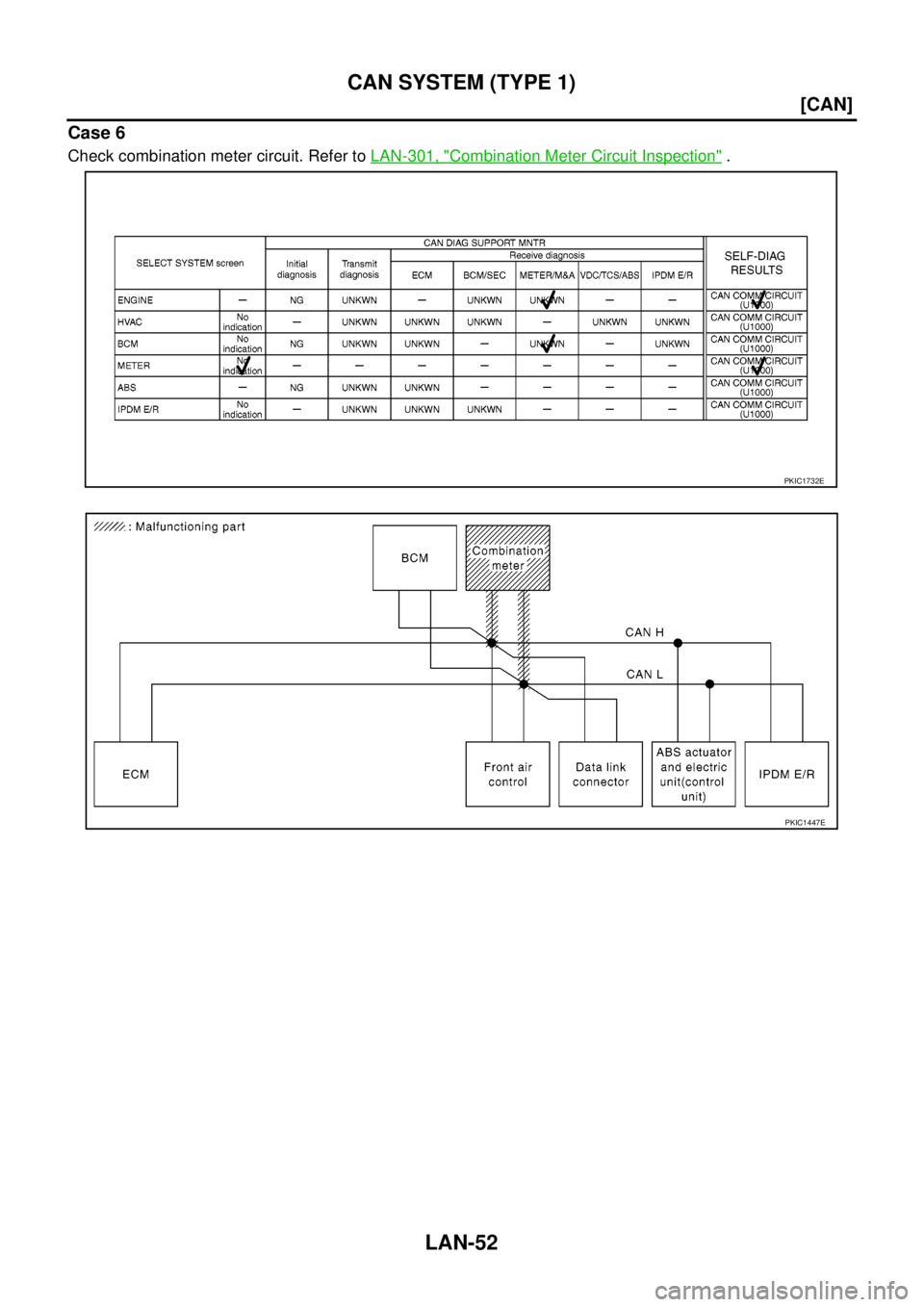

Case 6
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1732E
PKIC1447E

CAN SYSTEM (TYPE 1)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

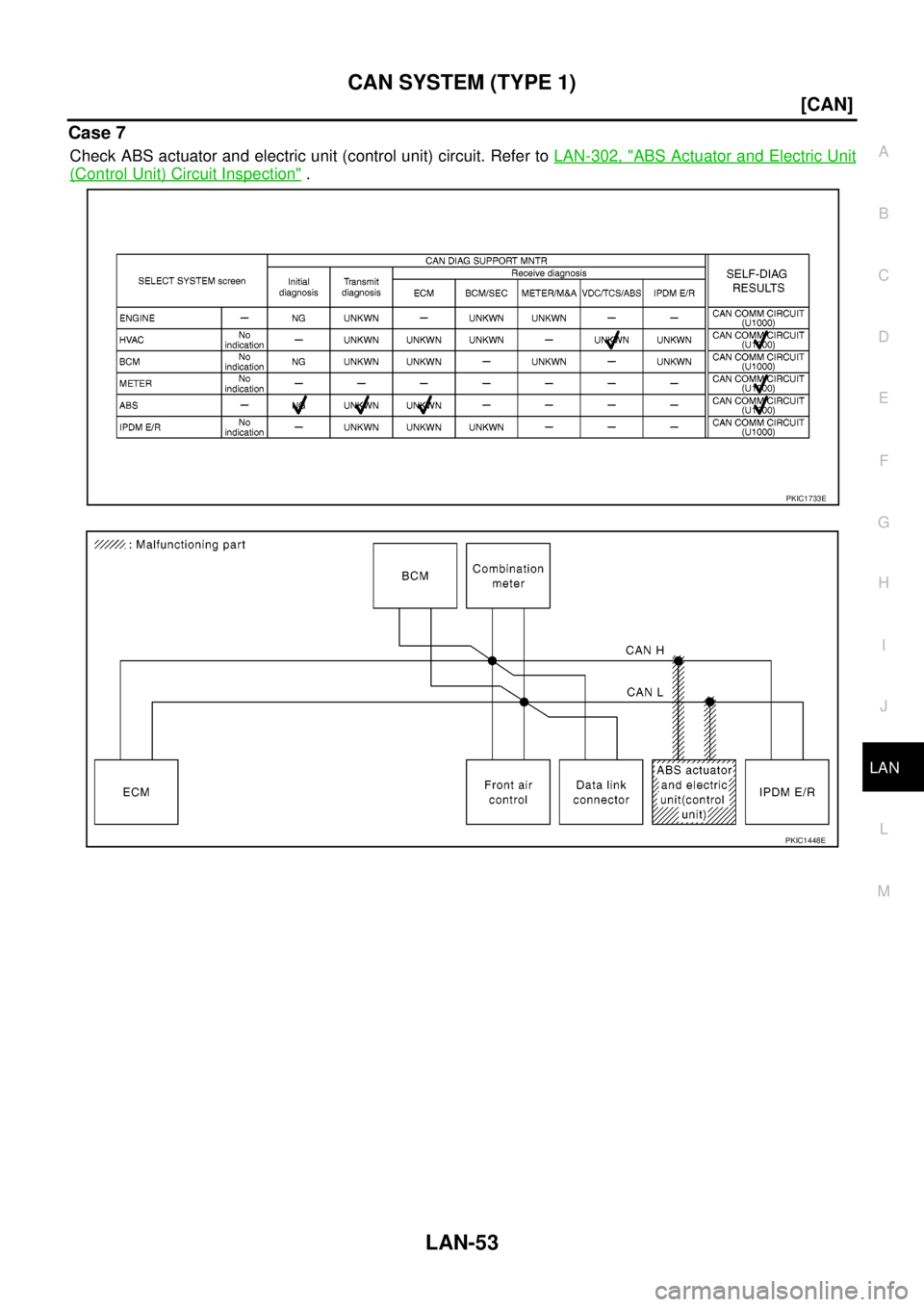

Case 7
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1733E
PKIC1448E
